Professional handheld thermography camera — 384 × 288 (110,592 pixels) detector, interchangeable batteries, full on-camera analysis

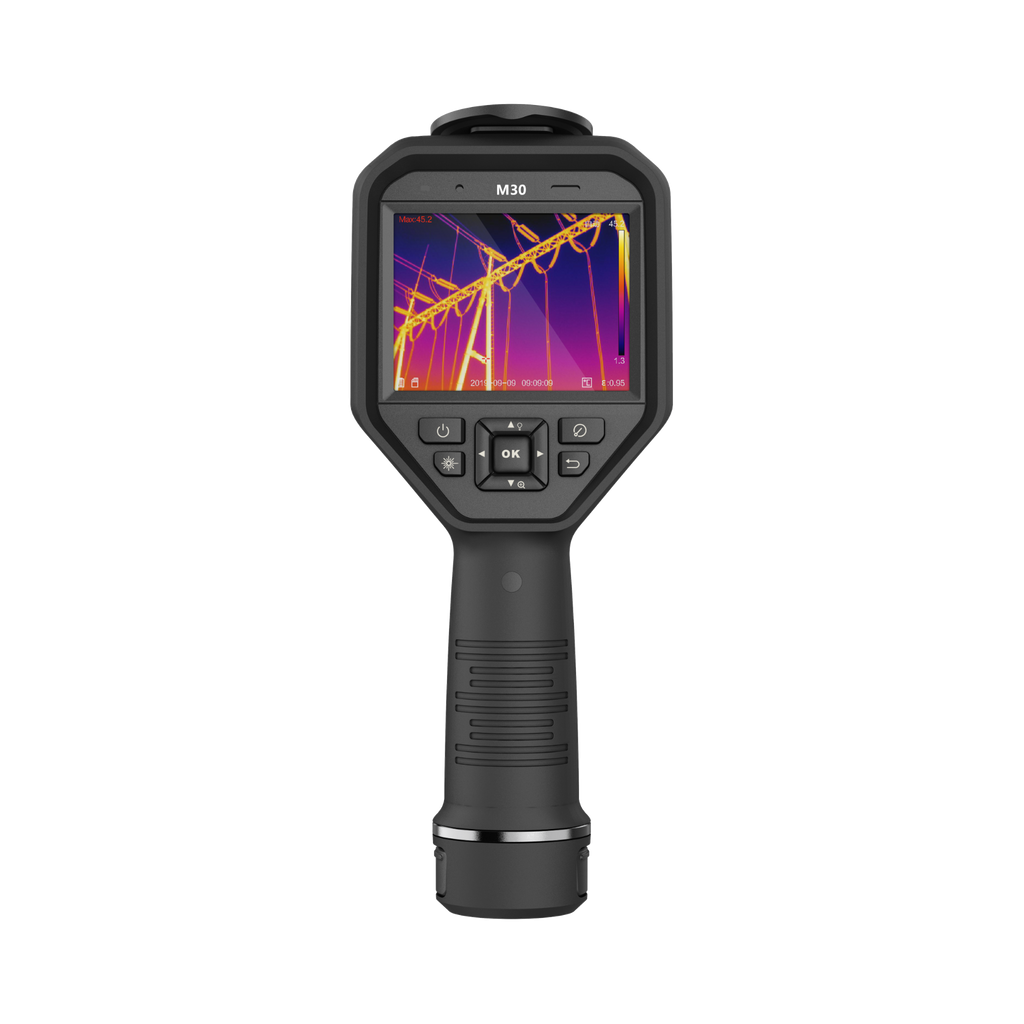

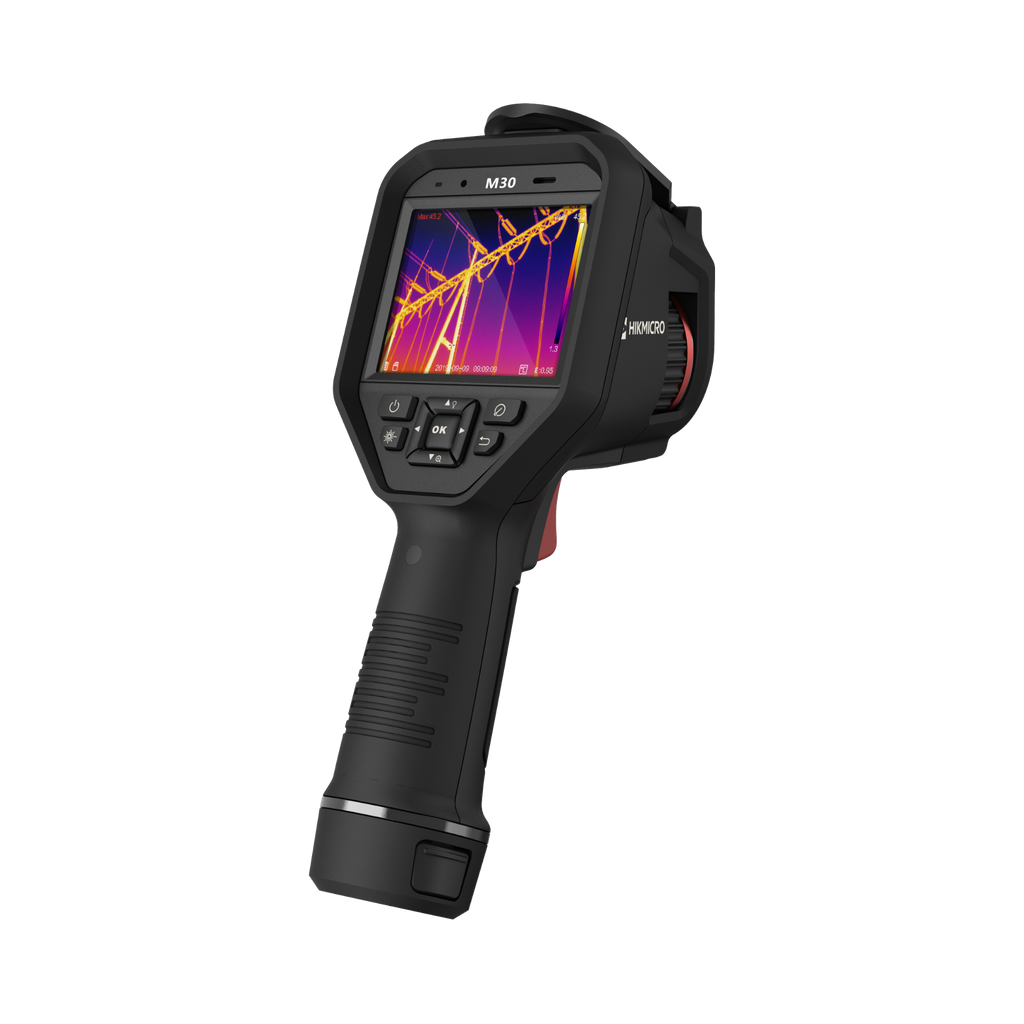

The HIKMICRO M30 is a professional handheld thermography camera built for inspection work that has to be documented. A 384 × 288 (110,592 pixels) detector and an 8 MP visual camera feed a 3.5-inch touchscreen, with on-camera measurement rules, colour alarms and voice or text annotations so the analysis happens at the asset rather than back at the desk. Two interchangeable batteries and a dual-bay charger come in the box, which is what makes a full inspection route practical.
Key features
- 384 × 288 (110,592 pixels) VOx detector — NETD < 35 mK, with SuperIR upscaling to 768 × 576 (442,368 pixels) for more detail in live view and reports
- manual focus lens, 37.5° × 28.5° field of view — Adjusting the focus ring brings targets as close as 0.2 m into sharp view and keeps distant equipment readable from a safe distance.
- −20 °C to 550 °C measurement range — accuracy ±2 °C / ±2 %, with 17 measurement rules and 7 colour alarm palettes on the camera
- 8 MP visual camera — thermal, visual, fusion, PIP and blending modes for reports that make sense to a client
- 3.5" LCD touchscreen — with 1-Tap level and span, plus physical buttons — use either or both, including with gloves on
- Interchangeable battery system — two Li-ion batteries and a dual-bay charger included, giving approx. 4 hours per battery in the field
- Voice, text and QR code annotations — notes attached to the image at the point of capture, not written up afterwards
- 64 GB removable SD card — expandable to 128 GB
- Wi-Fi 2.4 GHz and 5 GHz — transfer to HIKMICRO Viewer; analyse and report in HIKMICRO Analyzer on PC
- IP54, 2 m drop rating — laser pointer and LED work light fitted; 1/4"-20 tripod thread
Typical applications
- Electrical panels, breakers, busbars and cable terminations
- Preventive maintenance on motors, bearings, pumps and drives
- HVAC commissioning and fault finding
- Building envelope surveys — insulation gaps, thermal bridges, air leakage
- Underfloor heating loops and concealed pipework
- Damp, leak and water ingress tracing
- Solar PV panel and inverter inspection
- Documented condition reports for clients and insurers
Technical specifications
| Detector type | Uncooled VOx focal plane array |
| IR resolution | 384 × 288 (110,592 pixels) |
| SuperIR | 768 × 576 (442,368 pixels) |
| Thermal sensitivity (NETD) | < 35 mK (@ 25 °C, F#=1.0) |
| Focal length | 10 mm |
| Field of view | 37.5° × 28.5° |
| Focus mode | Manual |
| Minimum focus distance | 0.2 m |
| Visual camera | 3264 × 2448 (8 MP) |
| Display | 3.5" LCD touchscreen, 640 × 480 |
| Image modes | Thermal / visual / fusion / PIP / blending |
| Temperature range | −20 °C to 550 °C |
| Accuracy | ±2 °C / ±2 % (ambient 15 °C to 35 °C, object above 0 °C) |
| Level and span | Auto / manual / 1-Tap touchscreen |
| Annotations | Voice note (max. 60 s), text note (max. 200 characters), QR code scan |
| Storage media | Removable 64 GB micro SD card, expandable to 128 GB |
| Connectivity | Wi-Fi 802.11 b/g/n (2.4 GHz and 5 GHz); Bluetooth; USB-C |
| Laser pointer | Yes, Class II |
| LED work light | Yes |
| Battery | Interchangeable Li-ion, approx. 4 hours per battery |
| Protection level | IP54 |
| Drop test height | 2 m |
| Tripod mount | UNC 1/4"-20 |
| Software | HIKMICRO Viewer (mobile), HIKMICRO Analyzer (PC) |
In the box
- HIKMICRO M30 thermal camera with wrist strap
- Interchangeable Li-ion batteries (2 pcs)
- Two-bay battery charger
- Power supply with international plug set
- USB 2.0 A to USB-C cable
- Micro SD card
- Hard carrying case
- Calibration certificate
- Quick start guide
Model information
| Brand | HIKMICRO |
| Model | M30 |
| Manufacturer part number (MPN) | HM-TP23-10VF/W-M30 |
