M20, HM-TP22-7QF/W-M20

Professional handheld thermography camera — 256 × 192 (49,152 pixels) detector, interchangeable batteries, full on-camera analysis

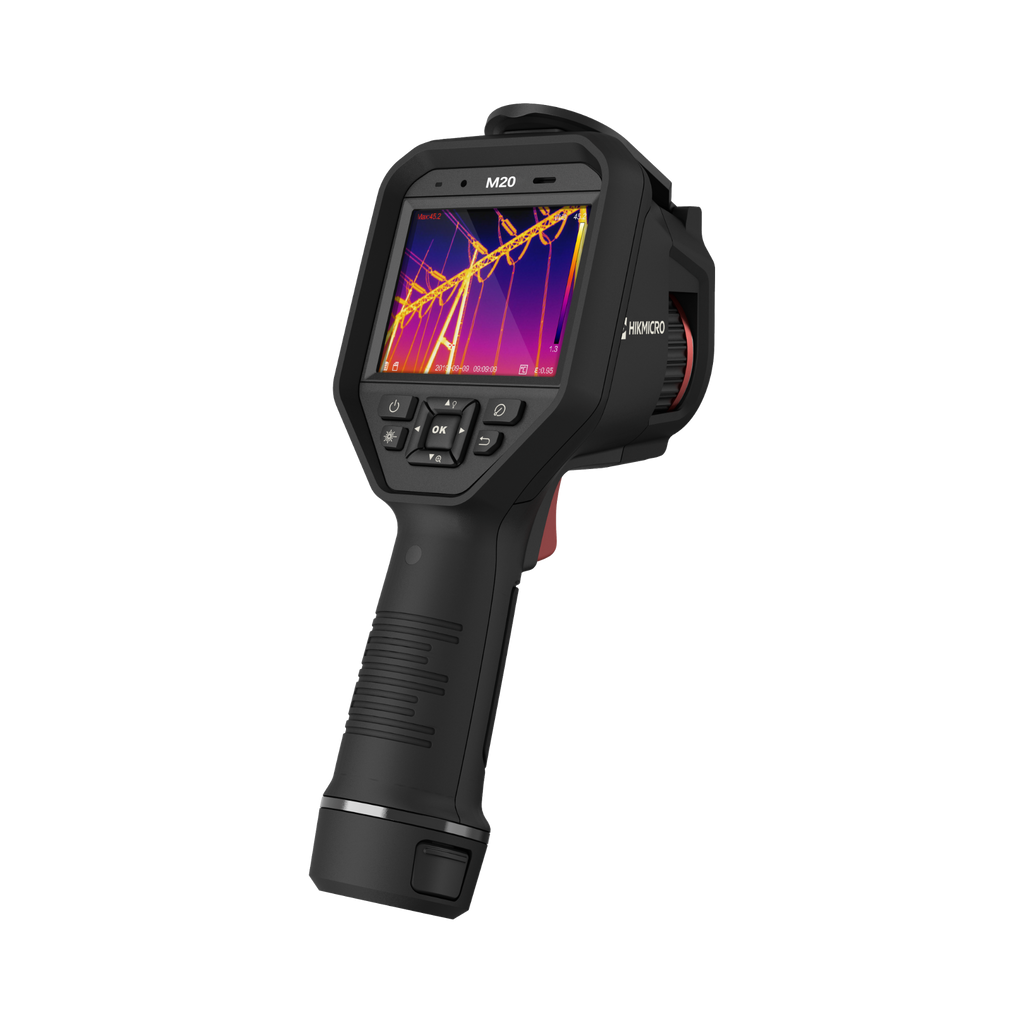

The HIKMICRO M20 is a professional handheld thermography camera built for inspection work that has to be documented. A 256 × 192 (49,152 pixels) detector and an 8 MP visual camera feed a 3.5-inch touchscreen, with on-camera measurement rules, colour alarms and voice or text annotations so the analysis happens at the asset rather than back at the desk. Two interchangeable batteries and a dual-bay charger come in the box, which is what makes a full inspection route practical.

Key features

• 256 × 192 (49,152 pixels) VOx detector — NETD < 40 mK, with SuperIR upscaling to 512 × 384 (196,608 pixels) for more detail in live view and reports

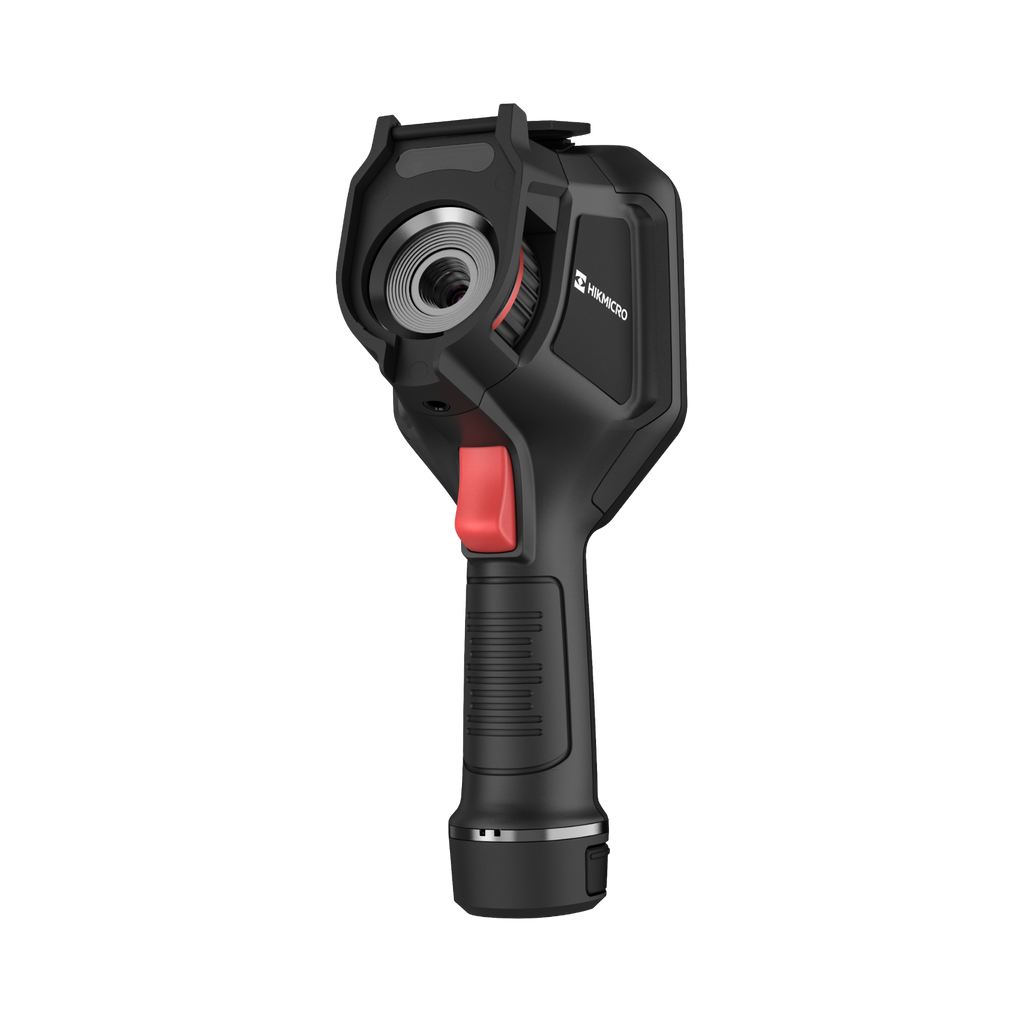

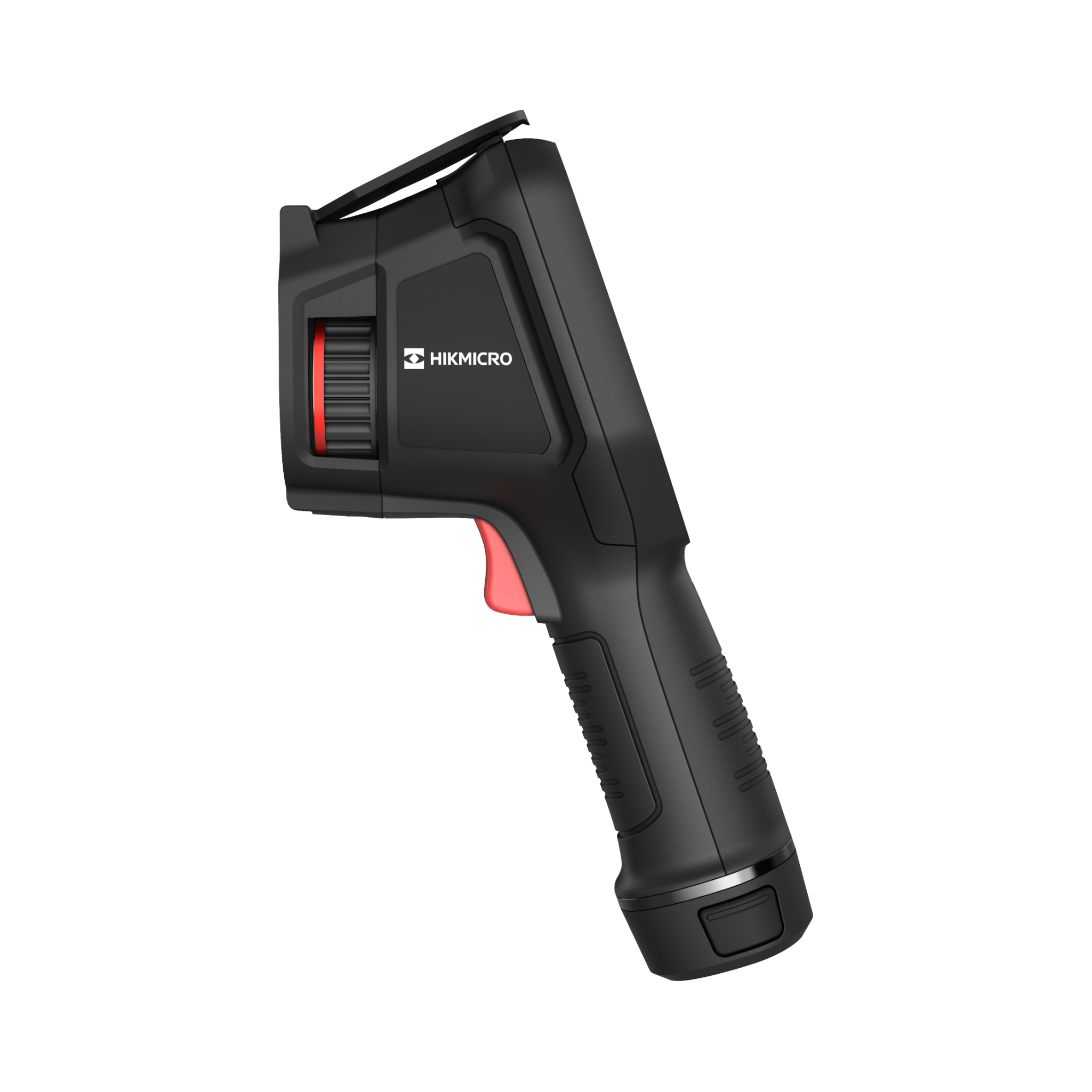

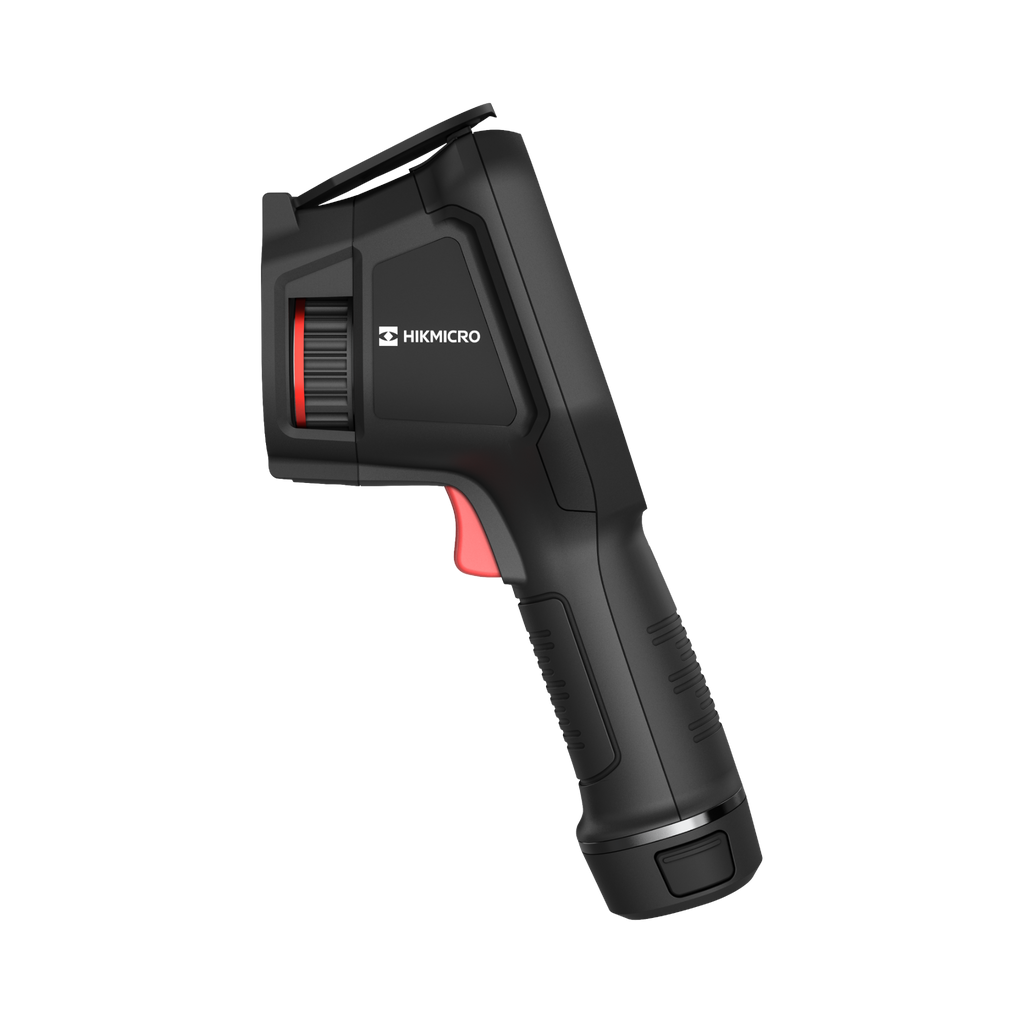

• manual focus lens, 25° × 18.8° field of view — Adjusting the focus ring brings targets as close as 0.1 m into sharp view and keeps distant equipment readable from a safe distance.
• −20 °C to 550 °C measurement range — accuracy ±2 °C / ±2 %, with 17 measurement rules and 7 colour alarm palettes on the camera
• 8 MP visual camera — thermal, visual, fusion, PIP and blending modes for reports that make sense to a client

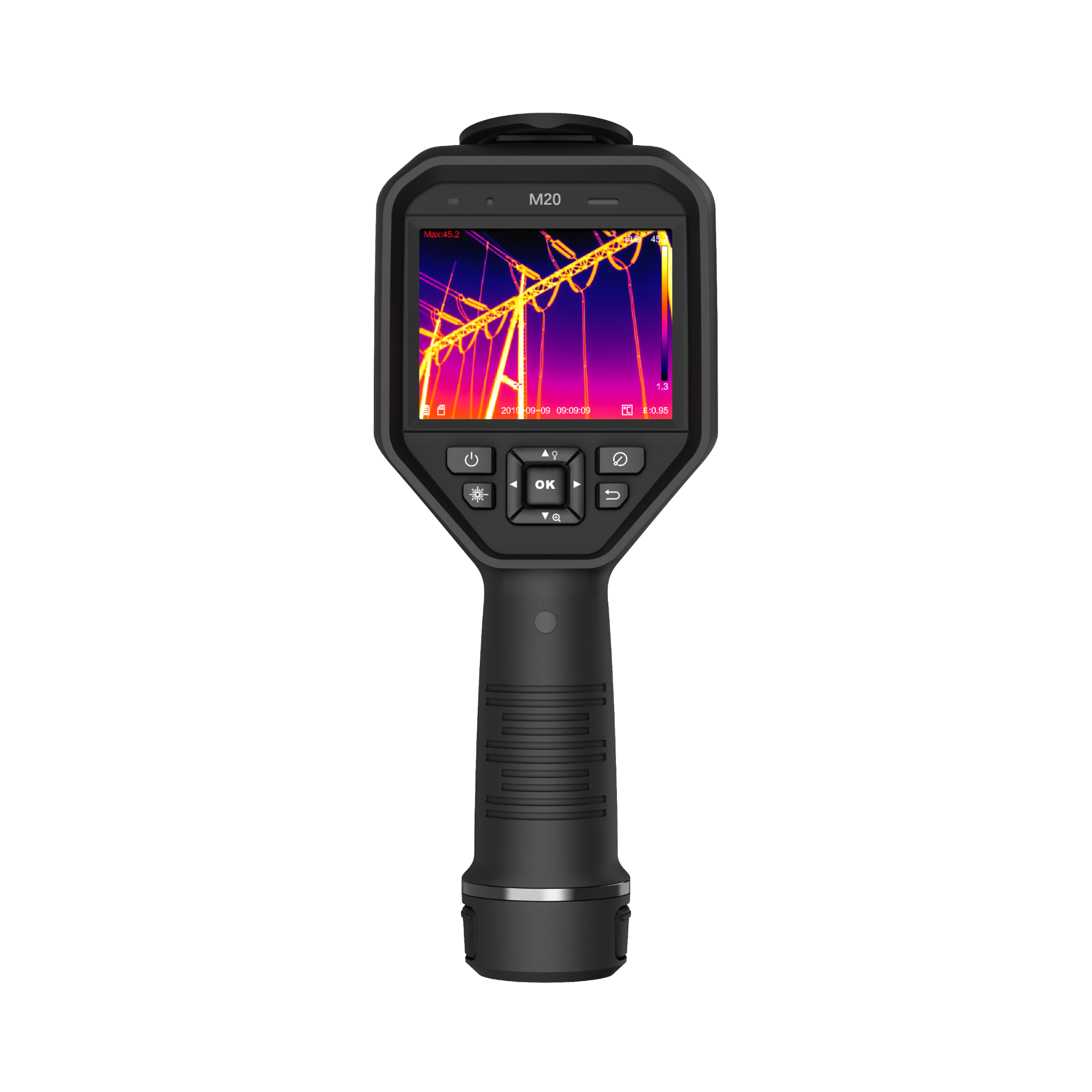

• 3.5" LCD touchscreen — with 1-Tap level and span, plus physical buttons — use either or both, including with gloves on
• Interchangeable battery system — two Li-ion batteries and a dual-bay charger included, giving approx. 6 hours per battery in the field
• Voice, text and QR code annotations — notes attached to the image at the point of capture, not written up afterwards
• 16 GB removable SD card — expandable to 128 GB
• Wi-Fi 2.4 GHz and 5 GHz — transfer to HIKMICRO Viewer; analyse and report in HIKMICRO Analyzer on PC
• IP54, 2 m drop rating — laser pointer and LED work light fitted; 1/4"-20 tripod thread

Typical applications

• Electrical panels, breakers, busbars and cable terminations
• Preventive maintenance on motors, bearings, pumps and drives
• HVAC commissioning and fault finding
• Building envelope surveys — insulation gaps, thermal bridges, air leakage
• Underfloor heating loops and concealed pipework
• Damp, leak and water ingress tracing
• Solar PV panel and inverter inspection
• Documented condition reports for clients and insurers

Technical specifications

In the box

• HIKMICRO M20 thermal camera with wrist strap
• Interchangeable Li-ion batteries (2 pcs)
• Two-bay battery charger
• Power supply with international plug set
• USB 2.0 A to USB-C cable
• Micro SD card
• Hard carrying case
• Calibration certificate
• Quick start guide
