Description

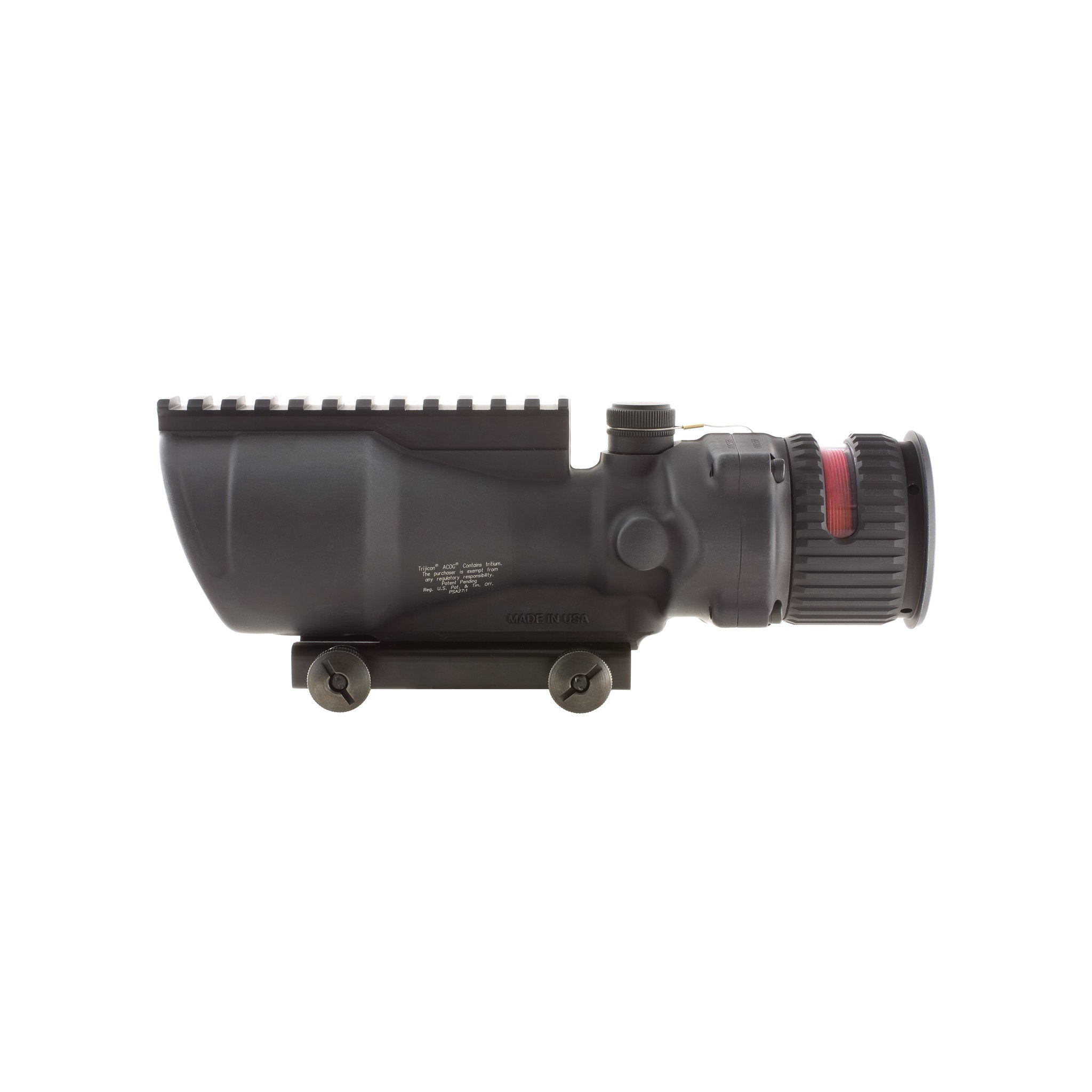

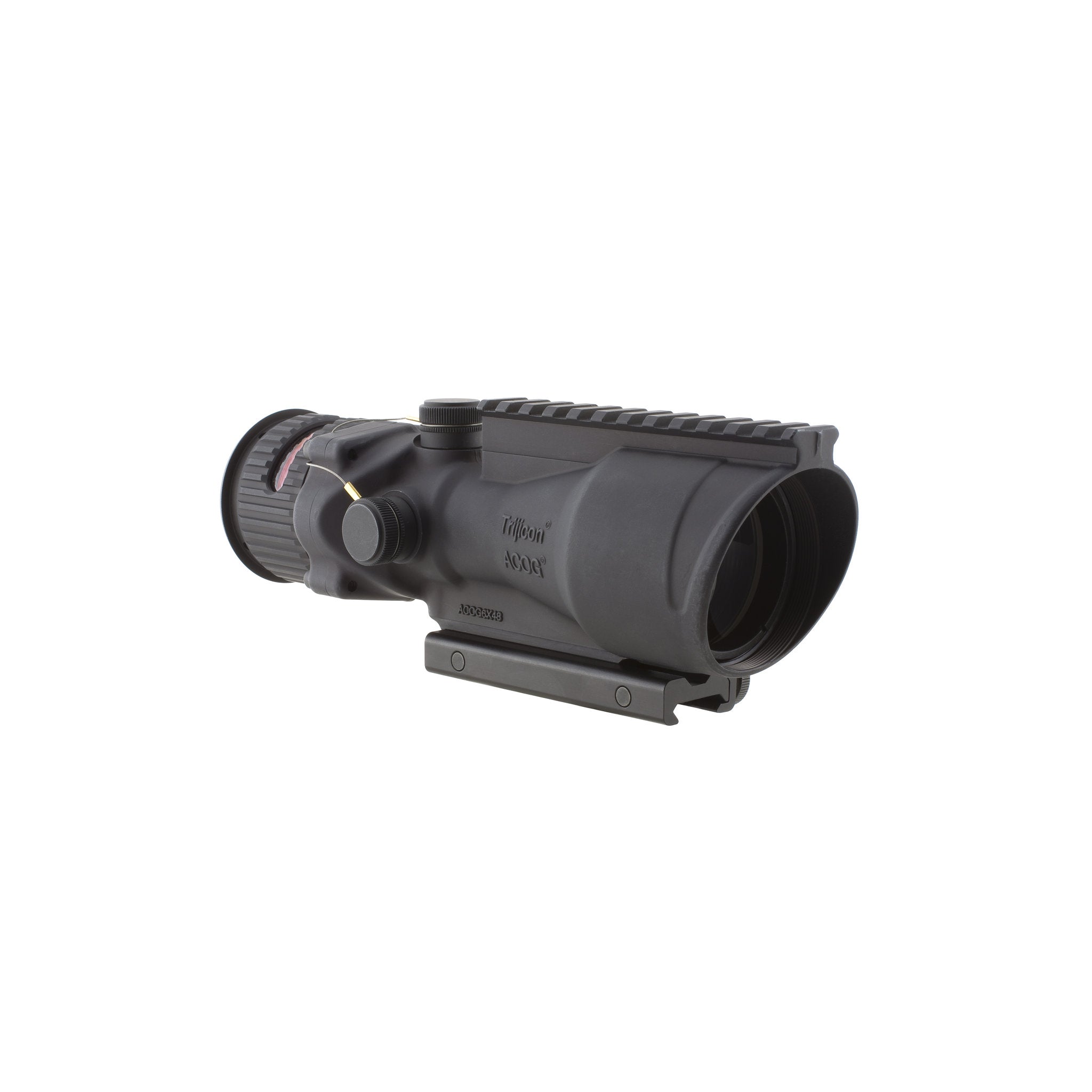

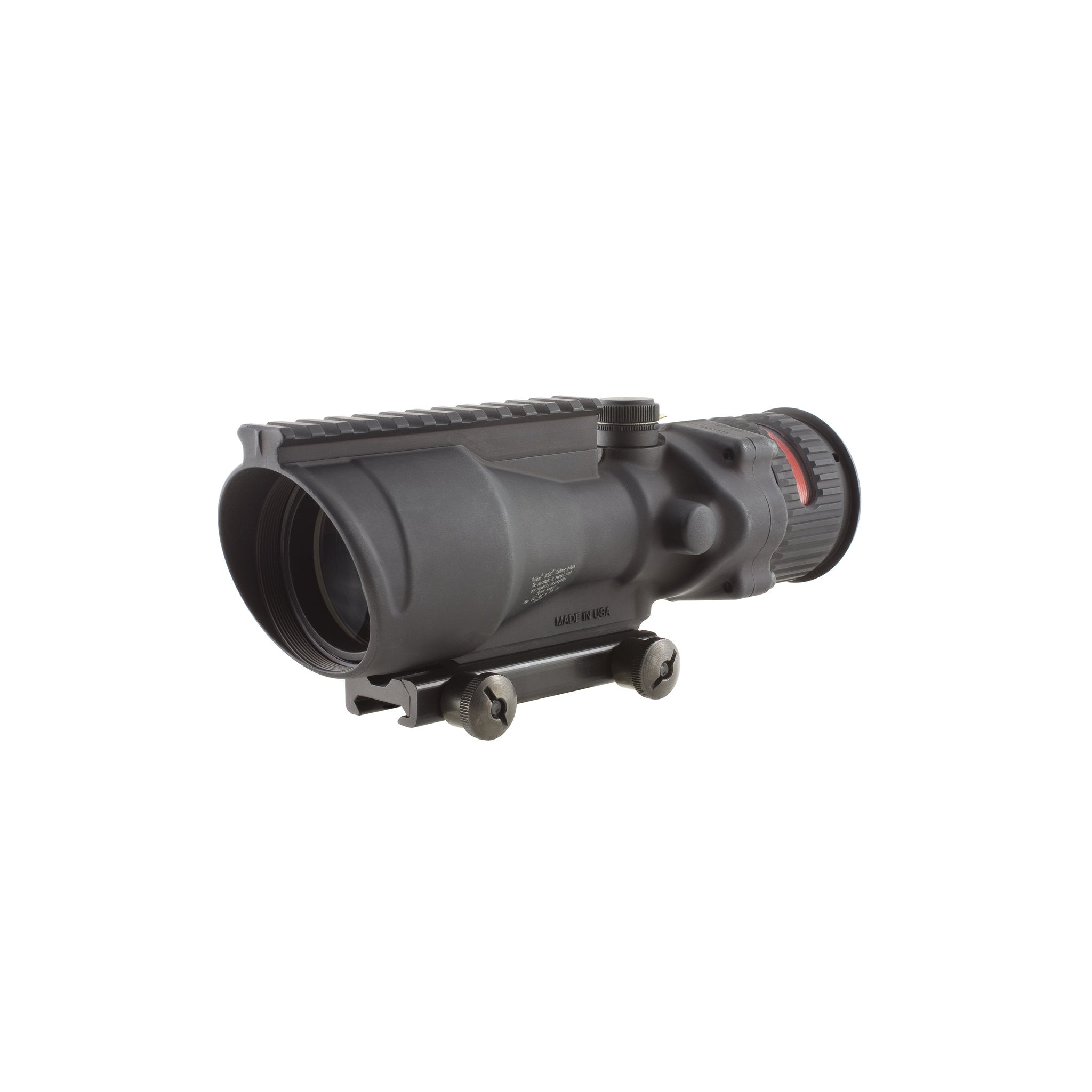

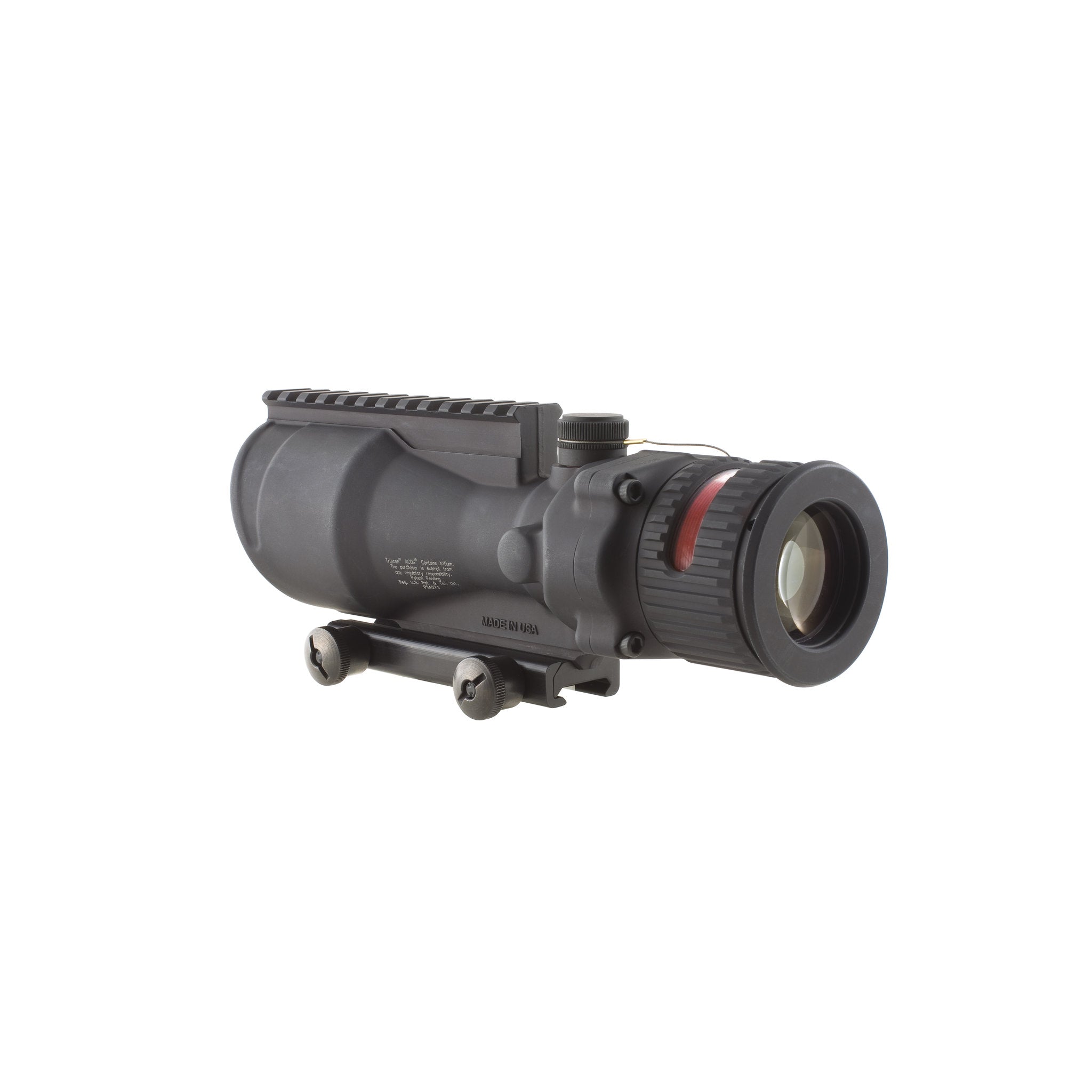

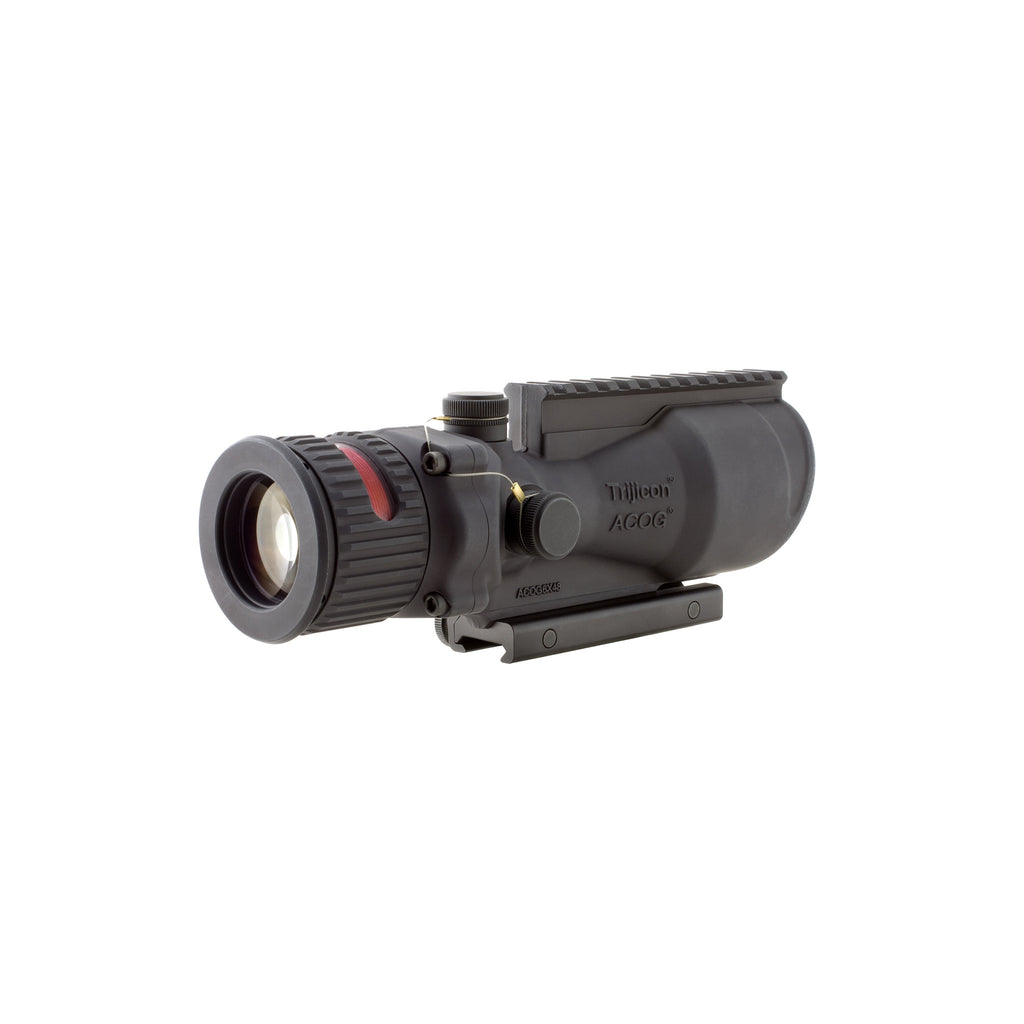

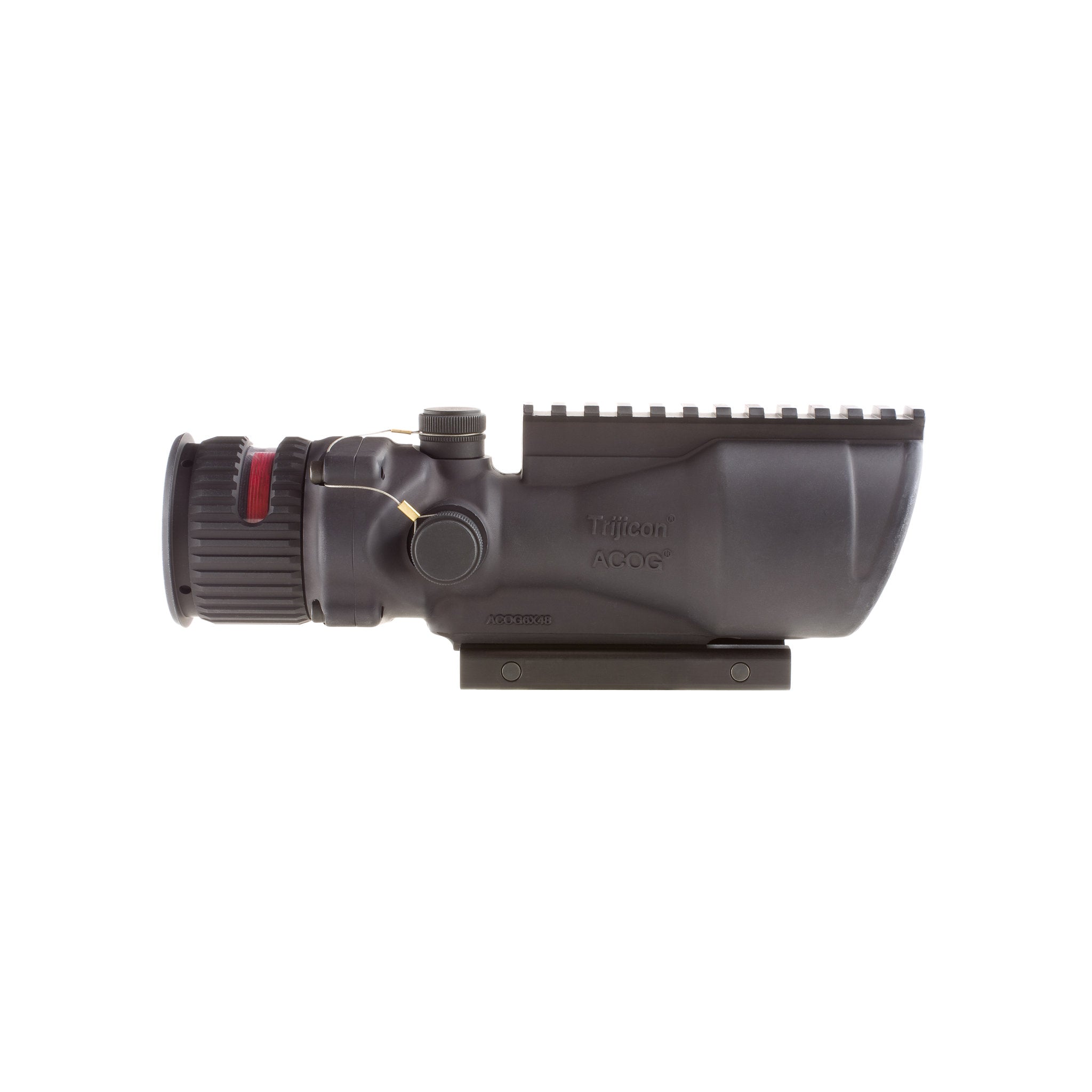

A fixed 6x48 ACOG riflescope with a self-luminous red chevron reticle and a bullet drop compensator for .50 BMG, for military and professional heavy-calibre users.
This ACOG combines 6x magnification with a 48mm objective to improve target identification and hit probability on extended-range shots.
Its red chevron reticle is illuminated by fibre optics and tritium, and the bullet drop compensator adds aiming points estimated for the .50 BMG round out to 1800 metres.
The scope comes with the TA75 thumbscrew mount, a Picatinny rail adapter.
Key features
- Self-luminous reticle — The fibre optic and tritium illuminated reticle adjusts its brightness automatically to the available light.

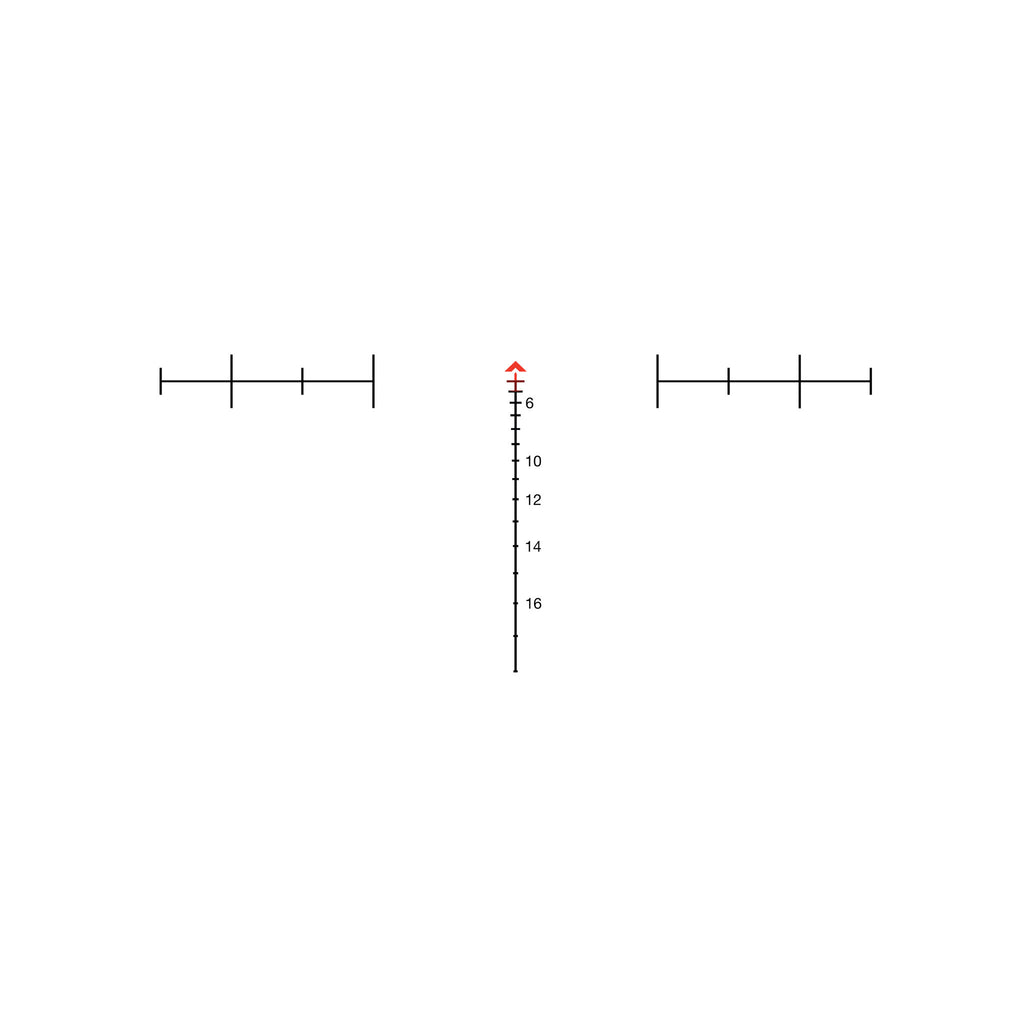

- .50 BMG BDC reticle — The red chevron aiming point is backed by a bullet drop compensator with aiming points for the .50 BMG round out to 1800 metres.
- Both eyes open — The Bindon Aiming Concept (BAC) allows aiming with both eyes open for improved situational awareness and target acquisition.
- Fixed-power housing — The fixed-power design keeps moving parts to a minimum inside a forged aluminium housing.
- Recoil resistant — The optic is proven to withstand recoil from a .22LR to a .50BMG and passes U.S. Military drop test requirements.
- Waterproof and fog-free — The dry nitrogen-filled housing mitigates fogging, and the scope is waterproof to a submersion depth of 66 ft. (20m).
- Multi-coated optics — Multi-coated lenses maximise light gathering and give a clear field of view.
Typical applications
- Magnified sighting for heavy machine guns and rifles chambered in .50 BMG.
- Extended-range target identification and engagement for military units.
- Operation in wet, cold or hot conditions without fogging.
Technical specifications
| Length × width × height | 9 in x 2.9 in x 3.4 in (228.6mm x 73.66mm x 86.36mm) |
| Weight | 36.9 oz. (1,046.1g) |
| Magnification | 6x |
| Objective size | 48mm |
| Reticle pattern | Chevron |
| Day reticle colour | Red |
| Night reticle colour | Red |
| Bullet drop compensation (BDC) | Yes |
| Calibre | .50 BMG |
| Bindon Aiming Concept (BAC) | Yes |
| Illumination source | Fiber Optics & Tritium |
| Power source | Fiber Optics & Tritium |
| Adjustment | 4 clicks per in. @100 yards |
| Eye relief | 2.7 in. (68.58mm) |
| Exit pupil | 0.32 in. (8.13mm) |
| Field of view (degrees) | 3.3° |
| Field of view (distance) | 17 ft. @ 100 yds. (5.67m @ 100m) |
| Mount | TA75 |
| Housing material | Forged Aluminum |
| Finish | Matte Black |
| Submersion depth | 66 ft. (20m) |
In the box
- 1 × ACOG® 6x48 BAC Riflescope -.50 BMG — Red Chevron Reticle, Thumbscrew Mount,Tritium / Fiber Optics Illuminated, Matte Black
- Picatinny Rail Adapter (TA75)
- LENSPEN (TA56)
- Lanyard Assembly for Adjuster Caps (TA107)
- Trijicon Logo Sticker (PR15)
- ACOG Manual
- Warranty Card
Model information
| Brand | Trijicon |
| Model | ACOG® 6x48 BAC Riflescope -.50 BMG — Red Chevron Reticle, Thumbscrew Mount,Tritium / Fiber Optics Illuminated, Matte Black |
| MPN | TA648-50 |
