Description
A fixed 6x48 ACOG riflescope with a red chevron .308 / 7.62 BDC reticle for users who need extended-range hits with a self-luminous sight.

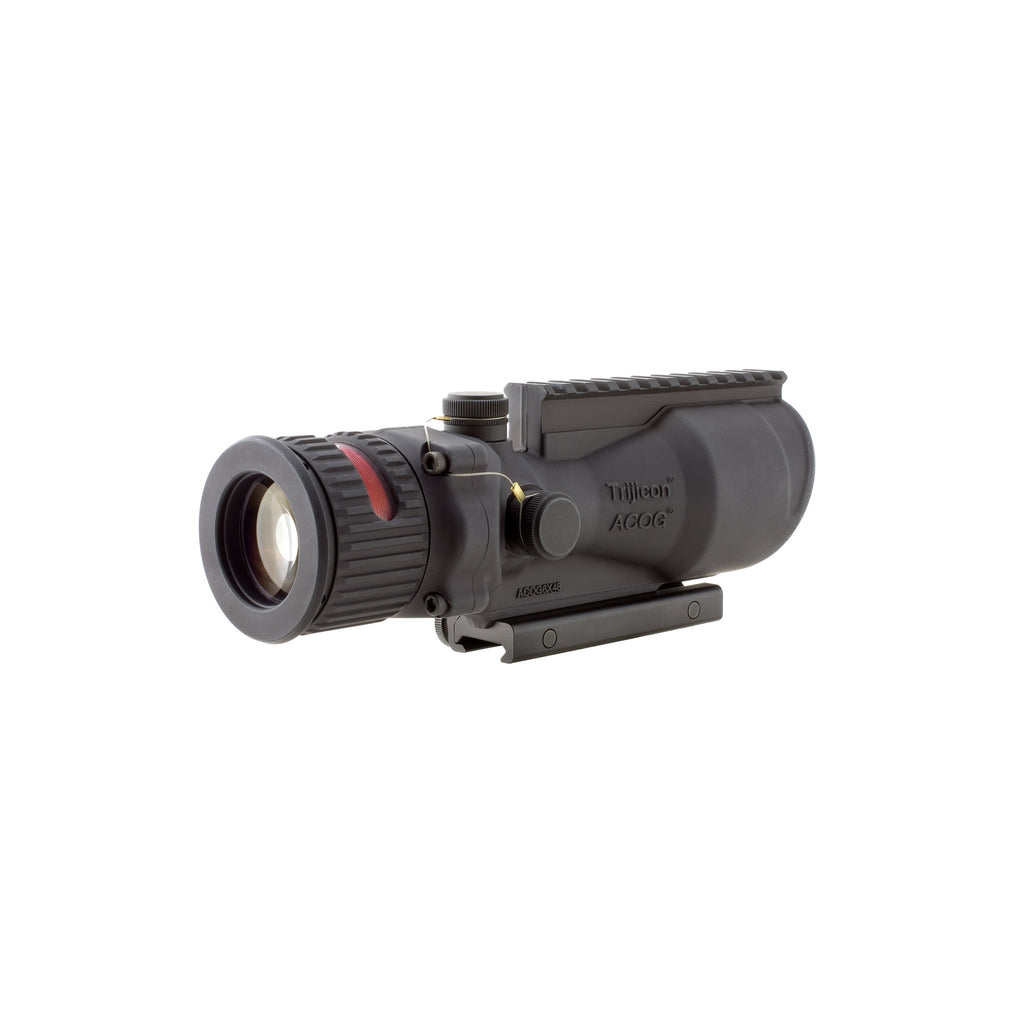

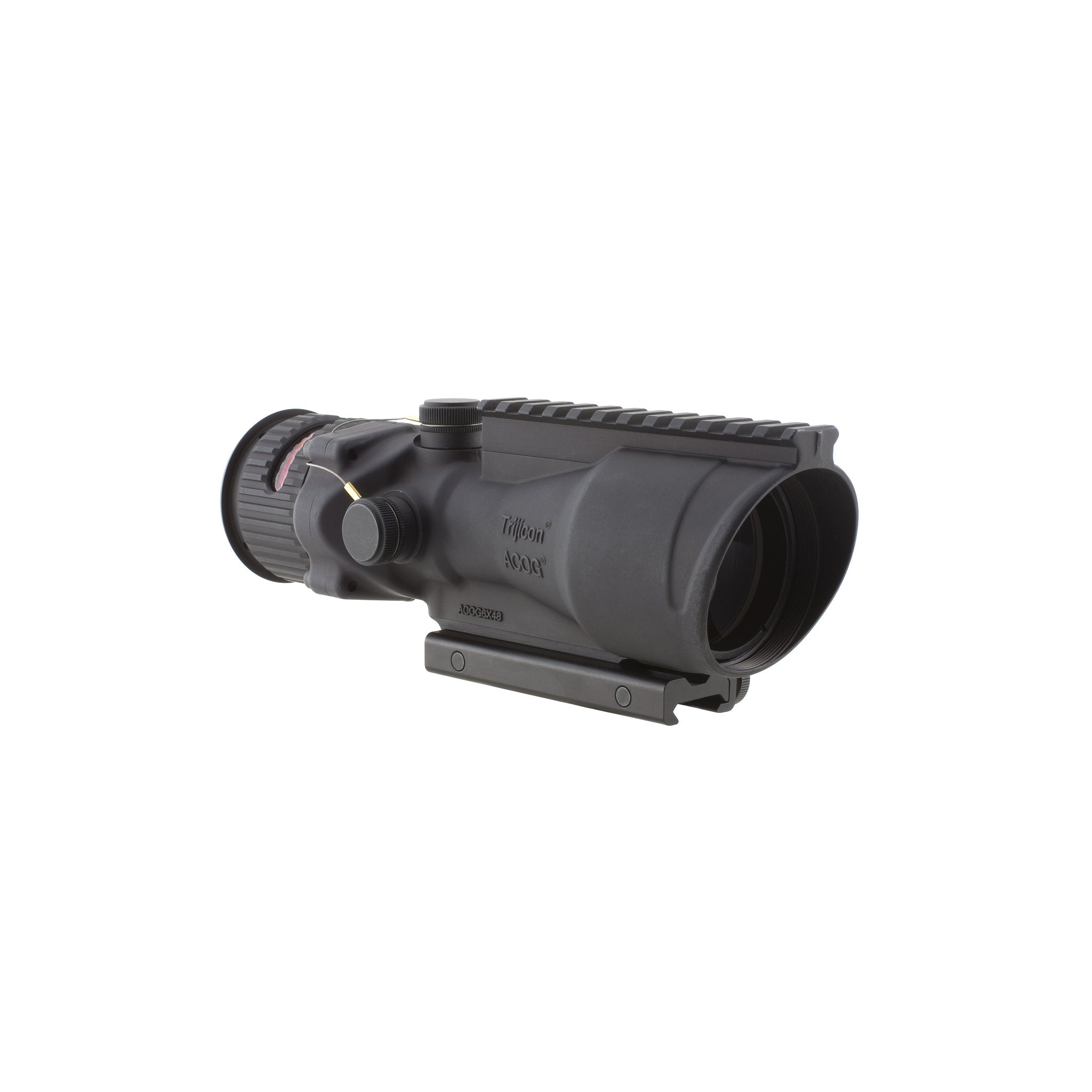

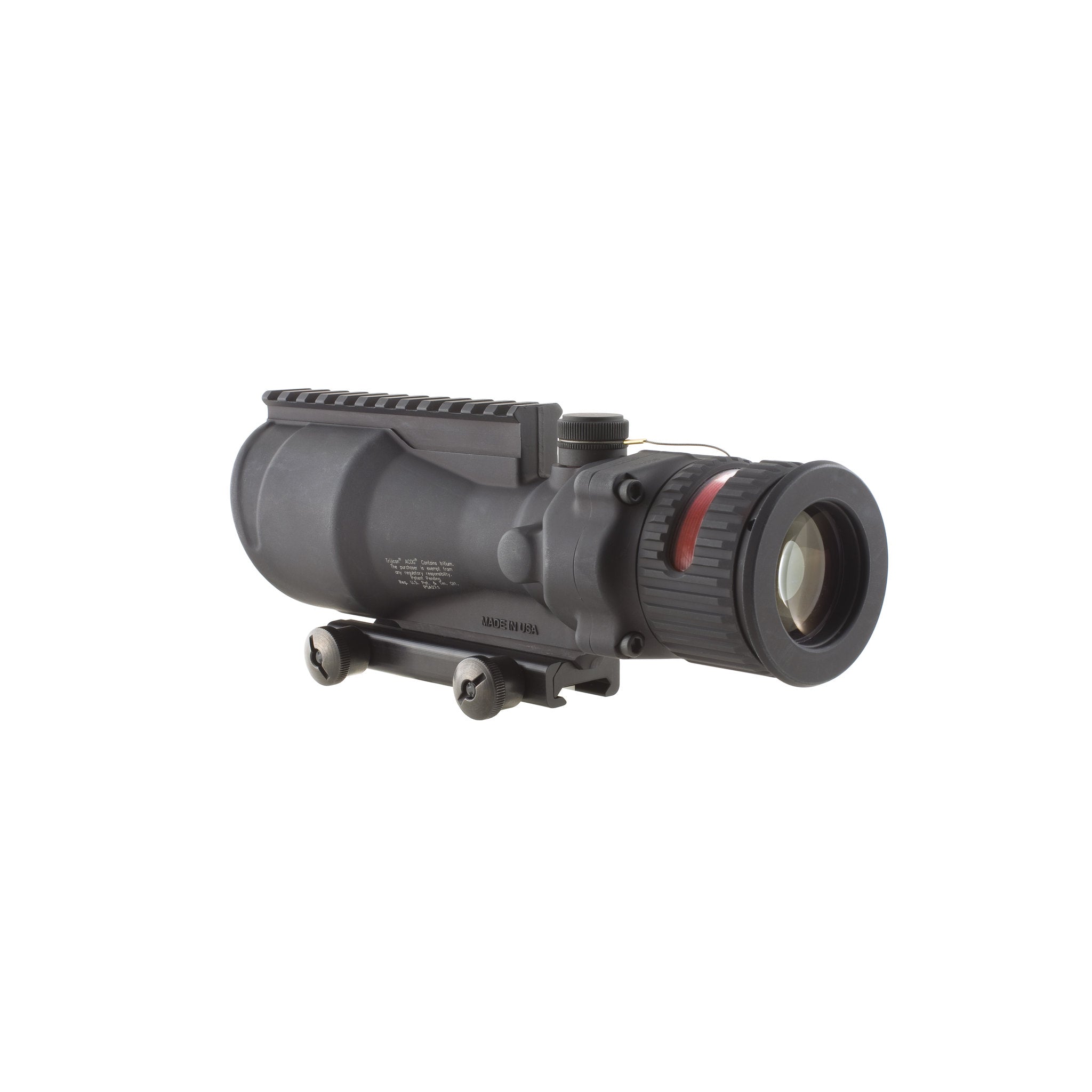

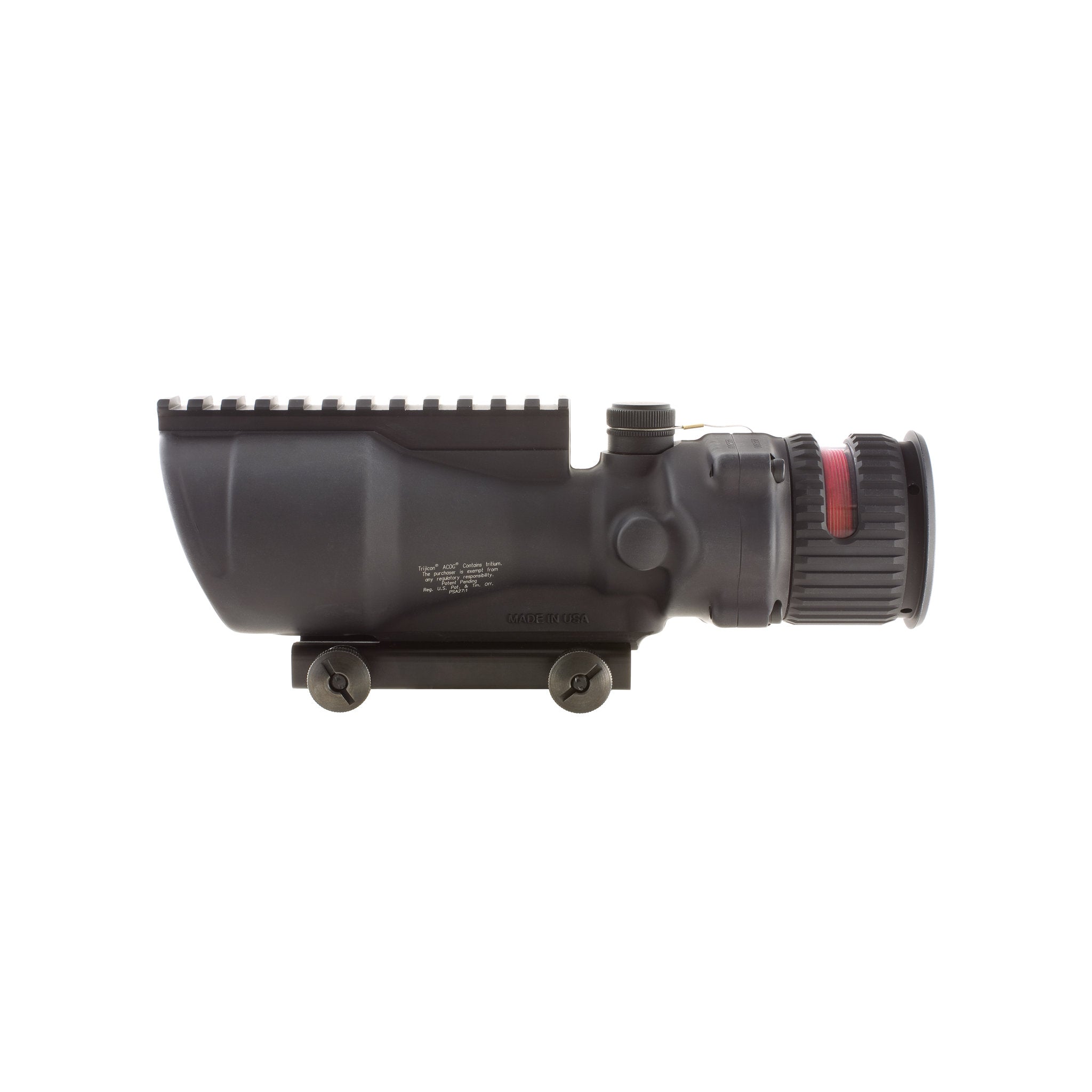

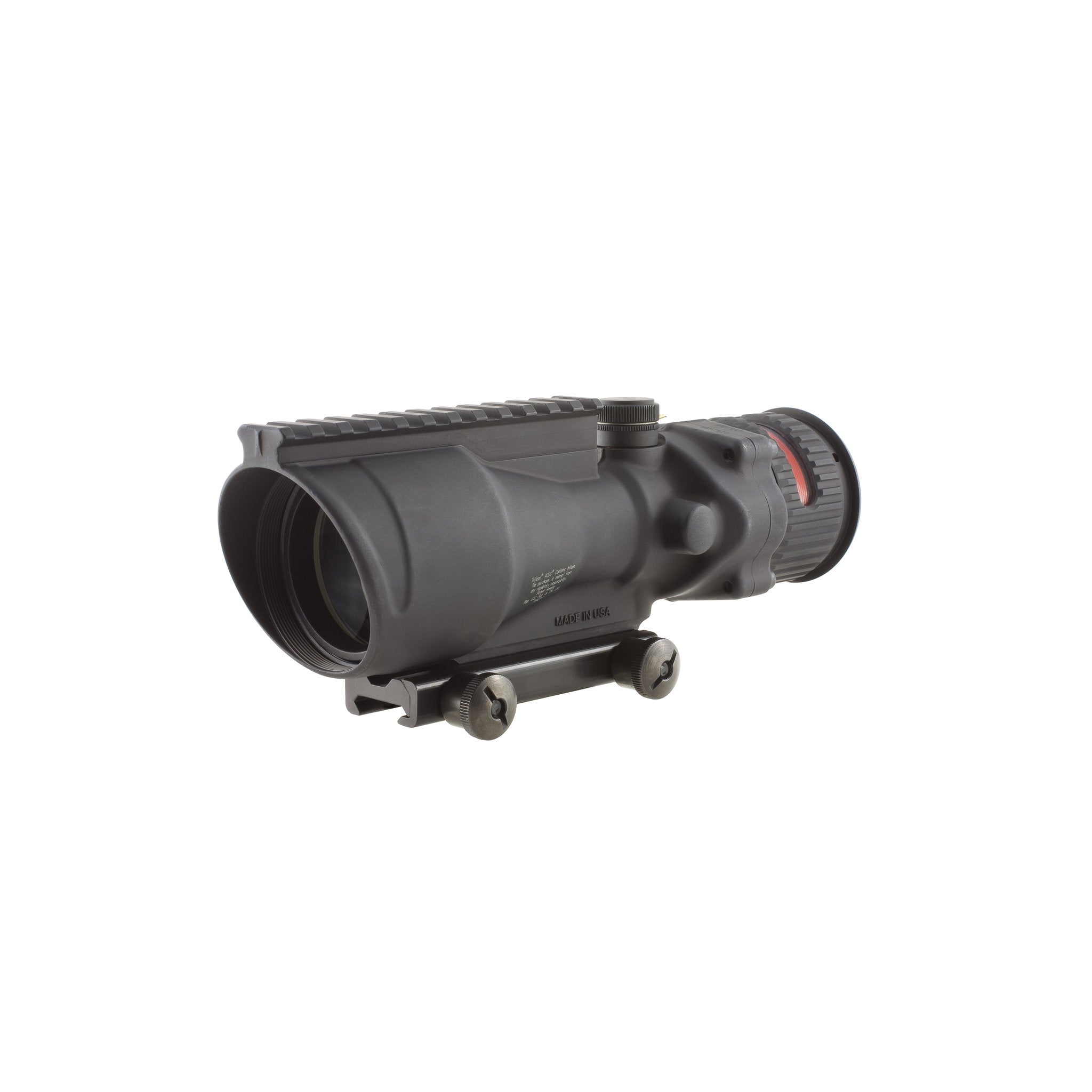

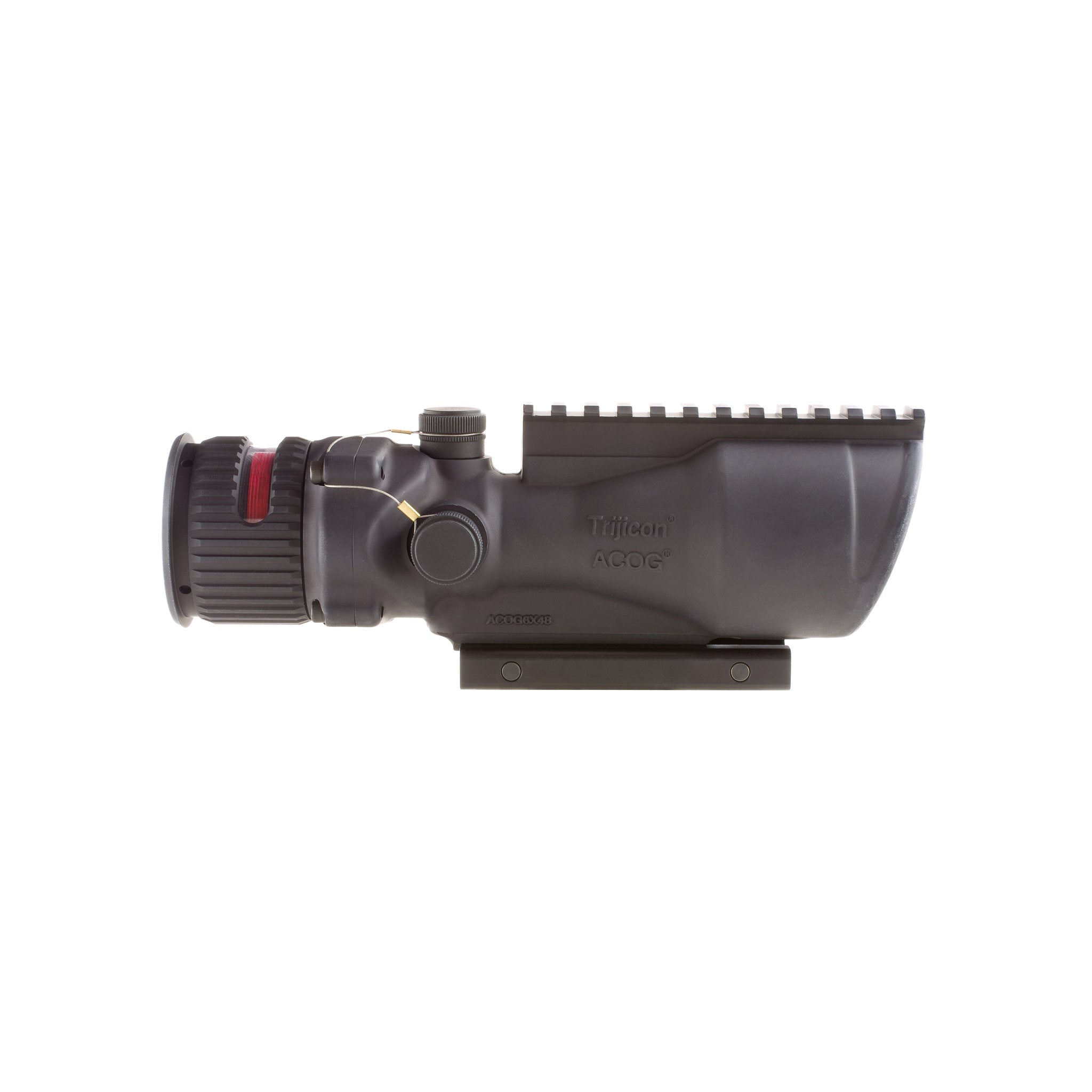

The Trijicon ACOG 6x48 is a fixed 6x magnification riflescope with a 48mm objective, designed as a magnified, self-luminous tactical sight that enhances target identification and hit probability on extended-range shots.

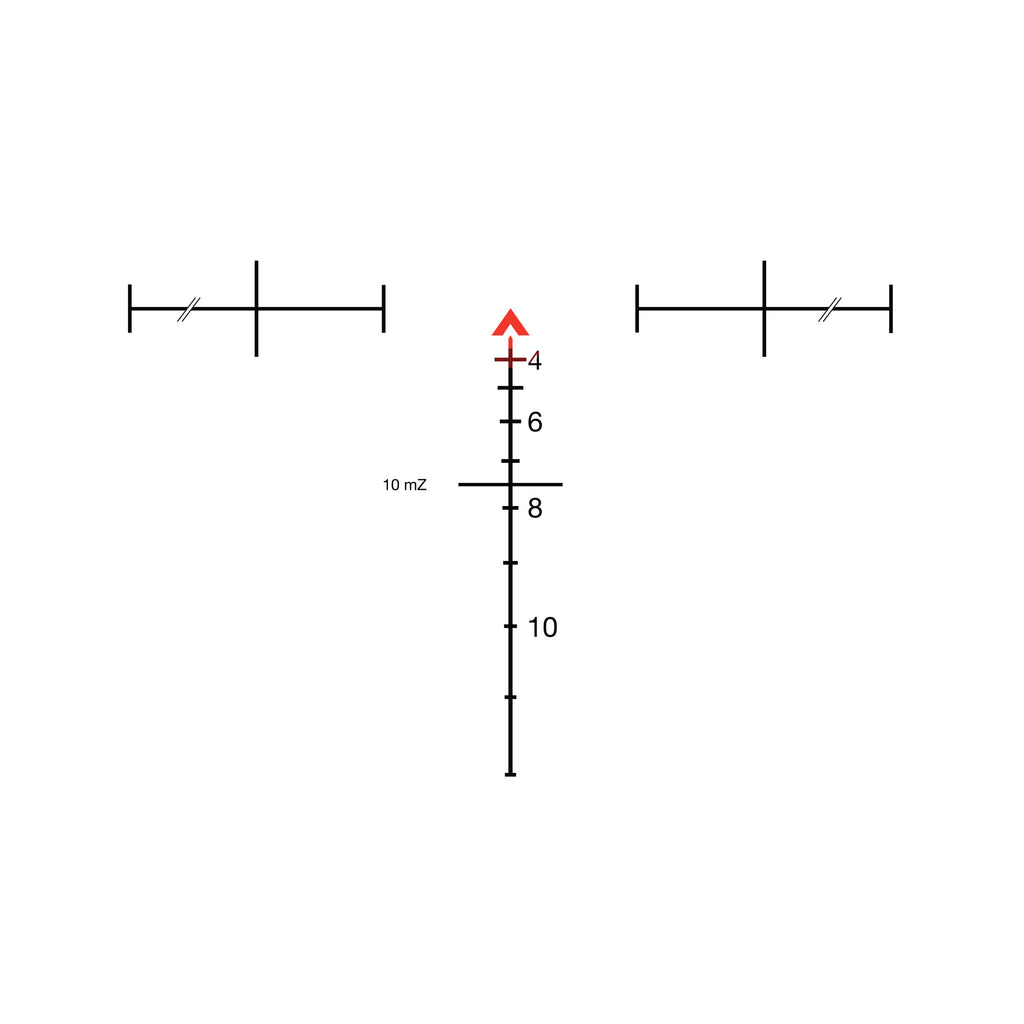

Its red chevron reticle is illuminated by fibre optics and tritium for a self-luminous aiming point, and the sight includes a bullet drop compensator with aiming points estimated for the trajectory of the 7.62mm M80 out to 1200 metres.
The sight comes with a thumbscrew mount and a Picatinny Rail Adapter (TA75), and the housing is forged aluminium in a matte black finish.
Key features
- Battery-free illumination — The fibre optic and tritium illuminated reticle adjusts its brightness automatically to the available light.
- Bindon Aiming Concept — The Bindon Aiming Concept (BAC) allows both-eyes-open aiming for improved situational awareness and faster target acquisition.
- .308 / 7.62 BDC reticle — The bullet drop compensator provides additional aiming points estimated for the 7.62mm M80 out to 1200 metres.
- Fixed-power design — The fixed-power design keeps moving parts to a minimum for a rugged, reliable sighting system.
- Shock resistant — The sight is proven to withstand recoil from a .22LR to a .50BMG and passes U.S. Military drop test requirements.
- Waterproof, nitrogen-filled — The dry nitrogen-filled housing mitigates fogging, and the sight is waterproof to 66 feet.
- Multi-coated lenses — Quality glass and multi-coated lenses maximise light gathering and give a clear field of view.
Typical applications
- Extended-range engagements with .308 / 7.62 rifles where a magnified day and night sight is needed.
- Military users who require a self-luminous, rugged optic for demanding field conditions.
- Target identification and observation at distance with both eyes open for situational awareness.
Technical specifications
| Length × width × height | 9 in x 2.9 in x 3.4 in (228.6mm x 73.66mm x 86.36mm) |
| Weight | 36.9 oz. (1,046.1g) |
| Magnification | 6x |
| Objective size | 48mm |
| Reticle pattern | Chevron |
| Day reticle colour | Red |
| Night reticle colour | Red |
| Bullet drop compensation (BDC) | Yes |
| Calibre | .308 / 7.62 |
| Bindon Aiming Concept (BAC) | Yes |
| Illumination source | Fiber Optics & Tritium |
| Power source | Fiber Optics & Tritium |
| Adjustment | 4 clicks per in. @100 yards |
| Eye relief | 2.7 in. (68.58mm) |
| Exit pupil | 0.32 in. (8.13mm) |
| Field of view (degrees) | 3.3° |
| Field of view (distance) | 17 ft. @ 100 yds. (5.67m @ 100m) |
| Mount | TA75 |
| Housing material | Forged Aluminum |
| Finish | Matte Black |
| Operating temperature | 66F (18.89c) |
In the box
- 1 × ACOG® 6x48 BAC Riflescope - .308 / 7.62 BDC — Red Chevron Reticle, Thumbscrew Mount,Tritium / Fiber Optics Illuminated, Matte Black
- Picatinny Rail Adapter (TA75)
- LENSPEN (TA56)
- Lanyard Assembly for Adjuster Caps (TA107)
- Trijicon Logo Sticker (PR15)
- ACOG Manual
- Warranty Card
Model information
| Brand | Trijicon |
| Model | ACOG® 6x48 BAC Riflescope - .308 / 7.62 BDC — Red Chevron Reticle, Thumbscrew Mount,Tritium / Fiber Optics Illuminated, Matte Black |
| MPN | TA648-308 |
