Description
A fixed 5.5x50 ACOG riflescope with a red chevron .223 / 5.56 BDC reticle, for users of 5.56 rifles who need magnified, illuminated aiming by day and night.

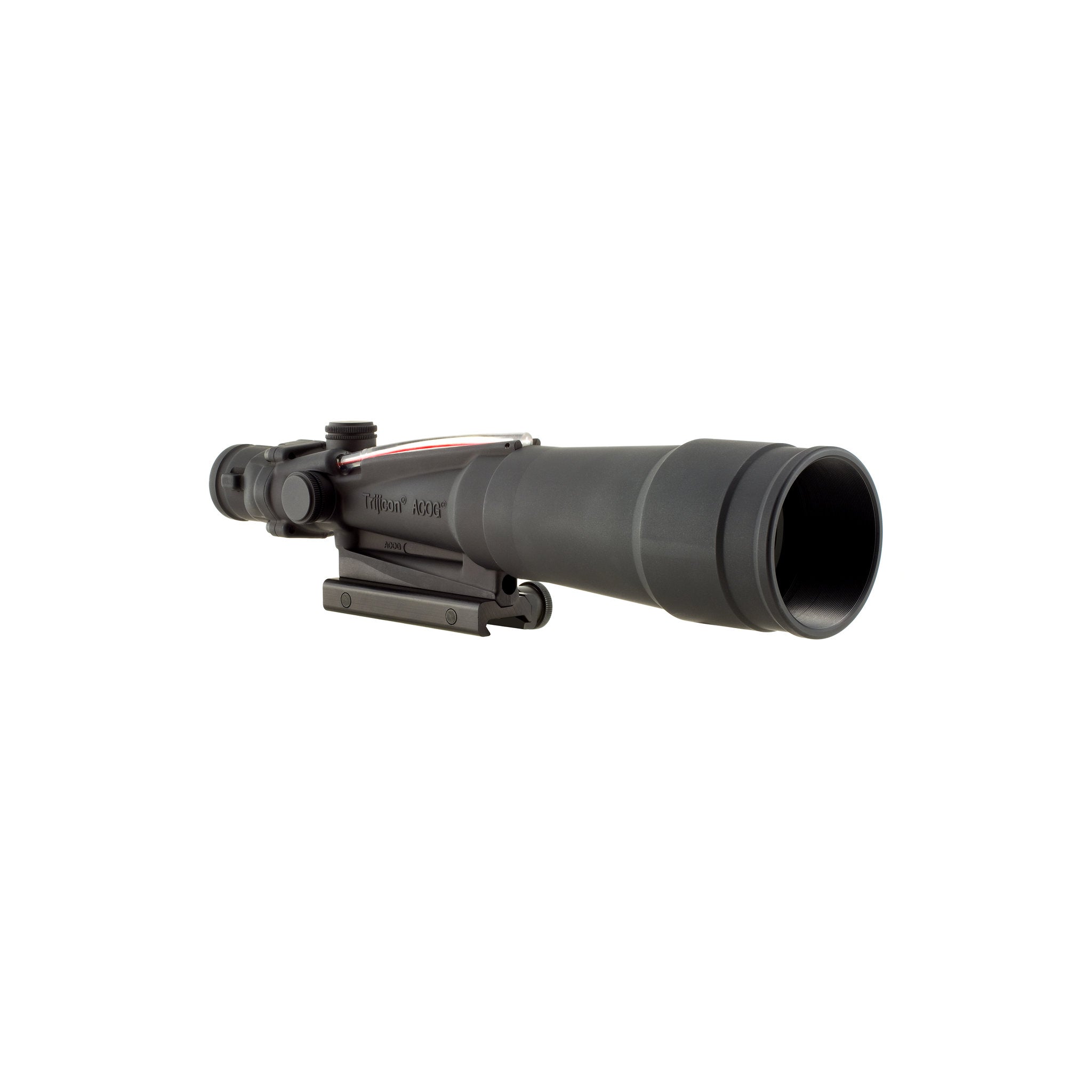

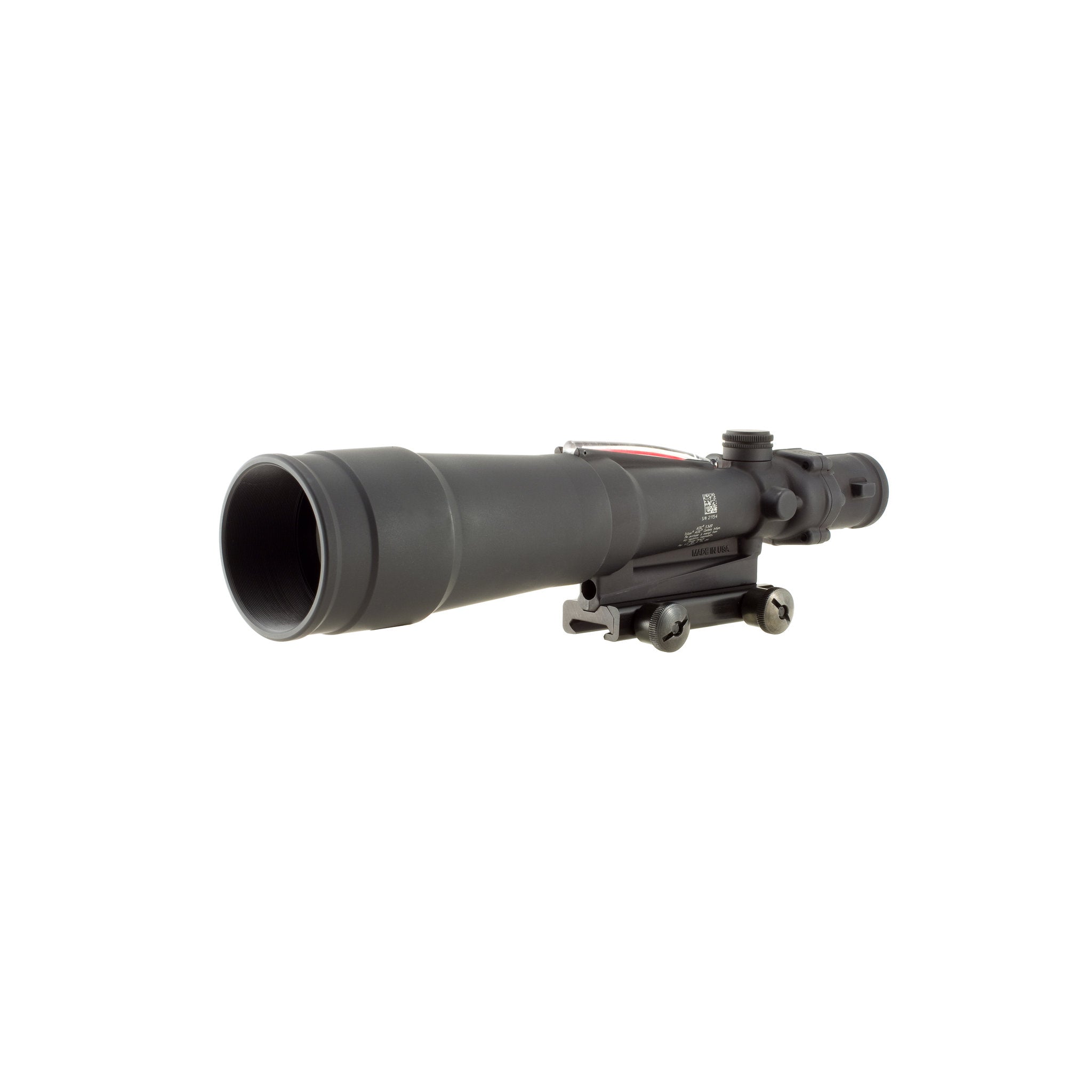

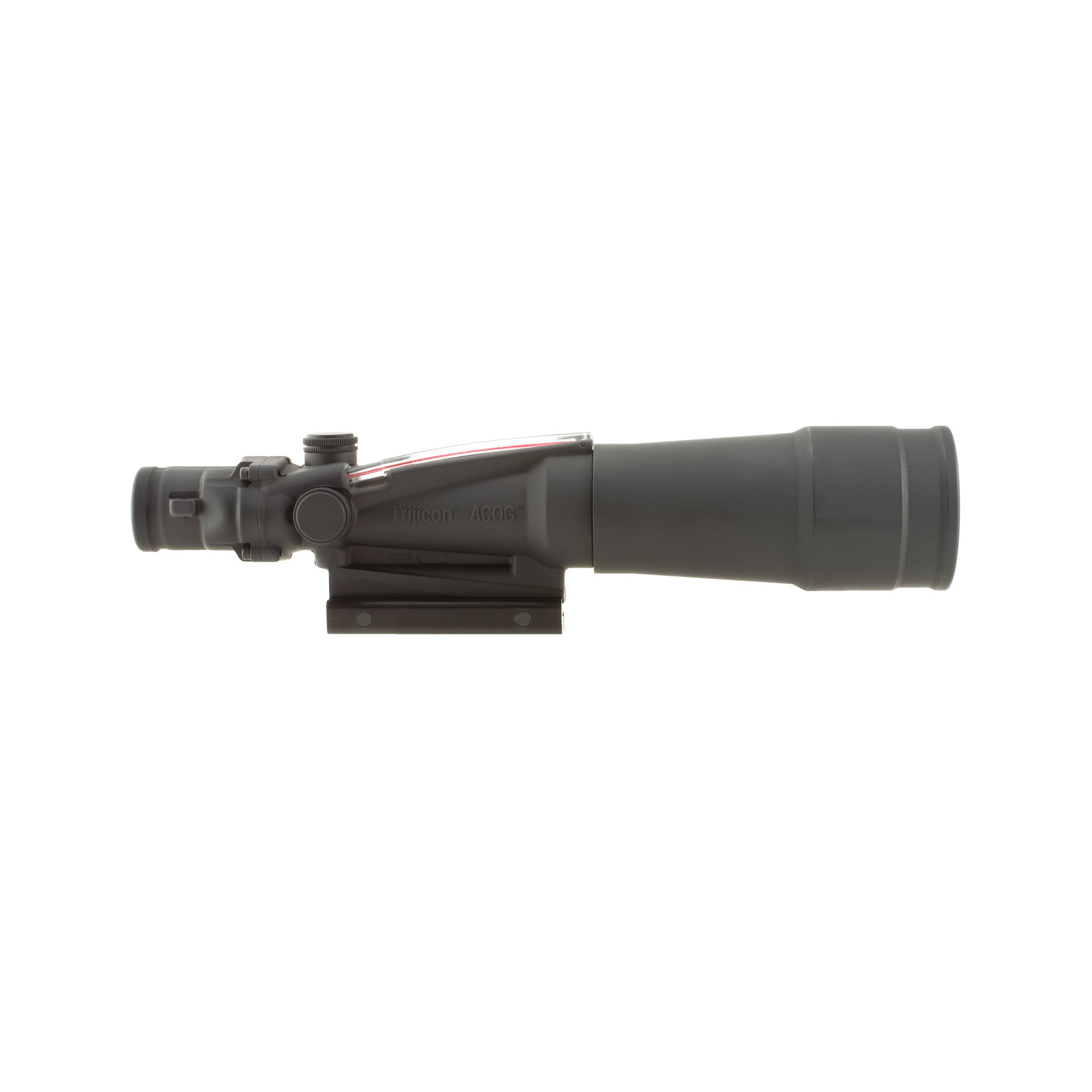

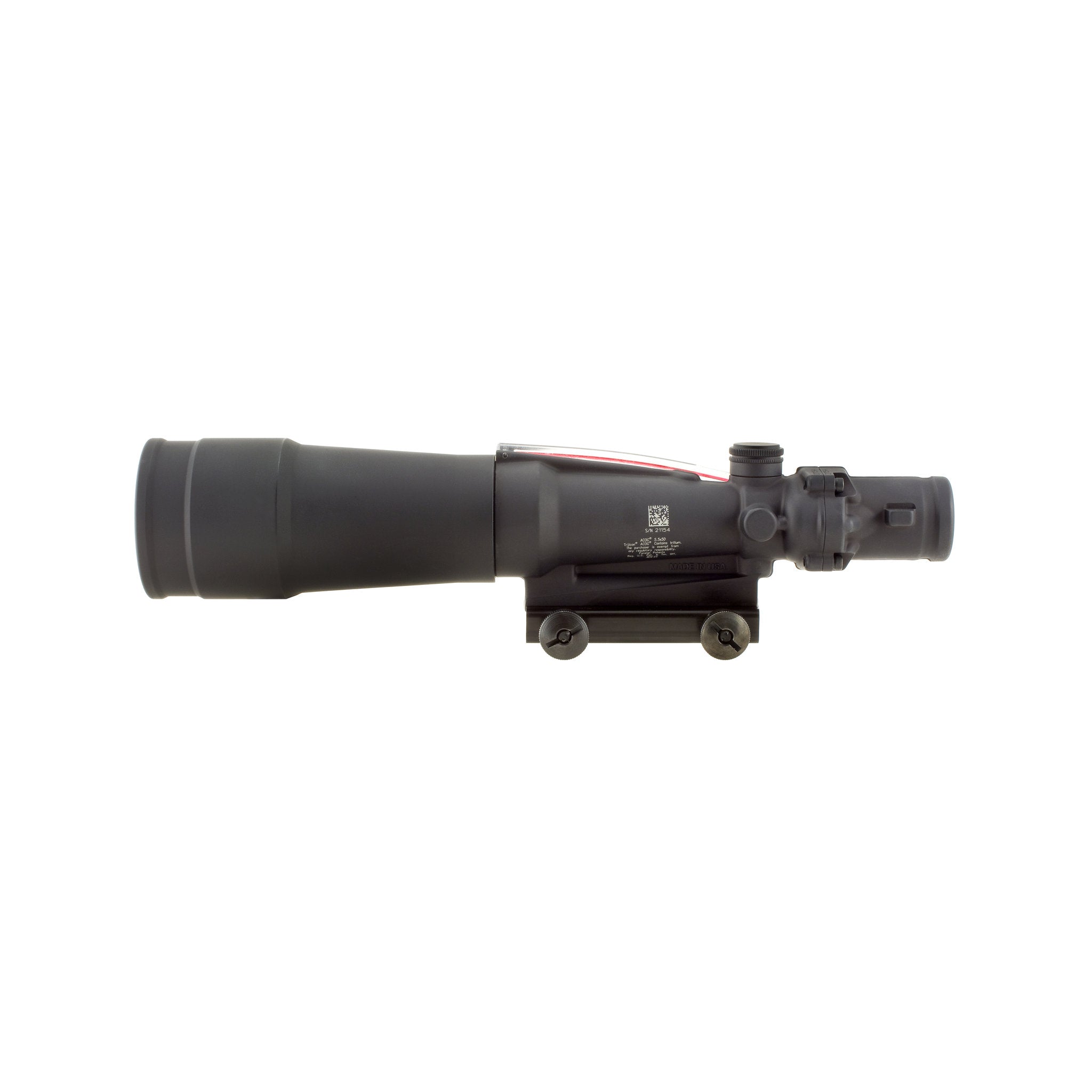

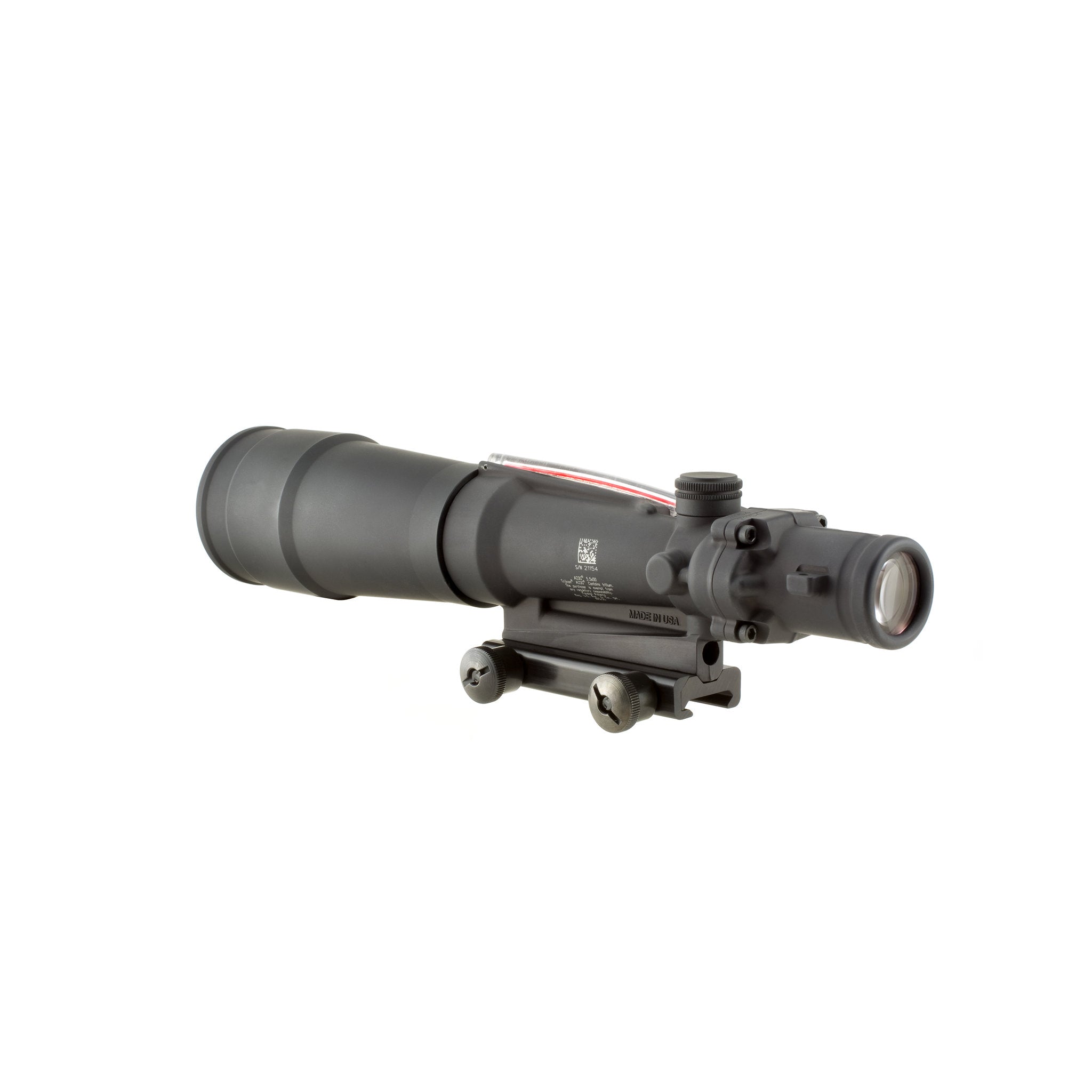

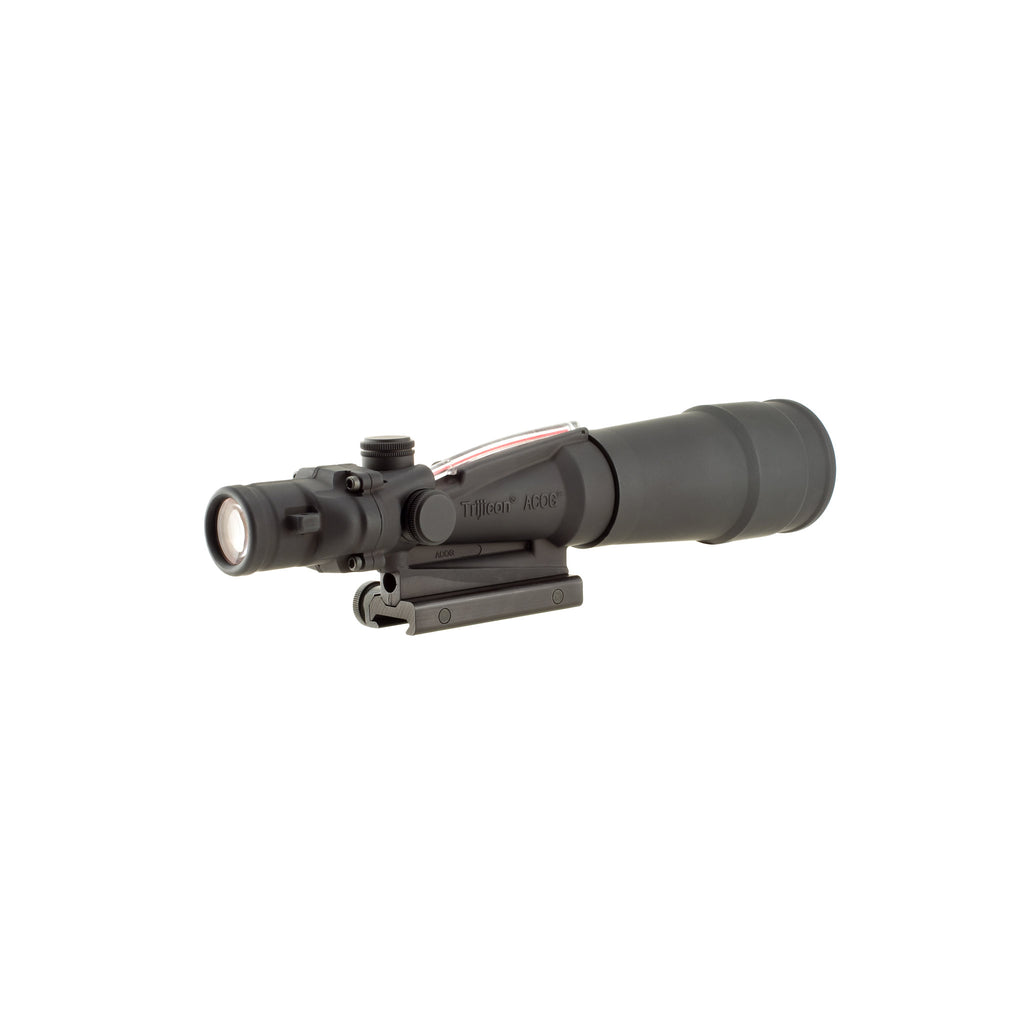

This Trijicon ACOG combines 5.5x magnification with a 50mm objective and a red chevron reticle with bullet drop compensation calibrated for .223 / 5.56.
The reticle is illuminated by fibre optics and tritium, and the brightness adjusts automatically to the available light.
The scope is supplied with a flattop thumbscrew mount, and the housing is forged aluminium with a matte black finish.
Key features

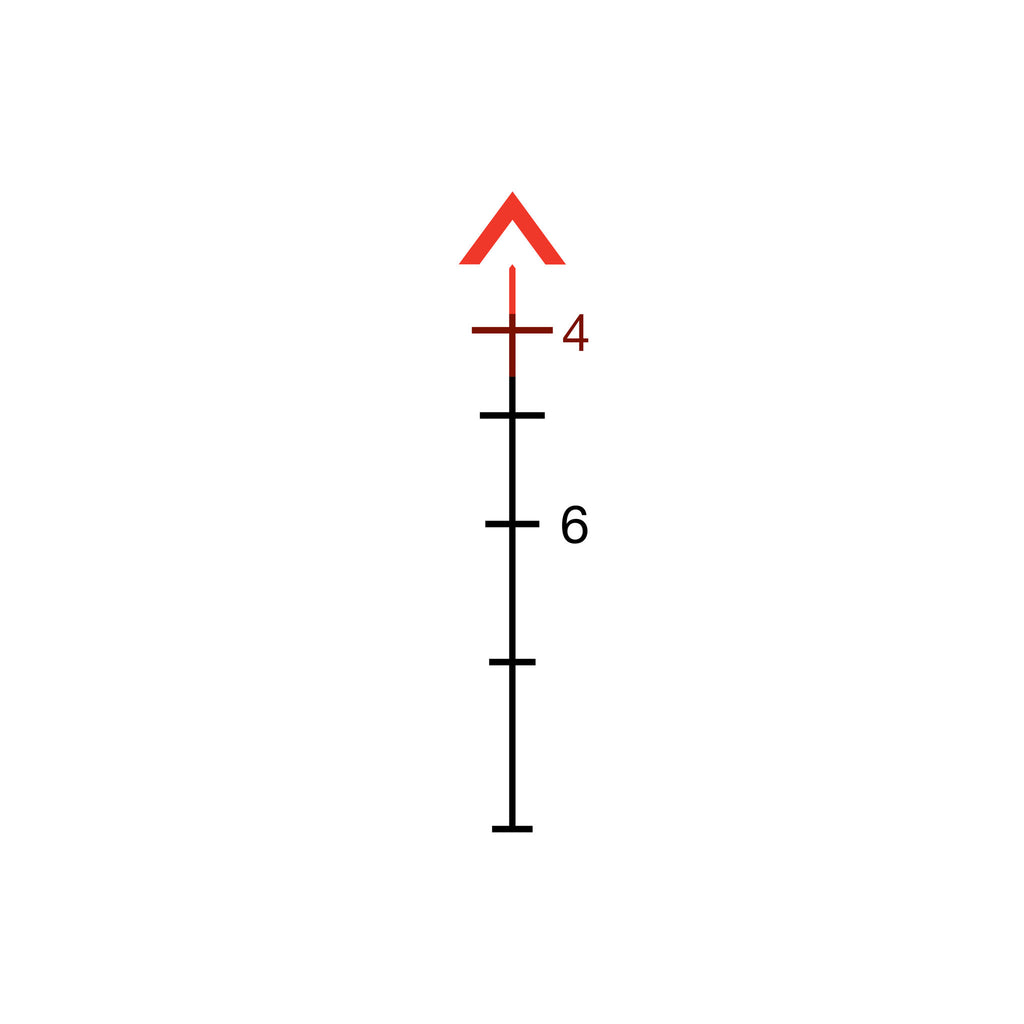

- Chevron zero and ranging — The chevron reticle is zeroed using its tip at 100 metres, and its 5.53 MOA base width allows range estimation for silhouette targets.
- Tritium and fibre illumination — Fibre optics and tritium light the red reticle, with brightness adjusting automatically to the available light.
- Bindon Aiming Concept — The Bindon Aiming Concept supports shooting with both eyes open for improved situational awareness.
- Fixed-power design — The fixed-power design keeps moving parts to a minimum for a robust sighting system.
- Multi-coated lenses — Multi-coated lenses maximise light-gathering and give a clear field of view.
- Shock-resistant — The scope is proven to withstand recoil from a .22LR to a .50BMG.
- Waterproof, nitrogen-filled — The waterproof housing is filled with dry nitrogen to mitigate fogging in extreme cold and heat.
Typical applications
- Magnified day and low-light aiming on .223 / 5.56 rifles.
- Range estimation and holdover on silhouette targets at extended distances.
- Duty and professional use where a robust, self-illuminated optic is required.
Technical specifications
| Length × width × height | 12 in x 2.5 in x 2.7 in (304.8mm x 63.5mm x 68.58mm) |
| Weight | 25.6 oz. (725.75g) |
| Magnification | 5.5x |
| Objective size | 50mm |
| Reticle pattern | Chevron |
| Day reticle colour | Red |
| Night reticle colour | Red |
| Bullet drop compensation (BDC) | Yes |
| Calibre | 0.223 / 5.56 |
| Bindon Aiming Concept (BAC) | Yes |
| Illumination source | Fiber Optics & Tritium |
| Power source | Fiber Optics & Tritium |
| Adjustment | 5 clicks per in. @100 yards |
| Eye relief | 2.2 in. (55.88mm) |
| Exit pupil | 0.35 in. (8.89mm) |
| Field of view (degrees) | 3.5° |
| Field of view (distance) | 18.4 ft. @ 100 yds. (6.13m @ 100m) |
| Mount | Flattop Thumbscrew Mount (TA51) |
| Housing material | Forged Aluminum |
| Finish | Matte Black |
In the box
- 1 × ACOG® 5.5x50 BAC Riflescope - .223 / 5.56 BDC — Red Chevron Reticle, Thumbscrew Mount, Tritium / Fiber Optics Illuminated, Matte Black
- Thumbscrew Flattop Adapter (TA51)
- 5.5x50 Scopecoat (TA65)
- LENSPEN (TA56)
- Lanyard Assembly for Adjuster Caps (TA71E)
- Trijicon Logo Sticker (PR15)
- ACOG Manual
- Warranty Card
Model information
| Brand | Trijicon |
| Model | ACOG® 5.5x50 BAC Riflescope - .223 / 5.56 BDC — Red Chevron Reticle, Thumbscrew Mount, Tritium / Fiber Optics Illuminated, Matte Black |
| MPN | TA55 |
