Description

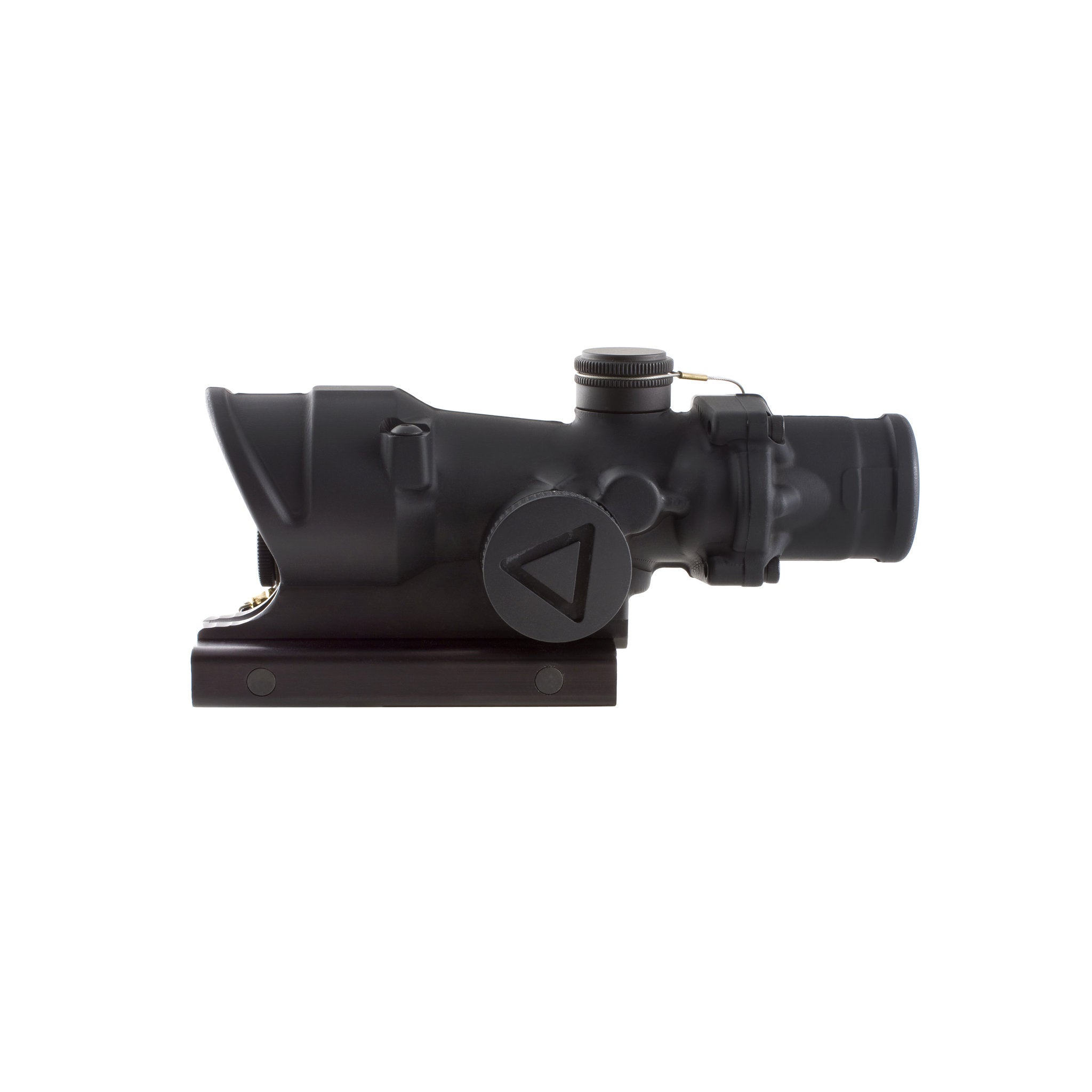

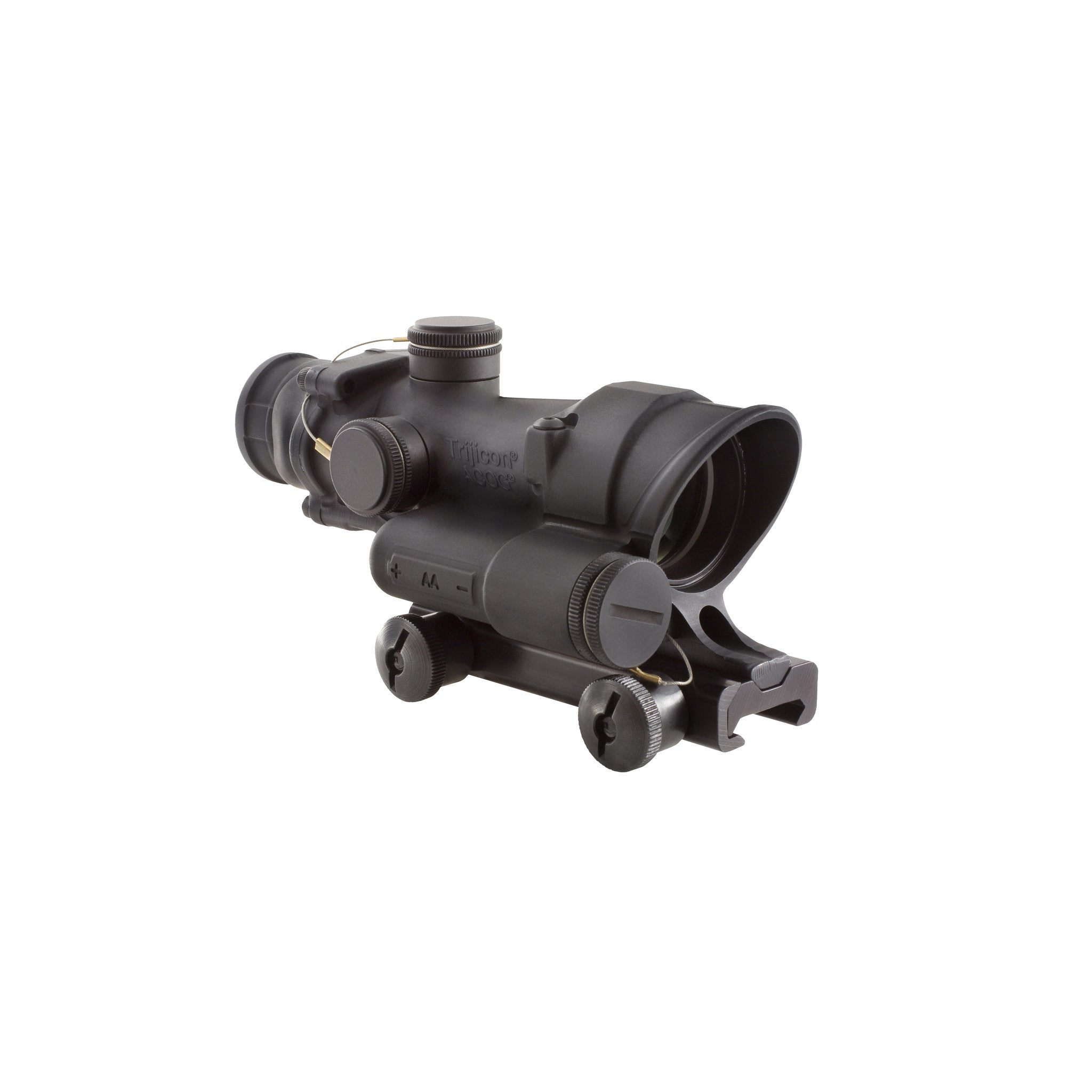

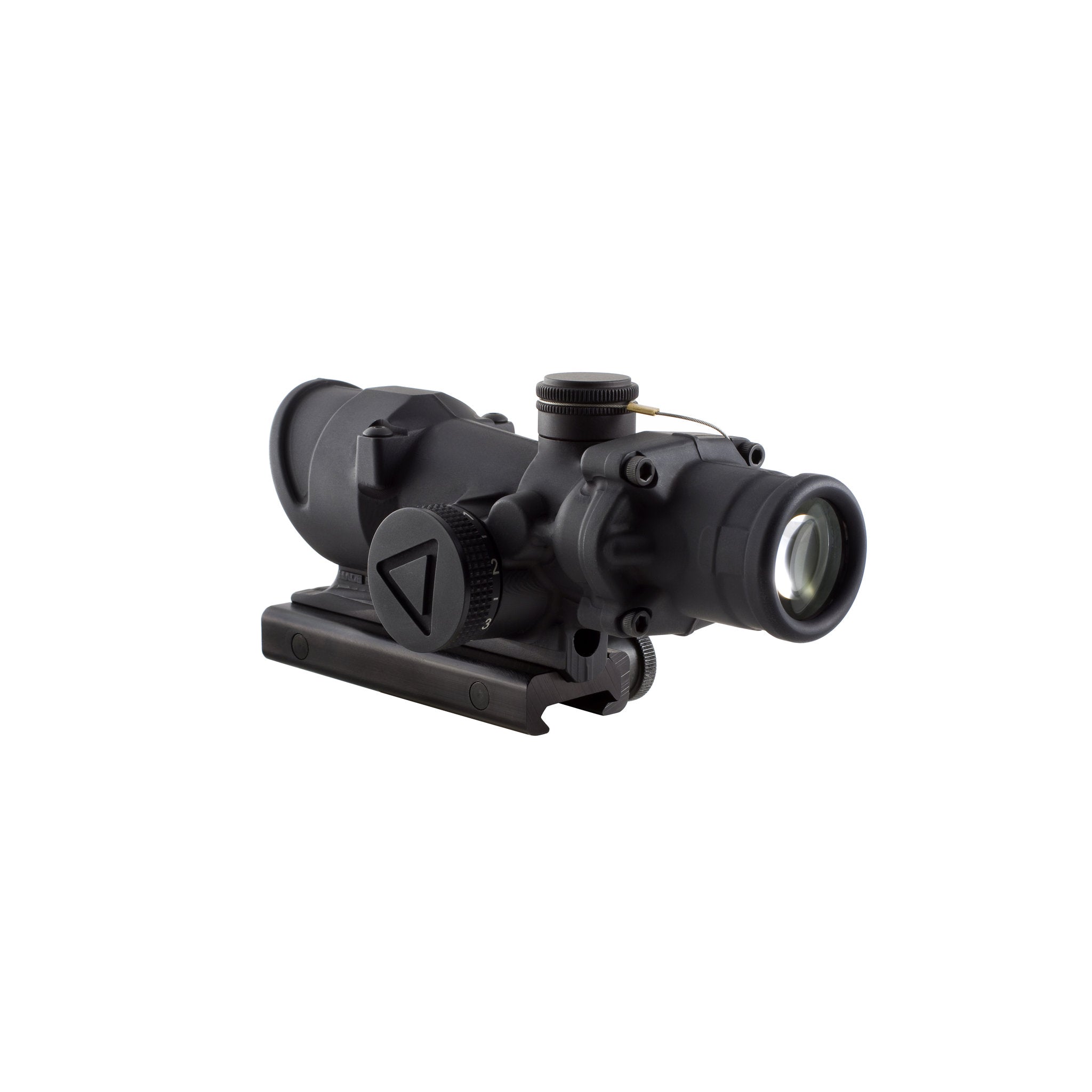

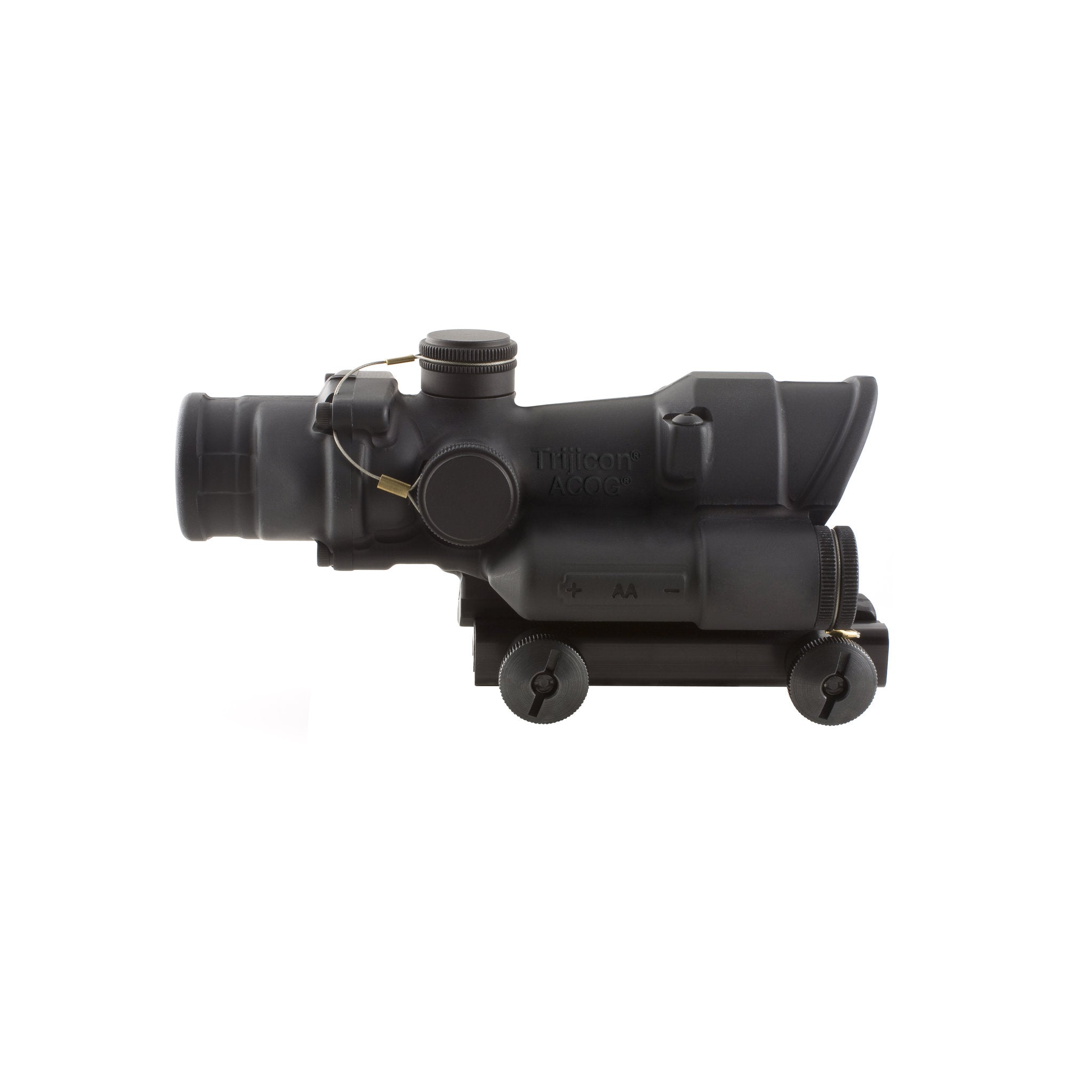

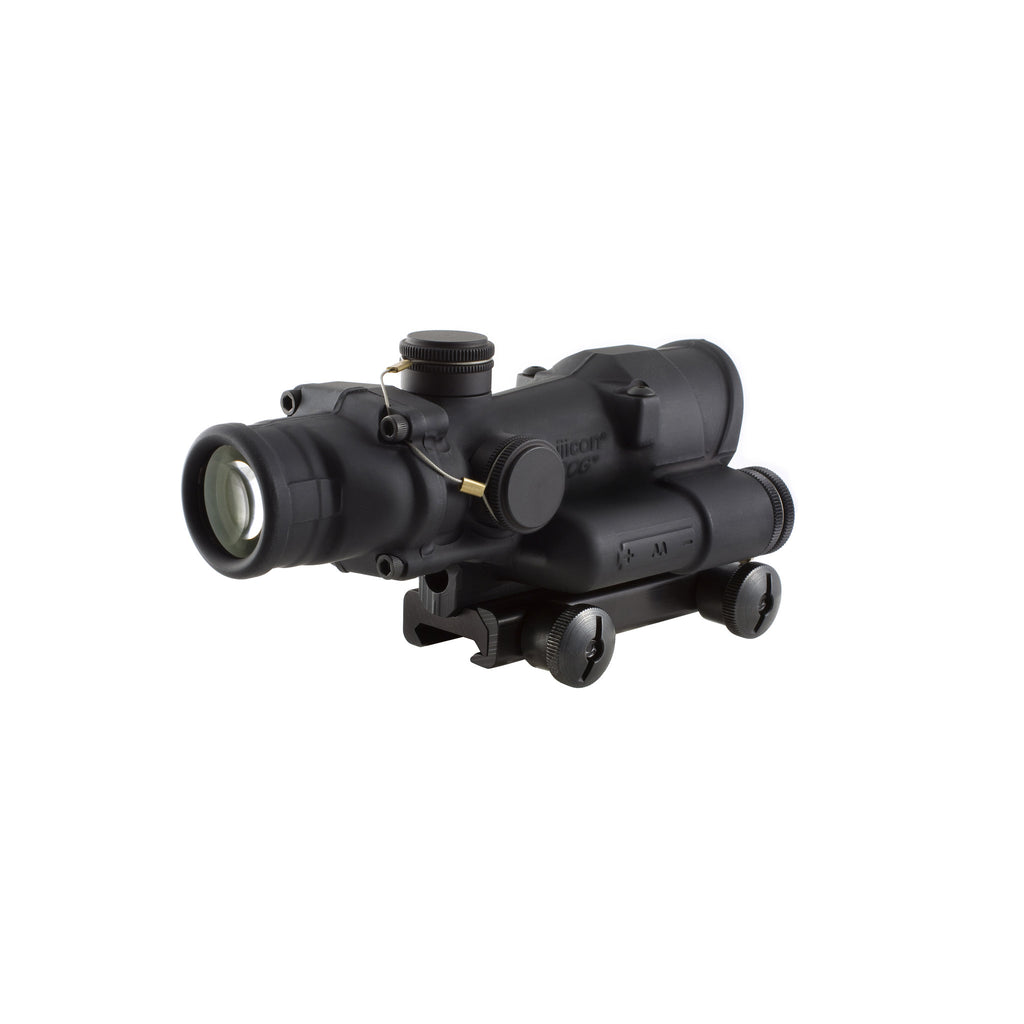

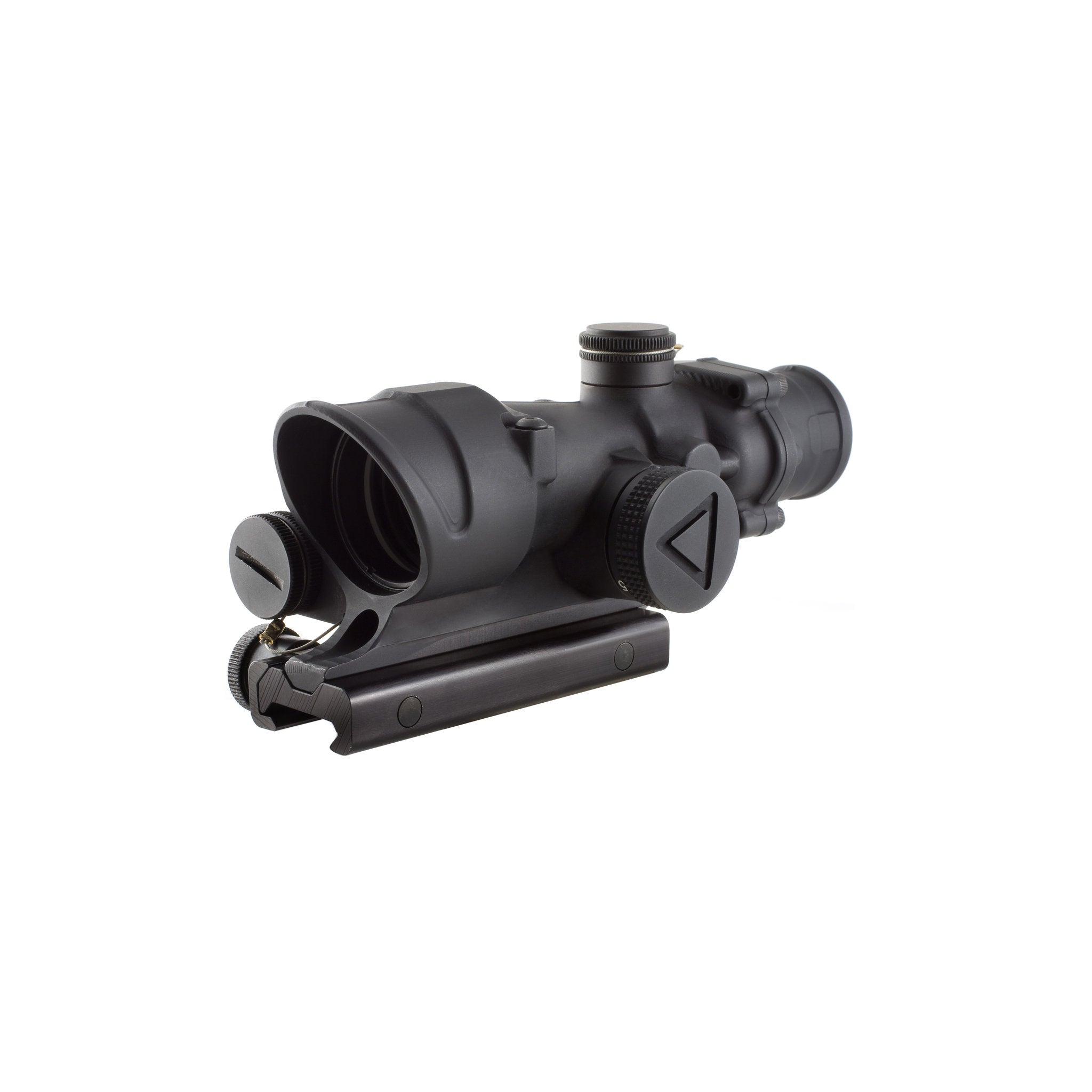

A fixed 4x32 ACOG riflescope with an LED-illuminated red crosshair BDC reticle for .300 BLK, for professional users who need one sight for supersonic and subsonic ammunition.
This ACOG riflescope offers 4x magnification with a 32mm objective and a red crosshair reticle with bullet drop compensation for the 300 BLK calibre.
The reticle is LED-illuminated and powered by a single AA battery, with six adjustable brightness levels and an off position between each setting.

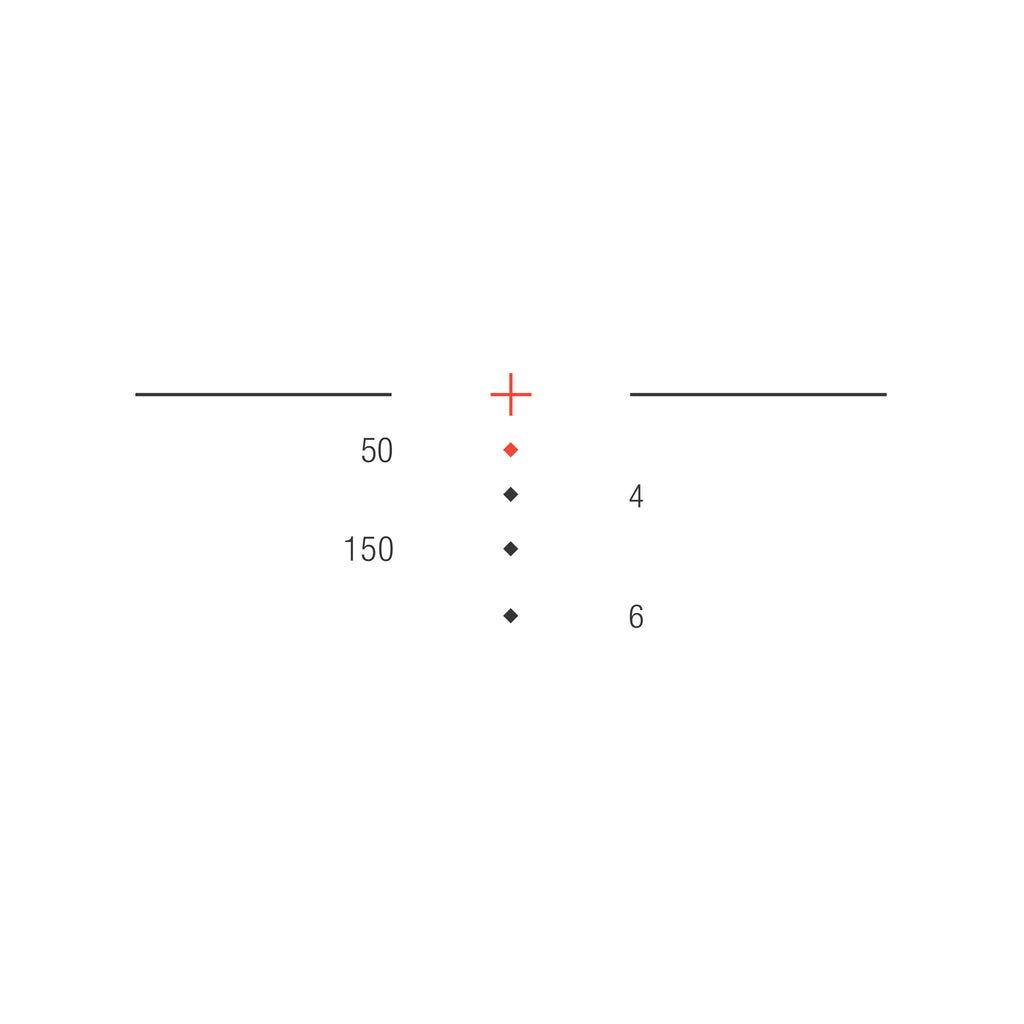

The supersonic BDC out to 600 yds. is merged with the subsonic BDC out to 200 yds., so the user can switch between both types of ammunition without re-zeroing. It is supplied on a Flattop Thumbscrew Mount (TA51).
Key features
- Merged BDC aiming points — One set of 2 MOA diamond aiming points serves both supersonic and subsonic ammunition, and most commonly available ammunition falls within them.
- Adjustable LED brightness — Six brightness levels with an off position between each setting let the operator set the reticle illumination, even in transitional lighting.
- Long battery life — A single AA battery runs the illumination for over 12,000 hours on setting #4.
- Both eyes open — The Bindon Aiming Concept (BAC) supports shooting with both eyes open for improved situational awareness.
- Forged aluminium housing — The body is forged from 7075-T6 aircraft aluminium, and the fixed-power design keeps moving parts to a minimum.
- Night vision compatible — The optic is fully night vision device compatible and works with most other 4x32 ACOG accessories.
- Waterproof and fog-free — The dry nitrogen-filled housing mitigates fogging, and the optic is rated to a submersion depth of -66 ft. (-20m).
- Handload drop data — The drops for each aiming point are provided for users who develop their own handloads or deviate from the recommended zero distances.
Typical applications
- Rifles chambered in .300 BLK that are used with both supersonic and subsonic ammunition
- Magnified aiming with both eyes open where situational awareness matters
- Low-light and night operations with night vision devices
- Handloaders developing their own .300 BLK loads
Technical specifications
| Length × width × height | 5.98 in x 2 in x 2.3 in (151.89mm x 50.8mm x 58.42mm) |
| Weight | 17.6 oz. (498.95g) |
| Magnification | 4x |
| Objective size | 32mm |
| Reticle pattern | Crosshair |
| Day reticle colour | Red |
| Night reticle colour | Red |
| Bullet drop compensation (BDC) | Yes |
| Calibre | 300 BLK |
| Bindon Aiming Concept (BAC) | Yes |
| Illumination source | LED |
| Power source | AA Lithium or Alkaline Battery |
| Battery life | Over 12,000 hours on setting #4 using supplied alkaline battery at 21 deg C (70 deg F) |
| Adjustment | 2 clicks per inch @100 yards |
| Eye relief | 1.5 in. (38.1mm) |
| Exit pupil | 0.32 in. (8.13mm) |
| Field of view (degrees) | 7° |
| Field of view (distance) | 36.8 ft. @ 100 yds. (12.27m @ 100m) |
| Mount | Flattop Thumbscrew Mount (TA51) |
| Housing material | Forged Aluminum |
| Finish | Matte Black |
| Submersion depth | 66 ft. (20m) |
In the box
- 1 × ACOG® 4x32 LED Riflescope - .300 BLK BDC — Red .300 BLK Crosshair Reticle, Thumbscrew Mount, LED Illuminated, Matte Black
- Thumbscrew Flattop Adapter (TA51)
- AA Battery
- LENSPEN (TA56)
- Lanyard Assembly for Adjuster Caps (TA71E)
- Lanyard Assembly for Battery Cap
- Trijicon Logo Sticker (PR15)
- ACOG Manual
- Warranty Card
Model information
| Brand | Trijicon |
| Model | ACOG® 4x32 LED Riflescope - .300 BLK BDC — Red .300 BLK Crosshair Reticle, Thumbscrew Mount, LED Illuminated, Matte Black |
| MPN | TA02-C-100431 |
