Description

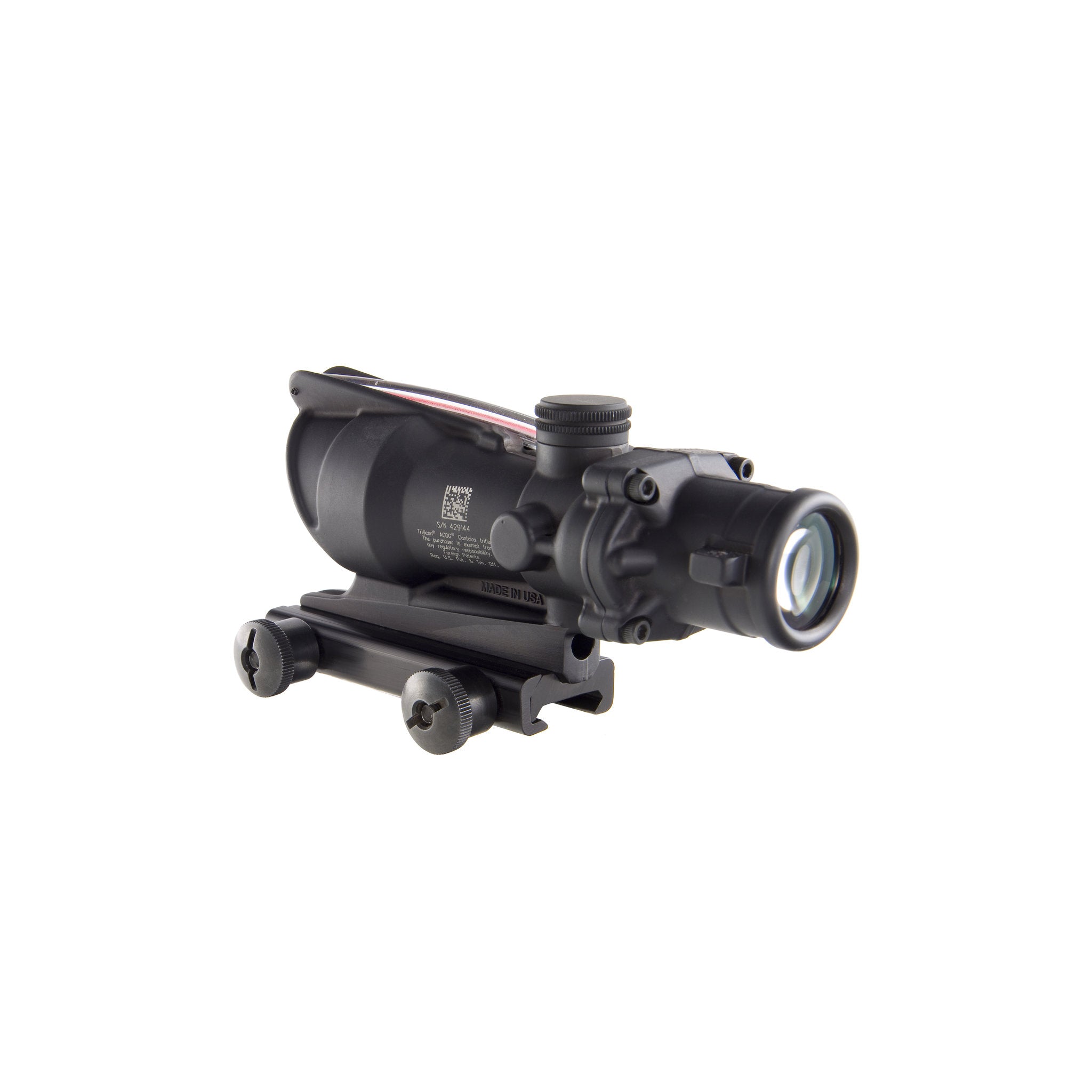

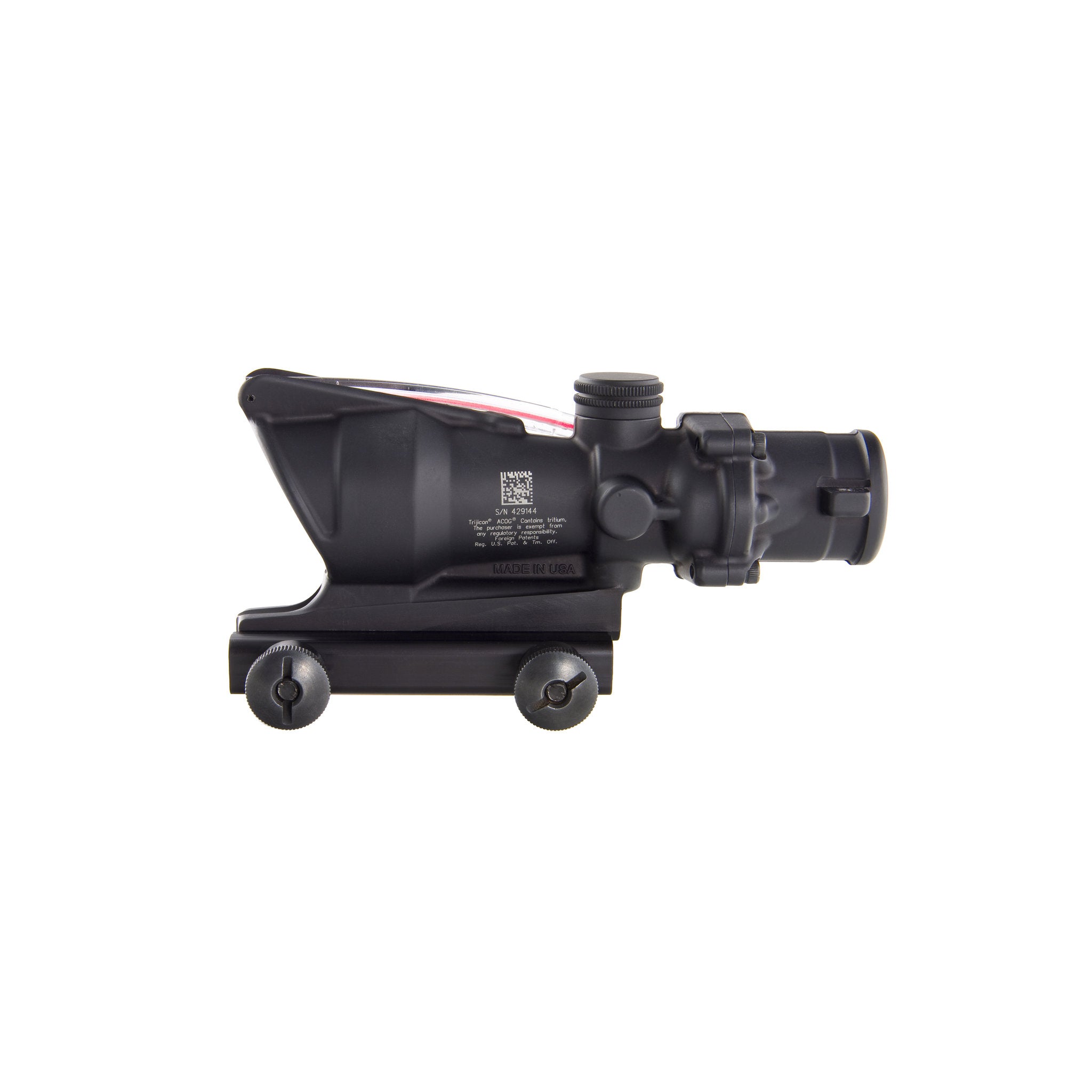

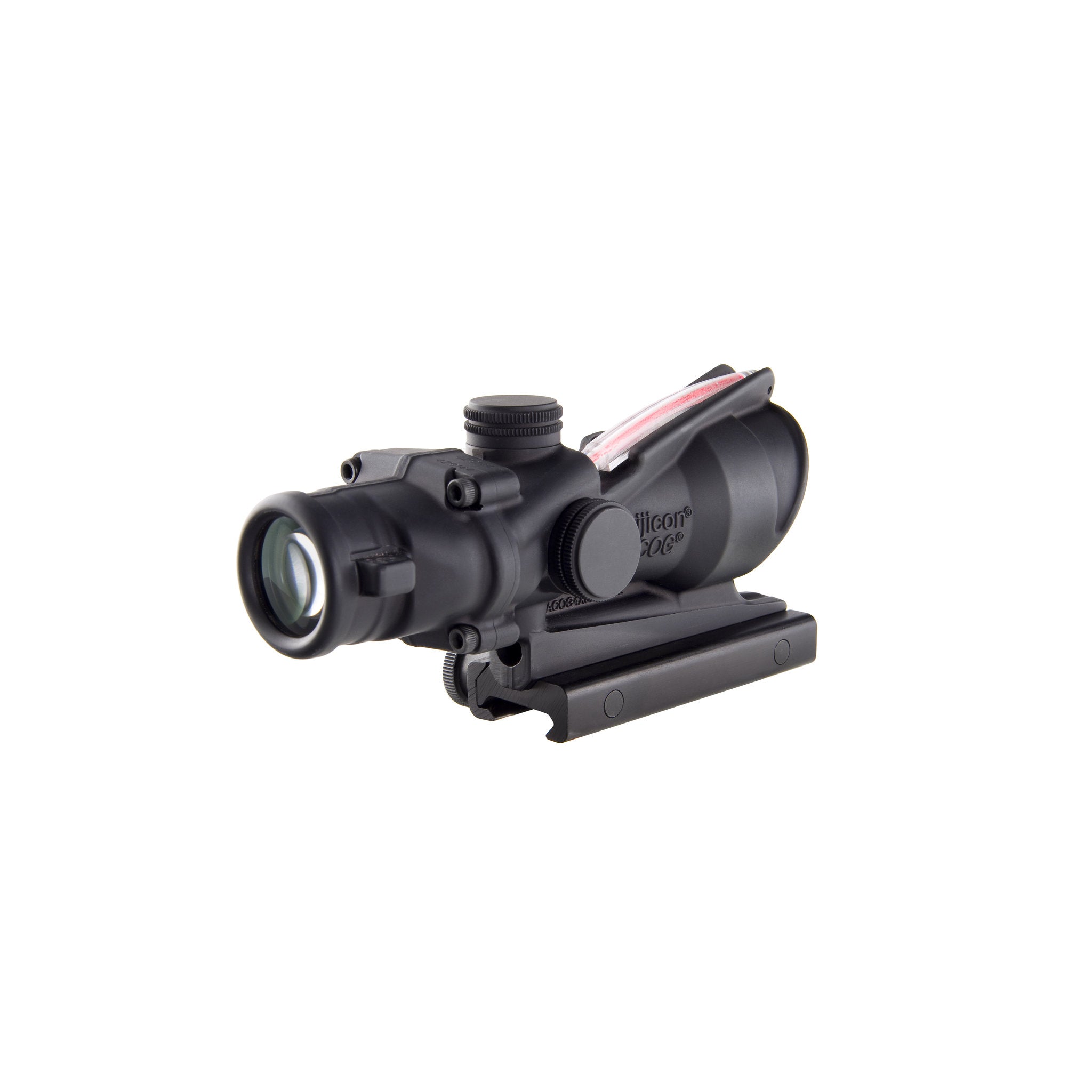

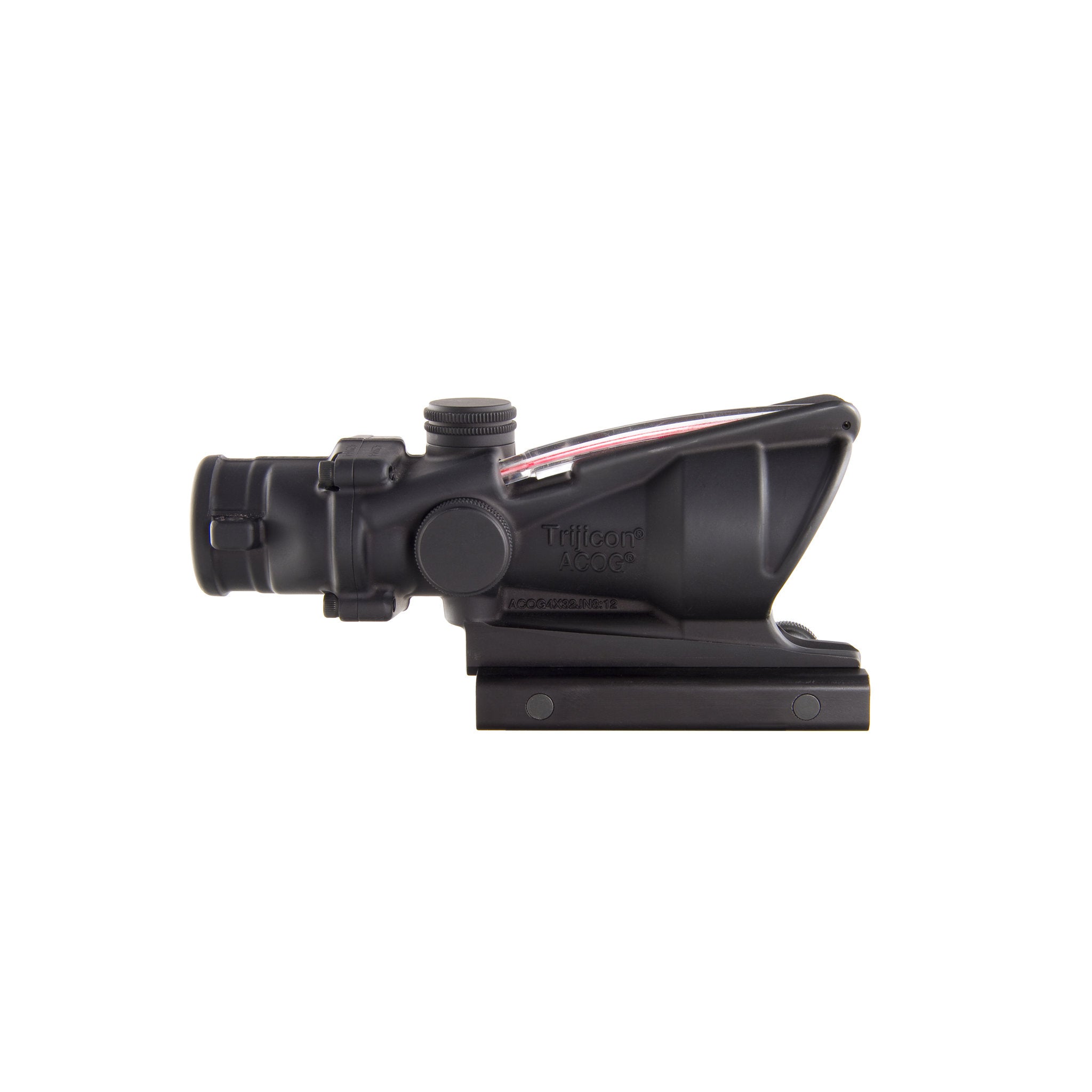

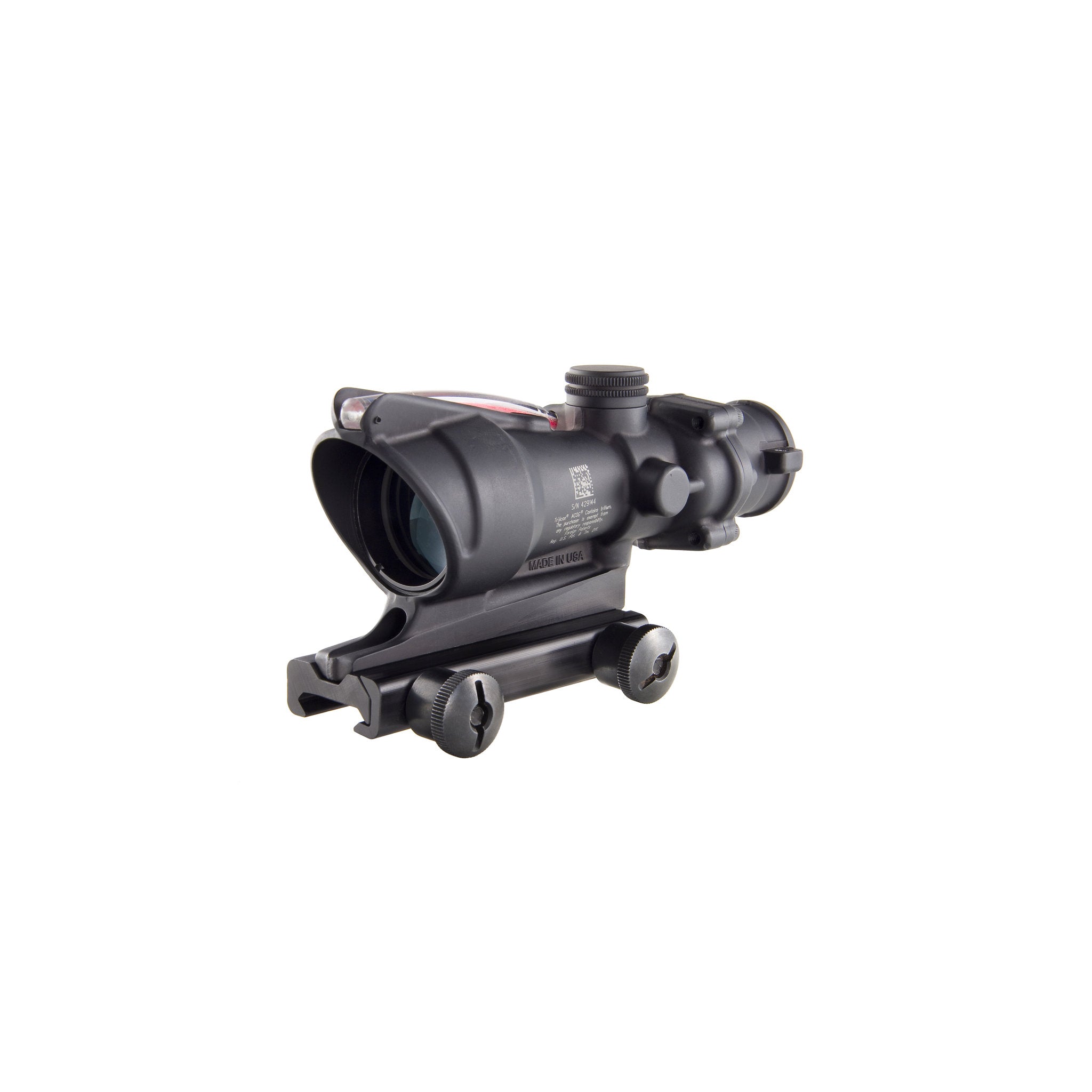

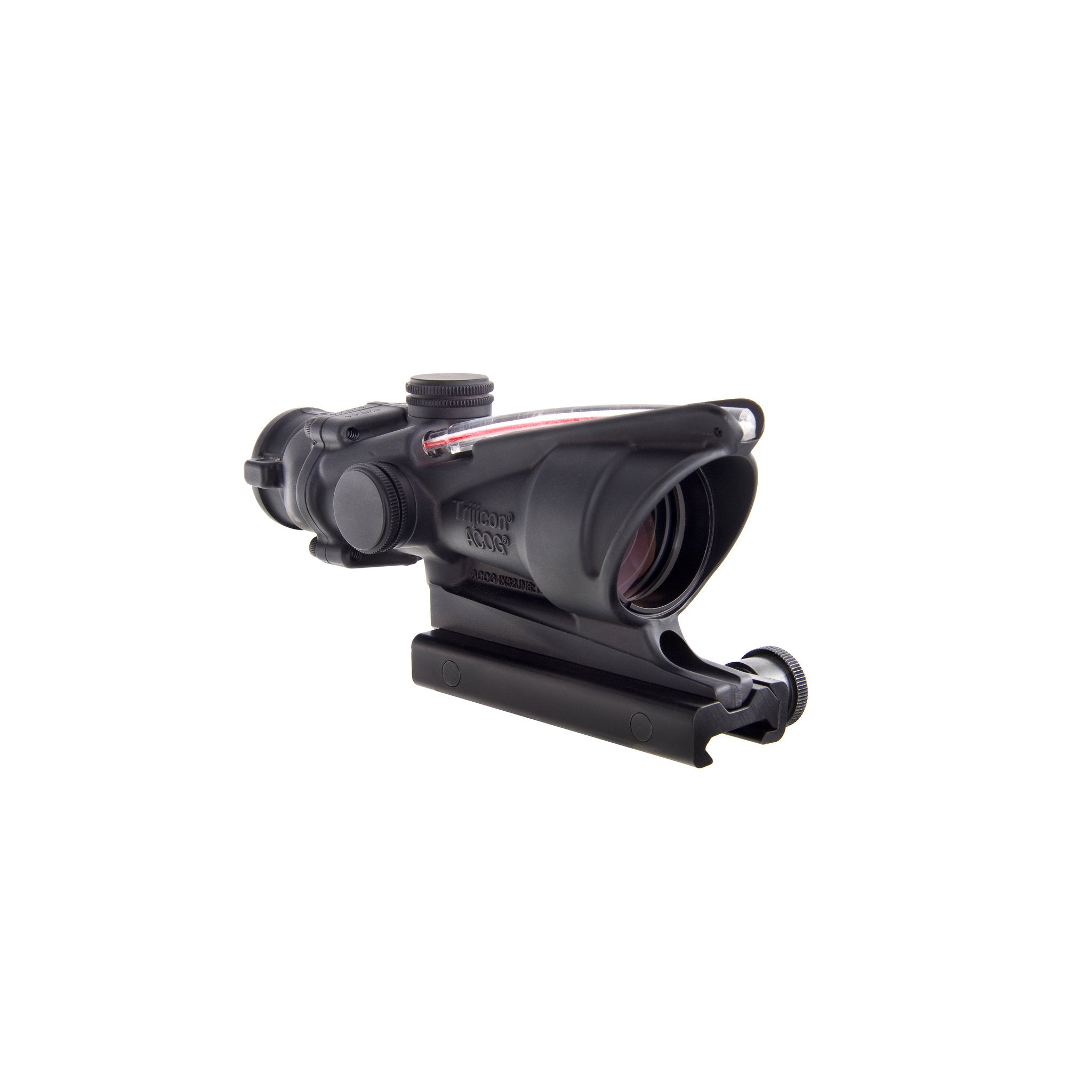

A 4x32 LED-illuminated ACOG riflescope with a red chevron .223 / 5.56 BDC reticle, for professional users of 5.56 rifles who need a rugged fixed-power optic.
This ACOG is a fixed 4x magnification riflescope with a 32mm objective and a red chevron reticle with bullet drop compensation for .223 / 5.56.
The reticle is LED illuminated and powered by a single AA battery, with six adjustable brightness levels and an off position between each setting, so the operator decides how much to illuminate the reticle, even in transitional lighting.
The housing is forged from 7075-T6 aircraft aluminium, and the scope comes with a Flattop Thumbscrew Mount (TA51).
Key features
- Selectable brightness — Six adjustable brightness levels with an off position between each setting let the user match reticle illumination to the light conditions.
- Long battery life — A single AA battery runs the LED for over 12,000 hours on setting #4.
- Bindon Aiming Concept — The Bindon Aiming Concept supports both-eyes-open shooting for improved situational awareness.

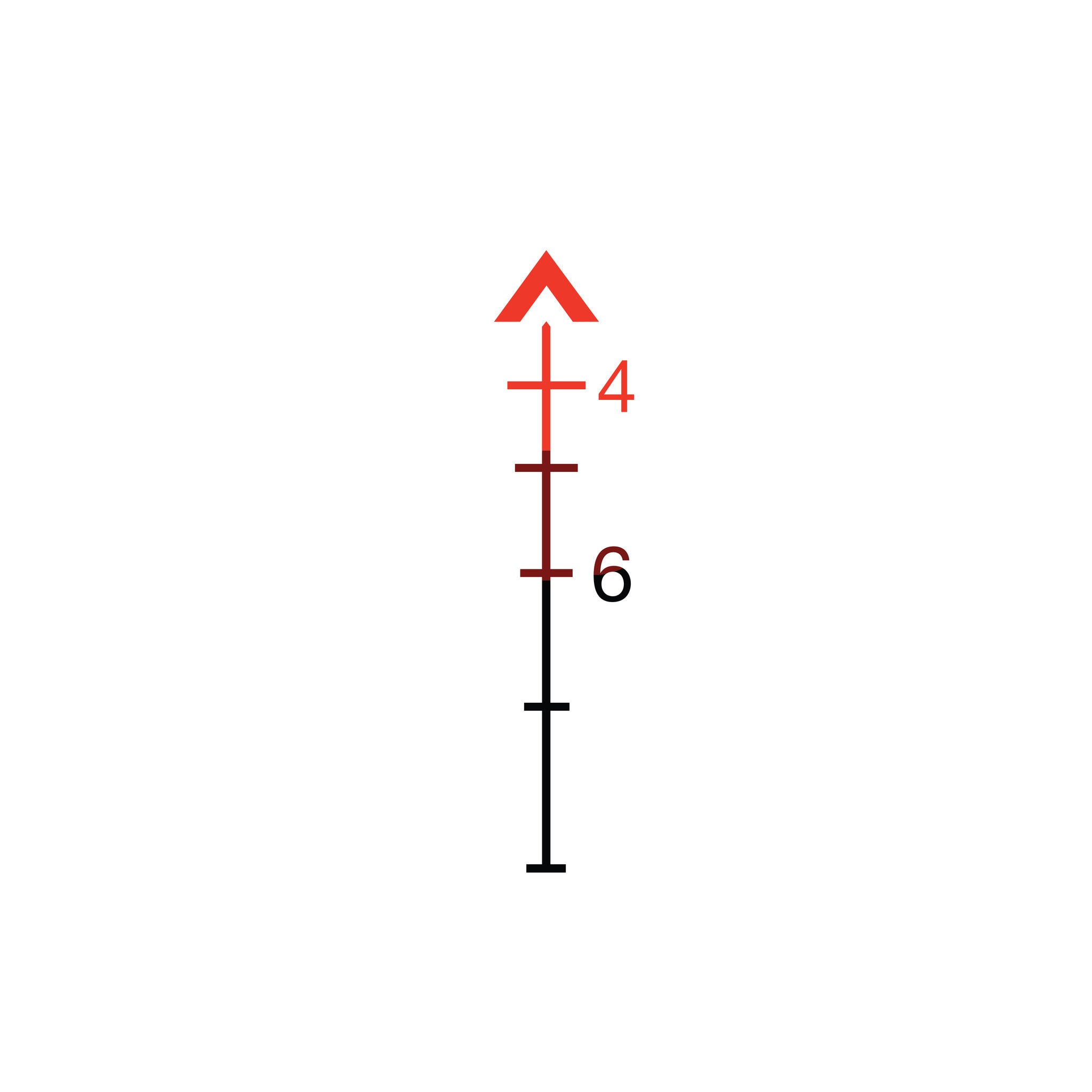

- Calibrated BDC reticle — The red chevron reticle carries bullet drop compensation calibrated for .223 / 5.56.
- Rugged fixed-power design — The fixed-power design keeps moving parts to a minimum, and the forged aluminium housing is proven to withstand recoil and pass U.S. Military drop test requirements.
- Waterproof and fog-free — The dry nitrogen-filled housing mitigates fogging, and the scope is rated to a submersion depth of -66 ft. (-20m).
- Night vision compatible — The scope is fully night vision device compatible and works with most other 4x32 ACOG accessories.
- Multi-coated lenses — Multi-coated lenses maximise light gathering and give a clear field of view.
Typical applications
- Primary optic for service and duty rifles chambered in 5.56 in law enforcement and military use.
- Engaging targets at intermediate distances with holds from the bullet drop compensating reticle.
- Operations in changing and low light where reticle brightness needs to be adjusted by the user.
Technical specifications
| Length × width × height | 5.98 in x 2 in x 2.3 in (151.89mm x 50.8mm x 58.42mm) |
| Weight | 17.5 oz. (496.12g) |
| Magnification | 4x |
| Objective size | 32mm |
| Reticle pattern | Chevron |
| Day reticle colour | Red |
| Night reticle colour | Red |
| Bullet drop compensation (BDC) | Yes |
| Calibre | .223 / 5.56 |
| Bindon Aiming Concept (BAC) | Yes |
| Illumination source | LED |
| Power source | AA Lithium or Alkaline Battery |
| Battery life | Over 12,000 hours on setting #4 using supplied alkaline battery at 21 deg C (70 deg F) |
| Adjustment | 2 clicks per inch @100 yards |
| Eye relief | 1.5 in. (38.1mm) |
| Exit pupil | 0.32 in. (8.13mm) |
| Field of view (degrees) | 7° |
| Field of view (distance) | 36.8 ft. @ 100 yds. (12.27m @ 100m) |
| Mount | Flattop Thumbscrew Mount (TA51) |
| Housing material | Forged Aluminum |
| Finish | Matte Black |
| Submersion depth | 66 ft. (20m) |
In the box
- 1 × ACOG® 4x32 LED Riflescope - .223 / 5.56 BDC — Red Chevron Reticle, Thumbscrew Mount, LED Illuminated, Matte Black
- Thumbscrew Flattop Adapter (TA51)
- AA Battery
- LENSPEN (TA56)
- Lanyard Assembly for Adjuster Caps (TA71E)
- Lanyard Assembly for Battery Cap
- Trijicon Logo Sticker (PR15)
- ACOG Manual
- Warranty Card
Model information
| Brand | Trijicon |
| Model | ACOG® 4x32 LED Riflescope - .223 / 5.56 BDC — Red Chevron Reticle, Thumbscrew Mount, LED Illuminated, Matte Black |
| MPN | TA02-D-100393 |
