Description

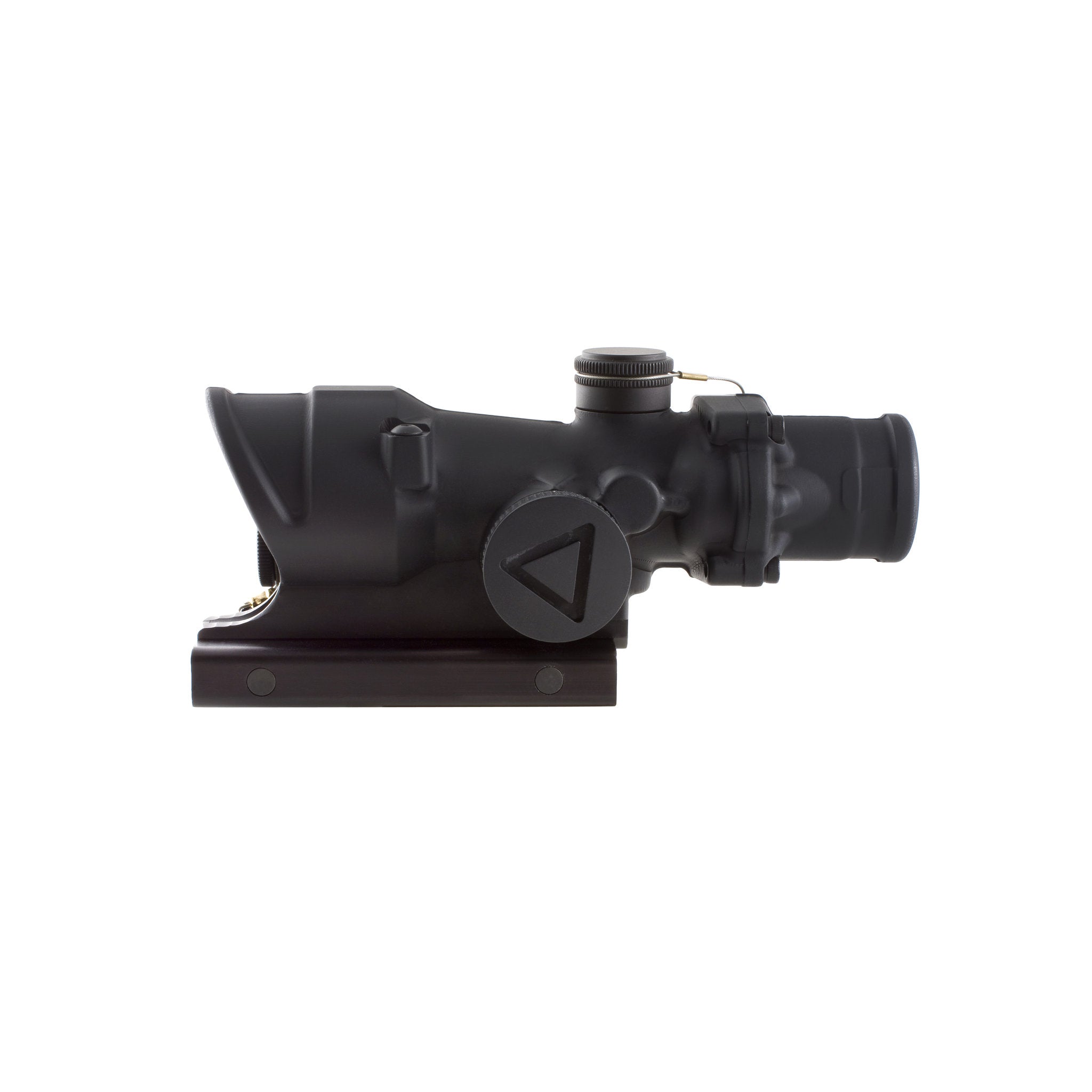

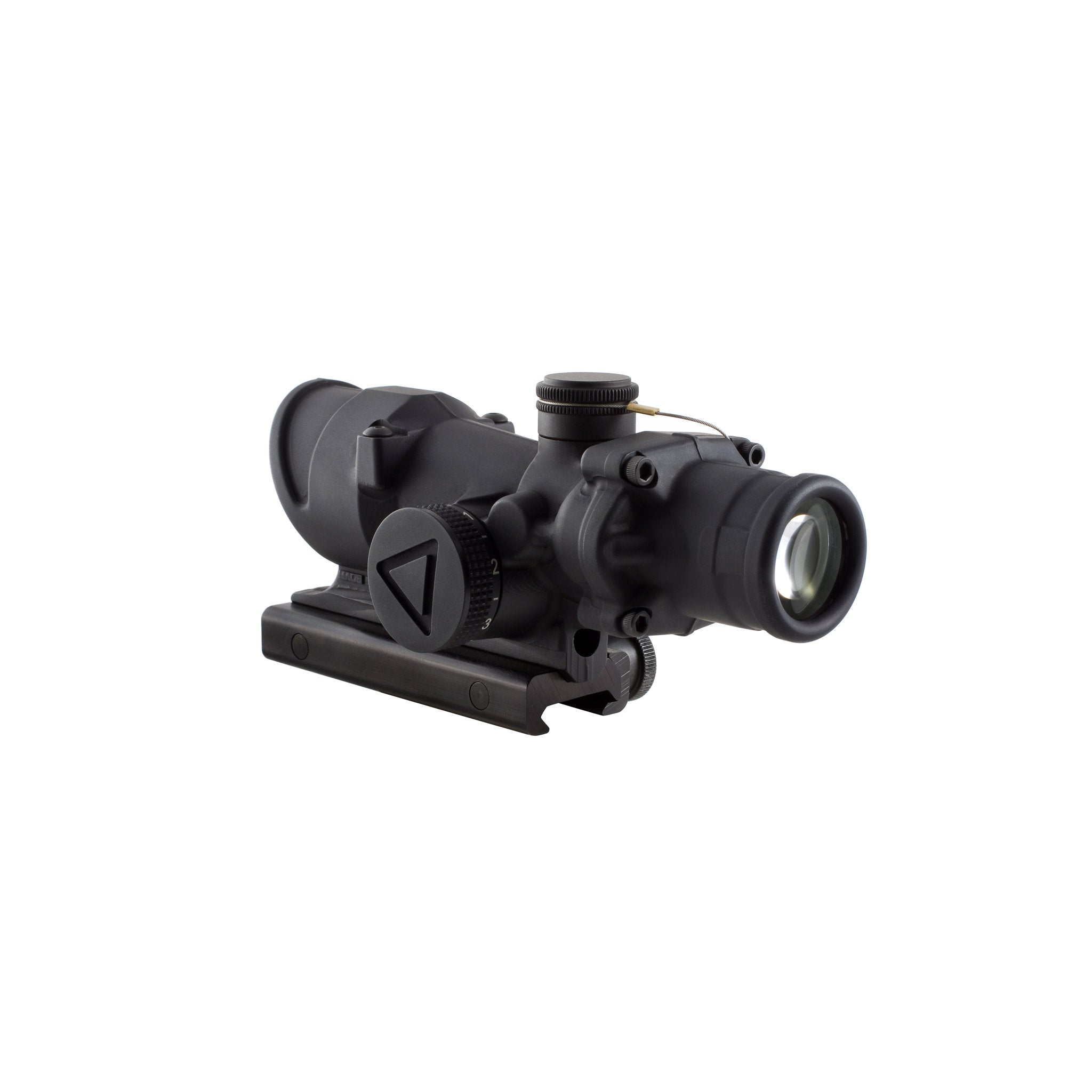

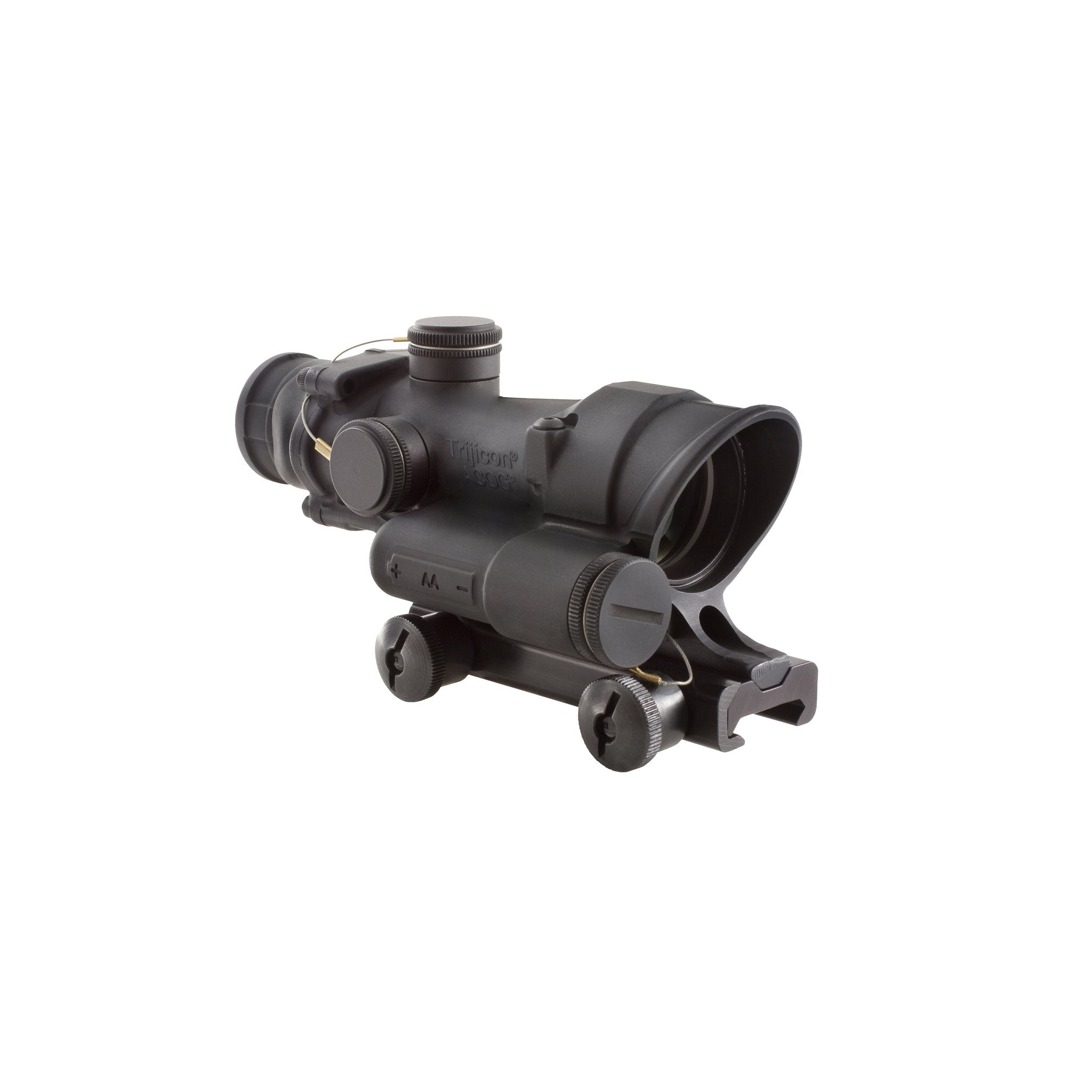

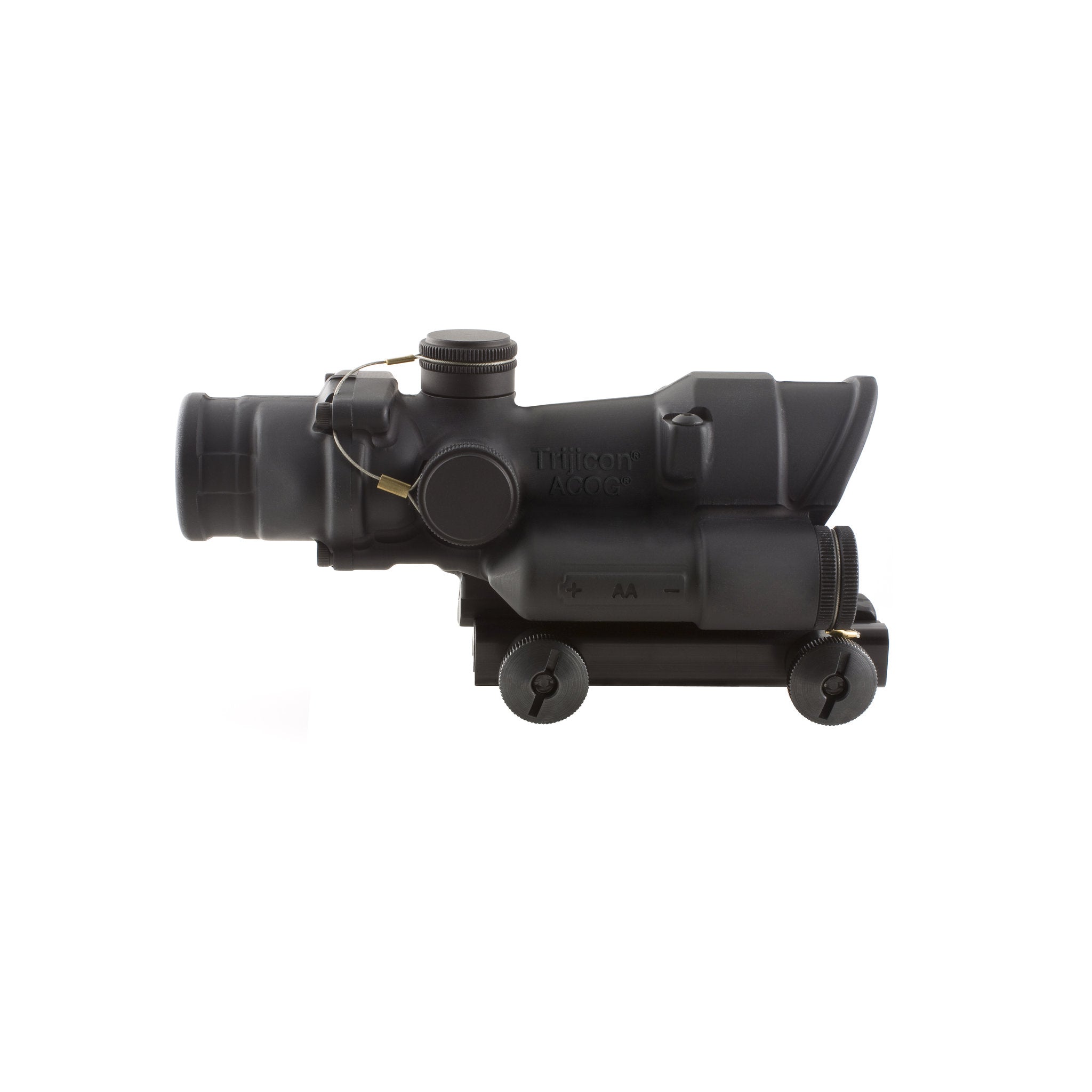

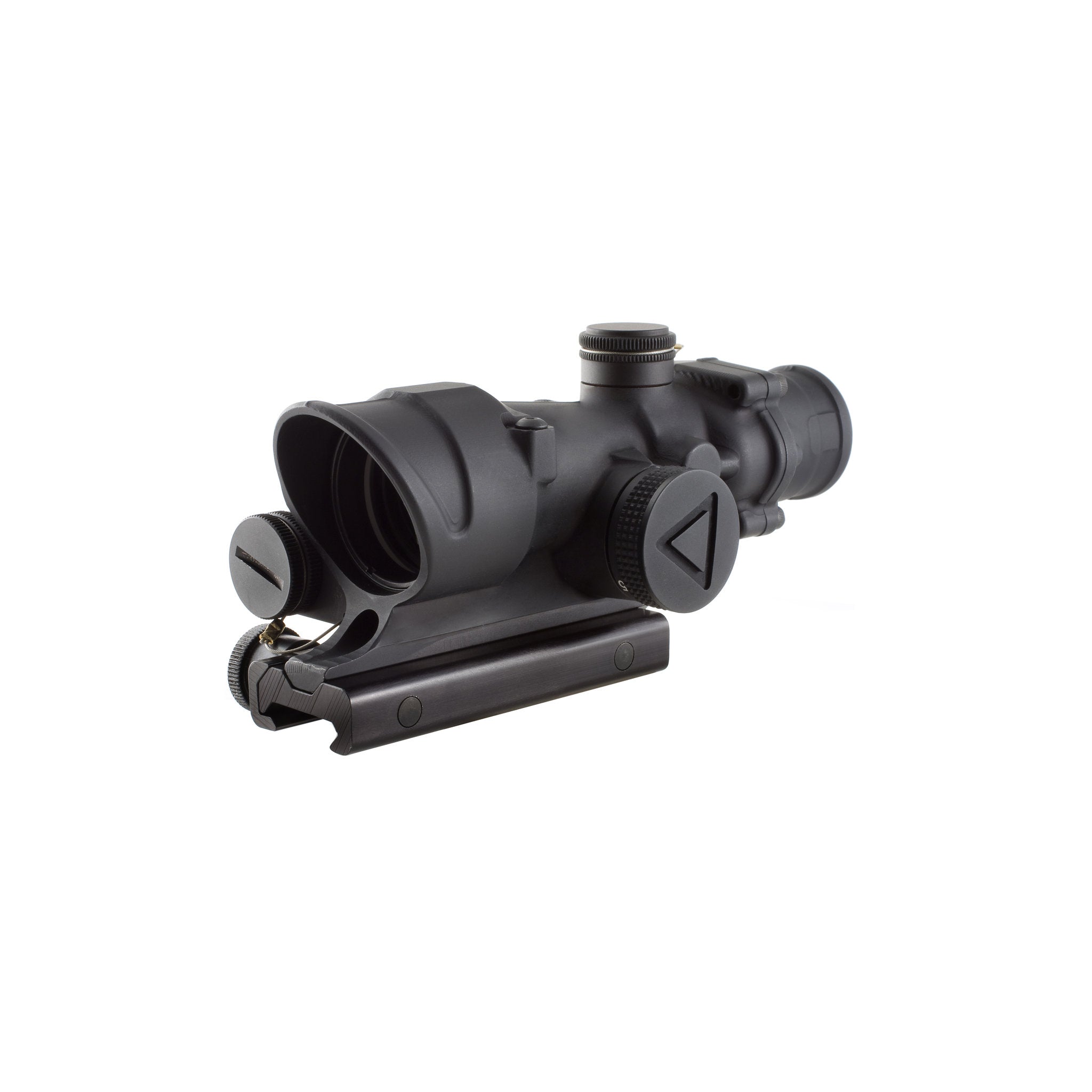

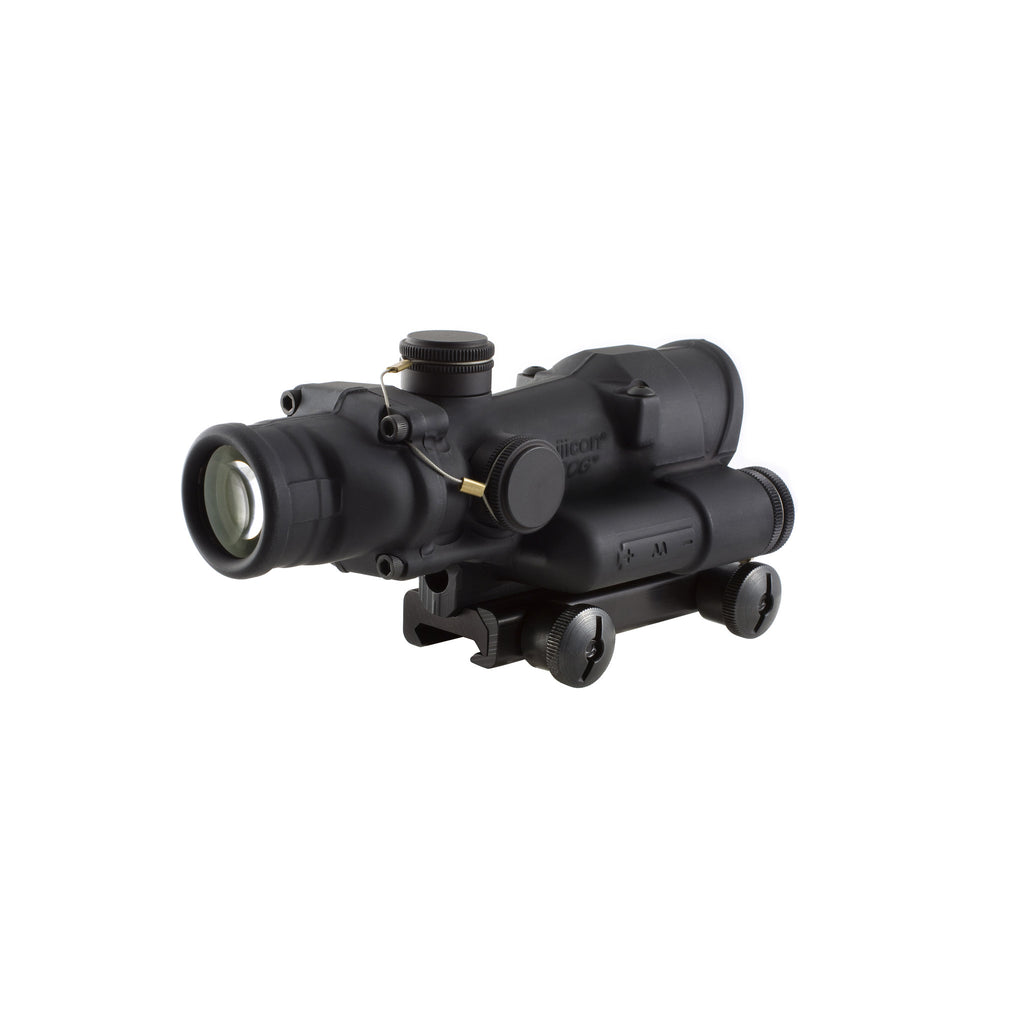

A fixed 4x32 ACOG riflescope with an LED-illuminated green horseshoe/dot BDC reticle for .223 / 5.56, for professional users who need a rugged magnified optic.
This ACOG combines 4x magnification and a 32mm objective with a green horseshoe dot reticle whose bullet drop compensation is calibrated for .223 / 5.56.
The reticle is LED illuminated and powered by a single AA battery, with six adjustable brightness levels and an "off" between each setting, so the operator decides how much illumination to use, even in transitional lighting.
It is supplied on a Flattop Thumbscrew Mount (TA51), and the housing is forged aluminium in a matte black finish.
Key features
- Adjustable LED brightness — Six user-selectable brightness levels, with an "off" position between each setting, let the reticle be matched to the available light.
- Long battery life — A single AA lithium or alkaline battery runs the illumination for over 12,000 continuous hours on setting #4.
- Bindon Aiming Concept — The Bindon Aiming Concept (BAC) supports both-eyes-open shooting for improved situational awareness.

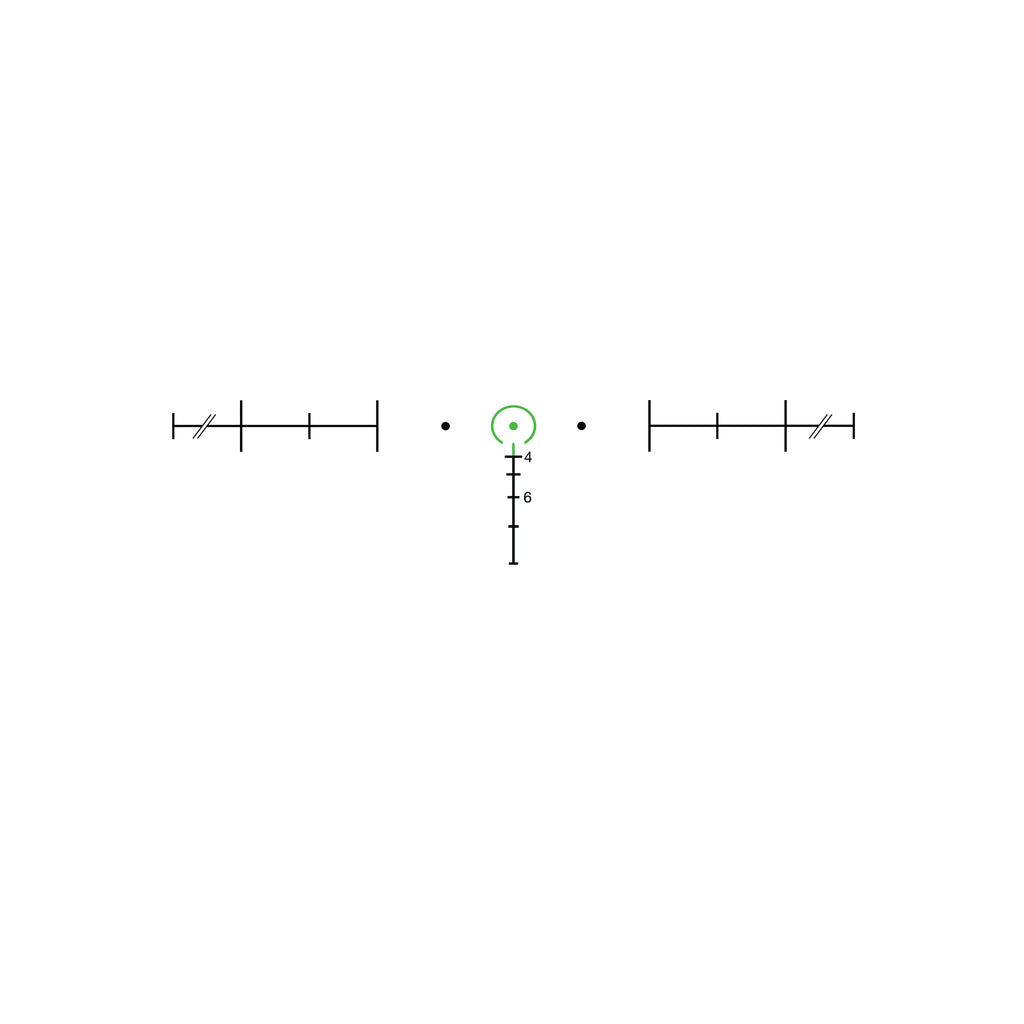

- BDC and ranging reticle — The horseshoe dot reticle provides bullet drop compensation for .223 / 5.56 to help with holds at distance.
- Rugged fixed-power housing — The fixed-power design keeps moving parts to a minimum, and the body is forged from 7075-T6 aircraft aluminium.
- Shock-resistant construction — The optic is built to withstand recoil from a .22LR to a .50BMG and passes U.S. Military drop test requirements.
- Waterproof and fog-free — The dry nitrogen-filled housing mitigates fogging, and the optic is rated to a submersion depth of -66 ft. (-20m).
- Night vision compatible — The optic is fully night vision device compatible and works with most other 4x32 ACOG accessories.
Typical applications
- Magnified sighting on service and duty rifles chambered in .223 / 5.56.
- Law enforcement and military use where rapid target acquisition with both eyes open matters.
- Operations in changing or low light, including use alongside night vision devices.
Technical specifications
| Length × width × height | 5.98 in x 2 in x 2.3 in (151.89mm x 50.8mm x 58.42mm) |
| Weight | 17.5 oz. (496.12g) |
| Magnification | 4x |
| Objective size | 32mm |
| Reticle pattern | Horseshoe Dot |
| Day reticle colour | Green |
| Night reticle colour | Green |
| Bullet drop compensation (BDC) | Yes |
| Calibre | .223 / 5.56 |
| Bindon Aiming Concept (BAC) | Yes |
| Illumination source | LED |
| Power source | AA Lithium or Alkaline Battery |
| Battery life | 12,000 hrs on setting #4 |
| Adjustment | 2 clicks per inch @100 yards |
| Eye relief | 1.5 in. (38.1mm) |
| Exit pupil | 0.32 in. (8.13mm) |
| Field of view (degrees) | 7° |
| Field of view (distance) | 36.8 ft. @ 100 yds. (12.27m @ 100m) |
| Mount | Flattop Thumbscrew Mount (TA51) |
| Housing material | Forged Aluminum |
| Finish | Matte Black |
| Submersion depth | 66 ft. (20m) |
In the box
- 1 × ACOG® 4x32 LED Riflescope - .223 / 5.56 BDC — Green Horseshoe/Dot Reticle, Thumbscrew Mount, LED Illuminated, Matte Black
- Thumbscrew Flattop Adapter (TA51)
- AA Battery
- LENSPEN (TA56)
- Lanyard Assembly for Adjuster Caps (TA71E)
- Lanyard Assembly for Battery Cap
- Trijicon Logo Sticker (PR15)
- ACOG Manual
- Warranty Card
Model information
| Brand | Trijicon |
| Model | ACOG® 4x32 LED Riflescope - .223 / 5.56 BDC — Green Horseshoe/Dot Reticle, Thumbscrew Mount, LED Illuminated, Matte Black |
| MPN | TA02-D-100392 |
