Description

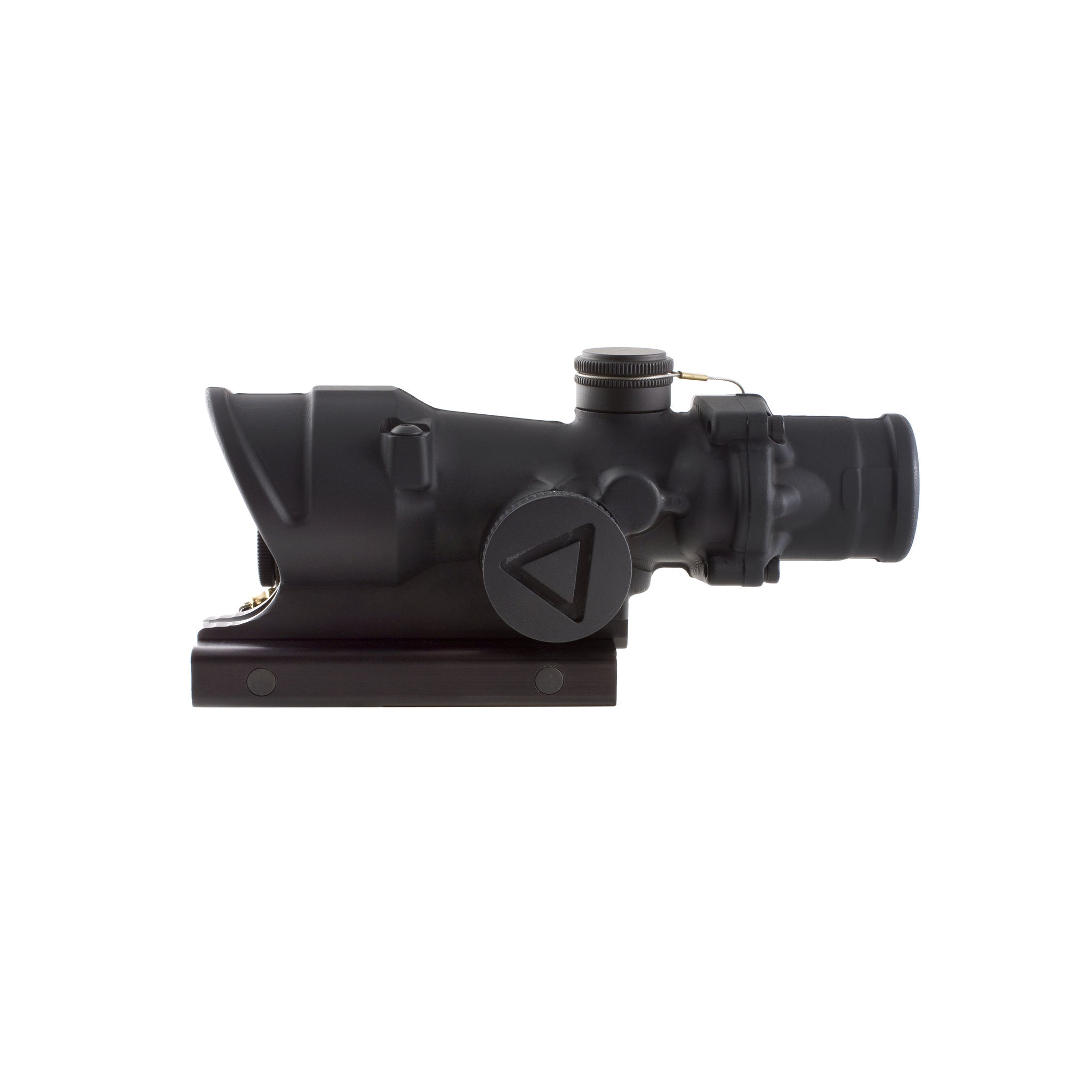

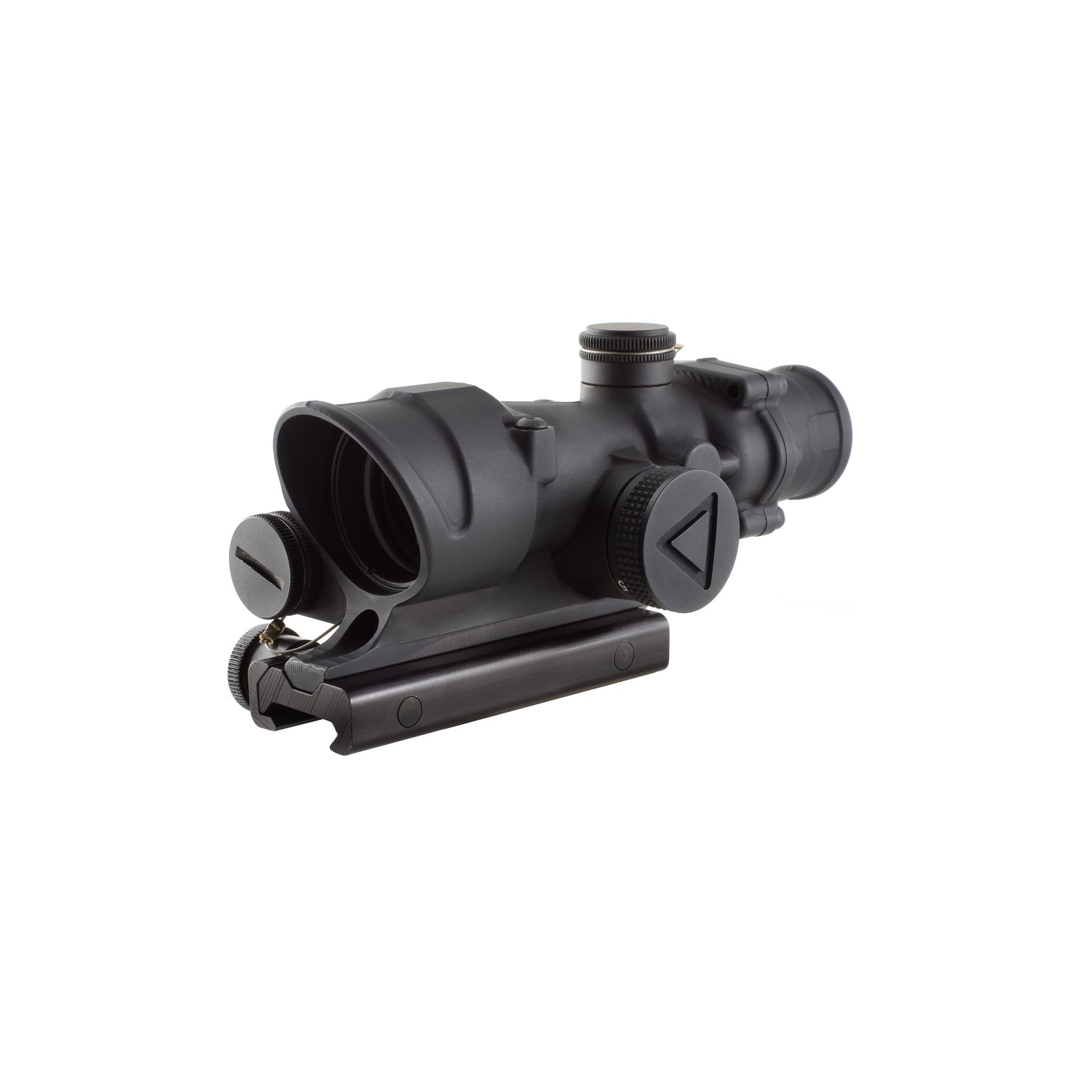

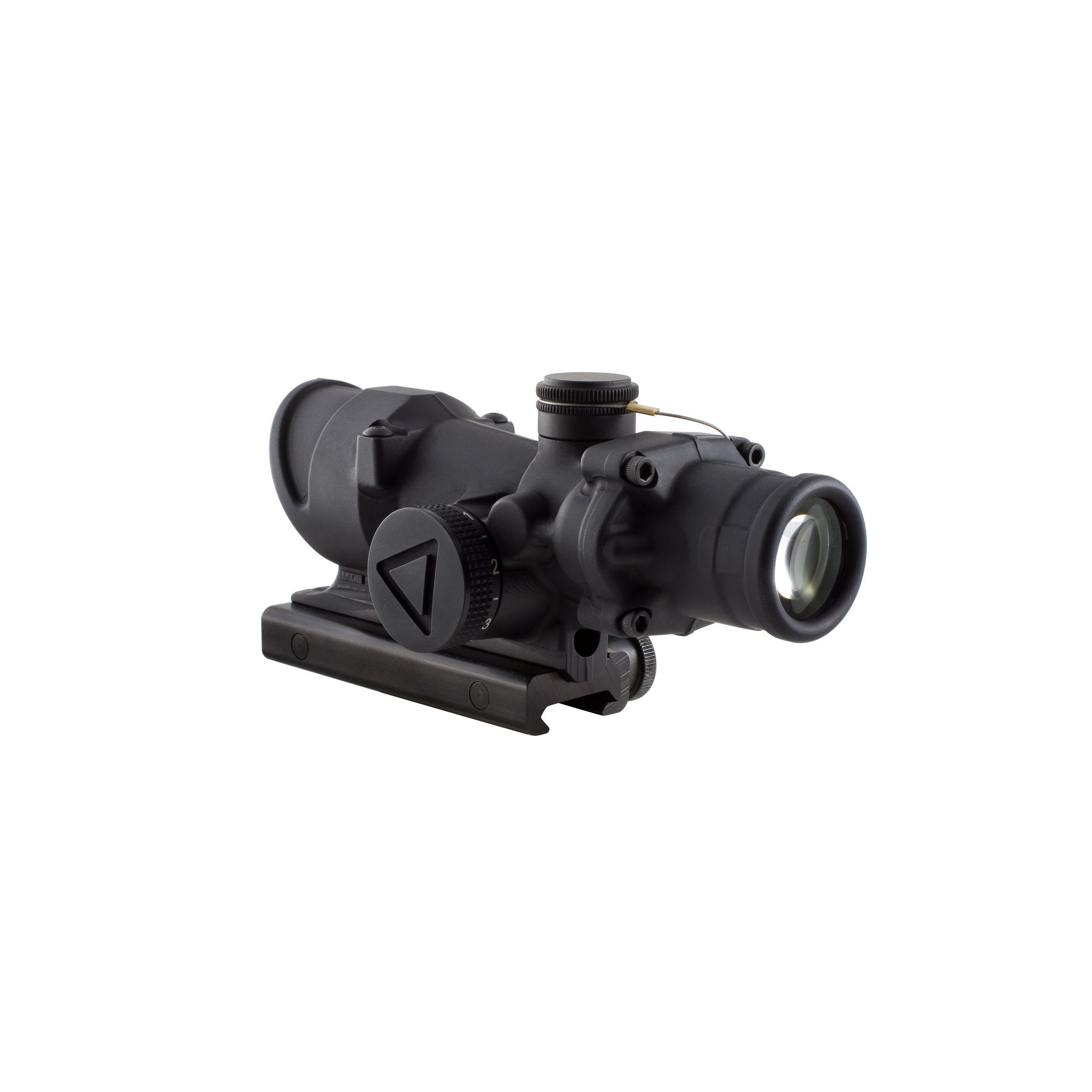

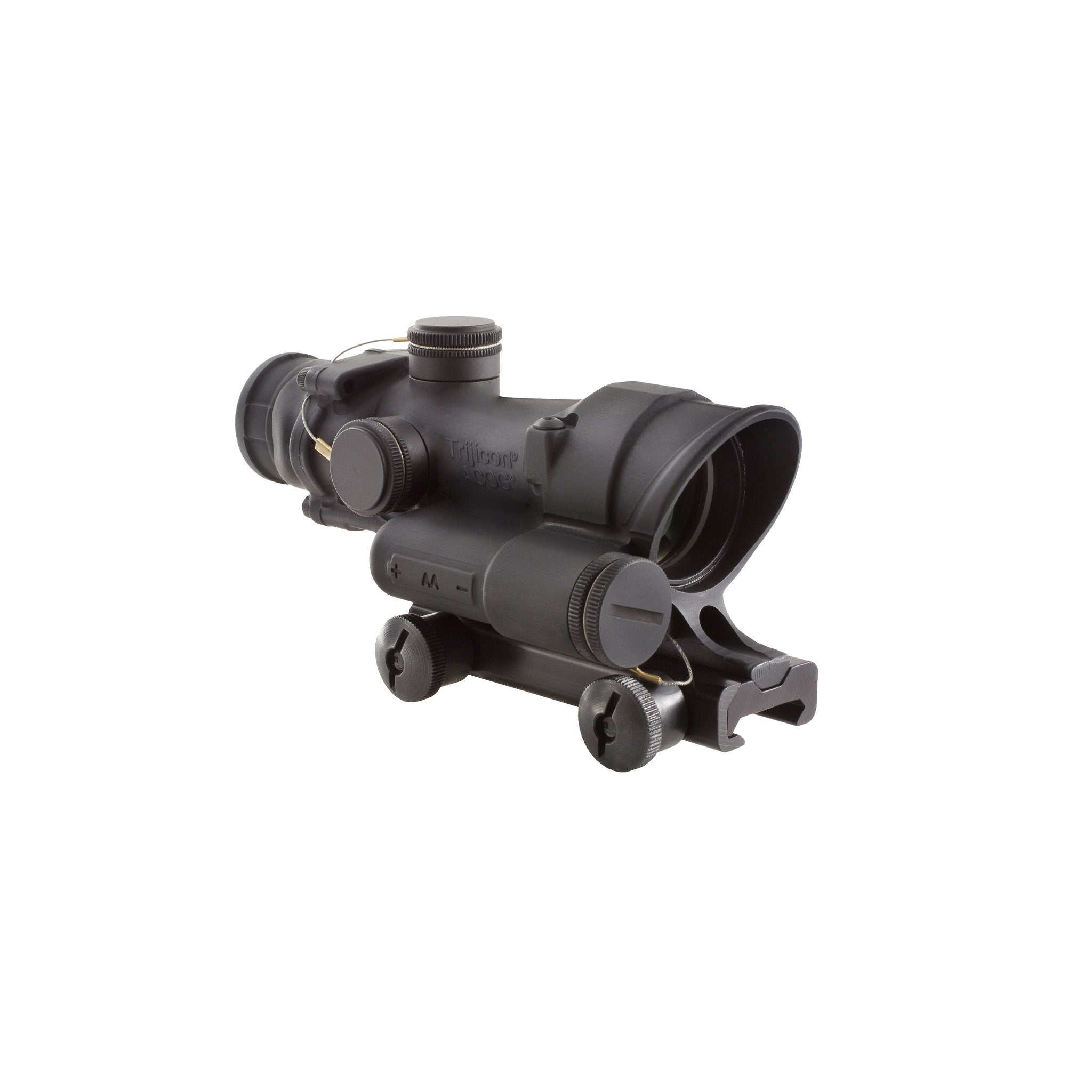

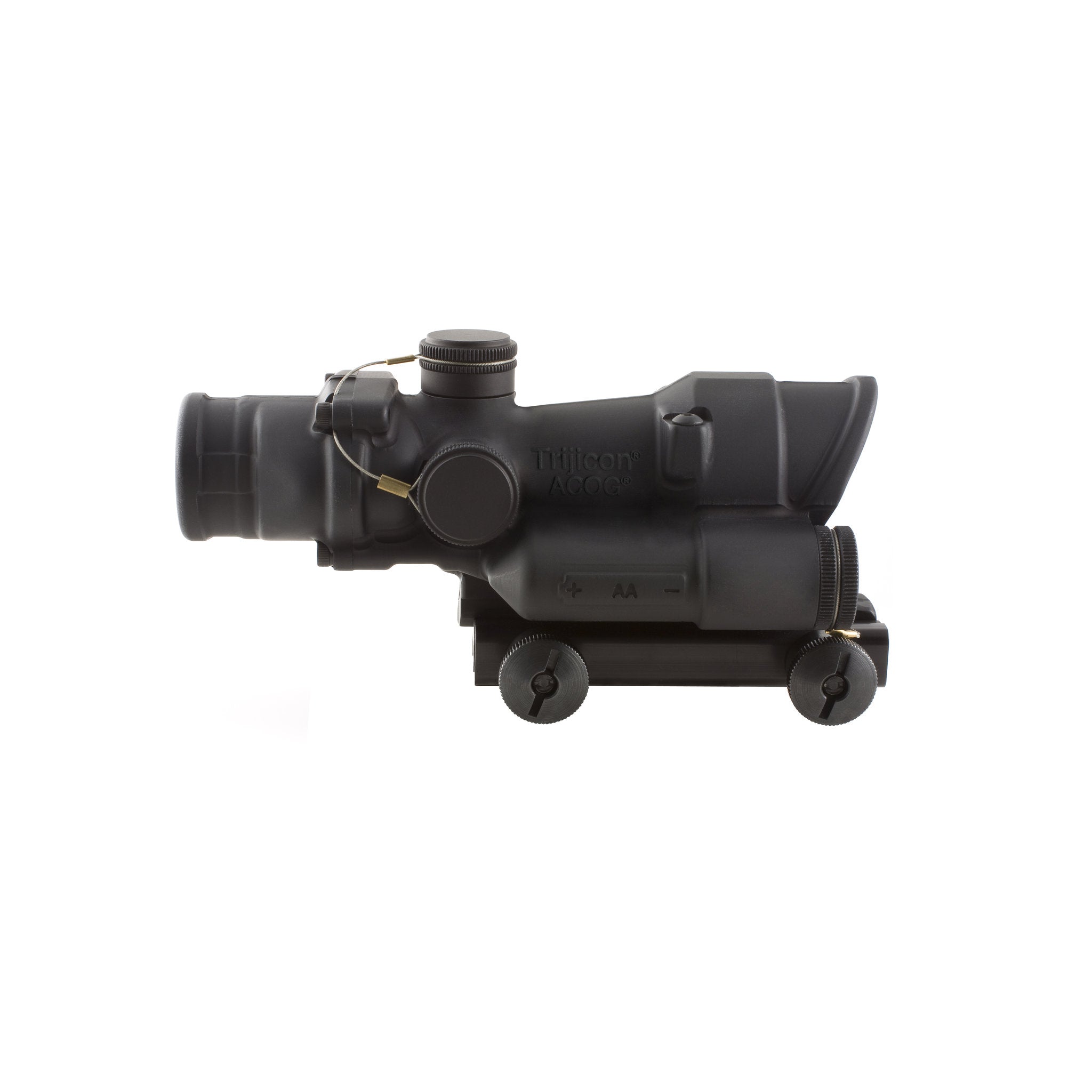

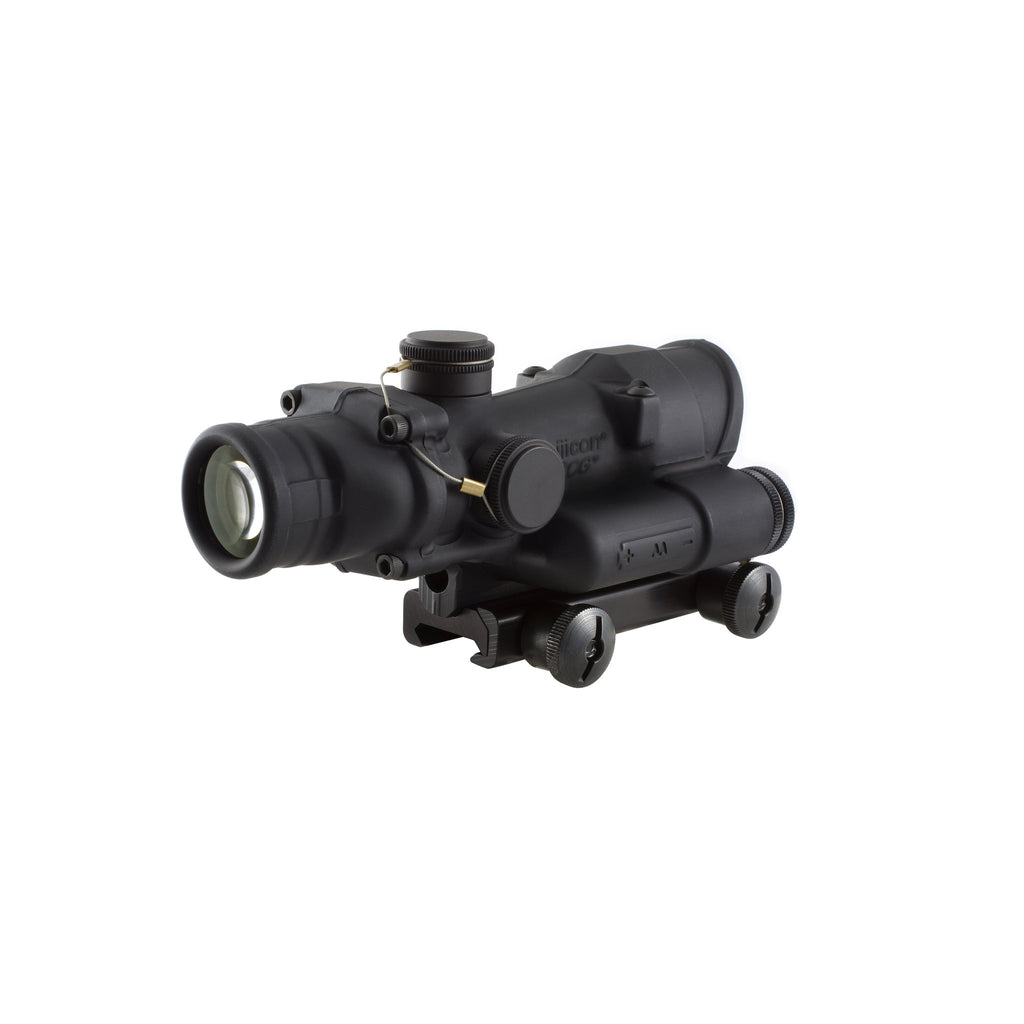

A 4x32 fixed-power ACOG riflescope with an LED-illuminated green crosshair BDC reticle for .223 / 5.56 rifles, for professional users who want adjustable reticle brightness.

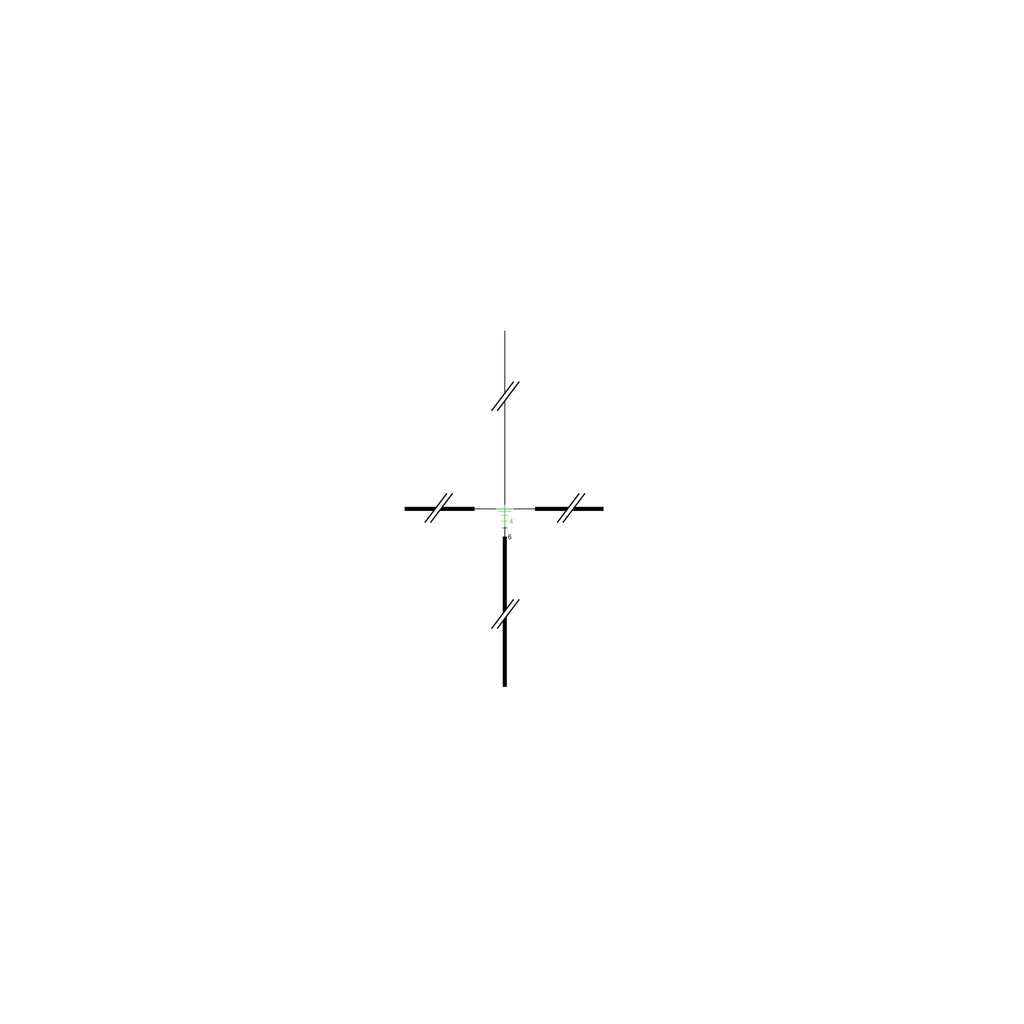

This ACOG riflescope offers 4x magnification with a 32mm objective and a green crosshair reticle with bullet drop compensation calibrated for .223 / 5.56.
The reticle is LED illuminated and powered by a single AA battery, with six adjustable brightness levels and an "off" position between each setting, so the operator decides how much to illuminate the reticle, even in transitional lighting.
The housing is forged from 7075-T6 aircraft-aluminium with a matte black finish, and the scope is supplied with the Flattop Thumbscrew Mount (TA51).
Key features
- Adjustable LED brightness — Six adjustable brightness levels with an "off" between each setting let the user match reticle illumination to the light conditions.
- Long battery life — A single AA battery runs the illumination for over 12,000 continuous hours on setting #4.
- Both eyes open — The Bindon Aiming Concept (BAC) supports shooting with both eyes open for improved situational awareness.
- BDC crosshair reticle — The bullet drop compensating crosshair reticle is calibrated for .223 / 5.56.
- Fixed-power housing — The fixed-power design keeps moving parts to a minimum, and the scope is proven to withstand recoil from a .22LR to a .50BMG.
- Night vision compatible — The scope is fully night vision device compatible and works with most other 4x32 ACOG accessories.
- Waterproof and fog-free — The dry nitrogen-filled housing mitigates fogging, and the scope is rated to a submersion depth of -66 ft. (-20m).
Typical applications
- Duty and patrol rifles in .223 / 5.56 that need a rugged fixed-power magnified optic.
- Use in changing and transitional light where reticle brightness must be set by the operator.
- Night operations alongside night vision devices.
Technical specifications
| Length × width × height | 5.98 in x 2 in x 2.3 in (151.89mm x 50.8mm x 58.42mm) |
| Weight | 17.5 oz. (496.12g) |
| Magnification | 4x |
| Objective size | 32mm |
| Reticle pattern | Crosshair |
| Day reticle colour | Green |
| Night reticle colour | Green |
| Bullet drop compensation (BDC) | Yes |
| Calibre | .223 / 5.56 |
| Bindon Aiming Concept (BAC) | Yes |
| Illumination source | LED |
| Power source | AA Lithium or Alkaline Battery |
| Battery life | Over 12,000 hours on setting #4 using supplied alkaline battery at 21 deg C (70 deg F) |
| Adjustment | 2 clicks per inch @100 yards |
| Eye relief | 1.5 in. (38.1mm) |
| Exit pupil | 0.32 in. (8.13mm) |
| Field of view (degrees) | 7° |
| Field of view (distance) | 36.8 ft. @ 100 yds. (12.27m @ 100m) |
| Mount | Flattop Thumbscrew Mount (TA51) |
| Housing material | Forged Aluminum |
| Finish | Matte Black |
| Submersion depth | 66 ft. (20m) |
In the box
- 1 × ACOG® 4x32 LED Riflescope - .223 / 5.56 BDC — Green Crosshair Reticle, Thumbscrew Mount, LED Illuminated, Matte Black
- Thumbscrew Flattop Adapter (TA51)
- AA Battery
- LENSPEN (TA56)
- Lanyard Assembly for Adjuster Caps (TA71E)
- Lanyard Assembly for Battery Cap
- Trijicon Logo Sticker (PR15)
- ACOG Manual
- Warranty Card
Model information
| Brand | Trijicon |
| Model | ACOG® 4x32 LED Riflescope - .223 / 5.56 BDC — Green Crosshair Reticle, Thumbscrew Mount, LED Illuminated, Matte Black |
| MPN | TA02-C-100390 |
