Description

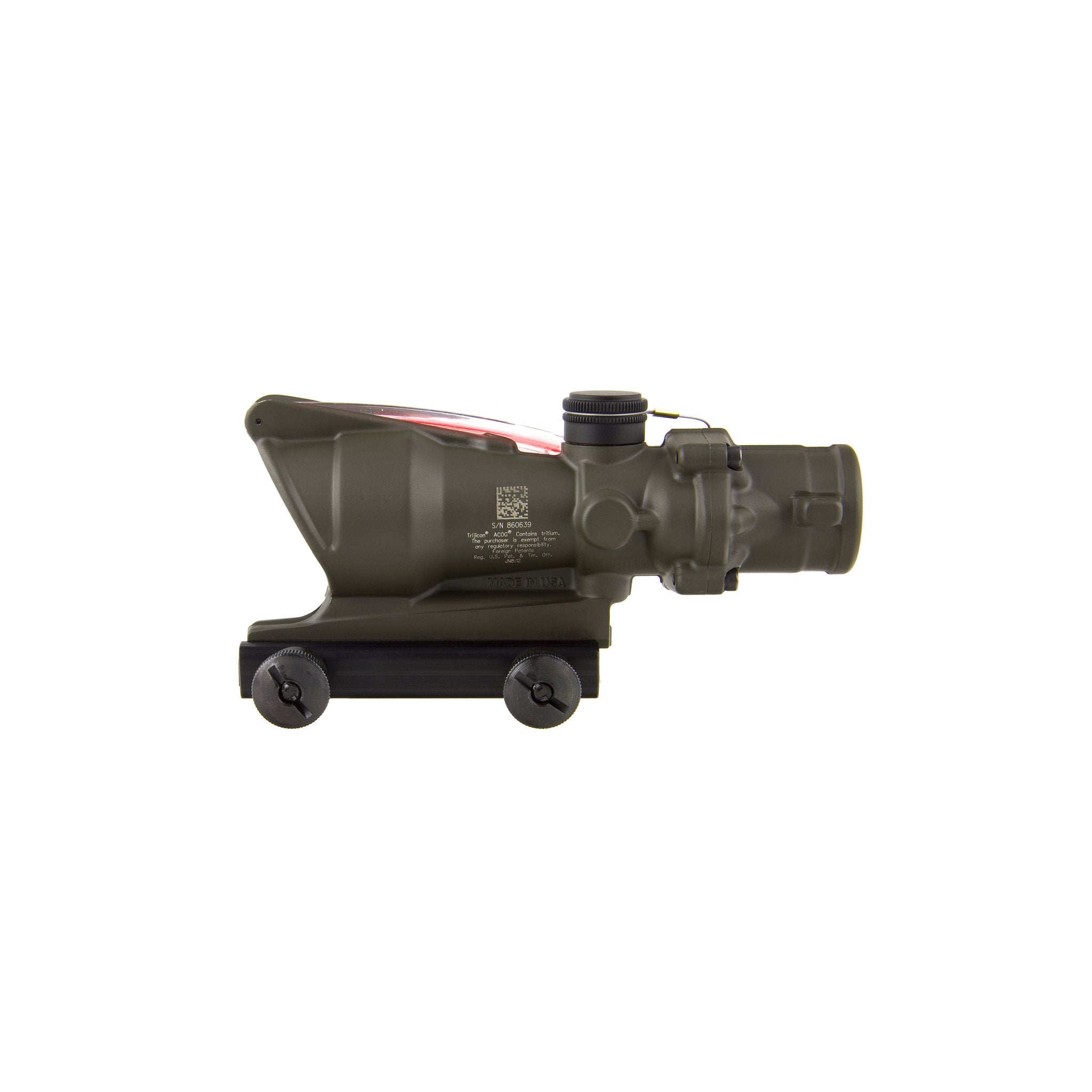

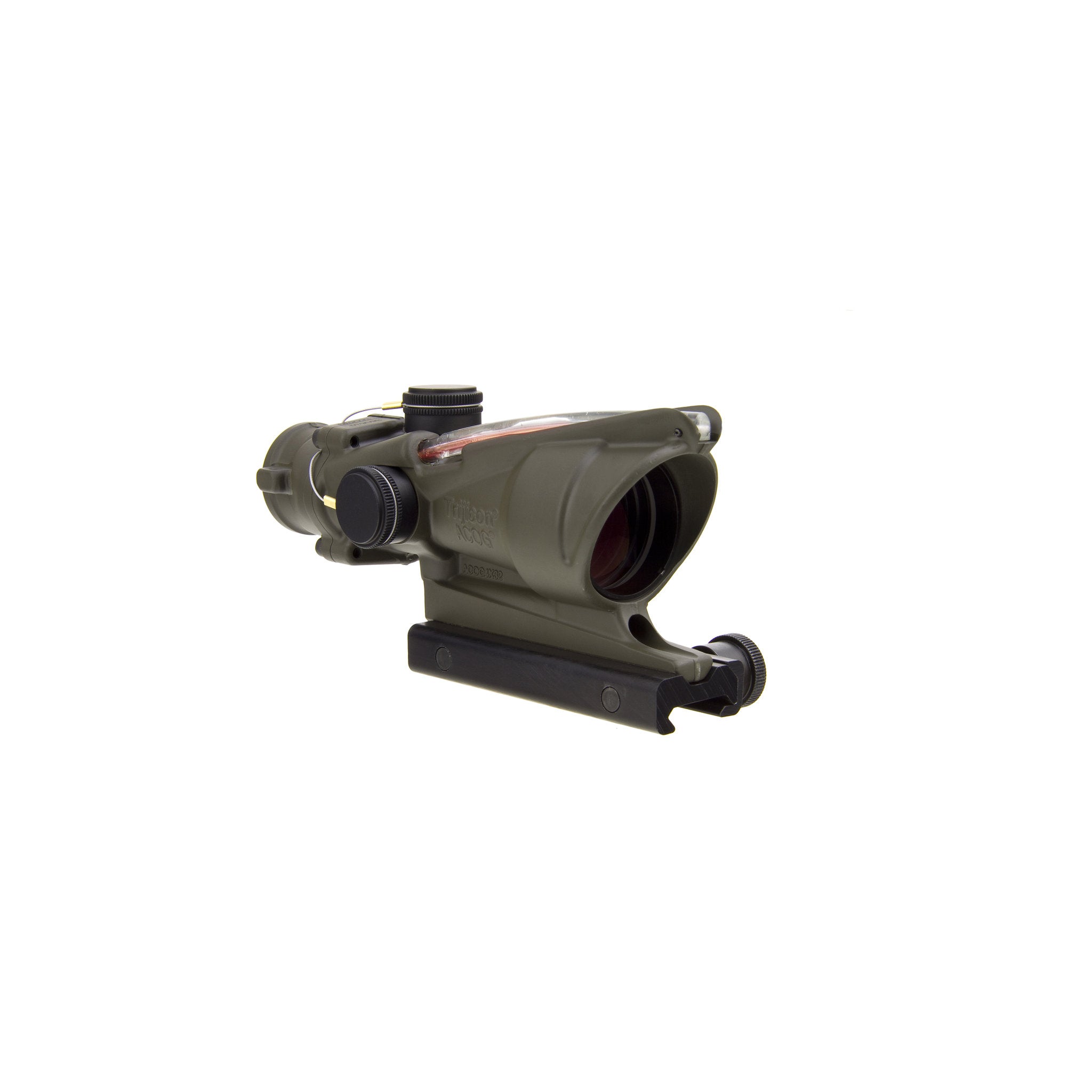

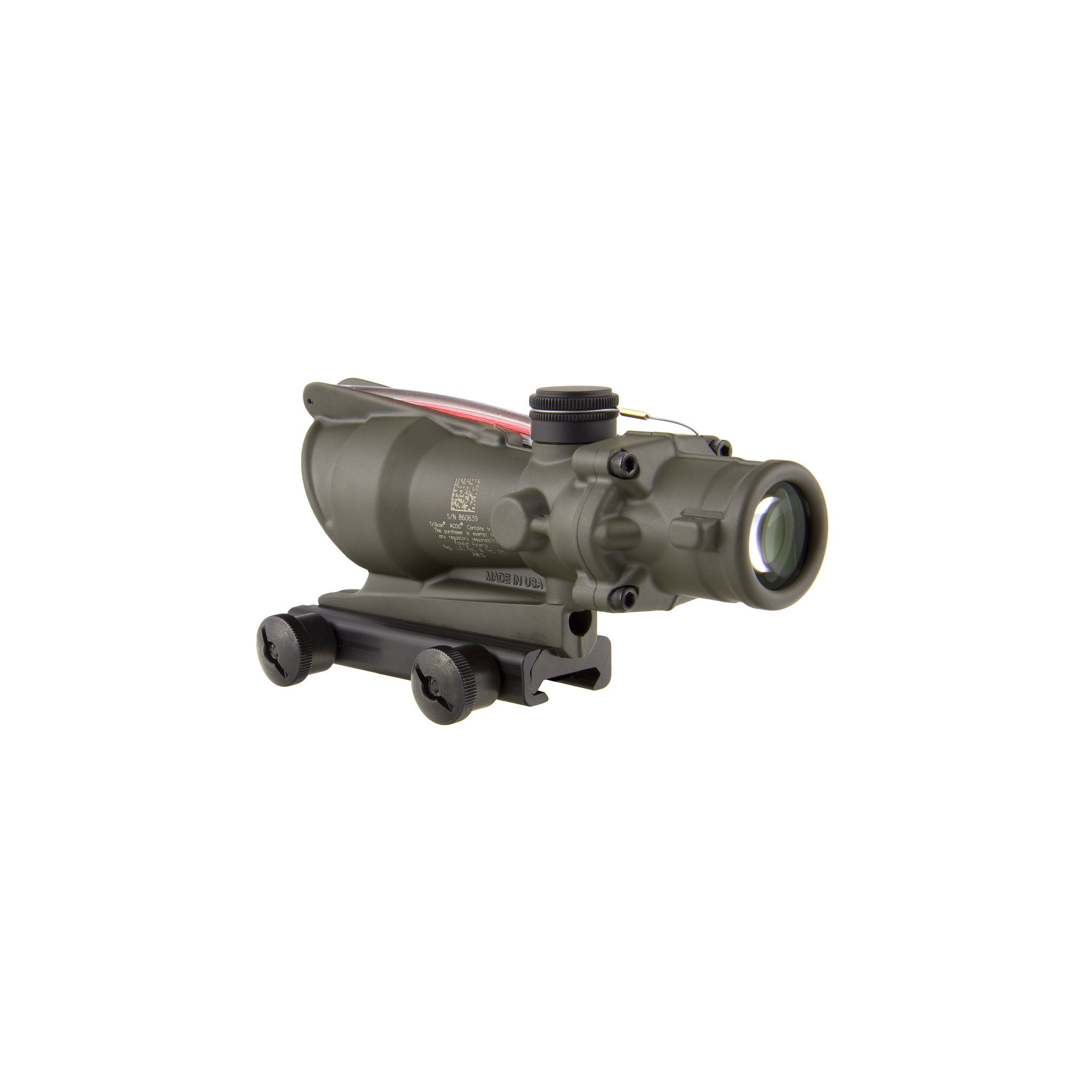

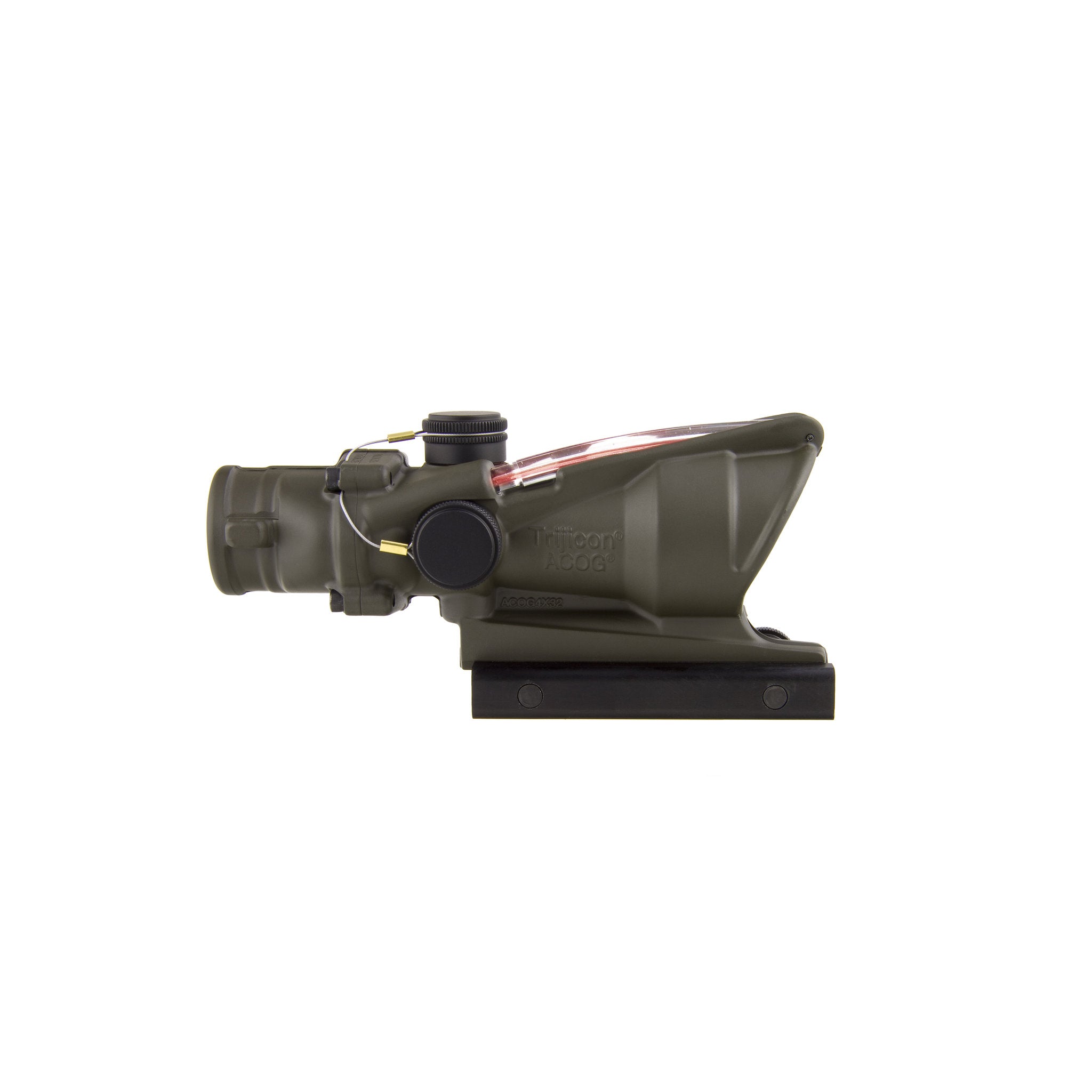

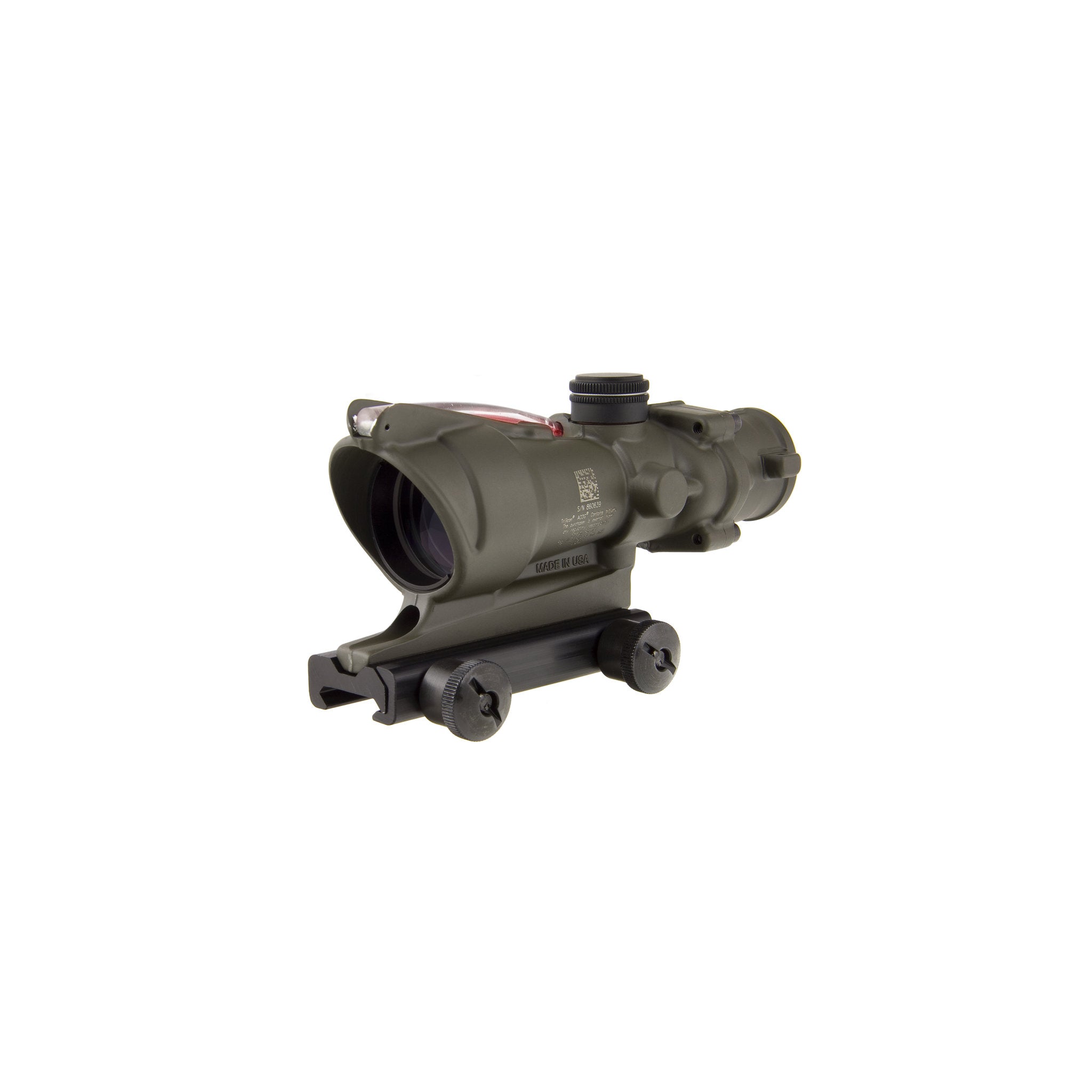

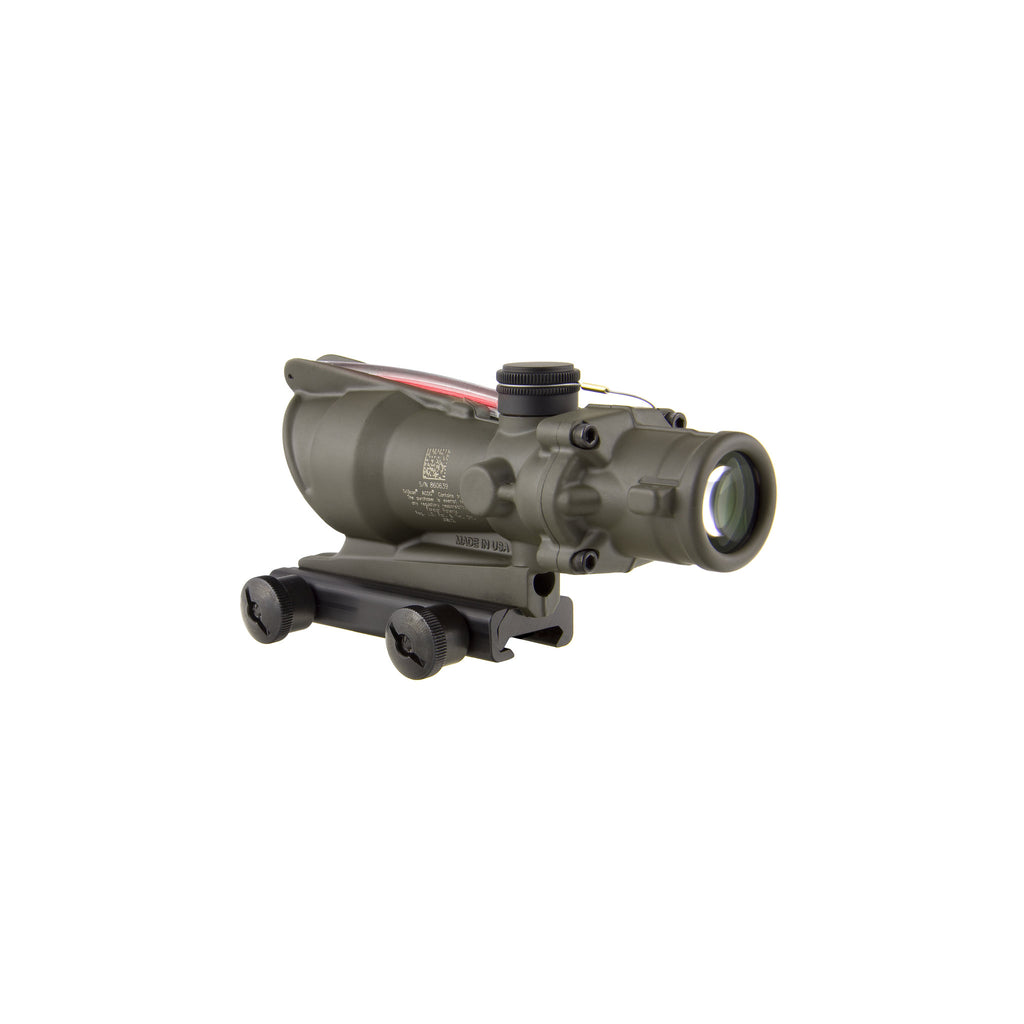

A fixed 4x32 ACOG riflescope with a tritium and fibre optic illuminated red chevron BDC reticle for .223 / 5.56 flattop rifles, for professional and duty users.
This ACOG riflescope combines 4x magnification with a 32mm objective and a red chevron reticle with bullet drop compensation calibrated for .223 / 5.56.
The reticle uses dual illumination: fibre optics provide daylight illumination and tritium illuminates the reticle at night.
It comes on a Flattop Thumbscrew Mount (TA51) in an OD Green finish, with a forged aluminium housing.
Key features

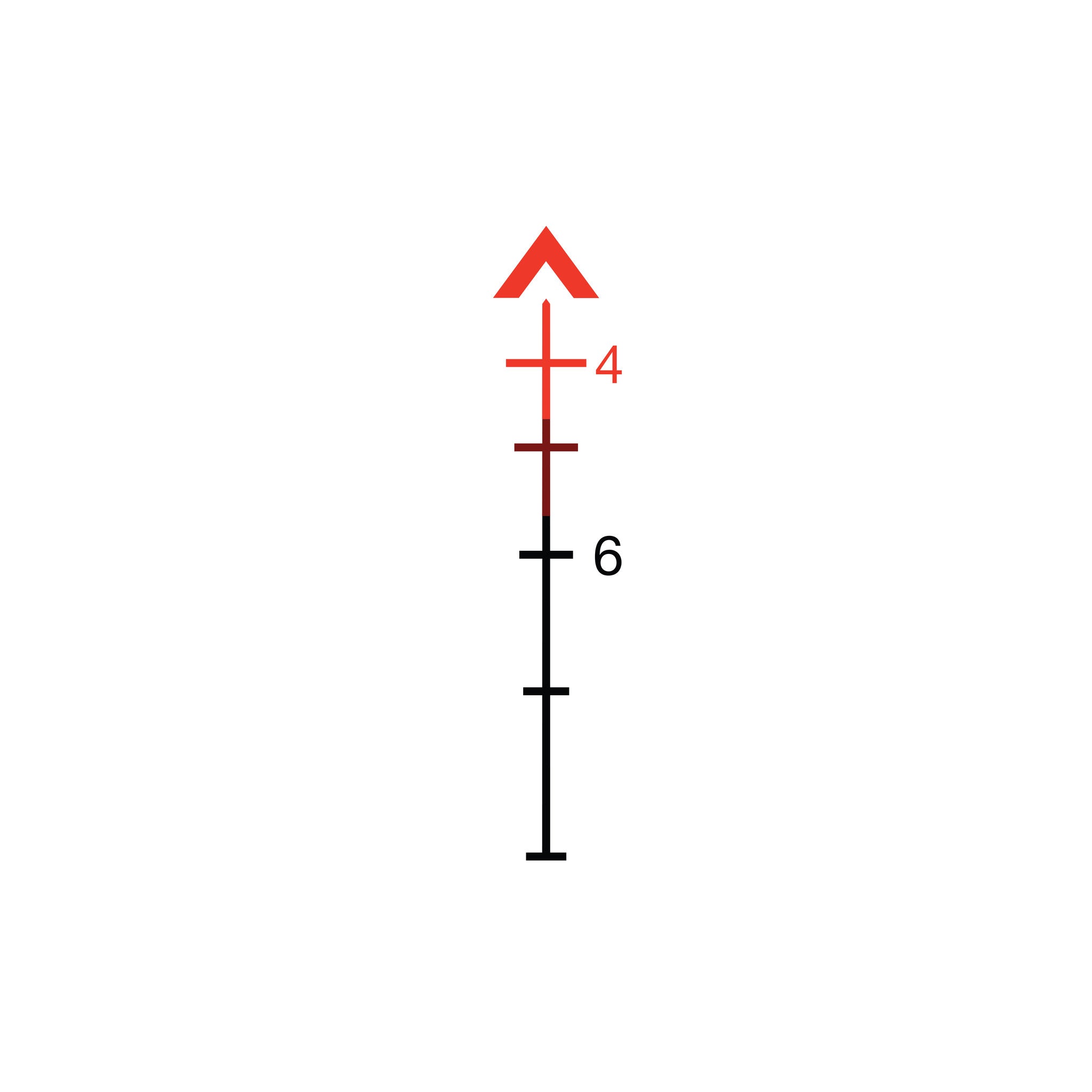

- Chevron ranging reticle — The chevron is zeroed using its tip at 100 metres, and its base width of 5.53 MOA (19 in. at 300 metres) allows range estimation on silhouette targets.
- Calibrated BDC — The ranging reticle is calibrated for 5.56 (.223 cal) flattop rifles out to 800 metres.
- Automatic brightness — The tritium and fibre optic illuminated reticle adjusts its brightness automatically to the available light.
- Both eyes open — The Bindon Aiming Concept (BAC) supports shooting with both eyes open for improved situational awareness.
- Fixed-power design — The fixed-power design keeps moving parts to a minimum for a rugged, reliable sighting system.
- Multi-coated lenses — Multi-coated lenses maximise light gathering and give a clear field of view.
- Waterproof, nitrogen-filled — The dry nitrogen-filled housing mitigates fogging and is rated to a submersion depth of -20m.
- Shock-resistant — The scope is proven to withstand recoil from a .22LR to a .50BMG.
Typical applications
- Duty and patrol rifles in .223 / 5.56 that need a fast, fixed-power magnified optic.
- Engaging and ranging silhouette targets at extended distances with bullet drop holds.
- Use in changing light, from daylight to night, without adjusting the reticle brightness.
Technical specifications
| Length × width × height | 5.98 in x 2 in x 2.3 in (151.89mm x 50.8mm x 58.42mm) |
| Weight | 14.9 oz. (422.41g) |
| Magnification | 4x |
| Objective size | 32mm |
| Reticle pattern | Chevron |
| Day reticle colour | Red |
| Night reticle colour | Red |
| Bullet drop compensation (BDC) | Yes |
| Calibre | .223 / 5.56 |
| Bindon Aiming Concept (BAC) | Yes |
| Illumination source | Fiber Optics & Tritium |
| Power source | Fiber Optics & Tritium |
| Eye relief | 1.5 in. (38.1mm) |
| Exit pupil | 0.32 in. (8.13mm) |
| Field of view (degrees) | 7° |
| Field of view (distance) | 36.8 ft. @ 100 yds. (12.27m @ 100m) |
| Mount | Flattop Thumbscrew Mount (TA51) |
| Housing material | Forged Aluminum |
| Finish | OD Green |
| Submersion depth | 66 ft. (20m) |
In the box
- 1 × ACOG® 4x32 BAC Riflescope - .223 / 5.56 - BDC — Red Chevron Reticle, Thumbscrew Mount, OD Green, Tritium / Fiber Optics Illuminated
- Thumbscrew Flattop Adapter (TA51)
- 4x32 Scopecoat (TA64)
- LENSPEN (TA56)
- Lanyard Assembly for Adjuster Caps (TA71E)
- Trijicon Logo Sticker (PR15)
- ACOG Manual
- Warranty Card
Model information
| Brand | Trijicon |
| Model | ACOG® 4x32 BAC Riflescope - .223 / 5.56 - BDC — Red Chevron Reticle, Thumbscrew Mount, OD Green, Tritium / Fiber Optics Illuminated |
| MPN | TA31-D-100309 |
