Description

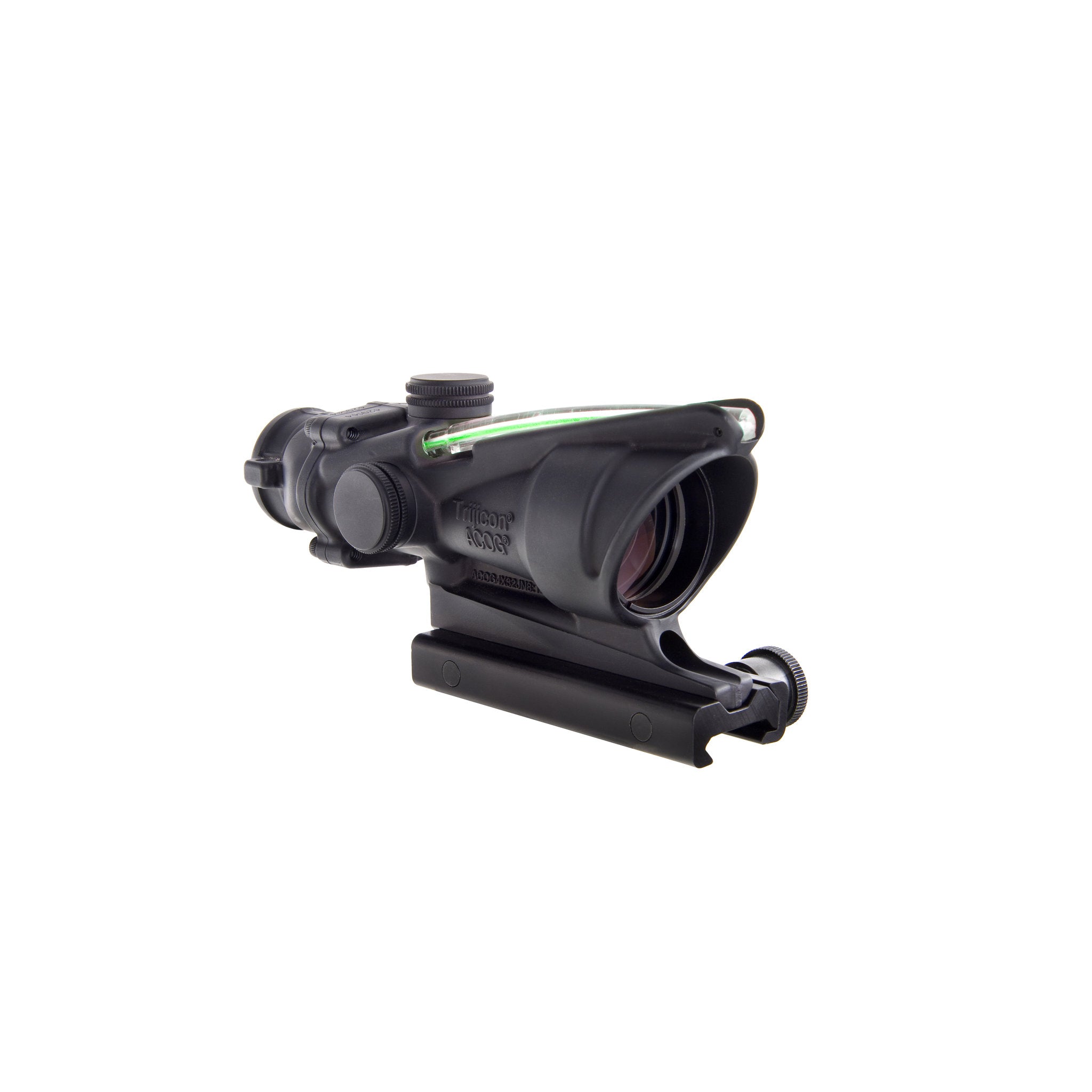

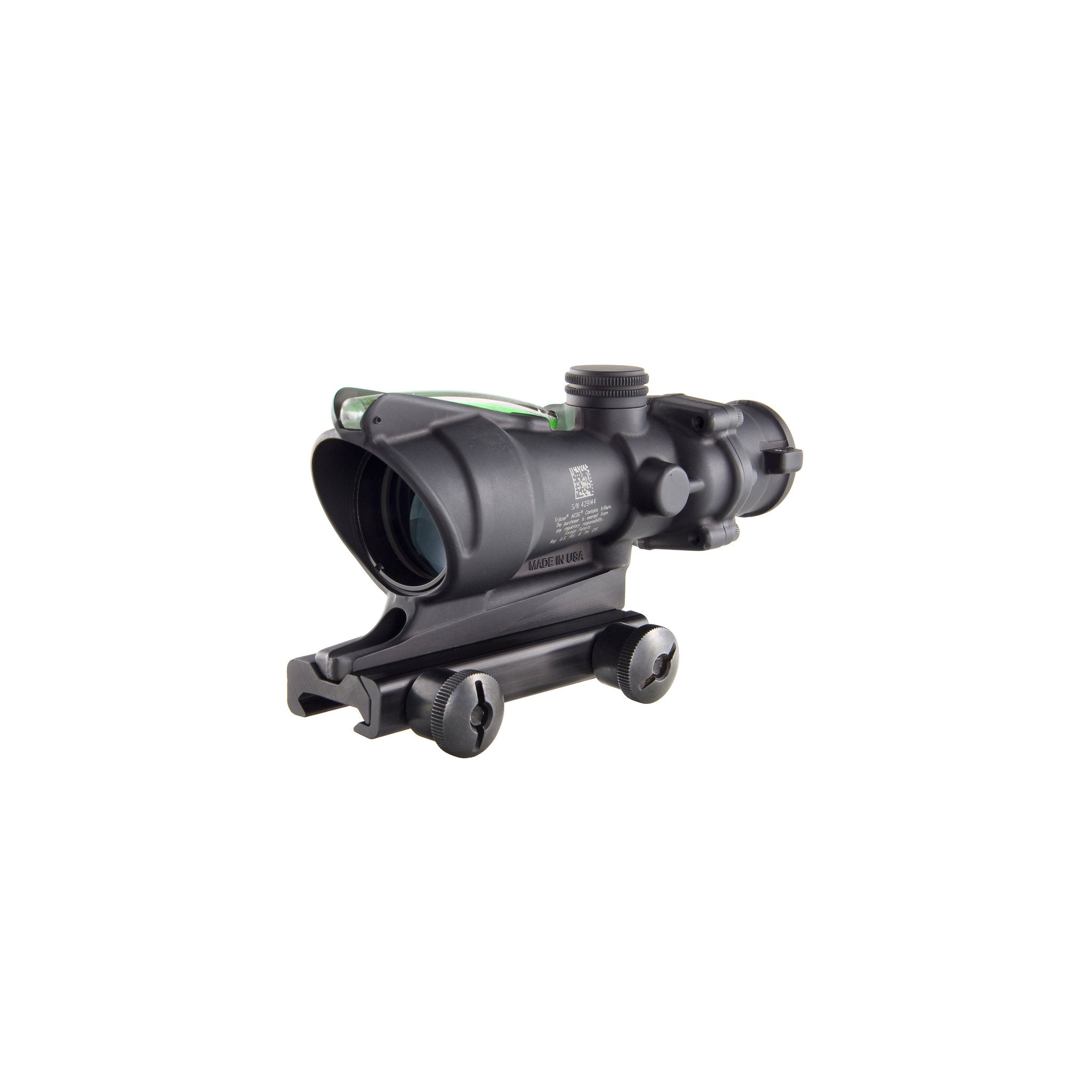

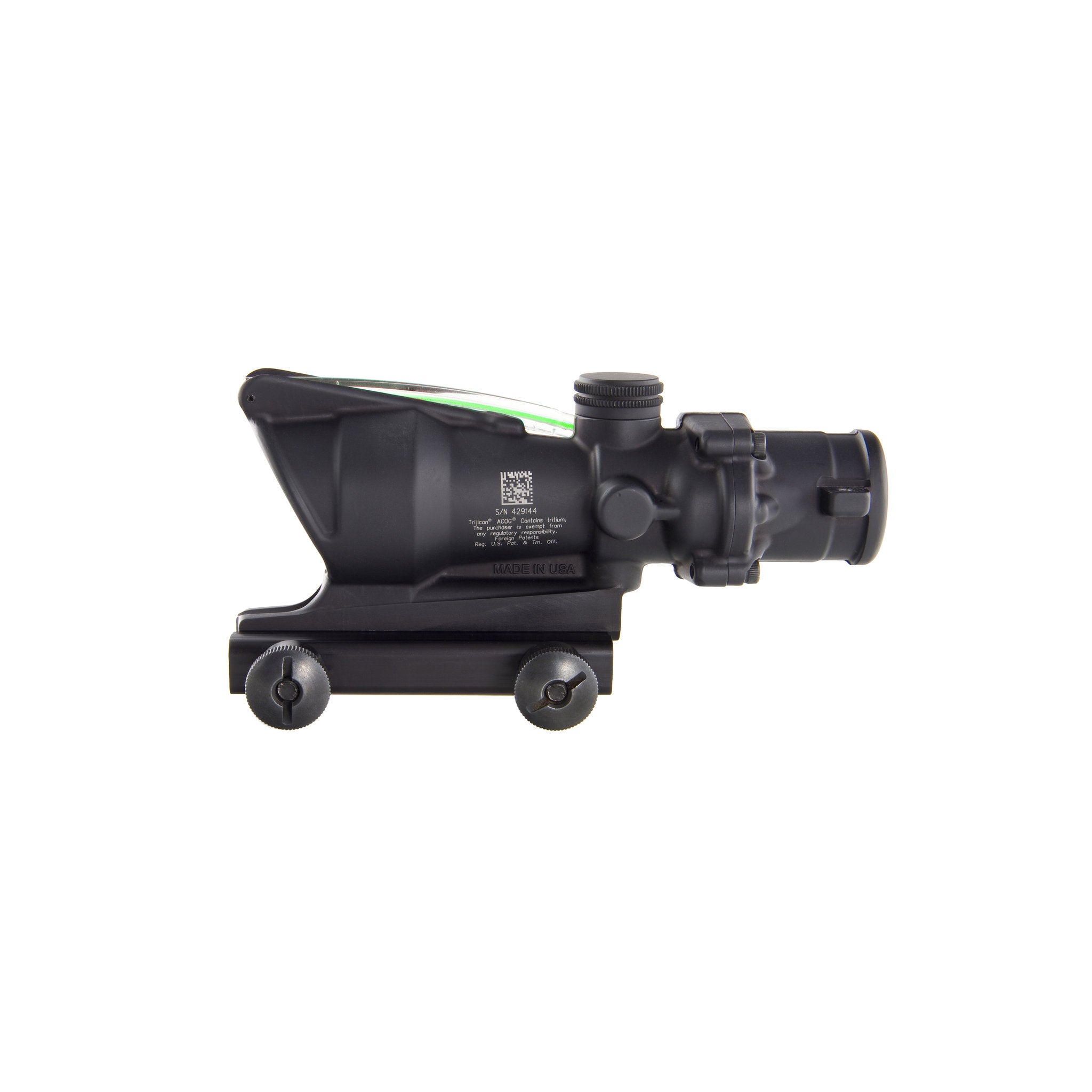

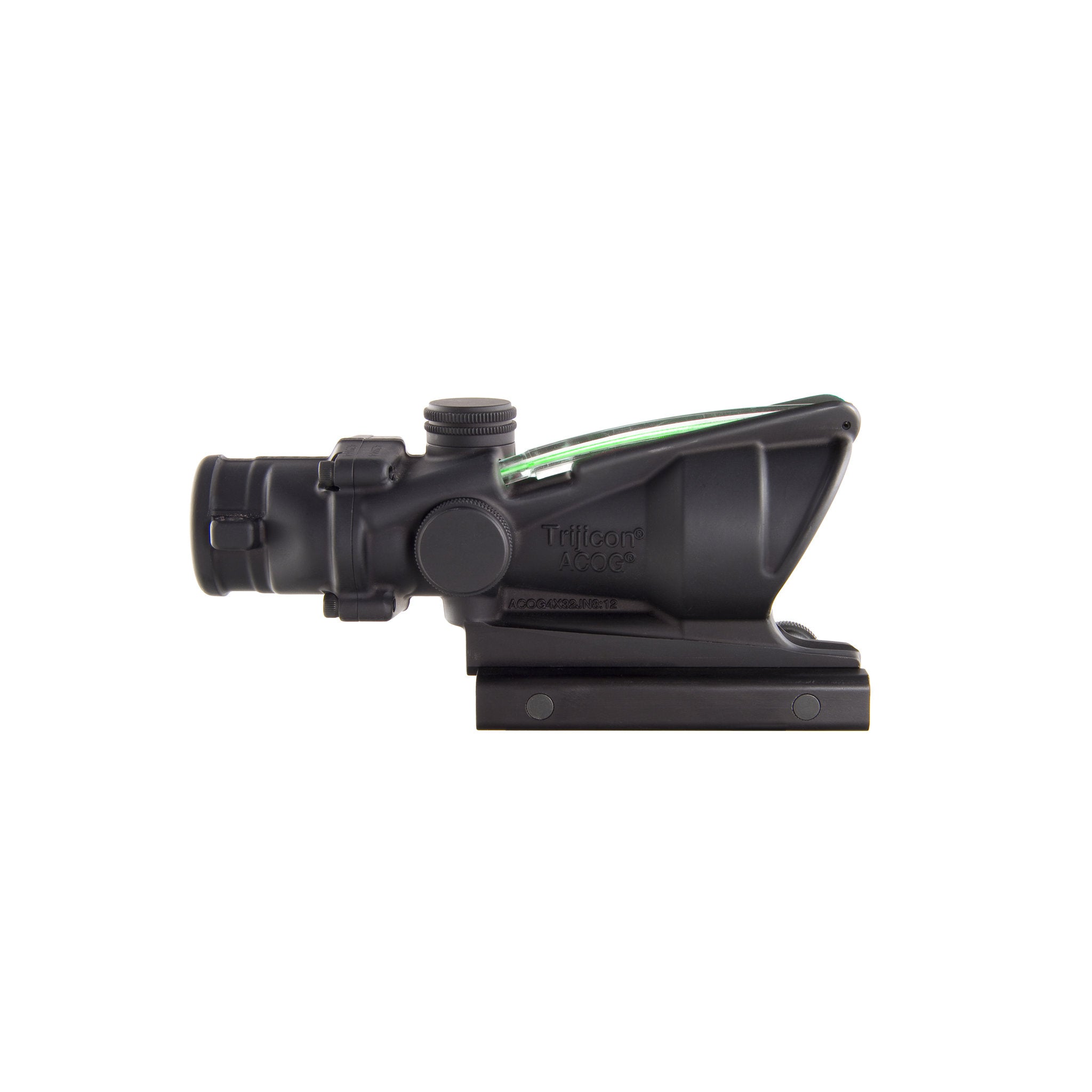

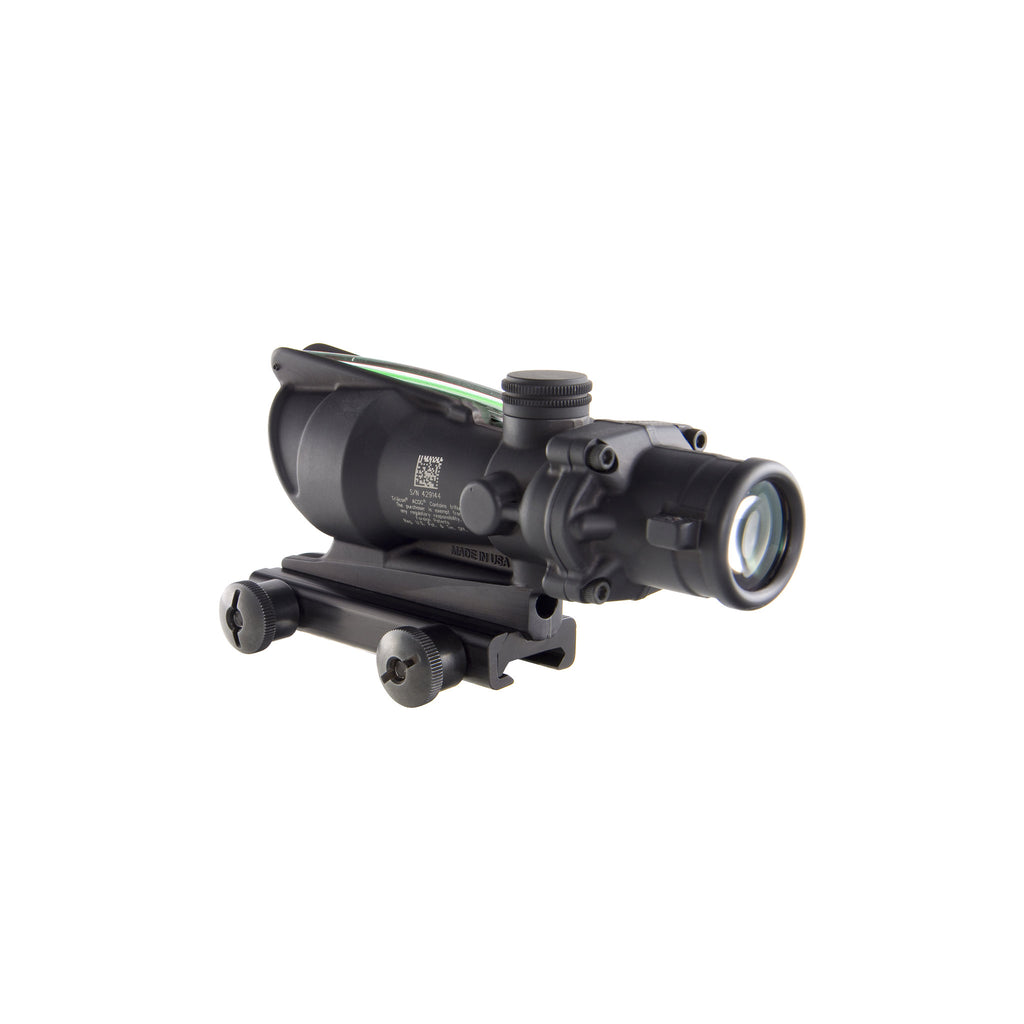

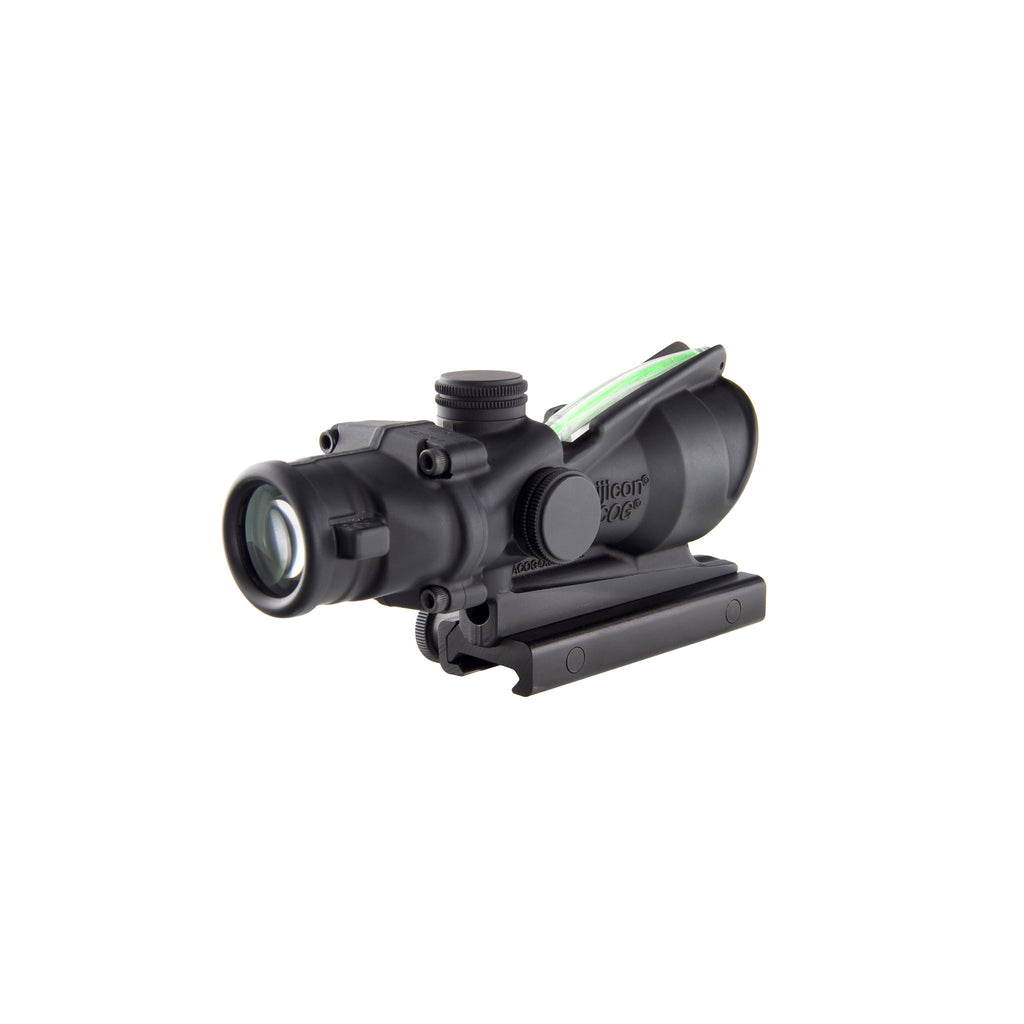

A fixed 4x32 ACOG riflescope with a green horseshoe/dot BDC reticle and tritium and fibre optic illumination, for users of .223 / 5.56 flattop rifles.
This ACOG is a fixed 4x riflescope with a 32mm objective and a green horseshoe/dot Bindon Aiming Concept (BAC) reticle. The ranging reticle is calibrated for 5.56 (.223 cal) flattop rifles out to 800 metres, with bullet drop compensation for .223 / 5.56.
It uses dual illumination: fibre optics light the reticle in daylight and tritium illuminates it at night. The scope comes with a flattop thumbscrew mount.
Key features
- Automatic brightness — The tritium and fibre optic illuminated reticle adjusts its brightness automatically to the available light.

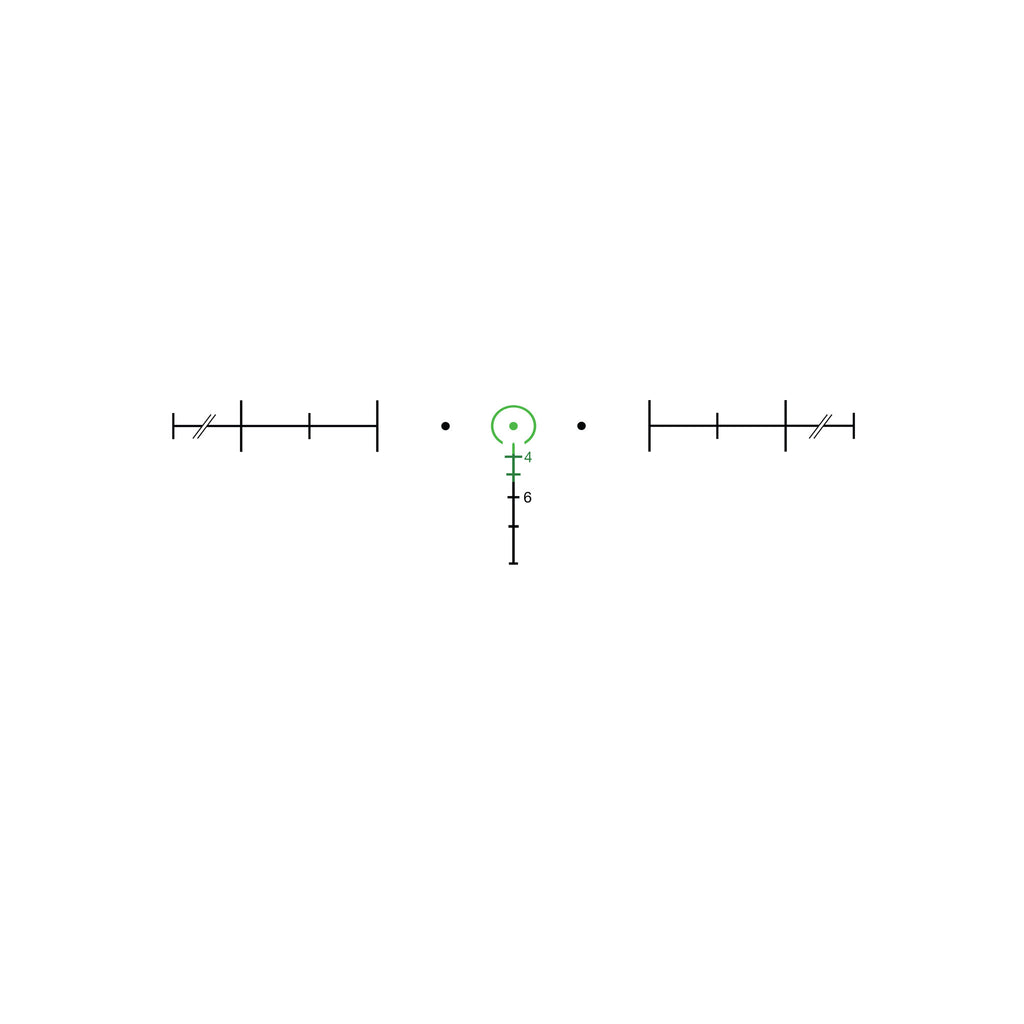

- Ranging BDC reticle — The bullet drop compensating, target-ranging horseshoe/dot reticle is calibrated for .223 / 5.56 out to 800 metres.
- Both eyes open — The Bindon Aiming Concept (BAC) supports shooting with both eyes open for improved situational awareness.
- Fixed-power housing — The fixed-power design uses minimal moving parts in a forged aluminium housing.
- Shock resistant — It is proven to withstand recoil from a .22LR to a .50BMG.
- Waterproof and fog-free — The dry nitrogen-filled housing mitigates fogging and is rated to a submersion depth of -66 ft. (-20m).
- Multi-coated glass — Multi-coated lenses maximise light gathering and give a clear field of view.
Typical applications
- Magnified sighting on .223 / 5.56 flattop rifles for duty and patrol use.
- Range estimation and holdover at medium distances without adjusting turrets.
- Around-the-clock use in changing light, from daylight to night.
Technical specifications
| Length × width × height | 5.98 in x 2 in x 2.3 in (151.89mm x 50.8mm x 58.42mm) |
| Weight | 14.9 oz. (422.41g) |
| Magnification | 4x |
| Objective size | 32mm |
| Reticle pattern | Horseshoe Dot |
| Day reticle colour | Green |
| Night reticle colour | Green |
| Bullet drop compensation (BDC) | Yes |
| Calibre | .223 / 5.56 |
| Illumination source | Fiber Optics & Tritium |
| Power source | Fiber Optics & Tritium |
| Eye relief | 1.5 in. (38.1mm) |
| Exit pupil | 0.32 in. (8.13mm) |
| Field of view (degrees) | 7° |
| Field of view (distance) | 36.8 ft. @ 100 yds. (12.27m @ 100m) |
| Mount | Flattop Thumbscrew Mount (TA51) |
| Housing material | Forged Aluminum |
| Finish | Matte Black |
| Submersion depth | 66 ft. (20m) |
In the box
- 1 × ACOG® 4x32 BAC Riflescope - .223 / 5.56 BDC — Green Horseshoe/Dot, Reticle, Thumbscrew Mount, Tritium / Fiber Optics Illuminated, Matte Black
- Thumbscrew Flattop Adapter (TA51)
- 4x32 Scopecoat (TA64)
- LENSPEN (TA56)
- Lanyard Assembly for Adjuster Caps (TA71E)
- Trijicon Logo Sticker (PR15)
- ACOG Manual
- Warranty Card
Model information
| Brand | Trijicon |
| Model | ACOG® 4x32 BAC Riflescope - .223 / 5.56 BDC — Green Horseshoe/Dot, Reticle, Thumbscrew Mount, Tritium / Fiber Optics Illuminated, Matte Black |
| MPN | TA31H-G |
