Description

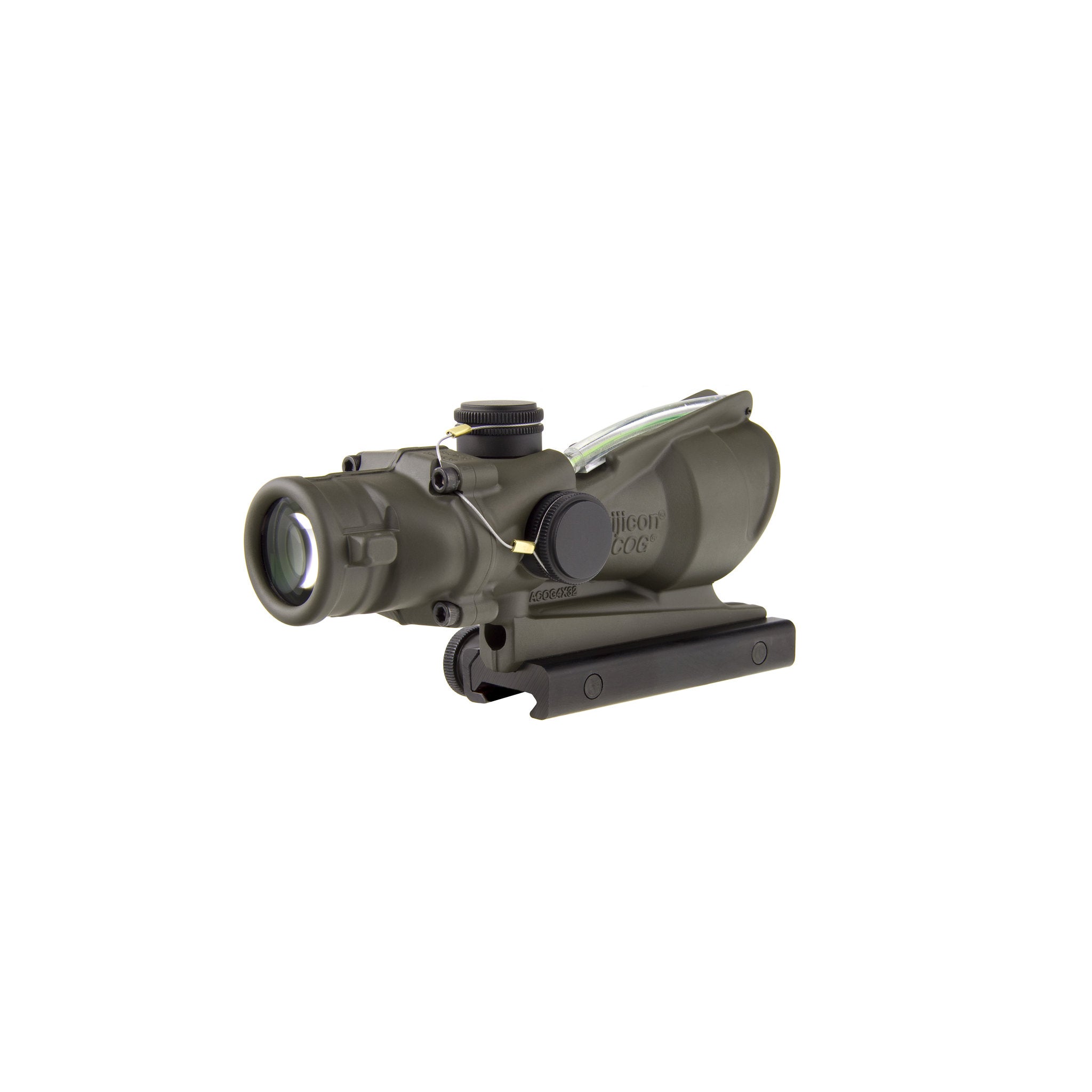

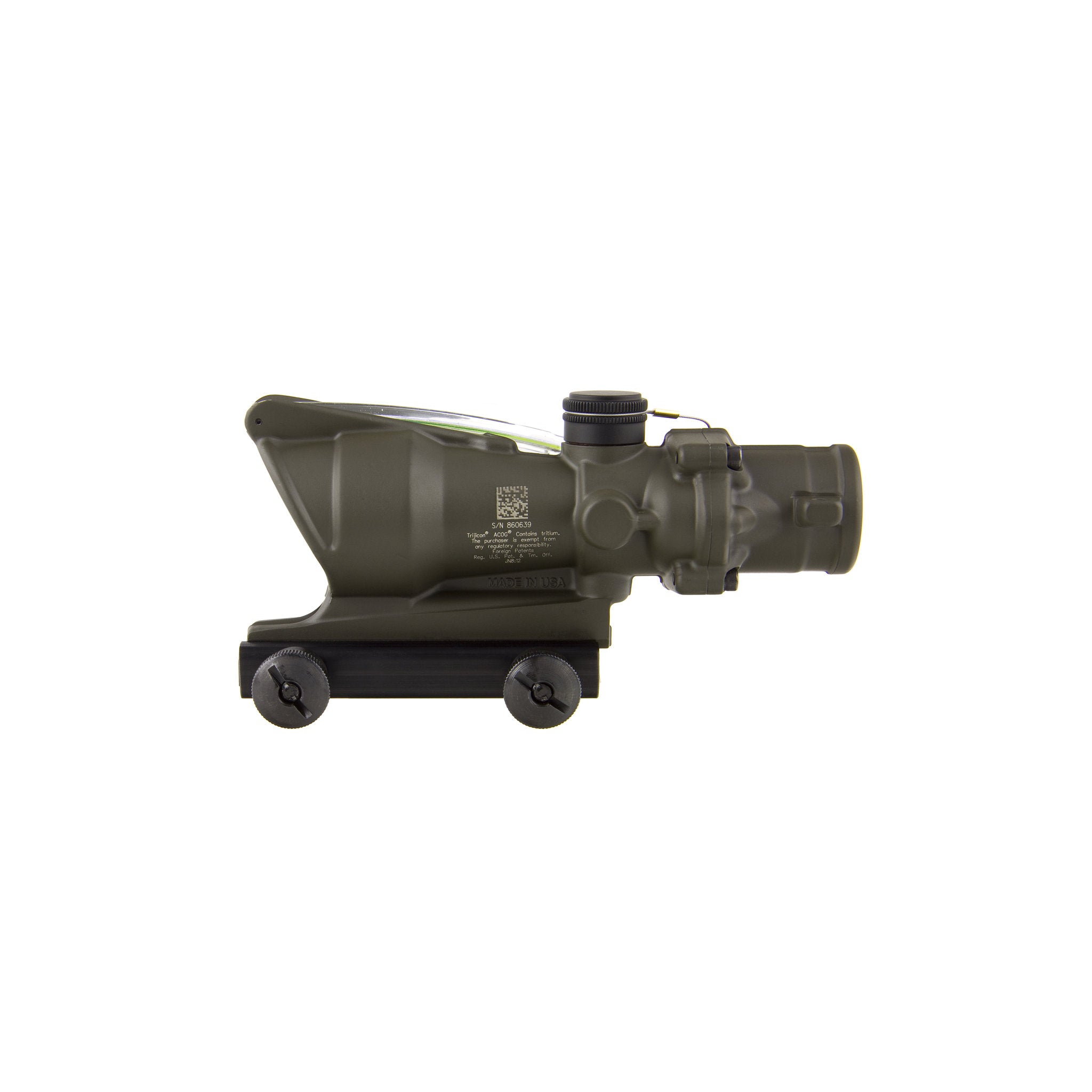

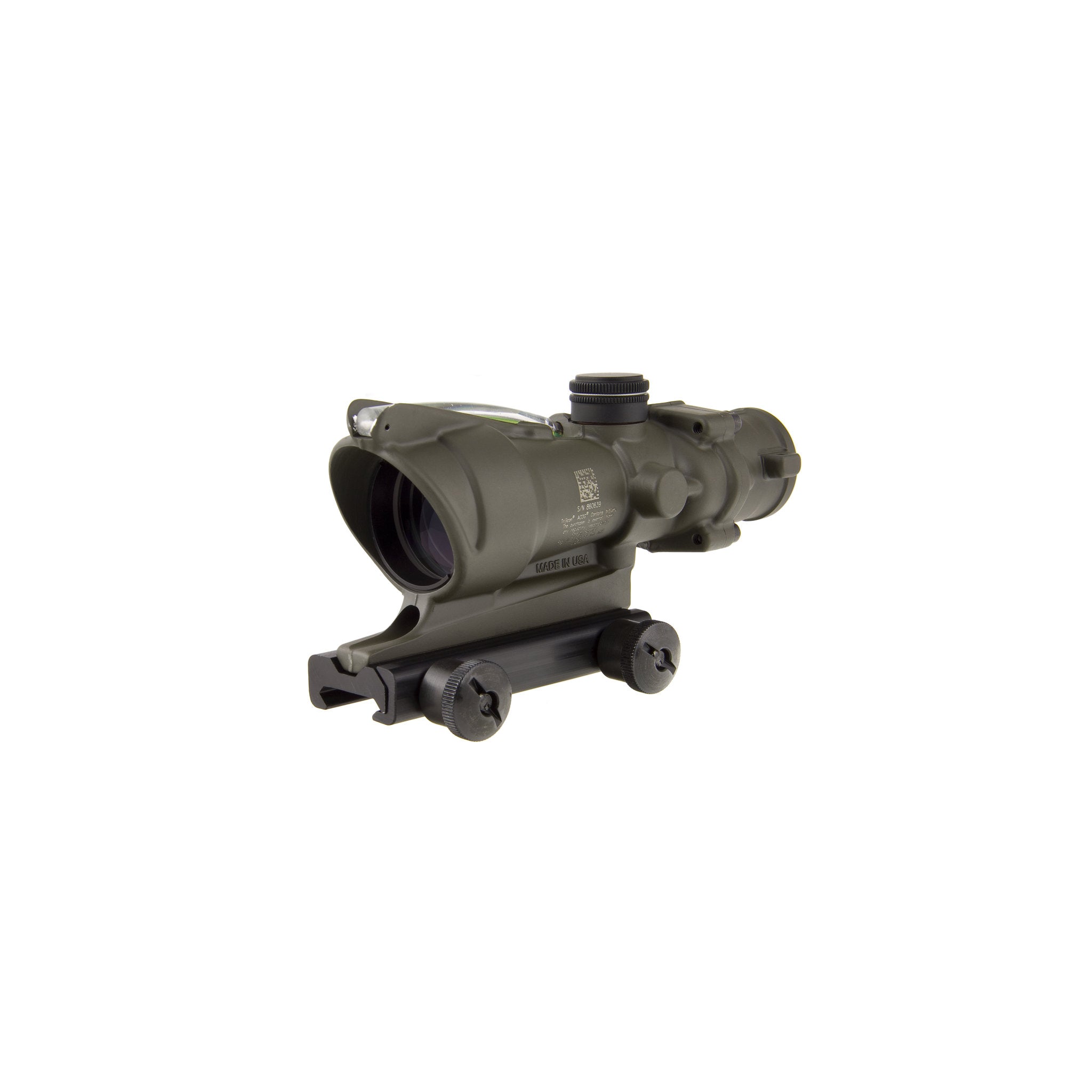

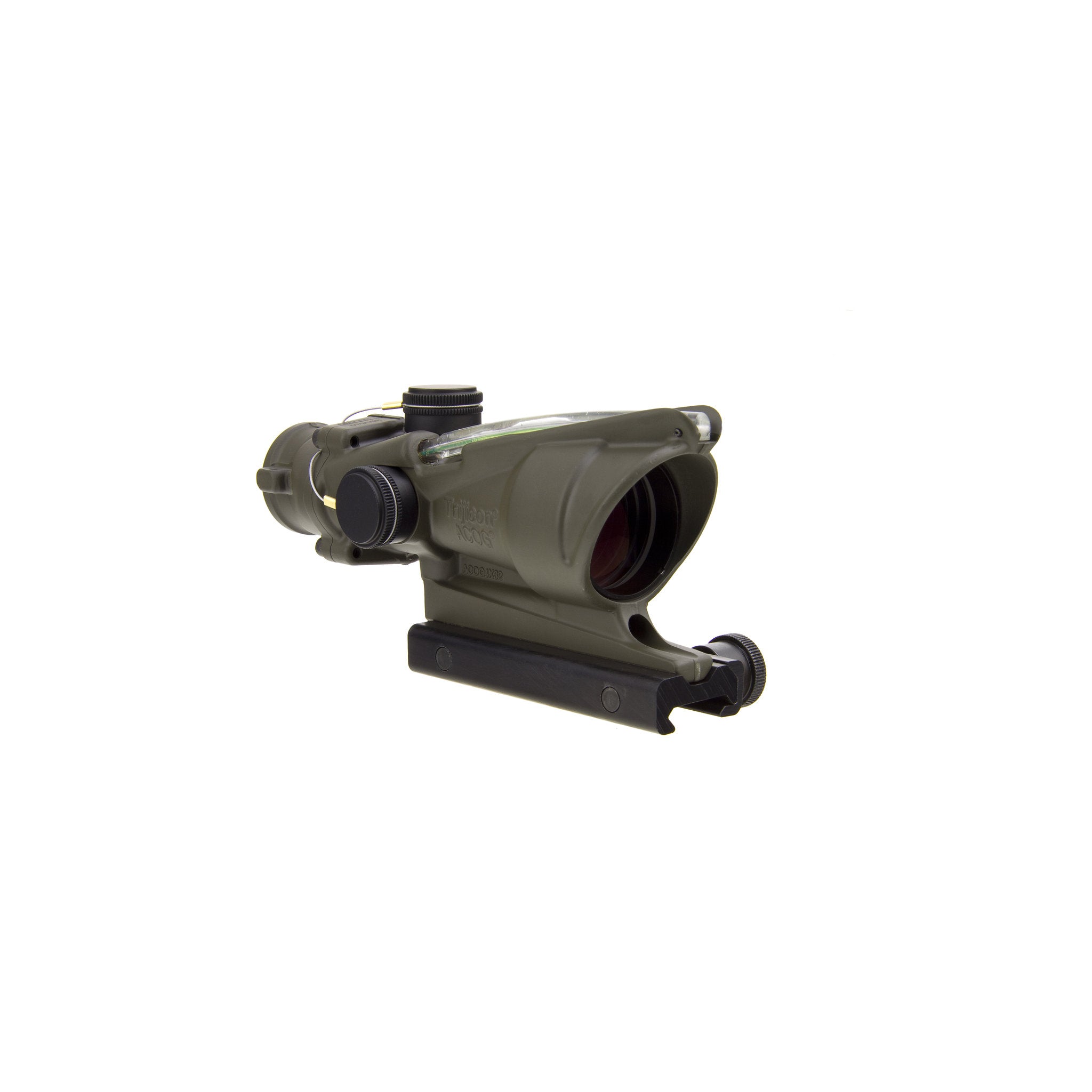

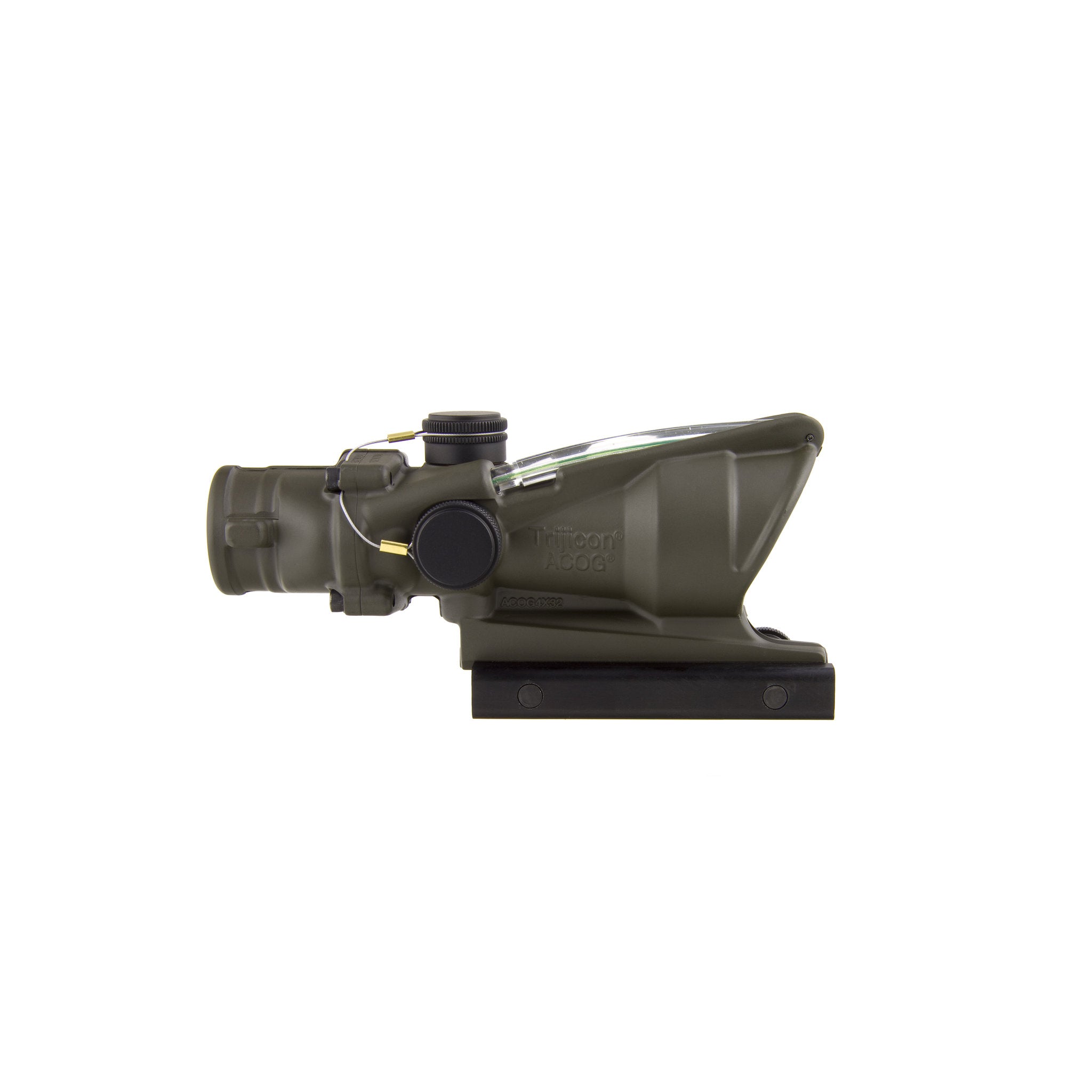

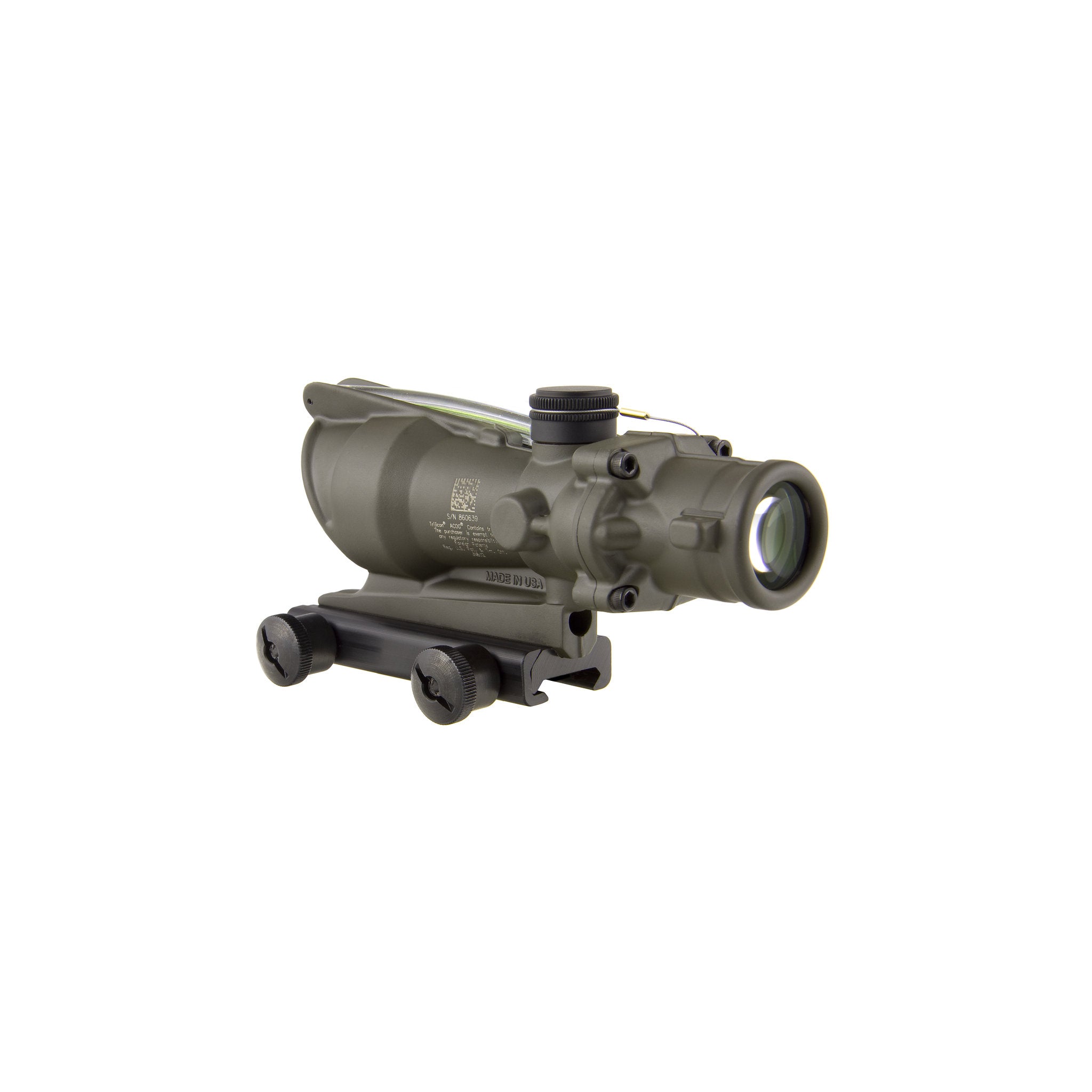

A fixed 4x32 ACOG riflescope with a dual-illuminated green crosshair BDC reticle for .223 / 5.56 rifles, for professional users who need a rugged magnified optic.

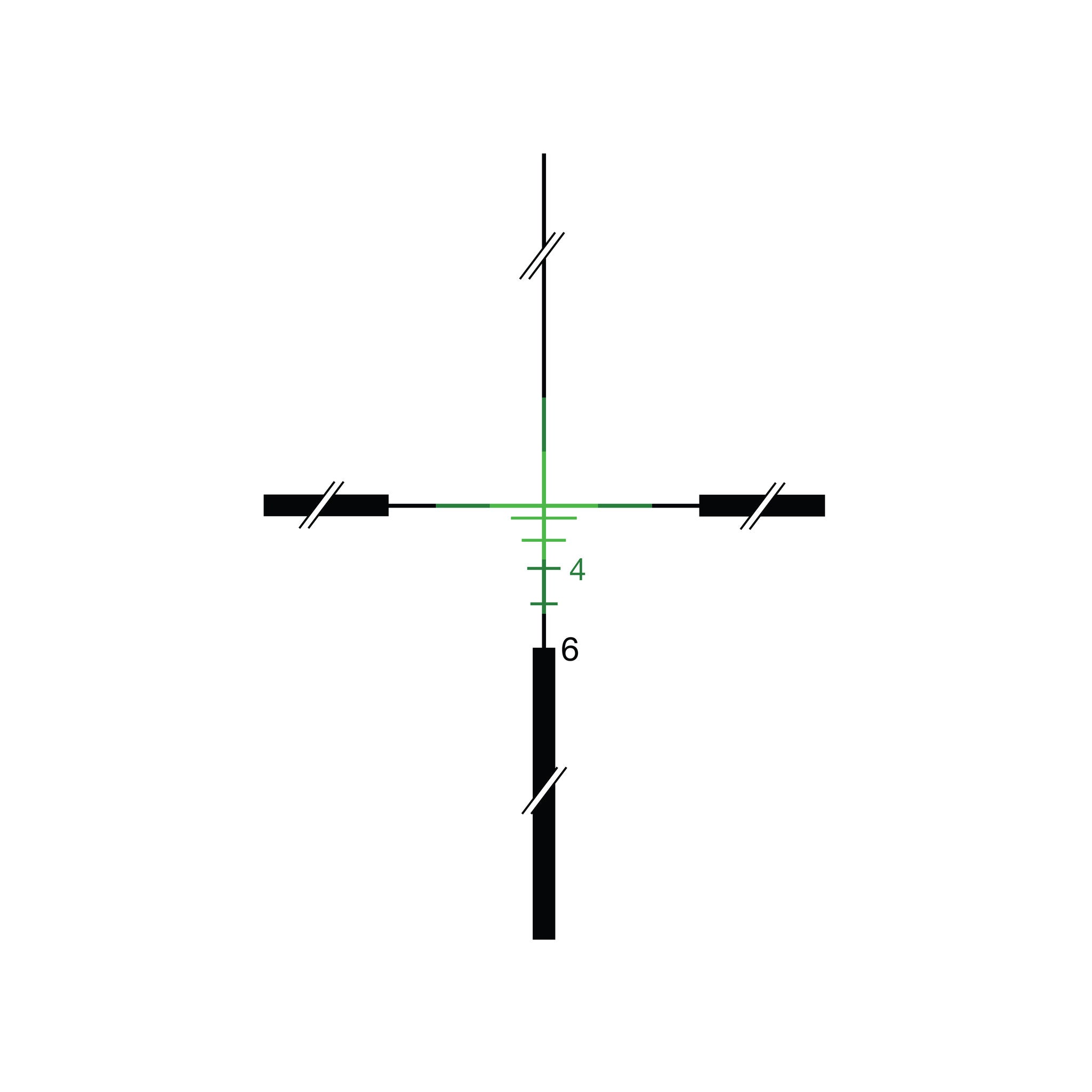

This ACOG riflescope combines 4x magnification with a 32mm objective and a green crosshair reticle with bullet drop compensation calibrated for .223 / 5.56.
The reticle is illuminated by fibre optics and tritium for a bright aiming point in any light condition; its ranging reticle allows bullet drop compensation out to 600 metres without manual adjustments.
It is supplied on a flattop thumbscrew mount (TA51) in an OD Green finish, with a forged aluminium housing.
Key features
- Dual illumination — The tritium and fibre optic illuminated reticle adjusts its brightness automatically to the available light.
- Bullet drop compensation — The ranging reticle provides bullet drop compensation out to 600 metres for .223 / 5.56 without any manual adjustments.
- Bindon Aiming Concept — The Bindon Aiming Concept (BAC) supports both-eyes-open shooting for improved situational awareness.
- Fixed-power design — The fixed-power design keeps moving parts to a minimum for a robust sighting system.
- Multi-coated lenses — Quality glass and multi-coated lenses maximise light gathering and give a clear field of view.
- Shock resistant — It is proven to withstand recoil from a .22LR to a .50BMG and passes U.S. Military drop test requirements.
- Waterproof, nitrogen-filled — The waterproof housing is filled with dry nitrogen to mitigate fogging and is tested in extreme cold and heat.
Typical applications
- Magnified sighting on service and duty rifles in law enforcement and military use.
- Engagements at varying distances where quick holdovers without turret adjustment are needed.
- Operations in changing light, from daylight to low light.
Technical specifications
| Length × width × height | 5.98 in x 2 in x 2.3 in (151.89mm x 50.8mm x 58.42mm) |
| Weight | 14.9 oz. (422.41g) |
| Magnification | 4x |
| Objective size | 32mm |
| Reticle pattern | Crosshair |
| Day reticle colour | Green |
| Night reticle colour | Green |
| Bullet drop compensation (BDC) | Yes |
| Calibre | .223 / 5.56 |
| Bindon Aiming Concept (BAC) | Yes |
| Illumination source | Fiber Optics & Tritium |
| Power source | Fiber Optics & Tritium |
| Eye relief | 1.5 in. (38.1mm) |
| Exit pupil | 0.32 in. (8.13mm) |
| Field of view (degrees) | 7° |
| Field of view (distance) | 36.8 ft. @ 100 yds. (12.27m @ 100m) |
| Mount | Flattop Thumbscrew Mount (TA51) |
| Housing material | Forged Aluminum |
| Finish | OD Green |
| Submersion depth | 66 ft. (20m) |
In the box
- 1 × ACOG® 4x32 BAC Riflescope - .223 / 5.56 BDC — Green Crosshair Reticle, Thumbscrew Mount, OD Green, Tritium / Fiber Optics Illuminated
Model information
| Brand | Trijicon |
| Model | ACOG® 4x32 BAC Riflescope - .223 / 5.56 BDC — Green Crosshair Reticle, Thumbscrew Mount, OD Green, Tritium / Fiber Optics Illuminated |
| MPN | TA31-C-100379 |
