Description

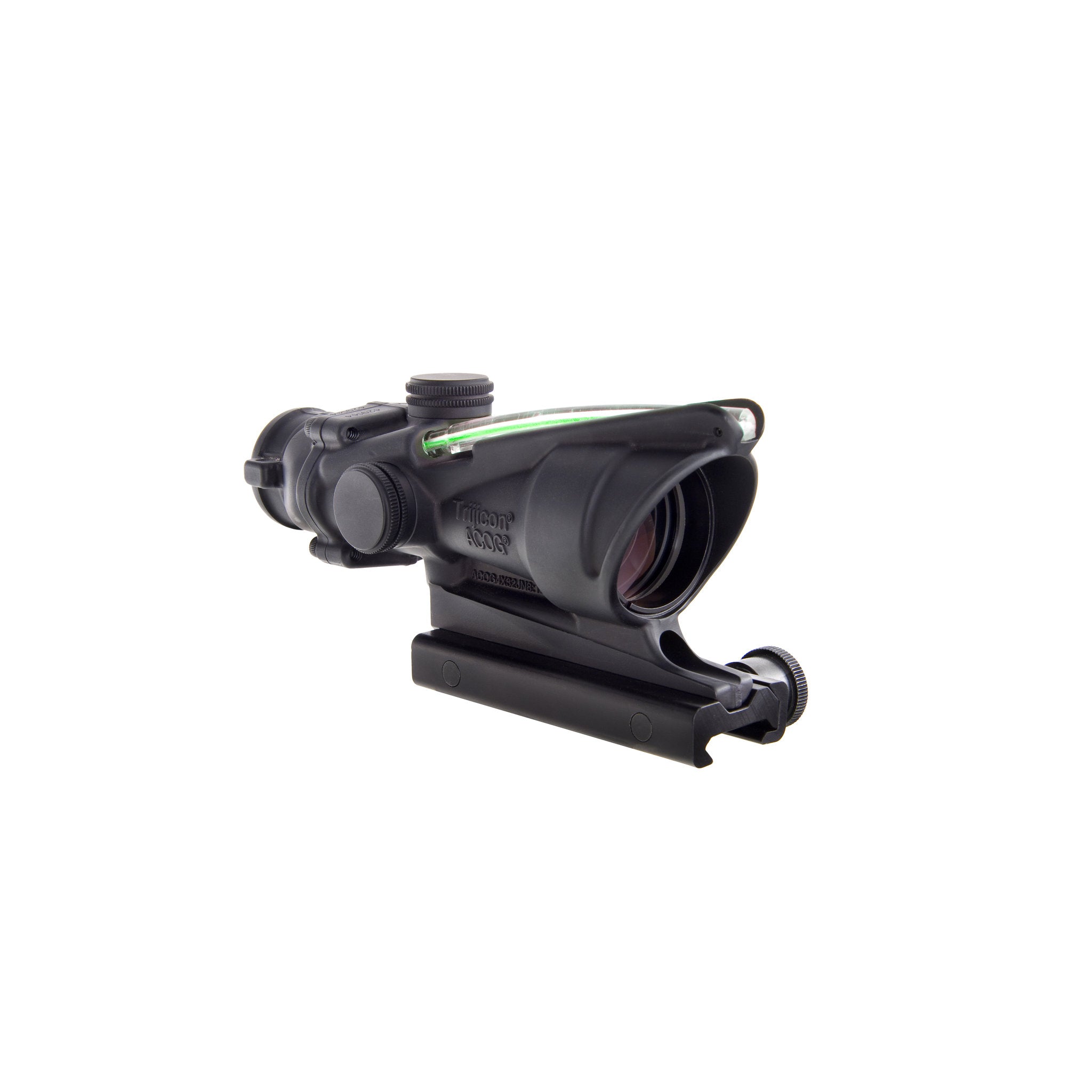

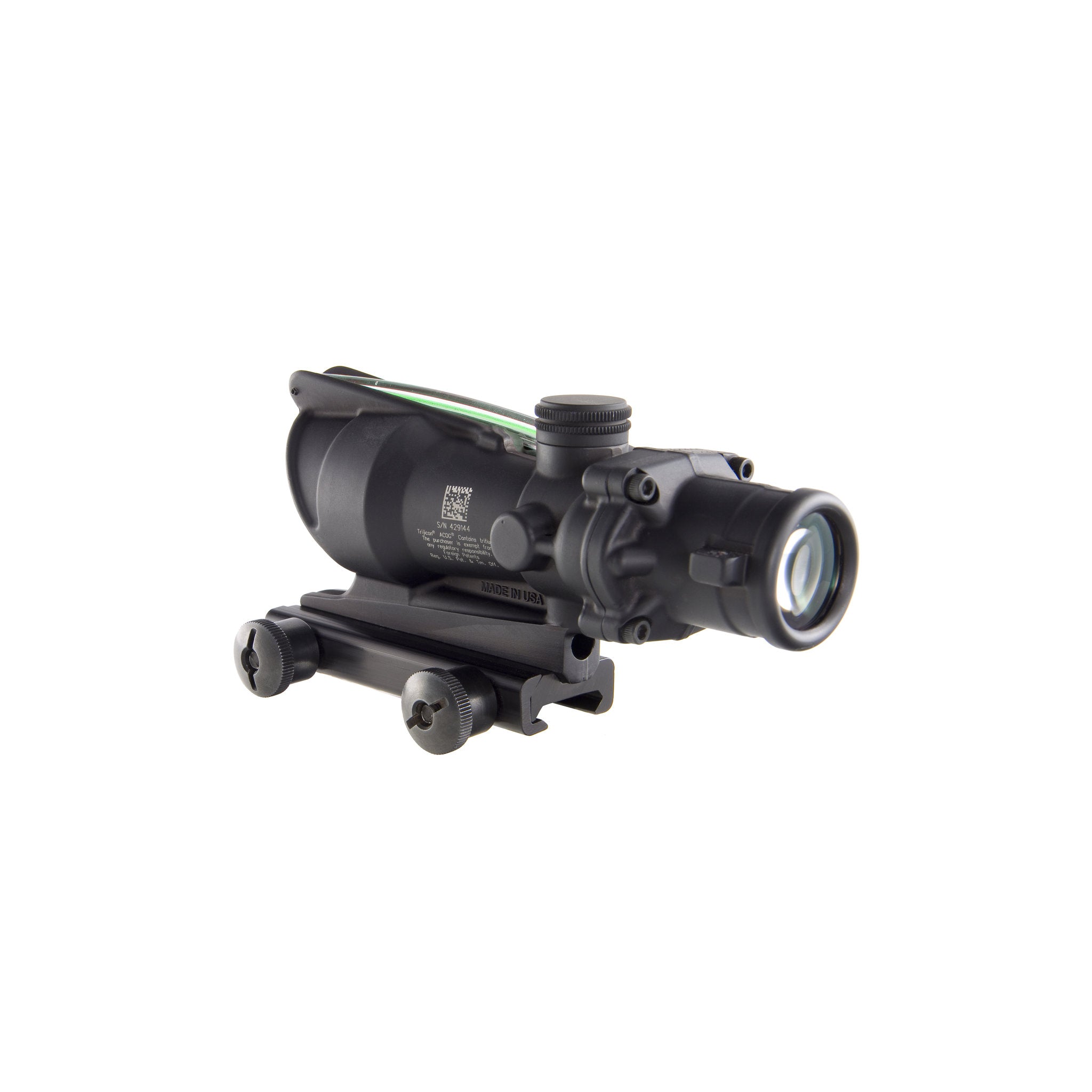

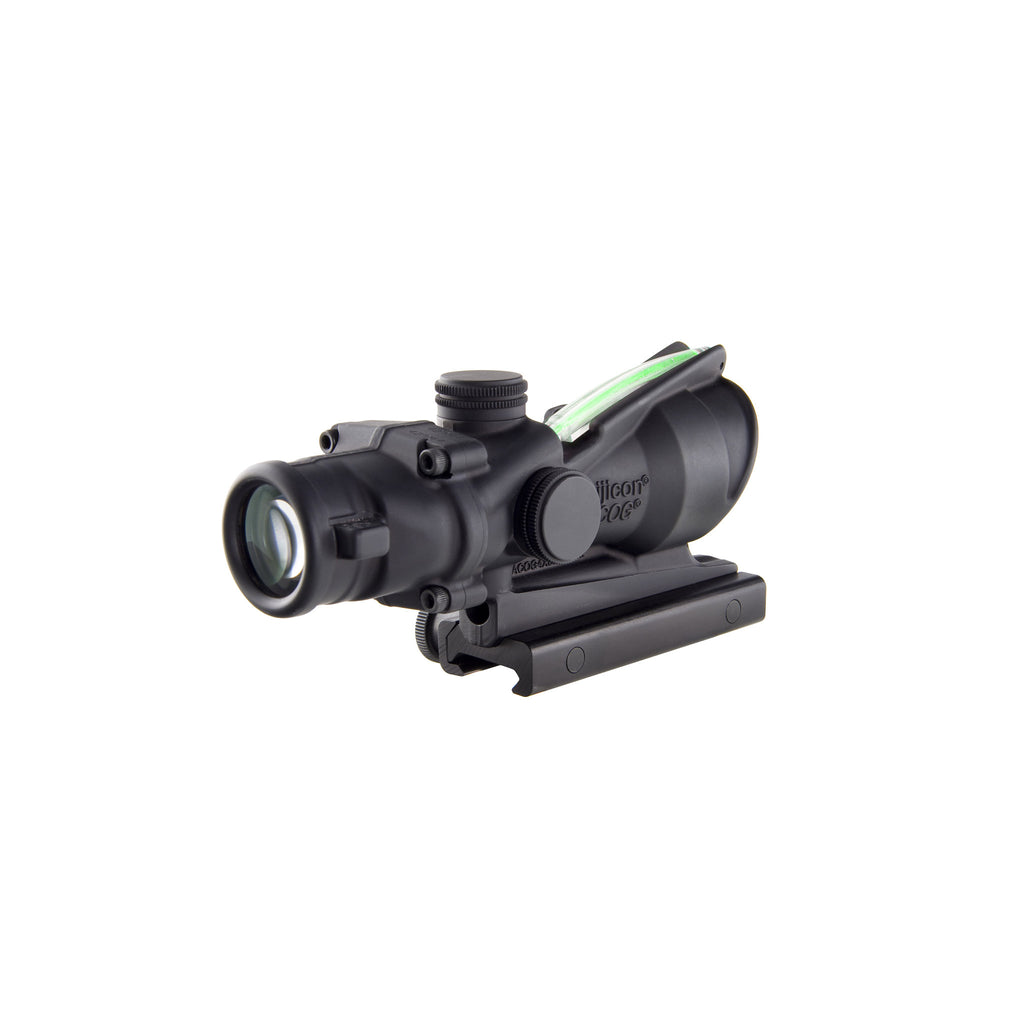

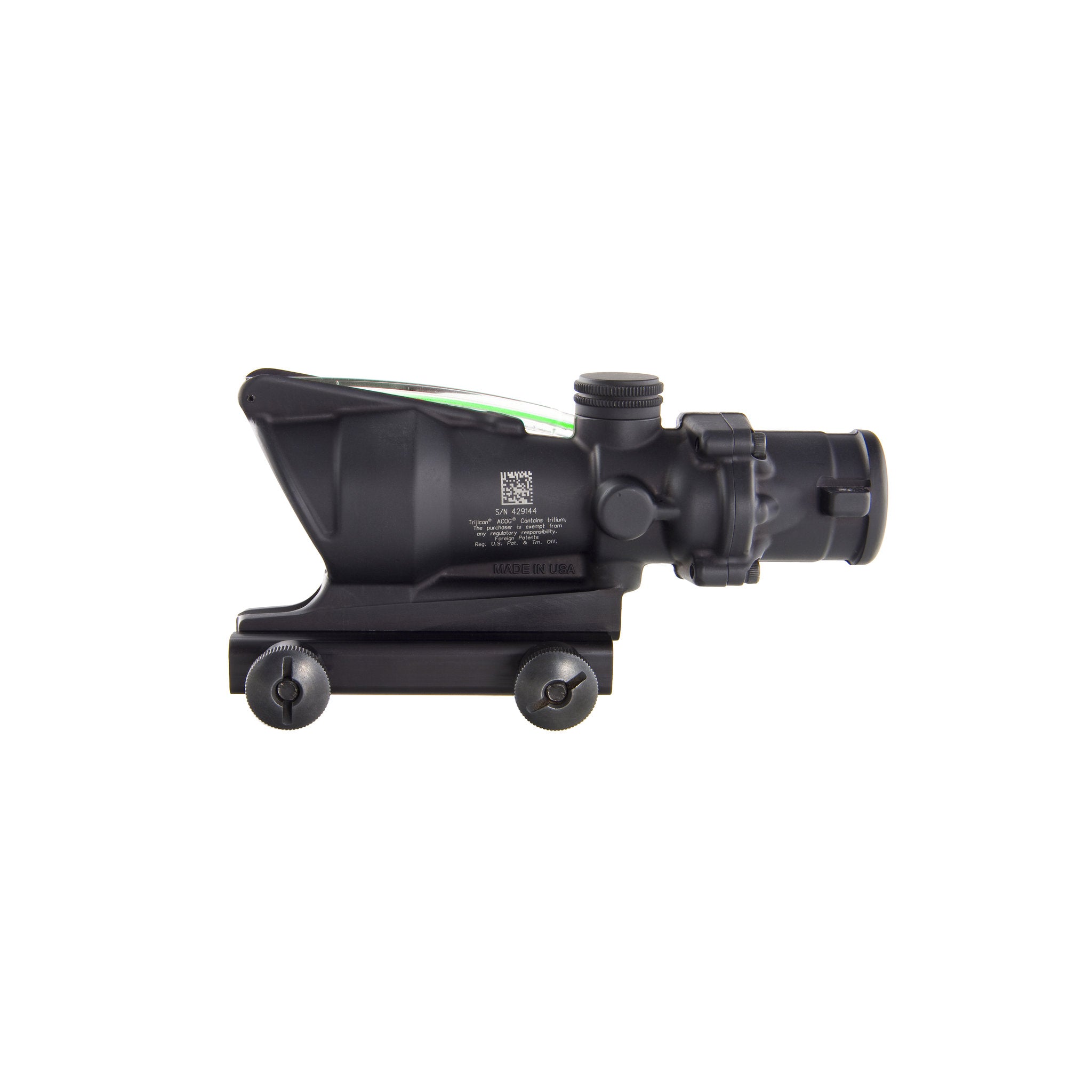

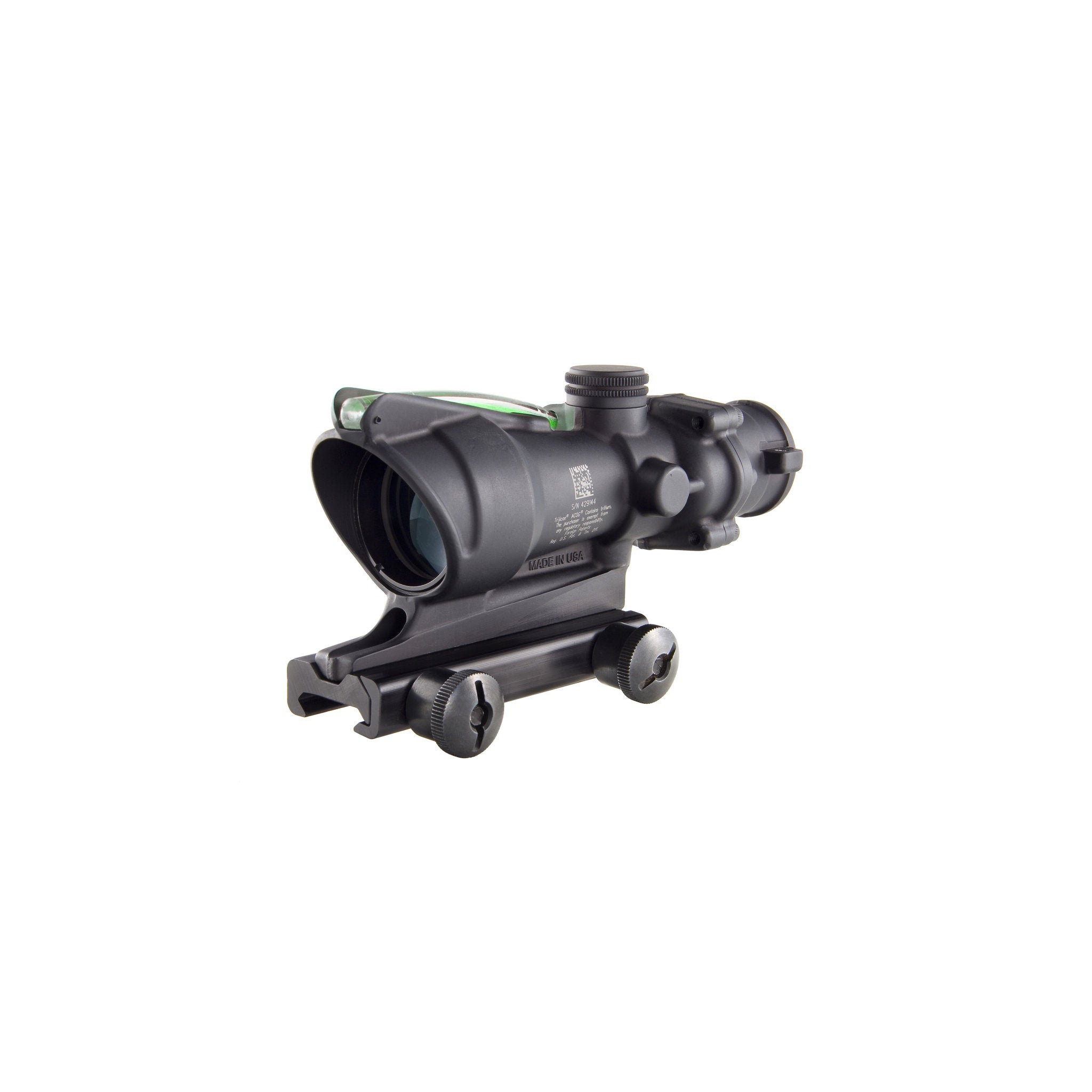

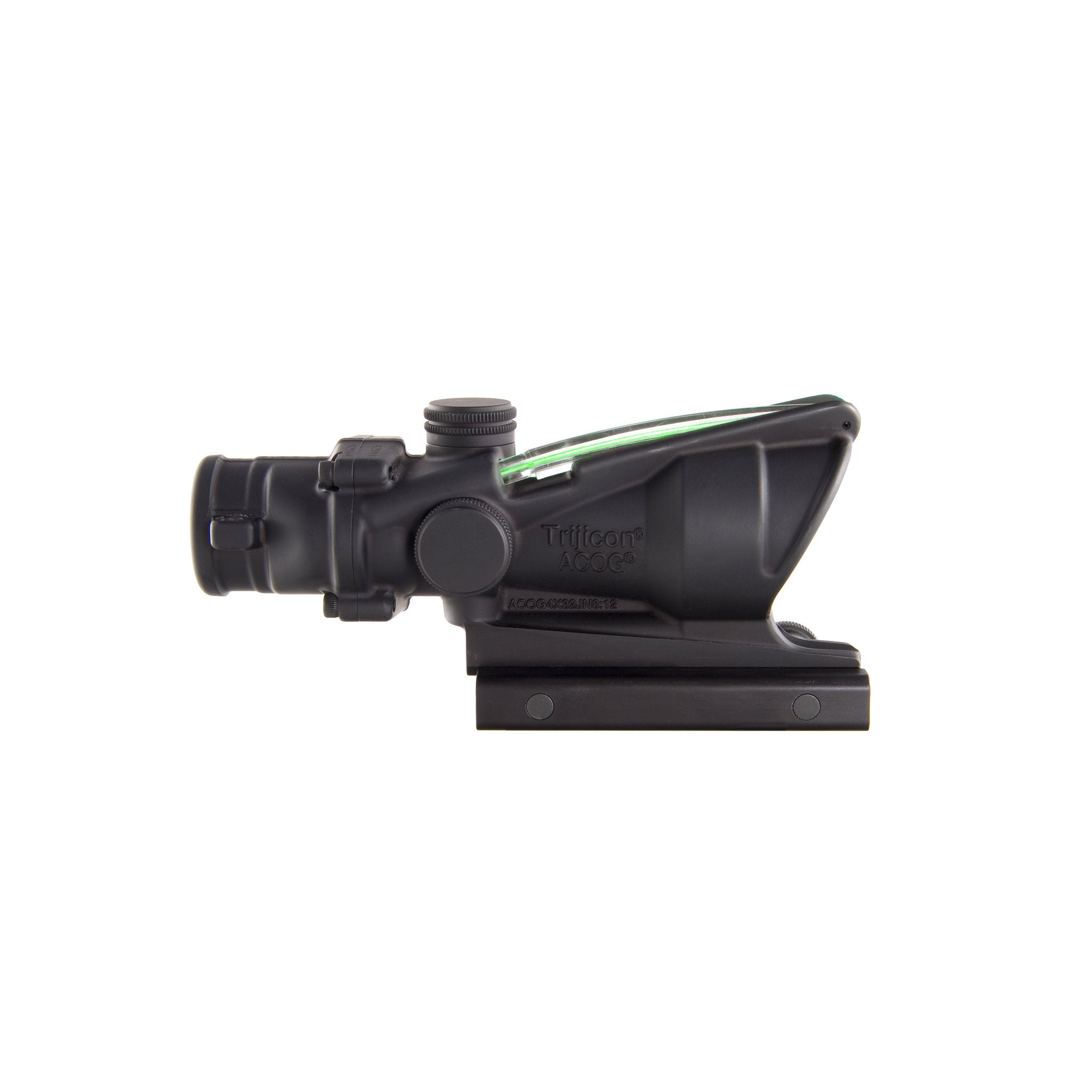

A fixed 4x32 ACOG riflescope with a dual-illuminated green chevron BDC reticle calibrated for M193 (5.56), for professional rifle users.
This 4x32 ACOG riflescope uses a dual-illuminated green chevron reticle lit by fibre optics and tritium, giving a bright aiming point in any light condition.

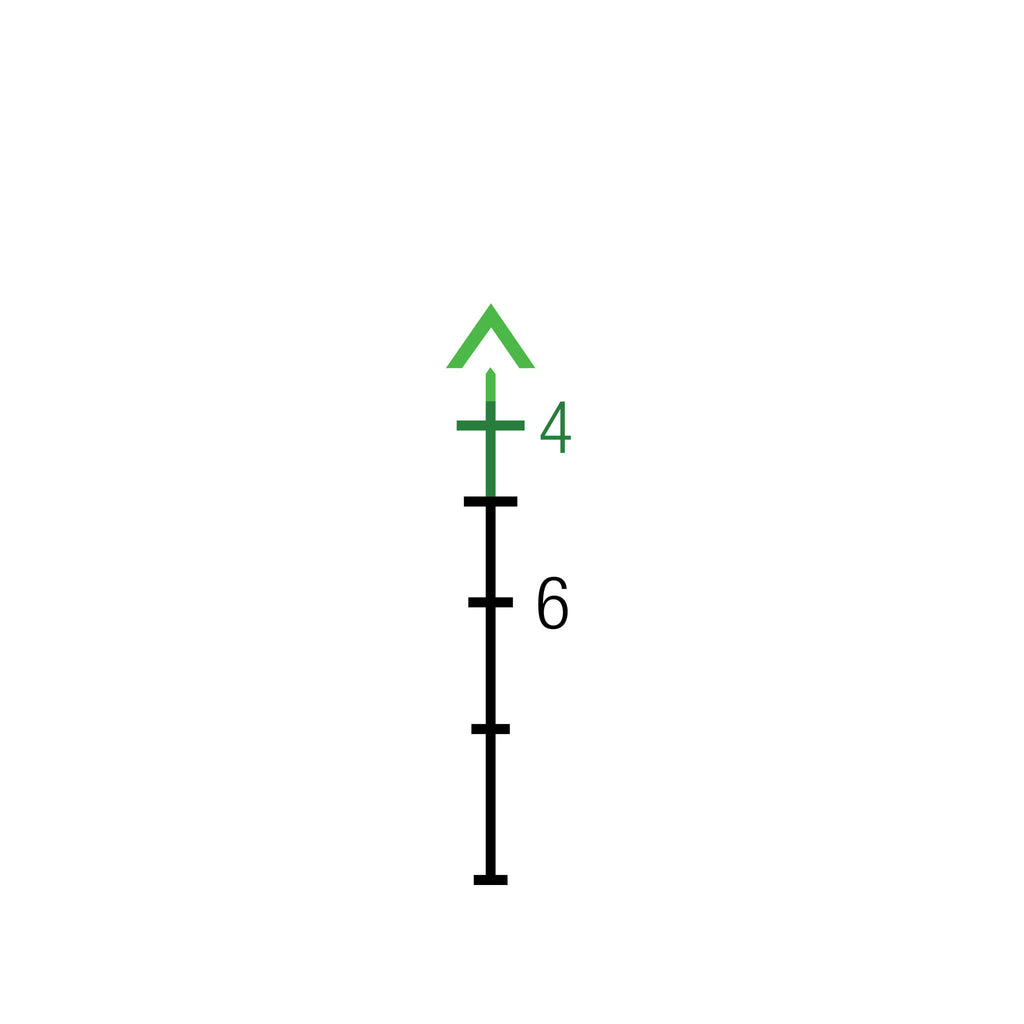

The ranging reticle is calibrated for M193 ammunition (5.56, 55gr FMJ) fired from a 16" barrel: the chevron tip is zeroed at 100 metres and the bullet drop compensator reaches out to 800 metres.
It comes with the Flattop Thumbscrew Mount (TA51) and has a forged aluminium housing in a matte black finish.
Key features
- Dual illumination — The reticle is illuminated by fibre optics and tritium and adjusts its brightness automatically to the available light.
- Range estimation — The chevron is 5.5 MOA wide at the base, which represents 19" at 300 metres and allows range estimation for silhouette targets.
- Bindon Aiming Concept — The Bindon Aiming Concept (BAC) supports both-eyes-open shooting for improved situational awareness.
- Fixed-power design — The fixed-power design keeps moving parts to a minimum for a rugged, reliable sighting system.
- Shock resistance — The scope is proven to withstand recoil from a .22LR to a .50BMG and passes U.S. Military drop test requirements.
- Waterproof, nitrogen-filled — The dry nitrogen-filled housing mitigates fogging, and the scope is rated for a submersion depth of -66 ft. (-20m).
- Multi-coated lenses — Multi-coated lenses maximise light-gathering and give a clear field of view.
Typical applications
- Service and patrol rifles in 5.56 that need a robust magnified day and night optic.
- Rapid engagement and range estimation of man-sized targets at varying distances.
- Duty use in cold, heat and wet conditions.
Technical specifications
| Length × width × height | 5.98 in x 2 in x 2.3 in (151.89mm x 50.8mm x 58.42mm) |
| Weight | 14.9 oz. (422.41g) |
| Magnification | 4x |
| Objective size | 32mm |
| Reticle pattern | Chevron |
| Day reticle colour | Green |
| Night reticle colour | Green |
| Bullet drop compensation (BDC) | Yes |
| Calibre | M193 (5.56) |
| Bindon Aiming Concept (BAC) | Yes |
| Illumination source | Fiber Optics & Tritium |
| Power source | Fiber Optics & Tritium |
| Eye relief | 1.5 in. (38.1mm) |
| Exit pupil | 0.32 in. (8.13mm) |
| Field of view (degrees) | 7° |
| Field of view (distance) | 36.8 ft. @ 100 yds. (12.27m @ 100m) |
| Mount | Flattop Thumbscrew Mount (TA51) |
| Housing material | Forged Aluminum |
| Finish | Matte Black |
| Submersion depth | 66 ft. (20m) |
In the box
- 1 × ACOG® 4x32 BAC Riflescope - M193 — Green Chevron Reticle , Thumbscrew Mount, Tritium / Fiber Optics Illuminated, Matte Black
- Thumbscrew Flattop Adapter (TA51)
- 4x32 Scopecoat (TA64)
- LENSPEN (TA56)
- Lanyard Assembly for Adjuster Caps (TA71E)
- Trijicon Logo Sticker (PR15)
- ACOG Manual
- Warranty Card
Model information
| Brand | Trijicon |
| Model | ACOG® 4x32 BAC Riflescope - M193 — Green Chevron Reticle , Thumbscrew Mount, Tritium / Fiber Optics Illuminated, Matte Black |
| MPN | TA31-D-100290 |
