Description
A fixed 3.5x35 ACOG riflescope with an LED-illuminated red chevron BDC reticle for .223 / 5.56, for professional users of 5.56 rifles.
This ACOG combines 3.5x magnification and a 35mm objective with a red chevron reticle whose bullet drop compensation is calibrated for .223 / 5.56.
The reticle is LED illuminated with six user-selectable brightness levels and an off position between each setting, powered by a single AA battery that runs for over 12,000 continuous hours on setting #4.
The housing is forged aluminium in a matte black finish, and the scope is supplied with the Flattop Thumbscrew Mount (TA51).
Key features
- Selectable brightness — Six adjustable brightness levels with an off between each setting let the operator set reticle illumination to the conditions, even in transitional lighting.
- Single AA battery — One AA lithium or alkaline battery powers the LED for over 12,000 continuous hours on setting #4.
- Both eyes open — The Bindon Aiming Concept (BAC) supports shooting with both eyes open for improved situational awareness.

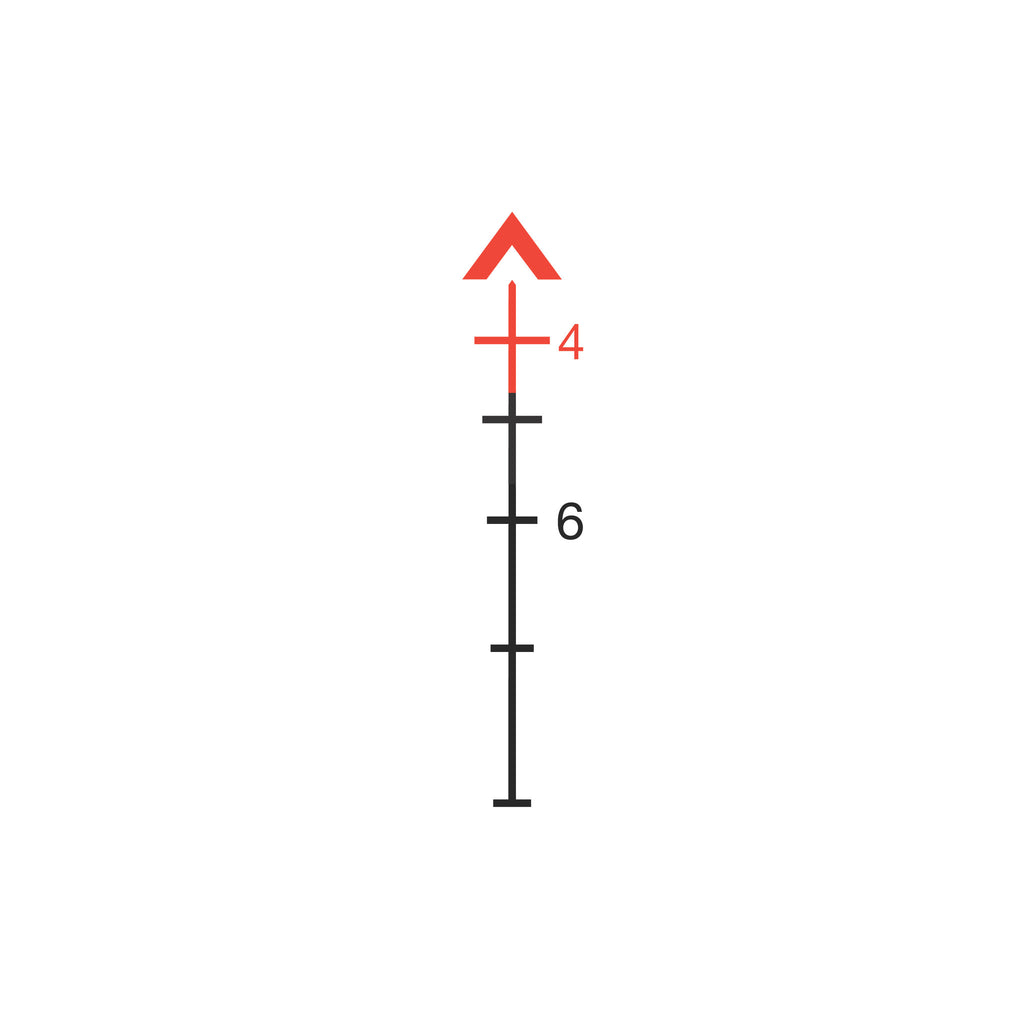

- BDC chevron reticle — The chevron reticle provides bullet drop compensation calibrated for .223 / 5.56.
- Fixed-power housing — The fixed-power design keeps moving parts to a minimum, and the housing is forged from 7075-T6 aircraft aluminium.
- Night vision compatible — The scope is fully night vision device compatible and works with most other 3.5x35 ACOG accessories.
- Waterproof, nitrogen-filled — The waterproof housing is dry nitrogen-filled to eliminate fogging and is tested to perform in extreme cold and heat.
- Shock resistant — It is proven to withstand recoil from a .22LR to a .50BMG and passes U.S. Military drop test requirements.
Typical applications
- Primary magnified optic for law enforcement and military service rifles in 5.56.
- Patrol and duty use across changing light, from daylight to dusk.
- Use alongside night vision devices for low-light operations.
Technical specifications
| Length × width × height | 8 in x 3 in x 2.6 in (203.2mm x 76.2mm x 66.04mm) |
| Weight | 20.8 oz. (589.67g) |
| Magnification | 3.5x |
| Objective size | 35mm |
| Reticle pattern | Chevron |
| Day reticle colour | Red |
| Night reticle colour | Red |
| Bullet drop compensation (BDC) | Yes |
| Calibre | .223 / 5.56 |
| Bindon Aiming Concept (BAC) | Yes |
| Illumination source | LED |
| Illumination settings | 6 |
| Power source | AA Lithium or Alkaline Battery |
| Battery life | Over 12,000 hours on setting #4 using supplied alkaline battery at 21 deg C (70 deg F) |
| Adjustment | 3 clicks per inch (@ 100yds) |
| Adjustment range | 40 MOA Total Travel |
| Eye relief | 2.4 in. (60.96mm) |
| Exit pupil | 0.39 in. (9.91mm) |
| Field of view (degrees) | 5.5° |
| Field of view (distance) | 28.9 ft. @ 100 yds. (9.63m @ 100m) |
| Mount | Flattop Thumbscrew Mount (TA51) |
| Housing material | Forged Aluminum |
| Finish | Matte Black |
In the box
- 1 × ACOG® 3.5x35 LED Riflescope - .223 / 5.56 BDC — Red Chevron Reticle , Thumbscrew Mount, LED Illuminated, Matte Black
- Thumbscrew Flattop Adapter (TA51)
- AA Battery
- LENSPEN (TA56)
- Lanyard Assembly for Adjuster Caps (TA71E)
- Lanyard Assembly for Battery Cap
- Trijicon Logo Sticker (PR15)
- LED ACOG Manual
- Warranty Card
Model information
| Brand | Trijicon |
| Model | ACOG® 3.5x35 LED Riflescope - .223 / 5.56 BDC — Red Chevron Reticle , Thumbscrew Mount, LED Illuminated, Matte Black |
| MPN | TA110-C-100491 |
