Description

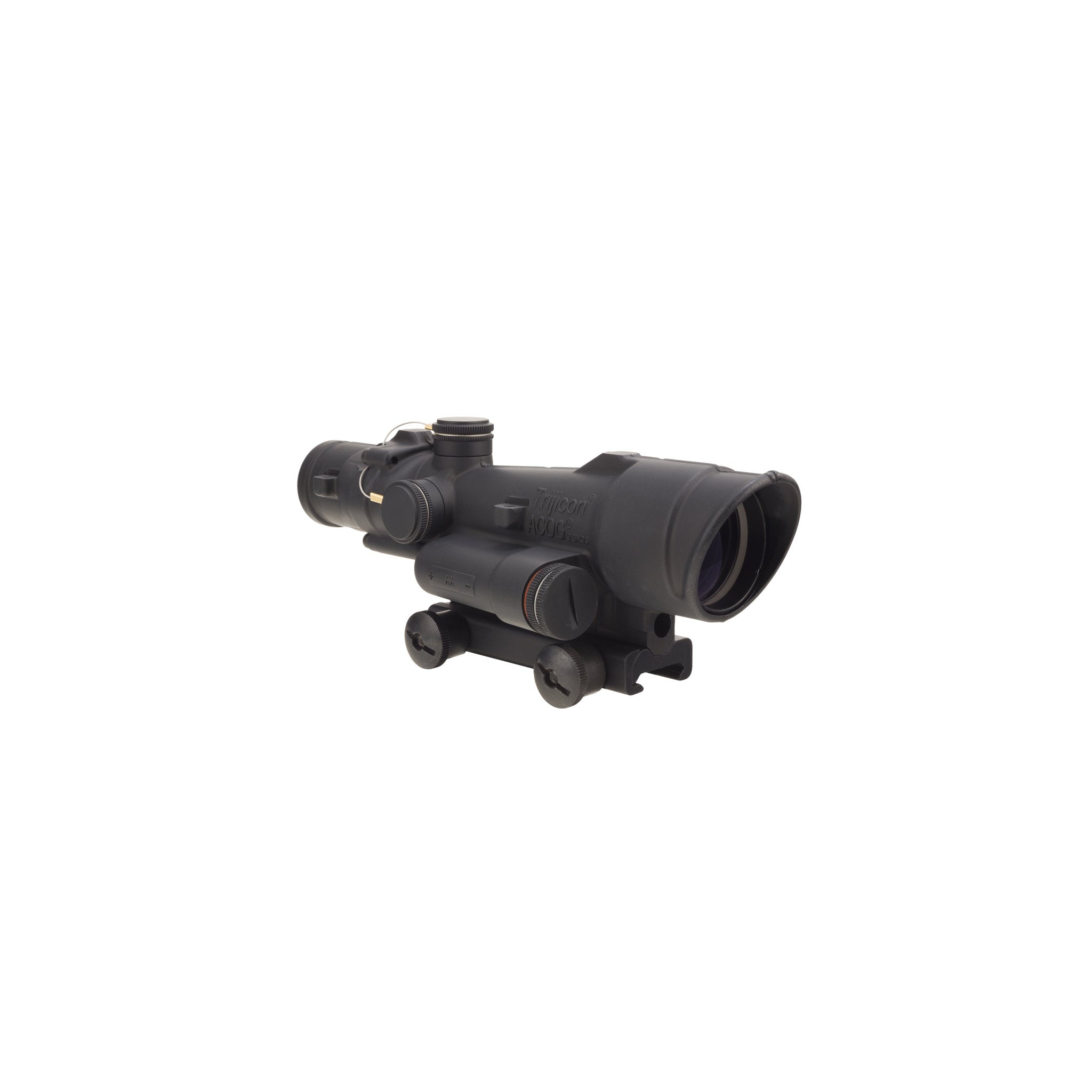

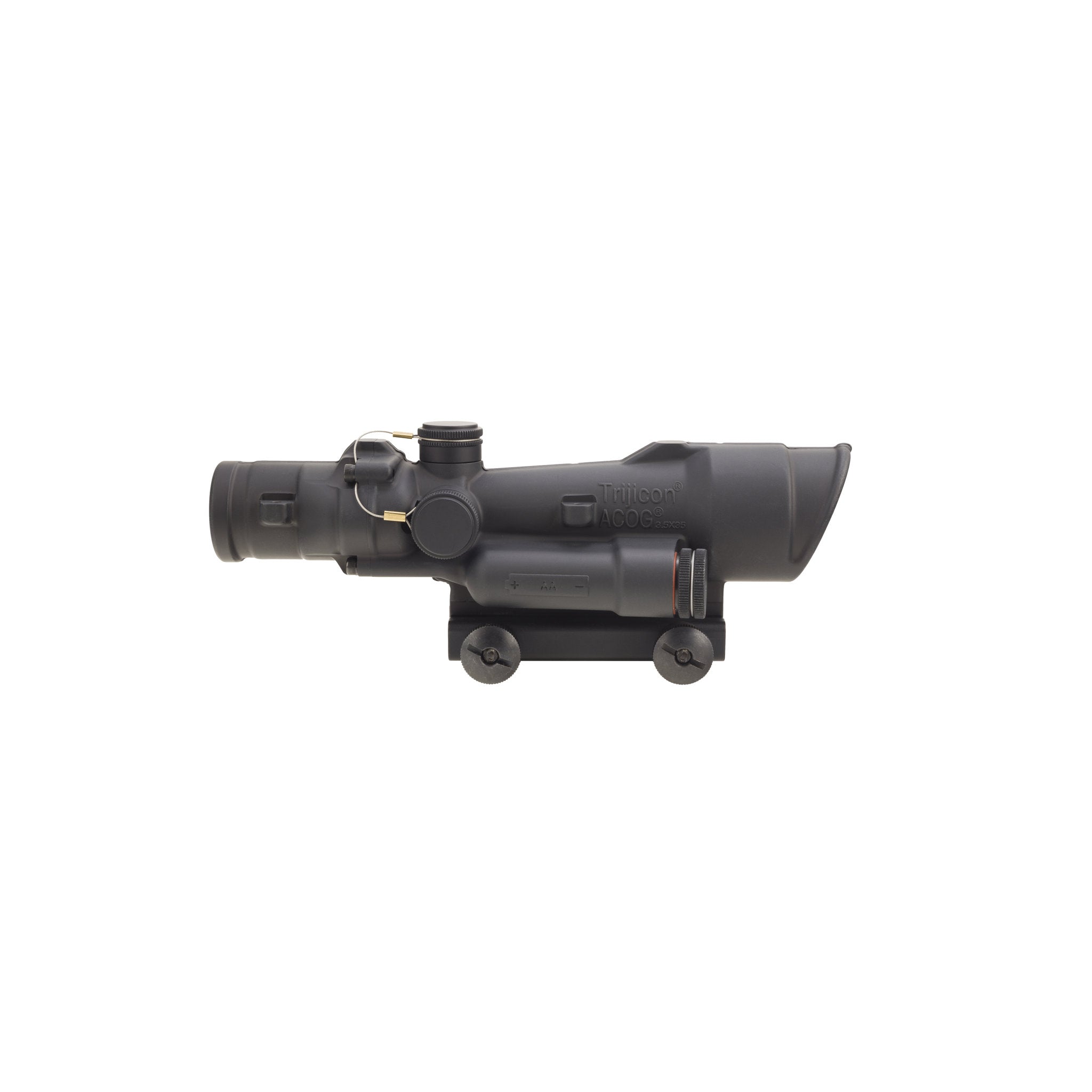

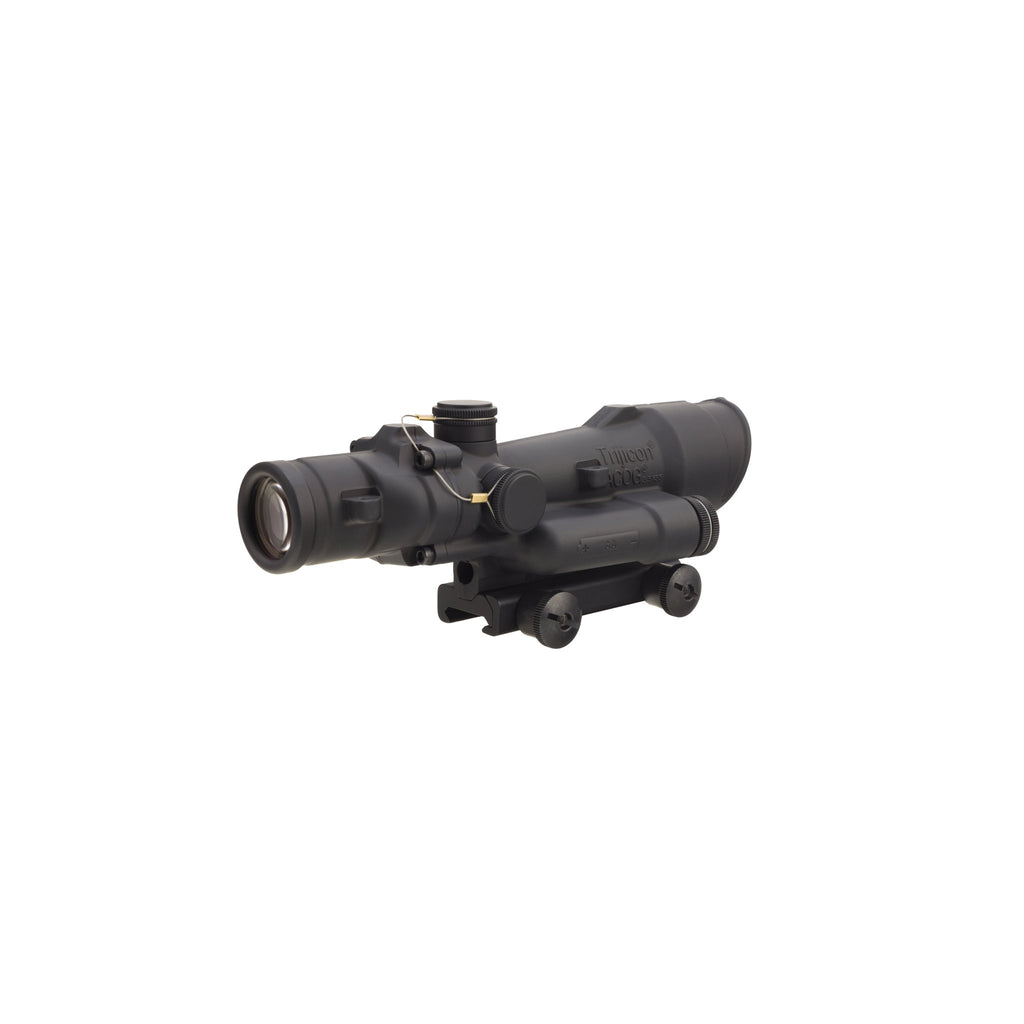

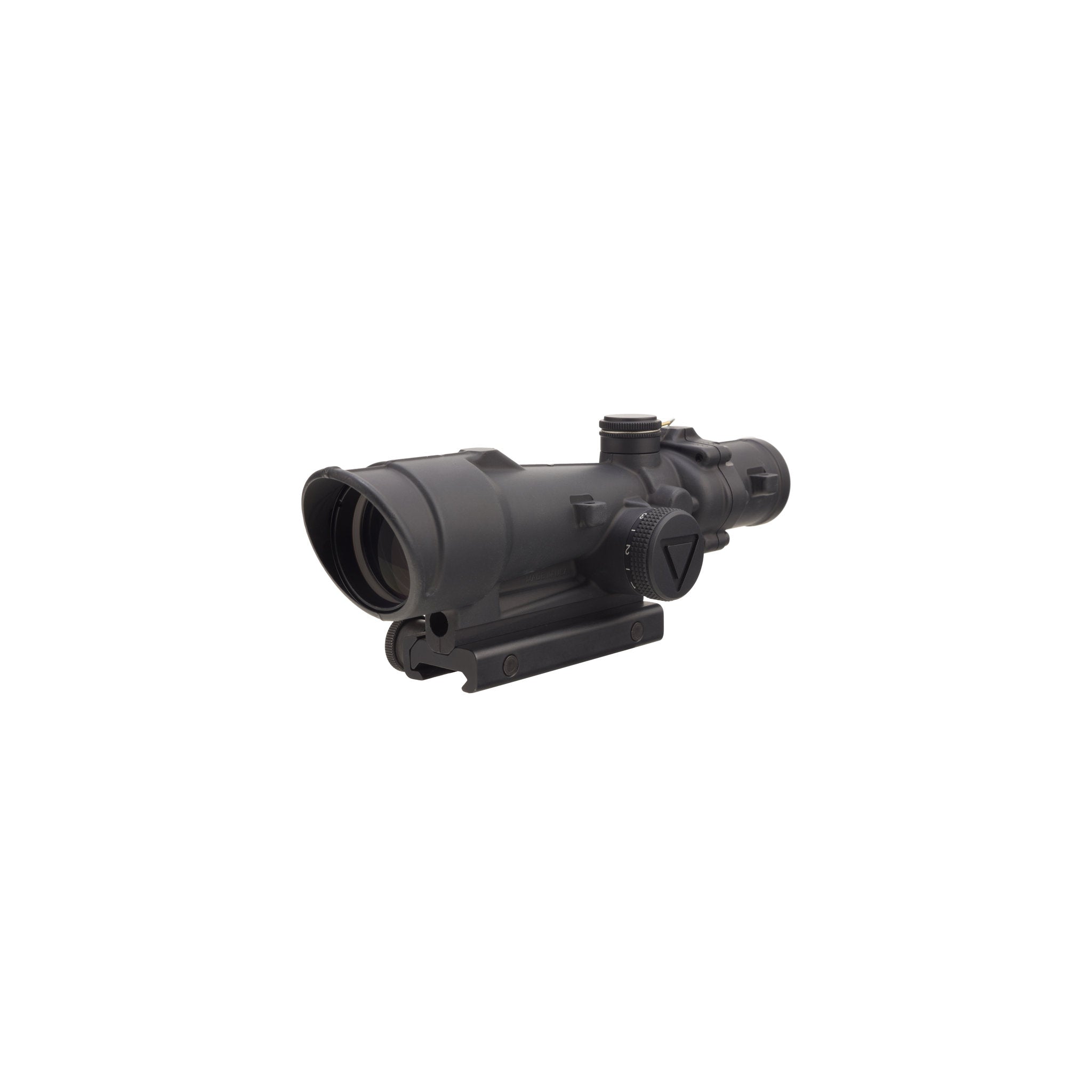

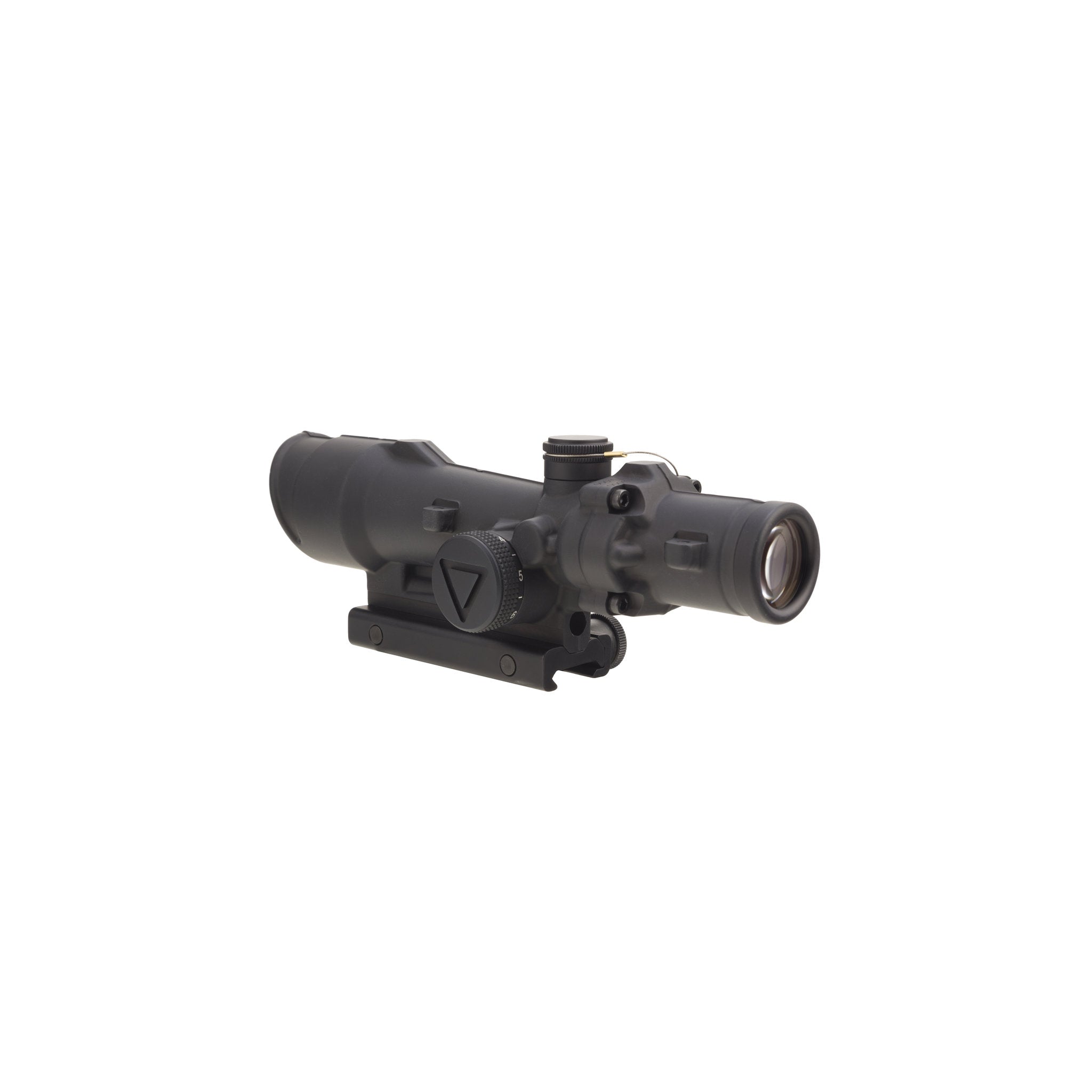

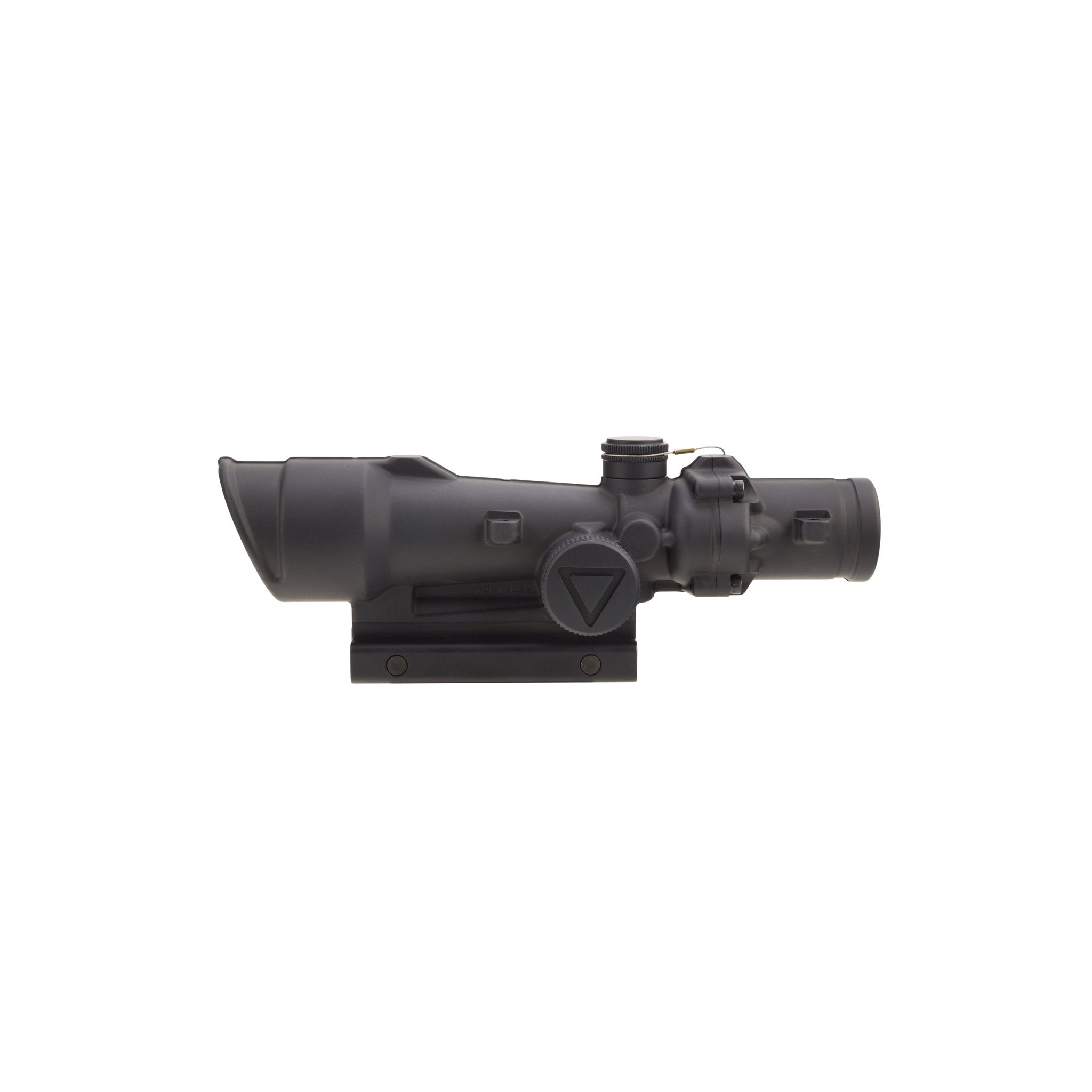

A 3.5x35 LED-illuminated ACOG riflescope with a green horseshoe/dot .223 / 5.56 BDC reticle, for professional users of .223 / 5.56 rifles needing a rugged fixed-power optic.

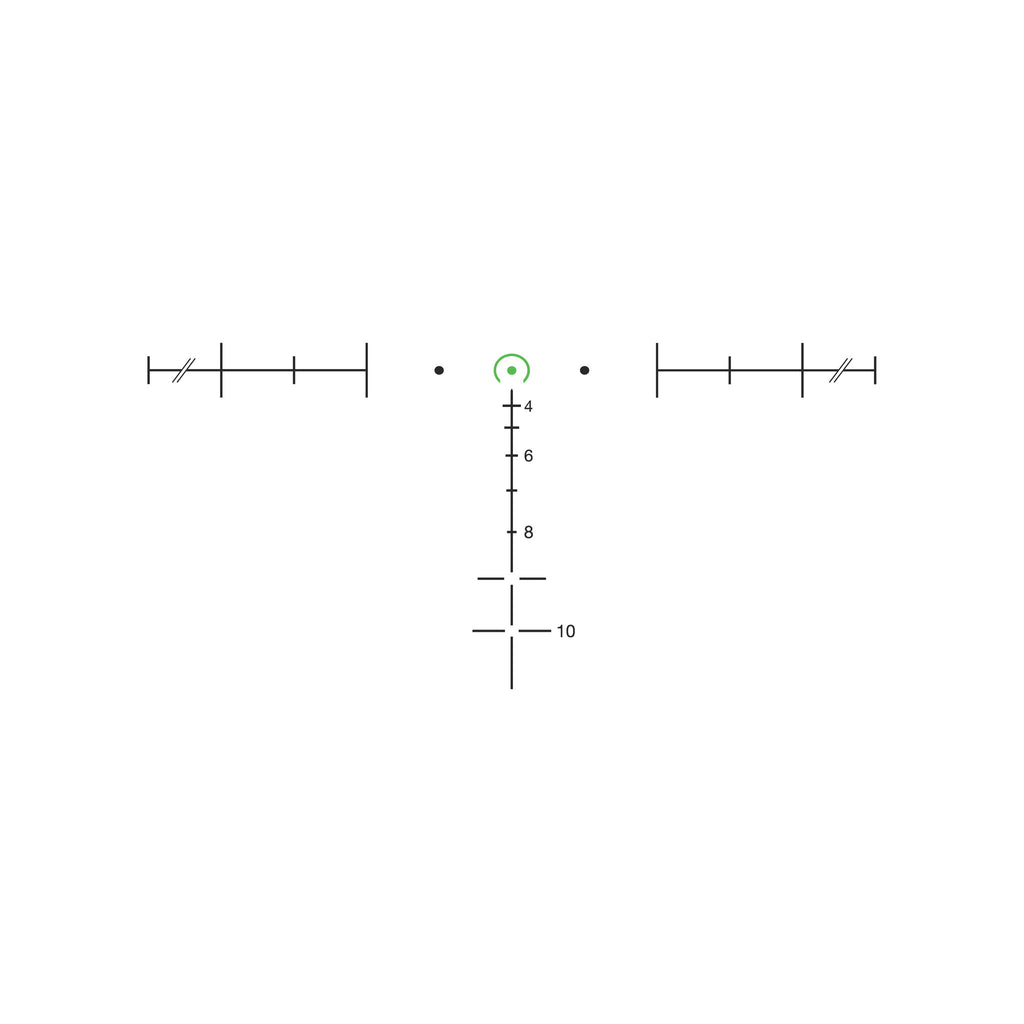

This fixed-power ACOG combines 3.5x magnification with a 35mm objective and a green horseshoe dot reticle that offers bullet drop compensation calibrated for .223 / 5.56.
The reticle is LED illuminated with six user-selectable brightness levels and an "off" position between each setting, powered by a single AA battery that runs for over 12,000 continuous hours on setting #4.
It is supplied with a flattop thumbscrew mount, and the housing is forged from 7075-T6 aircraft aluminium in a matte black finish.
Key features
- Adjustable LED brightness — Six brightness levels with an "off" between each setting let the operator decide how much to illuminate the reticle, even in transitional lighting.
- Night vision compatible — The optic is fully night vision device compatible and works with most other 3.5x35 ACOG accessories.
- Both eyes open — The Bindon Aiming Concept (BAC) supports both-eyes-open shooting for improved situational awareness.
- Rugged fixed-power housing — A fixed-power design with minimal moving parts and a forged aluminium housing creates a nearly indestructible sighting system.
- Shock resistant — It is proven to withstand recoil from a .22LR to a .50BMG and passes U.S. Military drop test requirements.
- Waterproof and fog-free — The dry nitrogen-filled housing is waterproof, mitigates fogging and is tested to perform in extreme cold and heat.
- Multi-coated lenses — Multi-coated lenses maximise light-gathering capabilities and give a clear field of view.
Typical applications
- Duty and patrol rifles that need a fast, robust magnified optic
- Low-light and transitional-light operations, including use alongside night vision devices
- Training and qualification courses where rapid holds at varying distances matter
Technical specifications
| Length × width × height | 8 in x 3 in x 2.6 in (203.2mm x 76.2mm x 66.04mm) |
| Weight | 20.8 oz. (589.67g) |
| Magnification | 3.5x |
| Objective size | 35mm |
| Reticle pattern | Horseshoe Dot |
| Day reticle colour | Green |
| Night reticle colour | Green |
| Bullet drop compensation (BDC) | Yes |
| Calibre | .223 / 5.56 |
| Bindon Aiming Concept (BAC) | Yes |
| Illumination source | LED |
| Illumination settings | 6 |
| Power source | AA Lithium or Alkaline Battery |
| Battery life | Over 12,000 hours on setting #4 using supplied alkaline battery at 21 deg C (70 deg F) |
| Adjustment | 3 clicks per inch (@ 100yds) |
| Adjustment range | 40 MOA Total Travel |
| Eye relief | 2.4 in. (60.96mm) |
| Exit pupil | 0.39 in. (9.91mm) |
| Field of view (degrees) | 5.5° |
| Field of view (distance) | 28.9 ft. @ 100 yds. (9.63m @ 100m) |
| Mount | Flattop Thumbscrew Mount (TA51) |
| Housing material | Forged Aluminum |
| Finish | Matte Black |
In the box
- 1 × ACOG® 3.5x35 LED Riflescope - .223 / 5.56 BDC — Green Horseshoe/Dot Reticle, Thumbscrew Mount, LED Illuminated, Matte Black
- Thumbscrew Flattop Adapter (TA51)
- AA Battery
- LENSPEN (TA56)
- Lanyard Assembly for Adjuster Caps (TA71E)
- Lanyard Assembly for Battery Cap
- Trijicon Logo Sticker (PR15)
- LED ACOG Manual
- Warranty Card
Model information
| Brand | Trijicon |
| Model | ACOG® 3.5x35 LED Riflescope - .223 / 5.56 BDC — Green Horseshoe/Dot Reticle, Thumbscrew Mount, LED Illuminated, Matte Black |
| MPN | TA110-D-100494 |
