Description

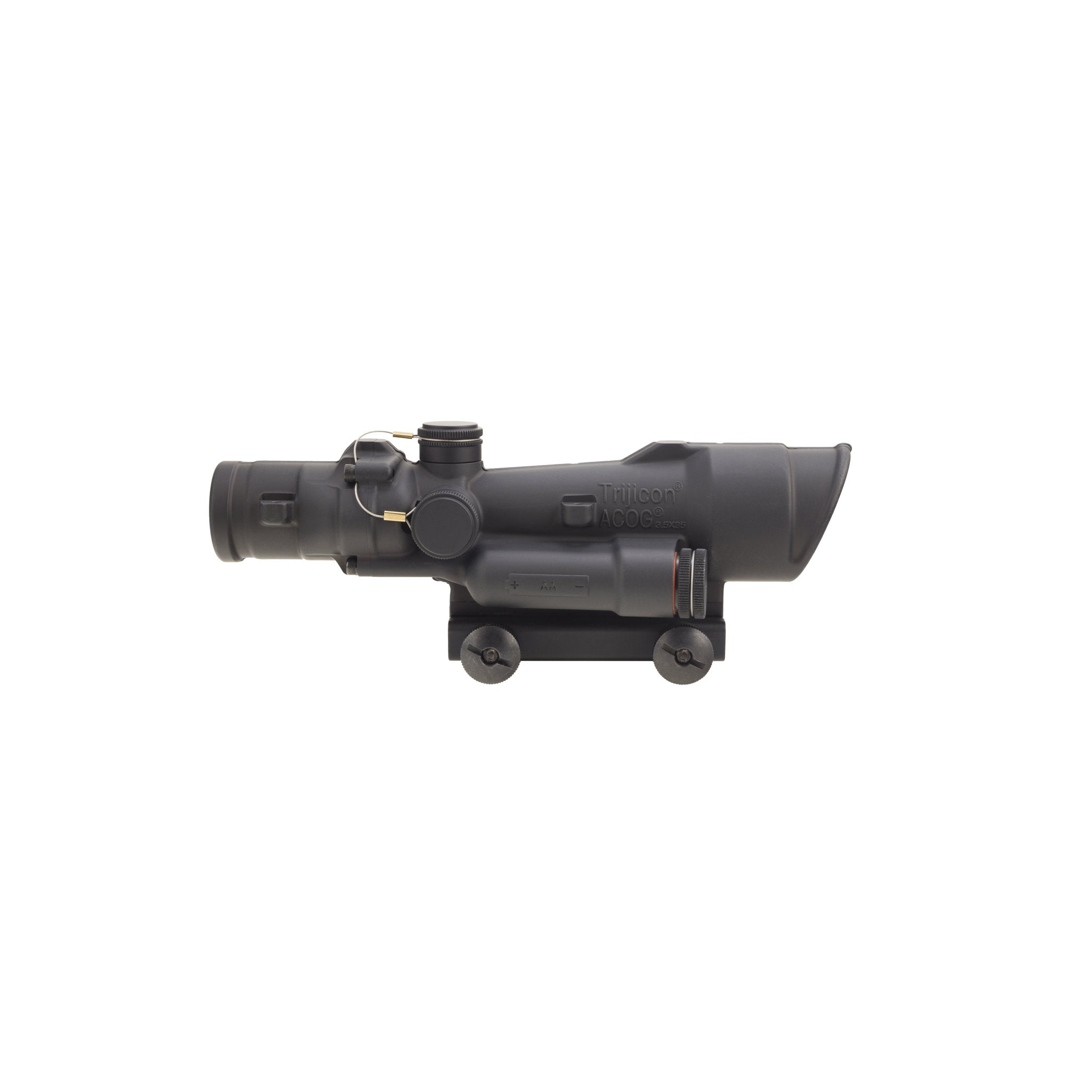

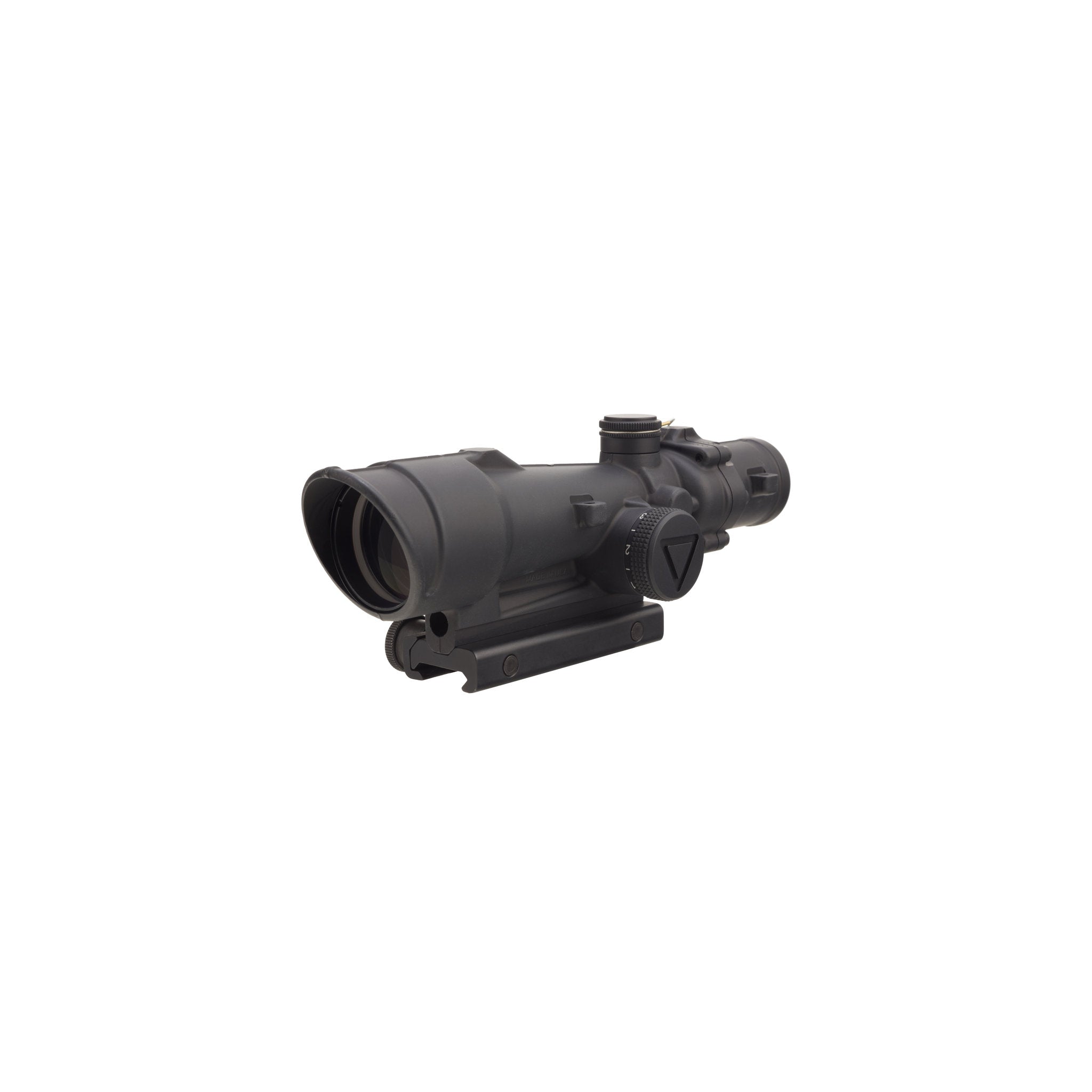

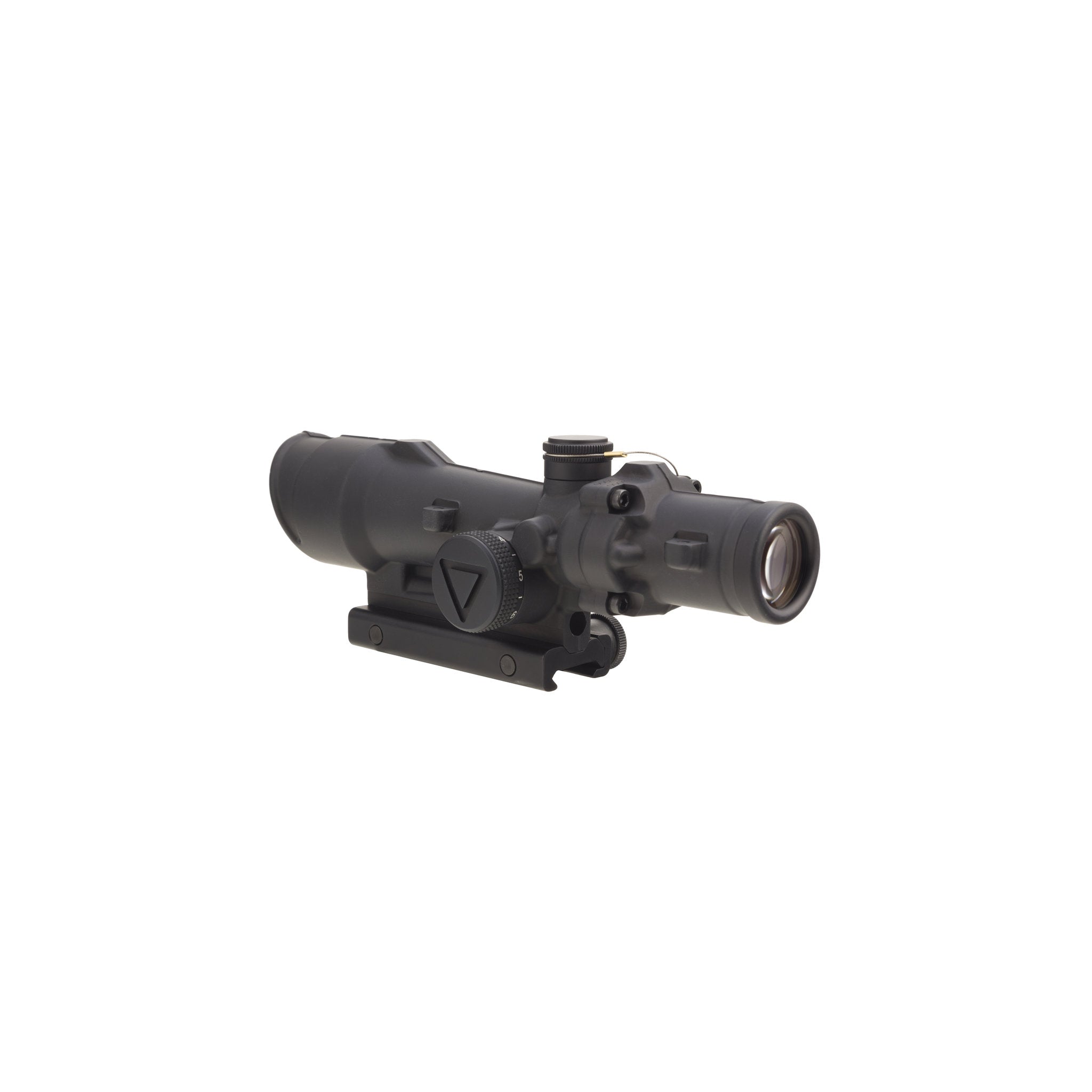

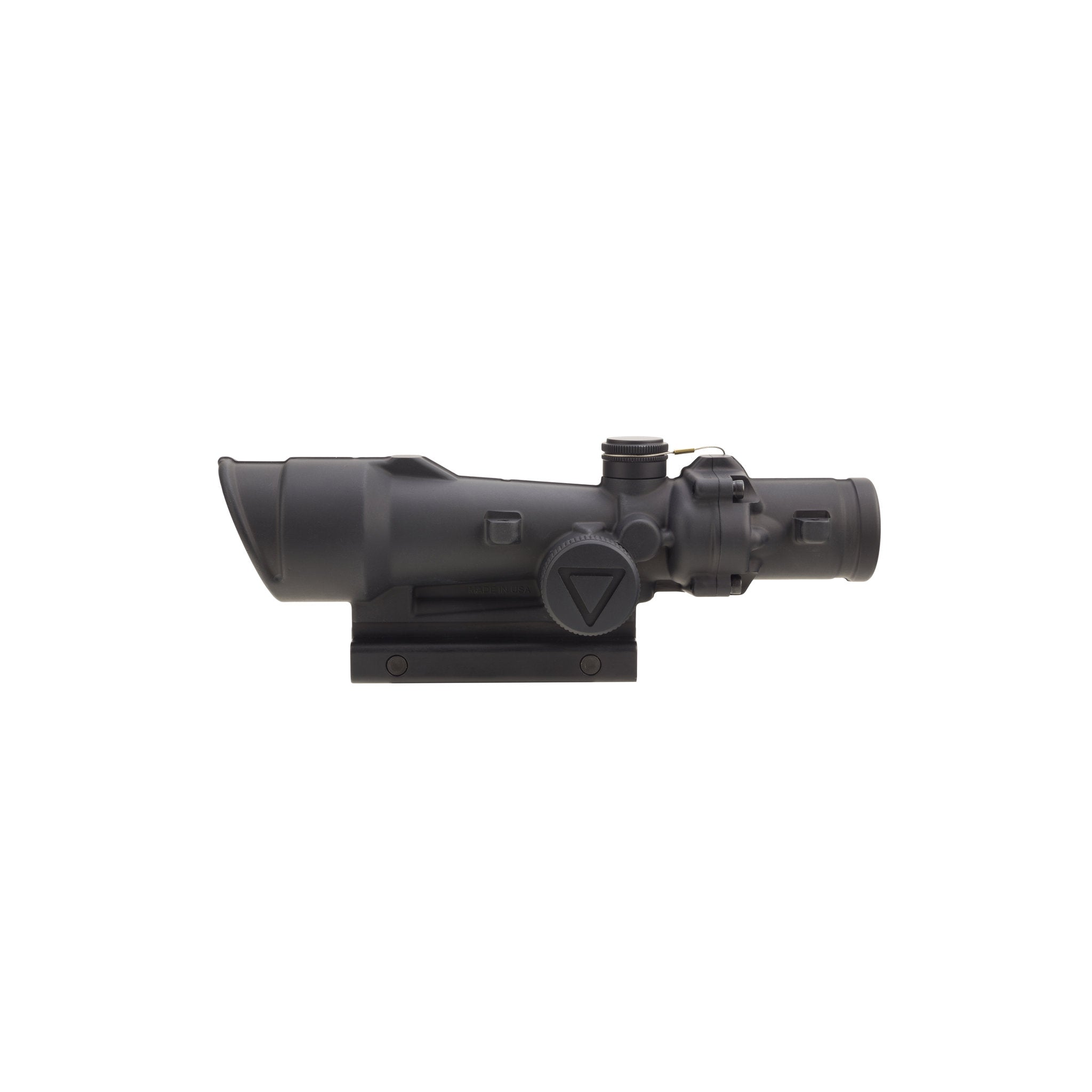

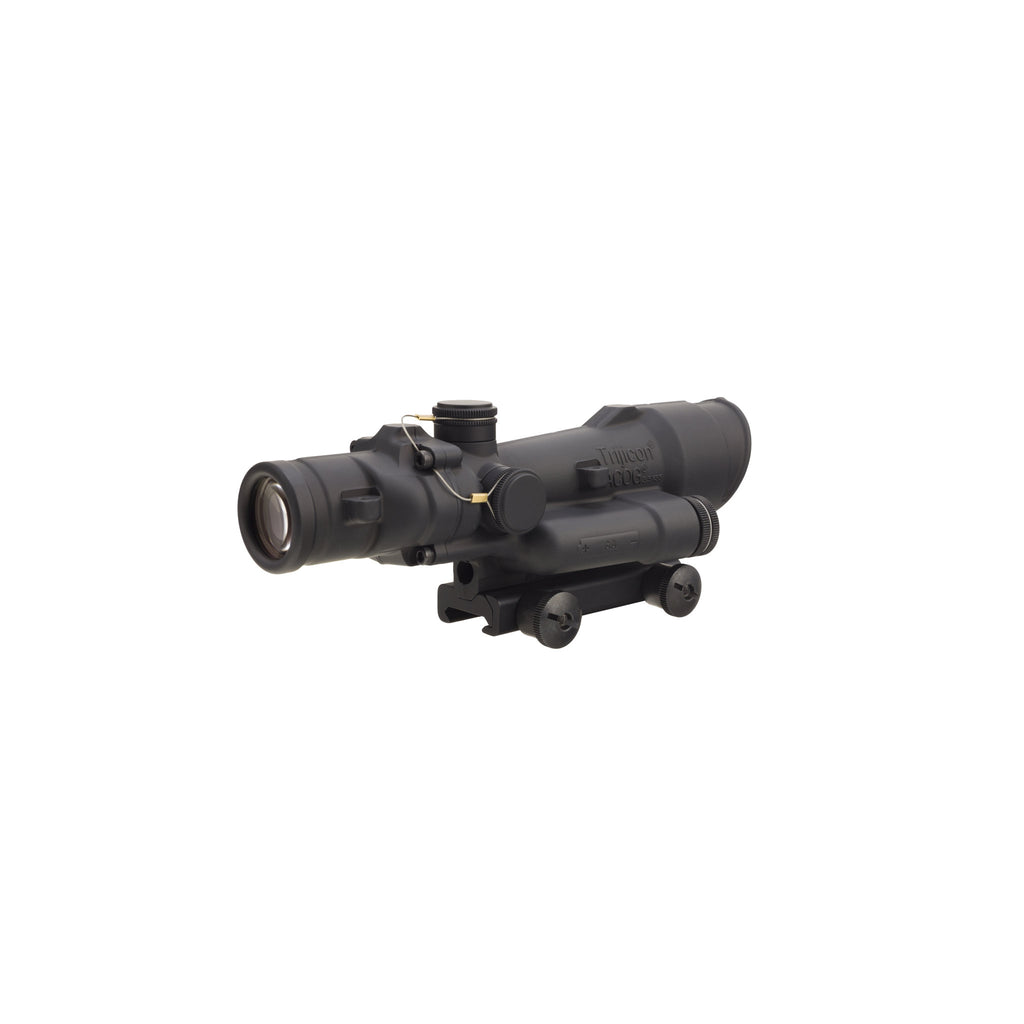

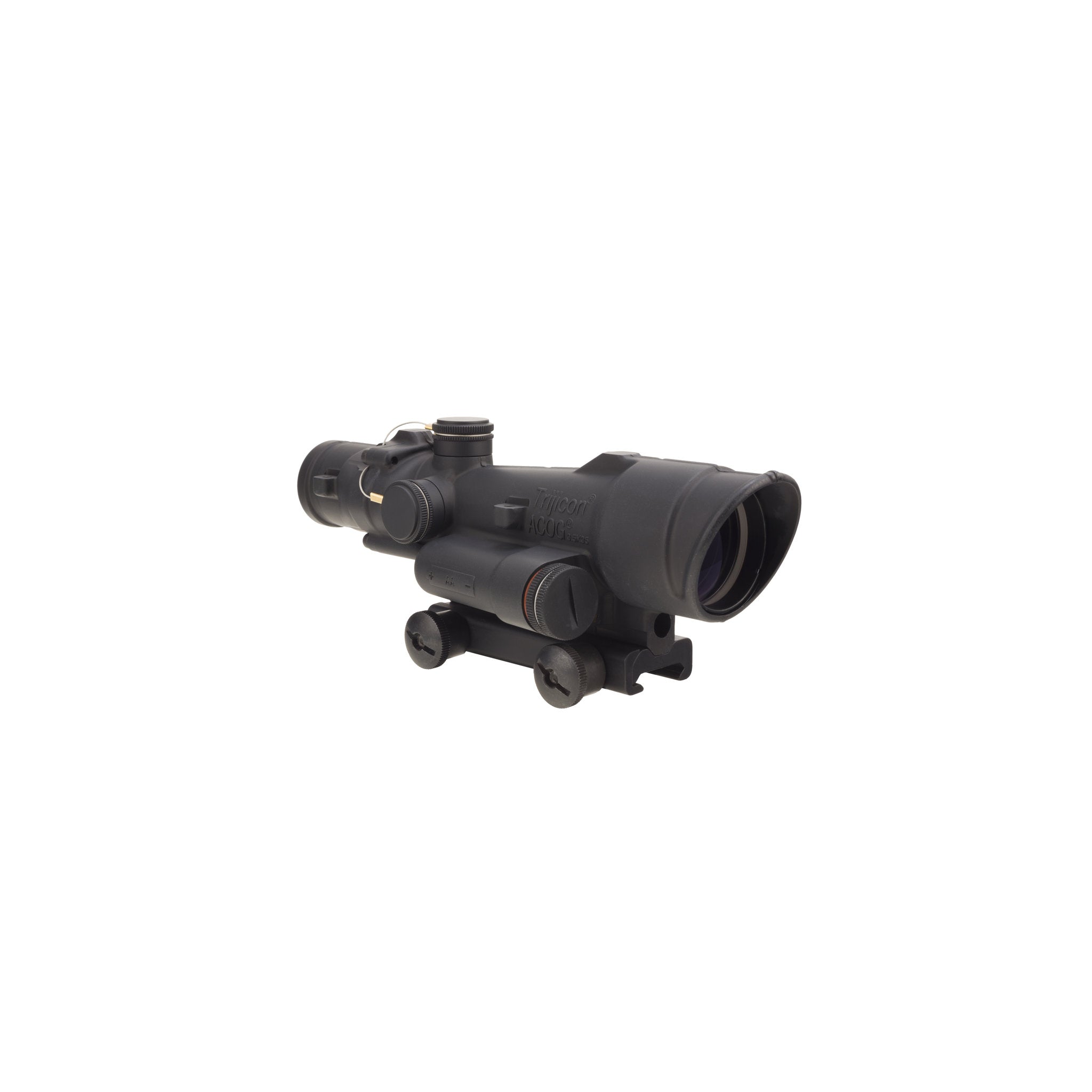

A fixed 3.5x35 ACOG riflescope with an LED-illuminated green crosshair BDC reticle for .308 / 7.62, for professional users who need a rugged magnified optic.
This ACOG combines 3.5x magnification and a 35mm objective with a green crosshair reticle that has bullet drop compensation calibrated for .308 / 7.62.
The reticle is LED-illuminated and powered by a single AA battery, with six brightness settings and an "off" position between each setting, so the operator can set the illumination to suit transitional lighting.
The housing is forged aluminium with a matte black finish, and the scope comes with a Flattop Thumbscrew Mount (TA51).
Key features
- Selectable brightness — Six adjustable brightness levels with an "off" between each setting let the user decide how much to illuminate the reticle.
- Long battery life — A single AA battery runs the illumination for over 12,000 continuous hours on setting #4.
- Both eyes open — The Bindon Aiming Concept (BAC) supports shooting with both eyes open for improved situational awareness.

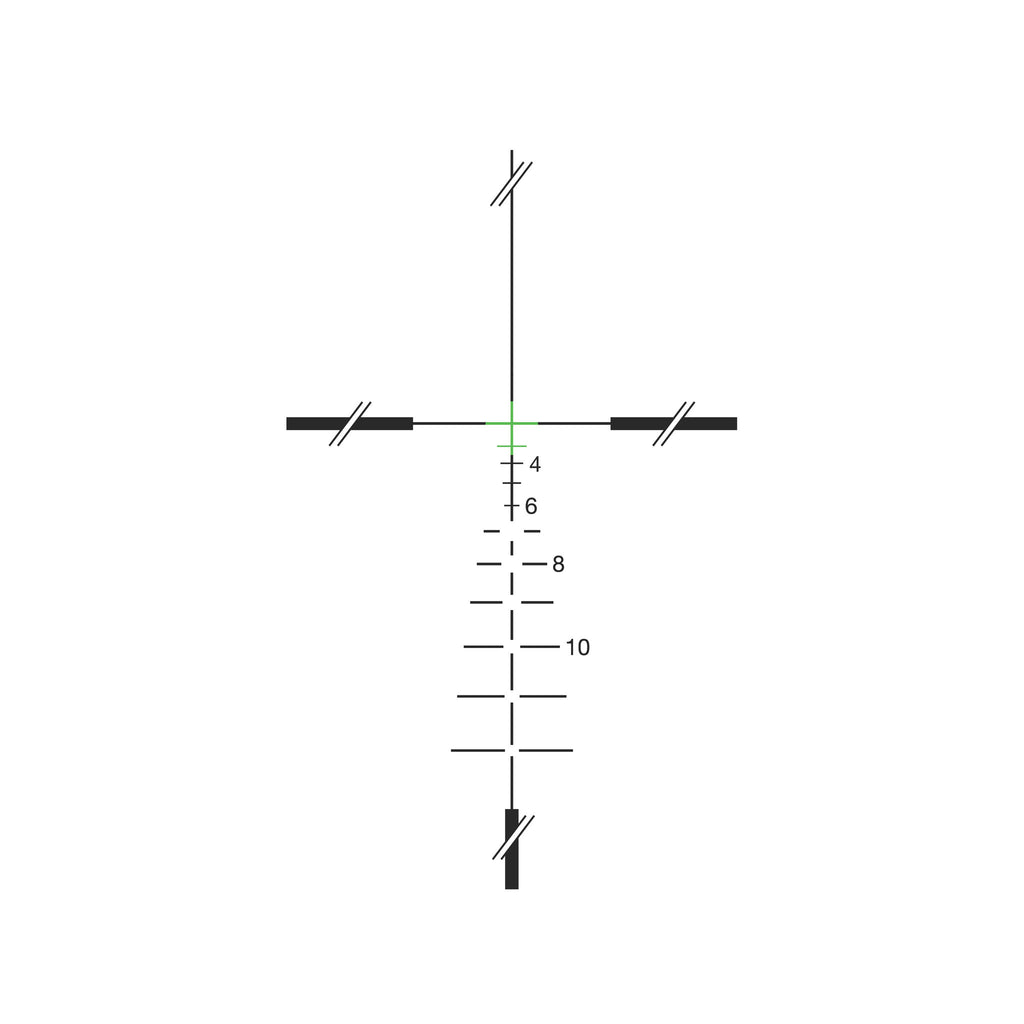

- BDC crosshair reticle — The bullet drop compensating crosshair reticle is calibrated for .308 / 7.62.
- Night vision compatible — The LED ACOG is fully night vision device compatible and works with most other 3.5x35 ACOG accessories.
- Rugged fixed-power design — Forged from 7075-T6 aircraft-aluminium, the fixed-power design keeps moving parts to a minimum.
- Shock-resistant and waterproof — It withstands recoil from a .22LR to a .50BMG, and the dry nitrogen-filled housing mitigates fogging.
Typical applications
- Magnified sighting on service and patrol rifles in the calibre the reticle is calibrated for
- Use in changing and low light, including with night vision devices
- Professional and law enforcement duty use where a durable fixed-power optic is required
Technical specifications
| Length × width × height | 8 in x 3 in x 2.6 in (203.2mm x 76.2mm x 66.04mm) |
| Weight | 20.8 oz. (589.67g) |
| Magnification | 3.5x |
| Objective size | 35mm |
| Reticle pattern | Crosshair |
| Day reticle colour | Green |
| Night reticle colour | Green |
| Bullet drop compensation (BDC) | Yes |
| Calibre | .308 / 7.62 |
| Bindon Aiming Concept (BAC) | Yes |
| Illumination source | LED |
| Illumination settings | 6 |
| Power source | AA Lithium or Alkaline Battery |
| Battery life | Over 12,000 hours on setting #4 using supplied alkaline battery at 21 deg C (70 deg F) |
| Adjustment | 3 clicks per inch (@ 100yds) |
| Adjustment range | 40 MOA Total Travel |
| Eye relief | 2.4 in. (60.96mm) |
| Exit pupil | 0.39 in. (9.91mm) |
| Field of view (degrees) | 5.5° |
| Field of view (distance) | 28.9 ft. @ 100 yds. (9.63m @ 100m) |
| Mount | Flattop Thumbscrew Mount (TA51) |
| Housing material | Forged Aluminum |
| Finish | Matte Black |
In the box
- 1 × ACOG® 3.5x35 LED Riflescope -.308 / 7.62 BDC — Green Crosshair Reticle, Thumbscrew Mount, LED Illuminated, Matte Black
- Thumbscrew Flattop Adapter (TA51)
- AA Battery
- LENSPEN (TA56)
- Lanyard Assembly for Adjuster Caps (TA71E)
- Lanyard Assembly for Battery Cap
- Trijicon Logo Sticker (PR15)
- LED ACOG Manual
- Warranty Card
Model information
| Brand | Trijicon |
| Model | ACOG® 3.5x35 LED Riflescope -.308 / 7.62 BDC — Green Crosshair Reticle, Thumbscrew Mount, LED Illuminated, Matte Black |
| MPN | TA110-D-100502 |
