Description
A fixed 3.5x35 ACOG riflescope with a red chevron BDC reticle for .223 / 5.56 flat-top rifles, aimed at professional users who need a rugged magnified optic.
This ACOG combines 3.5x magnification with a 35mm objective and a red chevron reticle that is illuminated by fibre optics and tritium.
The bullet drop compensating reticle is calibrated for 5.56 (.223 cal) flat-top rifles to 800 metres, and the chevron is zeroed using its tip at 100 metres.

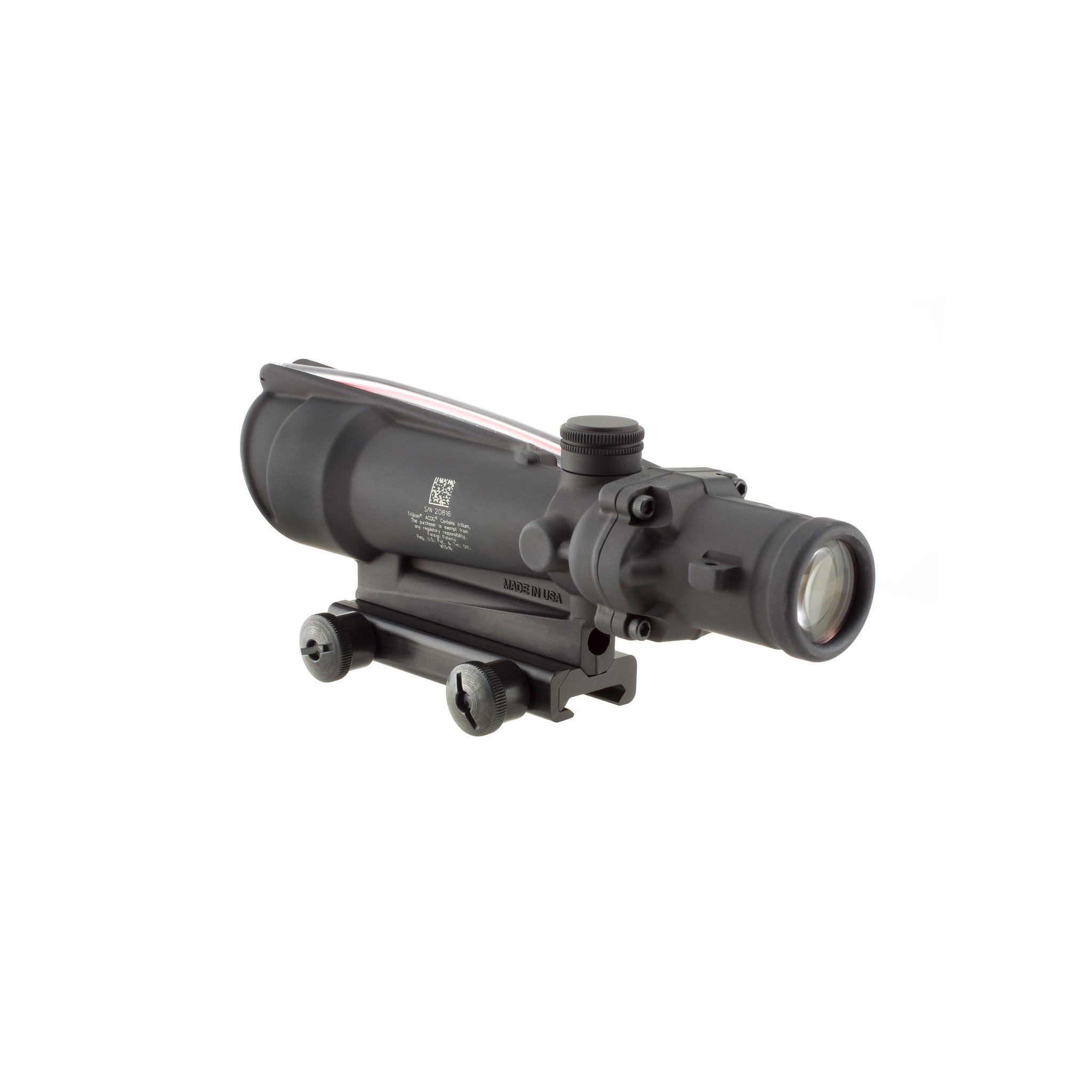

The scope comes with a flattop thumbscrew mount and has a forged aluminium housing in a matte black finish.
Key features
- Automatic brightness — The tritium and fibre optic illuminated reticle adjusts its brightness automatically to the available light.

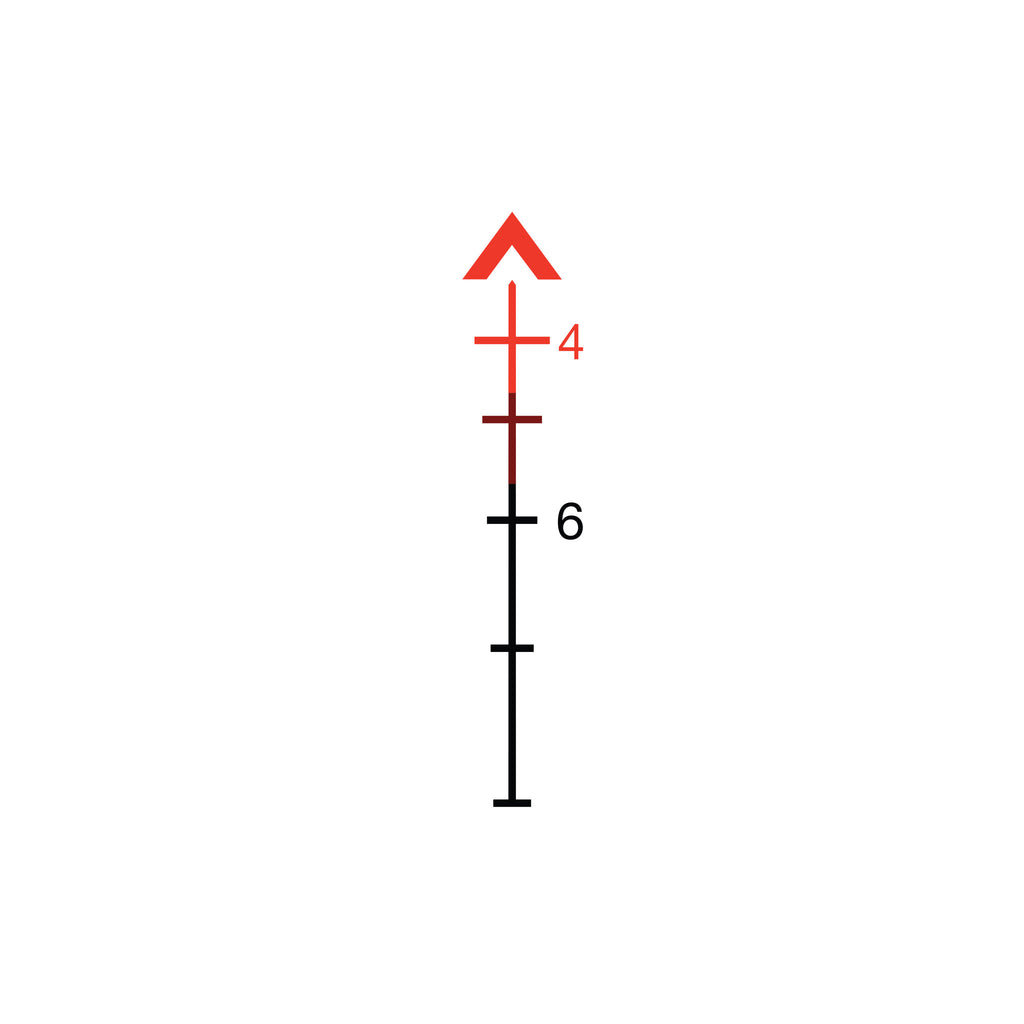

- Range estimation — The width of the chevron at the base is 5.53 MOA, which covers 19” at 300 metres and allows range estimation for silhouette targets.
- Bindon Aiming Concept — The Bindon Aiming Concept supports shooting with both eyes open for improved situational awareness.
- Fixed-power design — The fixed-power design keeps moving parts to a minimum for a rugged, reliable sighting system.
- Shock-resistant — The optic is proven to withstand recoil from a .22LR to a .50BMG and passes U.S. Military drop test requirements.
- Waterproof, nitrogen-filled — The waterproof housing is dry nitrogen-filled to mitigate fogging and is tested to perform in extreme cold and heat.
- Multi-coated lenses — Multi-coated lenses maximise light-gathering capabilities and give a clear field of view.
Typical applications
- Magnified optic for service and duty rifles chambered in .223 / 5.56 with a flat-top upper.
- Fast target engagement with both eyes open at close and medium range.
- Range estimation and holdover on silhouette targets at extended distances.
Technical specifications
| Length × width × height | 8 in x 2.1 in x 2.9 in (203.2mm x 53.34mm x 73.66mm) |
| Weight | 17.6 oz. (498.95g) |
| Magnification | 3.5x |
| Objective size | 35mm |
| Reticle pattern | Chevron |
| Day reticle colour | Red |
| Night reticle colour | Red |
| Bullet drop compensation (BDC) | Yes |
| Calibre | .223 / 5.56 |
| Bindon Aiming Concept (BAC) | Yes |
| Illumination source | Fiber Optics & Tritium |
| Power source | Fiber Optics & Tritium |
| Adjustment | 3 clicks per inch (@100 yds) |
| Eye relief | 2.39 in. (60.71mm) |
| Exit pupil | 0.39 in. (9.91mm) |
| Field of view (degrees) | 5.5° |
| Field of view (distance) | 28.9 ft. @ 100 yds. (9.63m @ 100m) |
| Mount | Flattop Thumbscrew Mount (TA51) |
| Housing material | Forged Aluminum |
| Finish | Matte Black |
In the box
- 1 × ACOG® 3.5x35 BAC Riflescope - .223 / 5.56 BDC — Red Chevron Reticle, Thumbscrew Mount, Tritium / Fiber Optics Illuminated, Matte Black
- Thumbscrew Flattop Adapter (TA51)
- 3.5x35 Scopecoat (TA63)
- LENSPEN (TA56)
- Lanyard Assembly for Adjuster Caps (TA71E)
- Trijicon Logo Sticker (PR15)
- ACOG BAC Manual
- Warranty Card
Model information
| Brand | Trijicon |
| Model | ACOG® 3.5x35 BAC Riflescope - .223 / 5.56 BDC — Red Chevron Reticle, Thumbscrew Mount, Tritium / Fiber Optics Illuminated, Matte Black |
| MPN | TA11F |
