Description

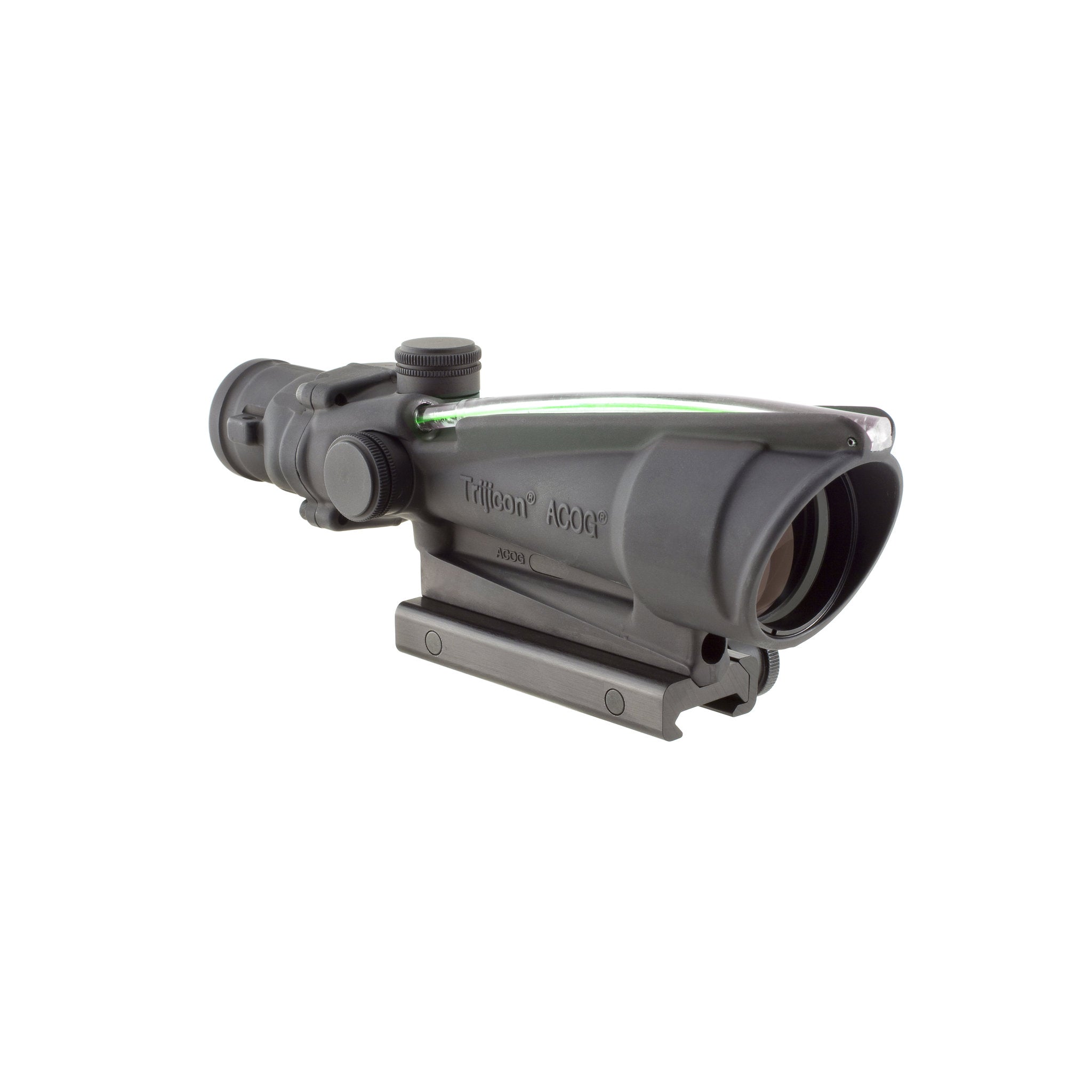

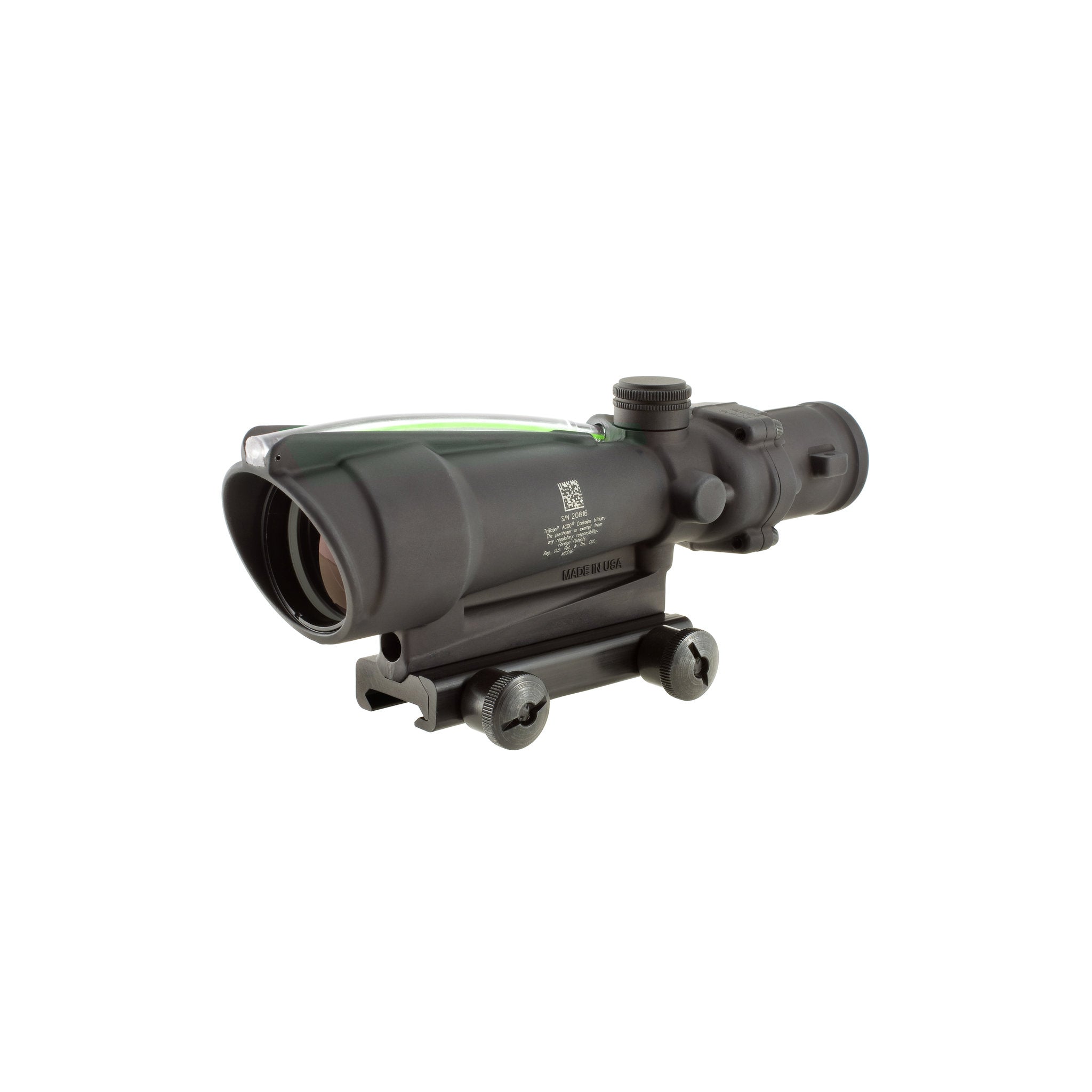

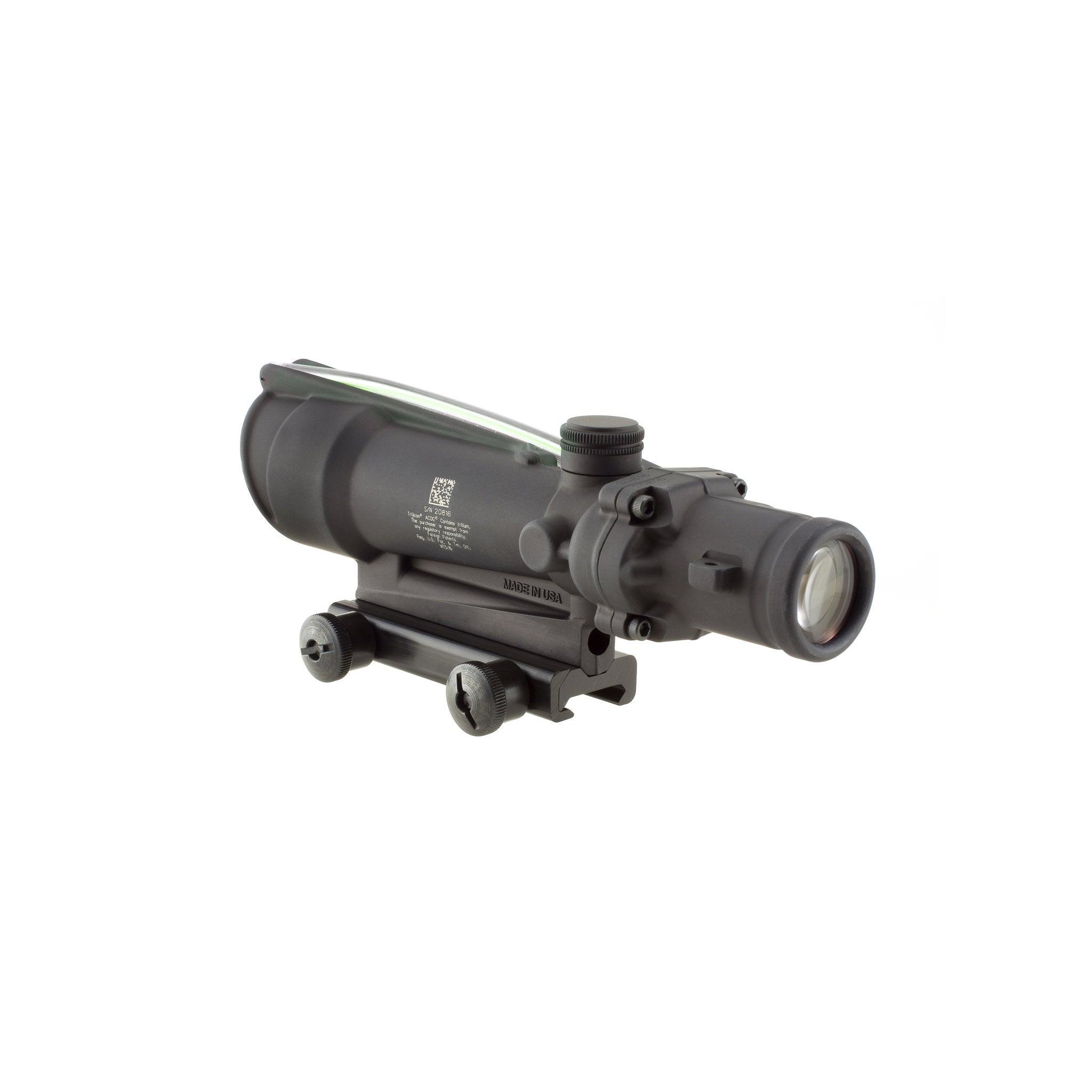

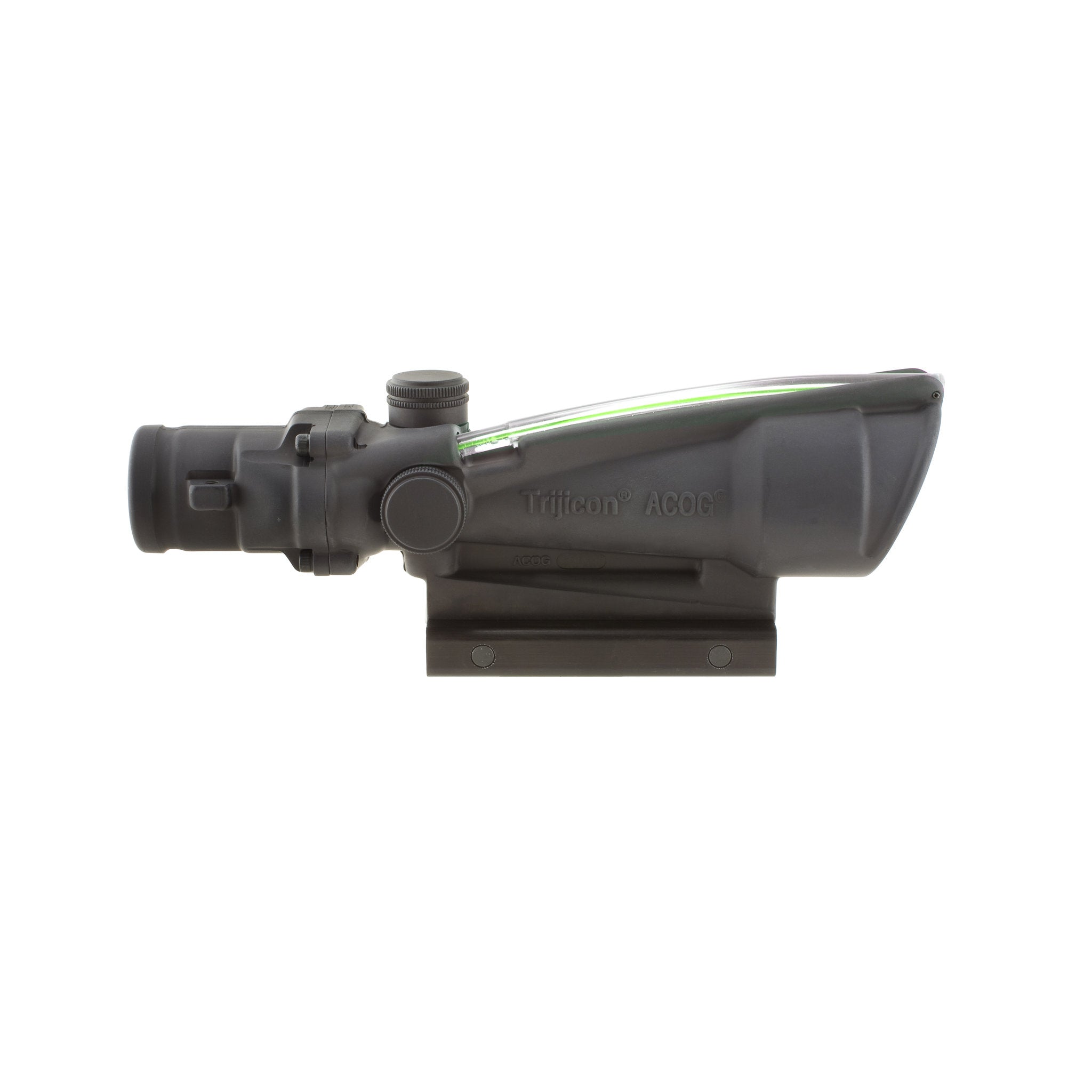

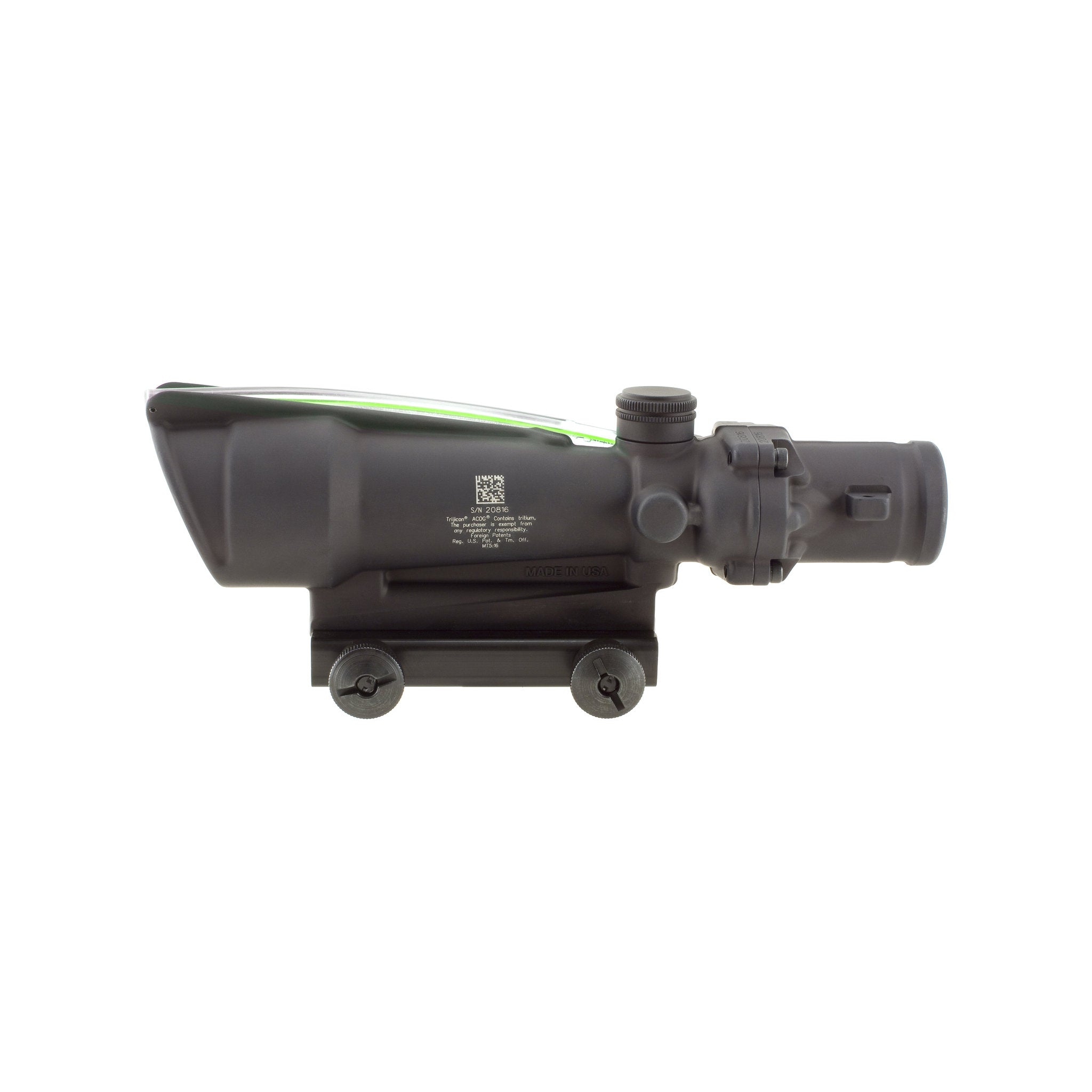

A fixed 3.5x35 ACOG riflescope with a tritium and fibre optic illuminated green horseshoe BDC reticle, calibrated for .223 / 5.56 flat-top rifles.

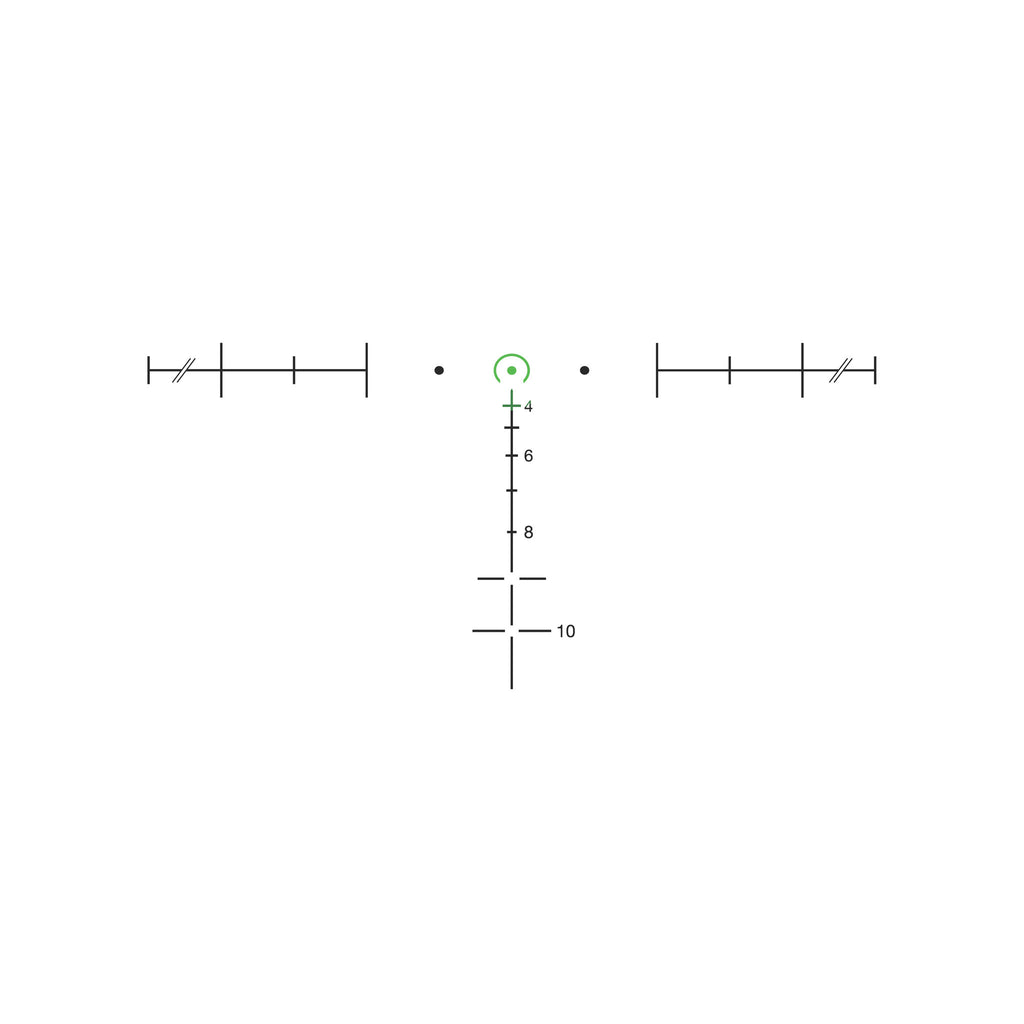

This ACOG combines 3.5x magnification and a 35mm objective with a green horseshoe dot reticle and Target Reference System, whose ranging reticle is calibrated for 5.56 (.223 cal) flat-top rifles to 1000 metres.
Fibre optics illuminate the reticle by day and tritium illuminates it at night, with brightness adjusting automatically to the available light.
The scope comes with a flattop thumbscrew mount, housed in forged aluminium with a matte black finish.
Key features
- Both eyes open — The Bindon Aiming Concept (BAC) supports shooting with both eyes open for improved situational awareness.
- Bullet drop compensation — The reticle compensates for bullet drop and allows target ranging for .223 / 5.56 rifles.
- Dual illumination — The tritium and fibre optic illuminated reticle adjusts its brightness automatically to the available light.
- Fixed-power housing — The fixed-power design keeps moving parts to a minimum for a robust sighting system.
- Multi-coated optics — Multi-coated lenses maximise light-gathering and give a clear field of view.
- Shock resistant — The scope is proven to withstand recoil from a .22LR to a .50BMG.
- Waterproof and fog-free — The waterproof, dry nitrogen-filled housing mitigates fogging and is tested for extreme cold and heat.
Typical applications
- Service and duty rifles in 5.56 calibre used by law enforcement and professional users.
- Rapid engagement at close to medium range with both eyes open.
- Ranging and holdover on flat-top rifles at longer distances.
Technical specifications
| Length × width × height | 8 in x 2.1 in x 2.9 in (203.2mm x 53.34mm x 73.66mm) |
| Weight | 17.6 oz. (498.95g) |
| Magnification | 3.5x |
| Objective size | 35mm |
| Reticle pattern | Horseshoe Dot |
| Day reticle colour | Green |
| Night reticle colour | Green |
| Bullet drop compensation (BDC) | Yes |
| Calibre | .223 / 5.56 |
| Illumination source | Fiber Optics & Tritium |
| Power source | Fiber Optics & Tritium |
| Adjustment | 3 clicks per inch (@100 yds) |
| Eye relief | 2.4 in. (60.96mm) |
| Exit pupil | 0.39 in. (9.91mm) |
| Field of view (degrees) | 5.5° |
| Field of view (distance) | 28.9 ft. @ 100 yds. (9.63m @ 100m) |
| Mount | Flattop Thumbscrew Mount (TA51) |
| Housing material | Forged Aluminum |
| Finish | Matte Black |
In the box
- 1 × ACOG® 3.5x35 BAC Riflescope - .223 / 5.56 BDC — Green Horseshoe Reticle, Thumbscrew Mount, Tritium / Fiber Optics Illuminated, Matte Black
- Thumbscrew Flattop Adapter (TA51)
- 3.5x35 Scopecoat (TA63)
- LENSPEN (TA56)
- Lanyard Assembly for Adjuster Caps (TA71E)
- Trijicon Logo Sticker (PR15)
- ACOG BAC Manual
- Warranty Card
Model information
| Brand | Trijicon |
| Model | ACOG® 3.5x35 BAC Riflescope - .223 / 5.56 BDC — Green Horseshoe Reticle, Thumbscrew Mount, Tritium / Fiber Optics Illuminated, Matte Black |
| MPN | TA11H-G |
