Description

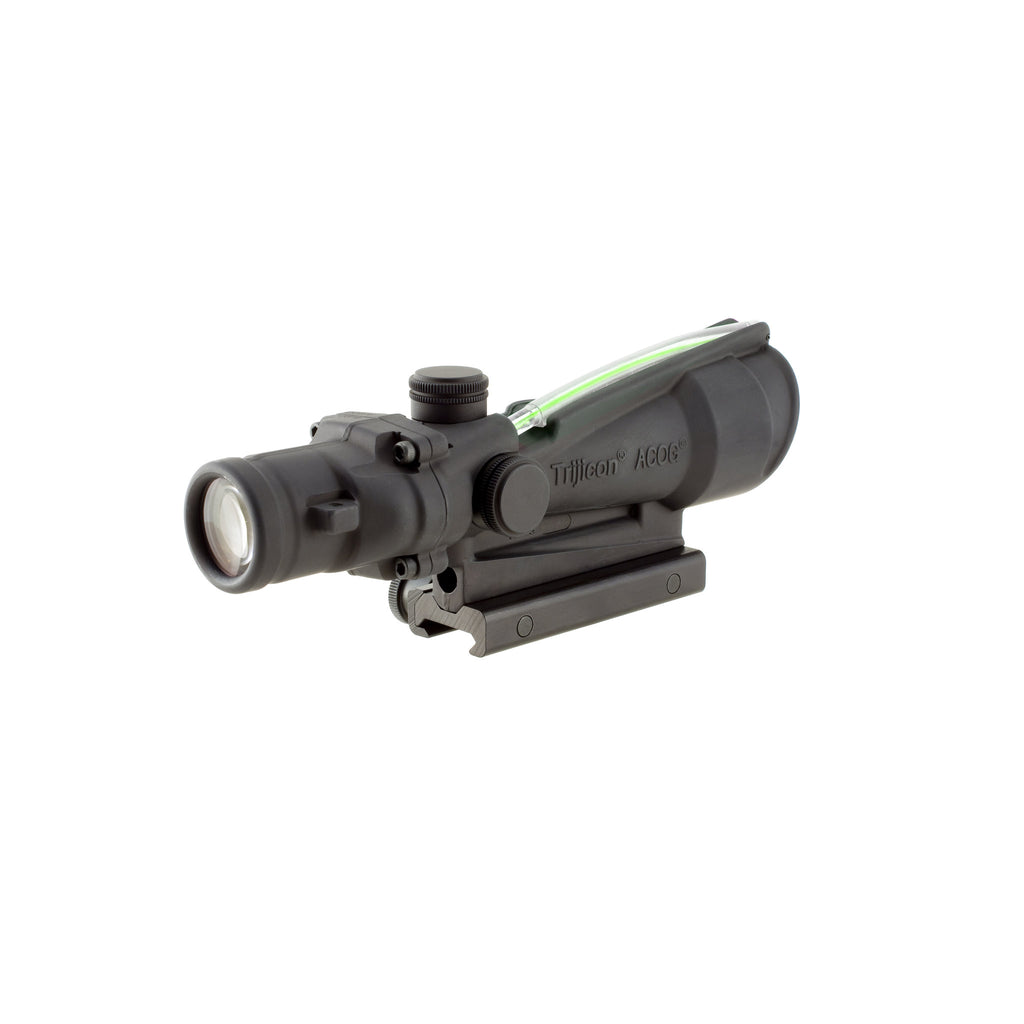

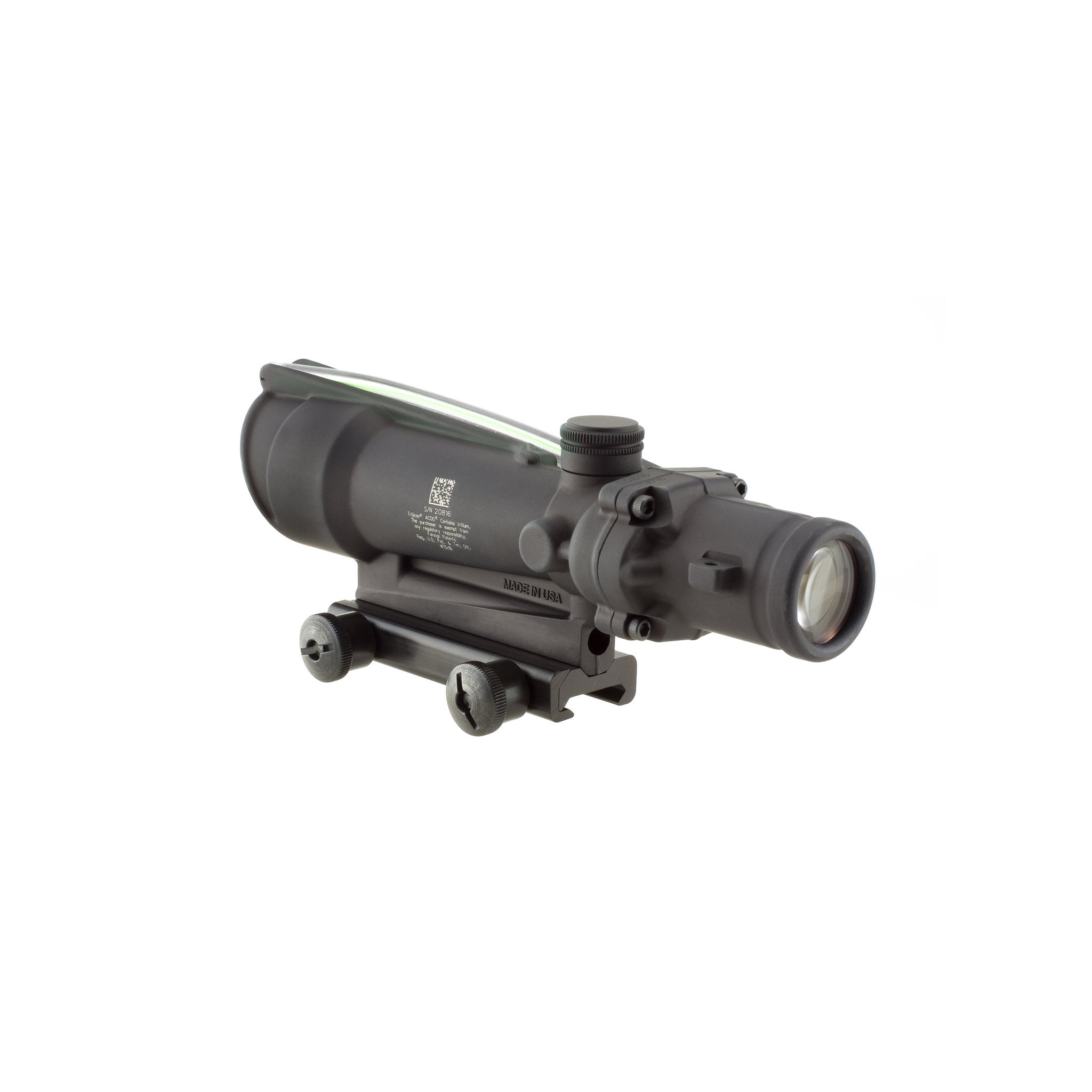

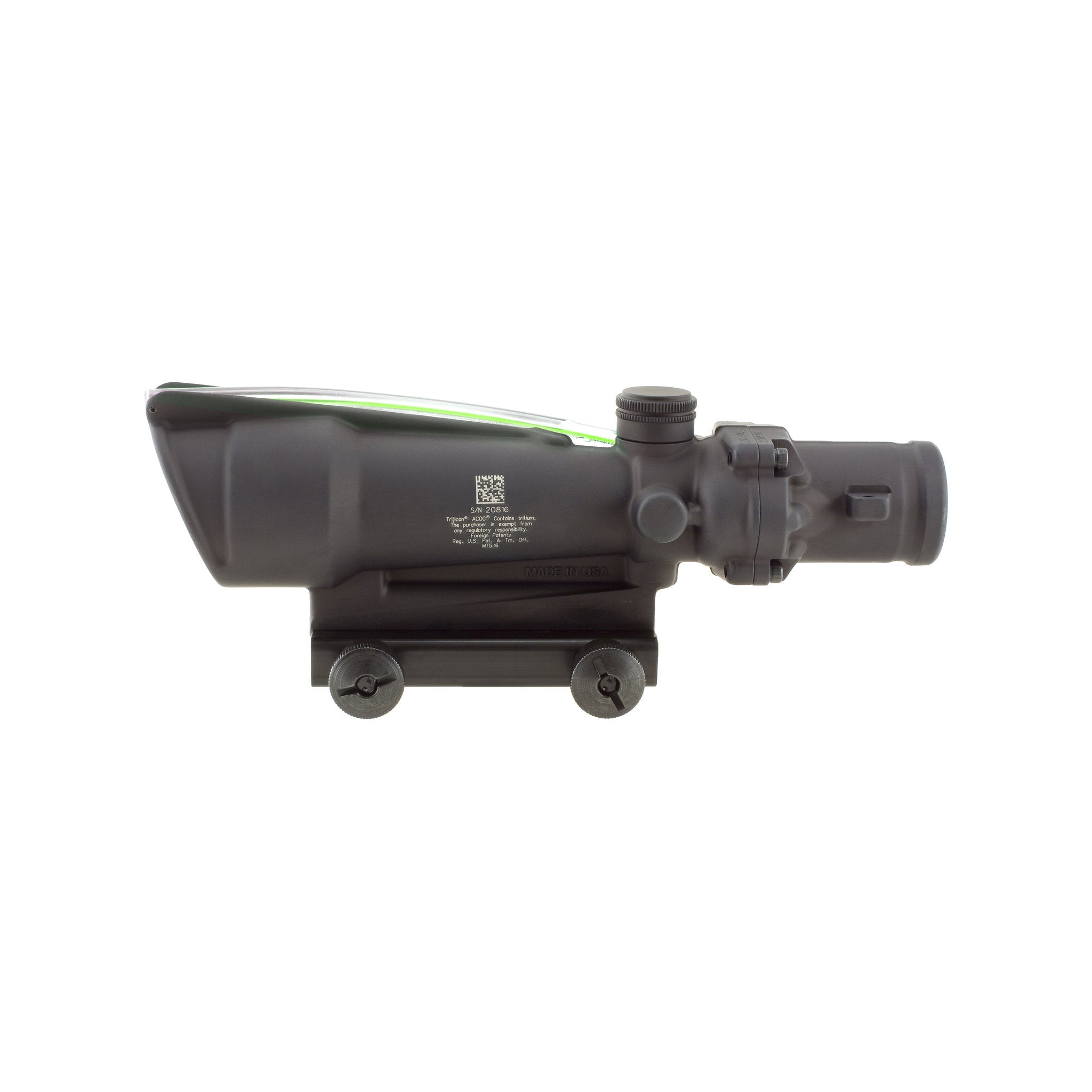

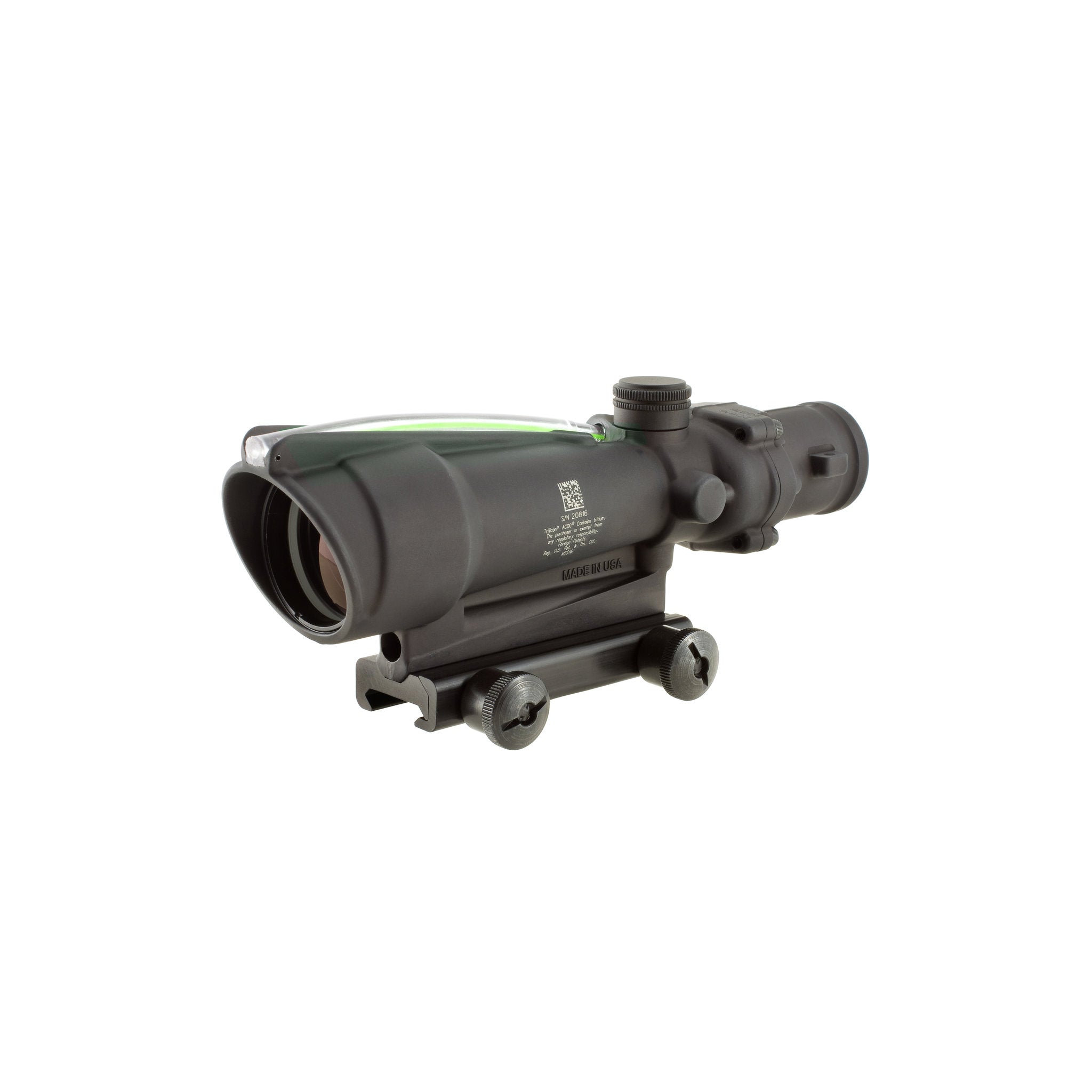

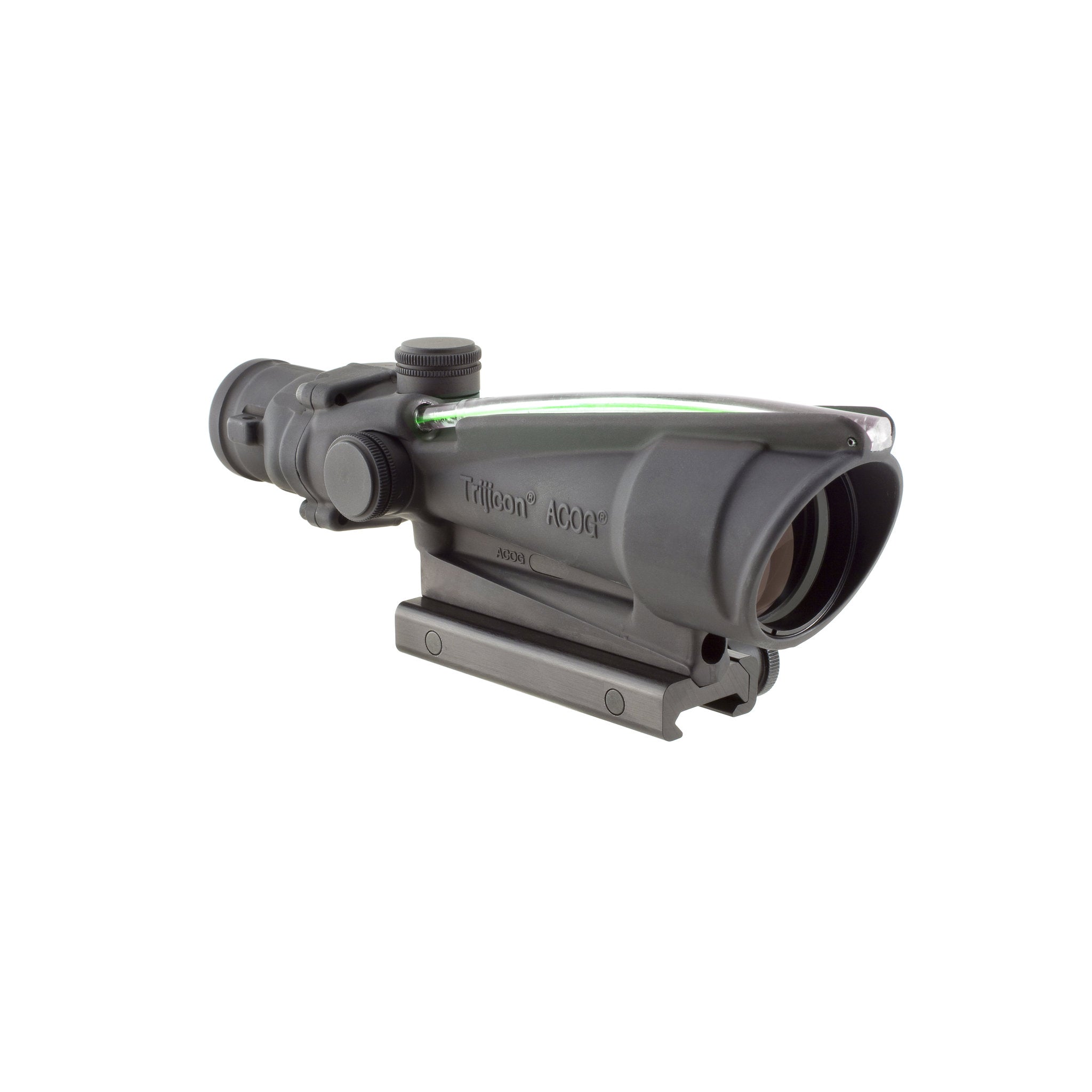

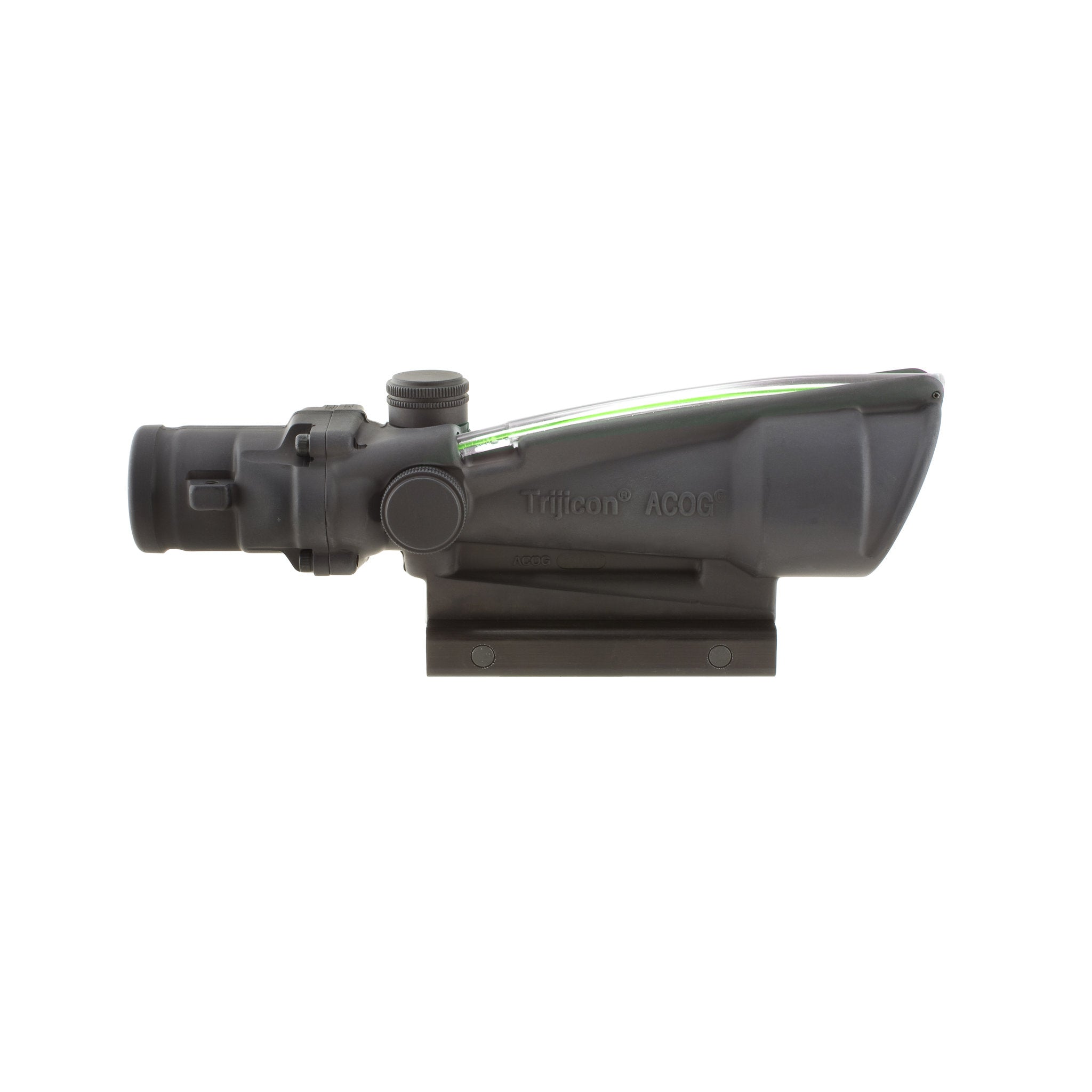

A fixed 3.5x35 ACOG riflescope with a tritium and fibre optic illuminated green crosshair BDC reticle for .223 / 5.56 flat-top rifles, for professional users.
This ACOG offers 3.5x magnification with a 35mm objective and a green crosshair reticle whose ranging and bullet drop compensation are calibrated for 5.56 (.223 cal) flat-top rifles to 1000 metres.
The reticle is illuminated by fibre optics in daylight and by tritium at night. The scope comes on a flattop thumbscrew mount (TA51) for military-style rails.
Key features
- Tritium and fibre optics — The tritium and fibre optic illuminated reticle adjusts its brightness automatically to the available light.
- Bindon Aiming Concept — The BAC design supports shooting with both eyes open for improved situational awareness.

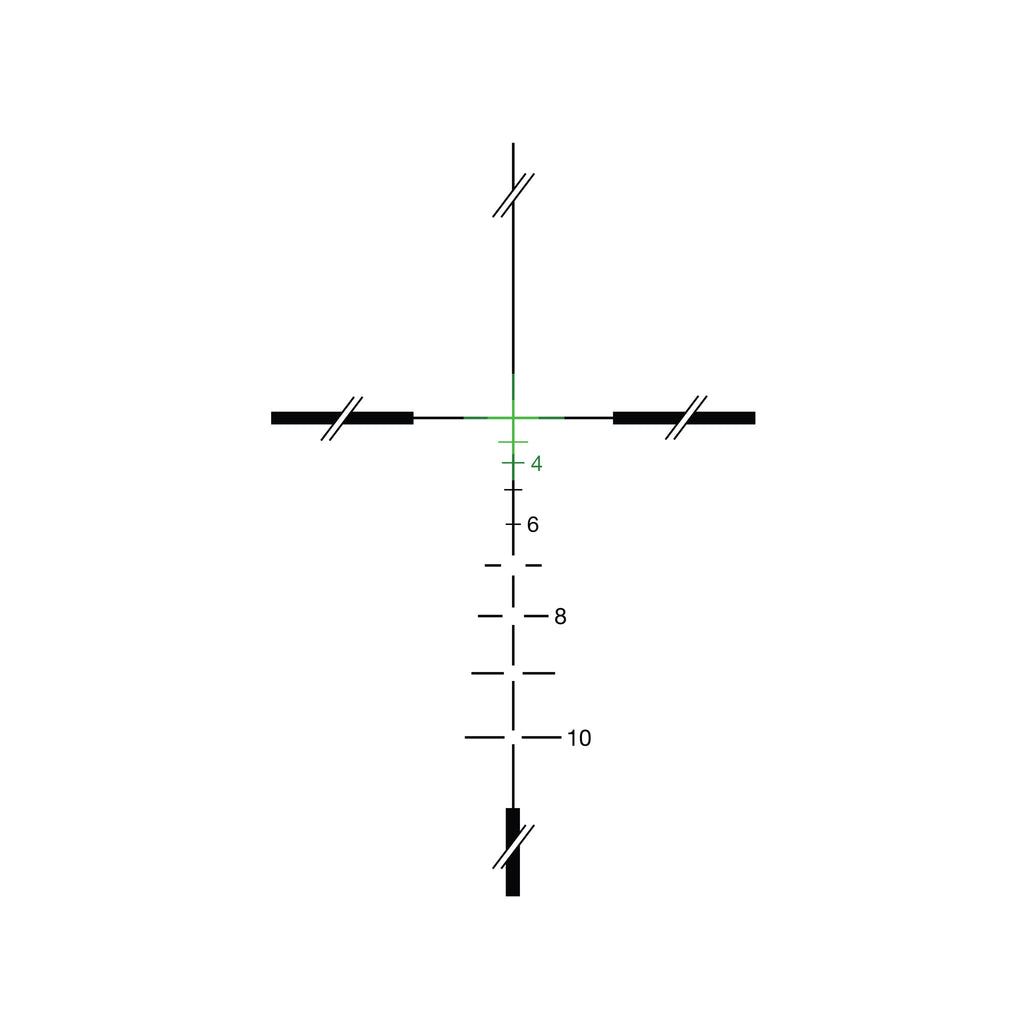

- Ranging BDC reticle — The bullet drop compensating crosshair is calibrated for .223 / 5.56 and supports target ranging for holds at distance.
- Fixed-power housing — The fixed-power design keeps moving parts to a minimum, in a forged aluminium housing.
- Shock resistant — The optic is proven to withstand recoil from .22LR to .50BMG and passes U.S. Military drop test requirements.
- Waterproof, nitrogen filled — The waterproof housing is dry nitrogen-filled to mitigate fogging in extreme cold and heat.
- Multi-coated lenses — Multi-coated lenses maximise light gathering and give a clear field of view.
Typical applications
- Magnified day and night sighting on flat-top service and patrol rifles.
- Engaging and ranging targets at extended distance with bullet drop holds.
- Duty use where the reticle must stay illuminated in changing light without user adjustment.
Technical specifications
| Weight | 17.6 oz. (498.95g) |
| Magnification | 3.5x |
| Objective size | 35mm |
| Reticle pattern | Crosshair |
| Day reticle colour | Green |
| Night reticle colour | Green |
| Bullet drop compensation (BDC) | Yes |
| Calibre | .223 / 5.56 |
| Illumination source | Fiber Optics & Tritium |
| Power source | Fiber Optics & Tritium |
| Adjustment | 3 clicks per inch (@100 yds) |
| Eye relief | 2.4 in. (60.96mm) |
| Exit pupil | 0.39 in. (9.91mm) |
| Field of view (degrees) | 5.5° |
| Field of view (distance) | 28.9 ft. @ 100 yds. (9.63m @ 100m) |
| Mount | Flattop Thumbscrew Mount (TA51) |
| Housing material | Forged Aluminum |
| Finish | Matte Black |
In the box
- 1 × ACOG® 3.5x35 BAC Riflescope - .223 / 5.56 BDC — Green Crosshair, Thumbscrew Mount, Tritium / Fiber Optics Illuminated, Matte Black
- Flattop Adapter for Military Style Rail (TA51)
- 3.5x35 Scopecoat (TA63)
- LENSPEN (TA56)
- Lanyard Assembly for Adjuster Caps (TA71E)
- Trijicon Logo Sticker(PR15)
- ACOG Manual
- Warranty Card
Model information
| Brand | Trijicon |
| Model | ACOG® 3.5x35 BAC Riflescope - .223 / 5.56 BDC — Green Crosshair, Thumbscrew Mount, Tritium / Fiber Optics Illuminated, Matte Black |
| MPN | TA11J-G |
