Description

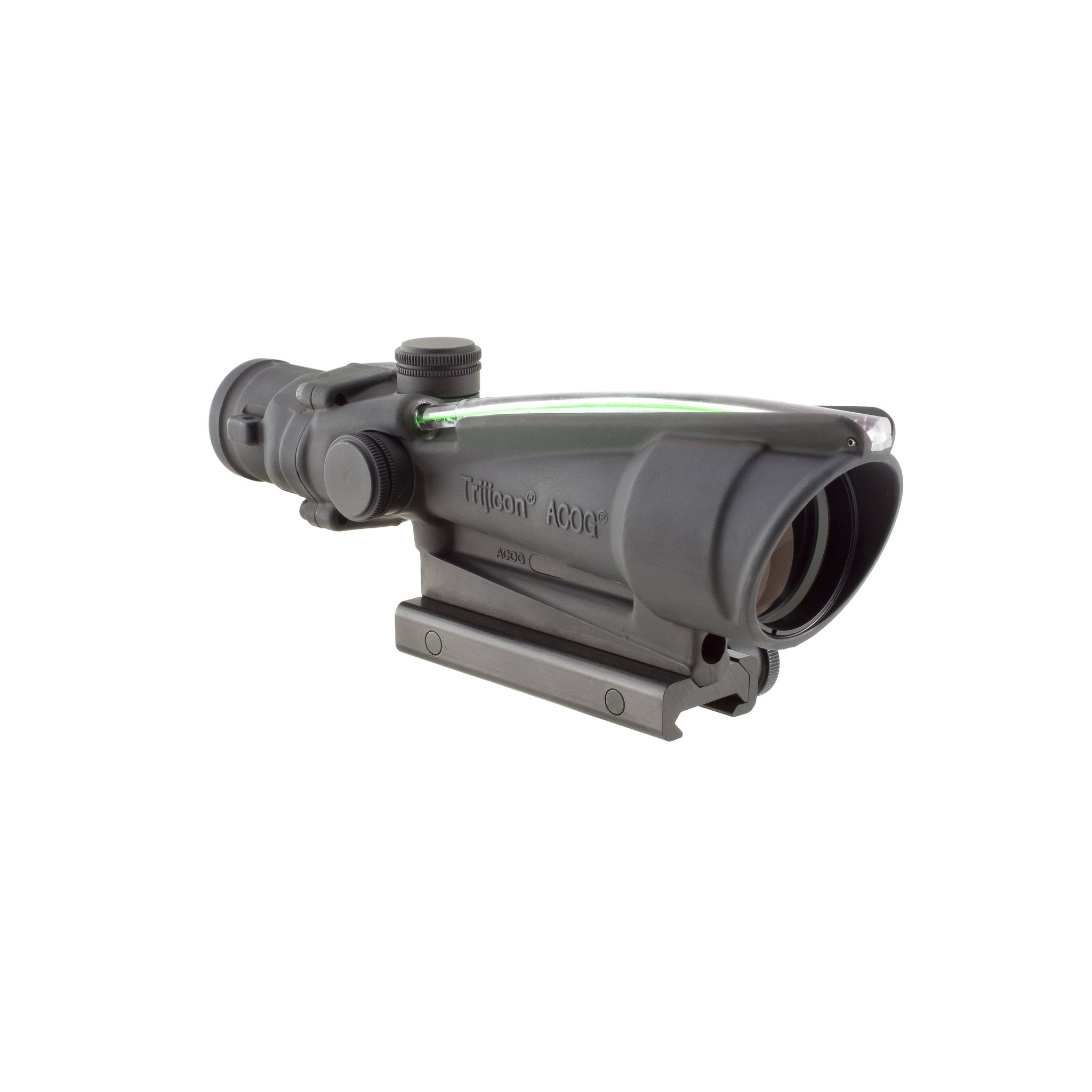

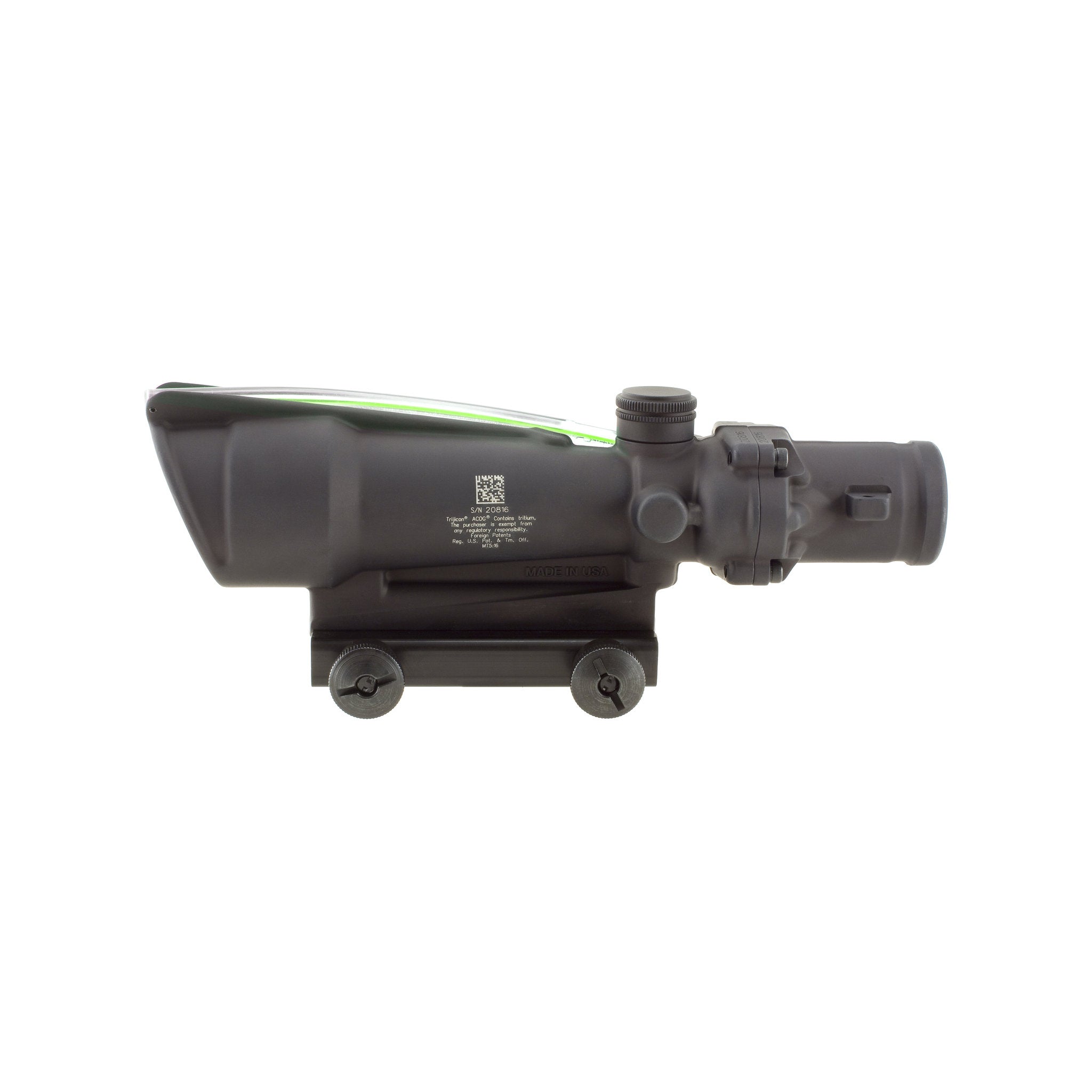

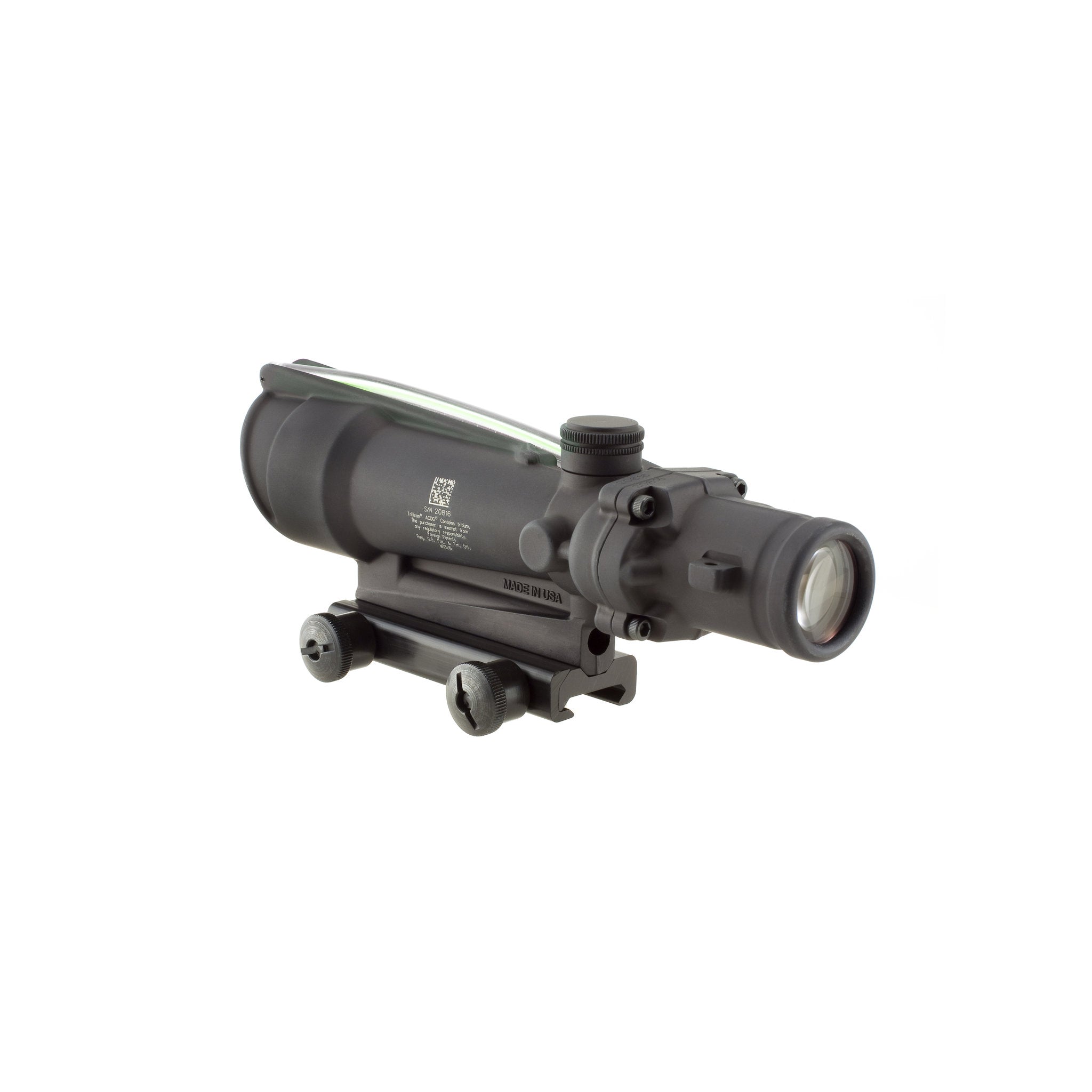

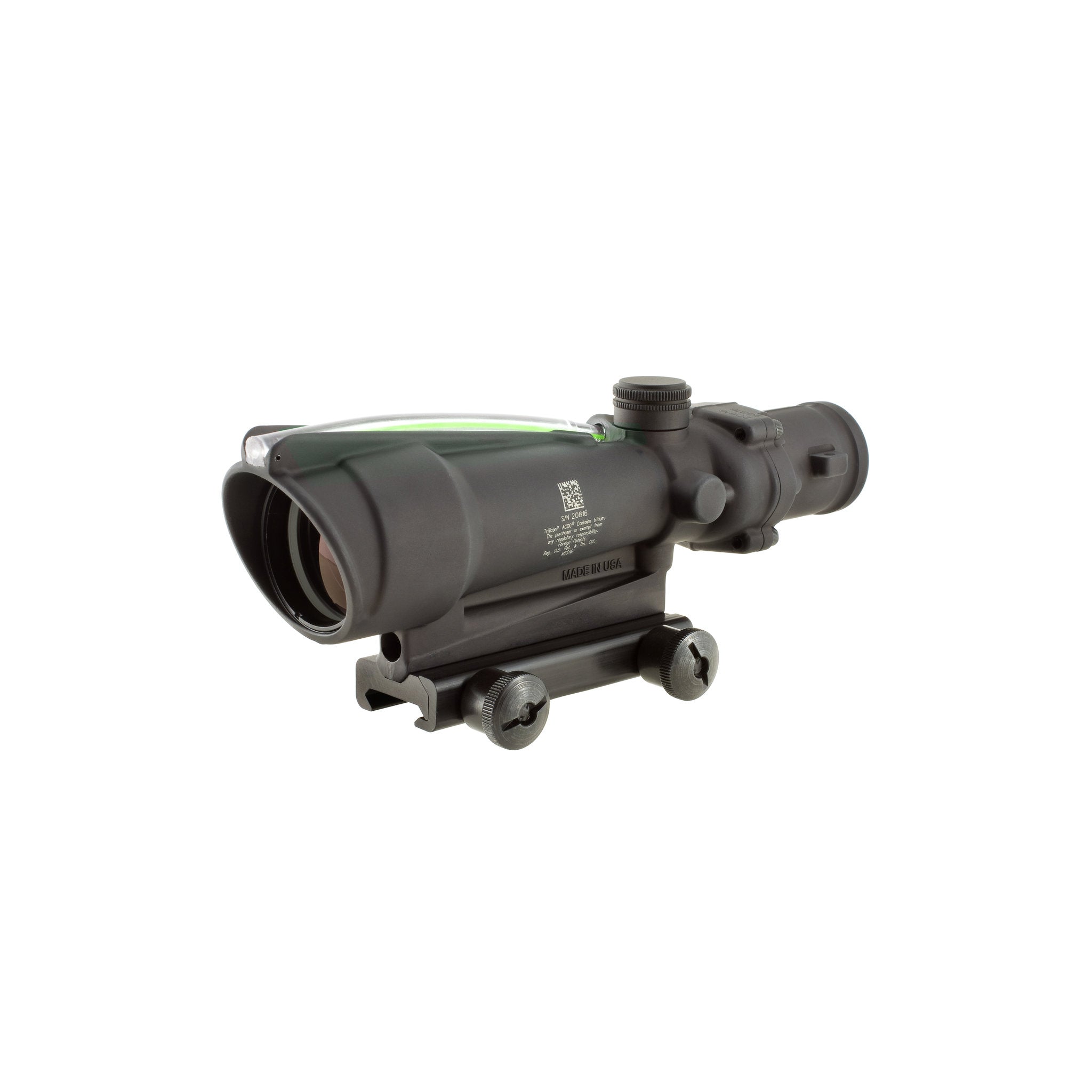

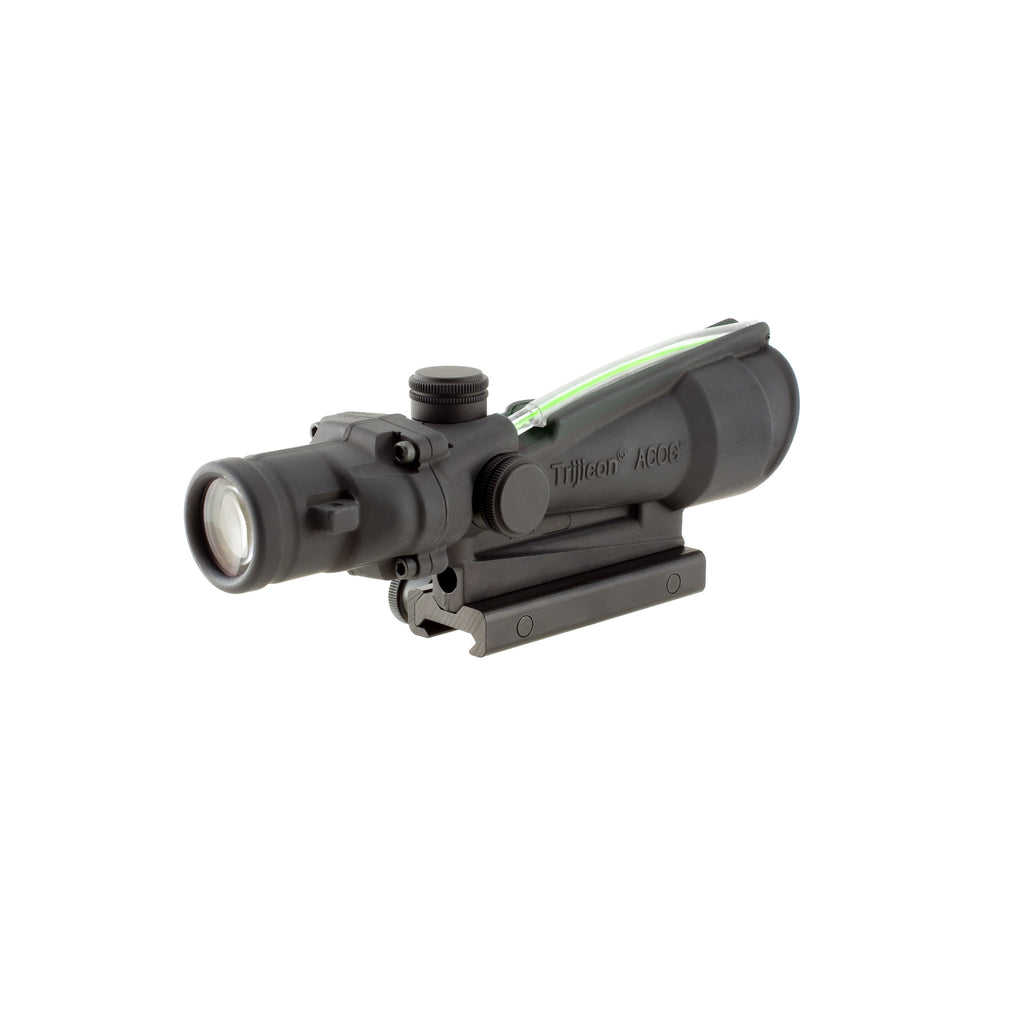

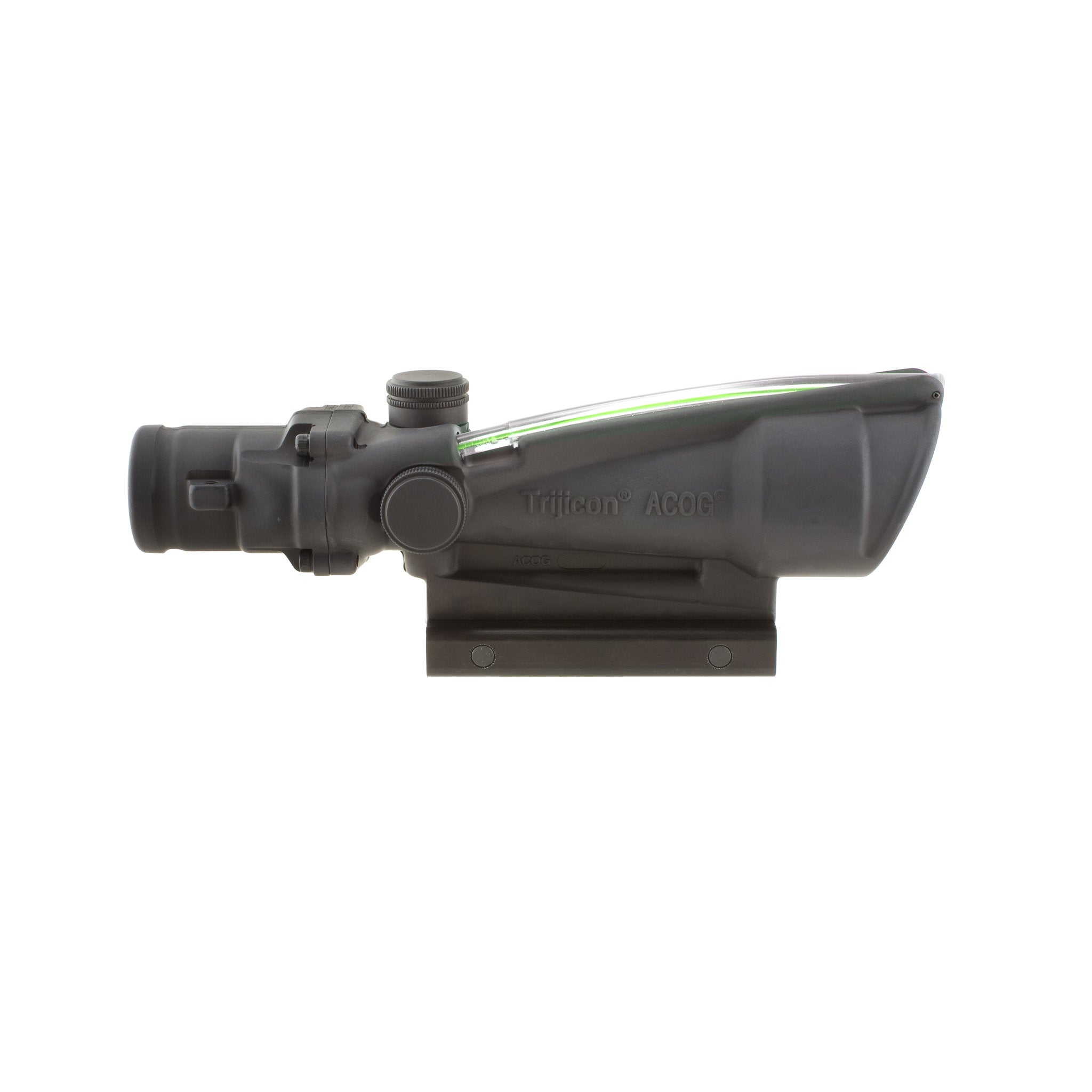

A fixed 3.5x35mm ACOG riflescope with a green chevron BDC reticle for .223 / 5.56 flat-top rifles, illuminated by tritium and fibre optics, for professional users.
This ACOG combines 3.5x magnification and a 35mm objective with a green chevron reticle, green by day and by night. The ranging reticle is calibrated for 5.56 (.223 cal) flat-top rifles to 800 metres, with bullet drop compensation.
Illumination comes from fibre optics and tritium, and the reticle adjusts its brightness automatically to the available light.
The scope is supplied on a flattop thumbscrew mount (TA51) and has a forged aluminium housing in a matte black finish.
Key features

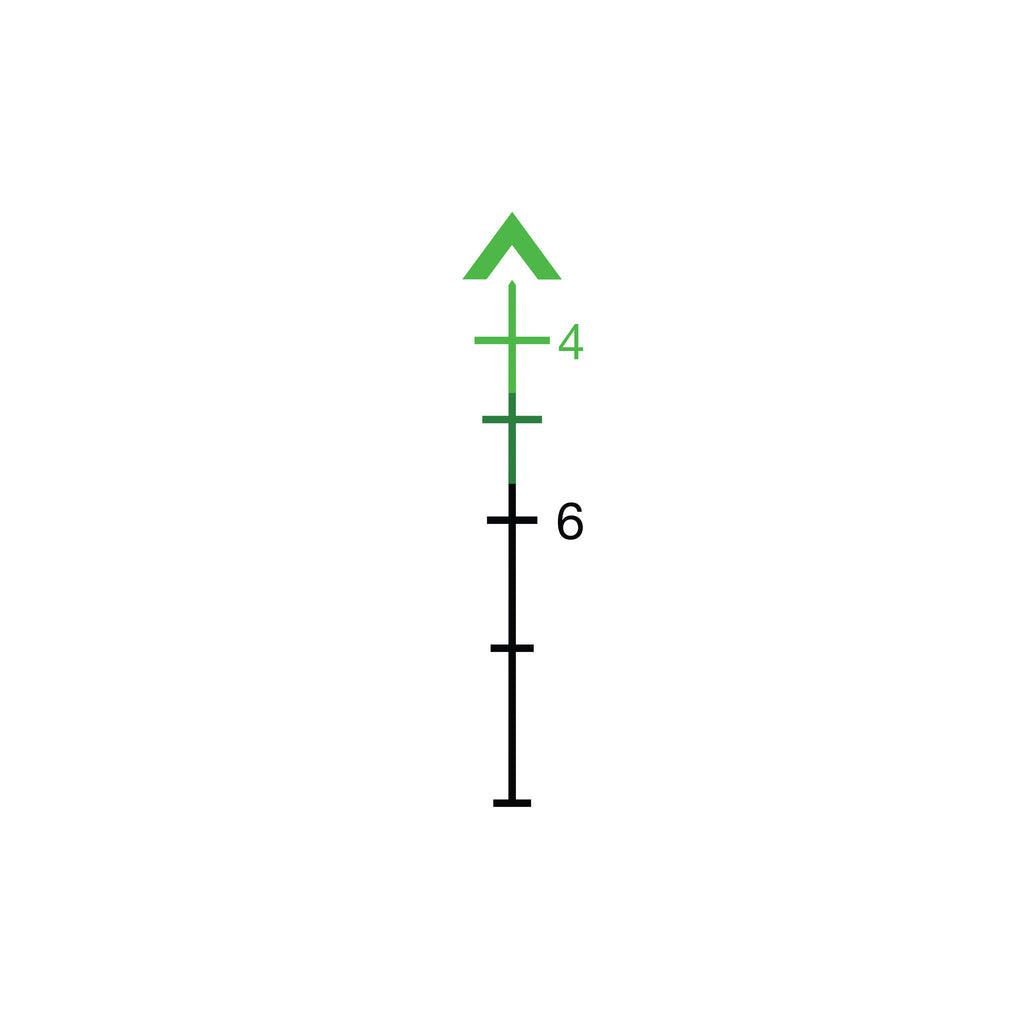

- Chevron zero and ranging — The chevron is zeroed using its tip at 100 metres, and its base width of 5.53 MOA allows range estimation for silhouette targets at 300 metres.
- Both eyes open — Using the Bindon Aiming Concept (BAC), the scope supports shooting with both eyes open for improved situational awareness.
- Always-on illumination — The tritium and fibre optic illuminated reticle is always on and automatically adjusts its brightness to the available light.
- Fixed-power housing — The fixed-power design keeps moving parts to a minimum for a rugged, reliable sighting system.
- Shock resistant — The optic is proven to withstand recoil from a .22LR to a .50BMG and passes U.S. Military drop test requirements.
- Waterproof, nitrogen-filled — The housing is waterproof and dry nitrogen-filled to mitigate fogging in extreme cold and heat.
- Multi-coated lenses — Multi-coated lenses maximise light-gathering capabilities for a clear field of view.
Typical applications
- Magnified sighting on .223 / 5.56 flat-top rifles for law enforcement and military users.
- Range estimation and holdover on silhouette targets at extended distances.
- Around-the-clock use where an always-on illuminated reticle is required.
Technical specifications
| Length × width × height | 8 in x 2.1 in x 2.9 in (203.2mm x 53.34mm x 73.66mm) |
| Weight | 17.6 oz. (498.95g) |
| Magnification | 3.5x |
| Objective size | 35mm |
| Reticle pattern | Chevron |
| Day reticle colour | Green |
| Night reticle colour | Green |
| Bullet drop compensation (BDC) | Yes |
| Calibre | .223 / 5.56 |
| Illumination source | Fiber Optics & Tritium |
| Power source | Fiber Optics & Tritium |
| Adjustment | 3 clicks per inch (@100 yds) |
| Eye relief | 2.39 in. (60.71mm) |
| Exit pupil | 0.39 in. (9.91mm) |
| Field of view (degrees) | 5.5° |
| Field of view (distance) | 28.9 ft. @ 100 yds. (9.63m @ 100m) |
| Mount | Flattop Thumbscrew Mount (TA51) |
| Housing material | Forged Aluminum |
| Finish | Matte Black |
In the box
- 1 × ACOG® 3.5x35 BAC Riflescope - .223 / 5.56 BDC — Green Chevron, Thumbscrew Mount, Tritium / Fiber Optics Illuminated, Matte Black
- Thumbscrew Flattop Adapter (TA51)
- 3.5x35 Scopecoat (TA63)
- LENSPEN (TA56)
- Lanyard Assembly for Adjuster Caps (TA71E)
- Trijicon Logo Sticker (PR15)
- ACOG BAC Manual
- Warranty Card
Model information
| Brand | Trijicon |
| Model | ACOG® 3.5x35 BAC Riflescope - .223 / 5.56 BDC — Green Chevron, Thumbscrew Mount, Tritium / Fiber Optics Illuminated, Matte Black |
| MPN | TA11F-G |
