Description

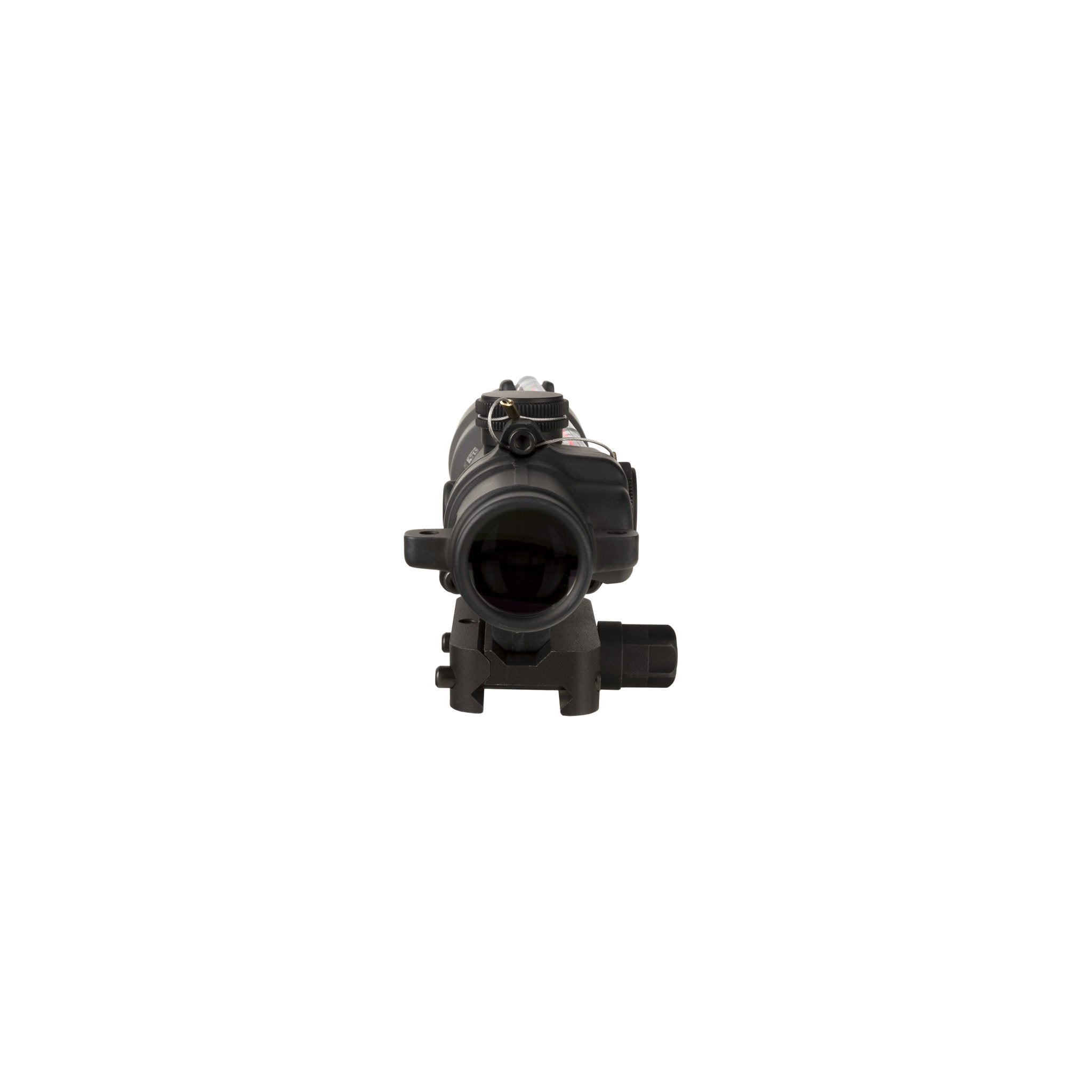

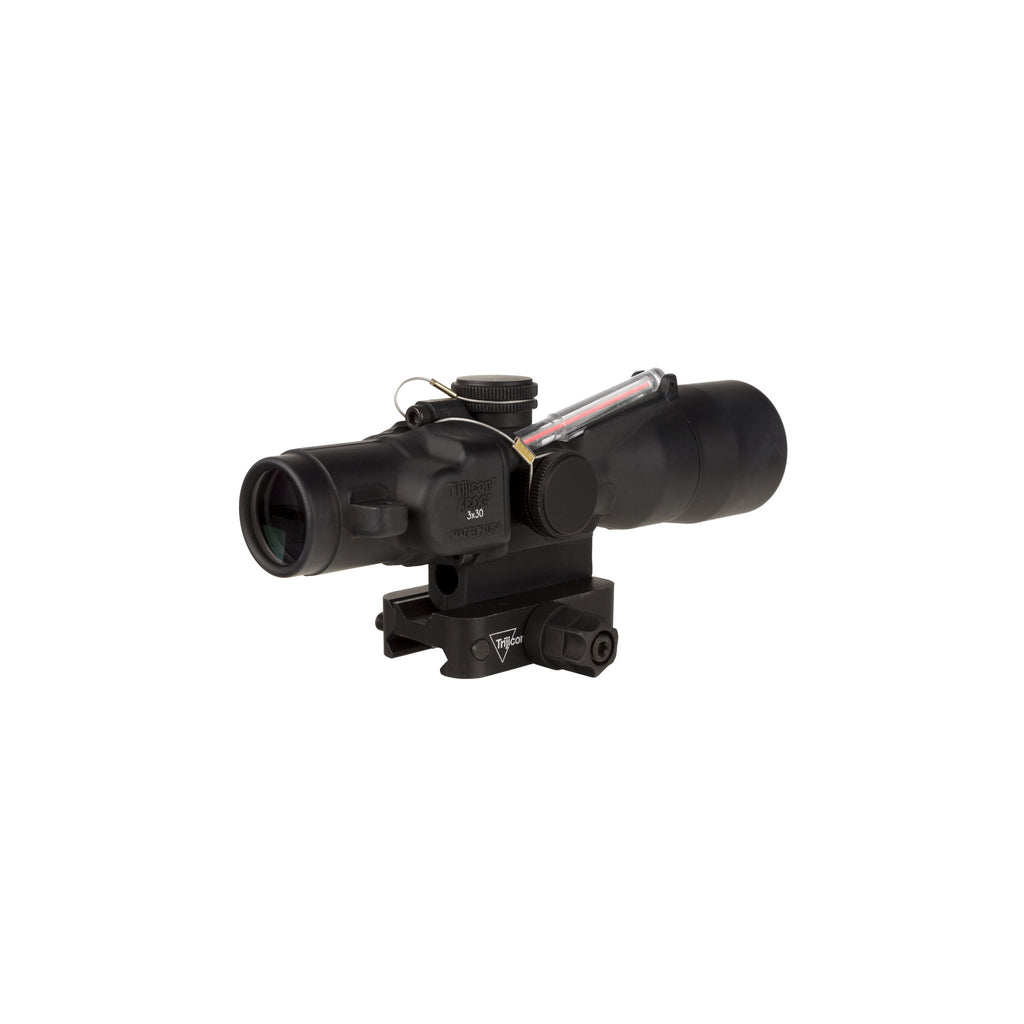

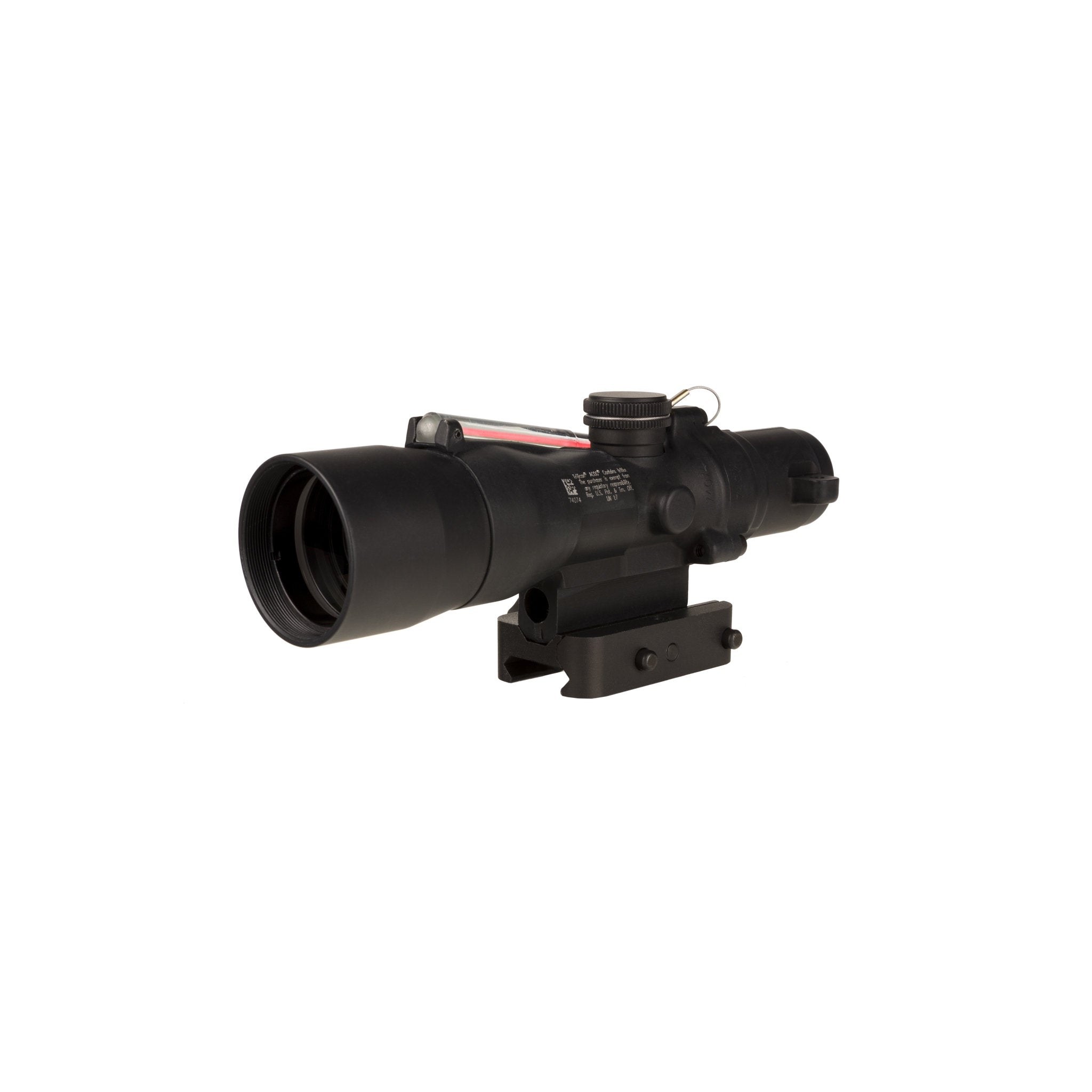

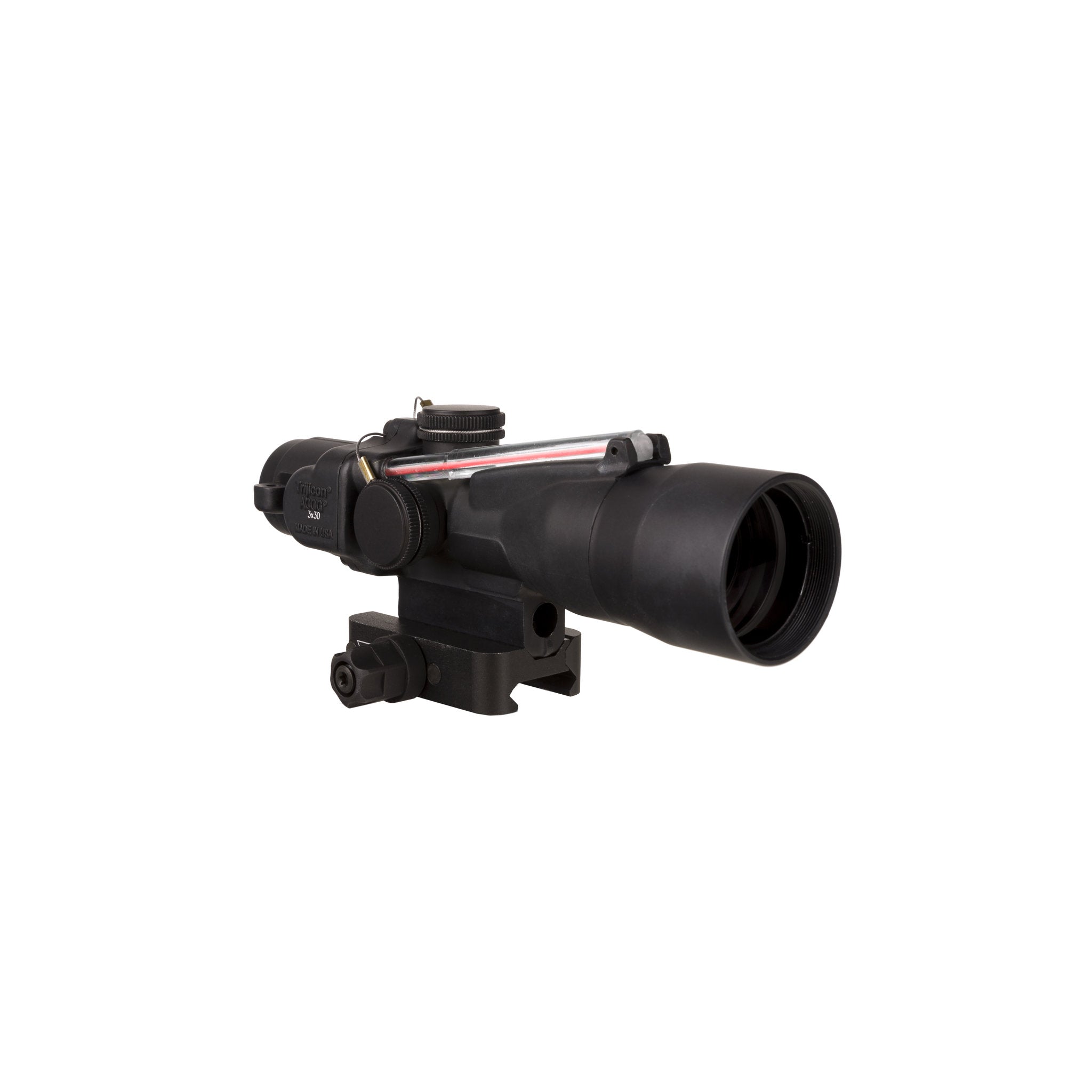

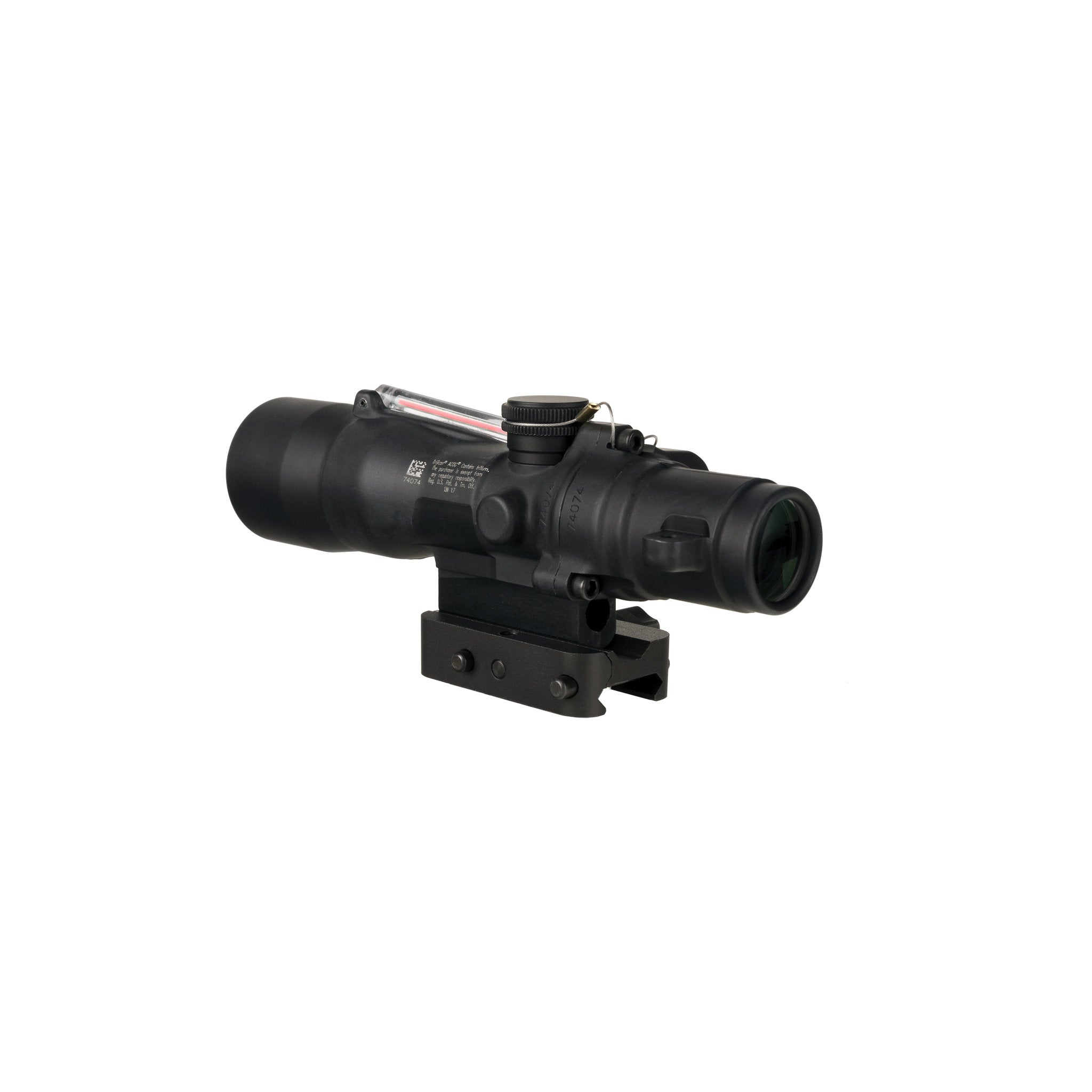

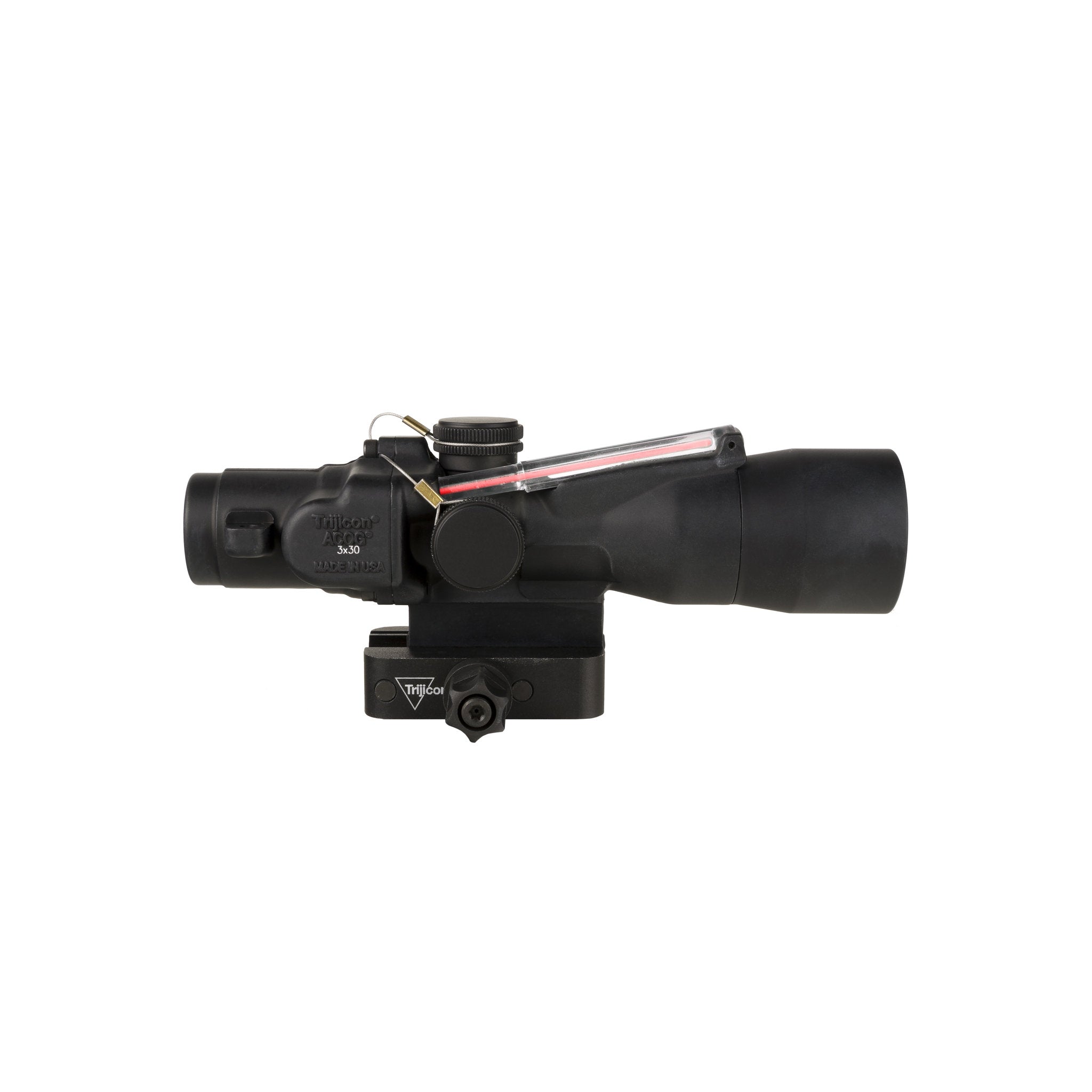

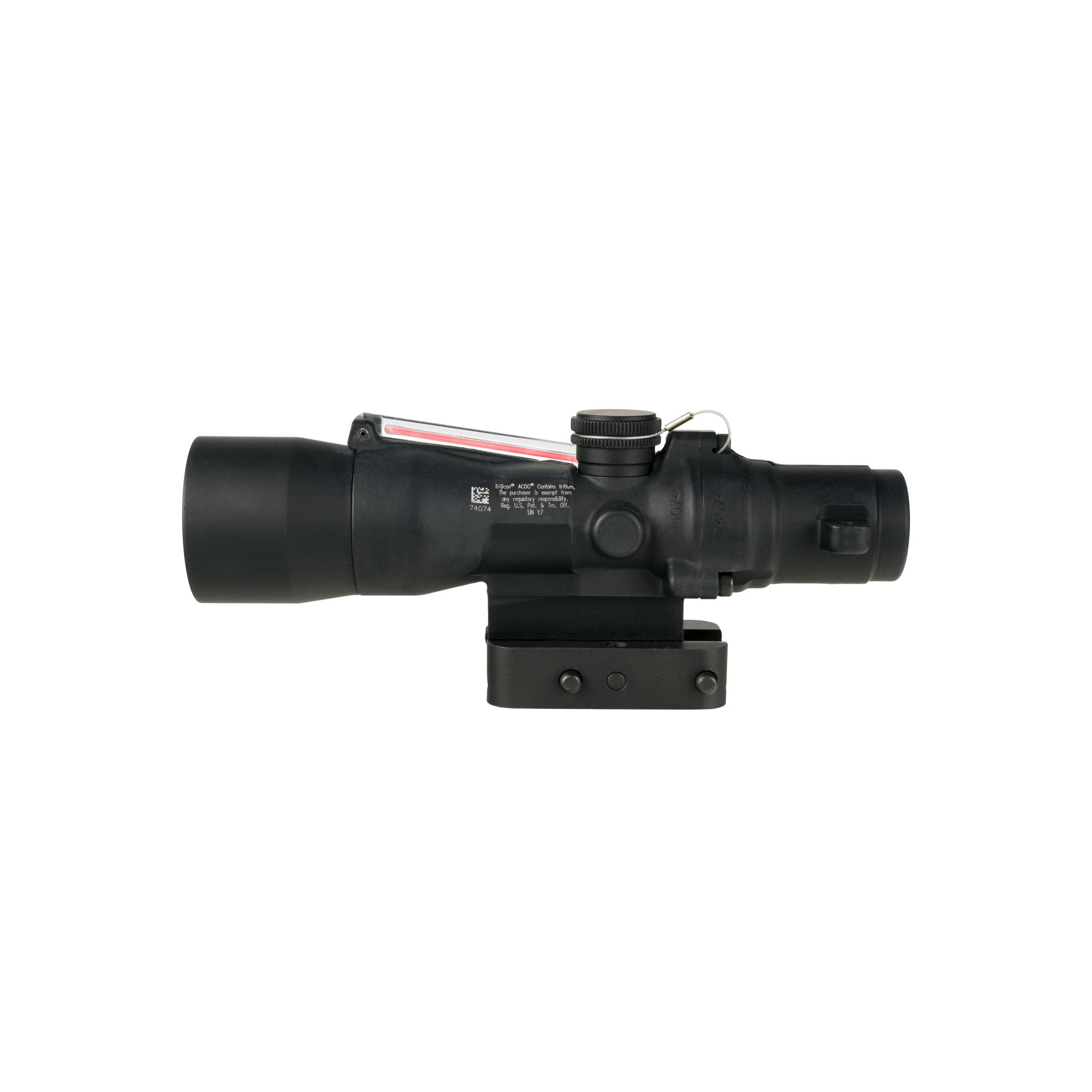

Compact 3x30 ACOG riflescope with a dual-illuminated red chevron BDC reticle for .223 / 62gr., supplied on a Q-LOC mount, for law enforcement and military users.
This Compact ACOG is a fixed 3x magnification riflescope with a 30mm objective, designed for law enforcement and military applications where fast target identification and situational awareness matter.

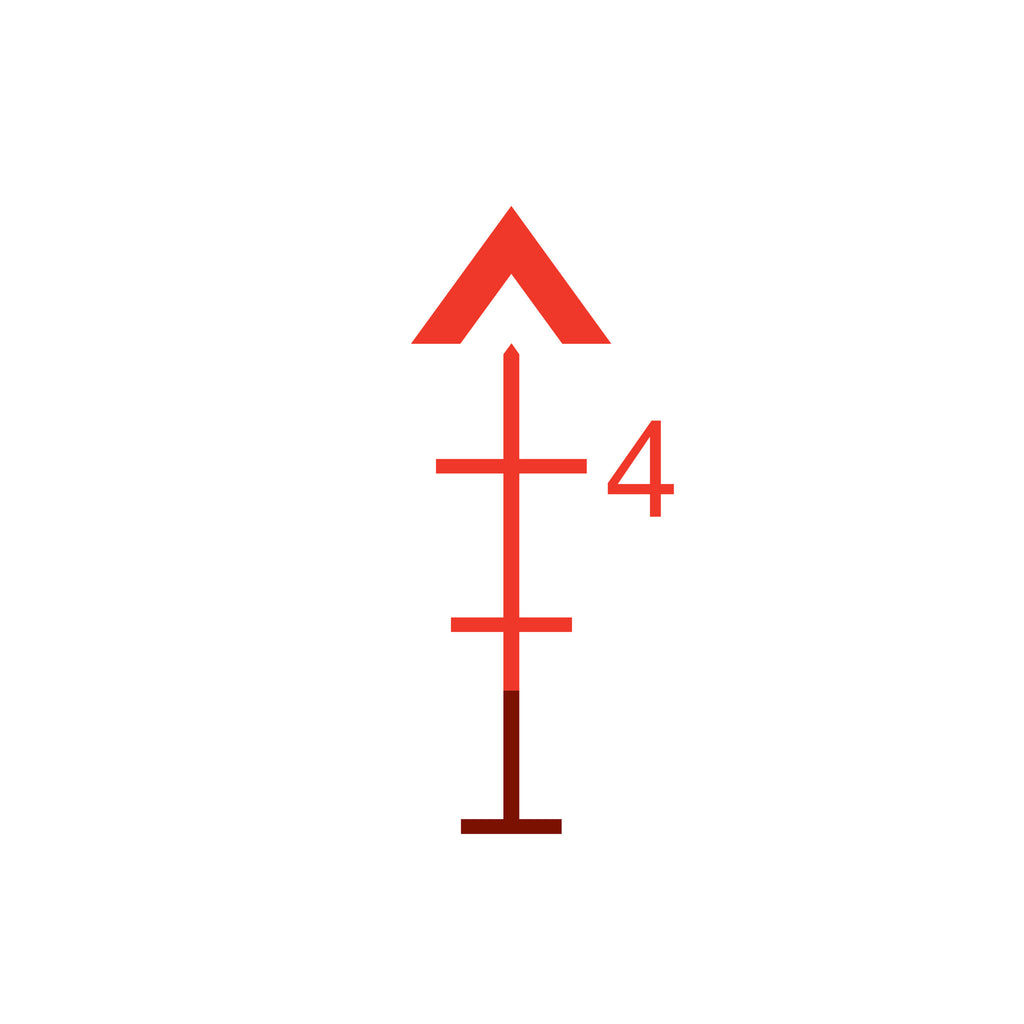

Its red chevron reticle is bullet drop compensating and calibrated for .223 / 62gr.; it is illuminated by fibre optics and tritium and automatically adjusts its brightness to the available light.
The scope comes on a Trijicon Q-LOC Technology Mount for Mil-Spec or NATO Picatinny rails.
Key features
- Both eyes open — The Bindon Aiming Concept lets the user keep both eyes open while engaging targets, for improved situational awareness.
- Fibre optic and tritium — The fibre optic and tritium illuminated reticle automatically adjusts its brightness based on available light.
- BDC chevron reticle — The bullet drop compensating reticle is calibrated for .223 / 62gr. for holds at known distances.
- Tool-less Q-LOC mount — The 6061-T6 aluminium mount uses a one-handed, tool-less mounting system, and its spring-loaded design maintains retention and zero even if the knobs are not tightened.
- Fixed-power housing — The fixed-power design keeps moving parts to a minimum in a forged aluminium housing.
- Shock resistant — The optic is proven to withstand recoil from .22LR to .50BMG and passes U.S. Military drop test requirements.
- Waterproof, fog-free — The waterproof housing is dry nitrogen-filled to mitigate fogging and is tested to perform in extreme cold and heat.
- Multi-coated lenses — Multi-coated lenses maximise light-gathering capability for a clear field of view.
Typical applications
- Patrol and duty carbines for law enforcement units that need fast target identification.
- Military service rifles requiring a rugged, fixed-power magnified optic.
- Rifles chambered in .223 where a calibrated bullet drop reticle supports holds at distance.
Technical specifications
| Length × width × height | 6.2 in x 2.2 in x 2.6 in (157.48mm x 55.88mm x 66.04mm) |
| Weight | 9.8 oz. (277.83g) |
| Magnification | 3x |
| Objective size | 30mm |
| Reticle pattern | Chevron |
| Day reticle colour | Red |
| Night reticle colour | Red |
| Bullet drop compensation (BDC) | Yes |
| Calibre | .223 / 62gr. |
| Bindon Aiming Concept (BAC) | Yes |
| Illumination source | Fiber Optics & Tritium |
| Power source | Fiber Optics & Tritium |
| Adjustment | 0.25 MOA per click |
| Eye relief | 1.9 in. (48.26mm) |
| Exit pupil | 0.33 in. (8.38mm) |
| Field of view (degrees) | 3.7° |
| Field of view (distance) | 19.3 ft. @ 100 yds. (6.43m @ 100m) |
| Mount | Trijicon Q-LOC™ Technology Mount |
| Housing material | Forged Aluminum |
| Finish | Matte Black |
In the box
- 1 × 3x30 Compact ACOG® Scope - .223 / 62gr. — Dual Illuminated Red Chevron .223/62gr. Ballistic Reticle w/ Mount with Trijicon Q-LOC™ Technology, Matte Black
- Trijicon Q-LOC™ Technology Mount
- Compact ACOG Scopecoat (TA62)
- LENSPEN (TA56)
- Trijicon Logo Sticker (PR15)
- ACOG Manual
- Warranty Card
Model information
| Brand | Trijicon |
| Model | 3x30 Compact ACOG® Scope - .223 / 62gr. — Dual Illuminated Red Chevron .223/62gr. Ballistic Reticle w/ Mount with Trijicon Q-LOC™ Technology, Matte Black |
| MPN | TA33-C-400378 |
