Description

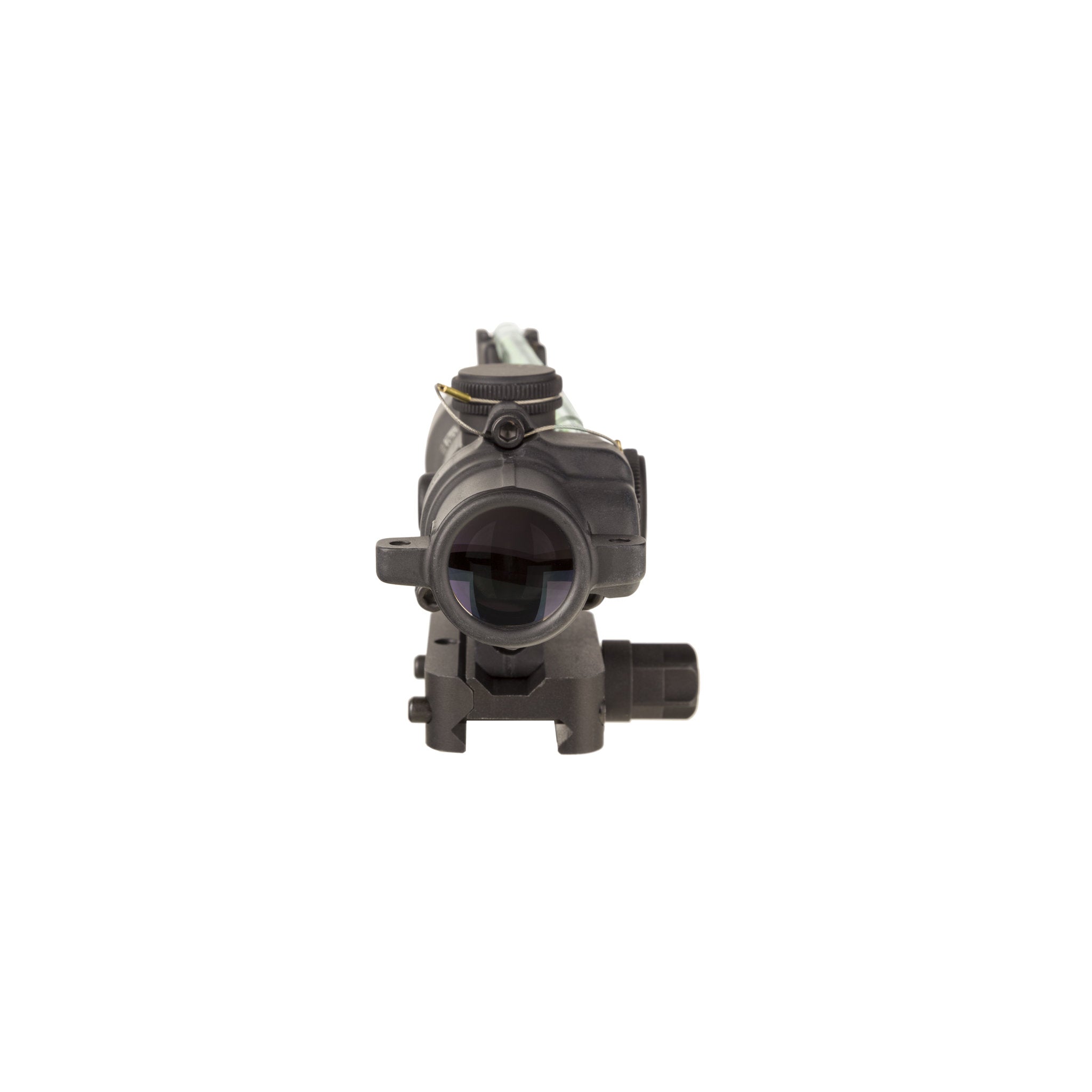

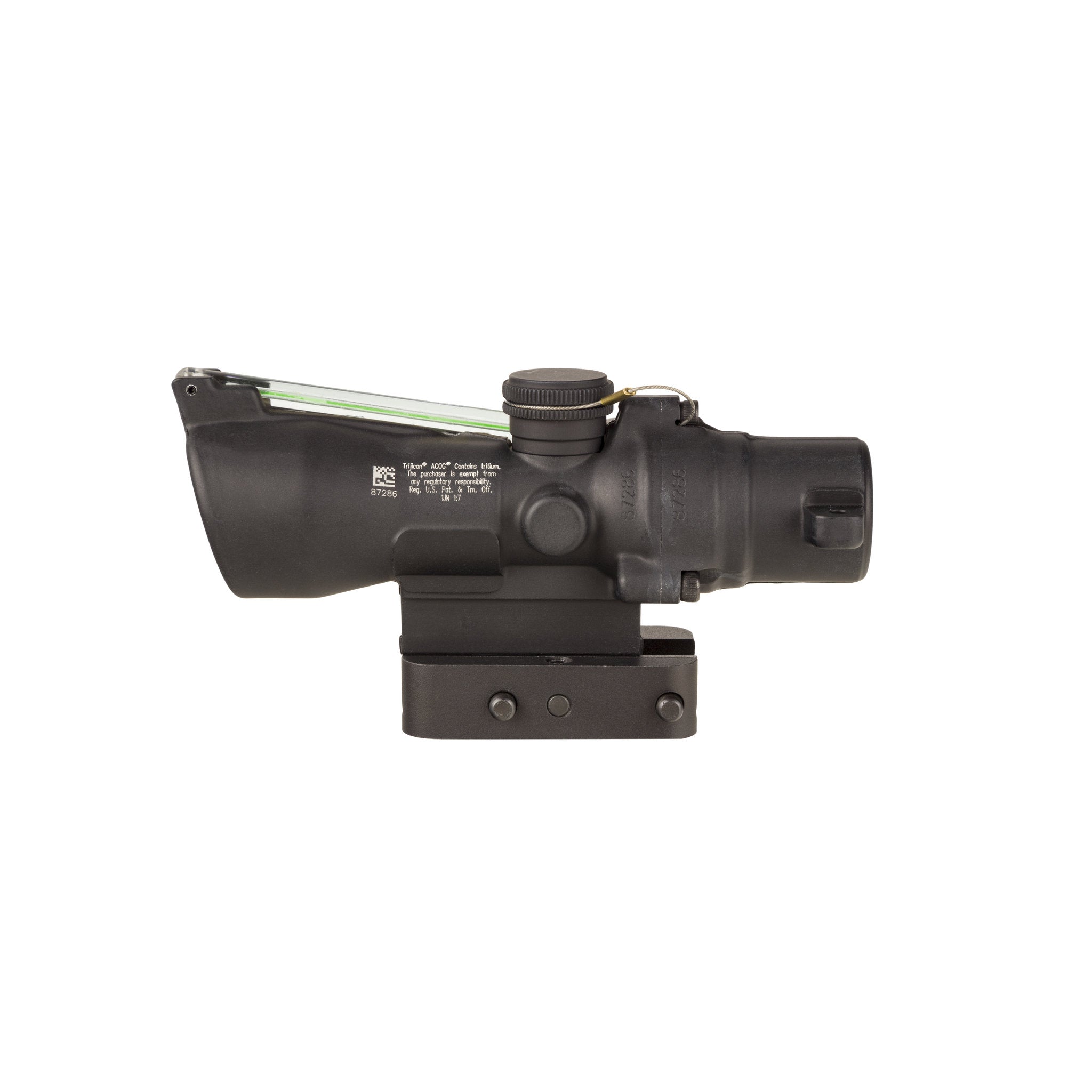

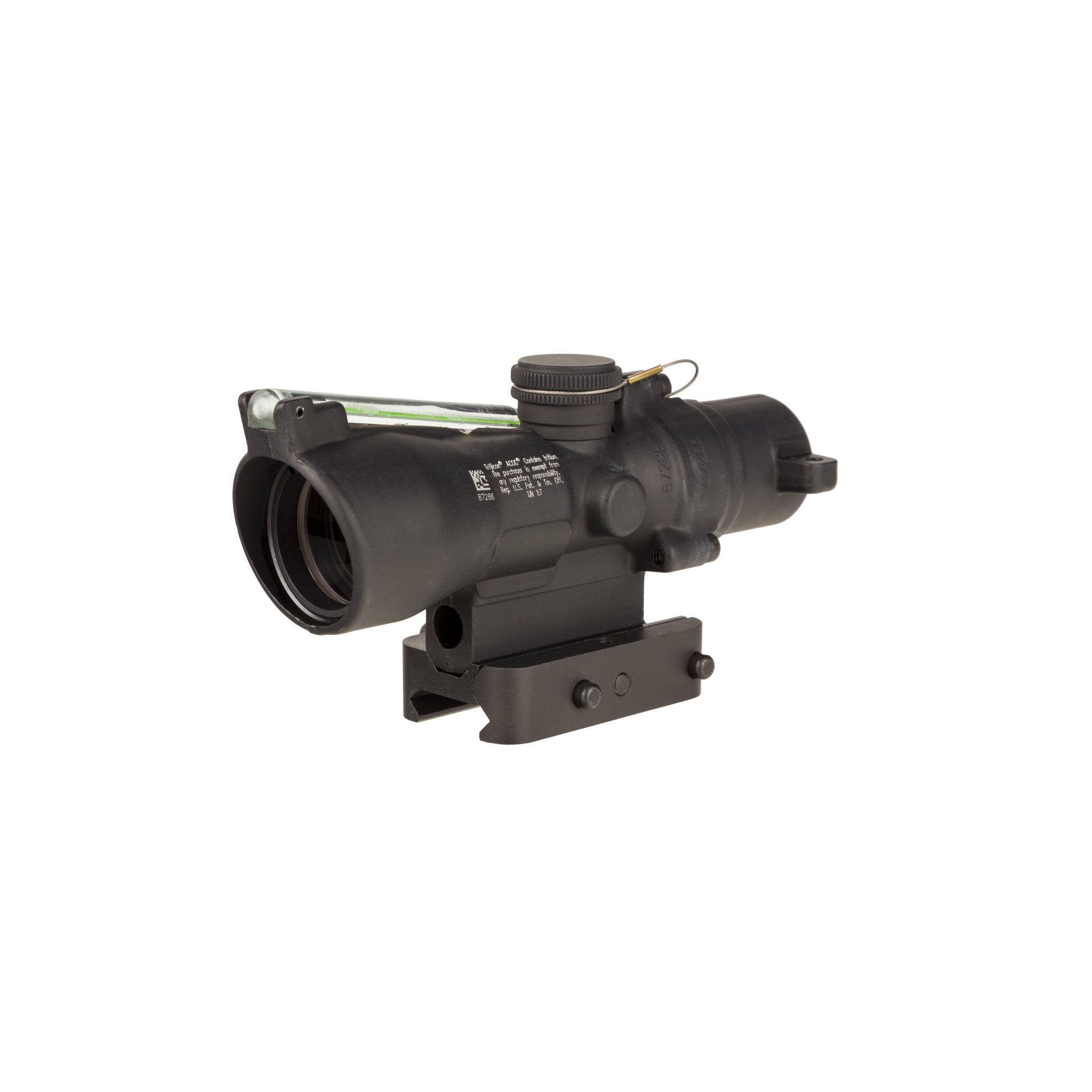

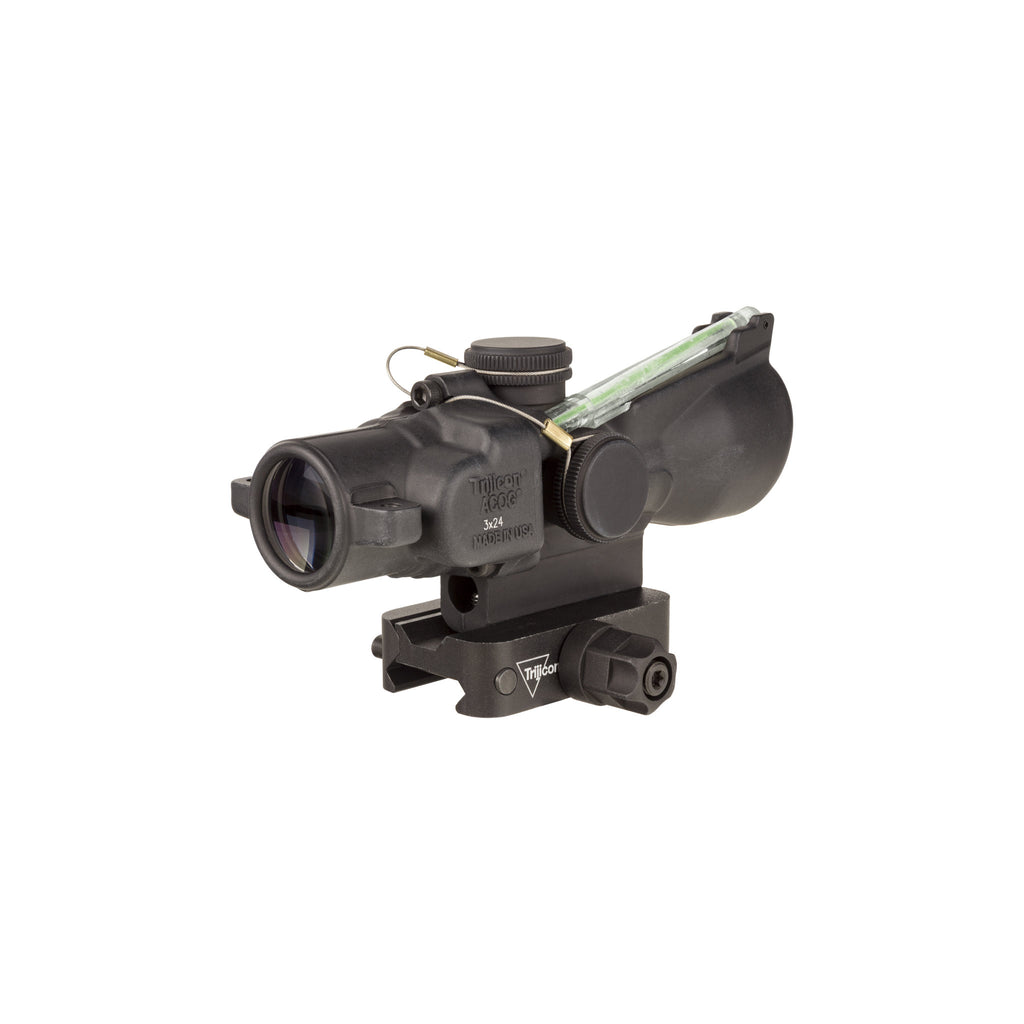

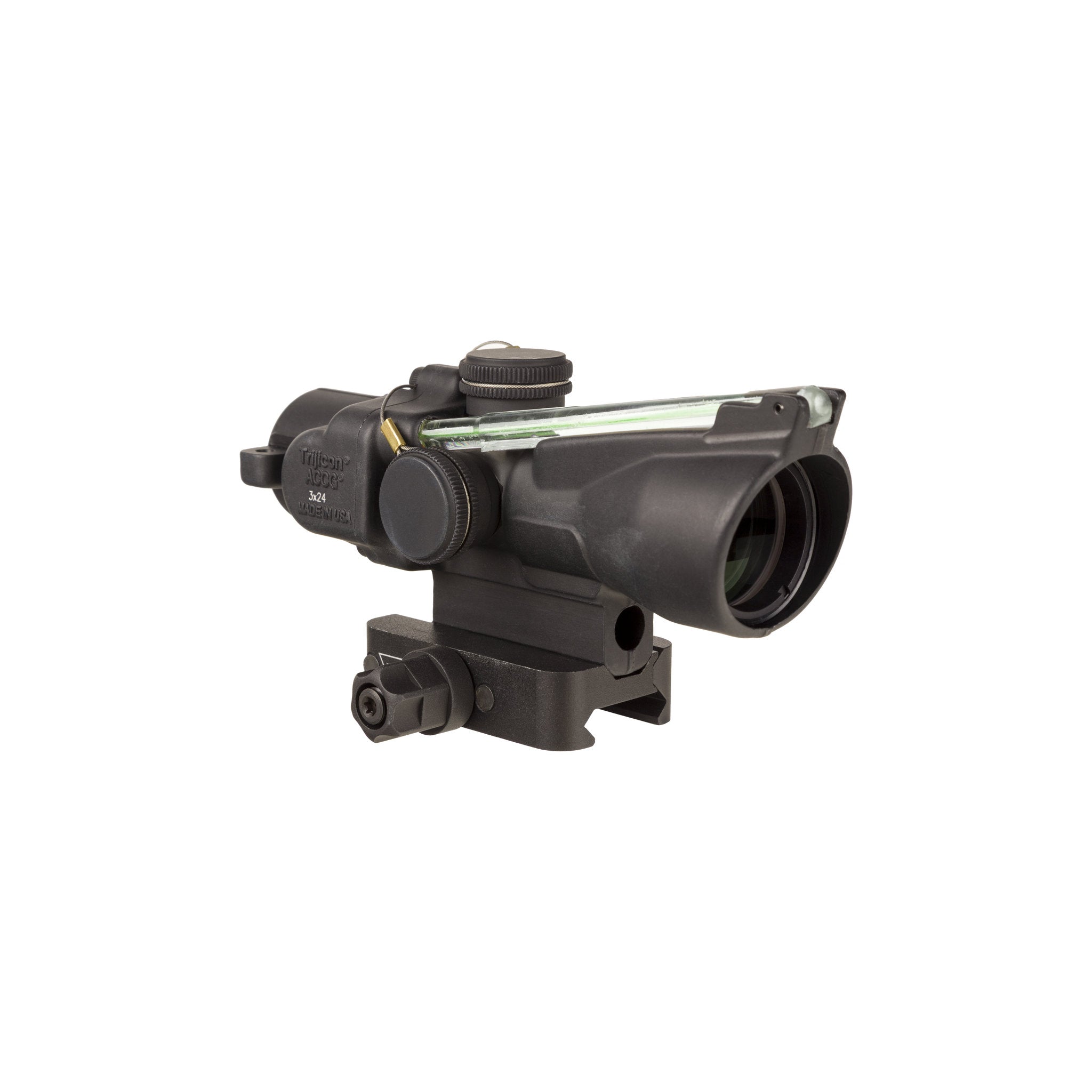

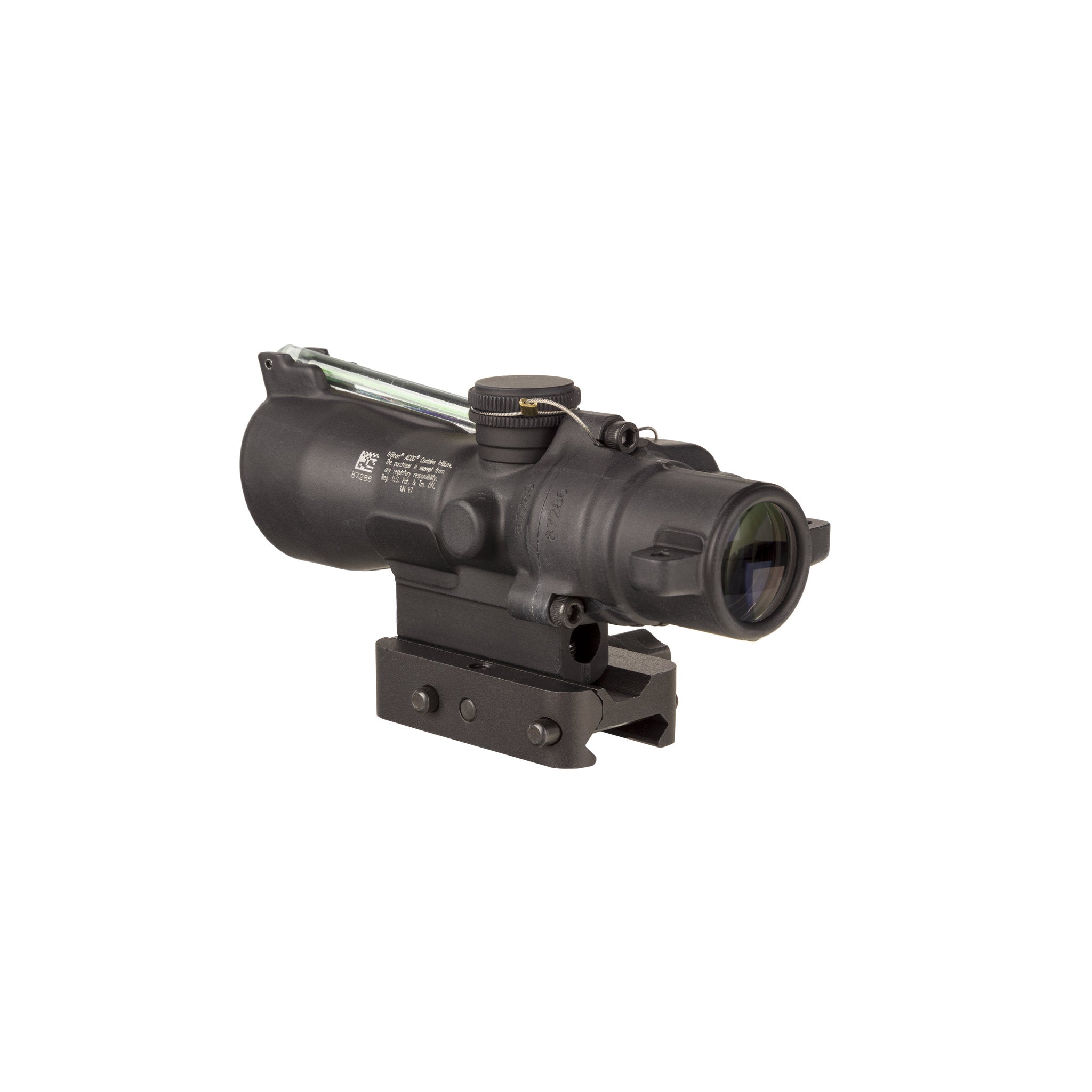

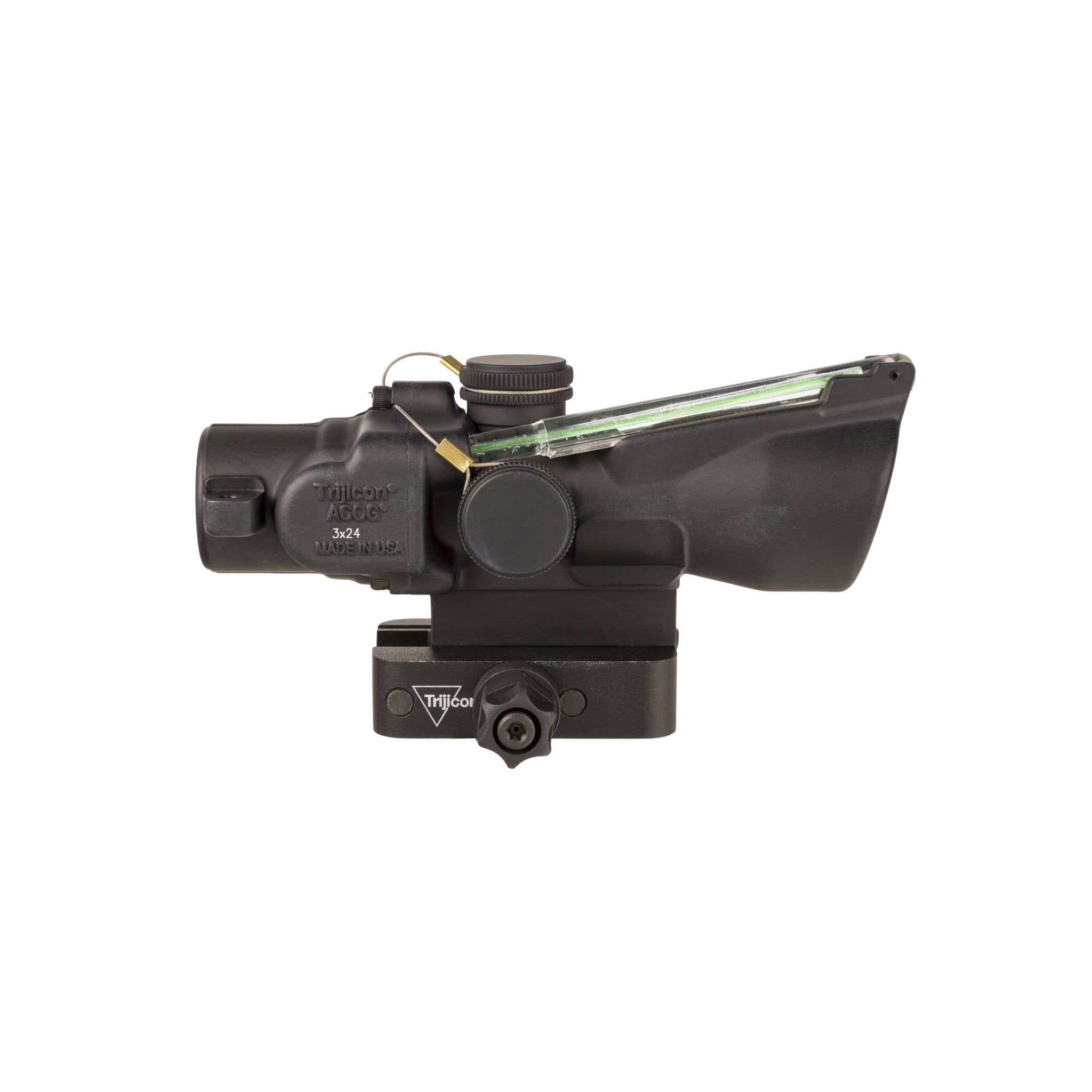

A 3x24 compact ACOG crossbow scope with a dual-illuminated green chevron bolt drop reticle for 340-400 fps crossbows, supplied on a Q-LOC mount.
This compact ACOG is an optic designed specifically for crossbows, with 3x magnification and a 24mm objective.

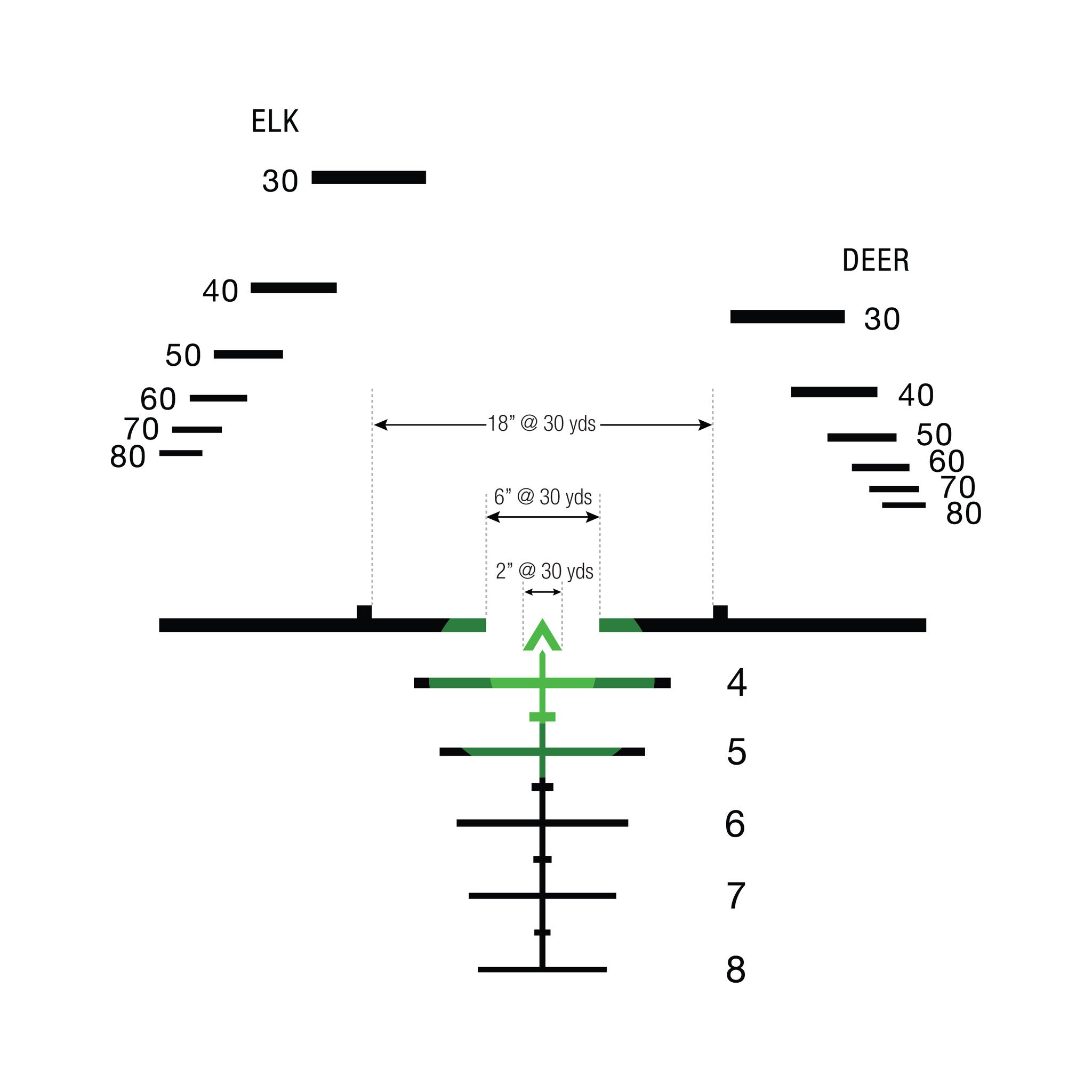

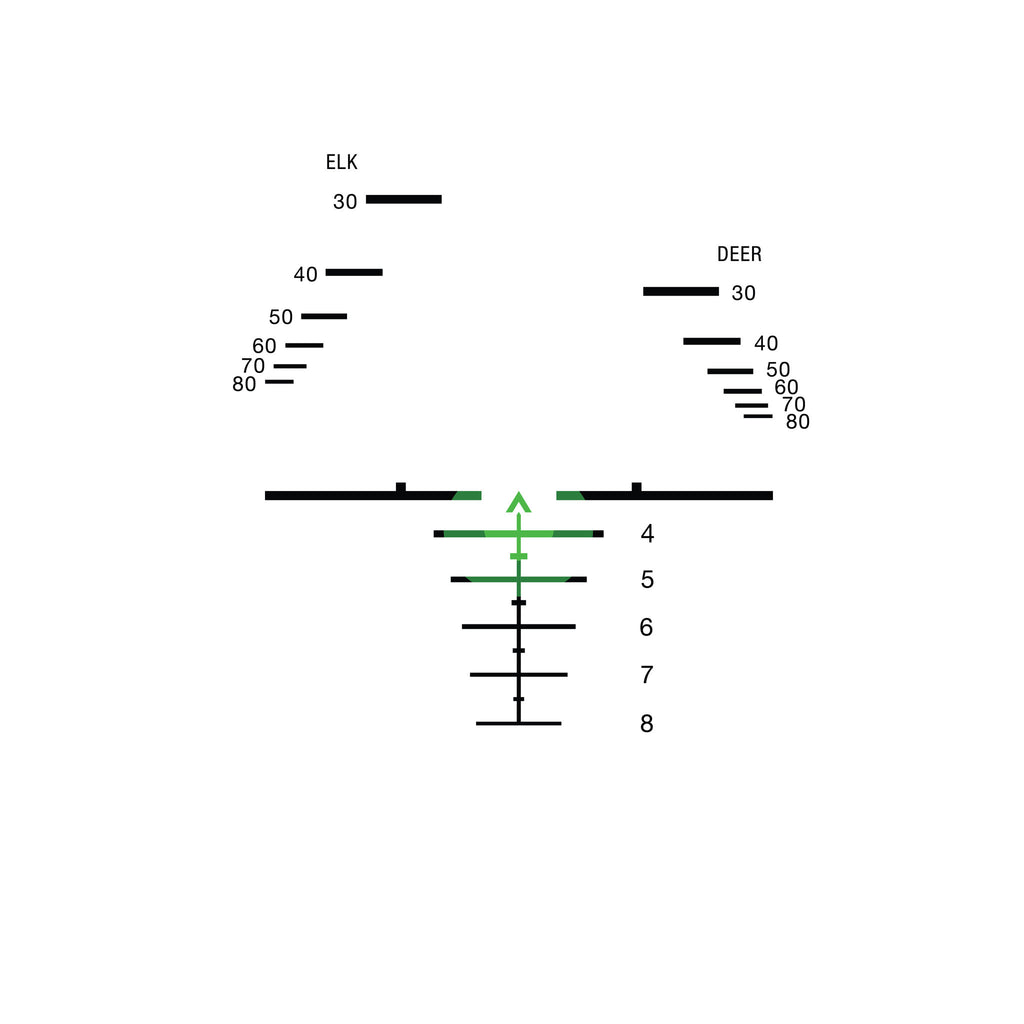

Its green chevron reticle is calibrated for bolt speeds of 340 fps - 400 fps, with bolt drop stadia lines out to 80 yards and deer/elk ranging, so ranging and hold-over sit in the field of view.
The reticle is illuminated by fibre optics and tritium without batteries, and the scope comes on the Trijicon Q-LOC Technology Mount for Mil-Spec or NATO Picatinny rails.
Key features
- Ranging reticle — The reticle is zeroed at 30 yards and has stadia lines out to 80 yards in 5-yard increments.
- Battery-free illumination — Fibre optics adjust reticle brightness and contrast to the available light, while a tritium-phosphor lamp glows in low light, with no batteries needed.
- Forged aluminium housing — The forged 7075-T6 aluminium housing is built to withstand the shock pattern of all crossbows.
- Internal adjustment — Only the prism housing moves during adjustment, which makes the design more rugged than conventional designs, at 0.14 MOA per click.
- Waterproof construction — The scope is waterproof to 20 metres (66 ft.) and dry nitrogen-filled to prevent fogging.
- Q-LOC tool-less mount — The spring-loaded 6061-T6 aluminium mount attaches one-handed without tools and keeps its retention and zero even if the knobs are not tightened.
- Coated lenses — Multi-coated, broadband, anti-reflective-coated lenses support clarity and light gathering.
Typical applications
- Hunting with crossbows in the matching bolt speed range
- Deer and elk hunting where quick ranging and hold-over are needed
- Dawn and dusk use without dependence on batteries
Technical specifications
| Length × width × height | 4.9 in x 2.1 in x 2.6 in (124.46mm x 53.34mm x 66.04mm) |
| Weight | 8.2 oz. (232.47g) |
| Magnification | 3x |
| Objective size | 24mm |
| Reticle pattern | Chevron |
| Day reticle colour | Green |
| Night reticle colour | Green |
| Bullet drop compensation (BDC) | Yes |
| Calibre | 340 fps - 400 fps |
| Bindon Aiming Concept (BAC) | Yes |
| Illumination source | Fiber Optics & Tritium |
| Power source | Fiber Optics & Tritium |
| Adjustment | 0.14 MOA per Click |
| Exit pupil | 0.32 in. (8.13mm) |
| Field of view (degrees) | 4.9° |
| Field of view (distance) | 25.6 ft. @ 100 yds. (8.53m @ 100m) |
| Mount | Trijicon Q-LOC™ Technology Mount |
| Housing material | Forged Aluminum |
| Finish | Matte Black |
In the box
- 1 × 3x24 XB Compact ACOG® Crossbow Scope - 340-400 fps — Dual Illuminated Green Chevron 340-400 fps Bolt Drop Reticle w/ Mount with Trijicon Q-LOC™ Technology, Matte Black
- Trijicon Q-LOC™ Technology
- Compact ACOG Scopecoat (TA62)
- LENSPEN (TA56)
- Trijicon Logo Sticker (PR15)
- ACOG Manual
- Warranty Card
Model information
| Brand | Trijicon |
| Model | 3x24 XB Compact ACOG® Crossbow Scope - 340-400 fps — Dual Illuminated Green Chevron 340-400 fps Bolt Drop Reticle w/ Mount with Trijicon Q-LOC™ Technology, Matte Black |
| MPN | TA50-C-400392 |
