Description
A compact 3x24 fixed-magnification ACOG riflescope with a fibre optic and tritium lit red Horseshoe Dot BDC reticle and Q-LOC mount, for professional rifle users.
This Compact ACOG is a fixed 3x magnification riflescope with a 24mm objective and an illuminated red Horseshoe Dot reticle for use in any lighting conditions. The bullet drop compensating reticle is calibrated for .223 Rem / 55 gr.
Dual illumination combines fibre optics, which adjust reticle brightness and contrast to the available light, with a tritium-phosphor lamp that glows in low-light conditions.
The scope is supplied with the Trijicon Q-LOC Technology Mount, a one-handed, tool-less mounting system compatible with any Mil-Spec or NATO Picatinny rail.
Key features
- Battery-free illumination — Fibre optics and tritium light the reticle without batteries, with the fibre optics adjusting brightness and contrast to ambient light.
- Both eyes open — The Bindon Aiming Concept allows shooting with both eyes open for improved situational awareness.
- Forged aluminium housing — The forged 7075-T6 aluminium alloy housing and fixed-power design with minimal moving parts make a rugged, reliable sighting system.
- External adjusters — No tools are needed for windage and elevation adjustments because the adjusters are external, and all adjuster caps are provided with a lanyard assembly to minimise their loss.
- Q-LOC quick mount — The spring-loaded Q-LOC mount keeps constant retention and holds zero even if the knobs are not tightened.
- RMR-ready housing — Mounting bosses near the eyepiece allow a Trijicon RMR to be added with the RM54 mount, both not included.
- Waterproof and fog-free — The waterproof housing is filled with dry nitrogen to eliminate fogging and is tested for extreme cold and heat.
- Shock-resistant — The optic withstands recoil from .22LR to .50BMG and passes U.S. Military drop test requirements.
Typical applications
- Service and patrol rifles chambered in .223 Rem that need a durable magnified day and low-light optic.
- Law enforcement and military users who shoot with both eyes open for improved situational awareness.
- Quick transfer between Picatinny-railed rifles using the tool-less Q-LOC mount.
Technical specifications
| Length × width × height | 4.9 in x 2.2 in x 2.6 in (124.46mm x 55.88mm x 66.04mm) |
| Weight | 8.2 oz. (232.47g) |
| Magnification | 3x |
| Objective size | 24mm |

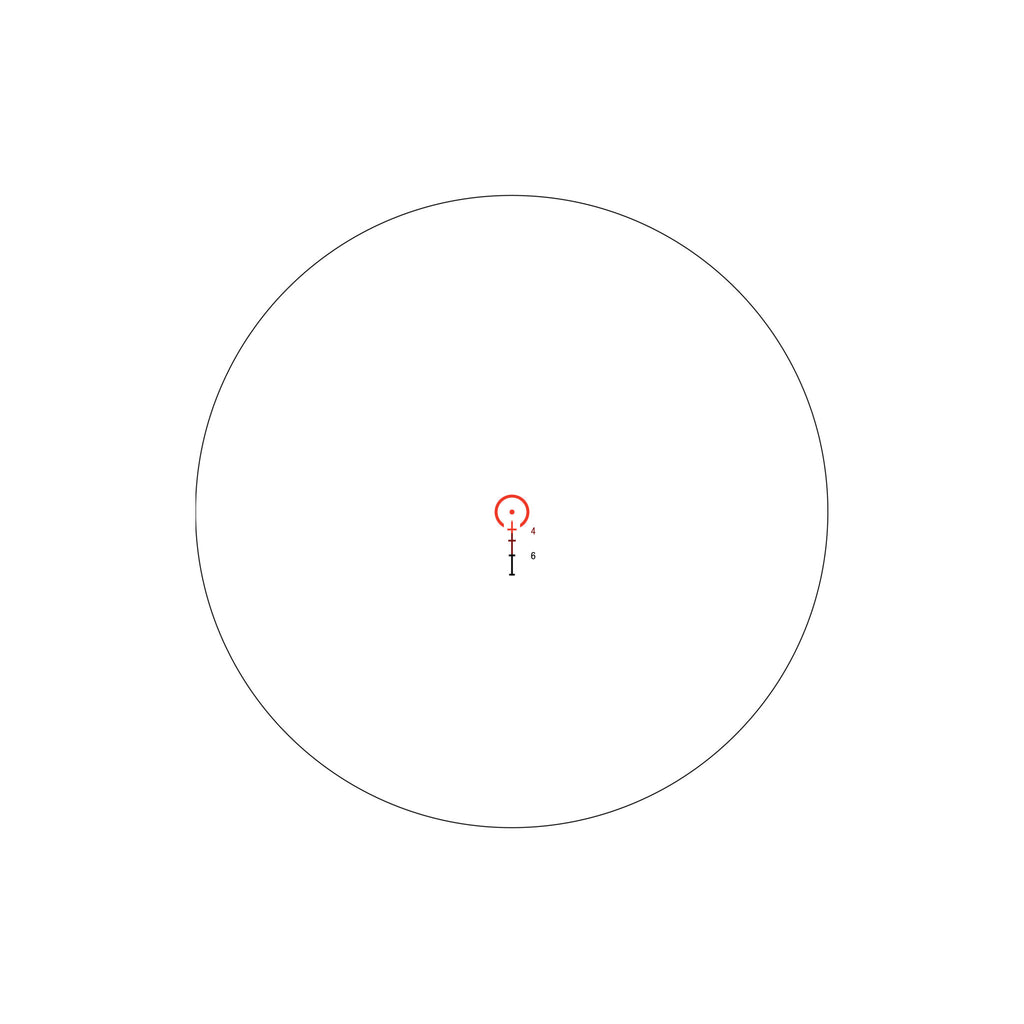

| Reticle pattern | Horseshoe Dot |
| Day reticle colour | Red |
| Night reticle colour | Red |
| Bullet drop compensation (BDC) | Yes |
| Calibre | .223 Rem / 55 gr. |
| Bindon Aiming Concept (BAC) | Yes |
| Illumination source | Fiber Optics & Tritium |
| Power source | Fiber Optics & Tritium |
| Adjustment | 0.5 MOA per click |
| Eye relief | 1.4 in. (35.56mm) |
| Exit pupil | 0.32 in. (8.13mm) |
| Field of view (degrees) | 4.9° |
| Field of view (distance) | 25.6 ft. @ 100 yds. (8.53m @ 100m) |
| Mount | Trijicon Q-LOC™ Technology Mount |
| Housing material | Forged Aluminum |
| Finish | Matte Black |
In the box
- 1 × 3x24 Compact ACOG® Scope - .223 / 55gr. — Dual Illuminated Red Horseshoe Dot .223/55gr. Ballistic Reticle w/ Mount with Trijicon Q-LOC™ Technology, Matte Black
- Trijicon Q-LOC™ Technology Mount
- Scopecoat
- LENSPEN (TA56)
- Trijicon Logo Sticker (PR15)
- ACOG Manual
- Warranty Card
Model information
| Brand | Trijicon |
| Model | 3x24 Compact ACOG® Scope - .223 / 55gr. — Dual Illuminated Red Horseshoe Dot .223/55gr. Ballistic Reticle w/ Mount with Trijicon Q-LOC™ Technology, Matte Black |
| MPN | TA50-C-400348 |
