Description
Active communication headset with ARC Rails suspension and left-mounted microphone, built for operators in demanding tactical applications who wear a helmet.

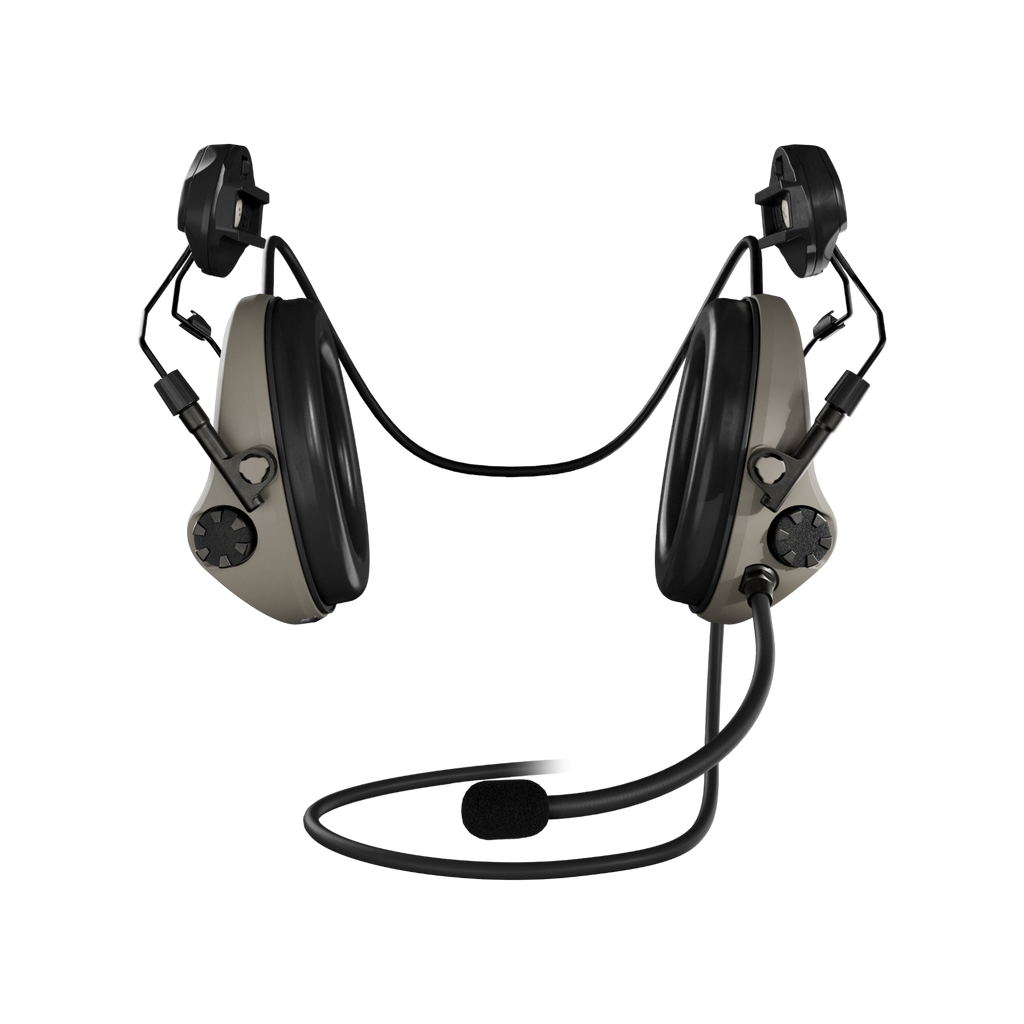

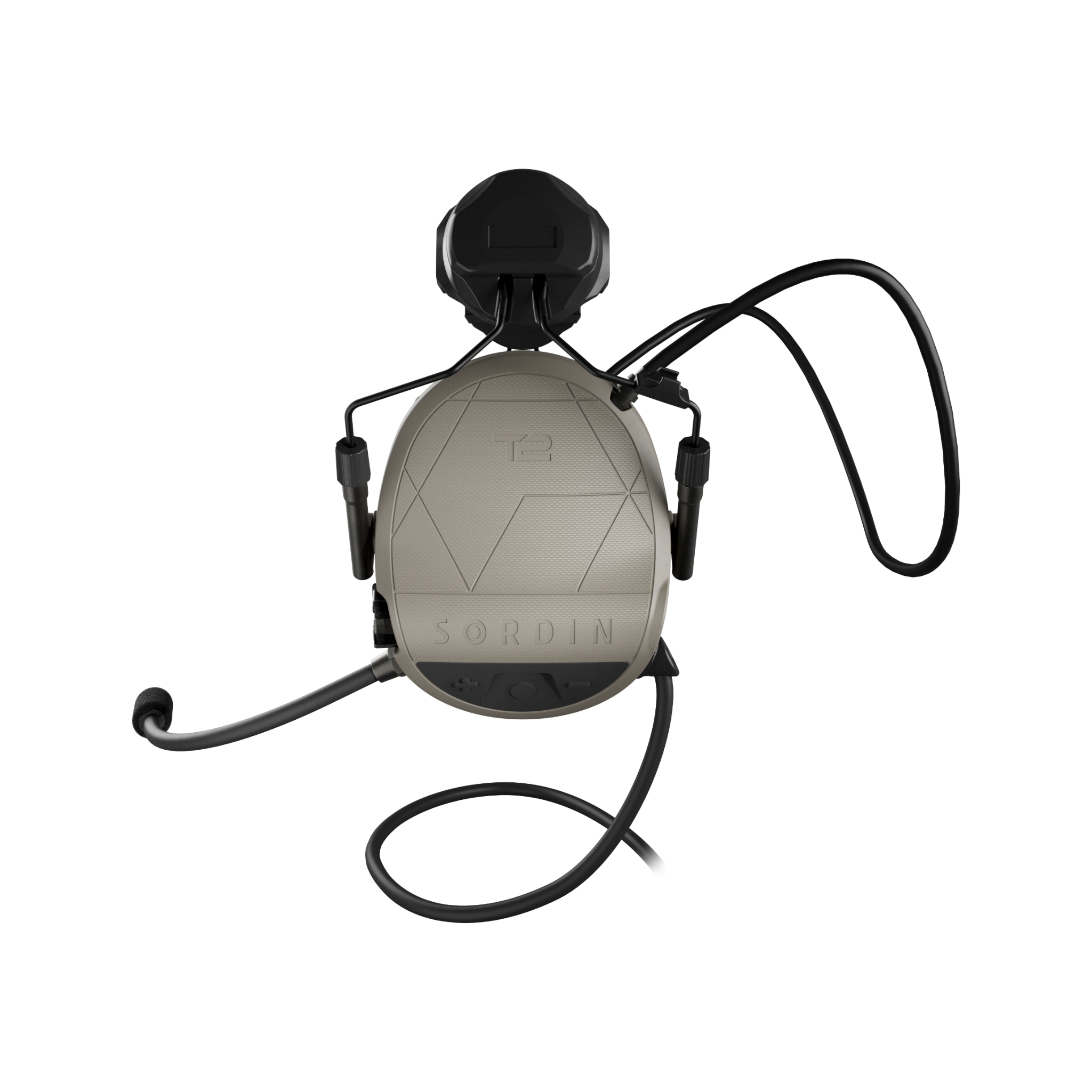

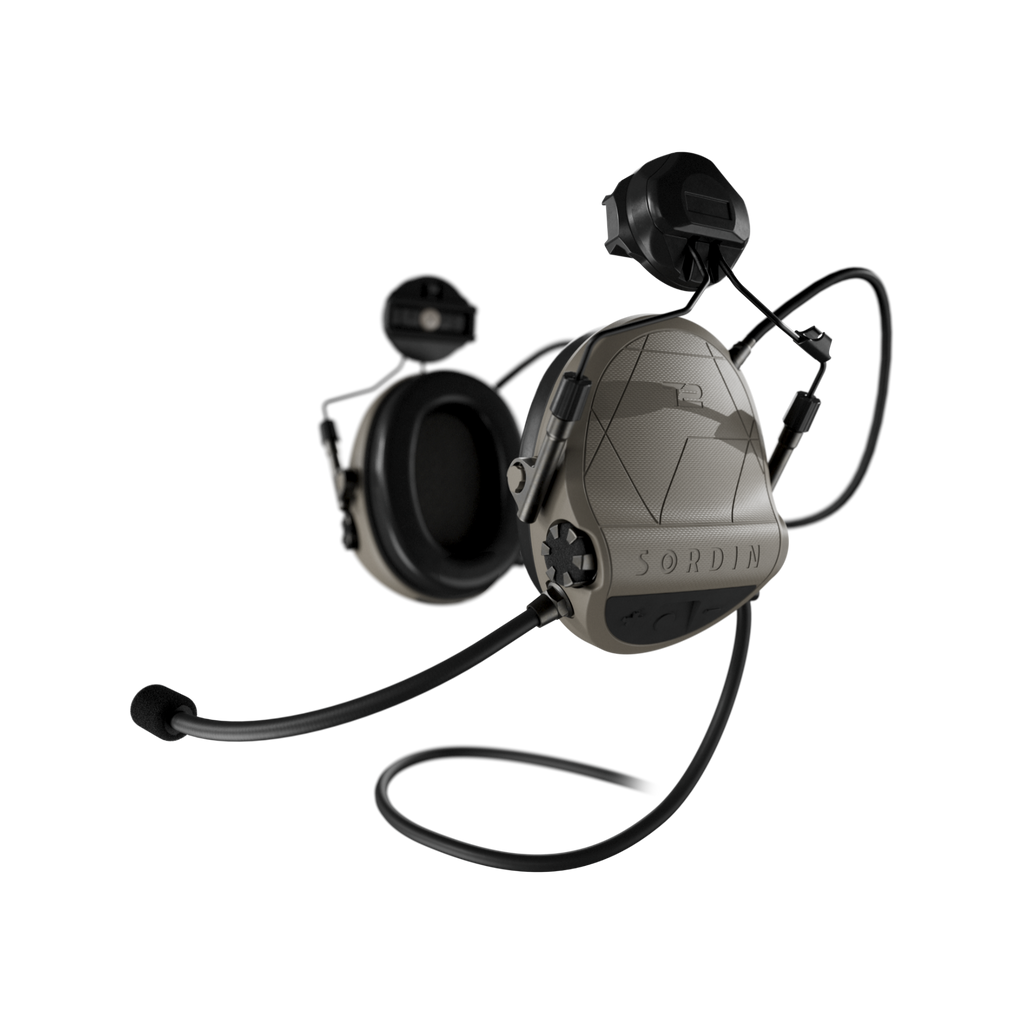

The Sordin Supreme T2 CC is an advanced communications headset for demanding tactical applications. This version is configured with ARC Rails suspension, memory foam cushions, Tan cups and a microphone on the left.
On this configuration the EN 352 attenuation is SNR 28 dB, with H 29 dB, M 25 dB and L 21 dB, and the ANSI S3.19 NRR is 21 dB. The attenuation was measured on a TeamWendy Exfil LTP-Helmet Rail3.0, Size1 M/L.
SordinHEAR2 provides four audio profiles: Tactical, Comfort, Dual and Ambient off. Sound level limitation is set at a maximum of 82 dB(A). The headset runs on one AA battery, with an operating time of 120 hours on Varta Ultra lithium, and a fixed downlead with an adjustable noise-compensating microphone handles communication.
It is tested against relevant parts of MIL-STD-810H and MIL-STD-461G, is immersion tested at 2 metres and is salt water tested.
Key features
- SordinHEAR2 audio profiles — Four pre-set listening modes (Tactical, Comfort, Dual and Ambient off) adapt gain and frequency to the situation, and each selection is confirmed by voice feedback.
- Failsafe loudspeakers — Failsafe loudspeakers keep radio and communication audio available even when the batteries are out.
- Waterproof construction — The headset is waterproof and immersion tested at 2 metres, with electronics coated in multiple layers.
- Waterproof microphones — The ambient microphones are waterproof.
- Slim cup design — Slim cups suit both left-handed and right-handed shooters as well as wearers of eyeglasses.
- Short decay time — Normal sound is restored instantly after a shot, while harmless ambient sound is amplified and dangerous sound is compressed.
- Single-battery power — One AA battery powers the headset, with auto shutdown after 4 h and a voice warning when 10% of battery remains; Sordin Power 14500 rechargeable batteries are also supported.
- MIL-tested electronics — Applicable tests have been made in accordance with MIL-STD-810H and EMC-MIL-STD-461G, and the electronics have RFI protection.
- SordinFLEX modularity — The SordinFLEX platform lets users reconfigure the headset without tools, with headband, neckband, ARC Rails and Rear ARC Rails suspensions available.
- Dual protection — Dual protection is supported, with SNR:40 and NRR:35 given for dual protection.
Typical applications
- Hearing protection and communication for tactical teams.
- Communication in wet or harsh conditions where the headset must stay operative.
- Shooting and operations where the wearer needs to hear the environment while protected against shots.
Please note
Approved helmet combination: ARC with memory foam/gel cushions – Team Wendy EXFIL LTP helmet rail 3.0, size 1 M/L
Technical specifications
| Suspension | Arc Rails |
| Microphone | Left |
| Cup colour | Tan |
| Cushions | Memory foam |
| Attenuation, SNR | 28 dB |
| Attenuation, H / M / L | H 29 dB / M 25 dB / L 21 dB |
| Weight | 333 g |
| Attenuation measured on | TeamWendy Exfil LTP-Helmet Rail3.0, Size1 M/L |
| Attenuation, NRR | 21 dB |
| CSA class | B |
| Peak impulse insertion loss (ANSI S12.42) | Memory foam cushions: 29.4 / 36.5 / 34.4 dB at 130 / 150 / 168 dB peak |
| Batteries | 1 x AA 1.5V (Sordin Power 14500 rechargeable 3.7 V also supported) |
| Loudspeaker input impedance | 2 x 32 Ω as standard |
| Operating time | 120 hours (Varta Ultra lithium) |
| Operating temperature | –32°C to +55°C / –25.6°F to +131°F |
| Max. signal from connected radio | 137.3 mVrms |
| Peak impulse reduction tested | Yes, see attenuation data for more information |
| Salt-water tested | Yes |
| Immersion tested | Submerged at 2 metres for 35 min |
| Cup and liner materials | ABS and PU foam |
| Suspension material | Stainless steel and plastic |
| Headband cover material | Leather or coloured textile |
| Cushion materials | ABS, PVC foil, memory foam or silicone gel cushions |
| Downlead plug options | Single comm: 4 pin US Nato wiring, TP120 type (as standard) Single comm: 4 pin UK Nato wiring TP120 type Dual Comm: Sordin 6 pin |
| Downlead cable length | 410 mm |
| Standards | EN 352-1:2020 hearing protectors - ear-muffs EN 352-2:2020 hearing protectors- earplug EN 352-3:2020 earmuffs attached to head protection EN 352-4:2020 hearing protectors - level-dependent ear-muffs EN 352-6:2020 hearing protectors - ear-muffs with safety related audio input |
| Military testing | The Sordin Supreme T2 CC models have been tested against relevant parts of the standards MIL-STD-810H and MIL-STD-461G. |
| Type | Active Electronic protection |
In the box
- 1 × Sordin Supreme T2 CC
- 1 × AA battery
- 1 × Quick guide
- 1 × Manual
Model information
| Brand | Sordin |
| Model | Supreme T2 CC Tan ARC Helmet Memory Foam |
| MPN | 304005-30P |
