Description

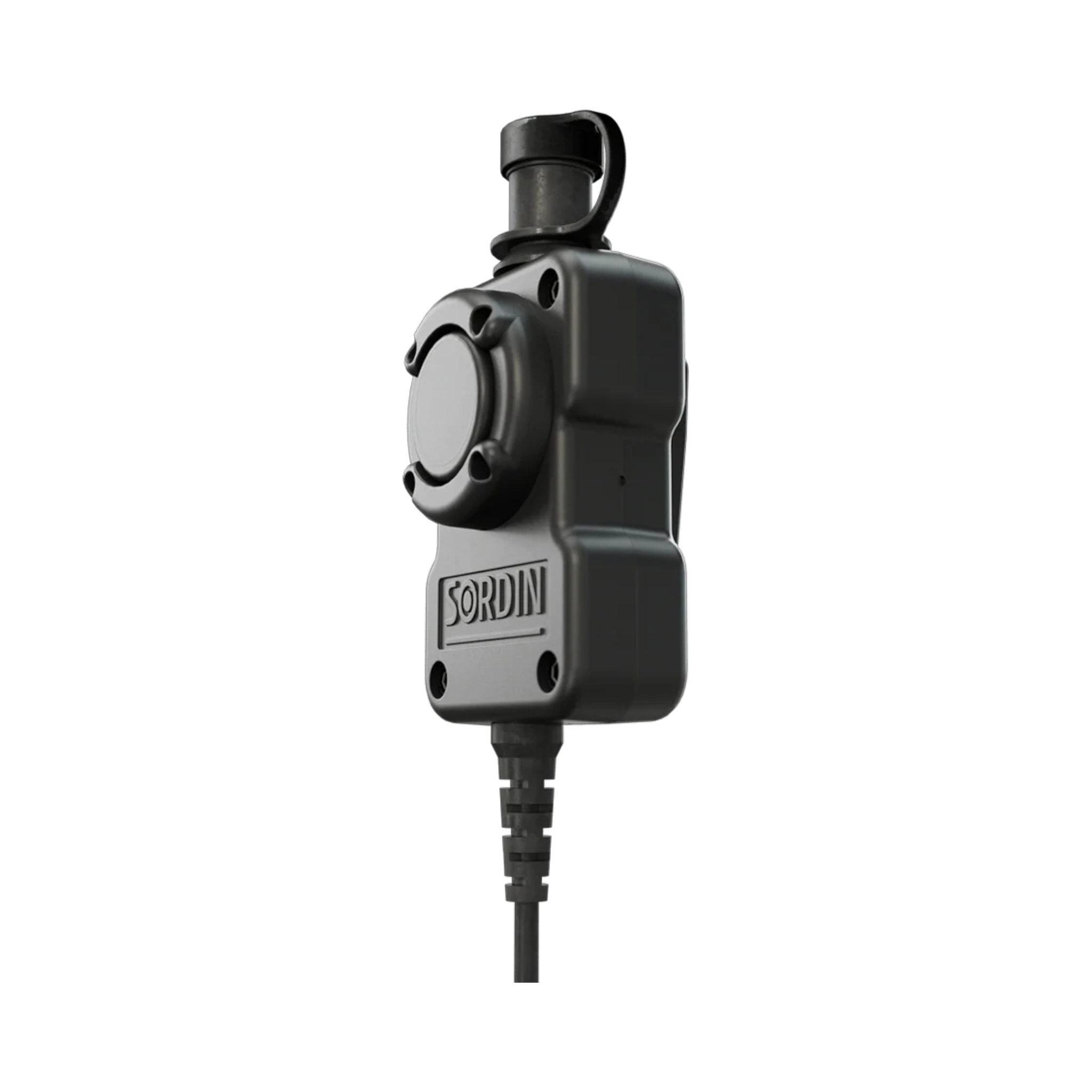

Splashproof single-com push-to-talk box for compatible Sordin Supreme MIL communication headsets, supplied with the KL091 radio interface for Icom IC-F70 radios.

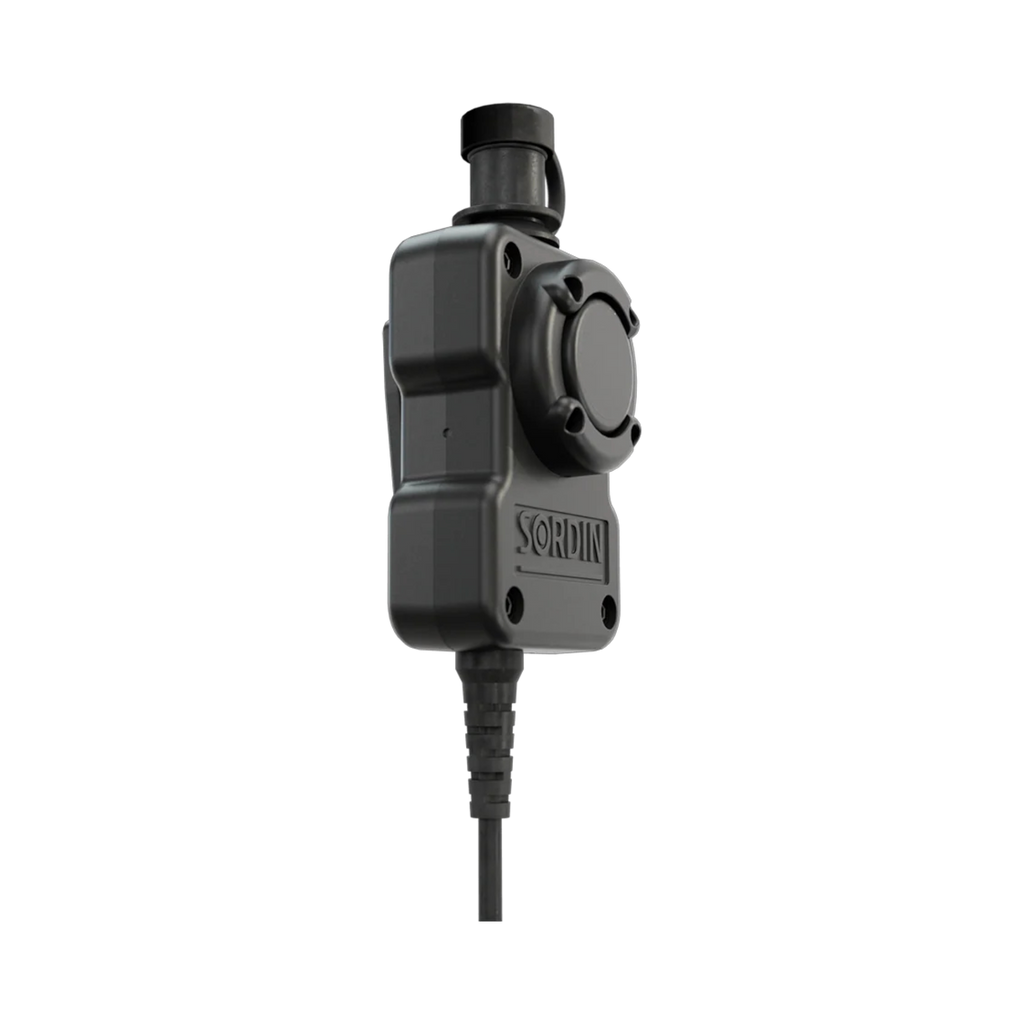

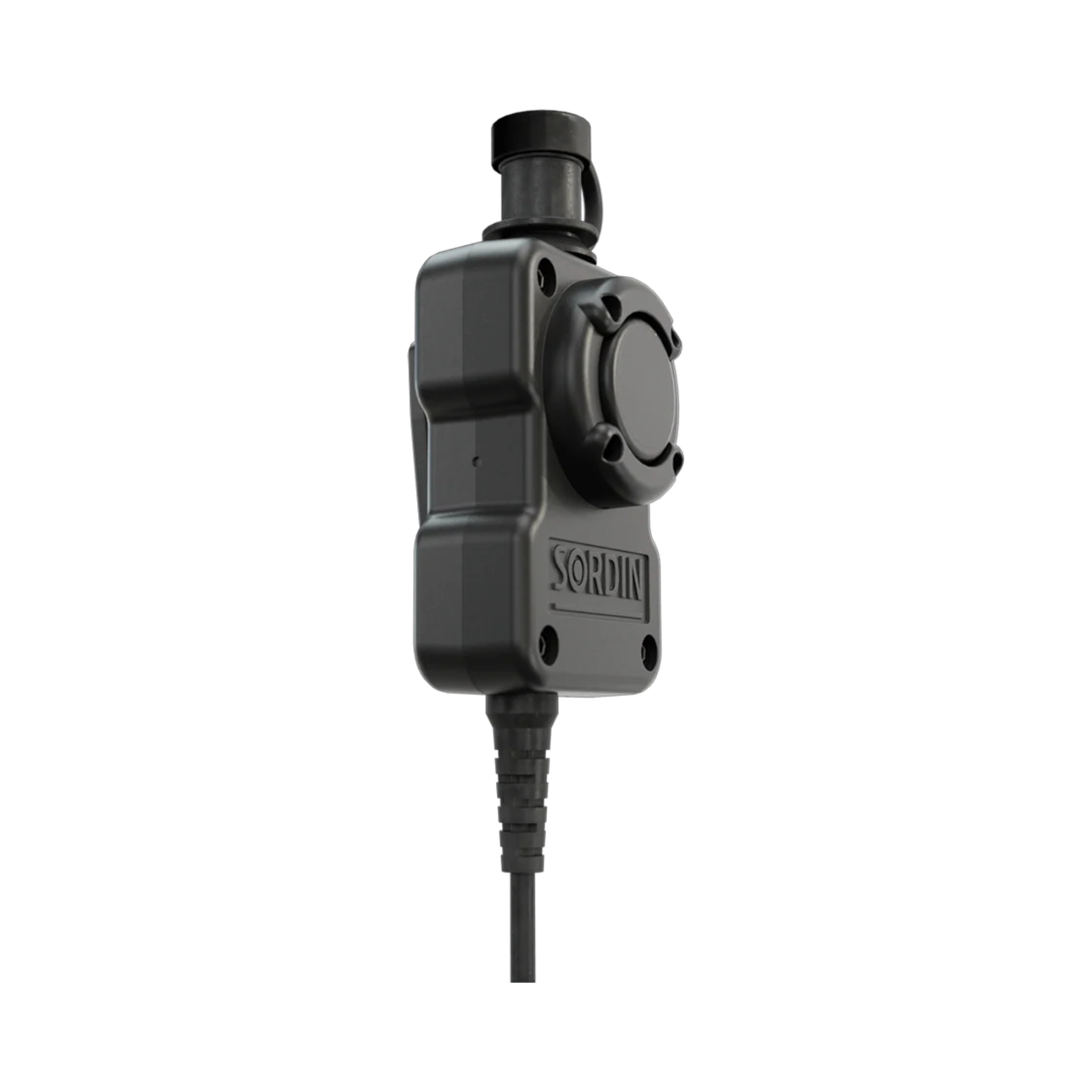

This is a splashproof single-com push-to-talk system for compatible Sordin Supreme MIL communication headsets. It is a simple PTT box for one communication radio or mobile phone, and its rugged design suits outdoor use in harsh weather conditions.
This configuration carries the KL091 radio interface for Icom IC-F70 and similar radios. It is delivered as a complete assembly with headset connector, PTT box, coiled downleads and radio interface.
It connects to Sordin communication headsets with a male 4-pole Ø7.2 mm connector (type TP-120). Headsets of other brands with the same connector and correct wiring can also be used, after testing and verification.
Key features
- Single-com operation — A simple PTT box designed for use with one communication radio or mobile phone.
- Splashproof housing — The rugged, splashproof design is suitable for outdoor use in harsh weather conditions.

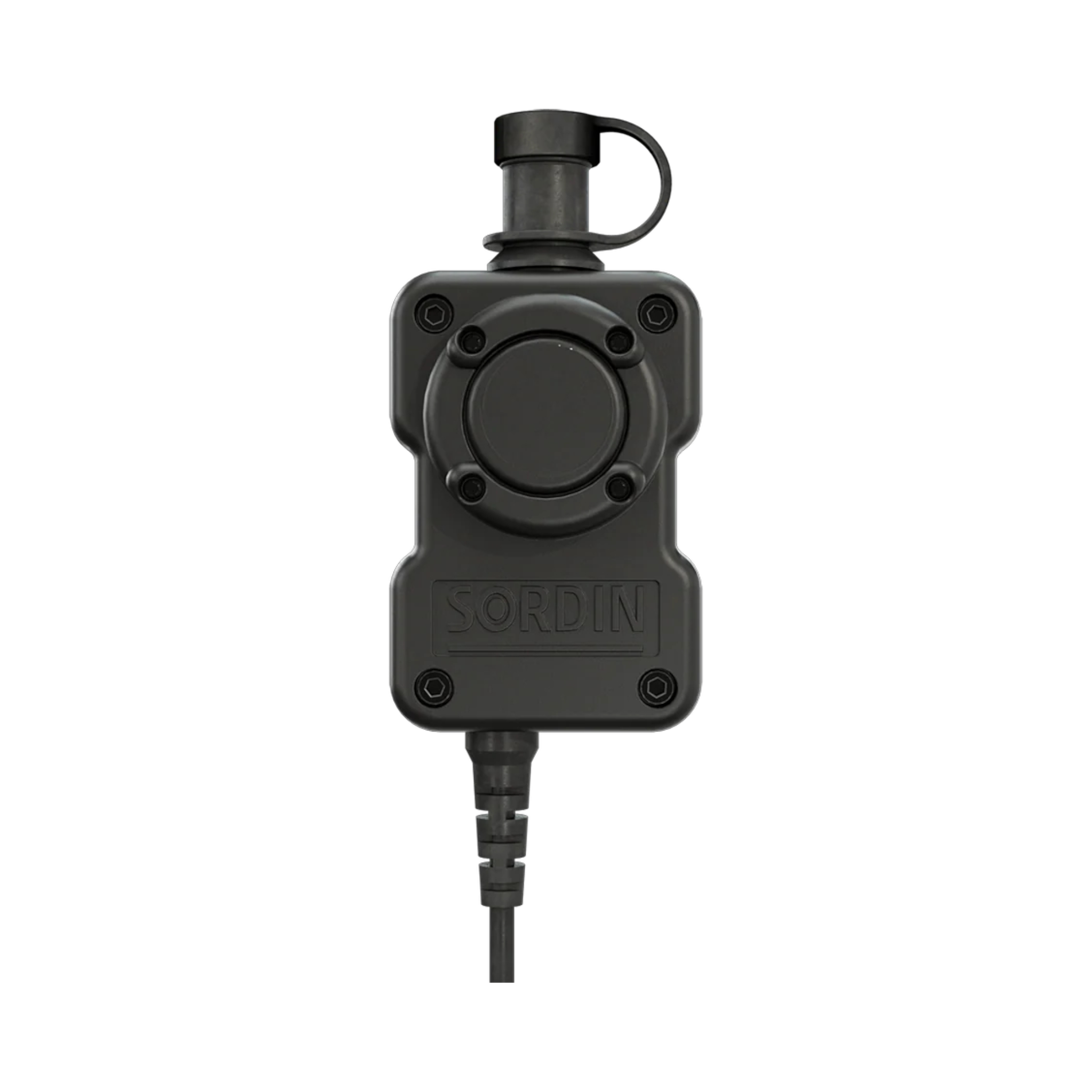

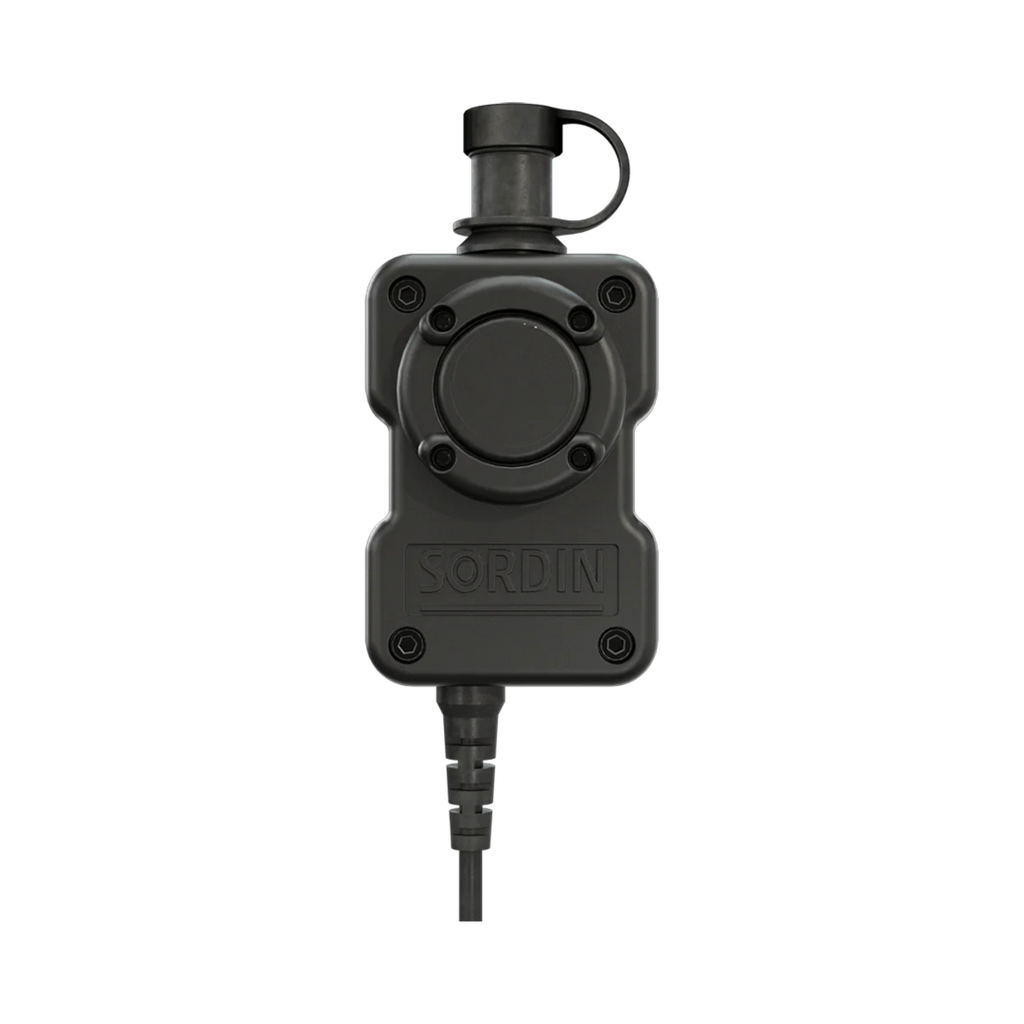

- Large PTT button — The black body carries a large PTT button that is easy to locate.
- Glove-friendly button — The button profile and tactile feedback are suited to gloved hands.
- Switch guard — A switch guard protects the PTT button from being pressed unintentionally.

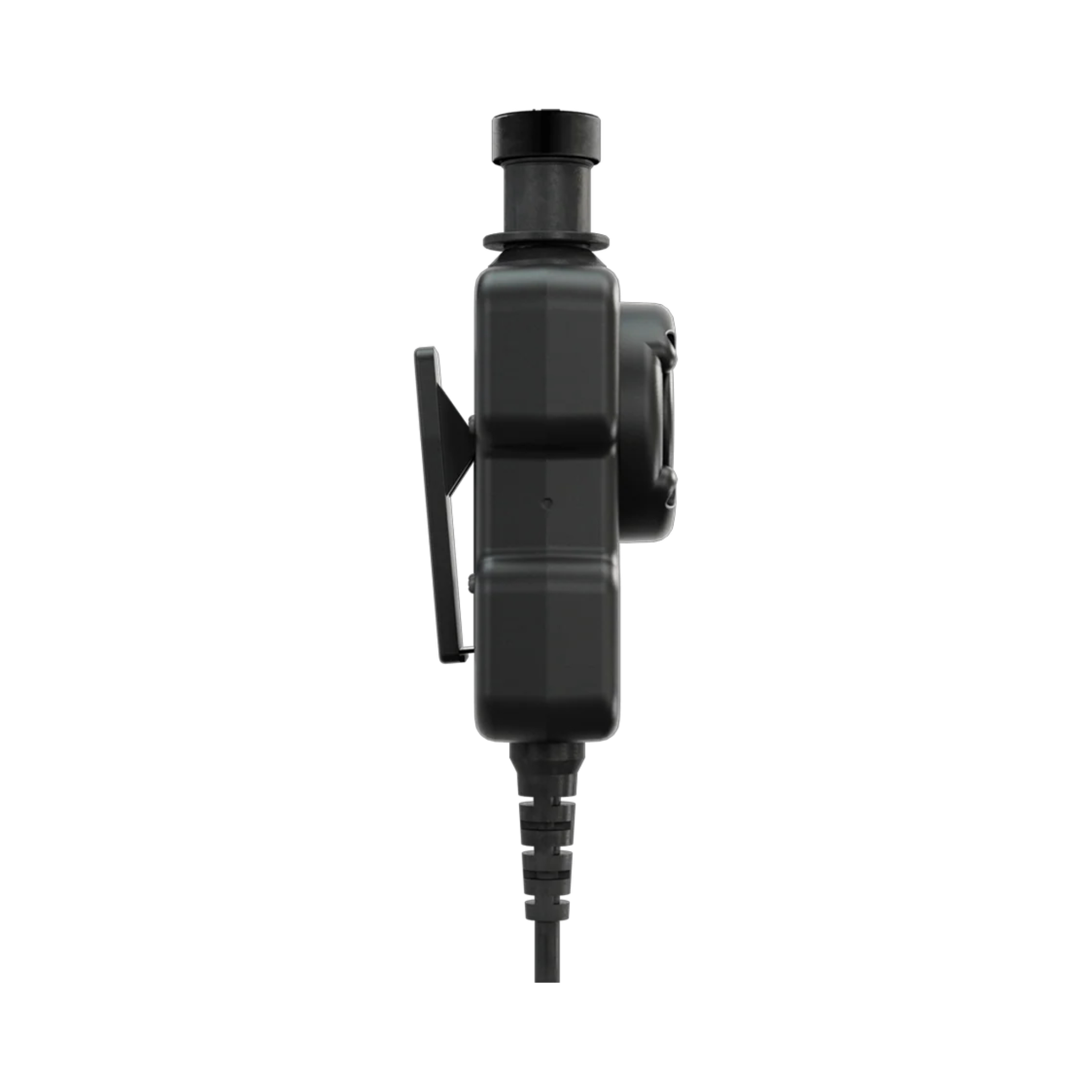

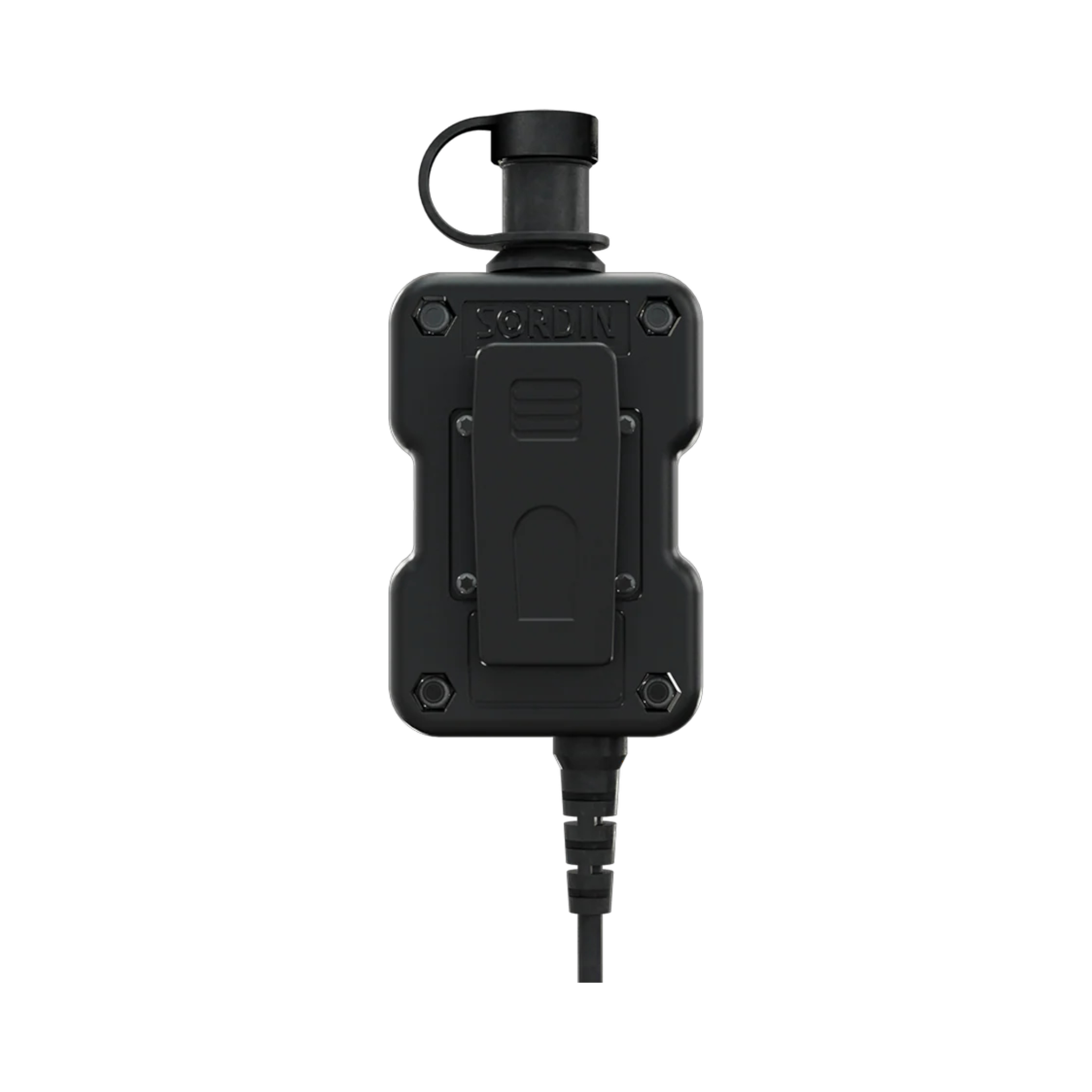

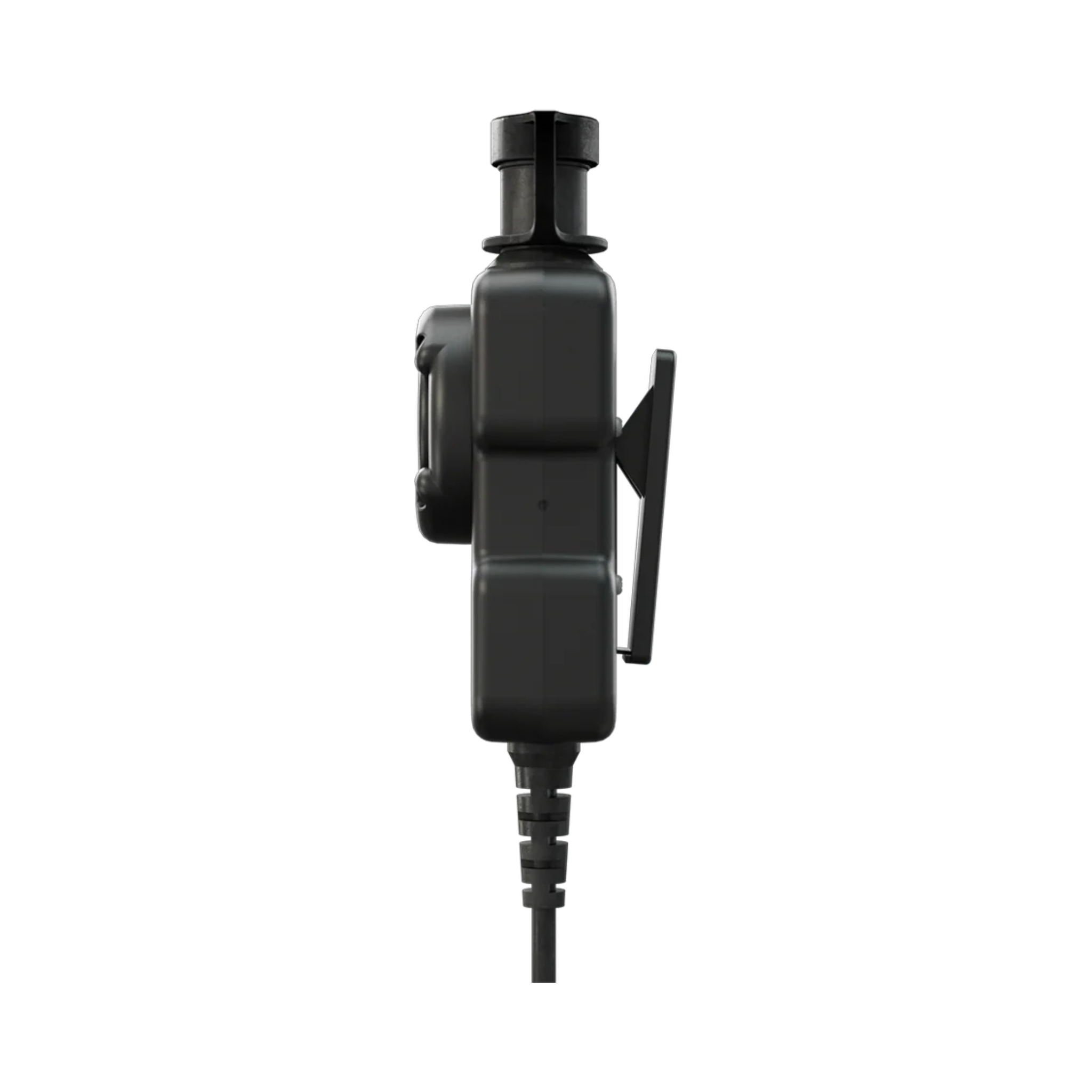

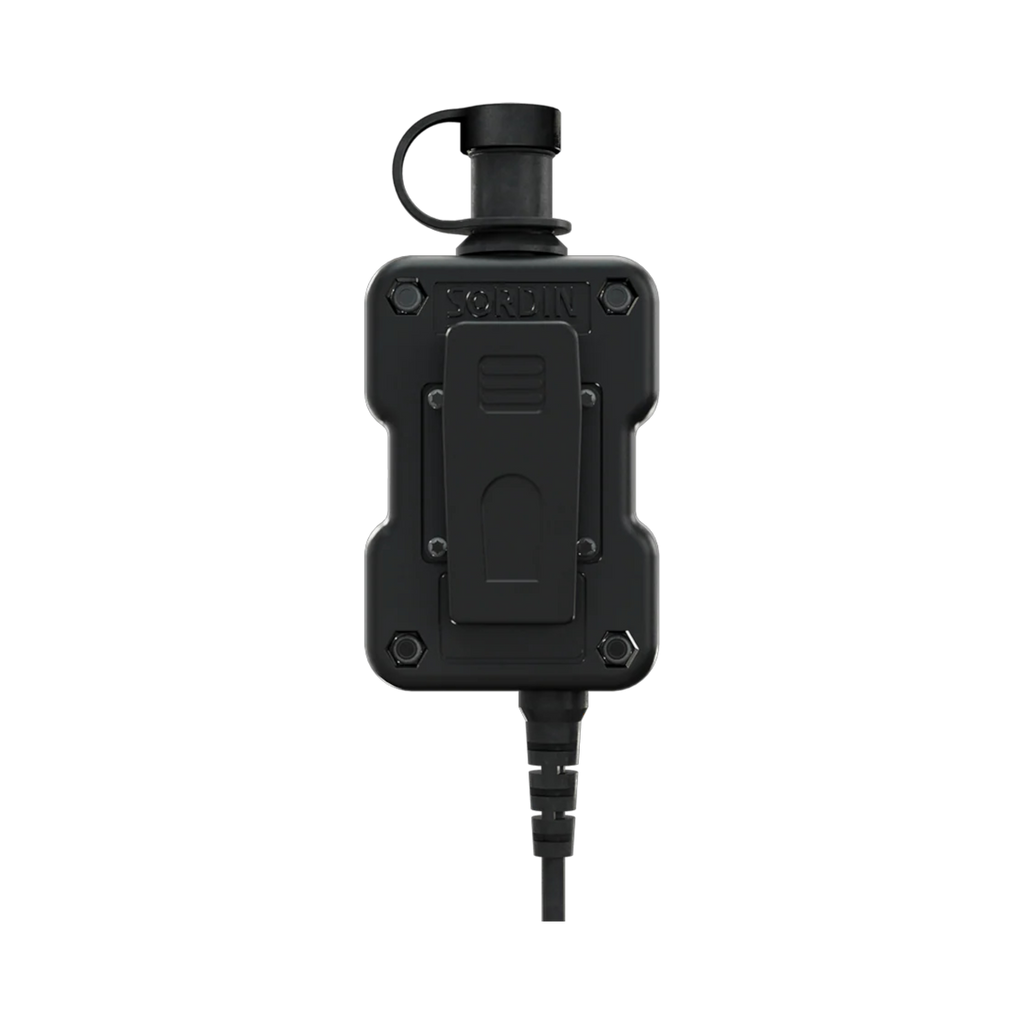

- Rotatable removable clip — The belt clip rotates and is removable, and attaches the box to a belt or to fastening systems such as MOLLE.
- Coiled downlead — A coiled, heavy duty down lead connects the PTT box to the headset, and the assembly is delivered complete with radio interface.
- TP-120 headset fit — Made for Sordin communication headsets with the male 4-pole Ø7.2 mm TP-120 connector, with a female TJ-102 connector on the PTT side.
Typical applications
- Radio communication in outdoor operations in harsh weather, with a Sordin Supreme MIL headset.
- Gloved use where a large, tactile PTT button is needed.
- Belt or MOLLE-mounted push-to-talk control for personnel using one radio.
Technical specifications
| Connector to headset | Female 4-pole Ø7.2 mm connector (type TJ-102) |
| Headset connector wiring | Sordin wiring (US NATO) |
| Radio cable | Coiled, Ø4 mm, L 600 mm to 1200 mm |
| Downlead | Coiled, heavy duty down lead. Length may vary between different radio interface but the average relaxed length is 0.4 metre with a 90% maximum extension to 1.4 metre |
| Water resistance | Splash proof for outdoor use in harsh weather conditions |
| Weight | 250 g (approx) - varies between different radio interfaces |
| Dimensions | 120 x 63 x 52 mm |
| Operating and storage temperature | -20°C to +50°C, < 85% RH |
| Approvals | RoHS directive 2011/65/EU |
| Radio interface | KL091 (Icom IC-F70 etc) |
In the box
- 1 × PTT Single Com Splashproof – Supreme MIL
Model information
| Brand | Sordin |
| Model | PTT Single Com Splash Proof KL091 (Icom IC-F70 etc) |
| MPN | 75906-091-S |
