Description

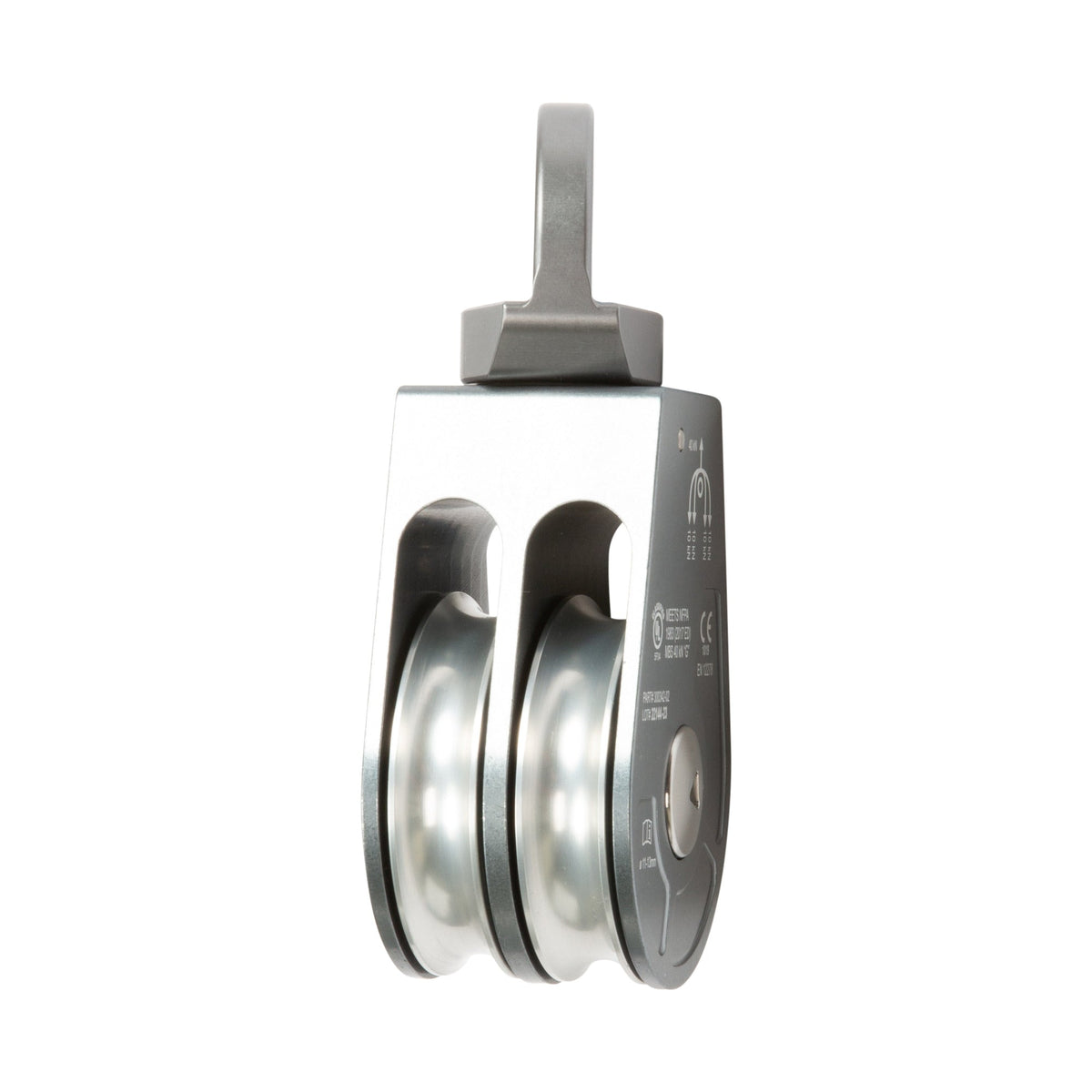

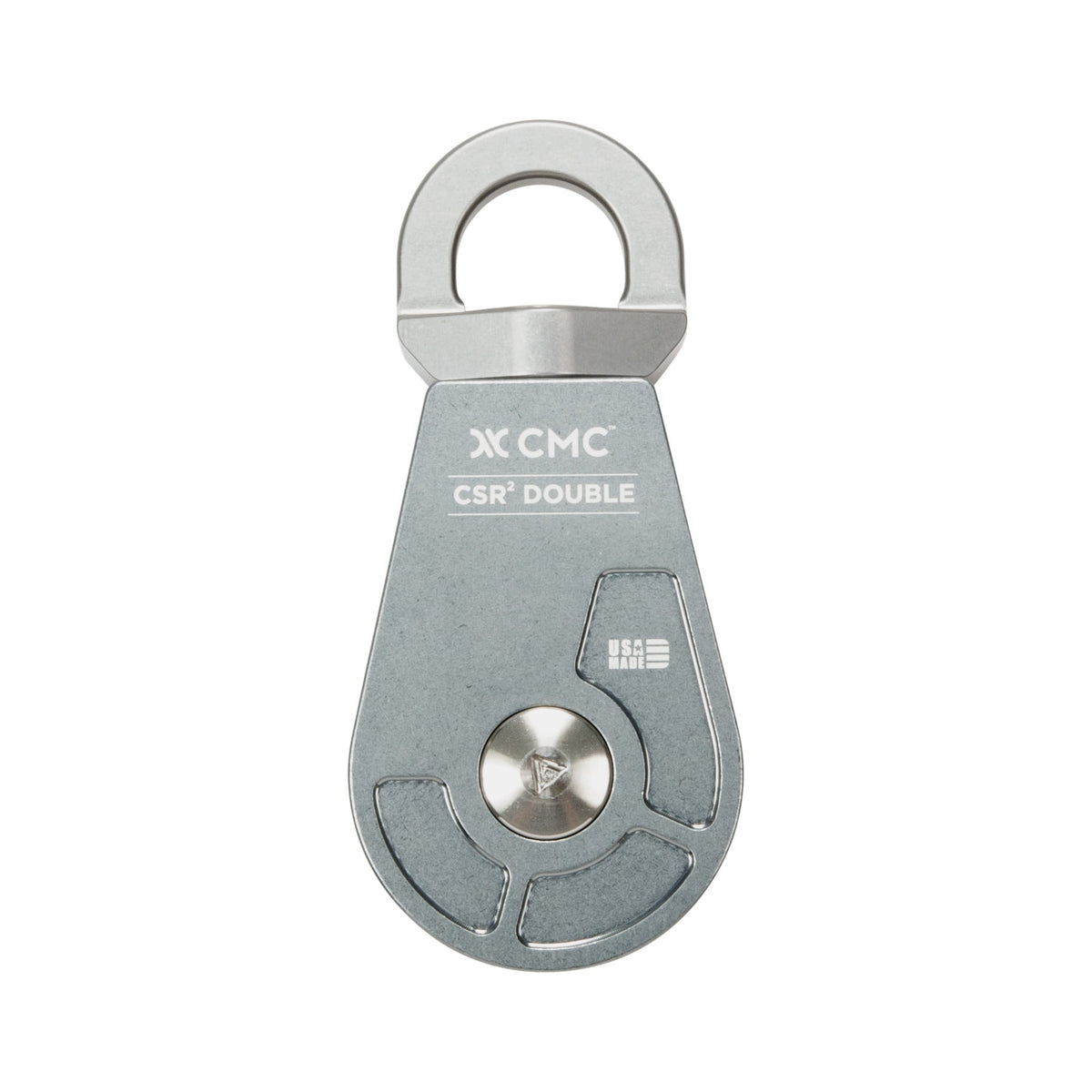

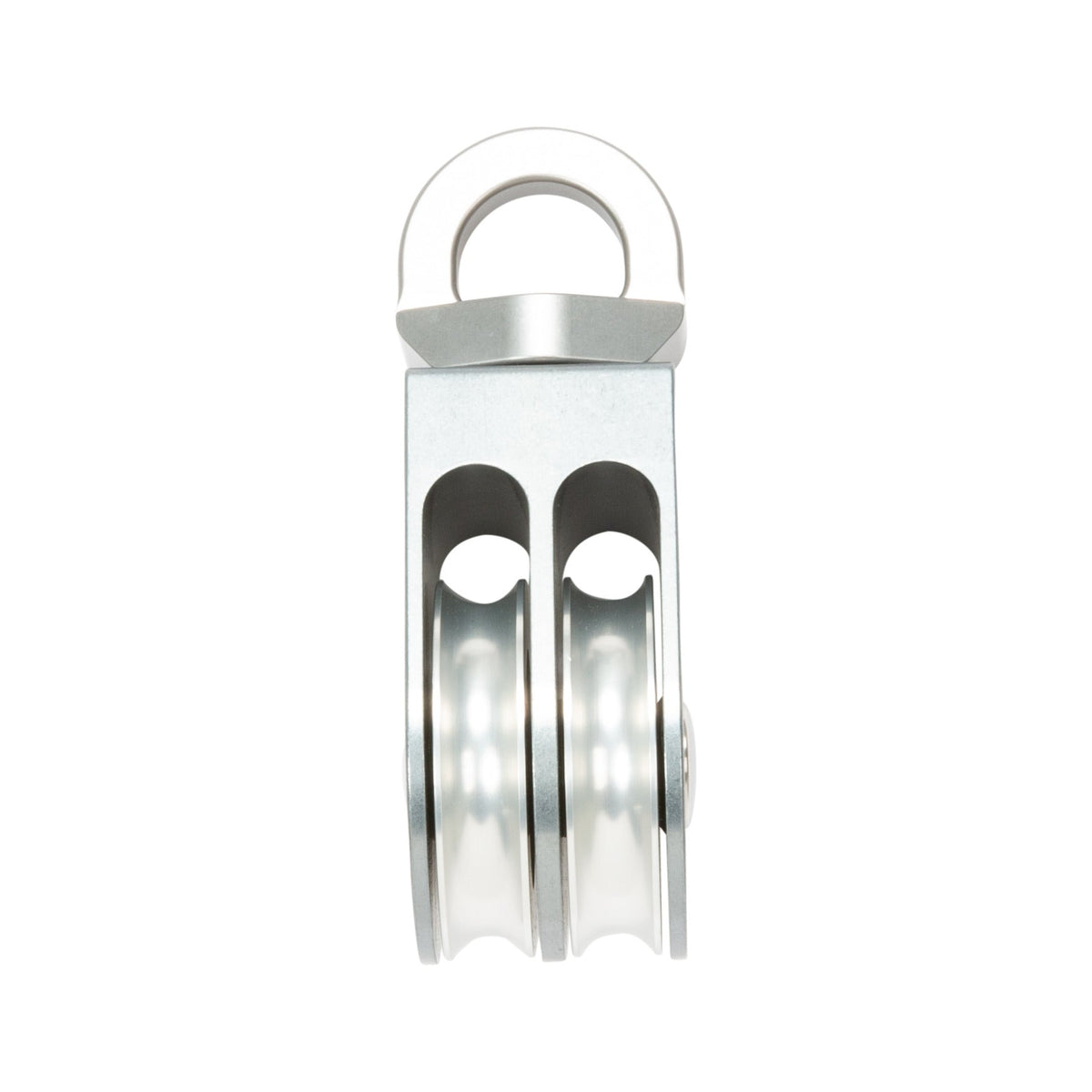

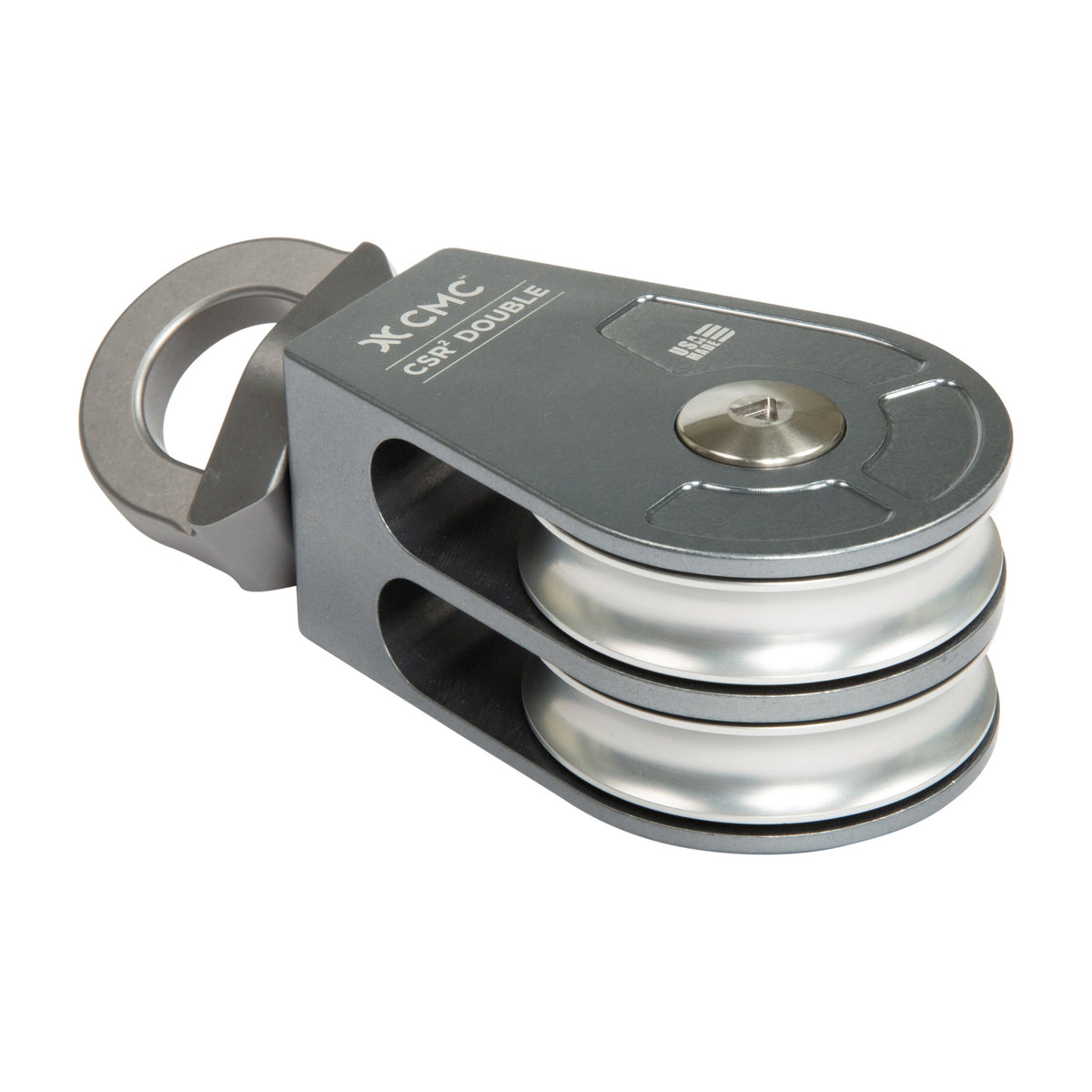

Double confined-space rescue pulley with a toothed-cam-free locking system, for industrial and rescue teams working with 11 mm to 13 mm life safety rope.
The CSR2 Double Pulley is classified to NFPA General Use and EN 12278 and has an MBS of 40 kN (8,992 lbf). It accommodates life safety rope from 7/16 in (11 mm) to 1/2 in (13 mm).
It is machined from a solid block of aircraft-grade aluminium and is made in the USA.
Key features
- Toothed-cam-free locking — A proprietary, patented locking system removes the need for a toothed cam or Prusik, so it can be released easily and safely under load.
- Releases when fully collapsed — Without a toothed cam, the system can still be released even when it is fully collapsed and pulled tight.
- Integral thrust-bearing swivel — The swivel reduces torque by aligning the pulley with the load, increasing efficiency and safety.
- Room for rescue carabiners — Its larger size allows easy application of rescue-size carabiners.
- Sealed bearings, anodised sheaves — It features a high-strength aluminium side plate, sealed bearings and anodised aluminium sheaves.
- Side becket location — The side becket location allows maximum lift height and full retraction of the system.
- Removable becket cover — A removable becket cover makes it easier to change out a lifeline with sewn terminations.
Typical applications
- Confined-space rescue systems
- Industrial rope-access and work-at-height applications
- Rescue operations that need a pulley releasable under load
Technical specifications
| Weight | 680 g (1.5 lb) |
| Sheave tread size | 57 × 13 mm (2 1/4 × 1/2 in) |
| Colour | Grey |
| Classifications | NFPA general use; EN 12278 |
| Minimum breaking strength | 40 kN (8,992 lbf) |
| Certification | NFPA – General Use; CE – EN 12278 |
In the box
- 1 × Pulley, CSR2 Double, Grey
Model information
| Brand | CMC |
| Model | Pulley, CSR2 Double, Grey |
| MPN | 300342 |
