Description
A multipod kit that rigs as a tripod, bipod or monopod, for rescuers and rope technicians setting up an artificial high directional.

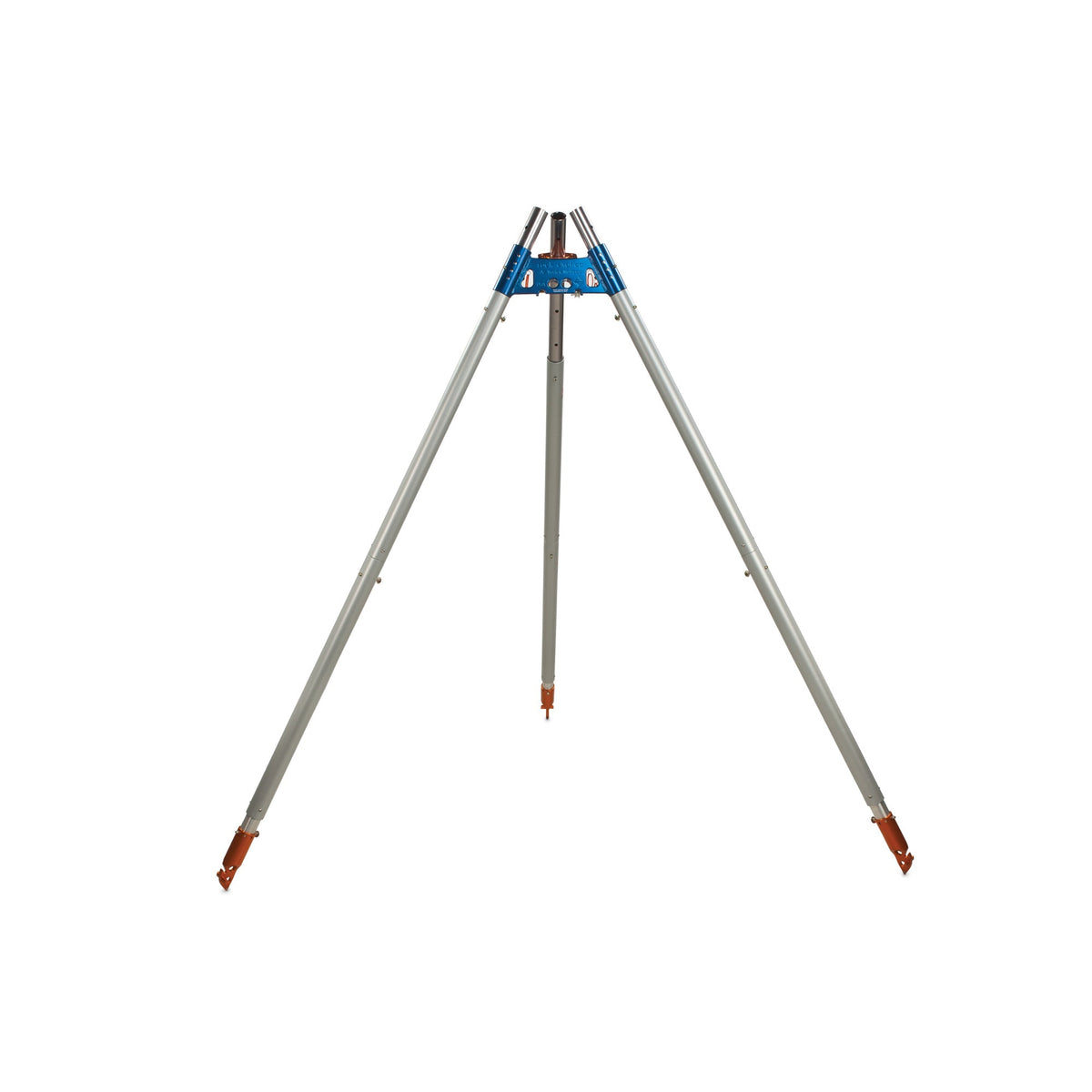

The Arizona Vortex Kit is a multipod that works as a tripod, bipod and monopod in one all-inclusive kit. Its precision machined two-piece head can be rigged as a standard tripod or as an A-frame, Sideways A-frame, Gin Pole or a multitude of other configurations.
It comes with sets for both the Raptor Feet and Flat Feet, a RigTech Pack and two leg bags with shoulder straps, so a single rope technician can carry the whole kit.
Key features
- Tripod, bipod, monopod — One kit covers a tripod, bipod and monopod, so a single set serves several rigging set-ups.

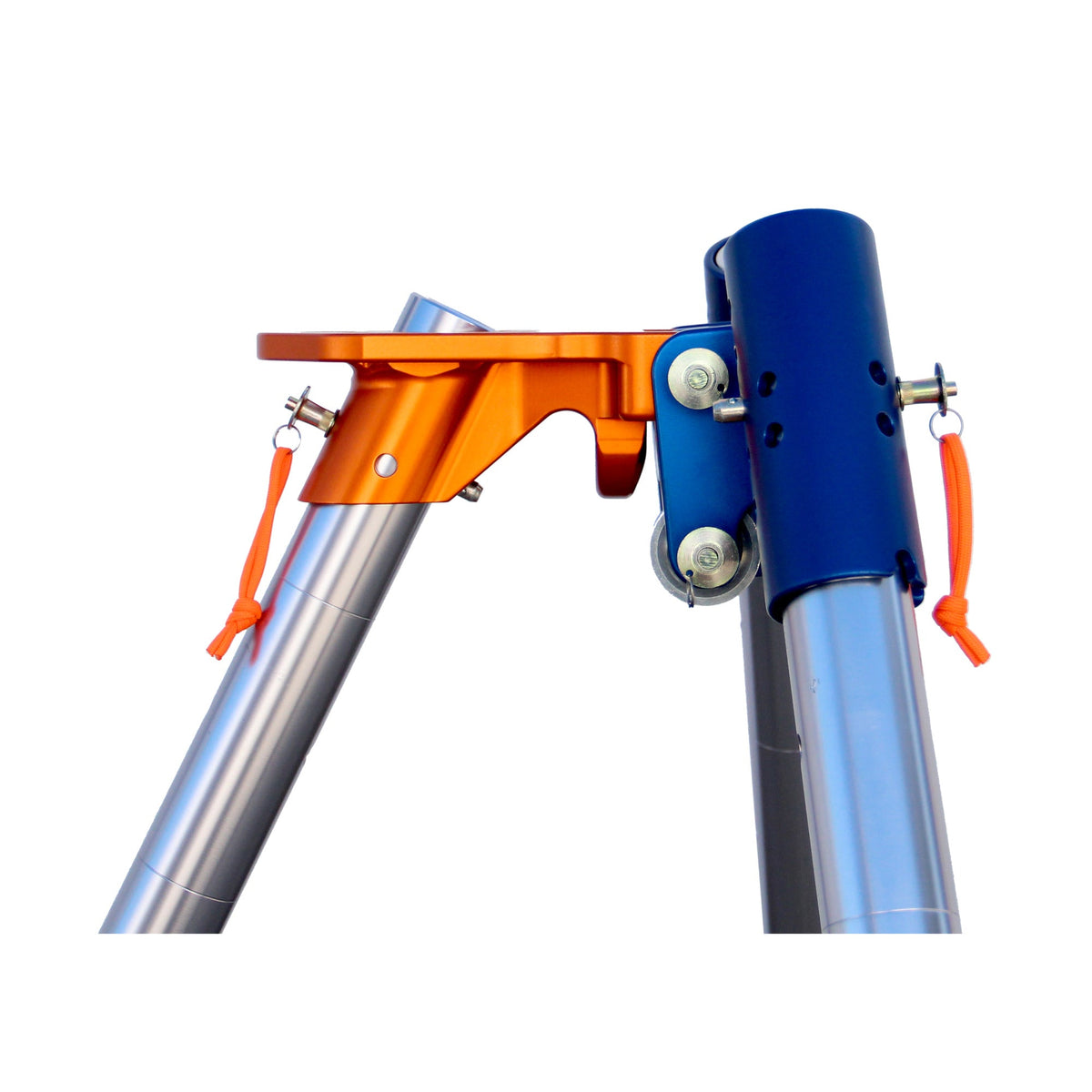

- Easel A-frame option — The tripod can be formed into an Easel A-frame with adjustable leg lengths.
- Versatile third leg — The third leg lets rescuers set up an artificial high directional in virtually any urban, industrial or wilderness application.

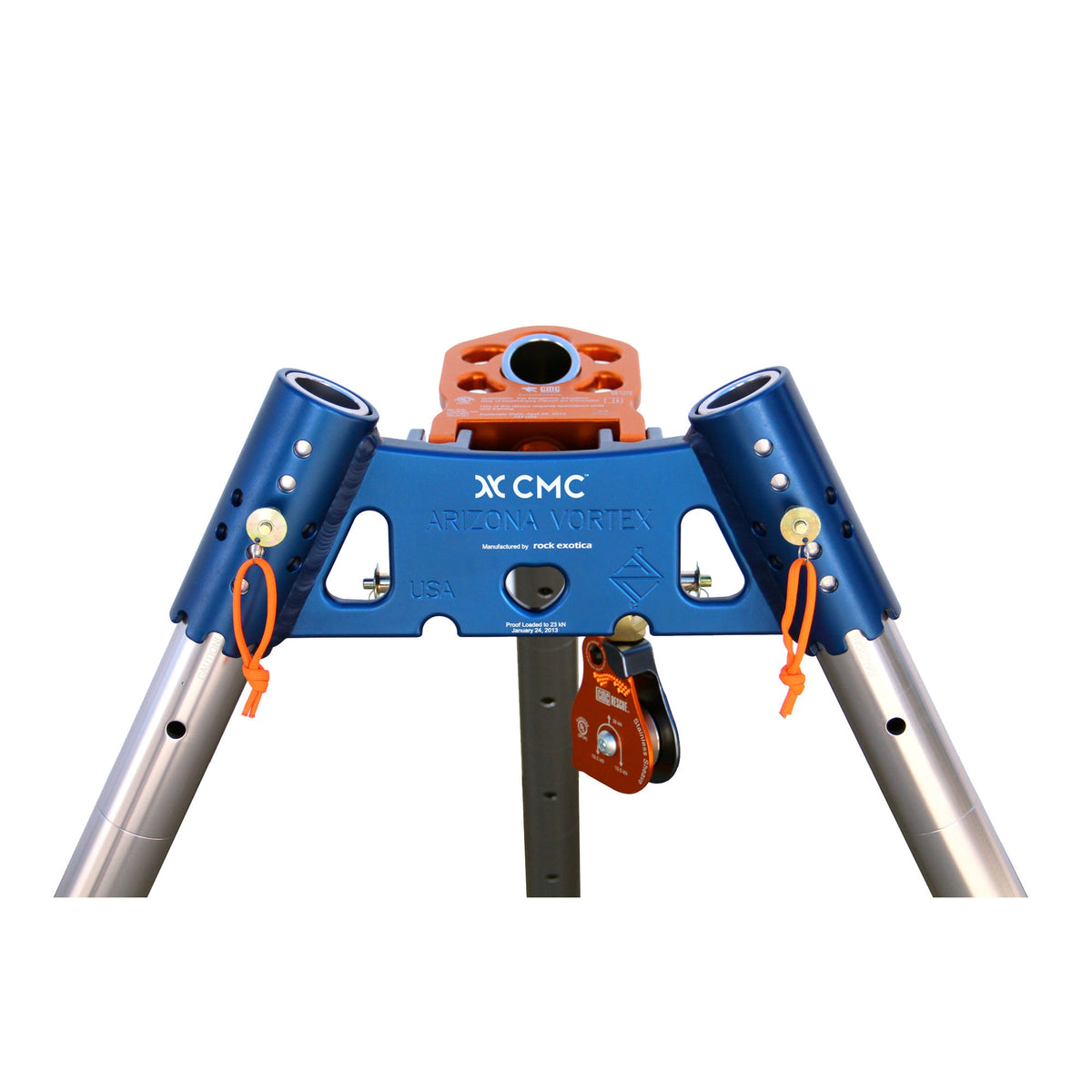

- Quick-pin pulley attachment — In the A-frame and Easel A-frame configurations, pulleys attach directly into the Head Set with the included quick-pins rather than carabiners, retaining headspace and working clearance.
- Extra attachment points — The extra attachment points suit rope access work where several lines may be needed over the edge, and the kit works well with high lines and tracking line offsets.

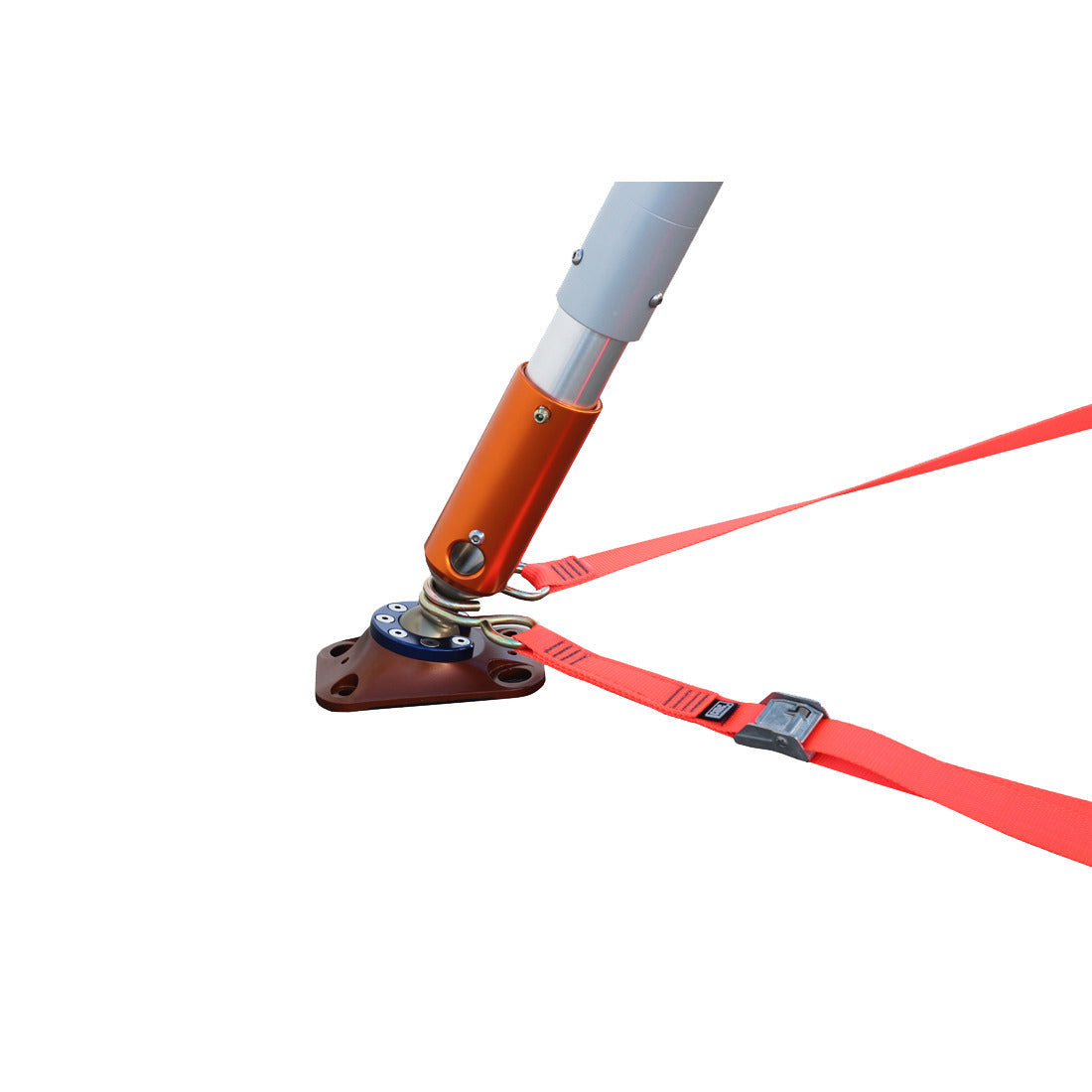

- Two foot options — Both Raptor Feet and Flat Feet sets are included for secure footing on varying terrain and industrial surfaces, and the Flat Feet have a rubber pad that can be replaced.

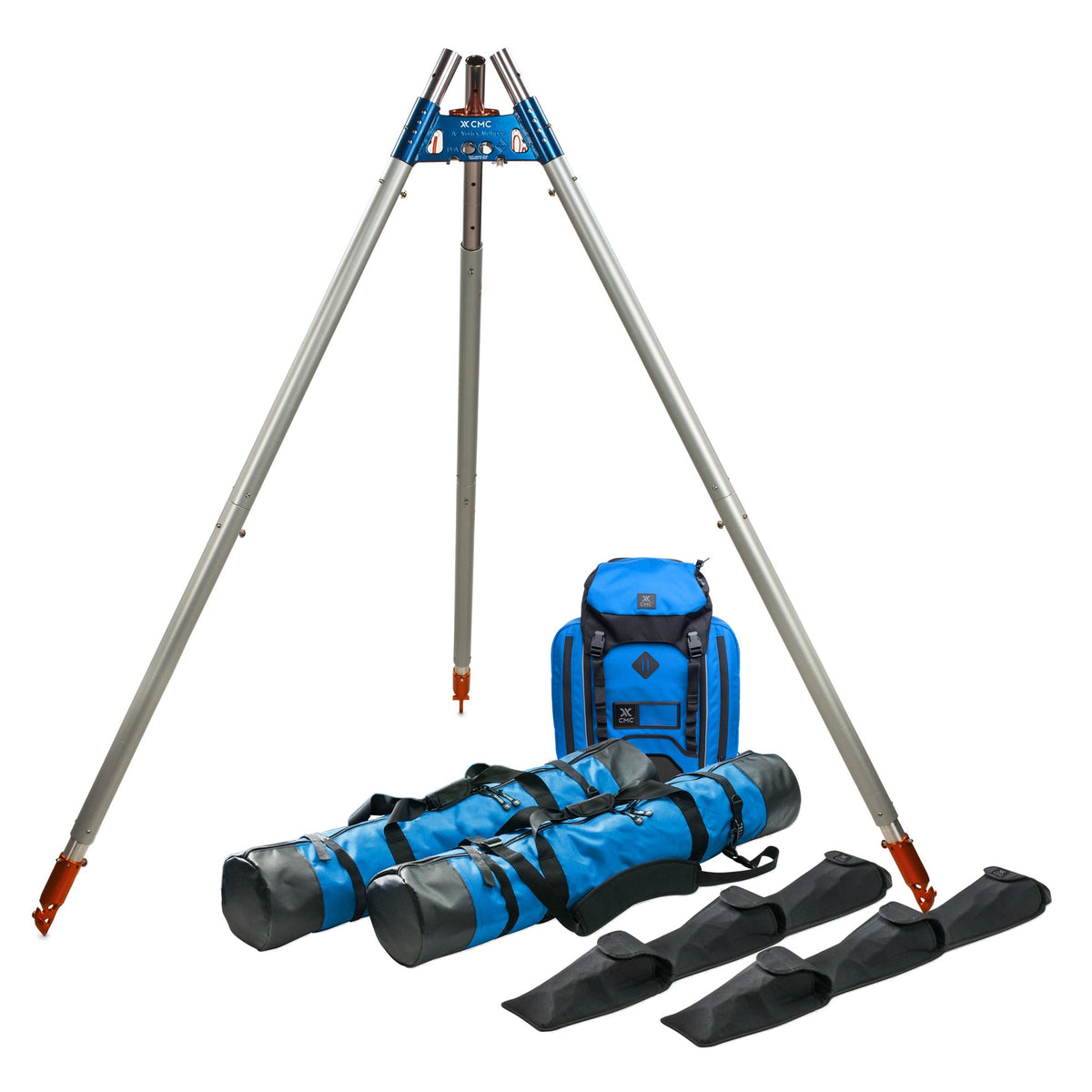

- Vortex Bag System — Backpack-style bags in Cordura nylon, with extra protection in high-wear places and foot sleeves for the Flat and Raptor feet, carry the kit into the wilderness or into stairwells.
- Rated and classified — Classified to NFPA General Use, with EN 795 Type B and CEN/TS 16415 listed in the standards.
Typical applications
- Artificial high directional set-ups for rescue in urban, industrial or wilderness settings.
- Rope access work where several lines are needed over the edge.
- High line and tracking line offsets.
Technical specifications
| Weight | 33 kg (72 lb) |
| Shipping weight | 43 kg (95 lb) |
| Colour | Blue, orange, silver |
| NFPA rating | General use |
| EN standards | EN 795 type B; cen/Ts 16415 |
| Minimum breaking strength | 36 kN (8,093 lbf) |
In the box

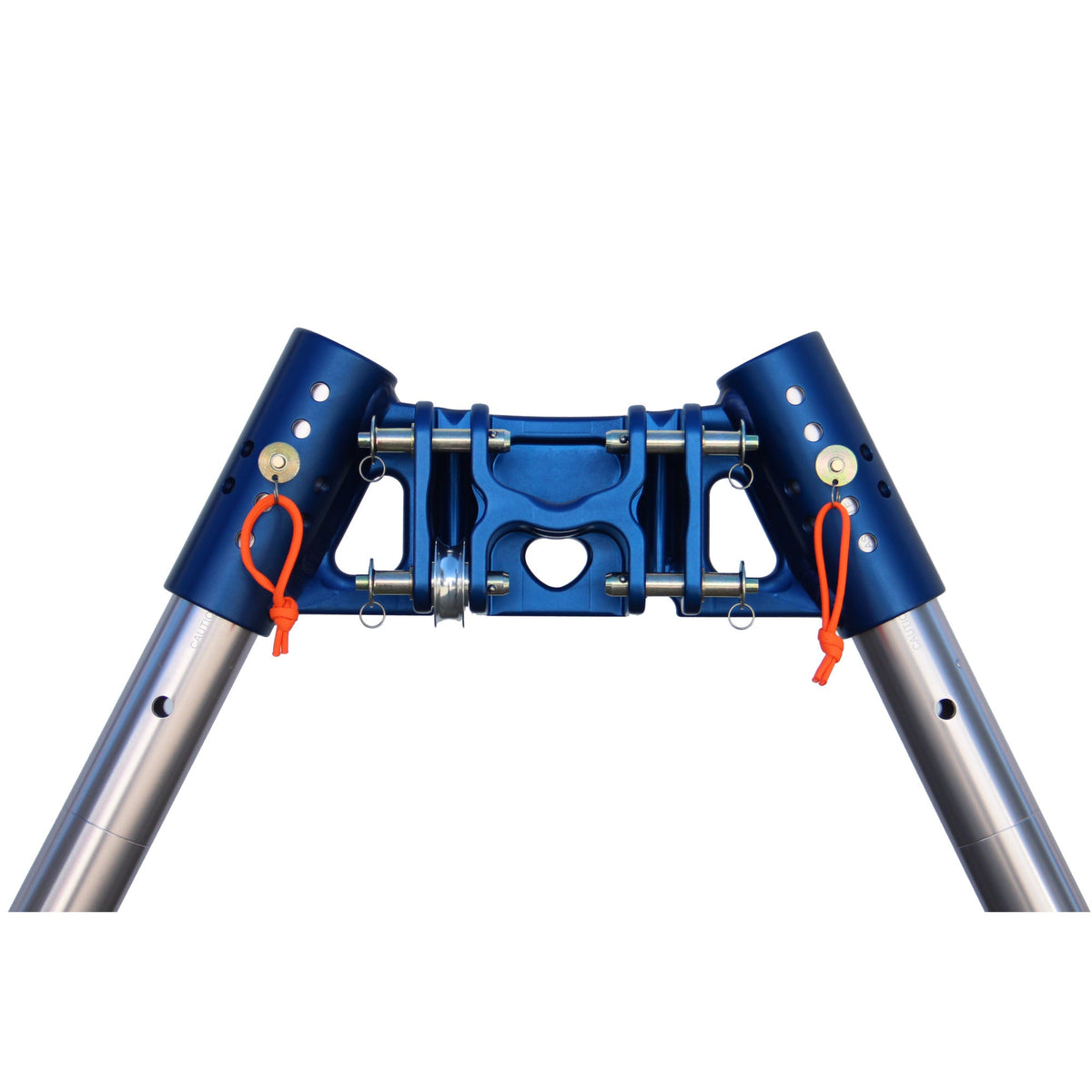

- 2-Piece Head Set

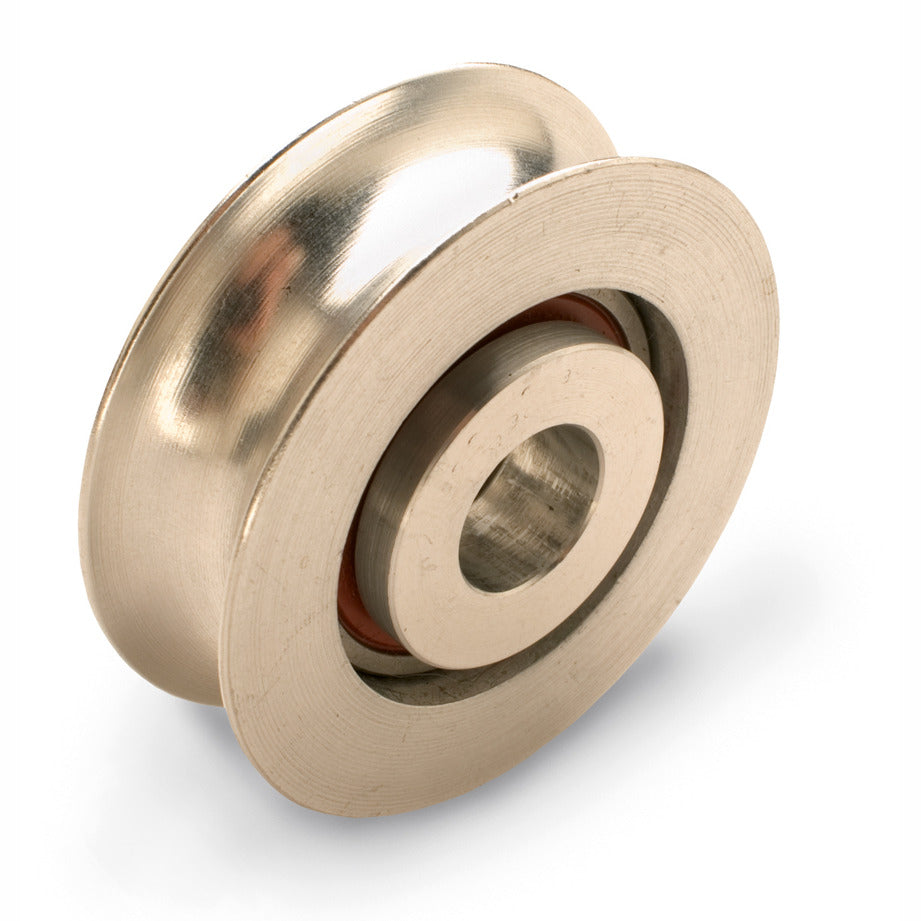

- Head Set Pulley Wheel
- Head Pins (4)
- Inner Legs (3)
- Outer Legs (7)
- Leg/Foot Pins (17)
- Flat (Omni) Feet (3)
- Raptor (Claw) Feet (3)
- Orange Pin Flags (21)

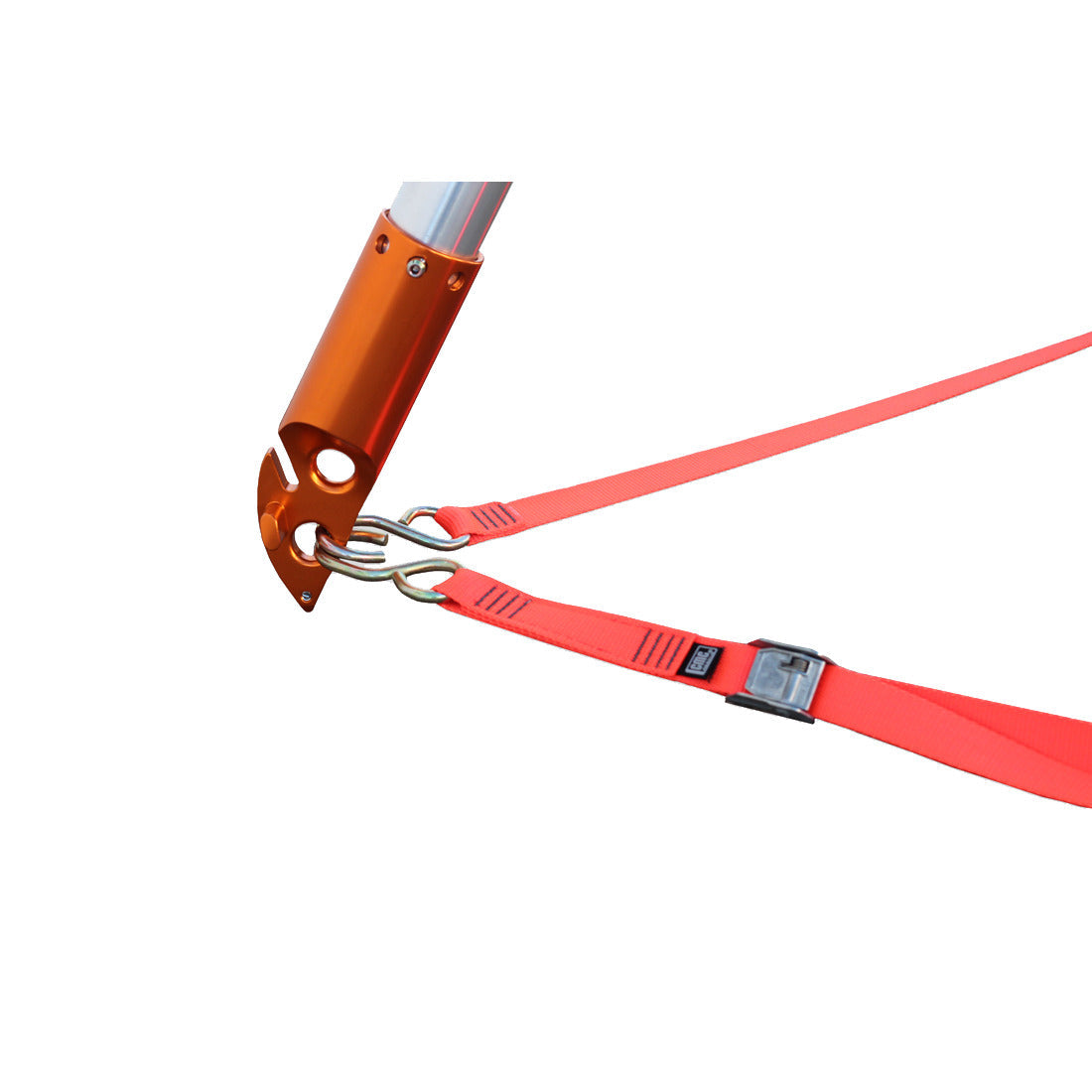

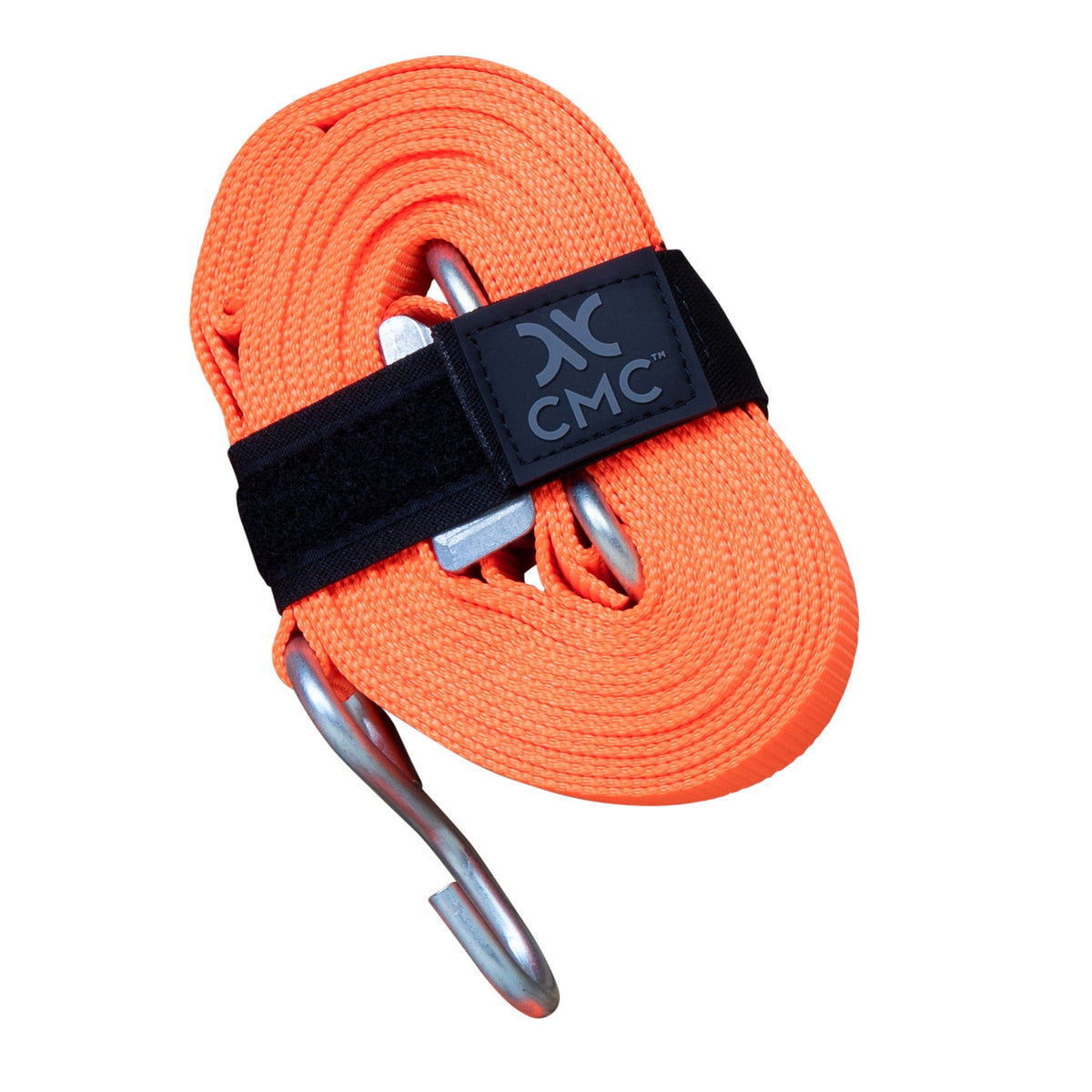

- Adjustable Hobble Straps (3)
- 8 mm Tether Cord (40ft)
- User Manual
- RigTech Pack™
- Leg Bags with Shoulder Straps (2)

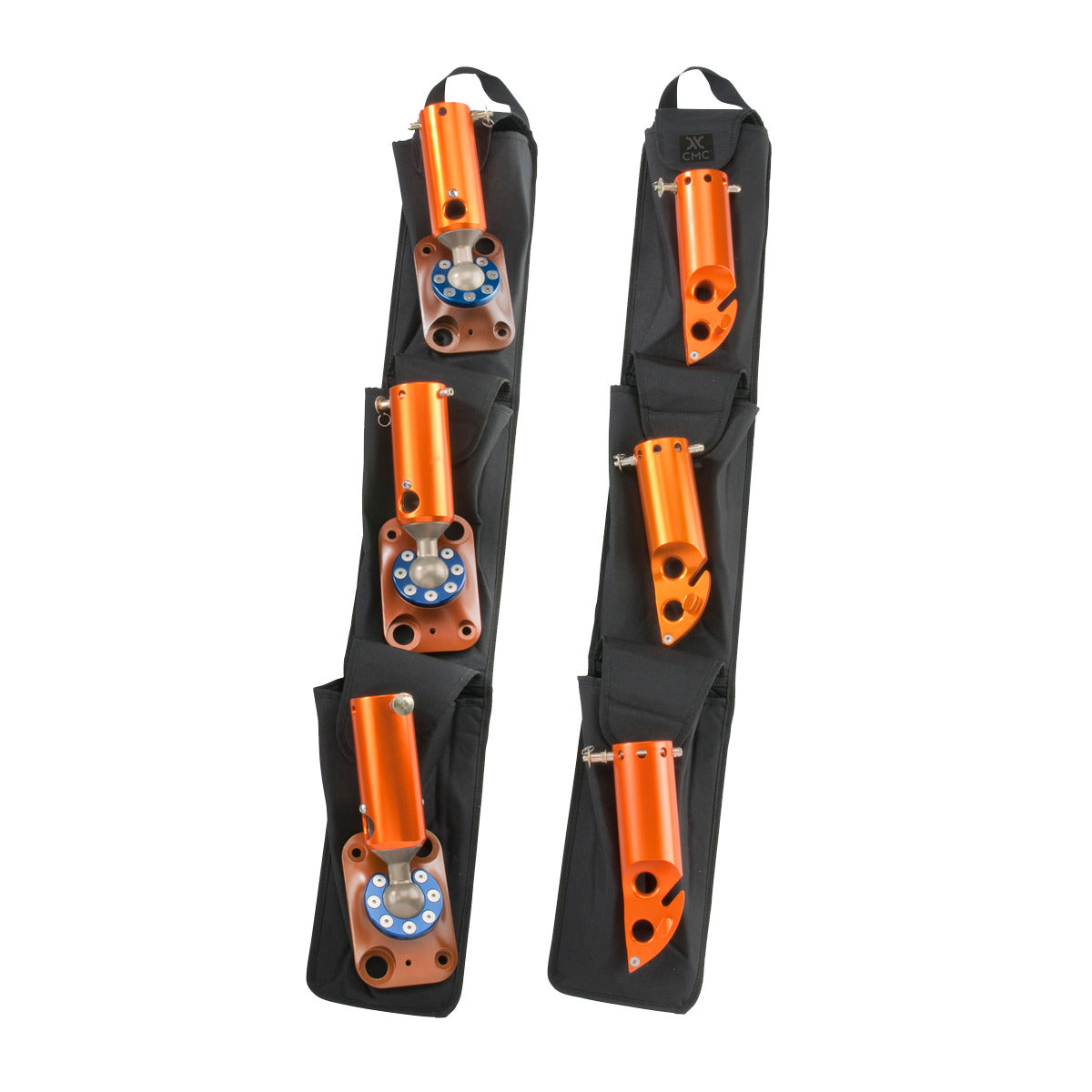

- Foot Set Sleeves (2)
- Pin Storage Bag
Model information
| Brand | CMC |
| Model | Arizona Vortex, Multipod Kit, Blue, Orange, Silver |
| MPN | 727300 |
