Description
First focal plane 1-10x low power variable optic for close-quarters and mid-range work on a semi-automatic rifle.

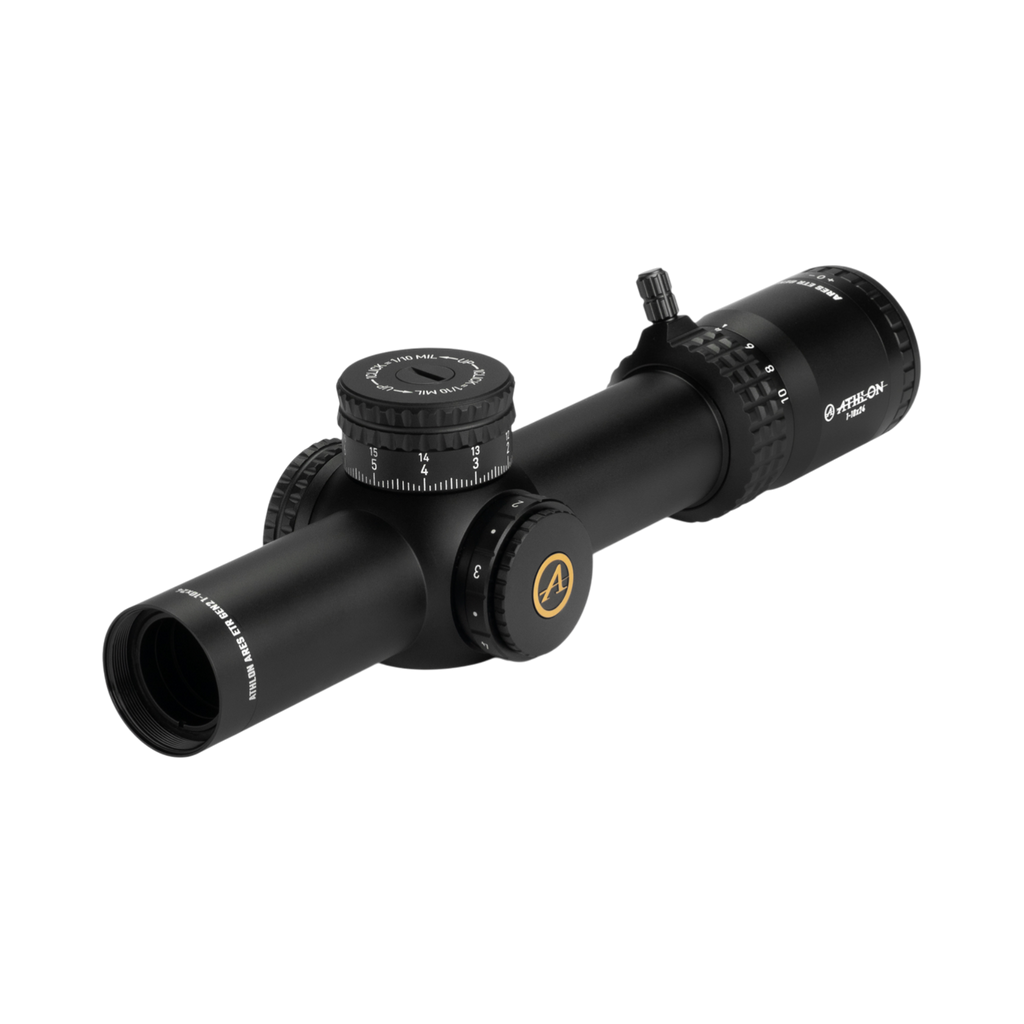

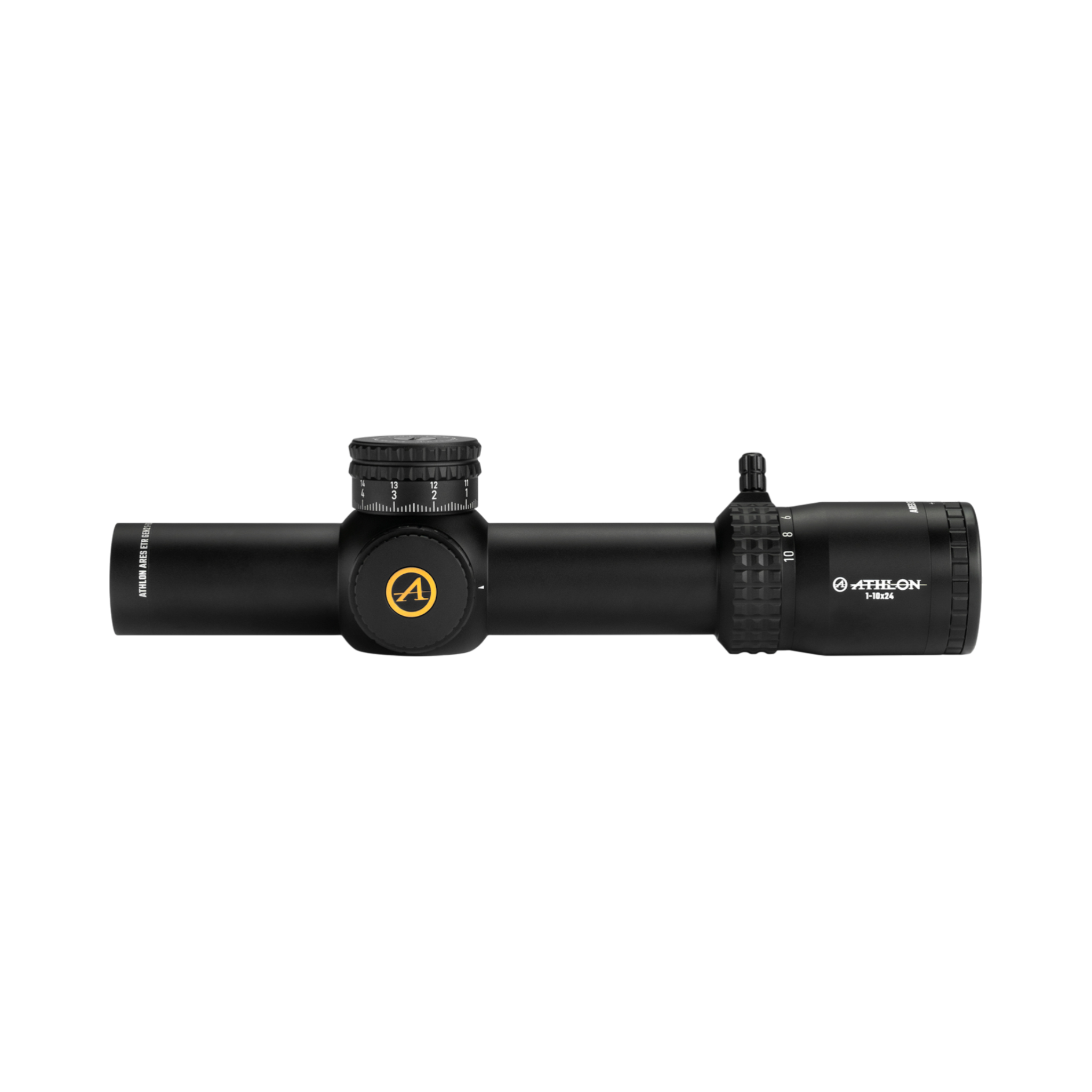

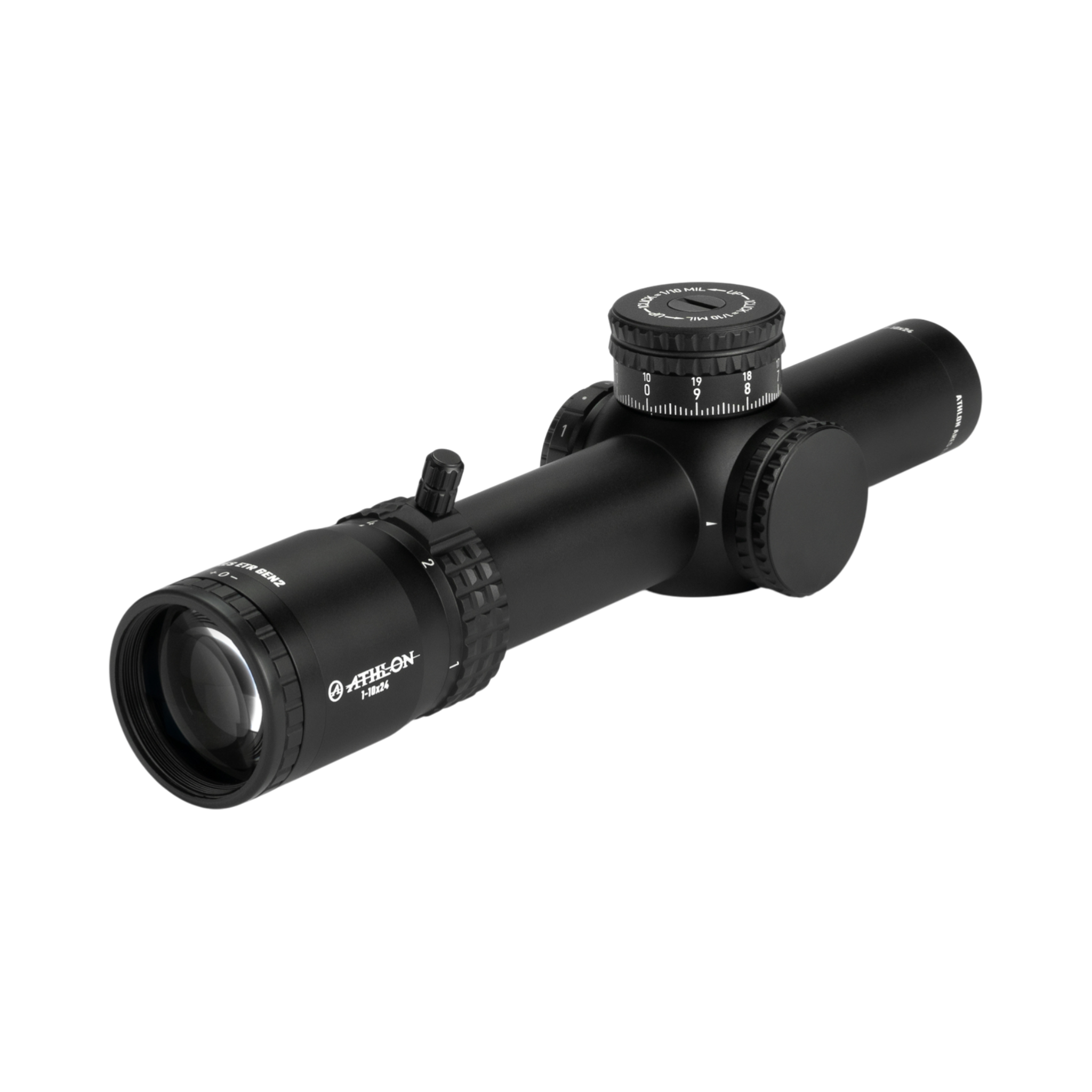

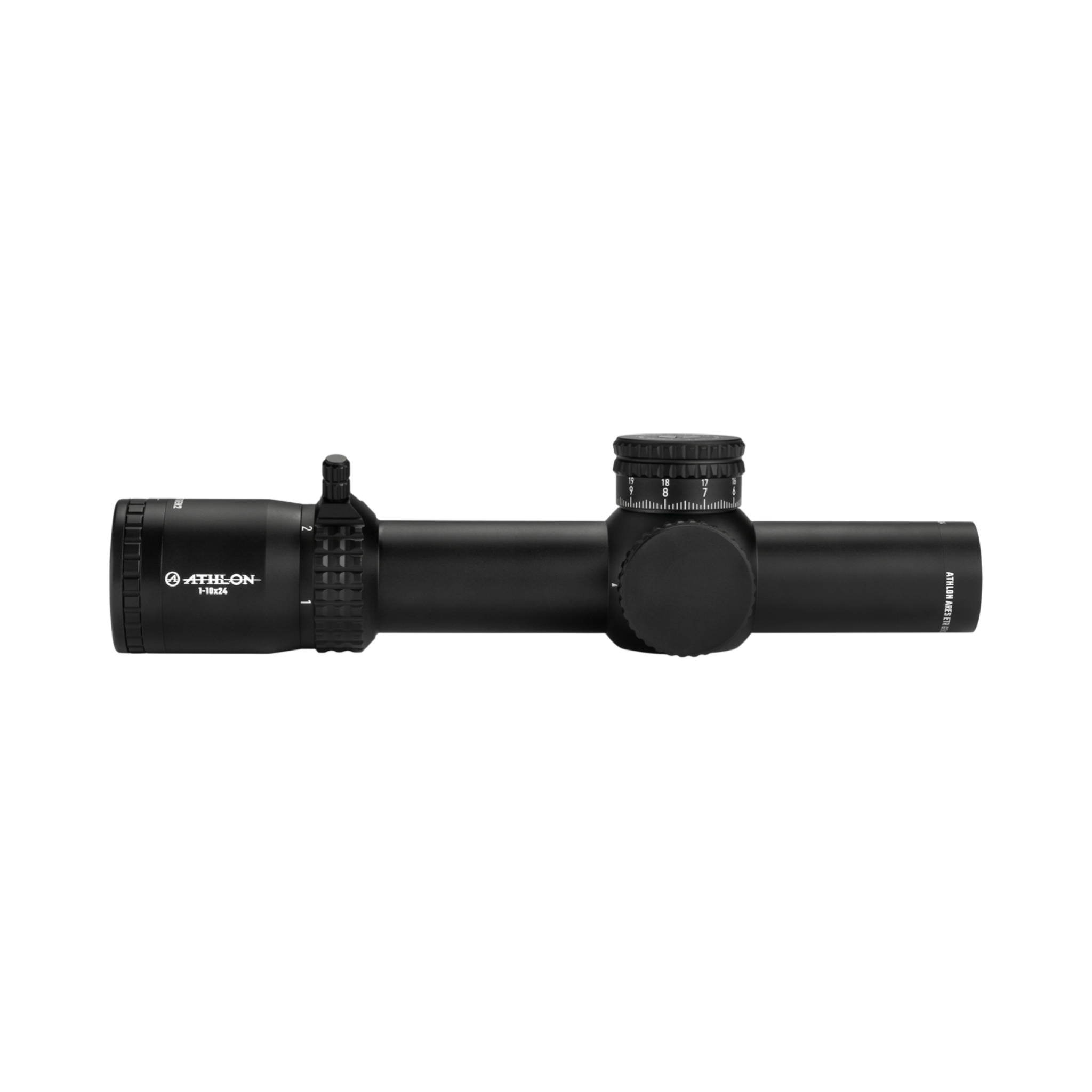

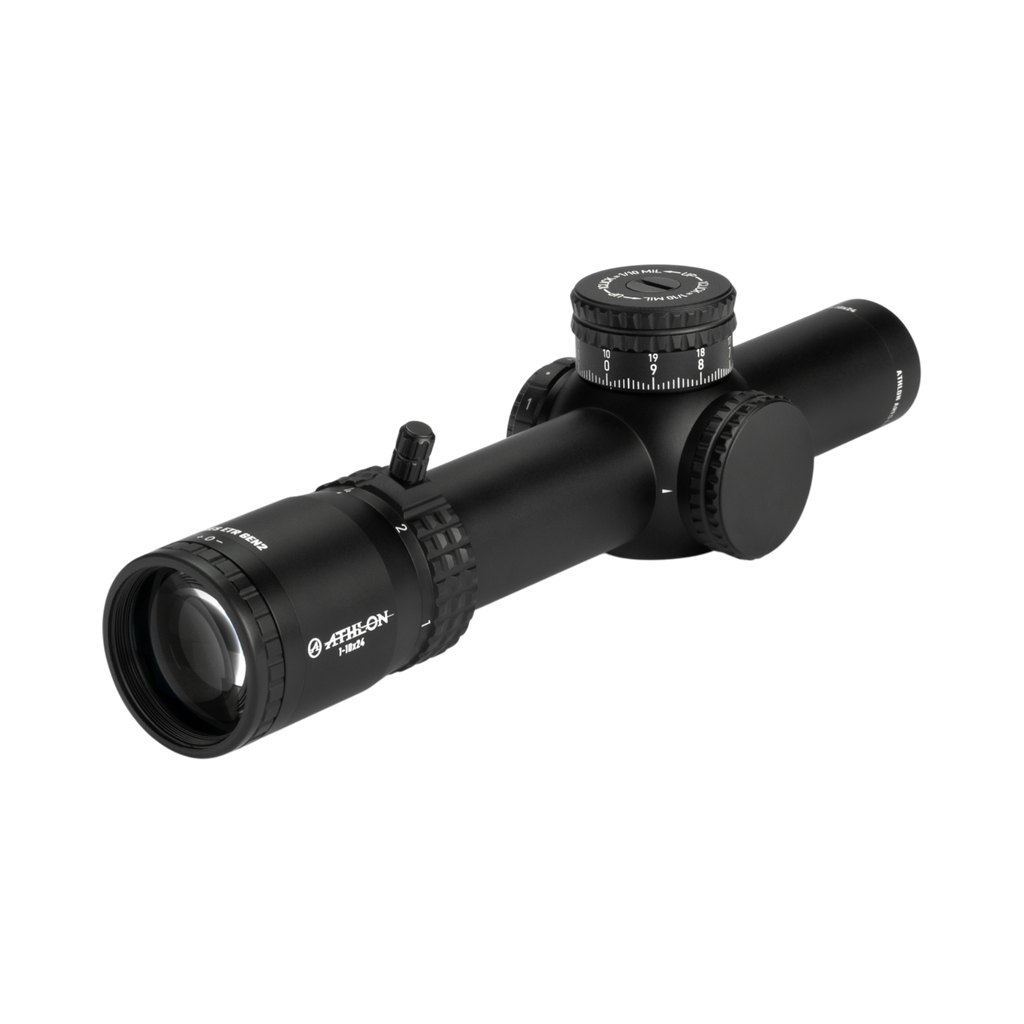

The Ares ETR GEN2 UHD 1-10x24 covers the range where a red dot runs out of precision and a conventional riflescope is too slow. At 1x the illuminated ATMR3 reticle behaves as an aiming dot for both-eyes-open shooting; wound up to 10x it resolves enough detail for deliberate shots well past the distance an LPVO is normally credited with.
The optic is built on a 34 mm one-piece aircraft-grade aluminium tube with UHD extra-low dispersion glass, and an exposed elevation turret with a precision zero stop and a locking feature — pull out to dial, push in to lock — so a dialled correction cannot be knocked off in handling.
Key features
- True 1x to 10x range — one optic for close-quarters engagement and mid-range precision.

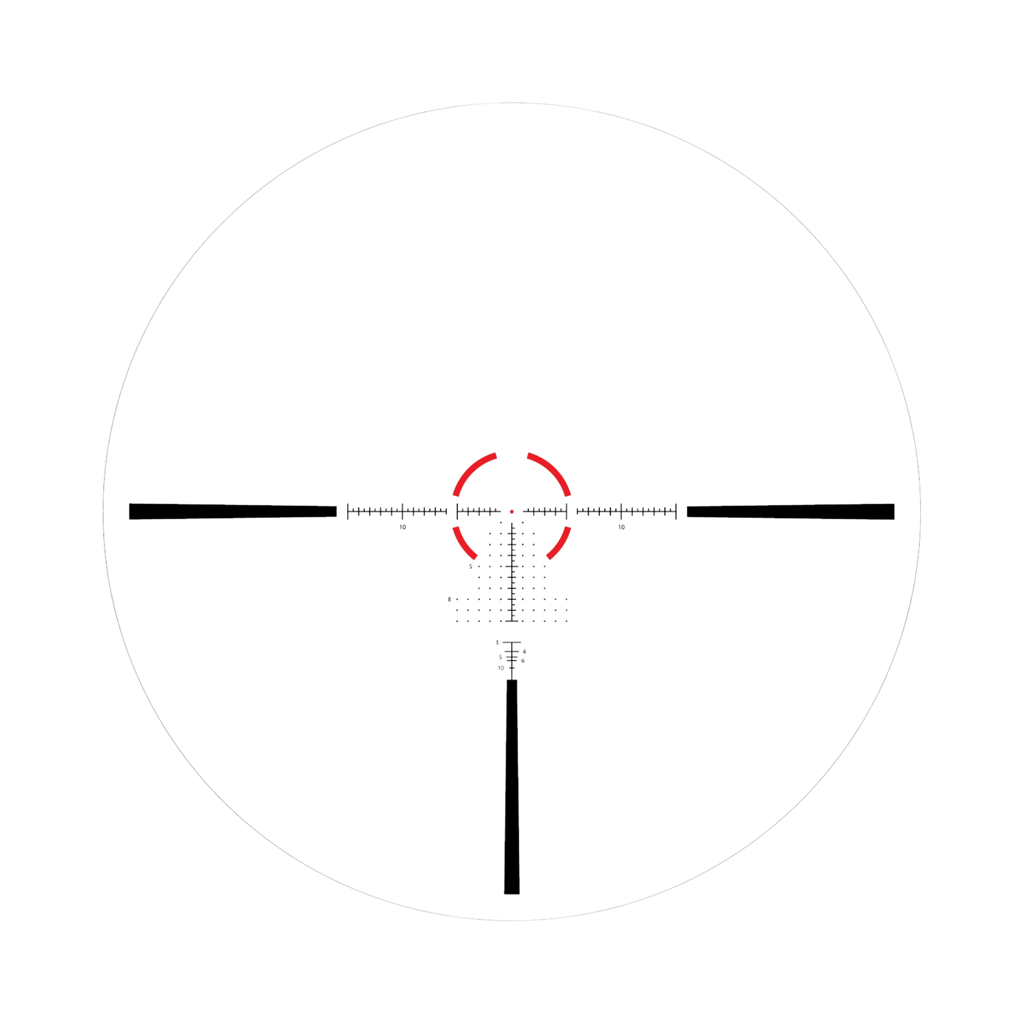

- ATMR3 FFP IR MIL reticle — illuminated 10 mil quartered ring with a 0.35 mil centre for fast acquisition at low power, holdover and windage subtensions appearing as magnification increases.
- Silhouette ranging tree — target ranging tree above the vertical post for range estimation without mil maths.
- Locking elevation turret — pull the knob out to dial, push it in to lock the setting; the windage knob is capped.
- Precision zero stop — returns the elevation turret to the original zero against a hard, defined stop.
- 0.1 mil clicks, 10 mil per rotation — 29 mil total elevation and 25 mil total windage travel.
- UHD extra-low dispersion glass — reduces chromatic fringing for a cleaner, higher-contrast image.
- Illuminated etched glass reticle — variable brightness settings powered by a CR2032 3 V lithium cell.
- Argon purged and sealed — waterproof, fog proof and shockproof, with XPL protective coating on the exterior lenses.
Typical applications
- Close-quarters and short-range engagement on a semi-automatic rifle
- Dynamic and practical rifle disciplines
- Law enforcement and duty carbine use
- Driven hunting and other fast, close-range shooting
- Mid-range target work where a compact optic is preferred
Technical specifications
| Model | Ares ETR GEN2 UHD 1-10x24 |
| Reticle | ATMR3 FFP IR MIL, illuminated etched glass |
| Focal plane | First focal plane (FFP) |
| Magnification | 1-10x |
| Objective lens | 24 mm |
| Tube diameter | 34 mm |
| Turrets | Exposed locking elevation turret, capped windage |
| Eye relief | 94 mm (3.7") |
| Field of view | 39.1–3.9 m at 100 m (117.3–11.7 ft at 100 yd) |
| Click value | 0.1 mil |
| Adjustment per rotation | 10 mil |
| Total elevation adjustment | 29 mil |
| Total windage adjustment | 25 mil |
| Parallax adjustment | Fixed at 91 m (100 yd) |
| Zero stop | Precision zero stop |
| Illumination power | 1 × CR2032 3 V lithium cell |
| Purging material | Argon |
| Sealing | Waterproof, fog proof, shockproof |
| Length | 254 mm (10.0") |
| Weight | 763 g (26.9 oz) |
| Tube construction | One-piece aircraft-grade aluminium |
| Lens coatings | Advanced fully multi-coated, XPL protective coating |
In the box
- 1 × Ares ETR GEN2 UHD 1-10x24 riflescope
- 1 × lens cloth
- Protective lens covers
Model information
| Brand | Athlon Optics |
| Model | Ares ETR GEN2 UHD 1-10x24 ATMR3 FFP IR MIL |
| MPN | 212110J |
