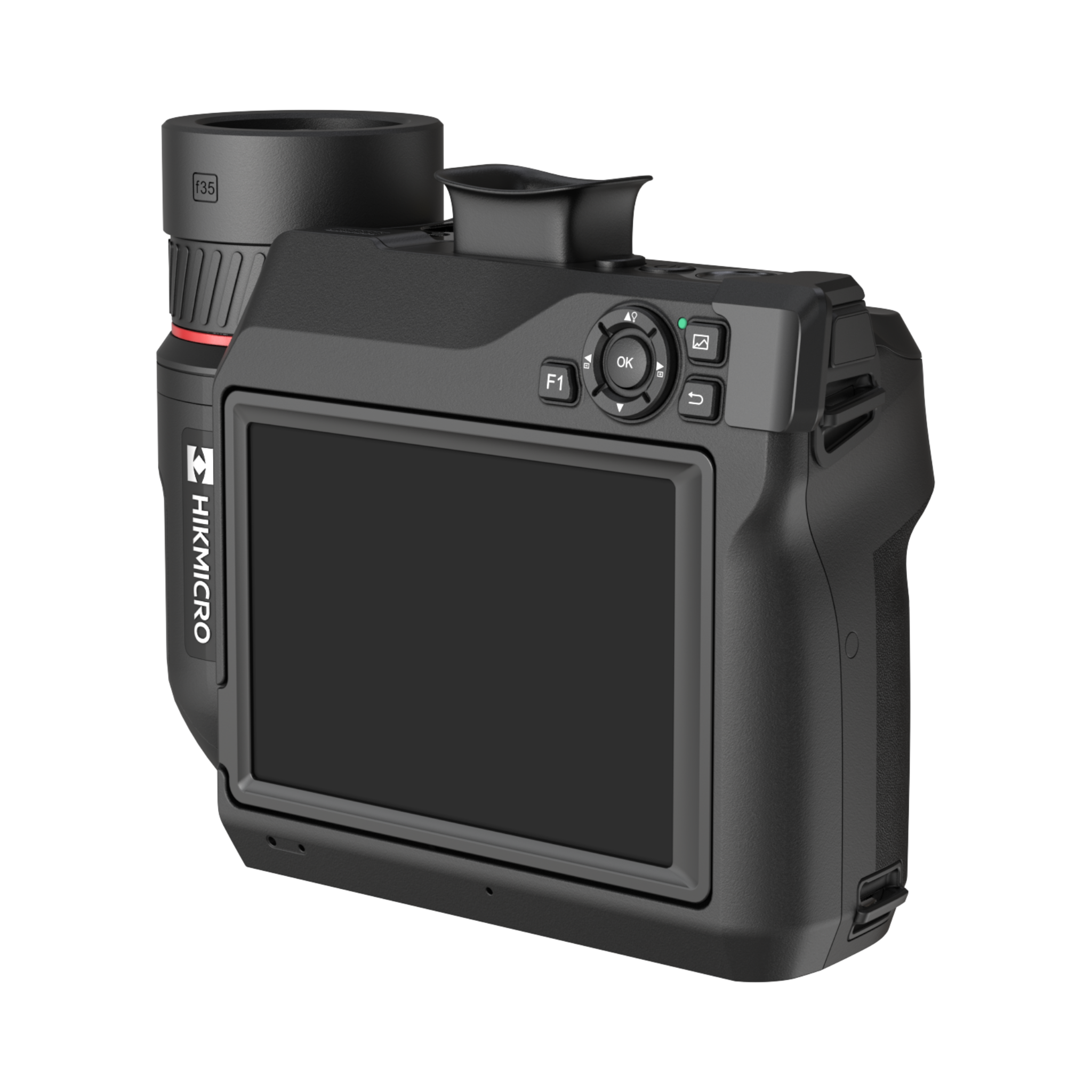

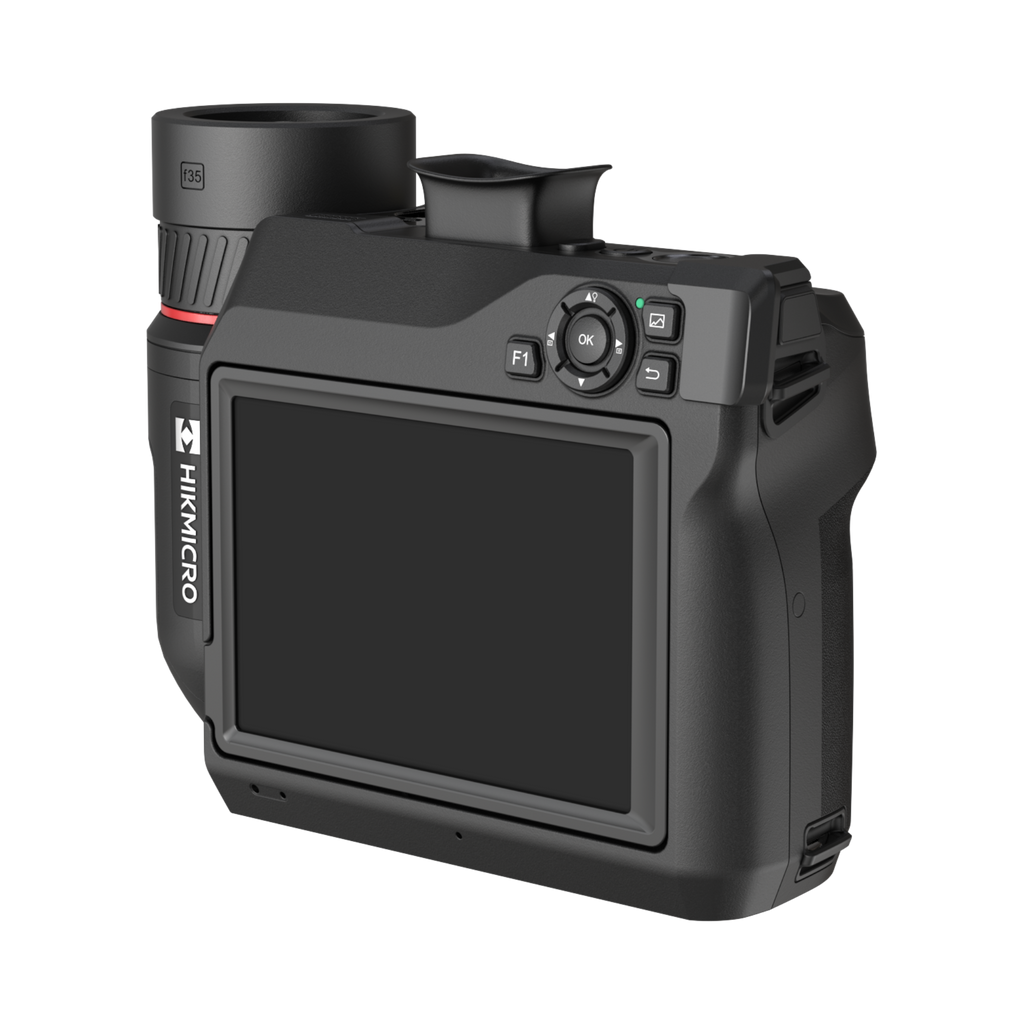

SP120H-L25, HM-TP9CH-W/W-SP120H-L25

Ultra-high-performance handheld thermography camera — 1280 × 1024, rotating lens, OLED viewfinder

The HIKMICRO SP120H is a top-tier inspection and reporting camera for industrial, predictive, oil and gas and utility maintenance work. A 1280 × 1024 detector with under 20 mK sensitivity feeds a 5-inch touchscreen and a 1024 × 768 OLED viewfinder, while the 180° rotating lens and 90° articulating screen let you image around, above and below equipment without moving into it. This configuration ships with the L25 lens, giving a 25° × 20° field of view.

Key features

• 1280 × 1024 (1,310,720 pixels) VOx detector — NETD < 20 mK, with SuperIR upscaling to 2560 × 2048
• High-Definition Thermal Detail — < 20 mK NETD, 12 µm detector pitch and 0.34 mrad IFOV combined for the finest detail in the range
• Supplied with the L25 lens (25° × 20°) — lenses are factory temperature-calibrated to the camera when ordered together — buying a lens separately later means sending both in for calibration
• One-second focusing, five modes — laser-assisted AF, continuous AF, AF, manual and touch AF
• 1024 × 768 OLED electronic viewfinder — usable in bright sunlight where an LCD washes out — the reason this model exists for outdoor work

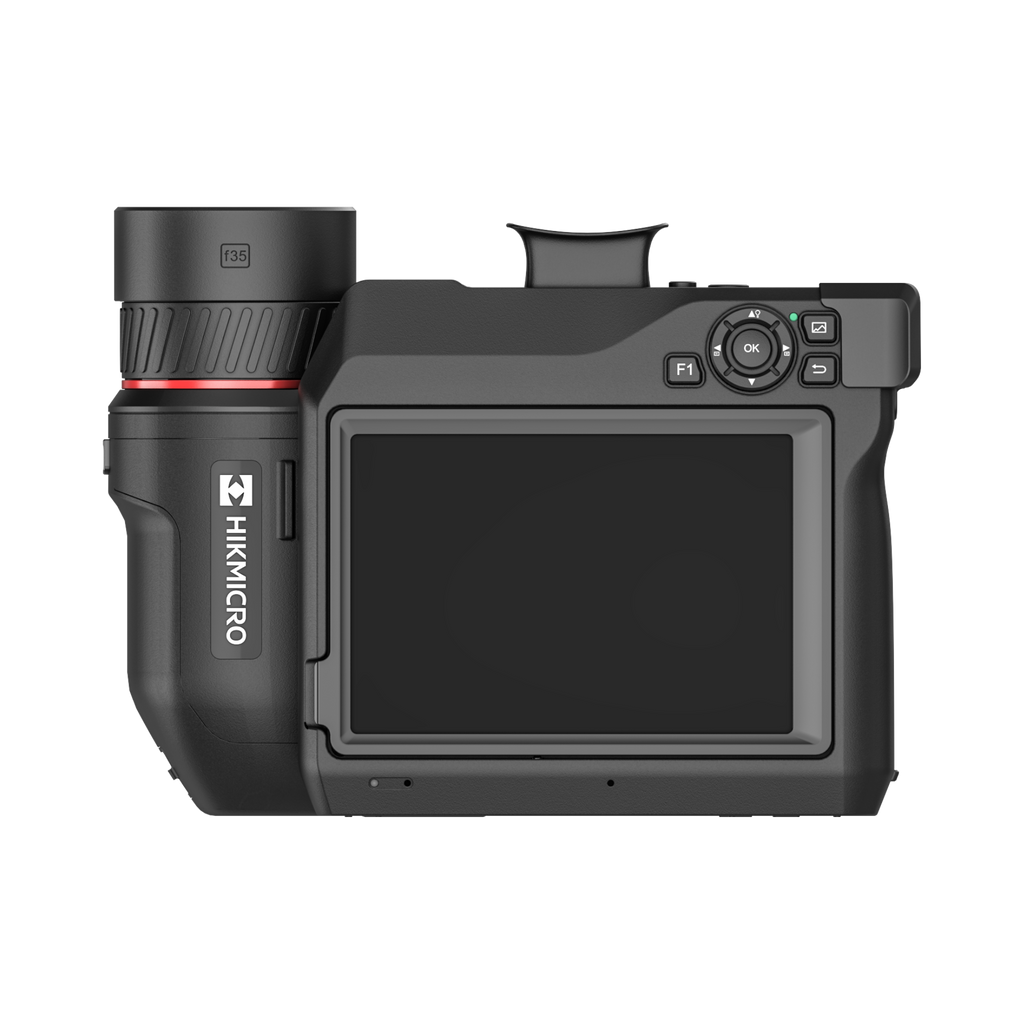

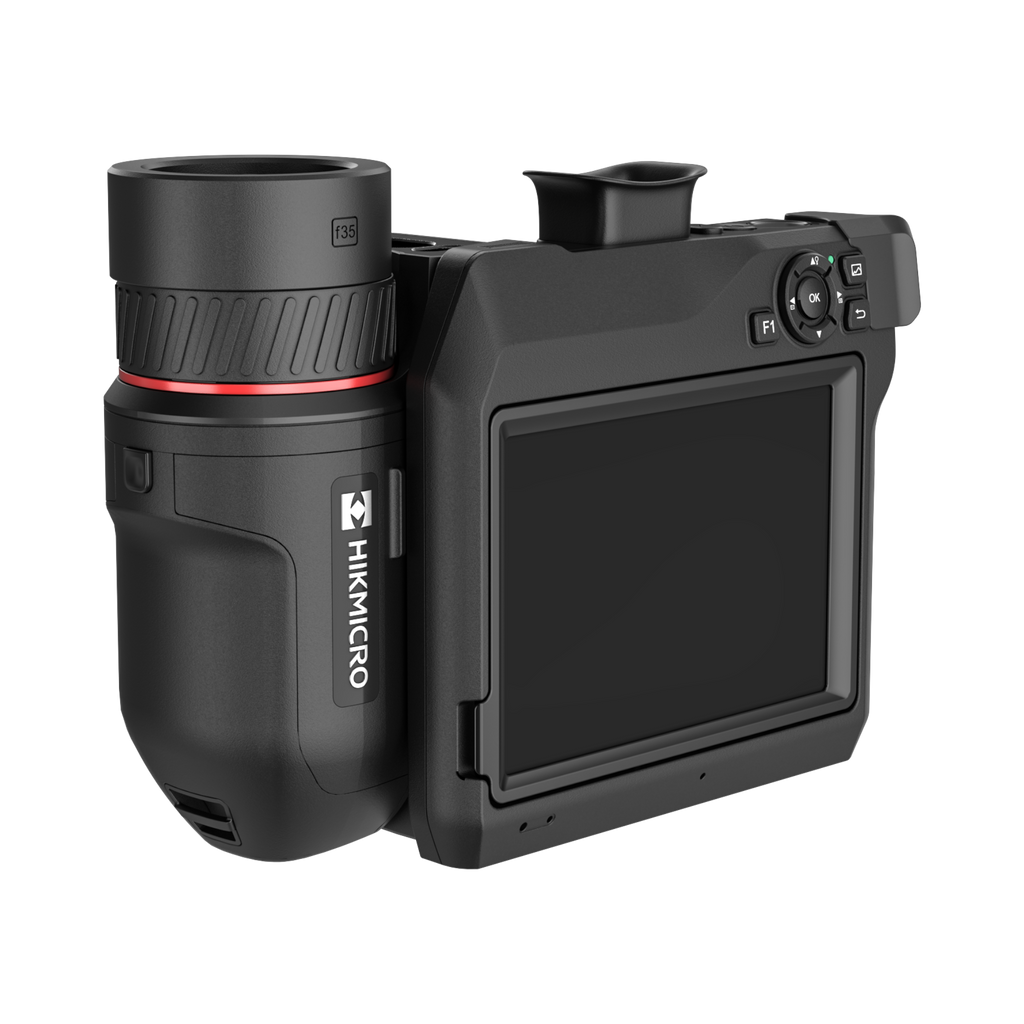

• 180° rotating lens and 90° articulating screen — look above, below or between equipment while standing somewhere safe
• −40 °C to 2200 °C measurement range — accuracy ±1 °C (0 to 100 °C); ±1 % (100 to 150 °C)
• Embedded laser distance meter — distance and area measured directly, which is what makes the reported figures defensible
• GPS, compass, voice, text and QR annotations — every image carries its own context into the report
• HIKMICRO Inspector route planning — pre-plan inspection routes on PC, load them to the camera, follow station to station
• Radiometric image and video recording — to the onboard SD card, for post-analysis in HIKMICRO Analyzer
• Two batteries and a dual-bay charger — with a hard carrying case, HDMI and USB-C

Typical applications

• Furnace, kiln and refractory monitoring
• Metal smelting, casting and forging
• Electrical utility and substation inspection
• Petrochemical and process plant surveys
• Preventive maintenance on rotating machinery
• Solar PV and transmission asset inspection
• Documented condition reports for asset owners

Technical specifications

In the box

• HIKMICRO SP120H thermography camera
• Lenses as per the ordered configuration
• Interchangeable Li-ion batteries (2 pcs)
• Two-bay battery charger
• Power supply with international plug set
• 64 GB SD card
• USB-C and HDMI cables
• Hand strap and neck strap
• Rubber viewfinder cap
• Hard carrying case
• Calibration certificate
• Quick start guide
