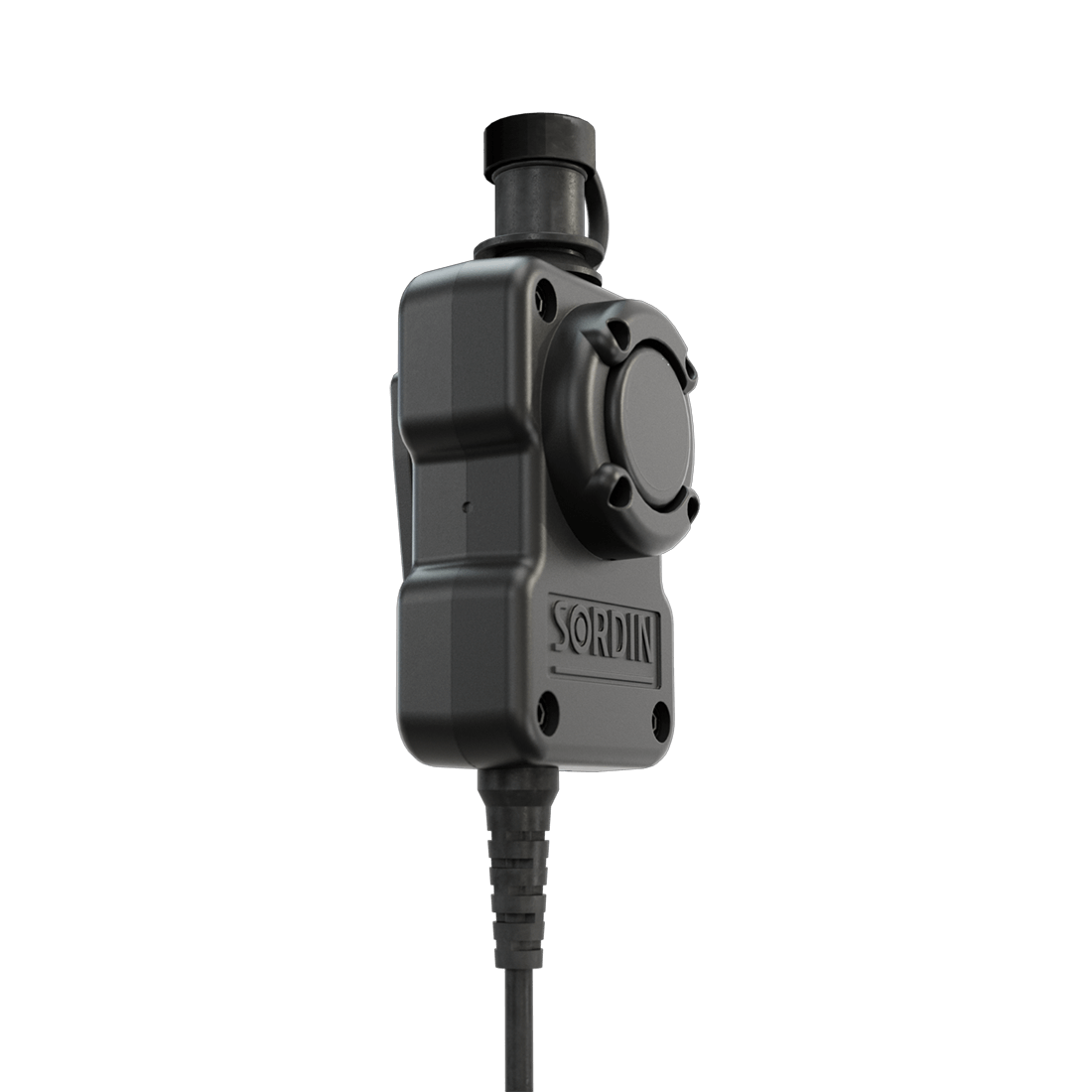

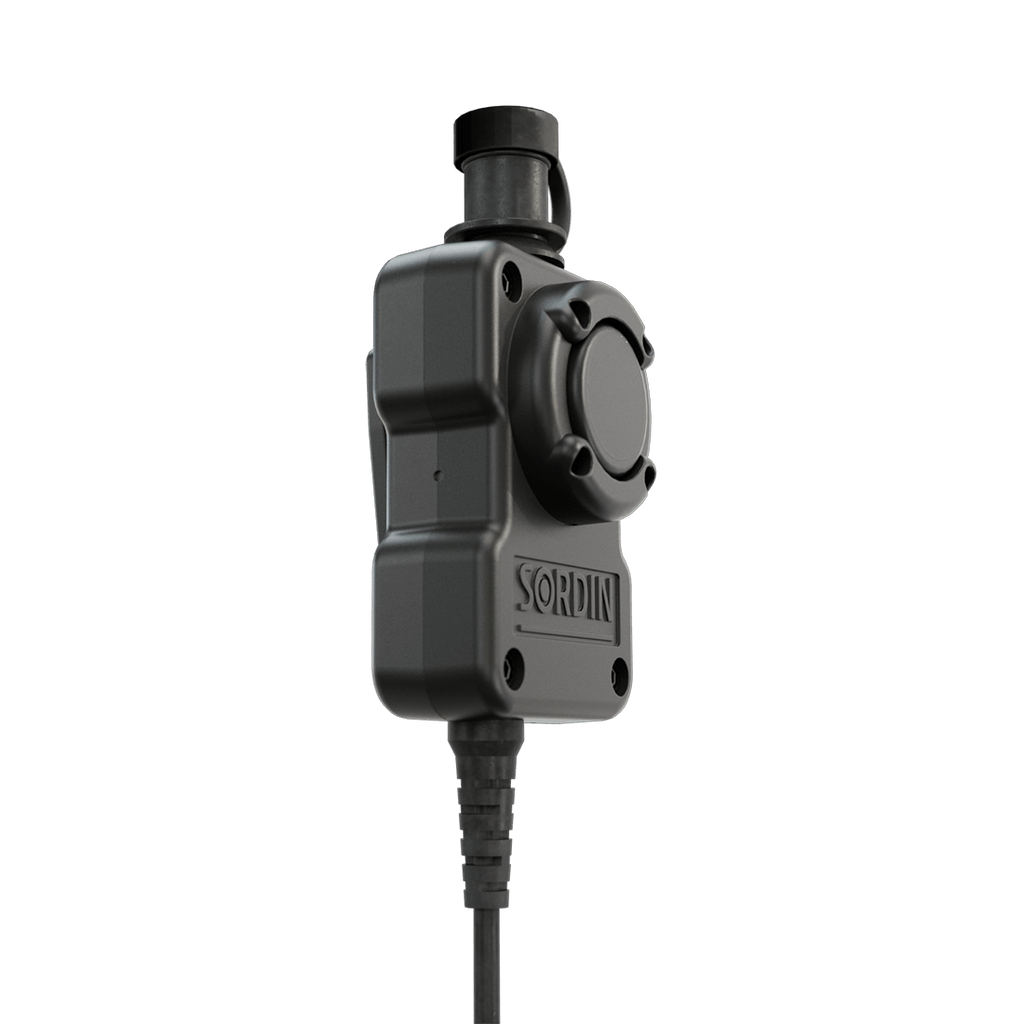

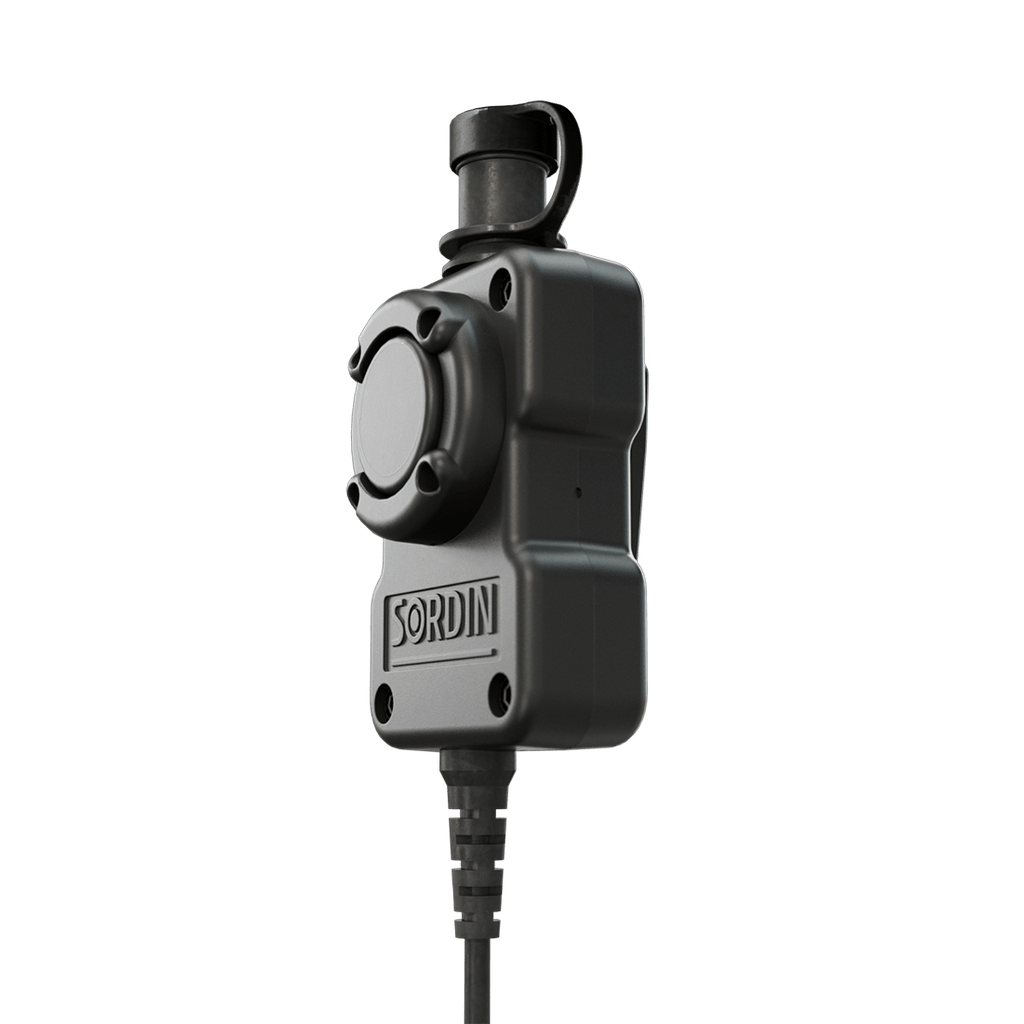

Splashproof single-com push-to-talk system with a KL131 radio interface for Hytera radios, made for compatible Sordin Supreme MIL communication headsets.
This splashproof single-com PTT is a push-to-talk system for compatible Sordin Supreme MIL communication headsets, built as a simple box for use with one communication radio or mobile phone.
It is supplied as a complete assembly with headset connector, PTT box, coiled downleads and radio interface, and this version carries the KL131 radio interface for Hytera.
The PTT is designed for Sordin communication headsets with a male 4-pole Ø7.2 mm connector (type TP-120), and its own headset connector is the female 4-pole Ø7.2 mm type (TJ-102) with Sordin wiring (US NATO).
Key features
- Splashproof PTT box — The rugged, splashproof design suits outdoor use in harsh weather conditions.
- Single-com operation — A simple single-com box connects one communication radio or mobile phone to the headset.
- Hytera radio interface — The KL131 radio interface is matched to Hytera radios, and the PTT is compatible with various two-way radios.

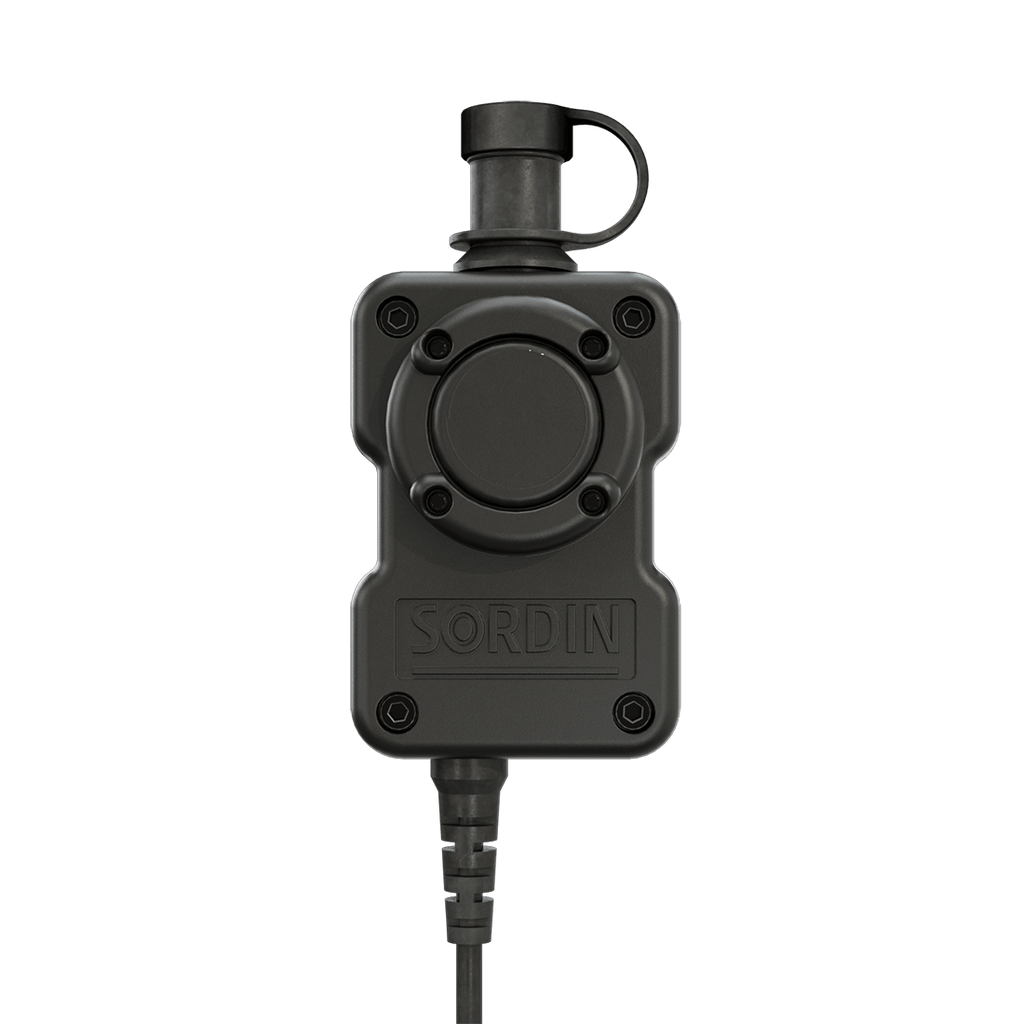

- Glove-friendly button — A large, easy to locate PTT button with a profile and tactile feedback suitable for gloved hands.
- Switch guard — A switch guard protects the PTT button from unintentional pressing.

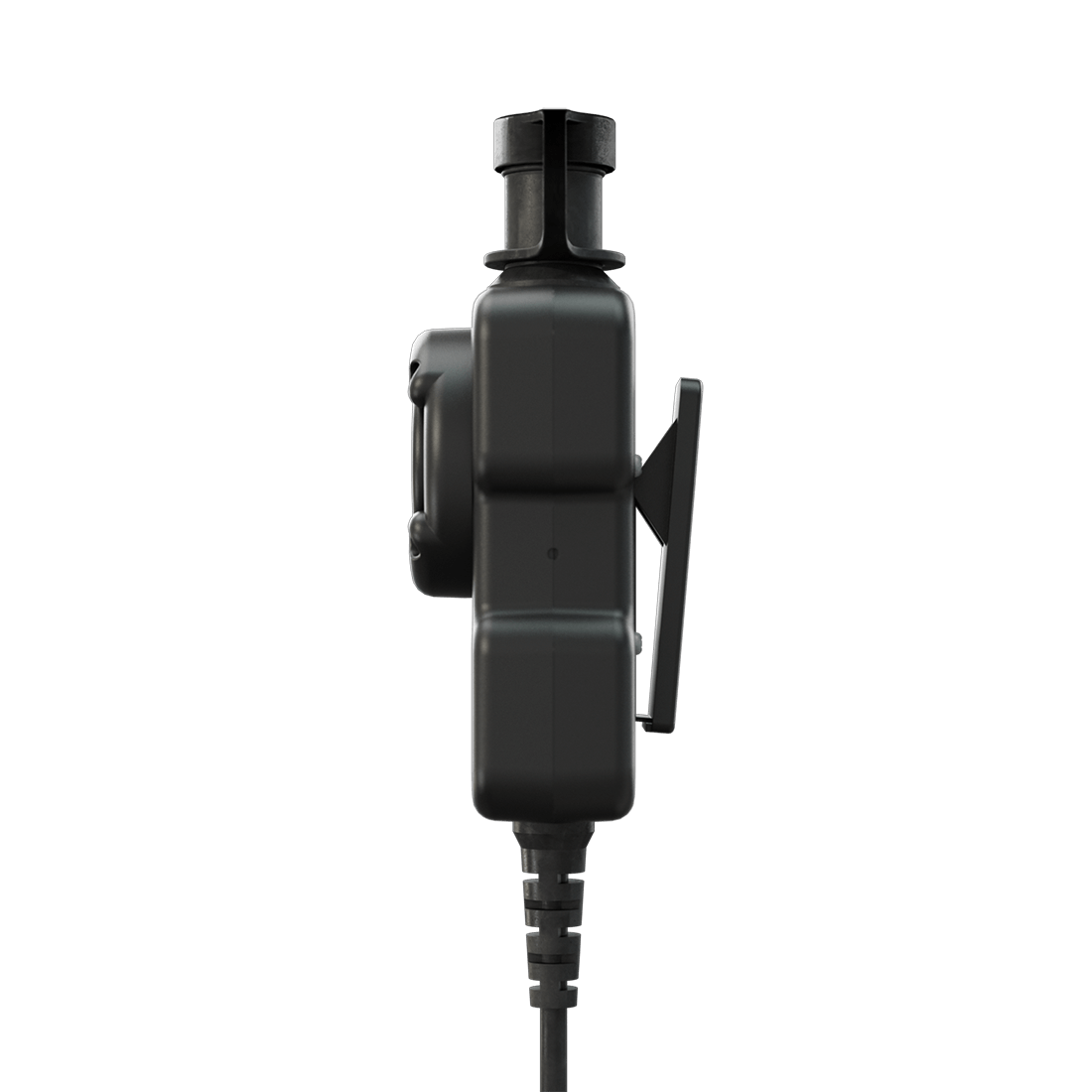

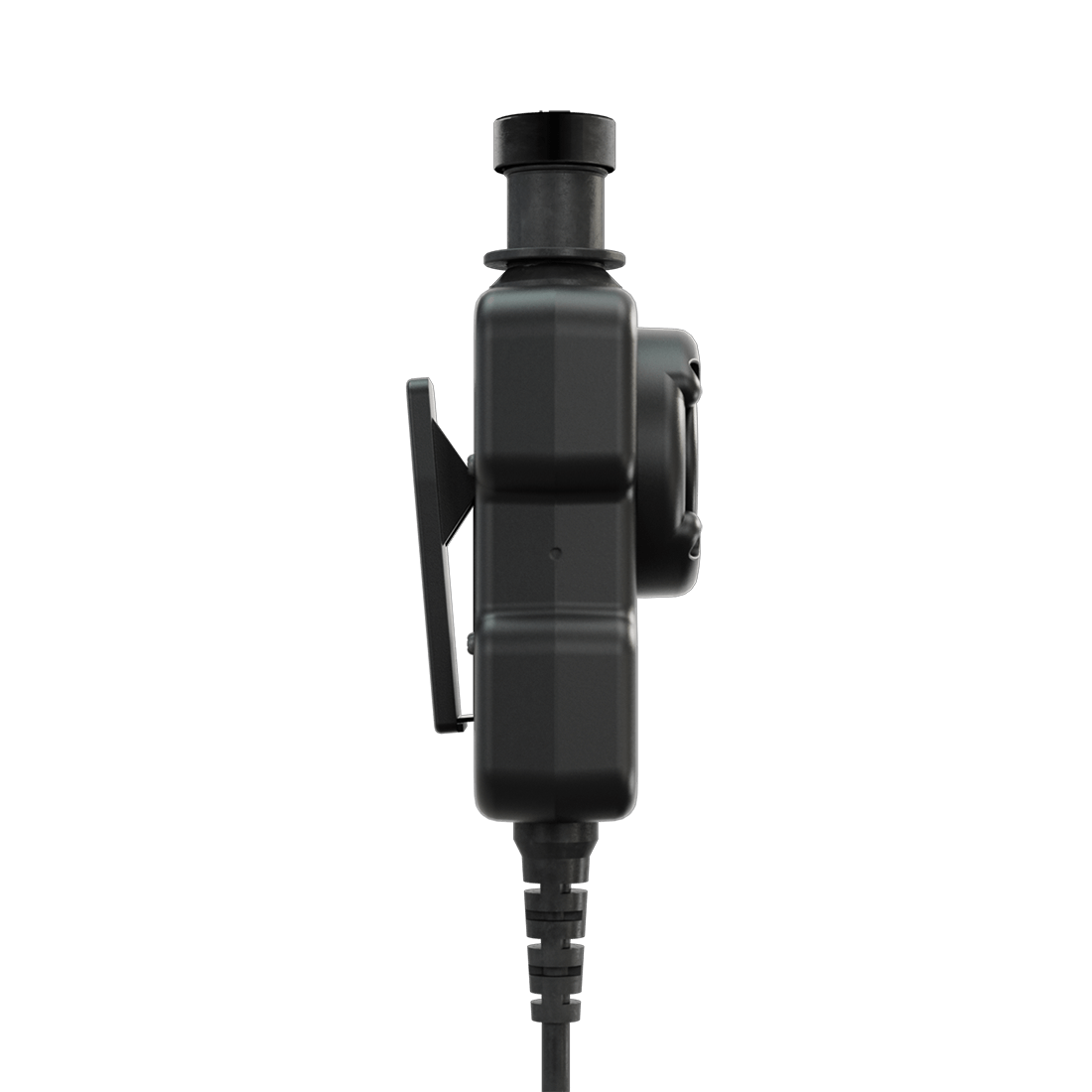

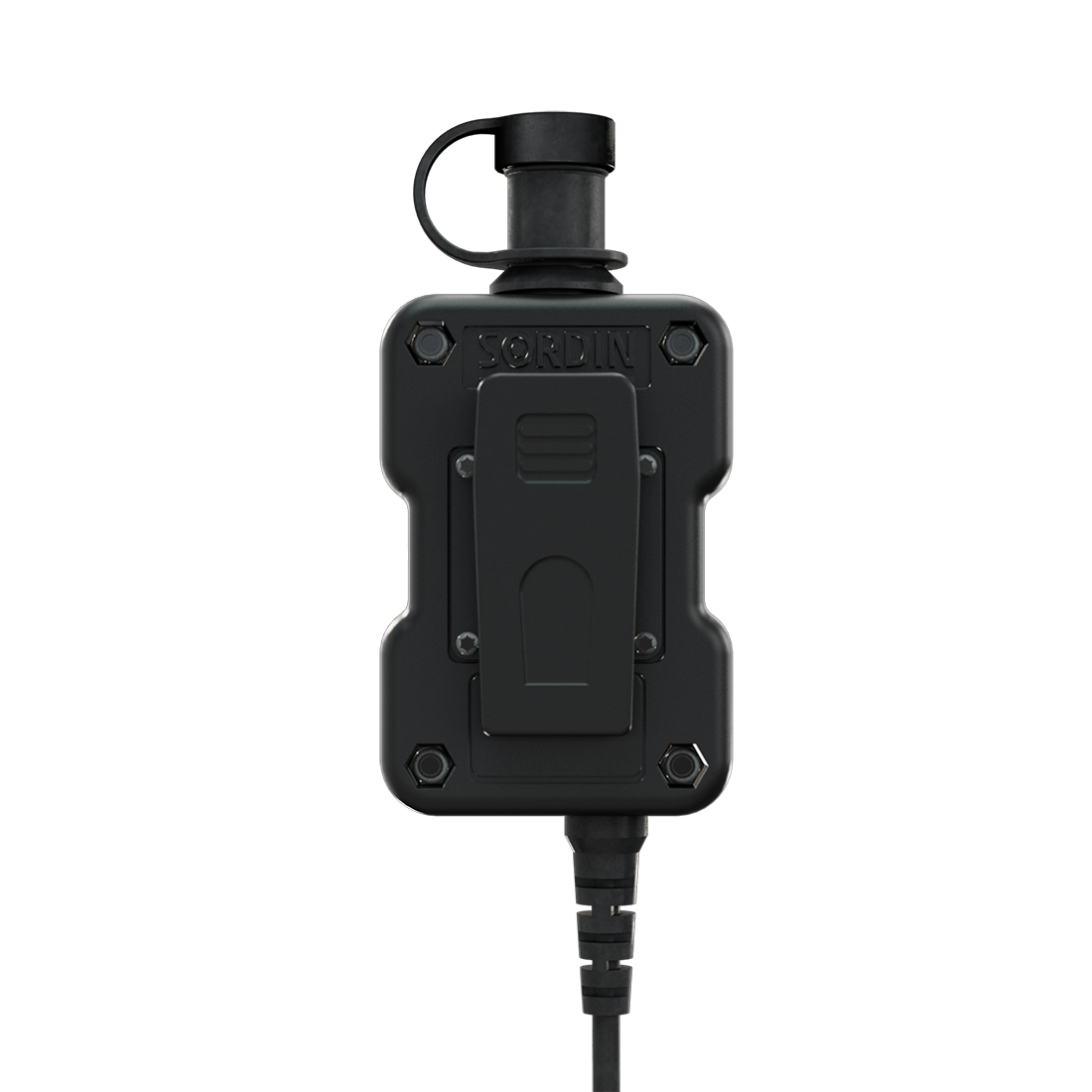

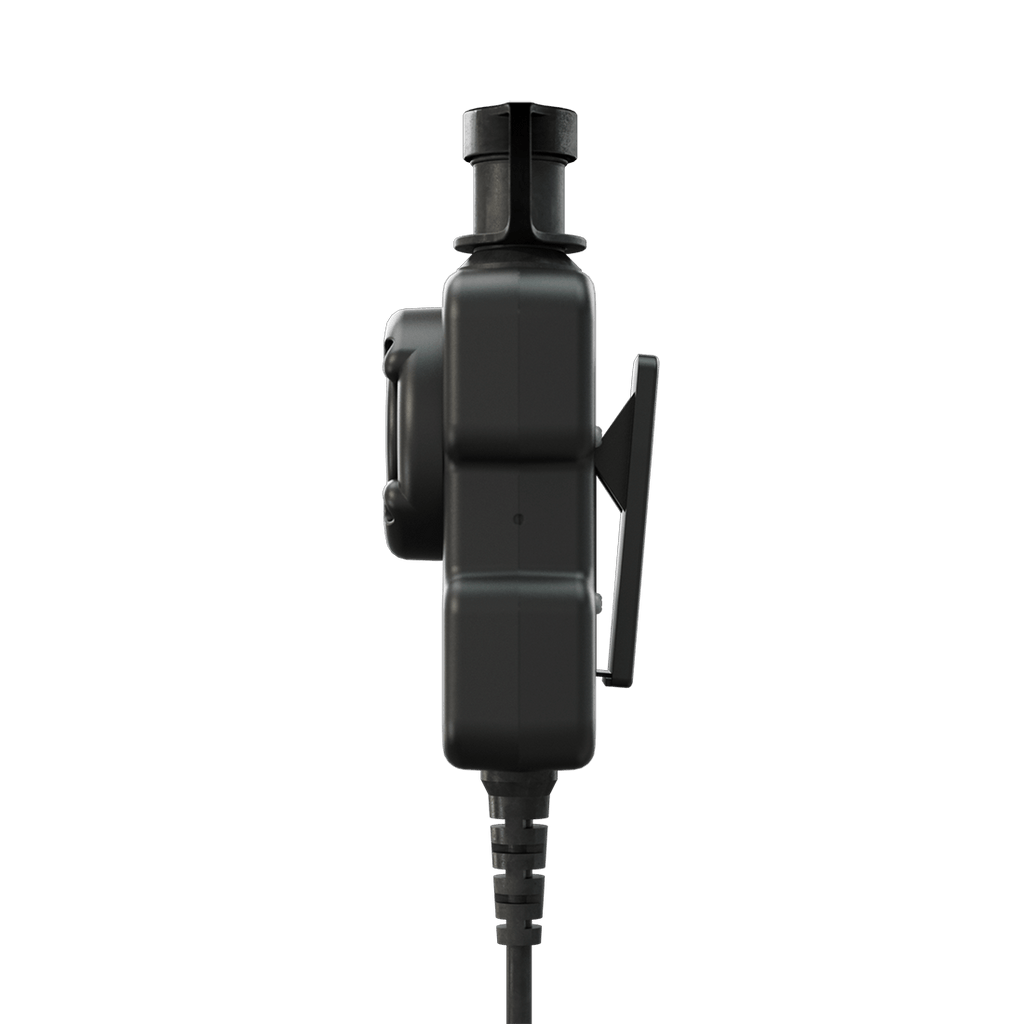

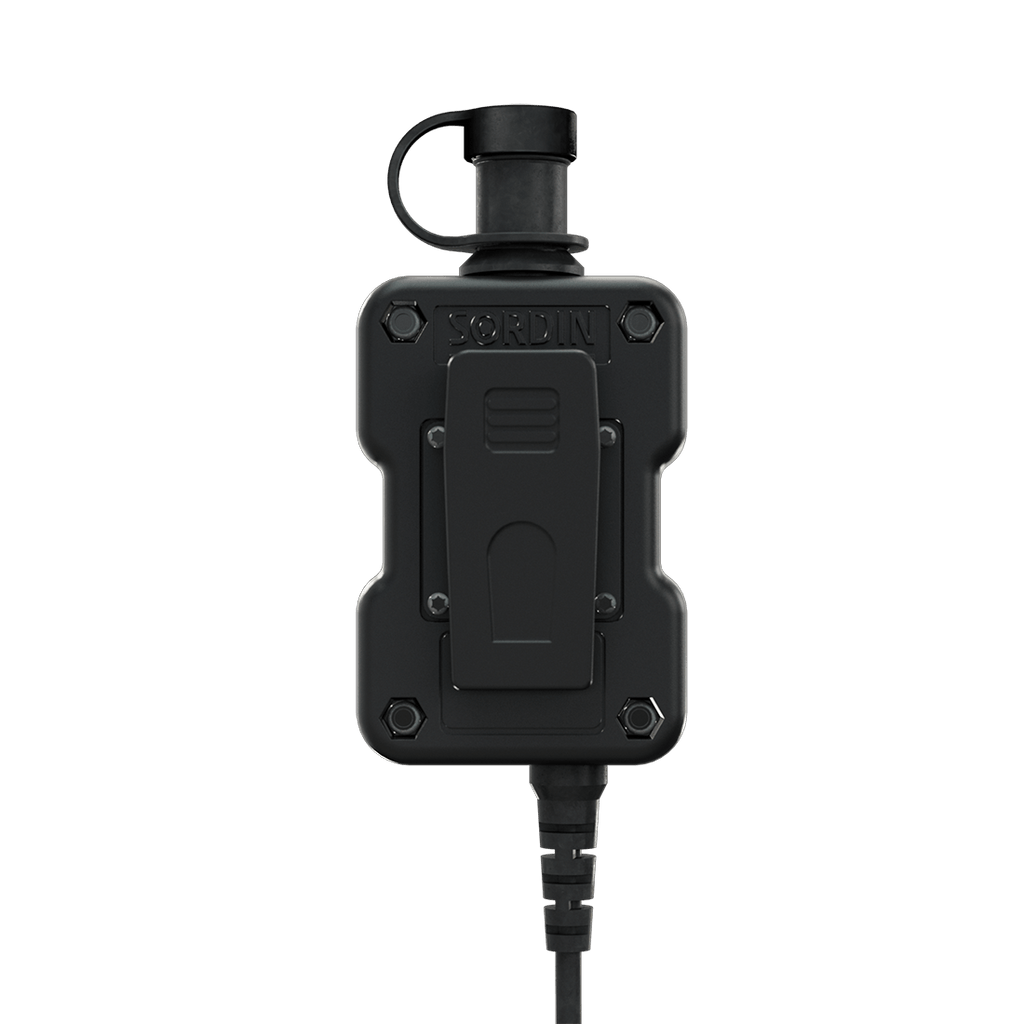

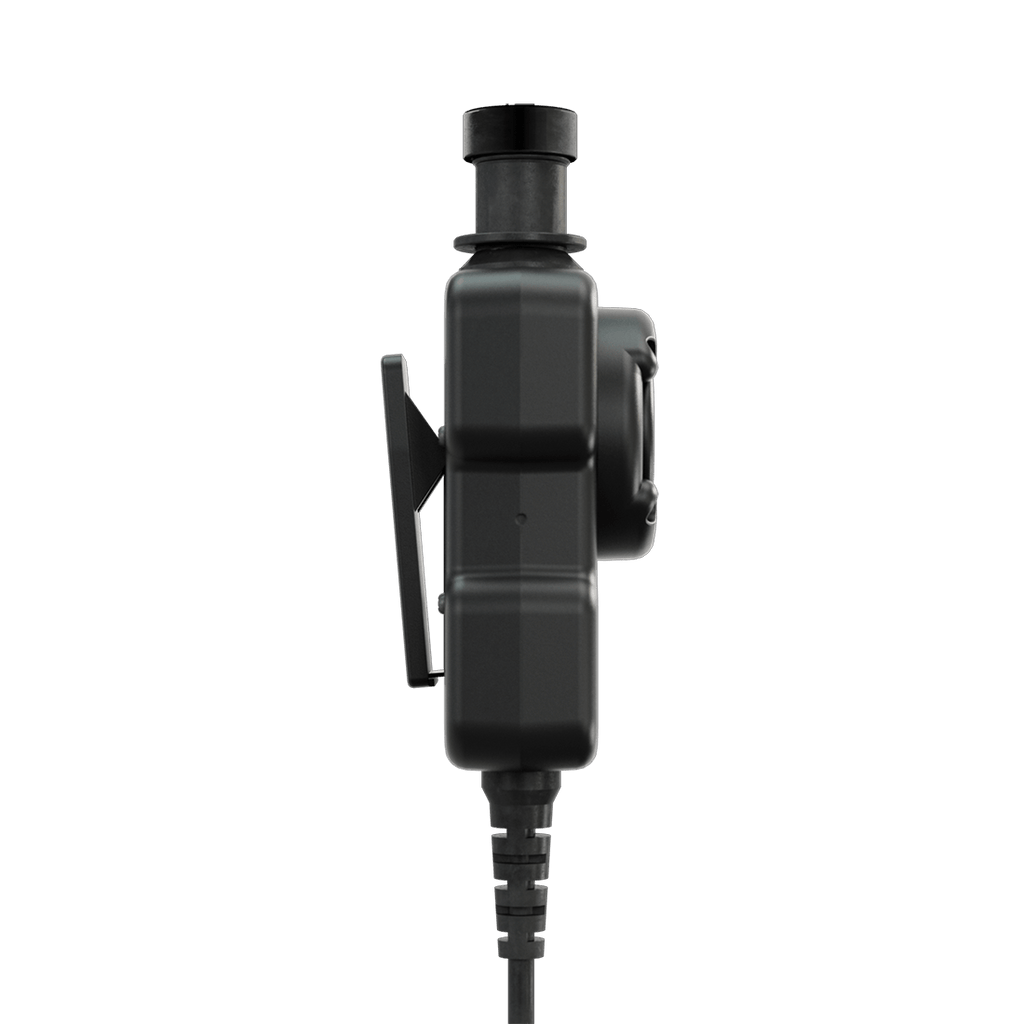

- Removable rotatable belt clip — The rotatable, removable belt clip attaches the box to a belt or to fastening systems such as MOLLE.
- Coiled heavy duty downlead — A coiled, heavy duty down lead links the box to the headset, with a coiled radio cable to the radio.
- Other TP-120 headsets — It can also be used with other headset brands that have a male 4-pole Ø7.2 mm connector (type TP-120) and correct wiring, which requires testing and verification.
Typical applications
- Radio communication in the field with a Sordin Supreme MIL headset, including in harsh outdoor weather.
- Gloved operation by police, security and military users who need a PTT button that is easy to locate.
- Body-worn use on a belt or on load-carrying systems through the removable belt clip.
Technical specifications
| Connector to headset | Female 4-pole Ø7.2 mm connector (type TJ-102) |
| Headset connector wiring | Sordin wiring (US NATO) |
| Radio cable | Coiled, Ø4 mm, L 600 mm to 1200 mm |
| Downlead | Coiled, heavy duty down lead. Length may vary between different radio interface but the average relaxed length is 0.4 metre with a 90% maximum extension to 1.4 metre |
| Water resistance | Splash proof for outdoor use in harsh weather conditions |
| Weight | 250 g (approx) - varies between different radio interfaces |
| Dimensions | 120 x 63 x 52 mm |
| Operating and storage temperature | -20°C to +50°C, < 85% RH |
| Approvals | RoHS directive 2011/65/EU |
| Radio interface | KL131 (Hytera) |
In the box
- 1 × PTT Single Com Splashproof – Supreme MIL
Model information
| Brand | Sordin |
| Model | PTT Single com Splash Proof KL131 (Hytera) |
| MPN | 75906-131-S |
