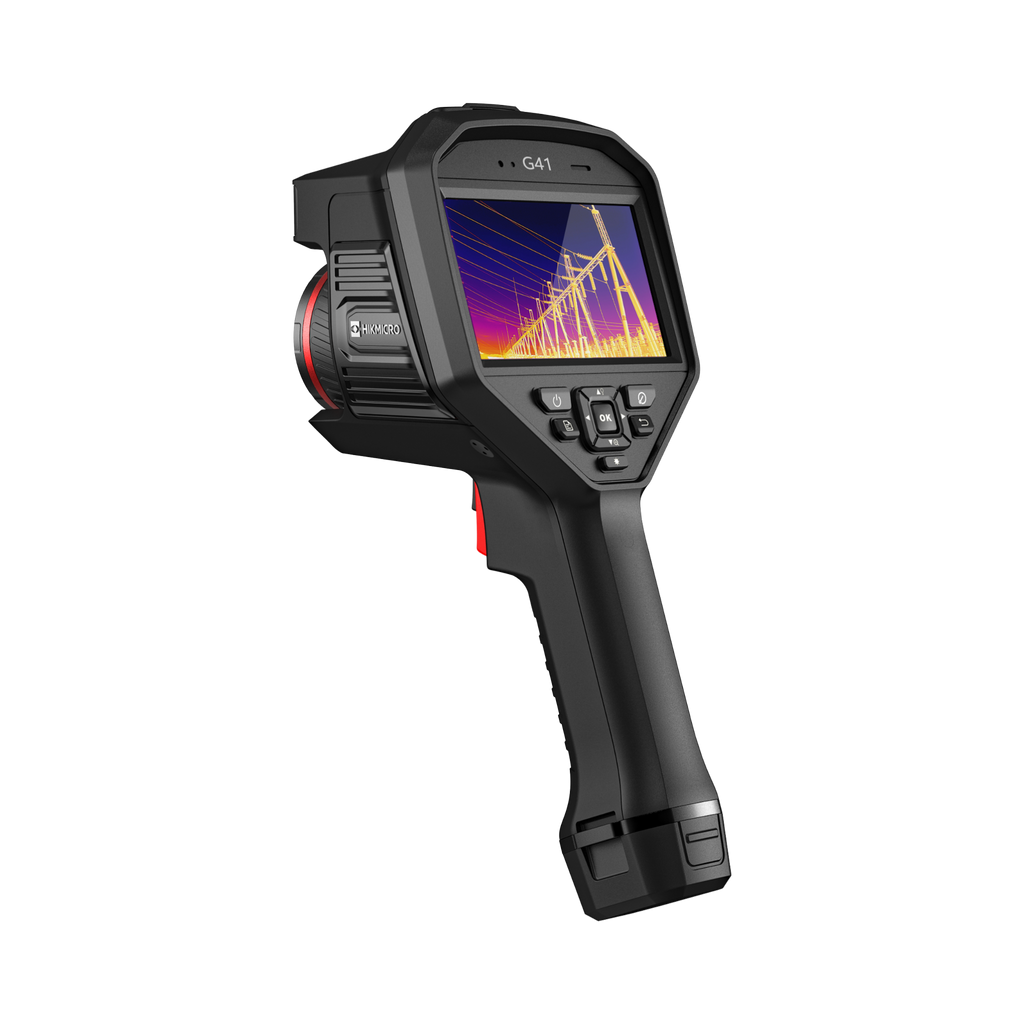

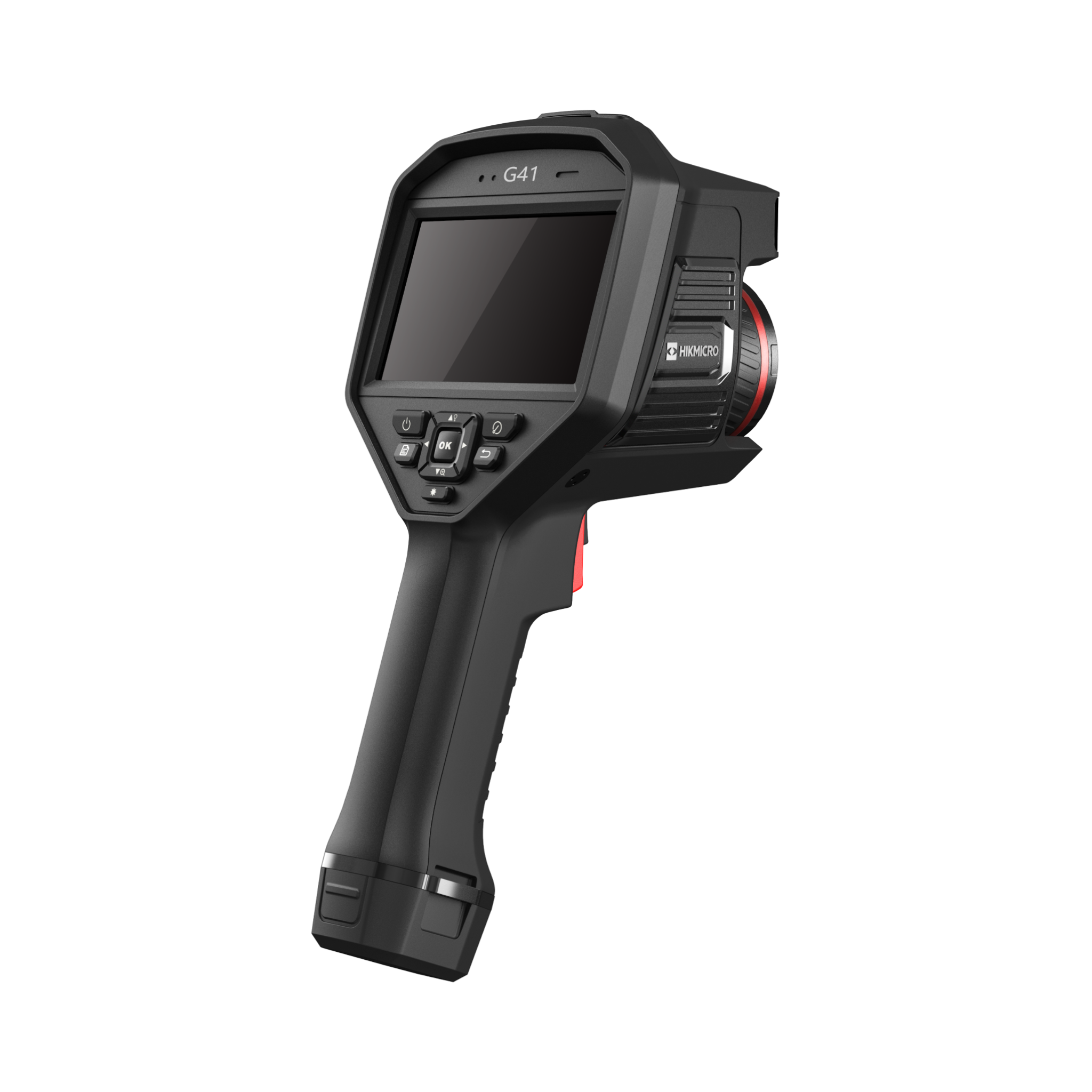

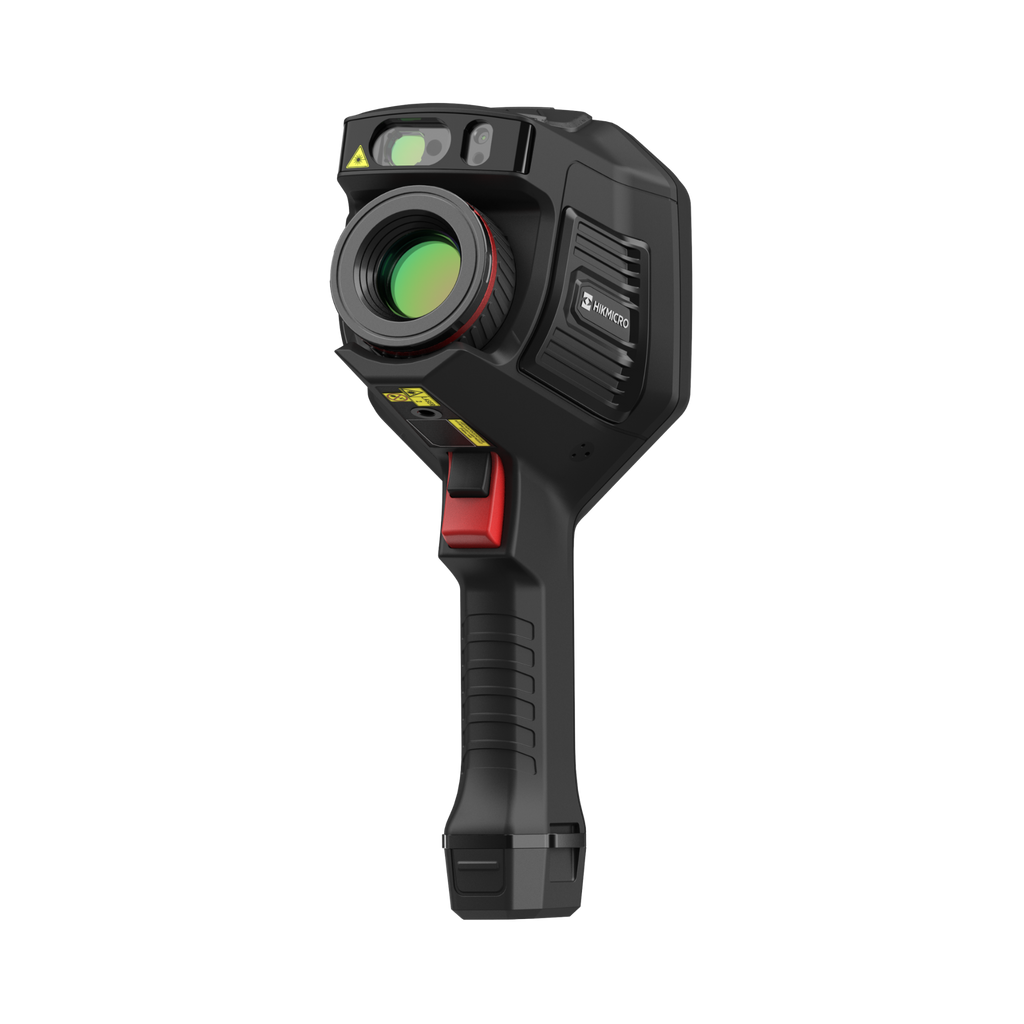

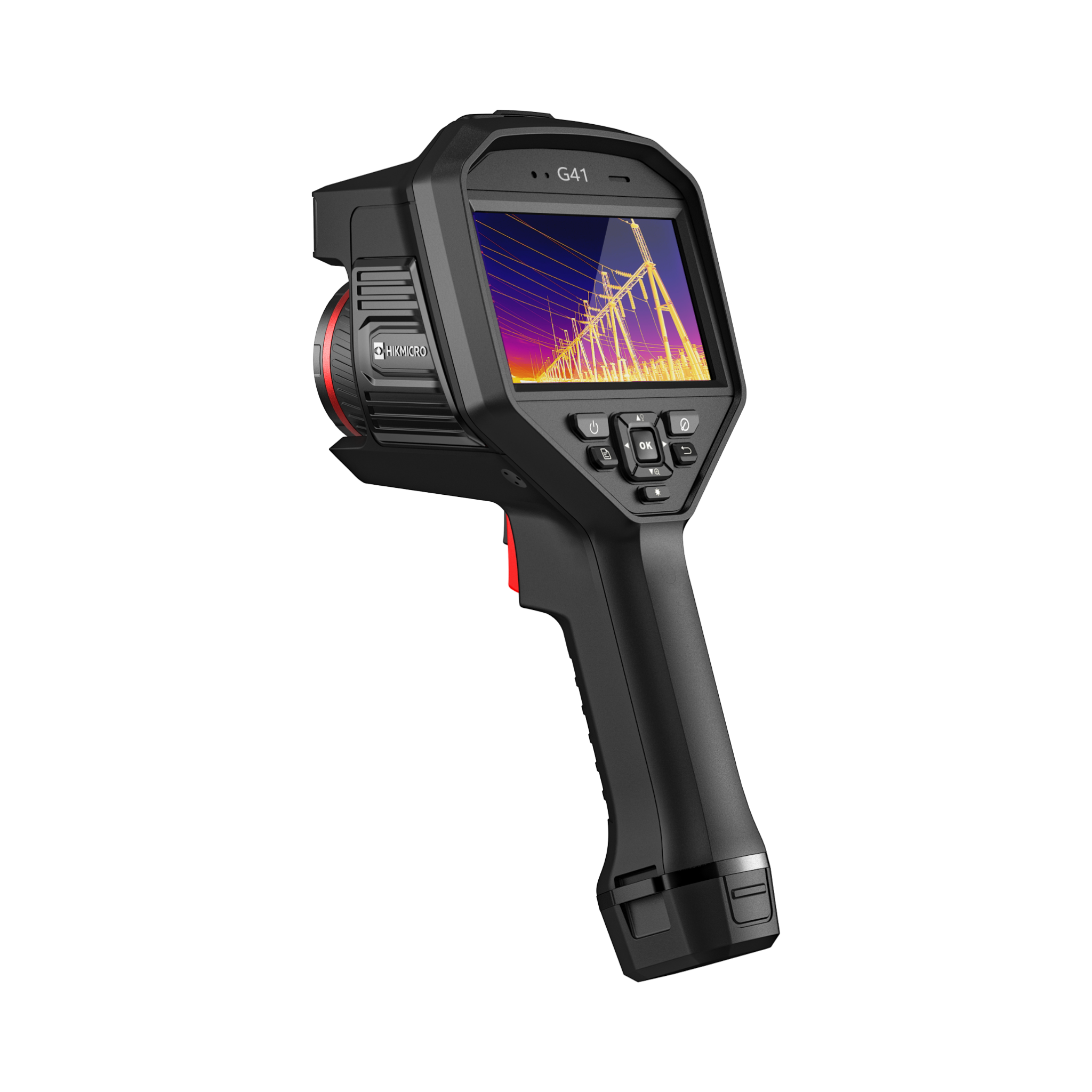

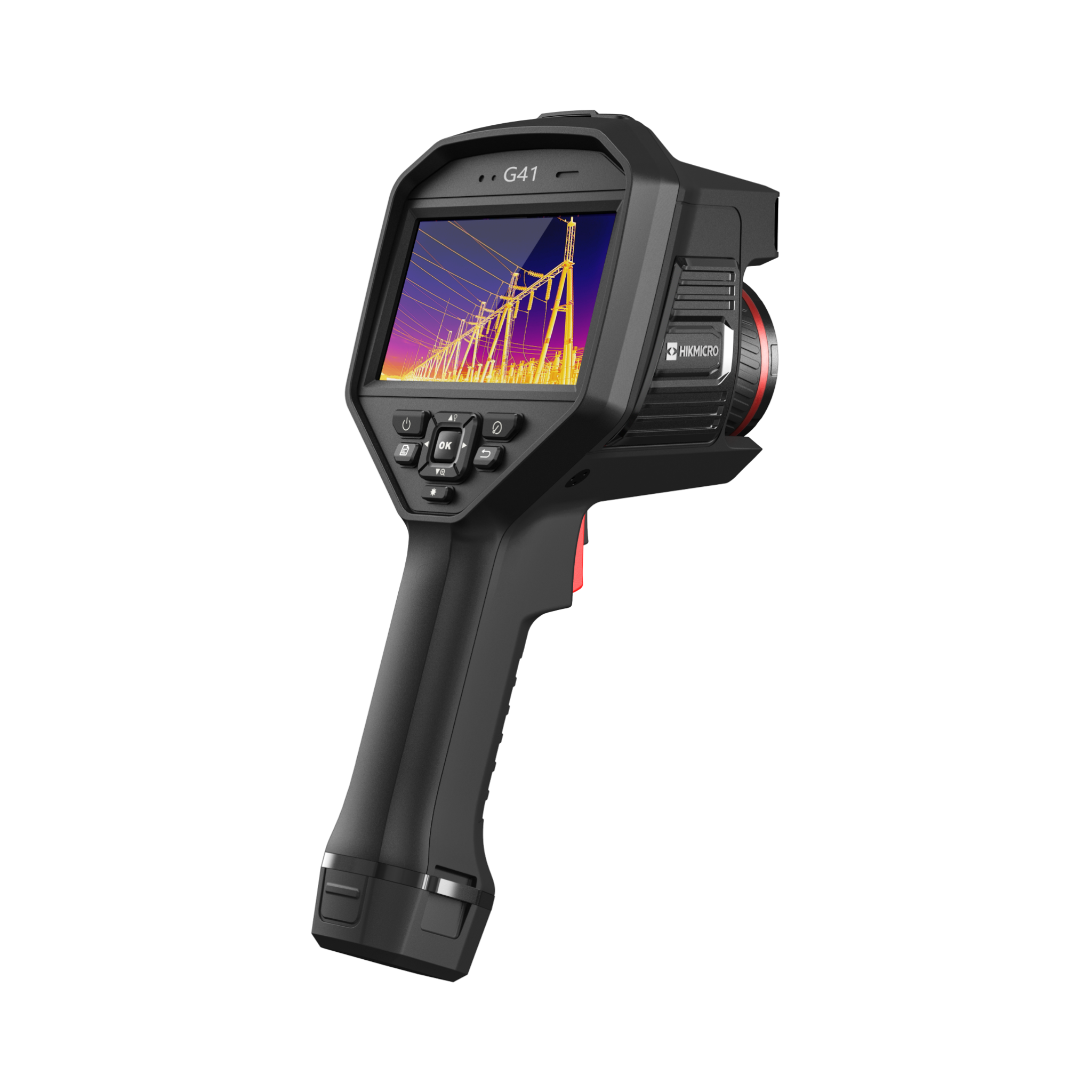

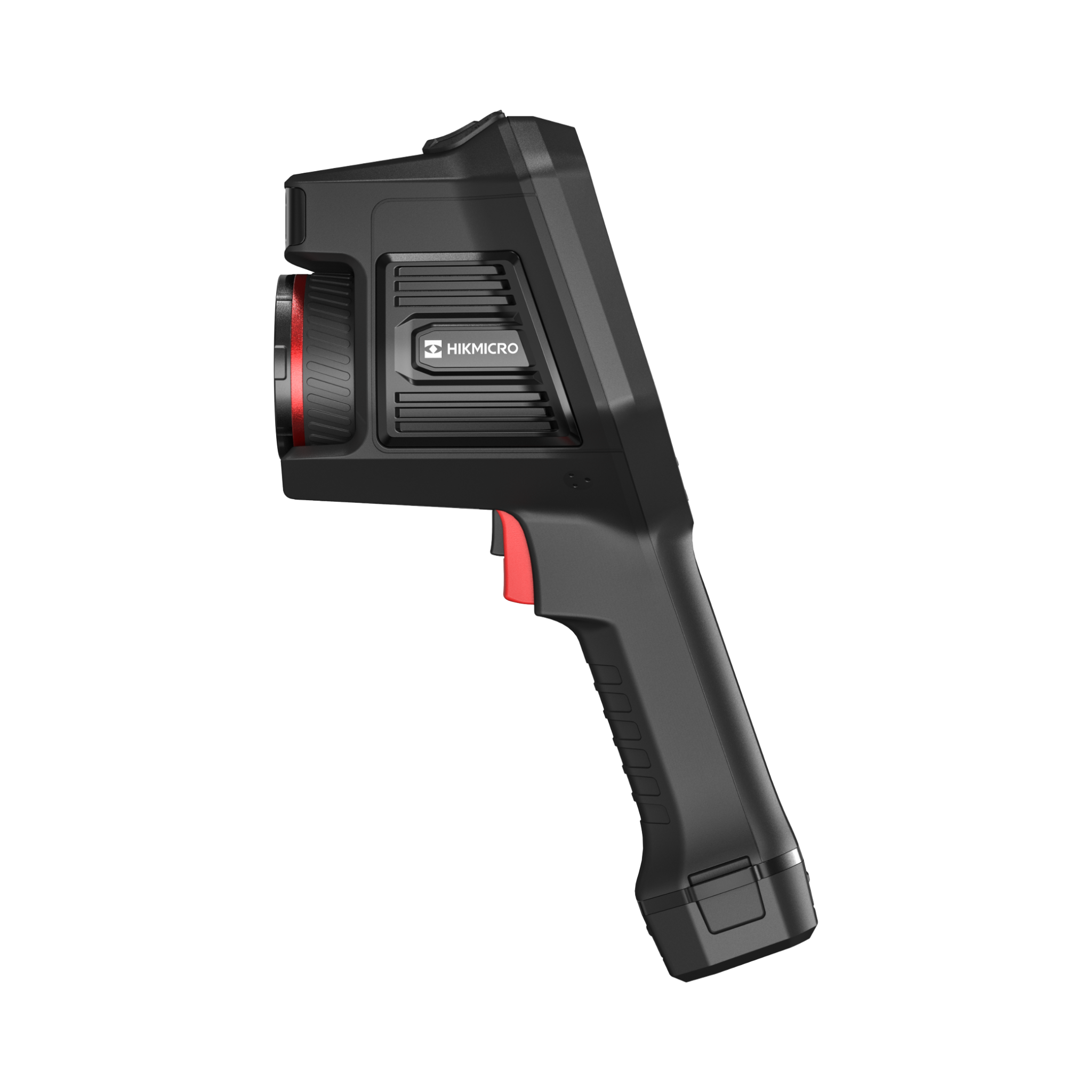

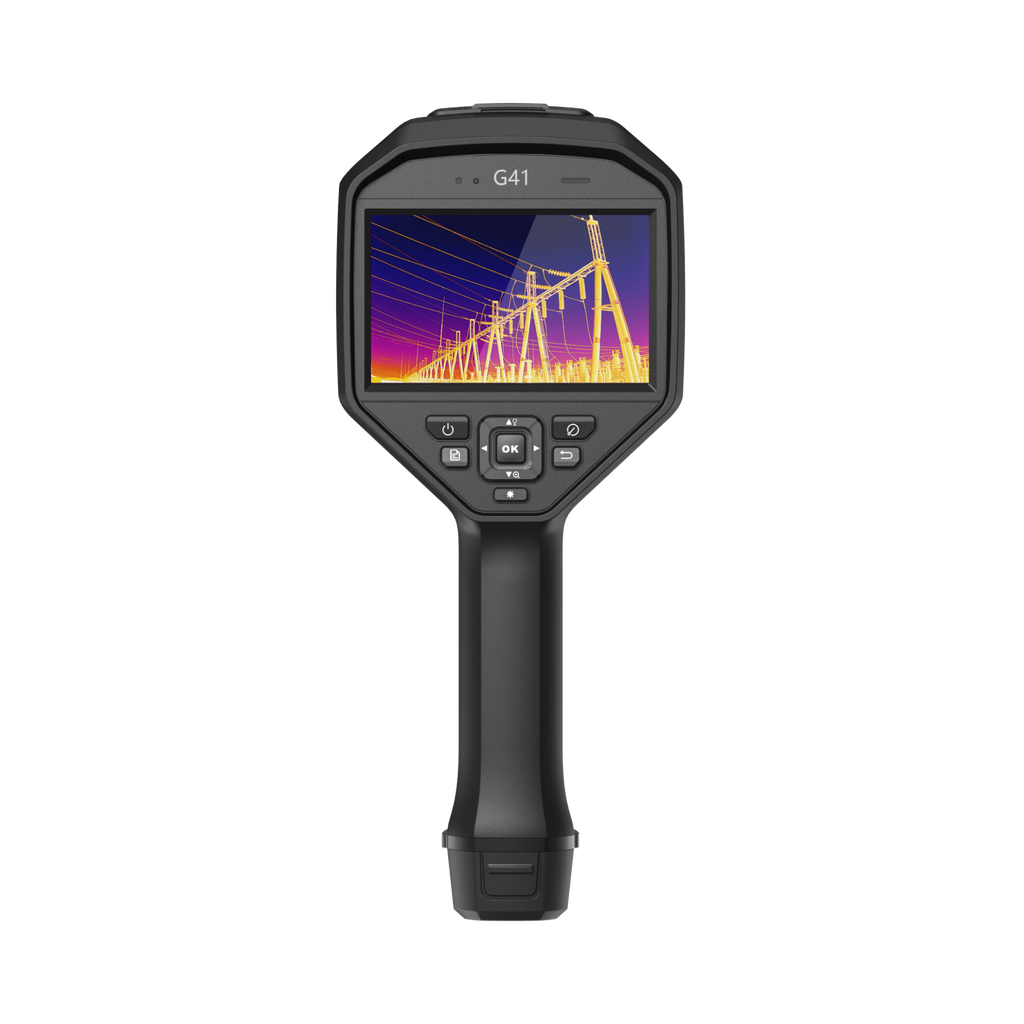

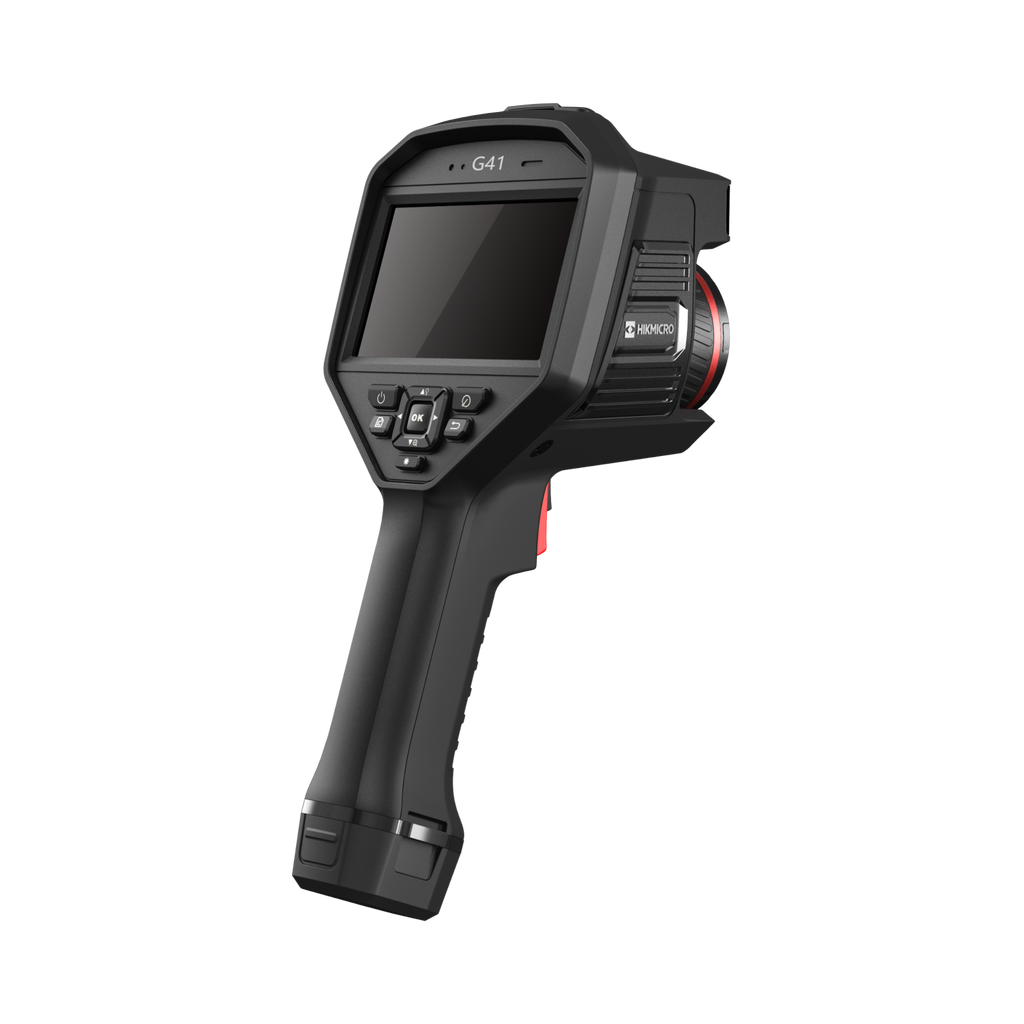

High-resolution handheld thermography camera — 480 × 360 detector, 50 Hz, five focus modes
The HIKMICRO G41 is a professional inspection camera for utilities, facilities and heavy industry. A 480 × 360 VOx detector runs at 50 Hz with SuperIR upscaling to 960 × 720, and five focus modes — laser-assisted, continuous, single, manual and touch — lock onto the target in about two seconds. GPS and compass data is written into every image, HDMI is fitted for live display, and three batteries ship in the box. The 650 °C range covers electrical, mechanical and process inspection across most industrial sites.
Key features
- 480 × 360 (172,800 pixels) VOx detector — NETD < 35 mK, with SuperIR upscaling to 960 × 720 (691,200 pixels)
- 50 Hz image frequency — smooth, stable imaging while panning across plant or following moving targets
- Five focus modes — laser-assisted AF, continuous AF, AF, manual and touch AF, focusing in roughly two seconds
- −20 °C to 650 °C measurement range — accuracy ±2 °C / ±2 %
- Extensive on-camera measurement — centre, hot and cold spot plus user-definable 10 spots, 1 line, 5 rectangles, 5 circles and delta-T values
- GPS and compass annotation — location and direction written into the image automatically — traceable inspections without paperwork
- 8 MP visual camera — thermal, visual, fusion, PIP and blending modes
- HDMI output — live display for shared viewing and demonstrations
- Three batteries in the box — approximately four hours each, with a charging base
- Interchangeable add-on lenses — 0.5× wide, 2× and 3.3× telephoto available to change field of view and spot size ratio
- Wi-Fi 2.4 GHz and 5 GHz — with HIKMICRO Viewer, Analyzer and Inspector route planning software
Typical applications
- Electrical panels, breakers, busbars and cable terminations
- Preventive maintenance on motors, bearings, pumps and drives
- HVAC commissioning and fault finding
- Building envelope surveys — insulation gaps, thermal bridges, air leakage
- Underfloor heating loops and concealed pipework
- Damp, leak and water ingress tracing
- Solar PV panel and inverter inspection
- Documented condition reports for clients and insurers
Technical specifications
| Detector type | Uncooled VOx focal plane array |
| IR resolution | 480 × 360 (172,800 pixels) |
| SuperIR | 960 × 720 (691,200 pixels) |
| Thermal sensitivity (NETD) | < 35 mK (@ 25 °C, F#=1.0) |
| Image frequency | 50 Hz |
| Field of view | 18.7° × 14° |
| Spatial resolution (IFOV) | 0.68 mrad |
| Focus mode | Laser-assisted AF / continuous AF / AF / manual / touch AF |
| Visual camera | 3264 × 2448 (8 MP) |
| Temperature range | −20 °C to 650 °C |
| Accuracy | ±2 °C / ±2 % |
| Measurement tools | Centre, hot and cold spot; user-definable 10 spots, 1 line, 5 rectangles, 5 circles, delta-T |
| File formats | JPEG, MP4, radiometric video |
| Storage media | 64 GB micro SD card (supplied) |
| Connectivity | Wi-Fi 802.11 b/g/n (2.4 GHz and 5 GHz); HDMI; USB-C |
| GPS and compass | Yes |
| Battery | 3 interchangeable Li-ion batteries, approx. 4 hours each |
| Optional lenses | HM-G305/G320/G330-LENS1 (G31) or HM-G605/G620/G630-LENS1 (G41/G61) |
| Software | HIKMICRO Viewer (mobile), HIKMICRO Analyzer (PC) |
In the box
- HIKMICRO G41 thermography camera
- Rechargeable batteries (3 pcs)
- Charging base
- Power adapter with international plug set
- 64 GB micro SD card
- USB 2.0 A to USB-C cable
- HDMI cable
- Lens cover
- Hand strap
- Accessory bag
- Carrying case
- Calibration certificate
- User manual and quick start guide
Model information
| Brand | HIKMICRO |
| Model | G41 |
| Manufacturer part number (MPN) | HM-TP74-25SVF/W-G41 |
