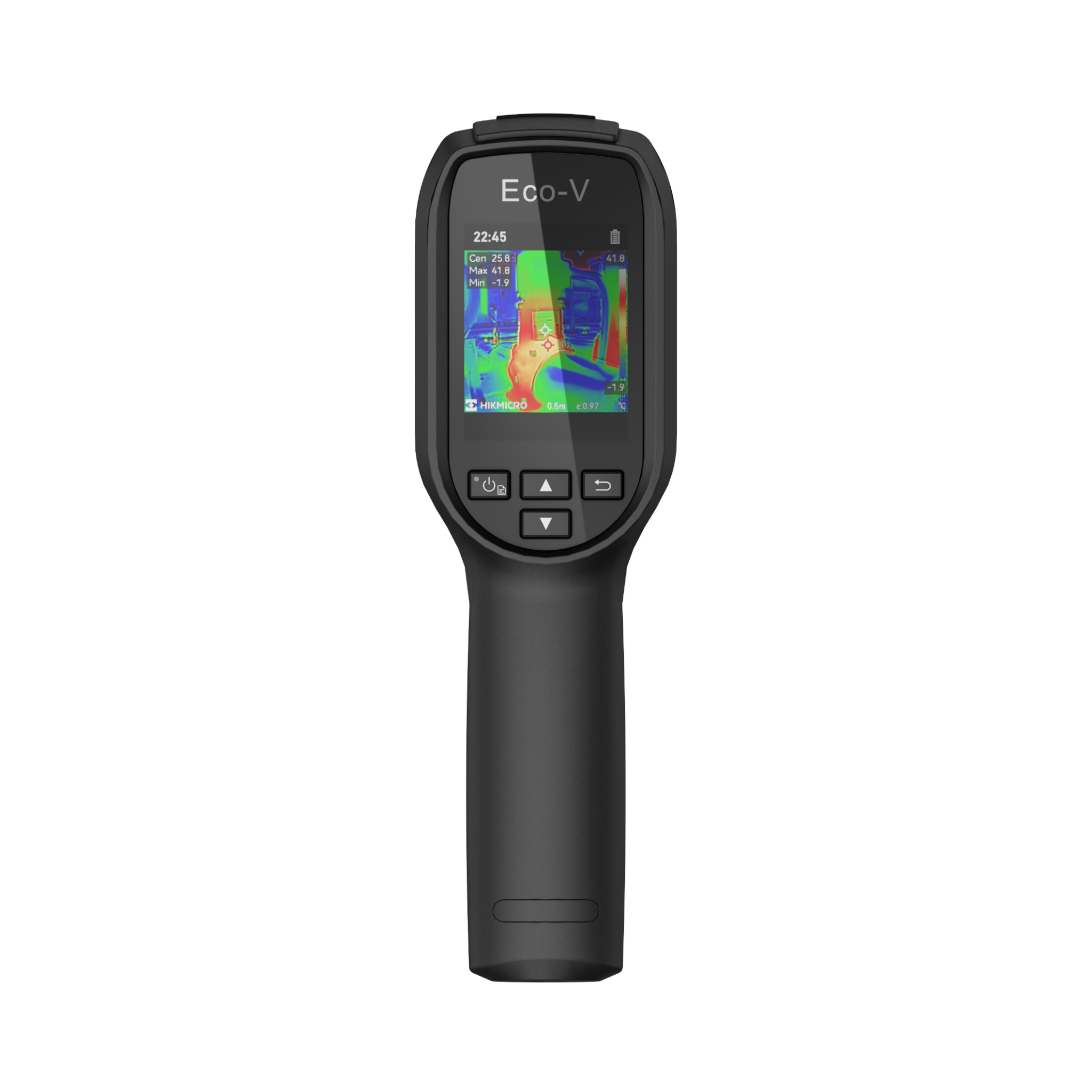

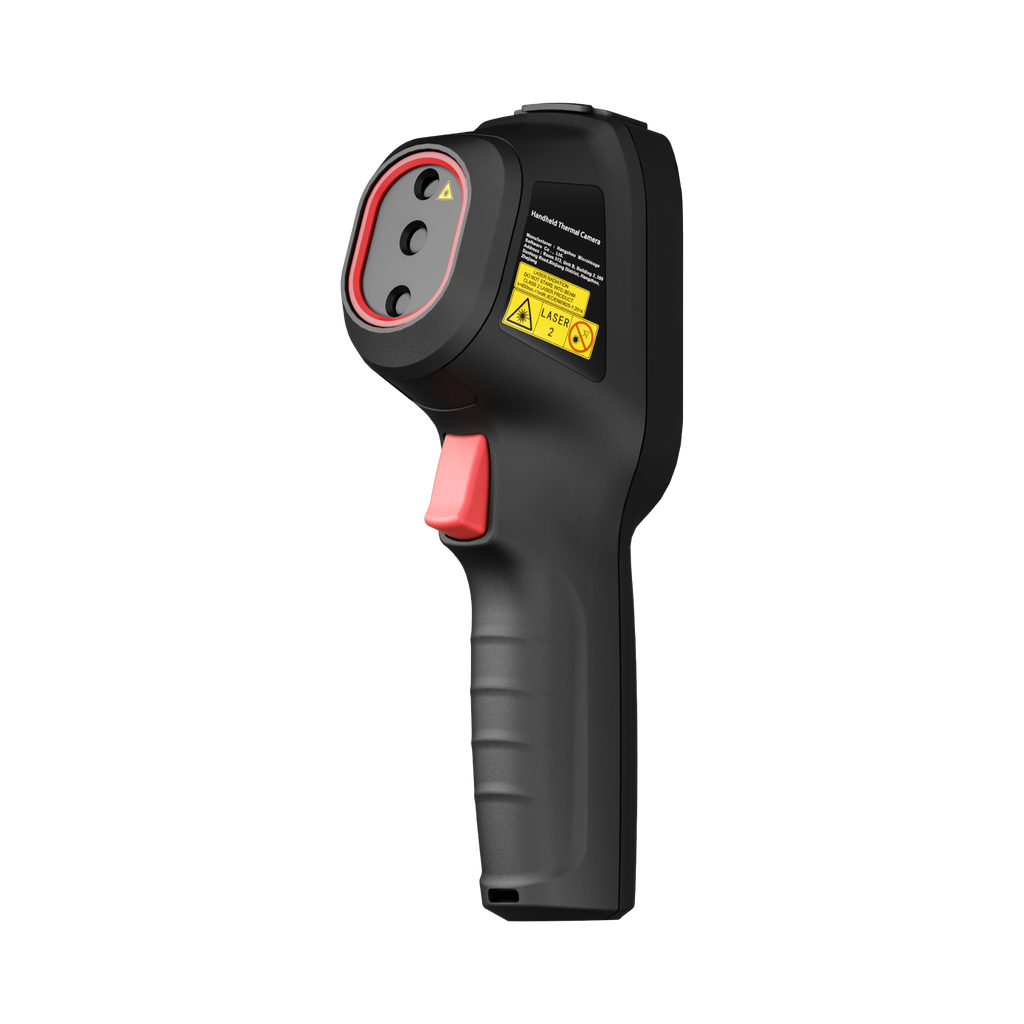

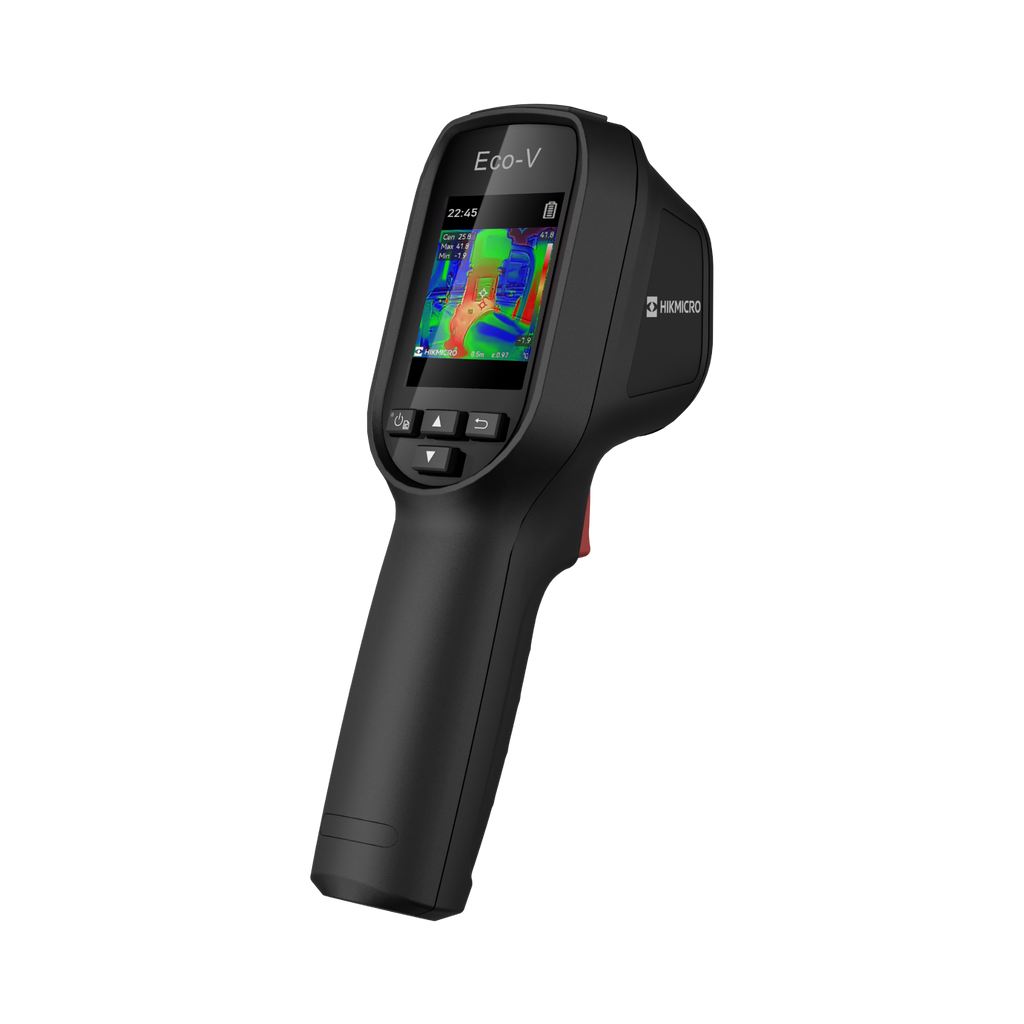

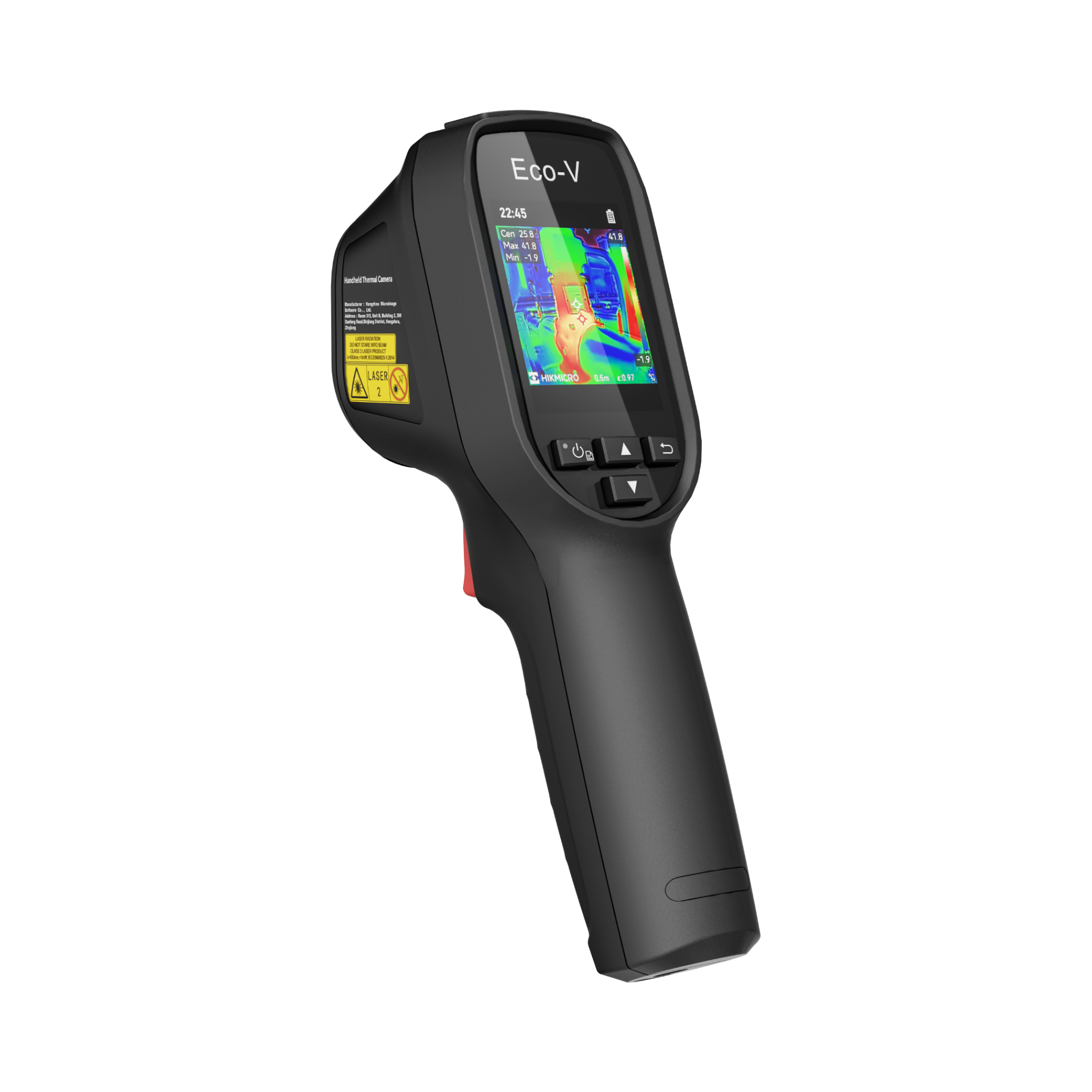

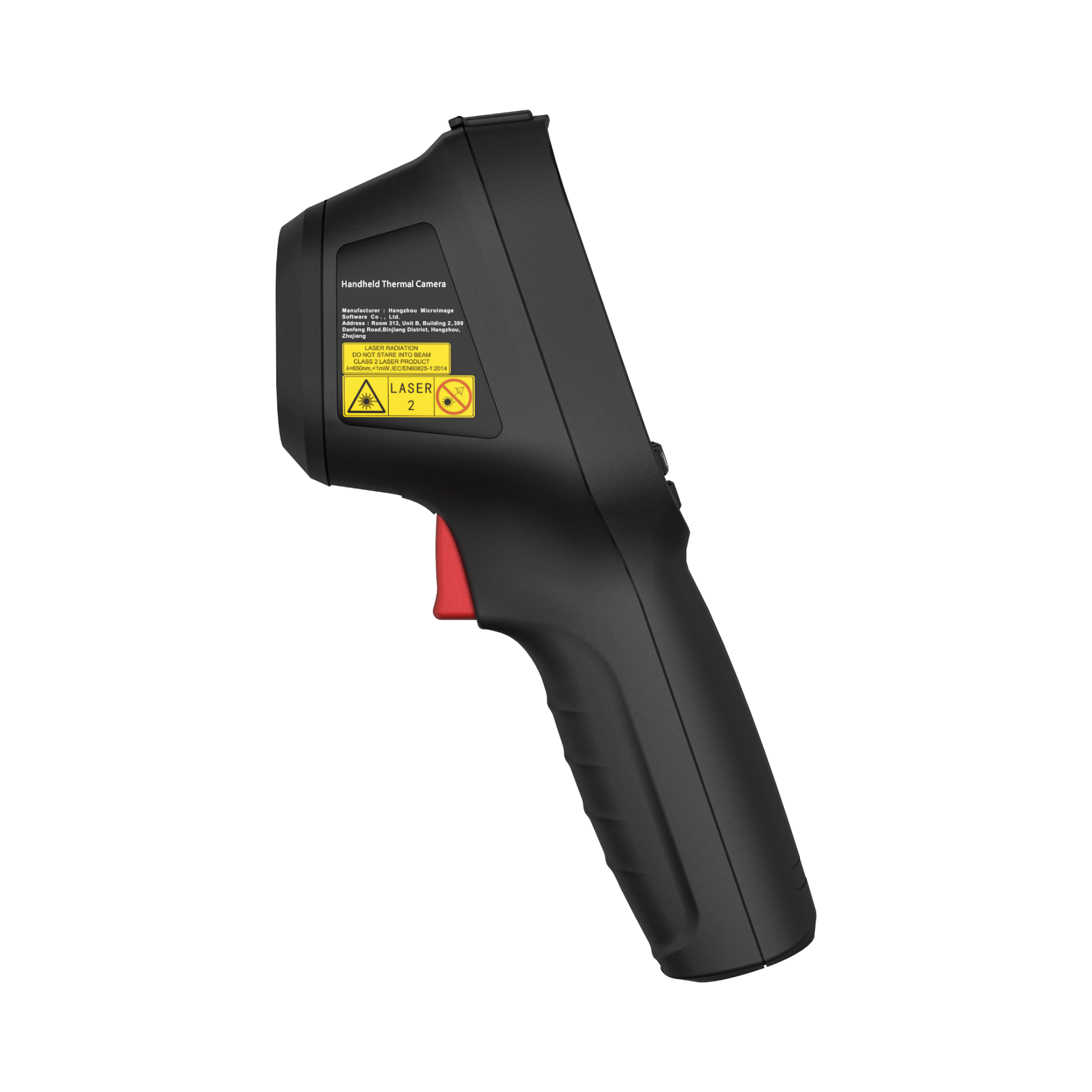

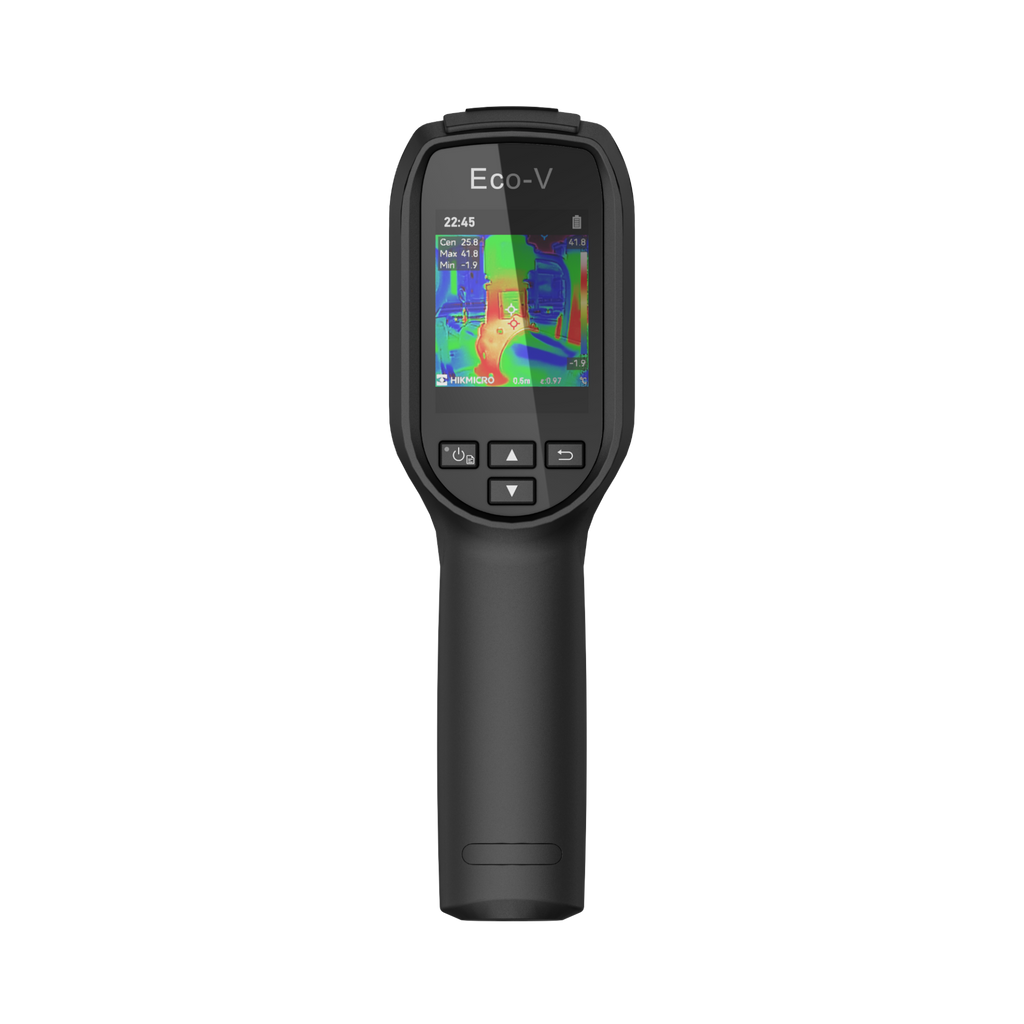

Entry-level standalone thermal camera with a visual camera and laser pointer
The Eco-V is the Eco with two additions that matter for reporting: a 640 × 480 visual camera, so every thermal image can be saved alongside a normal photo and shown in fusion mode, and a laser pointer that marks the centre spot on the actual object. Everything else carries over — 8 hours of runtime, a 550 °C ceiling, IP54 and a 2 m drop rating.
Key features
- Thermal plus visual camera — 640 × 480 visual channel with thermal, visual and fusion modes, saved in one press
- Laser pointer — shows exactly which point on the object the centre reading belongs to — removes the usual guesswork
- 96 × 96 detector with SuperIR — upscaled to 240 × 240 on live view and captured images
- −20 °C to 550 °C measurement range — accuracy ±2 °C / ±2 %
- 50° × 50° wide-angle lens — scan walls, ceilings and plant in a single frame
- Approx. 8 hours runtime — 3350 mAh built-in Li-ion battery
- Built-in 4 GB storage — approx. 30,000 radiometric JPEGs
- IP54 and 2 m drop rating — built for site conditions
Typical applications
- Electrical panels, breakers, busbars and cable terminations
- Preventive maintenance on motors, bearings, pumps and drives
- HVAC commissioning and fault finding
- Building envelope surveys — insulation gaps, thermal bridges, air leakage
- Underfloor heating loops and concealed pipework
- Damp, leak and water ingress tracing
- Solar PV panel and inverter inspection
Technical specifications
| Detector type | Uncooled VOx focal plane array |
| IR resolution | 96 × 96 (9,216 pixels) |
| SuperIR | 240 × 240 (57,600 pixels), live view and captured images |
| Thermal sensitivity (NETD) | < 50 mK (@ 25 °C, F#=1.0) |
| Image frequency | 25 Hz |
| Field of view | 50° × 50° |
| Focus mode | Focus free |
| Visual camera | 640 × 480 |
| Image modes | Thermal / visual / fusion |
| Display | 2.4" LCD, 240 × 320 |
| Temperature range | −20 °C to 550 °C |
| Accuracy | ±2 °C / ±2 % (ambient 25 °C, object above 0 °C) |
| Laser pointer | Yes |
| Storage media | Built-in 4 GB flash |
| Image capacity | Approx. 30,000 images |
| Battery operating time | Approx. 8 hours |
| Protection level | IP54 |
| Drop test height | 2 m |
| Weight | Approx. 290 g |
In the box
- HIKMICRO Eco-V thermal camera with wrist strap
- USB 2.0 A to USB-C cable
- Calibration certificate
- Quick start guide
Model information
| Brand | HIKMICRO |
| Model | Eco-V |
| Manufacturer part number (MPN) | HM-TP30-1AQF-ECO-V |
