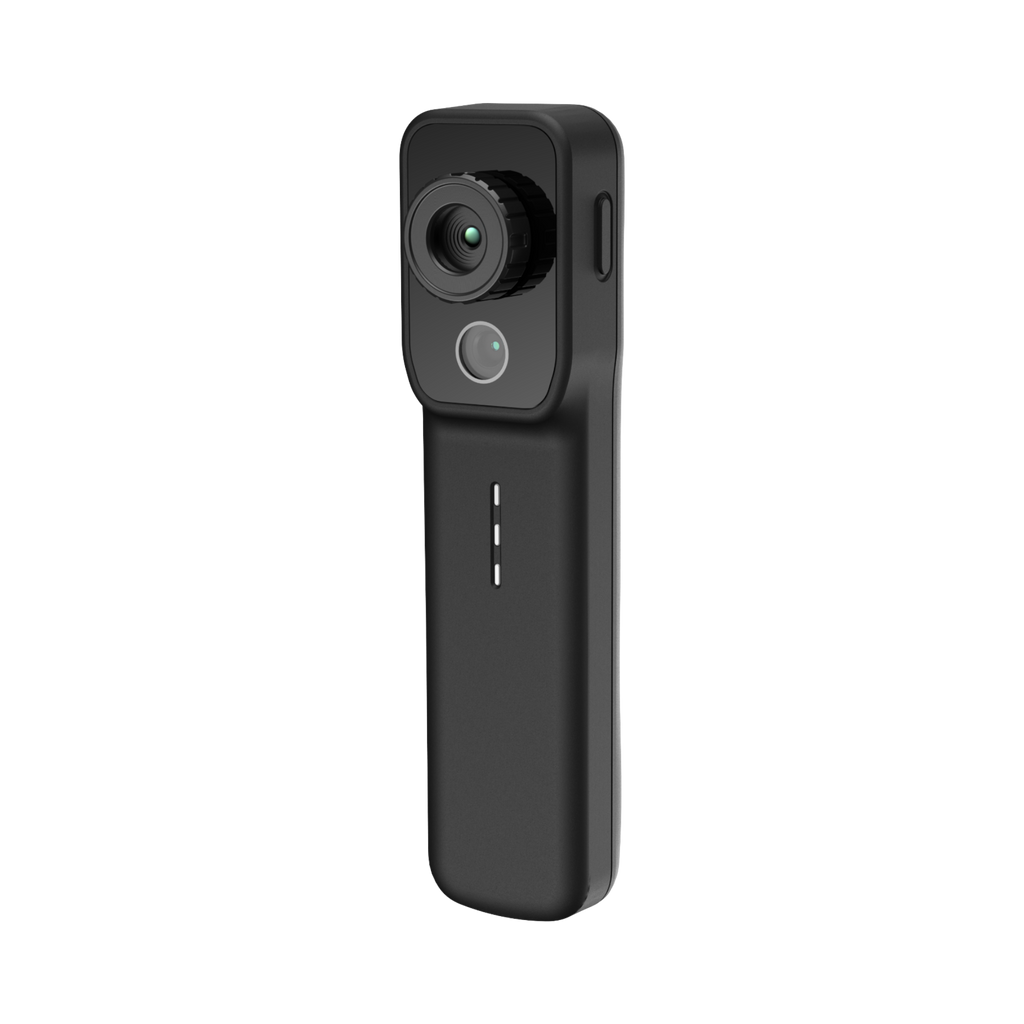

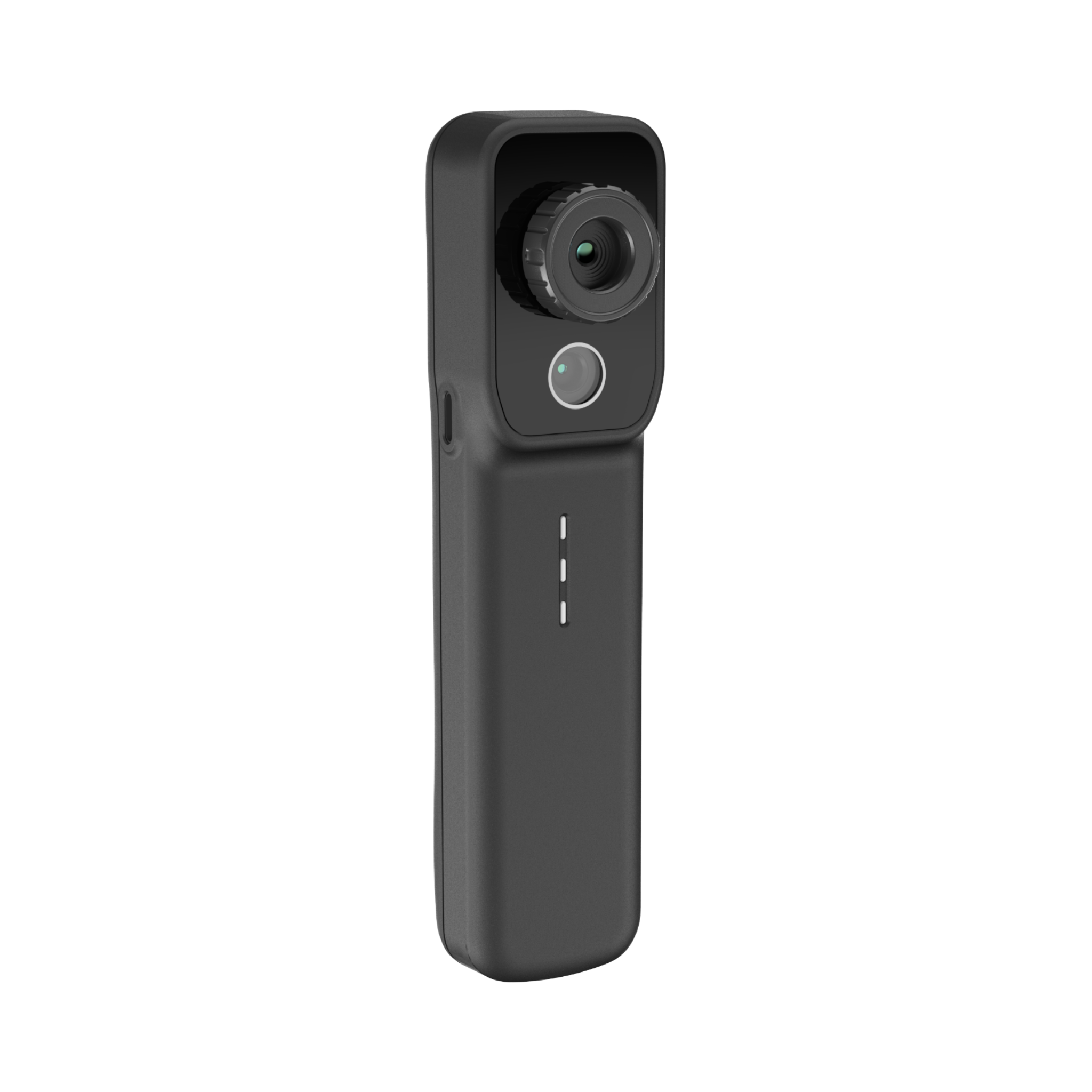

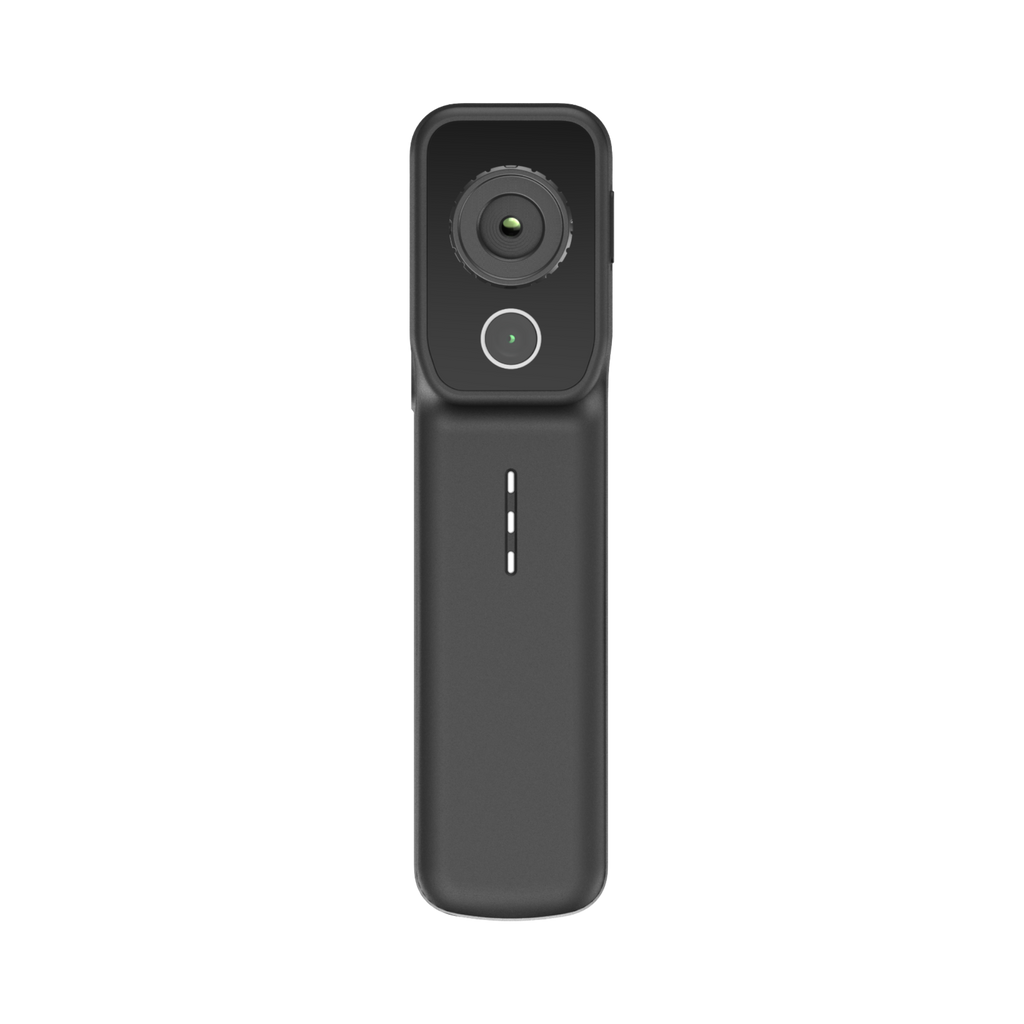

Wireless thermal camera with its own battery — clip it on the phone, or leave it monitoring
The MiniX breaks the cable. It carries its own battery and connects to a phone or tablet over Wi-Fi, so it can be clipped to the handset for one-handed work or mounted magnetically, on a wall or on a tripod and left watching a panel or machine while you stand somewhere safer. A 256 × 192 thermal detector is paired with a 0.3 MP visual camera for fusion imagery, and the range reaches 550 °C.
Key features
- Wireless connection — scan the QR code to pair — no USB port occupied and no cable to snag
- Four mounting options — magnetic, wall, tripod and phone clamp, which is what makes unattended monitoring practical
- 256 × 192 VOx detector — NETD < 40 mK, with a 0.3 MP visual camera for fusion and easier scene reference
- Manual focus lens — 37.2° × 50.0° field of view, minimum focus 0.5 m
- −20 °C to 550 °C measurement range — accuracy ±2 °C / ±2 %
- Approx. 4 hours runtime — built-in rechargeable Li-ion battery
- IP54 housing — usable in plant rooms and on site, not just at a bench
- iOS and Android — iOS 14 and later, Android 9 and later, via HIKMICRO Viewer
Typical applications
- Electrical panels, breakers, busbars and cable terminations
- Preventive maintenance on motors, bearings, pumps and drives
- HVAC commissioning and fault finding
- Building envelope surveys — insulation gaps, thermal bridges, air leakage
- Underfloor heating loops and concealed pipework
- Damp, leak and water ingress tracing
- Solar PV panel and inverter inspection
Technical specifications
| Detector type | Uncooled VOx focal plane array |
| IR resolution | 256 × 192 (49,152 pixels) |
| Thermal sensitivity (NETD) | < 40 mK |
| Image frequency | 25 Hz |
| Field of view | 37.2° × 50.0° |
| Focus mode | Manual |
| Minimum focus distance | 0.5 m |
| Visual camera | 0.3 MP |
| Temperature range | −20 °C to 550 °C |
| Accuracy | ±2 °C / ±2 % (ambient 15 °C to 35 °C) |
| Measurement tools | Centre spot, hot spot, cold spot; user-definable 3 spots, 3 rectangles, 1 line |
| Connectivity | Wi-Fi; USB-C |
| Device compatibility | iOS 14 and later, Android 9 and later |
| Software | HIKMICRO Viewer (mobile), HIKMICRO Analyzer (PC) |
| Battery | Rechargeable Li-ion, approx. 4 hours |
| Protection level | IP54 |
| Dimensions | 155.45 × 38.89 × 32.15 mm |
| Weight | Approx. 158 g |
In the box
- HIKMICRO MiniX wireless thermal camera
- USB cable
- Phone holder
- Storage pouch
- Quick start guide
Model information
| Brand | HIKMICRO |
| Model | MiniX |
| Manufacturer part number (MPN) | HM-TJ52-3AQF/W-MINIX |
