384 × 288 smartphone thermal camera with manual focus and 50 Hz output

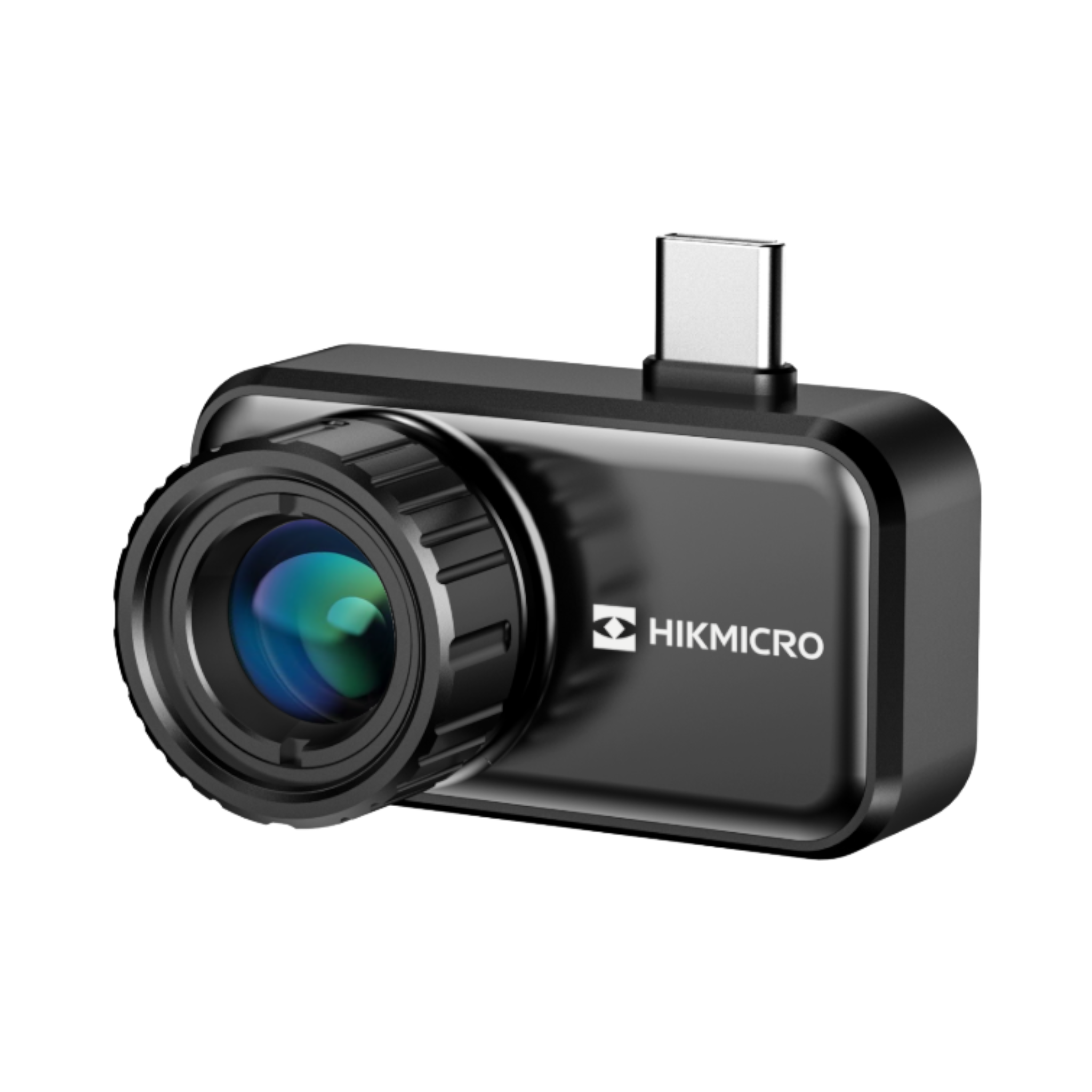

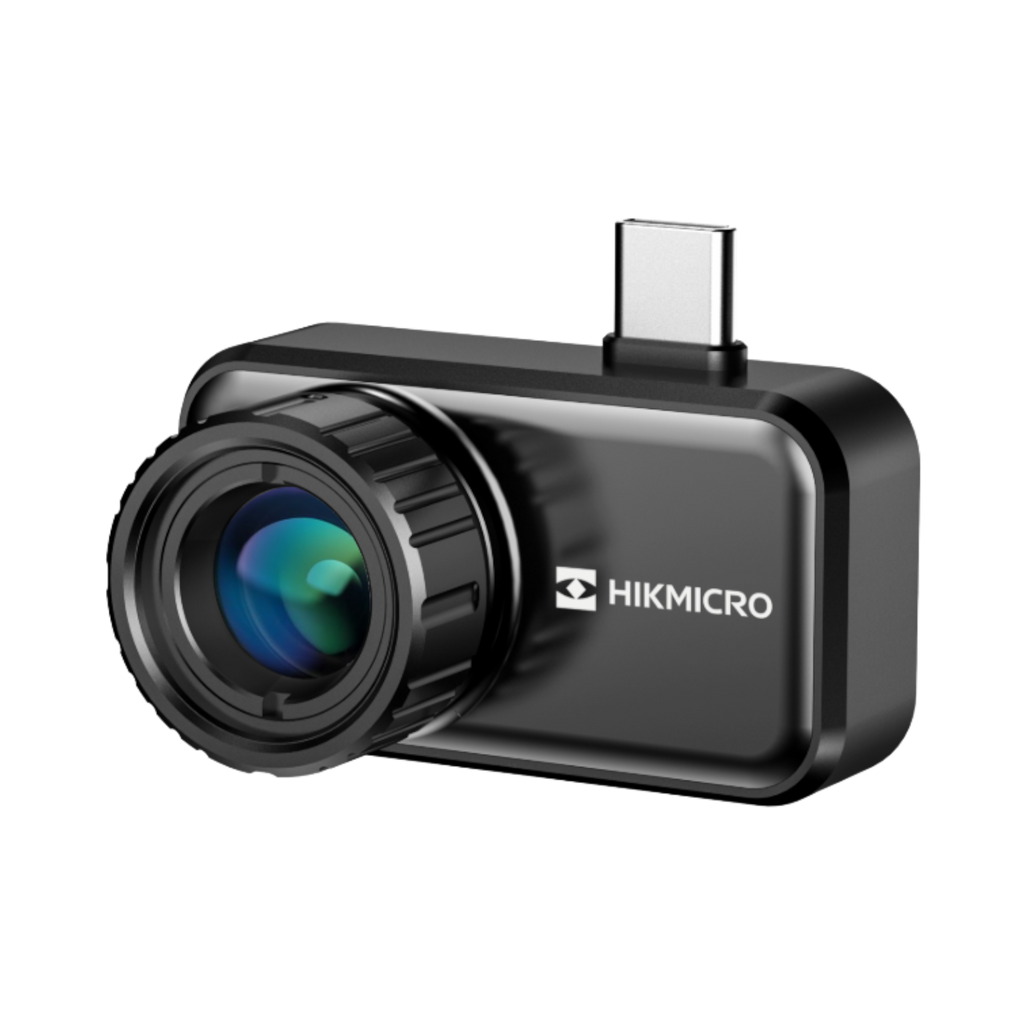

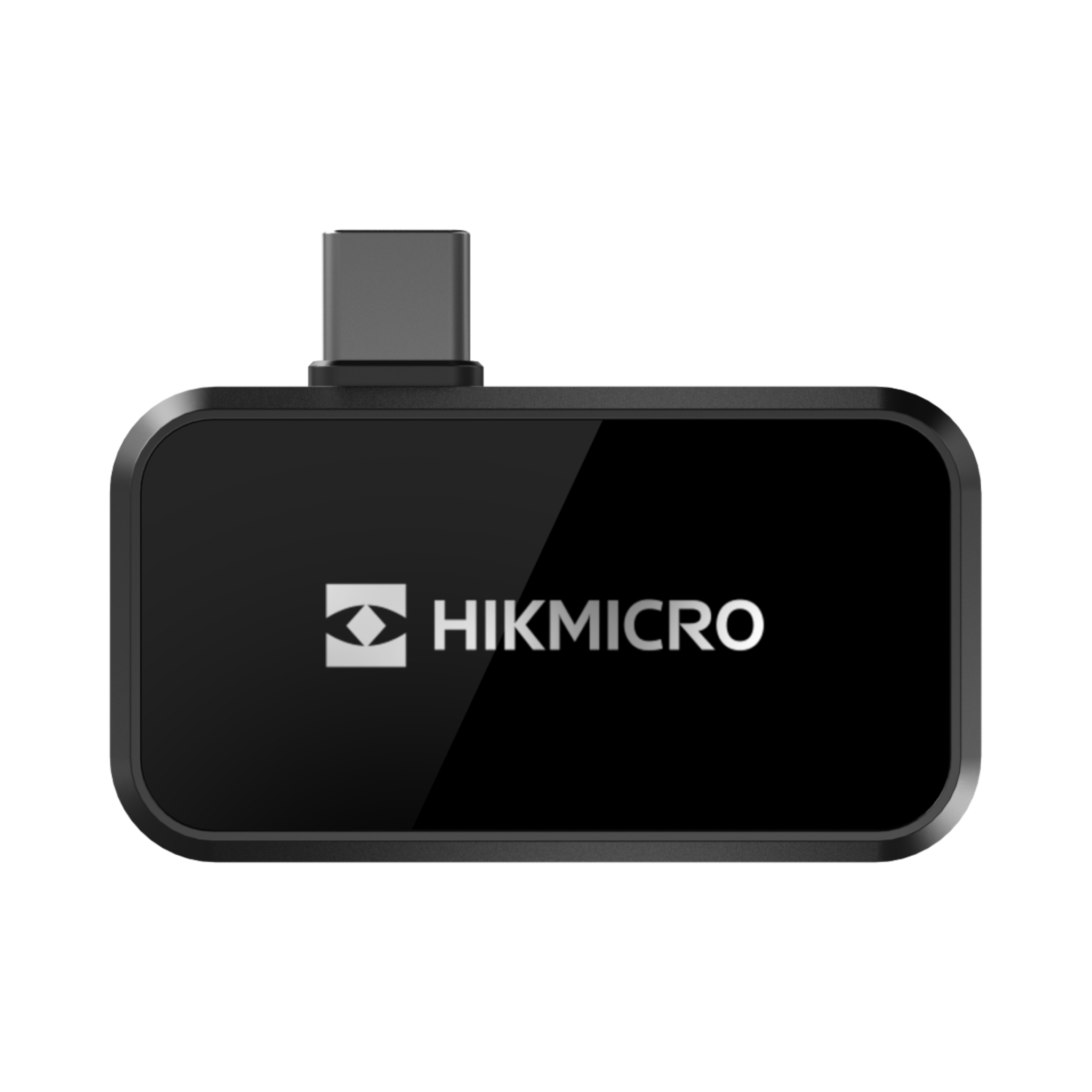

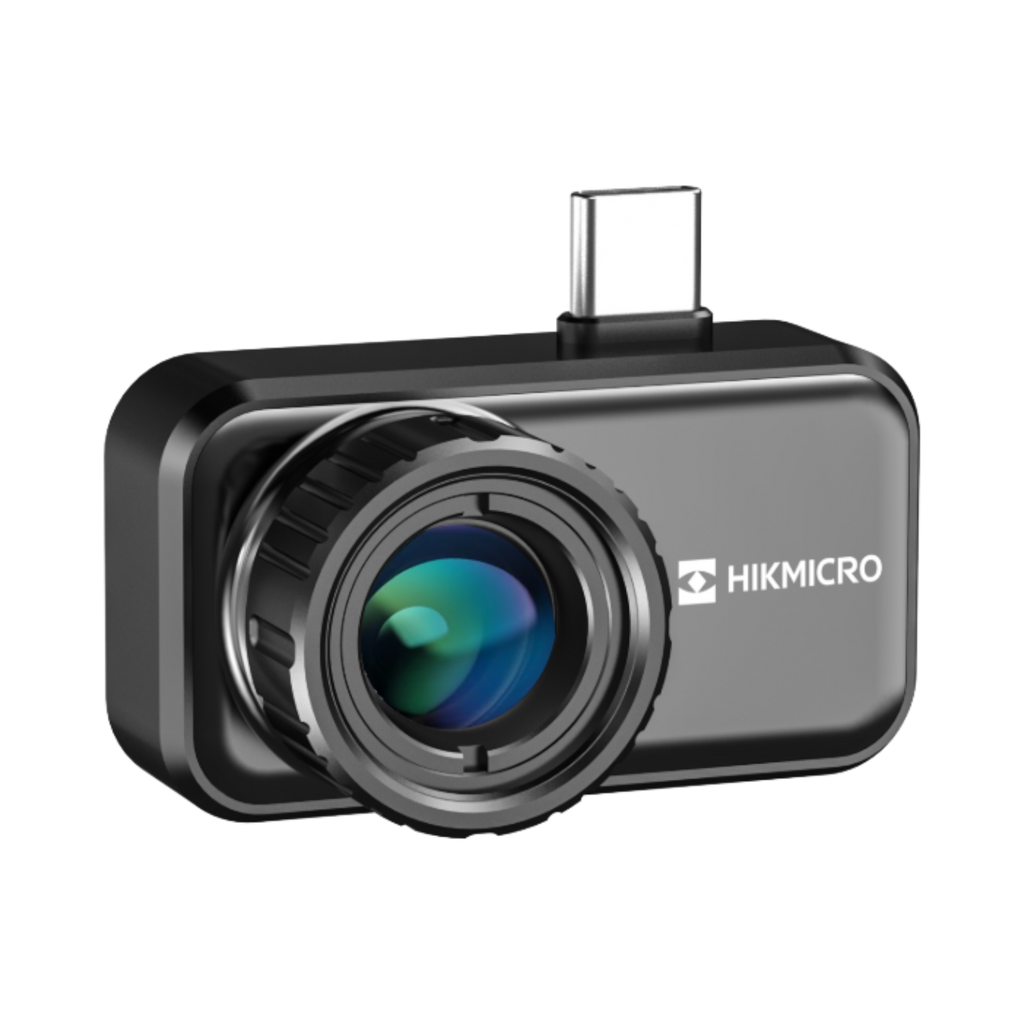

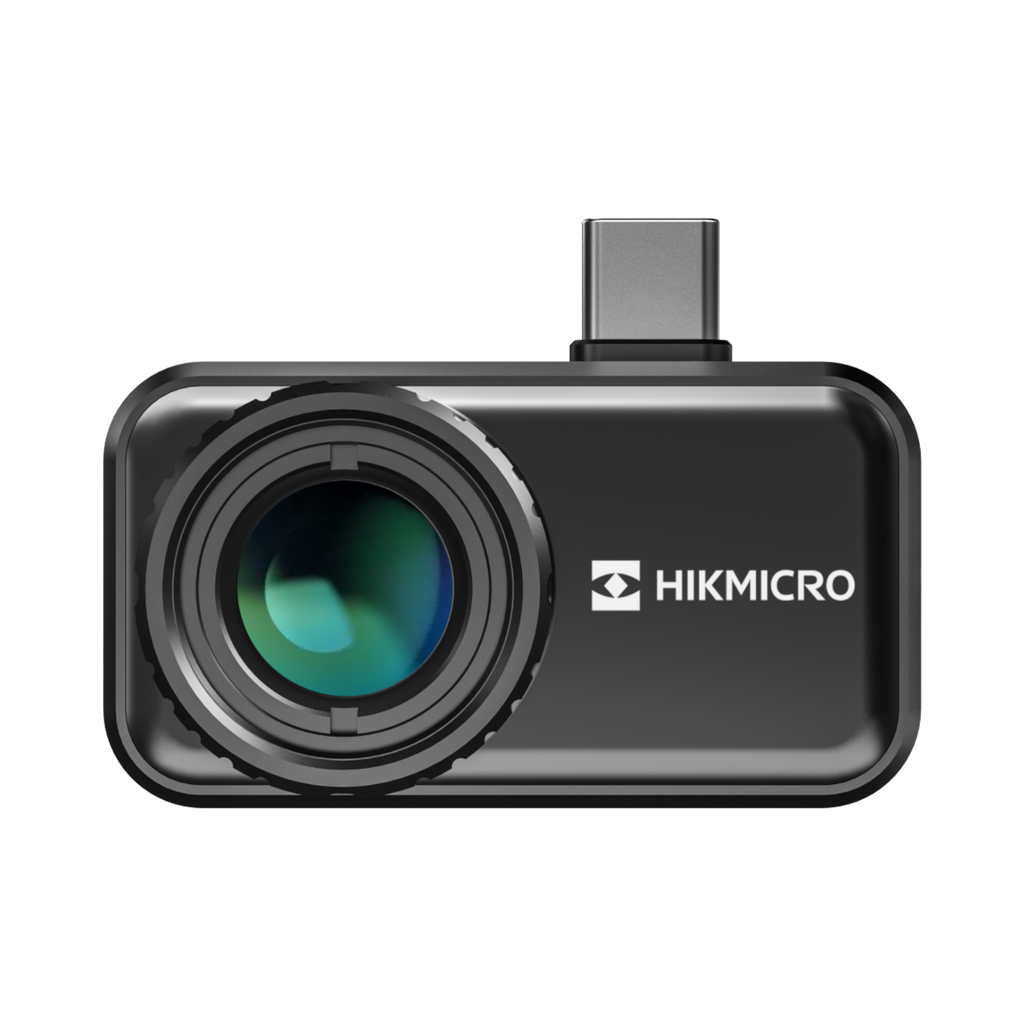

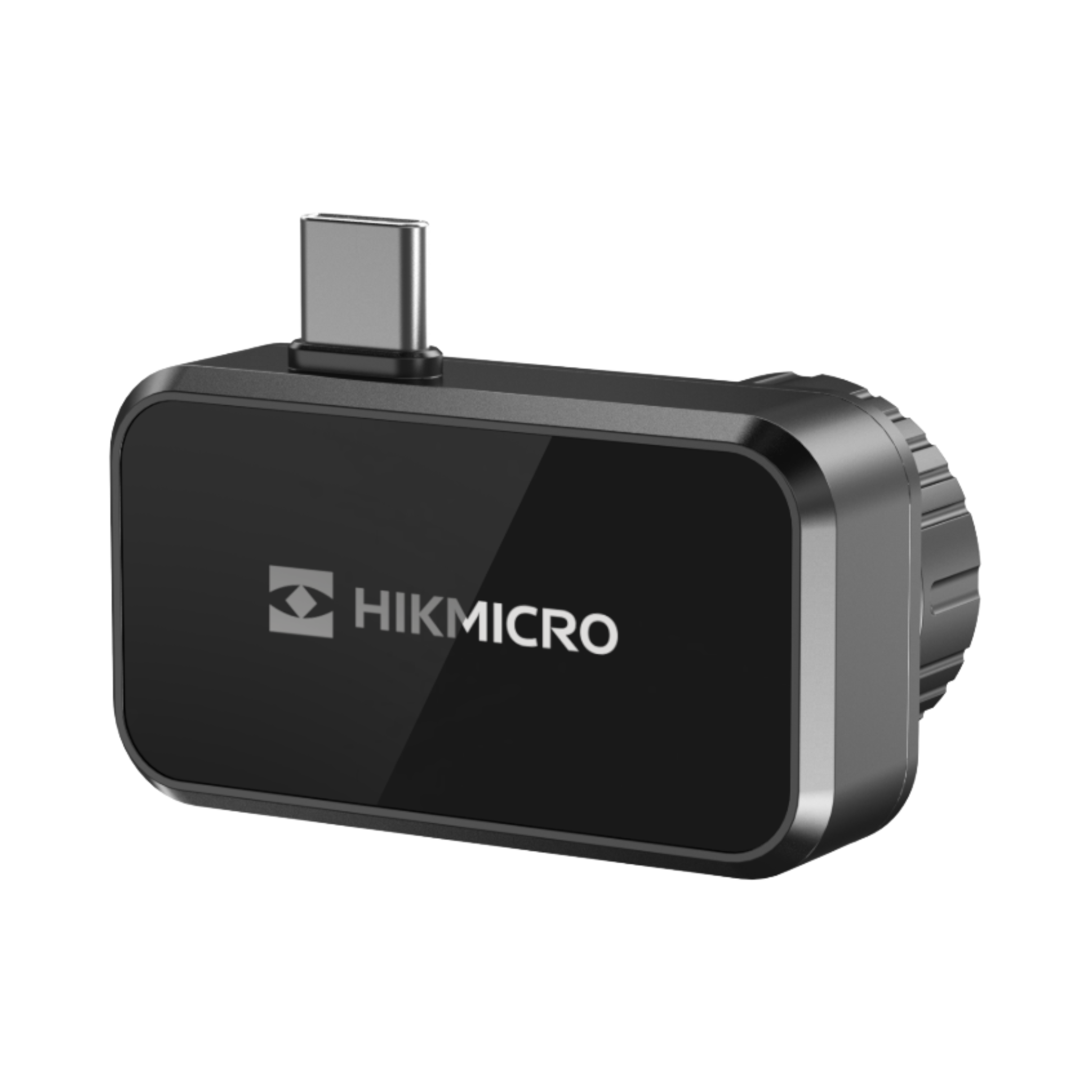

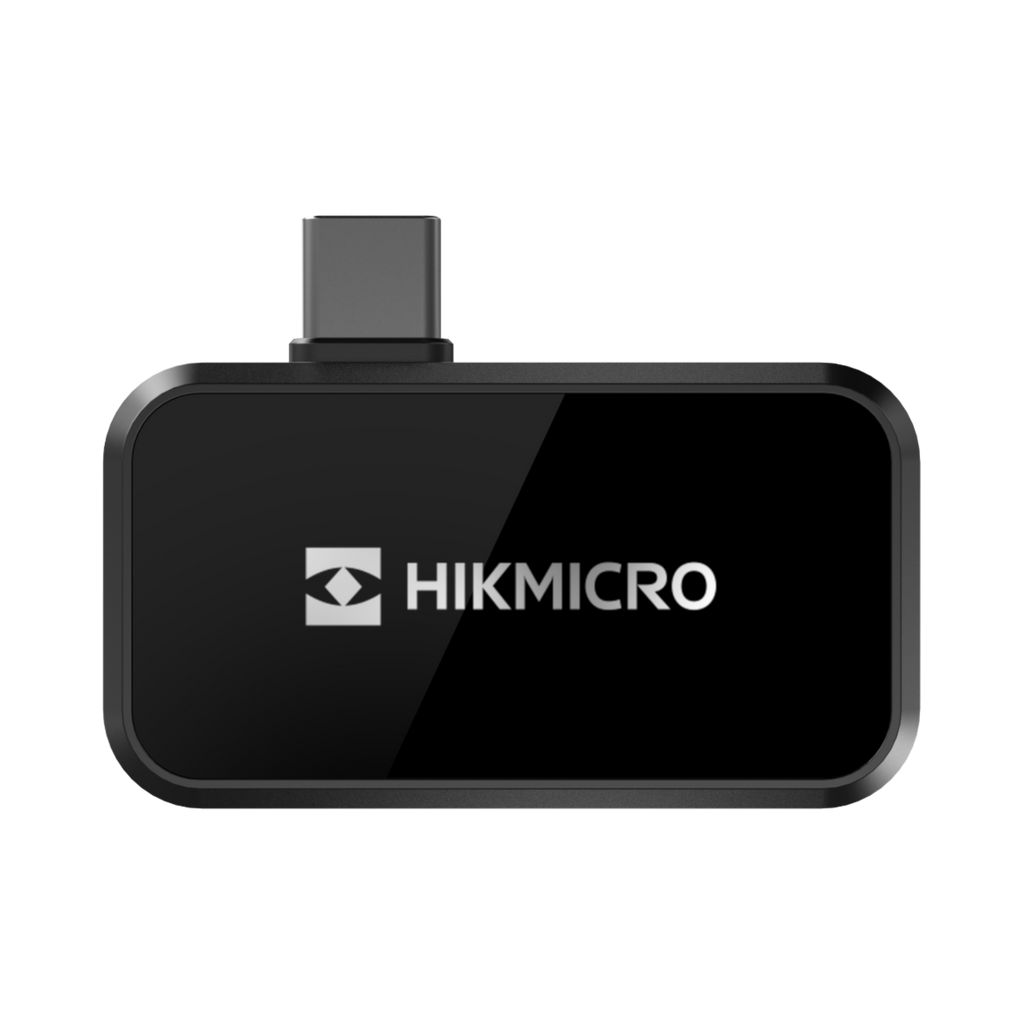

The Mini3 is the top of the HIKMICRO smartphone module range. It carries a 384 × 288 detector — more than double the pixel count of the Mini2 series — with NETD below 30 mK, a manual-focus 10 mm lens and a measuring range that reaches 650 °C. Frame rate is switchable between 25 and 50 Hz, so moving targets stay sharp. It is an Android-only module and needs a phone with at least 8 GB RAM to run at 50 Hz.
Key features
- 384 × 288 VOx detector — 110,592 measurement points — the highest resolution in the HIKMICRO smartphone module range
- NETD < 30 mK — resolves fine thermal gradients that a 256 × 192 module will smear together
- Manual focus 10 mm lens — 26° × 19° field of view, sharp from 0.3 m to long range
- 25 / 50 Hz switchable — 50 Hz keeps rotating machinery and moving targets sharp (requires 8 GB RAM or more on the phone)
- −20 °C to 650 °C measurement range — accuracy ±2 °C / ±2 %, high enough for exhausts, furnaces and process equipment
- Battery-free operation — powered by the phone, nothing to charge
- 45 g, IP40 aluminium housing — tested to a 1 m drop
- Android only — USB-C connection; check the HIKMICRO compatibility list before ordering
Typical applications
- Electrical panels, breakers, busbars and cable terminations
- Preventive maintenance on motors, bearings, pumps and drives
- HVAC commissioning and fault finding
- Building envelope surveys — insulation gaps, thermal bridges, air leakage
- Underfloor heating loops and concealed pipework
- Damp, leak and water ingress tracing
- Solar PV panel and inverter inspection
Technical specifications
| Detector type | Uncooled VOx focal plane array |
| IR resolution | 384 × 288 (110,592 pixels) |
| SuperIR | Yes — live view and captured images |
| Thermal sensitivity (NETD) | < 30 mK (@ 25 °C, F#=1.0) |
| Image frequency | 25 / 50 Hz, switchable |
| Focal length | 10 mm |
| Field of view | 26° × 19° |
| Focus mode | Manual |
| Minimum focus distance | 0.3 m |
| Temperature range | −20 °C to 650 °C |
| Accuracy | ±2 °C / ±2 % |
| Measurement tools | Centre spot, hot spot, cold spot; user-definable 3 spots, 1 line, 3 rectangles |
| Interface | USB-C |
| Device compatibility | Android only |
| Software | HIKMICRO Viewer (mobile), HIKMICRO Analyzer (PC) |
| Power | Supplied by the host device — no internal battery |
| Protection level | IP40 |
| Drop test height | 1 m |
| Dimensions | 47.6 × 26 × 26.59 mm |
| Weight | Approx. 45 g |
In the box
- HIKMICRO Mini3 thermal module
- Extension cable
- Protective case
- Quick start guide
Model information
| Brand | HIKMICRO |
| Model | Mini3 |
| Manufacturer part number (MPN) | HM-TJ33-10RF-MINI3 |
