Description

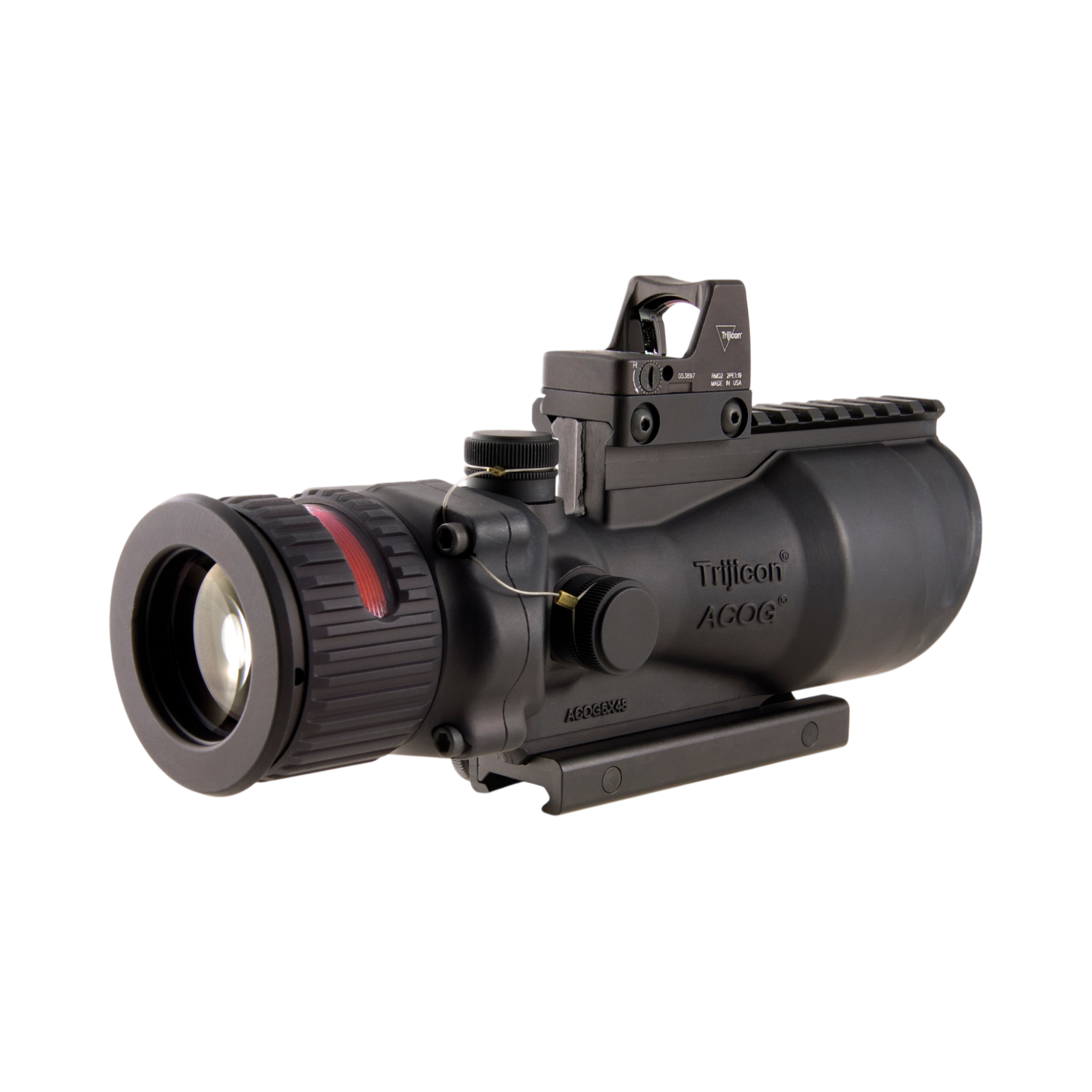

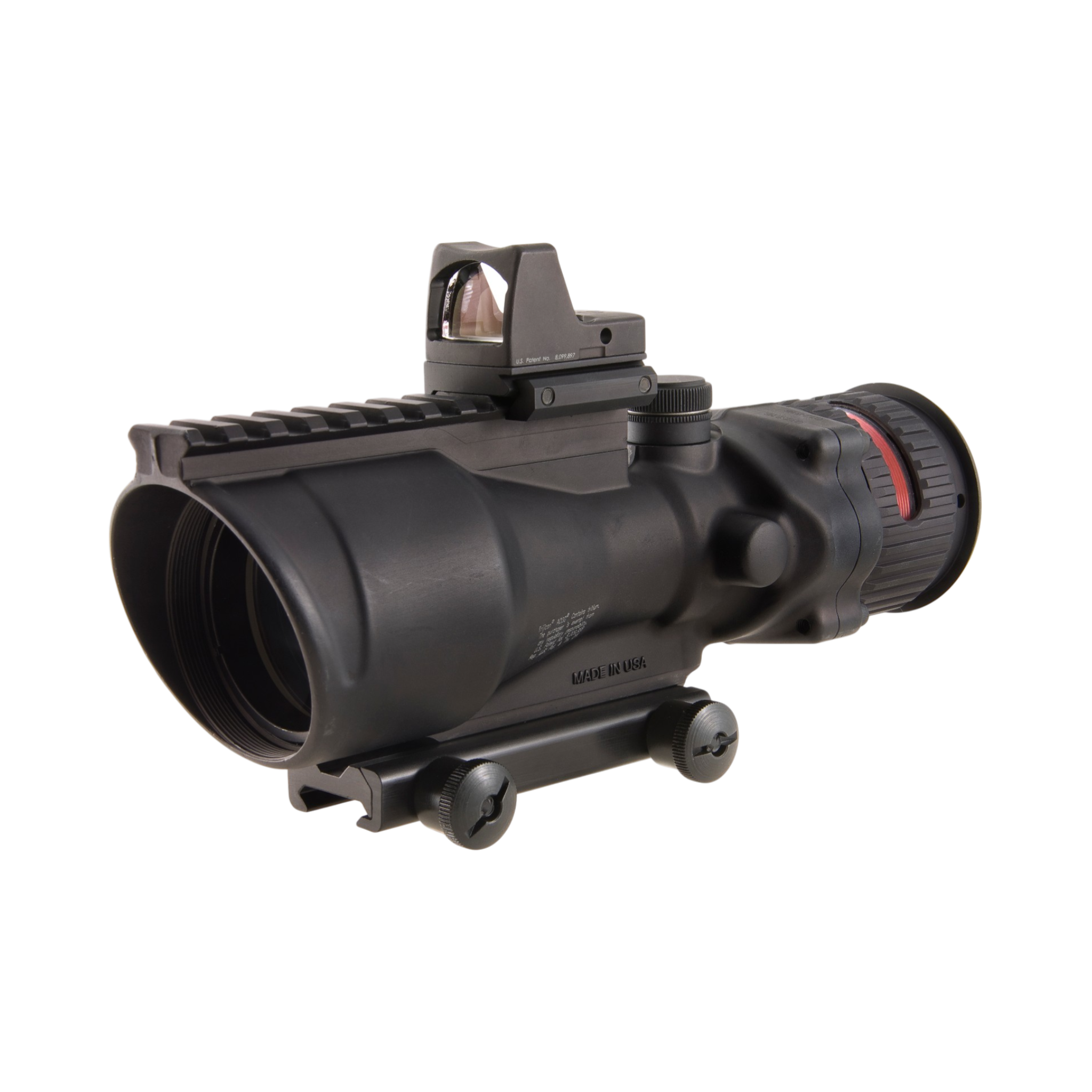

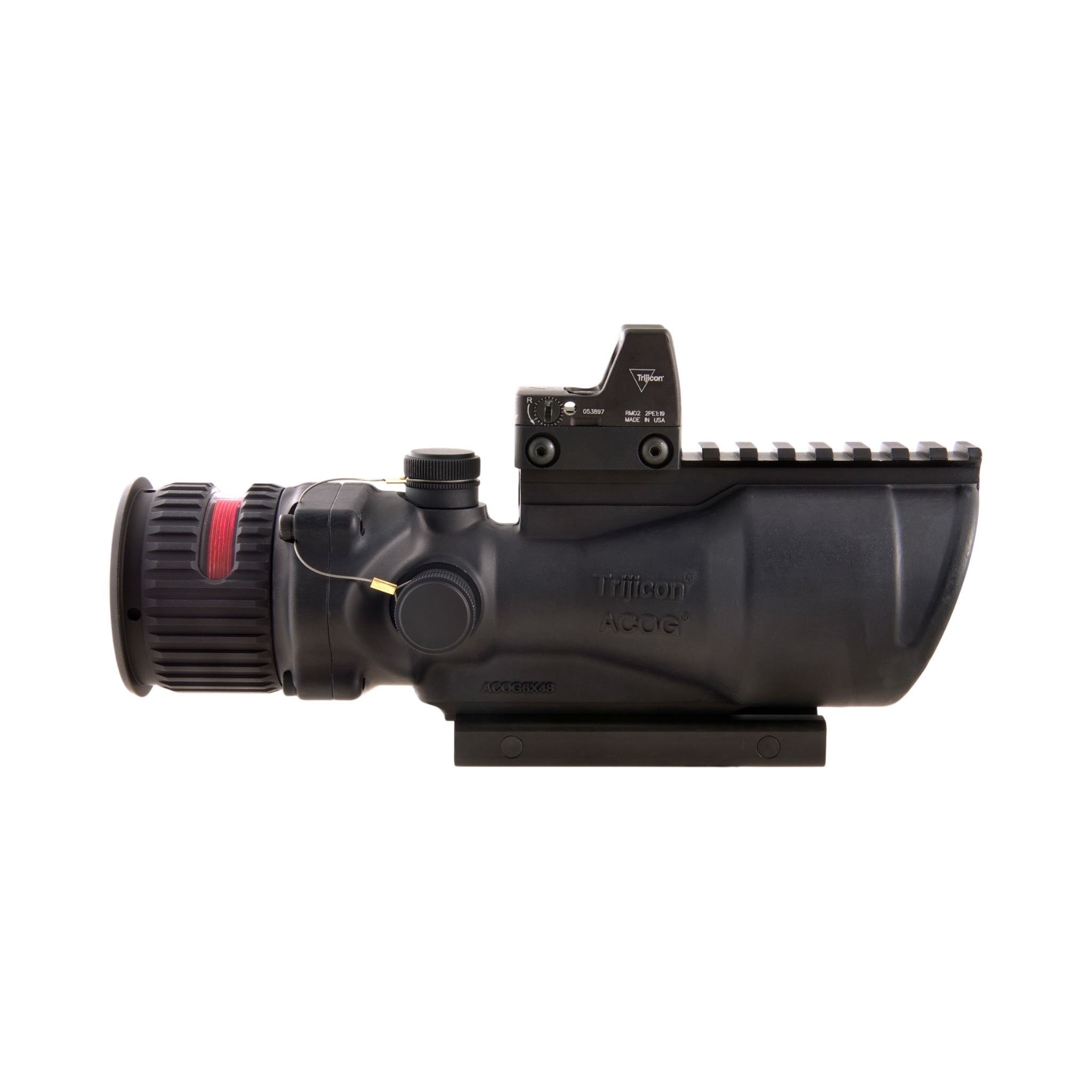

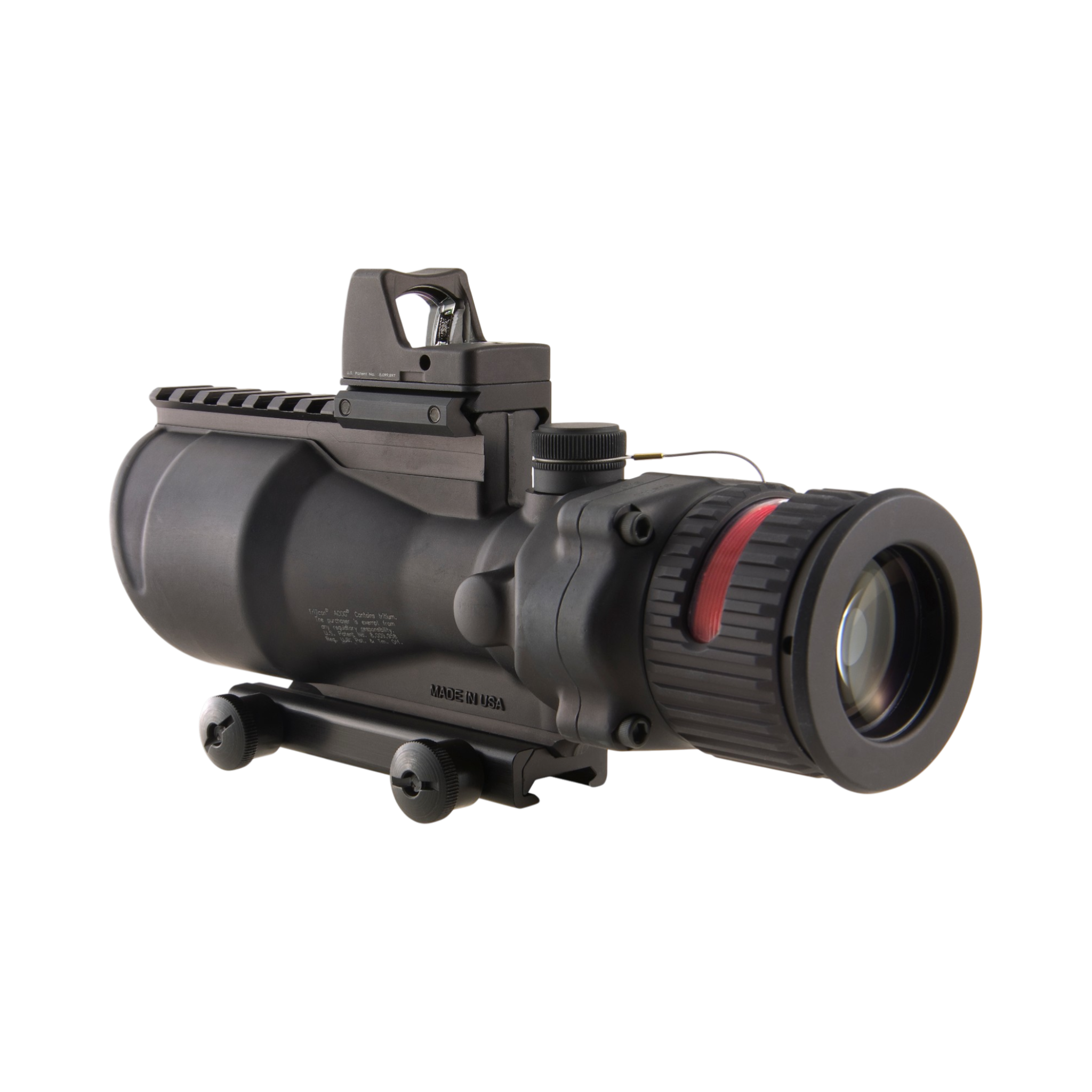

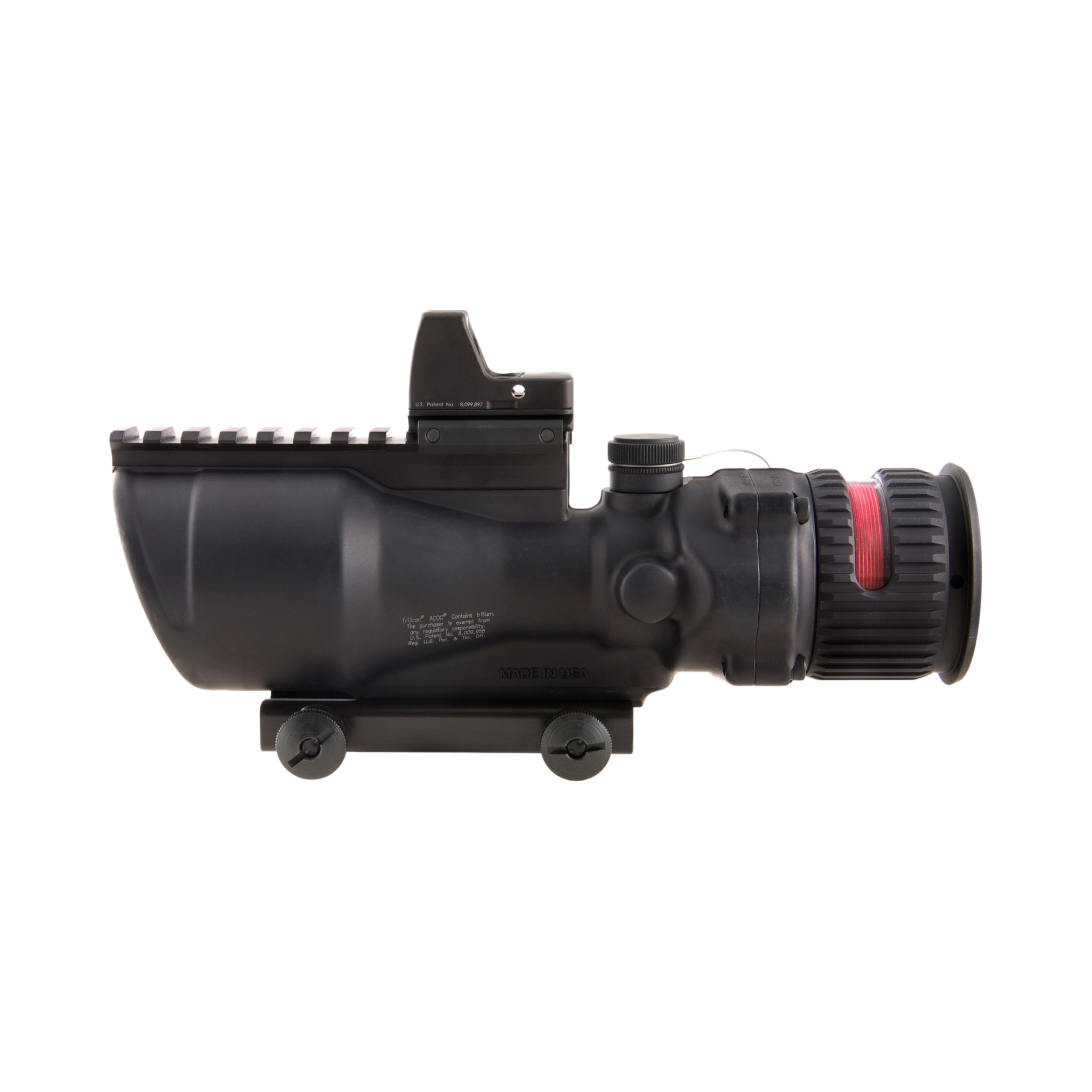

A 6x48 ACOG riflescope with a red chevron 0.308 BDC reticle, supplied with a 6.5 MOA red dot RMR Type 2, for military and professional shooters.
This combo pairs the ACOG 6x48 fixed-power riflescope with an RMR Type 2 red dot for close work. The ACOG has 6x magnification and a 48mm objective, and its red chevron reticle is illuminated by fibre optics and tritium, so it runs without batteries.
The reticle includes a bullet drop compensator for 0.308, with additional aiming points estimated for the trajectory of the 7.62mm M80 out to 1200 metres. The RMR Type 2 carries an automatic LED 6.5 MOA red dot.
The scope comes on a Flattop Thumbscrew Mount (TA75), which is included, and has a forged aluminium housing in a matte black finish.
Key features
- Battery-free illumination — The fibre optic and tritium illumination adjusts reticle brightness automatically to the available light, with no battery required.
- Bindon Aiming Concept — The Bindon Aiming Concept (BAC) supports both-eyes-open aiming for better target acquisition and situational awareness.
- Calibrated BDC reticle — The red chevron aiming point is backed by bullet drop compensating aiming points for 7.62mm M80 out to 1200 metres.
- Integrated RMR red dot — An RMR Type 2 with an automatic LED 6.5 MOA red dot is included for fast aiming at close range.
- Fixed-power housing — The fixed-power design keeps moving parts to a minimum, and the scope is built to withstand recoil and pass U.S. Military drop test requirements.
- Waterproof and fog-free — The dry nitrogen-filled housing mitigates fogging, and the scope is waterproof to a submersion depth of 66 ft. (20m).
- Multi-coated optics — Multi-coated lenses maximise light gathering and give a clear field of view.
Typical applications
- Military and law enforcement rifles in 0.308 that need magnified target identification at extended range.
- Designated marksman roles that combine magnified shots with a red dot for close targets.
- Use in wet, cold or hot conditions where a battery-free, sealed sight is required.
Technical specifications
| Length × width × height | 9 in x 2.9 in x 3.4 in (228.6mm x 73.66mm x 86.36mm) |
| Weight | 39.3 oz. (1,114.14g) |
| Magnification | 6x |
| Objective size | 48mm |
| Reticle pattern | Chevron |
| Day reticle colour | Red |
| Night reticle colour | Red |
| Bullet drop compensation (BDC) | Yes |
| Calibre | 0.308 |
| Bindon Aiming Concept (BAC) | Yes |
| Illumination source | Fiber Optics & Tritium |
| Power source | Fiber Optics & Tritium |
| Adjustment | 4 clicks per in. @100 yards |
| Eye relief | 2.7 in. (68.58mm) |
| Exit pupil | 0.32 in. (8.13mm) |
| Field of view (degrees) | 3.3° |
| Field of view (distance) | 17 ft. @ 100 yds. (5.67m @ 100m) |
| Mount | Flattop Thumbscrew Mount (TA75) |
| Housing material | Forged Aluminum |
| Finish | Matte Black |
| Submersion depth | 66 ft. (20m) |
In the box
- 1 × ACOG® 6x48 BAC Riflescope w/ Trijicon RMR® -.308 BDC — Red Chevron Reticle, Thumbscrew Mount & Automatic LED 6.5 MOA Red Dot RMR® Type 2, Matte Black
- 6.5 MOA RMR Type 2
- Flattop Thumbscrew Mount (TA75)
- LENSPEN (TA56)
- Lanyard Assembly for Adjuster Caps (TA107)
- Trijicon Logo Sticker (PR15)
- ACOG Manual
- Warranty Card
Model information
| Brand | Trijicon |
| Model | ACOG® 6x48 BAC Riflescope w/ Trijicon RMR® -.308 BDC — Red Chevron Reticle, Thumbscrew Mount & Automatic LED 6.5 MOA Red Dot RMR® Type 2, Matte Black |
| MPN | TA648-D-100560 |
