Description

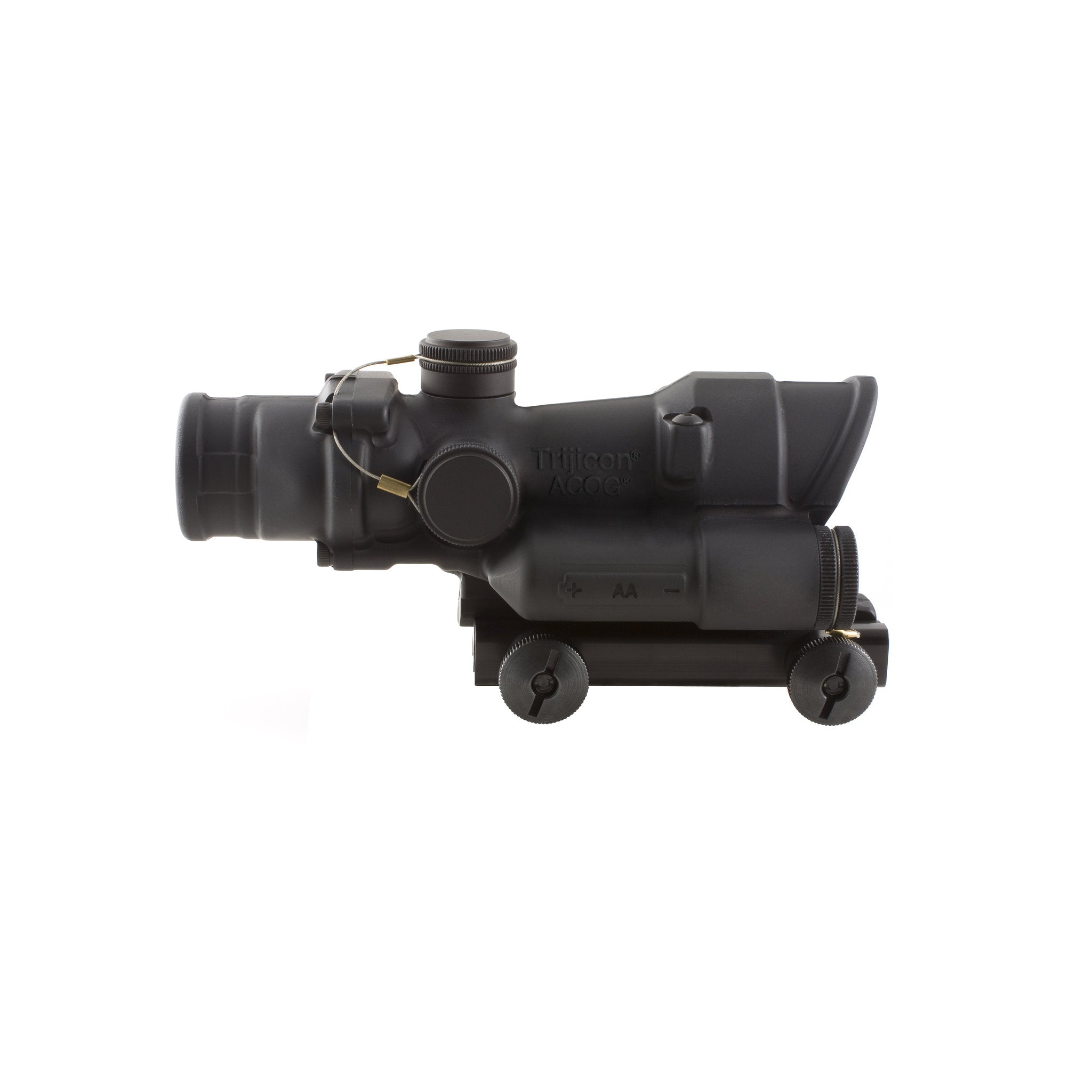

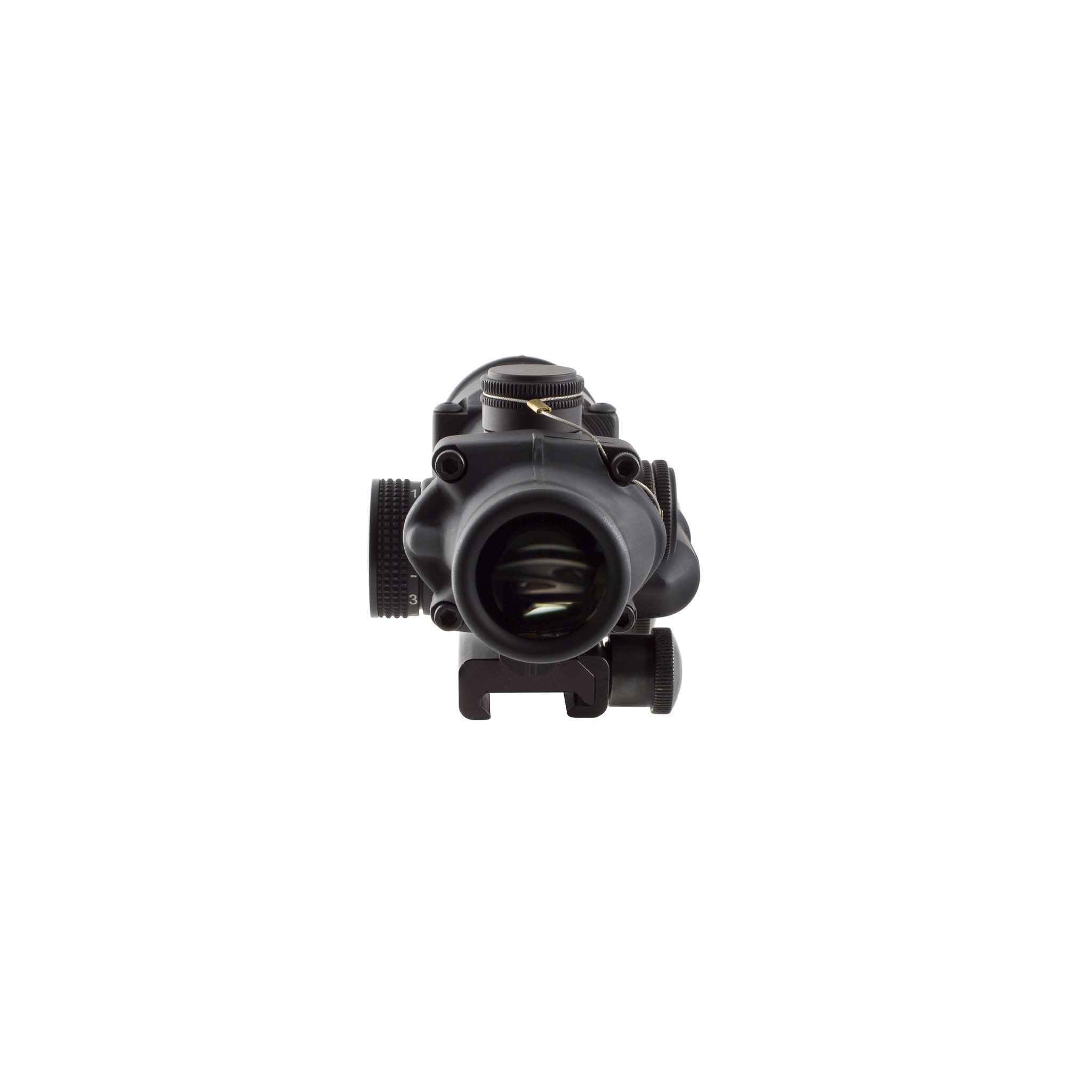

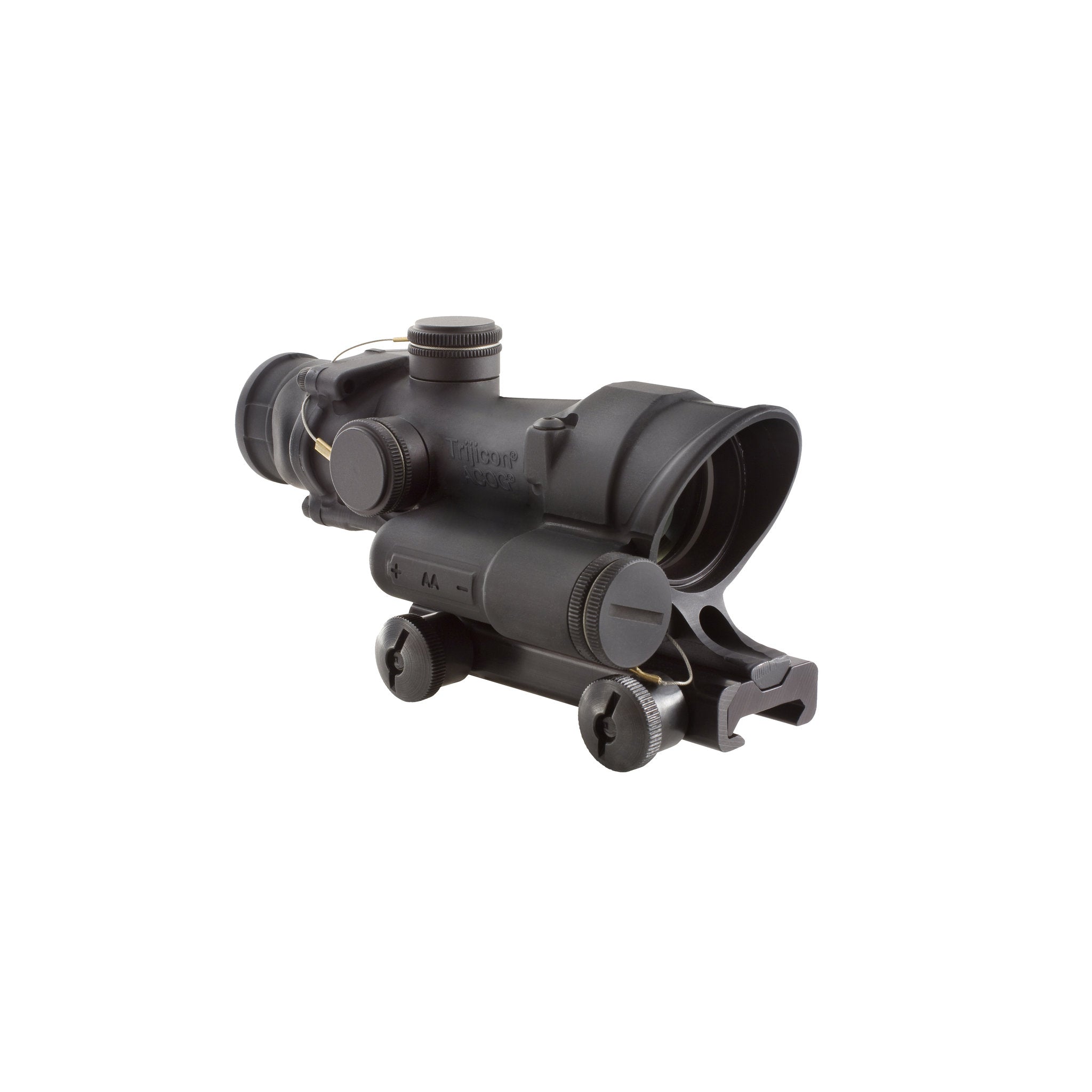

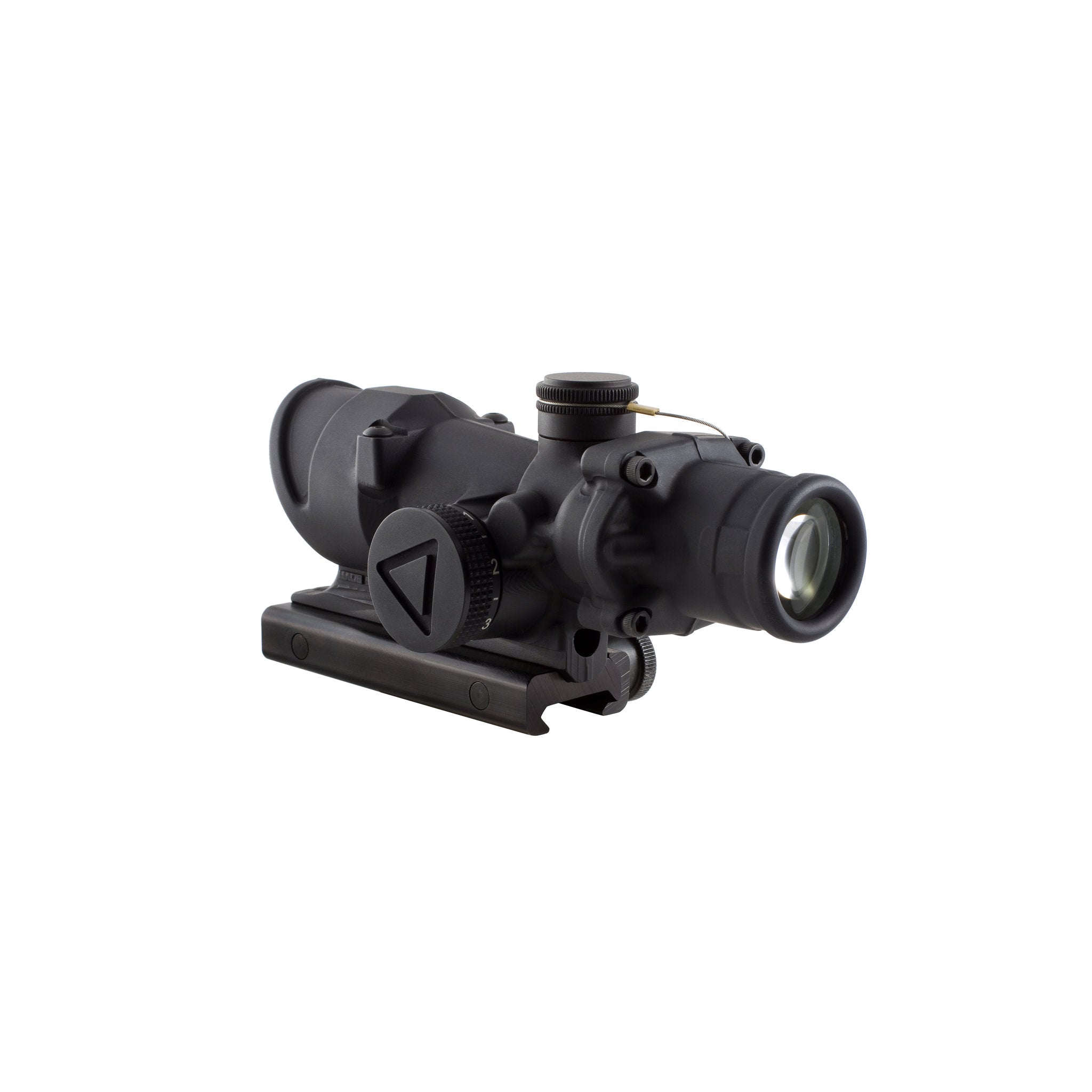

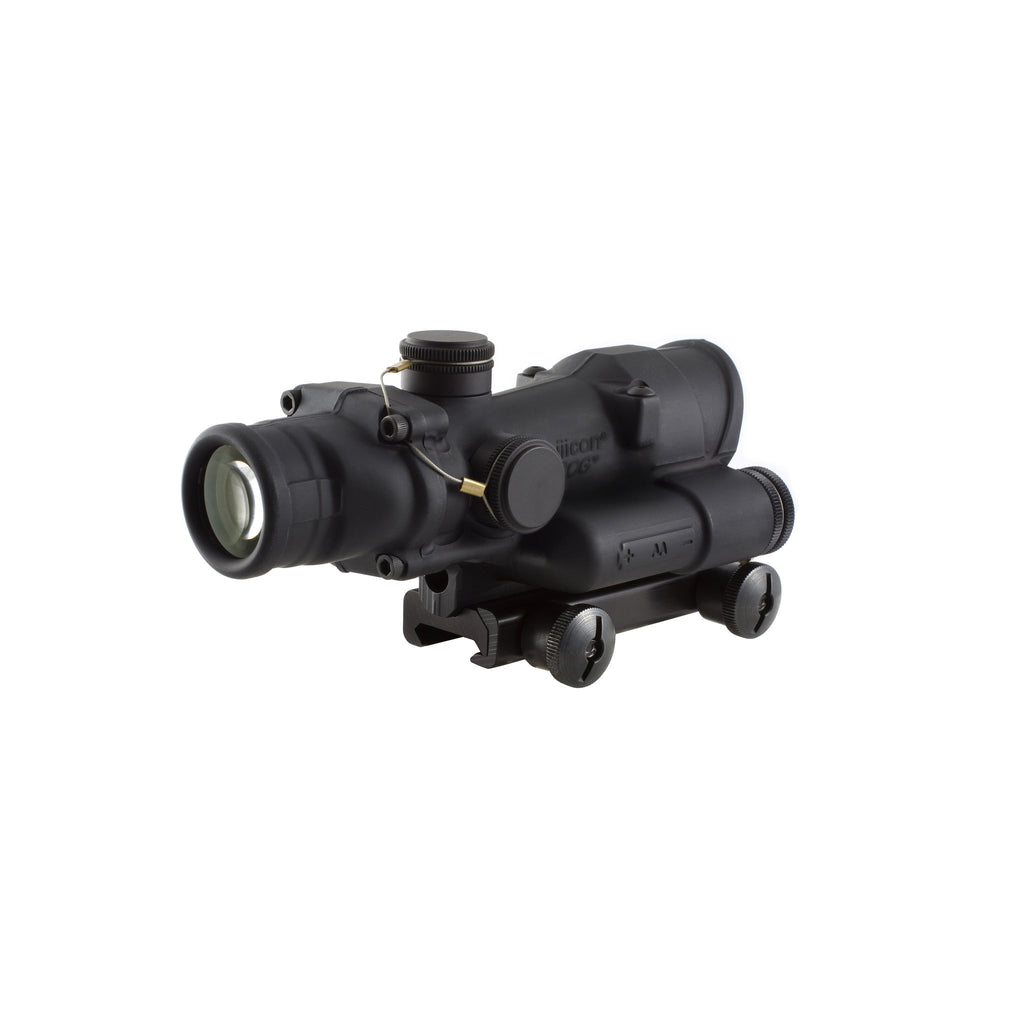

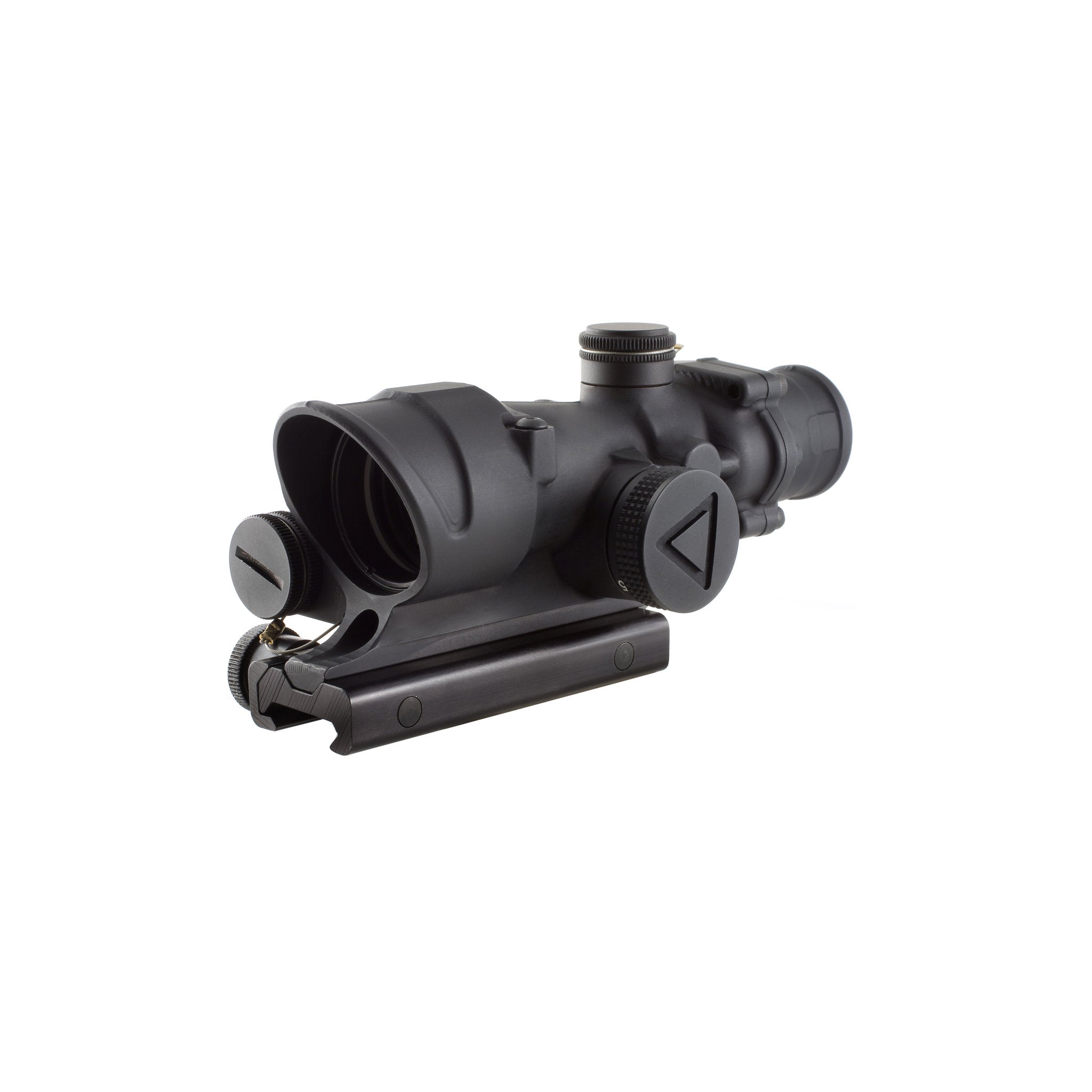

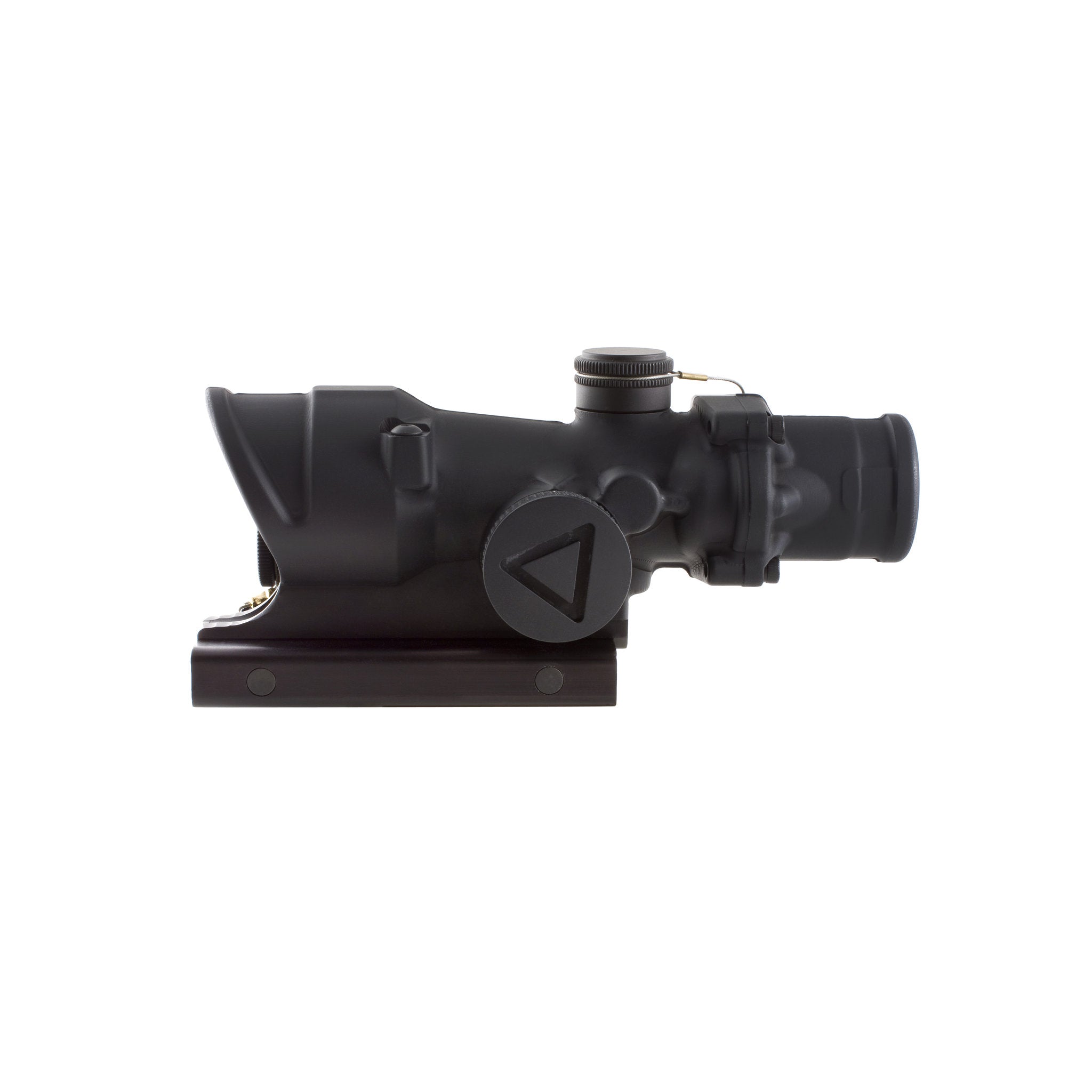

A fixed 4x32 ACOG riflescope with an LED-illuminated red crosshair BDC reticle for .223 / 5.56, for professional users who need a rugged magnified optic.

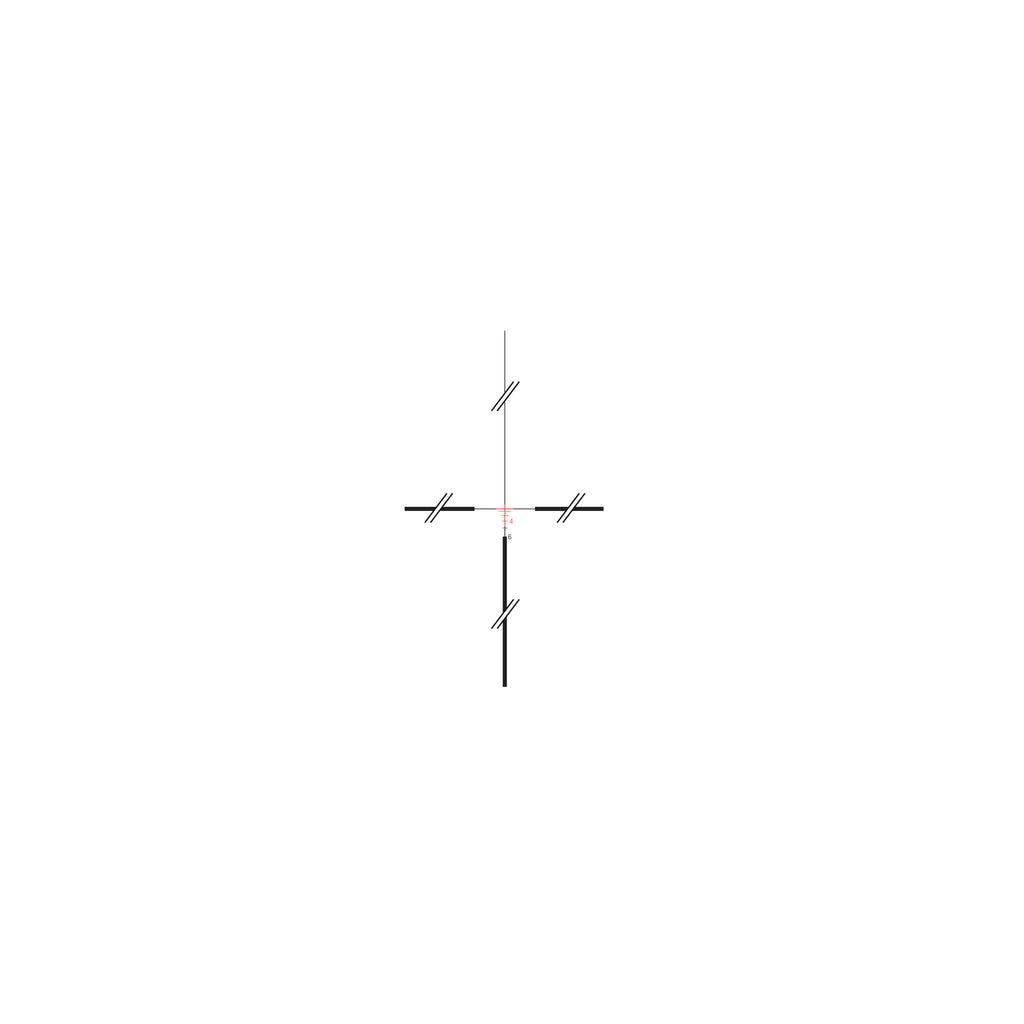

This ACOG riflescope combines 4x magnification with a 32mm objective and a red crosshair reticle with bullet drop compensation calibrated for .223 / 5.56.
The reticle is LED-illuminated and powered by a single AA battery, with six adjustable brightness levels and an off position between each setting, so the operator decides how much to illuminate the reticle, even in transitional lighting.
The housing is forged from 7075-T6 aircraft aluminium in a matte black finish, and the optic is supplied with a flattop thumbscrew mount.
Key features
- Selectable brightness — Six adjustable brightness levels with an off position between each setting let the user match reticle illumination to the light conditions.
- Long battery life — A single AA battery runs the LED for over 12,000 continuous hours on setting #4.
- Both eyes open — The Bindon Aiming Concept (BAC) supports shooting with both eyes open for improved situational awareness.
- Fixed-power design — The fixed-power design keeps moving parts to a minimum for a nearly indestructible sighting system.
- Night vision compatible — The optic is fully night vision device compatible and works with most other 4x32 ACOG accessories.
- Shock-resistant — It is proven to withstand recoil from a .22LR to a .50BMG and passes U.S. Military drop test requirements.
- Waterproof, fog-free — The dry nitrogen-filled housing mitigates fogging, and the optic is submersible to -20m.
- Multi-coated lenses — Multi-coated lenses maximise light gathering and give a clear field of view.
Typical applications
- Service and duty rifles chambered in .223 / 5.56 that need a fixed magnified optic with bullet drop compensation.
- Low-light and transitional-light operations where reticle brightness must be controlled, including use with night vision devices.
- Training and field use in harsh weather and temperature extremes.
Technical specifications
| Length × width × height | 5.98 in x 2 in x 2.3 in (151.89mm x 50.8mm x 58.42mm) |
| Weight | 17.5 oz. (496.12g) |
| Magnification | 4x |
| Objective size | 32mm |
| Reticle pattern | Crosshair |
| Day reticle colour | Red |
| Night reticle colour | Red |
| Bullet drop compensation (BDC) | Yes |
| Calibre | .223 / 5.56 |
| Bindon Aiming Concept (BAC) | Yes |
| Illumination source | LED |
| Power source | AA Lithium or Alkaline Battery |
| Battery life | Over 12,000 hours on setting #4 using supplied alkaline battery at 21 deg C (70 deg F) |
| Adjustment | 2 clicks per inch @100 yards |
| Eye relief | 1.5 in. (38.1mm) |
| Exit pupil | 0.32 in. (8.13mm) |
| Field of view (degrees) | 7° |
| Field of view (distance) | 36.8 ft. @ 100 yds. (12.27m @ 100m) |

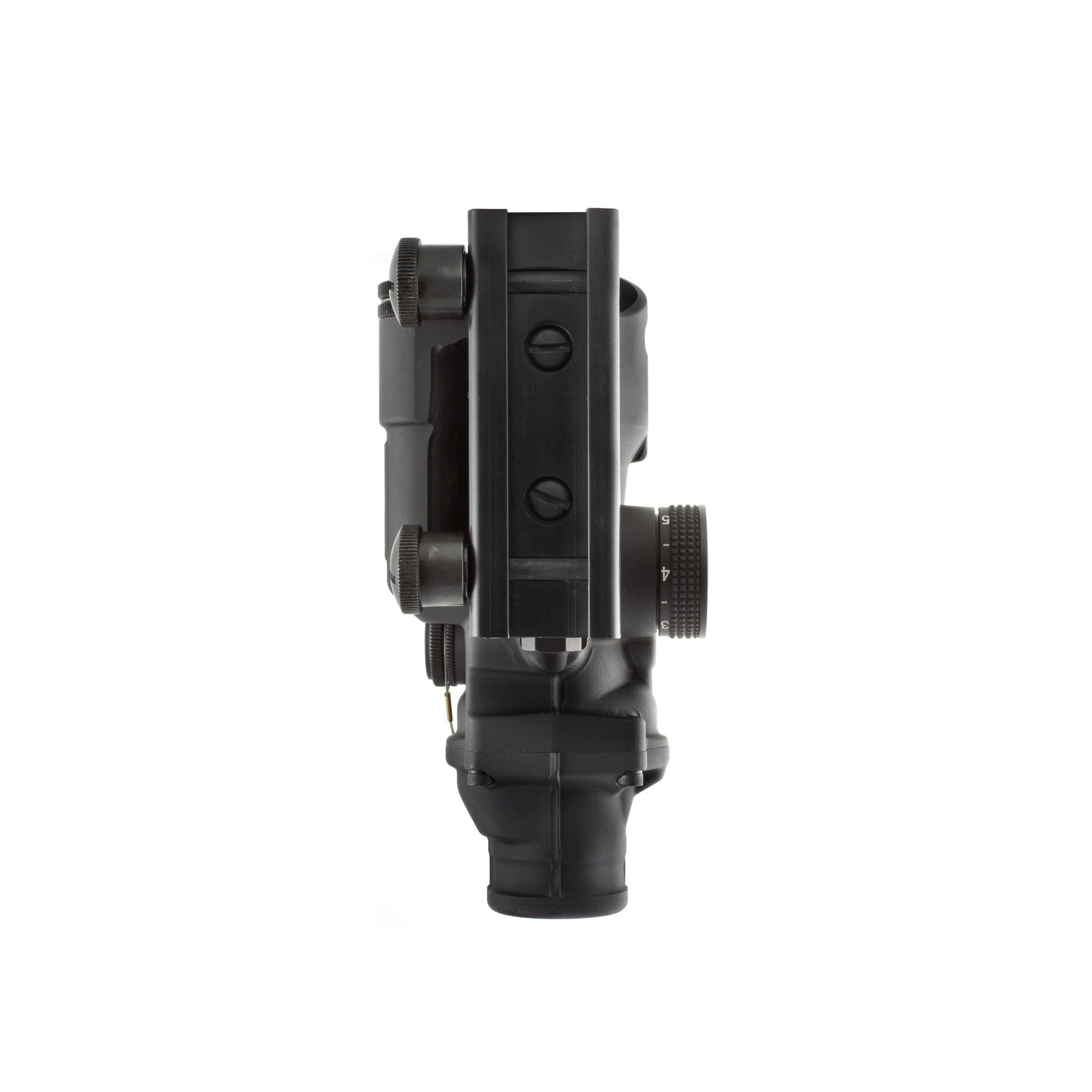

| Mount | Flattop Thumbscrew Mount (TA51) |
| Housing material | Forged Aluminum |
| Finish | Matte Black |
| Submersion depth | 66 ft. (20m) |
In the box
- 1 × ACOG® 4x32 LED Riflescope - .223 / 5.56 BDC — Red Crosshair Reticle, Thumbscrew Mount, LED Illuminated, Matte Black
- Thumbscrew Flattop Adapter (TA51)
- AA Battery
- LENSPEN (TA56)
- Lanyard Assembly for Adjuster Caps (TA71E)
- Lanyard Assembly for Battery Cap
- Trijicon Logo Sticker (PR15)
- ACOG Manual
- Warranty Card
Model information
| Brand | Trijicon |
| Model | ACOG® 4x32 LED Riflescope - .223 / 5.56 BDC — Red Crosshair Reticle, Thumbscrew Mount, LED Illuminated, Matte Black |
| MPN | TA02 |
