Description

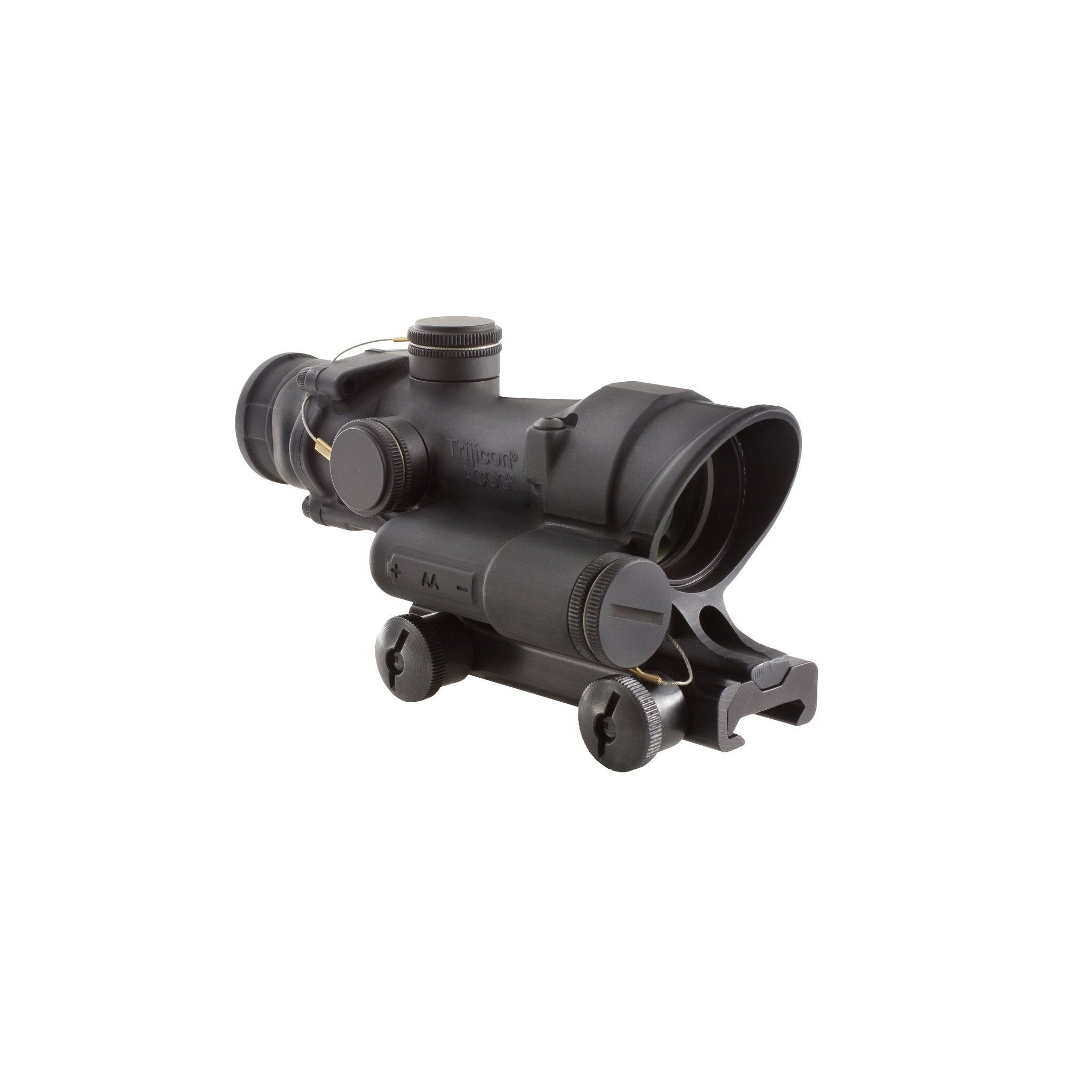

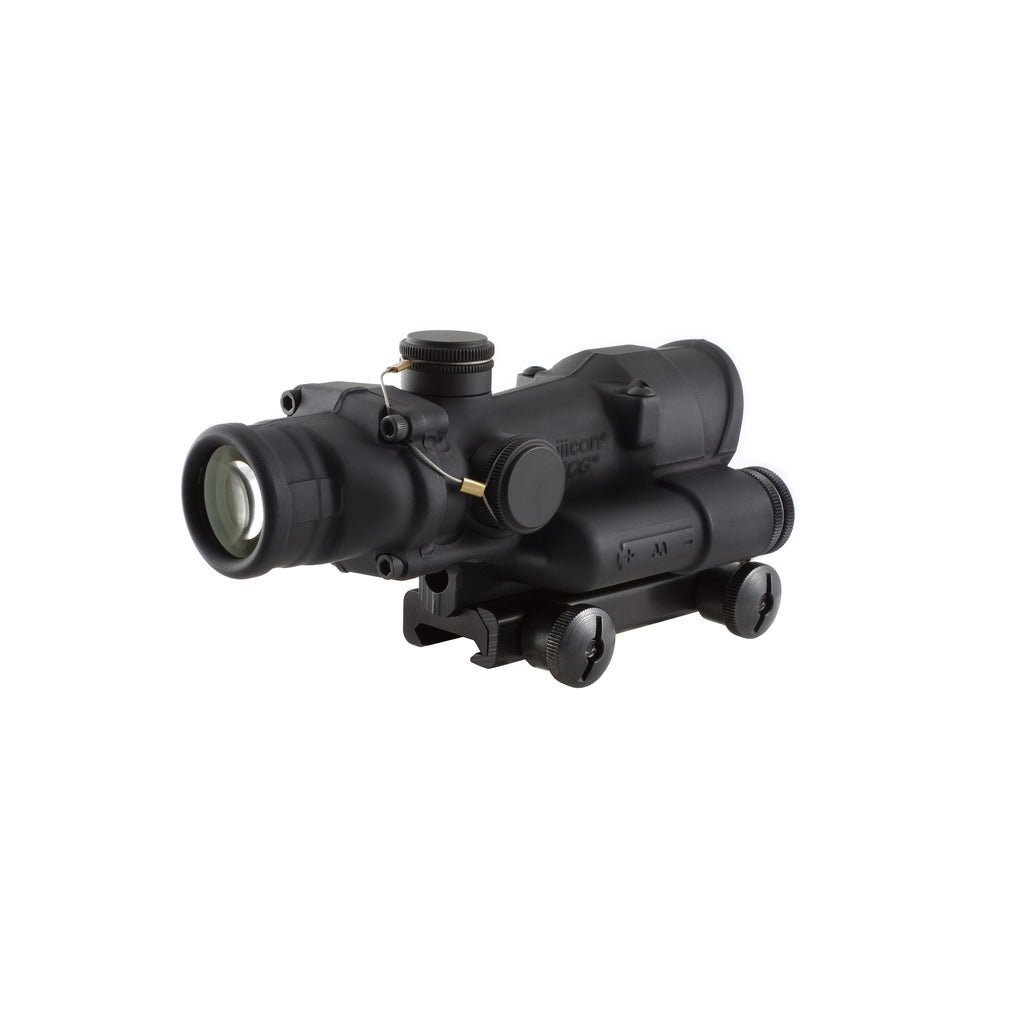

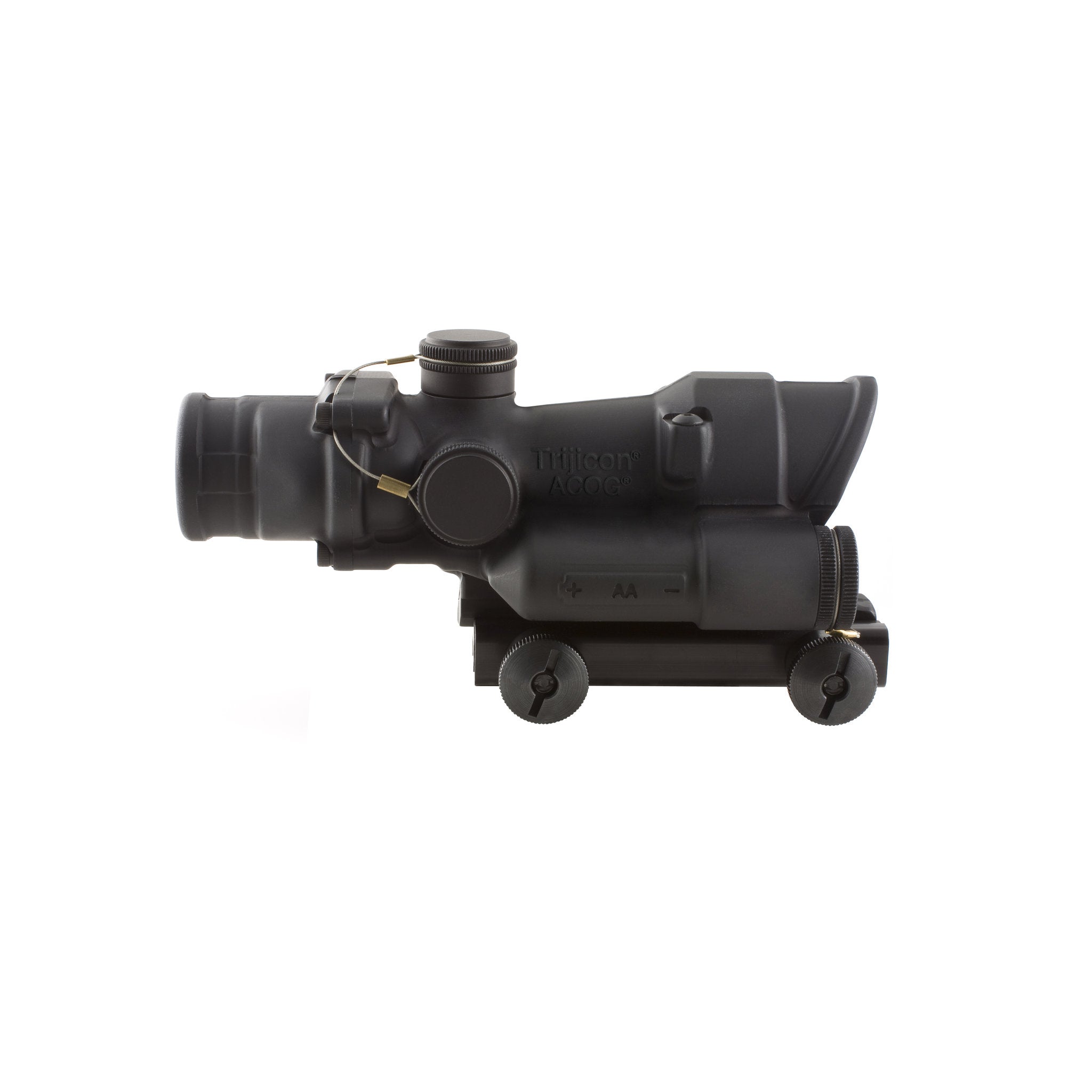

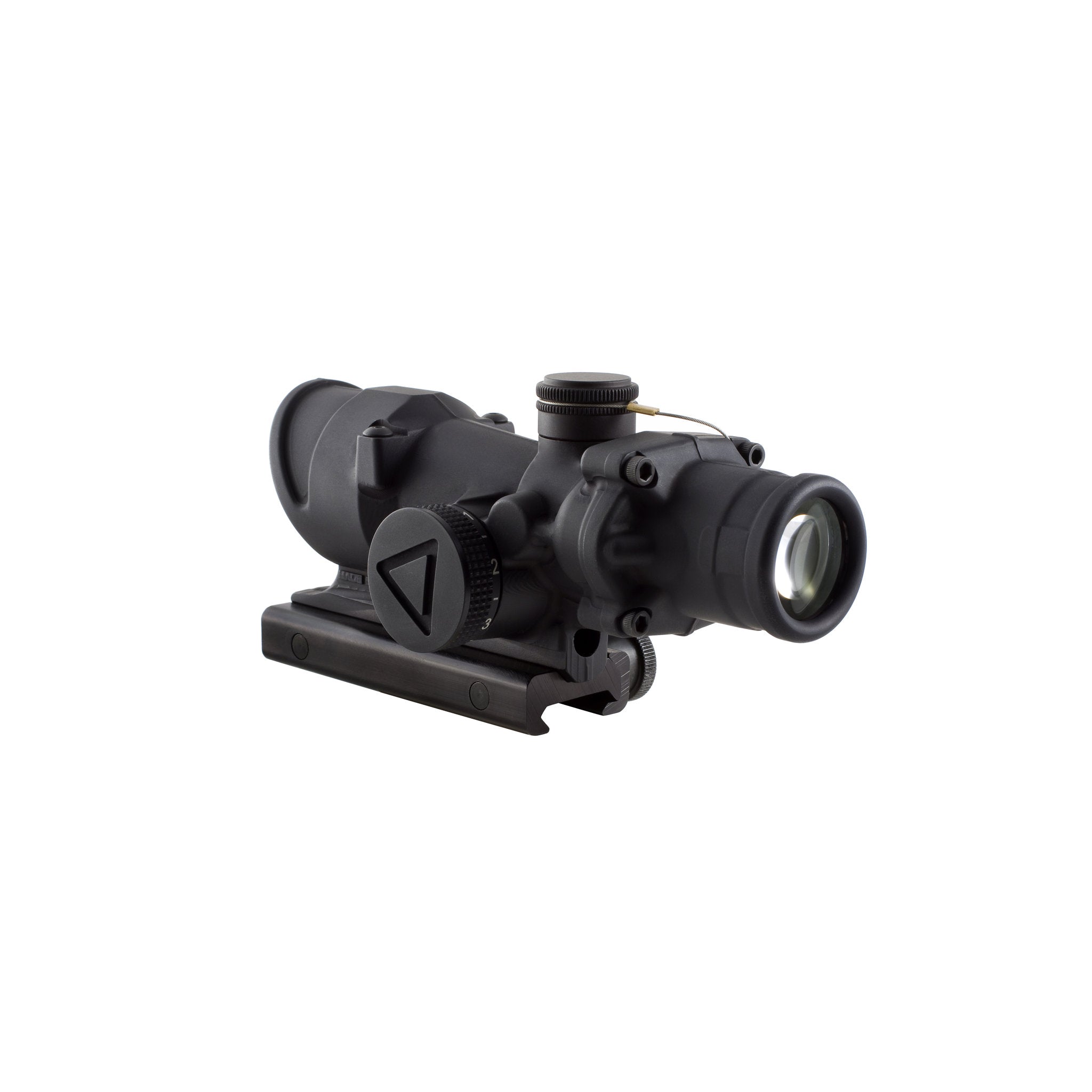

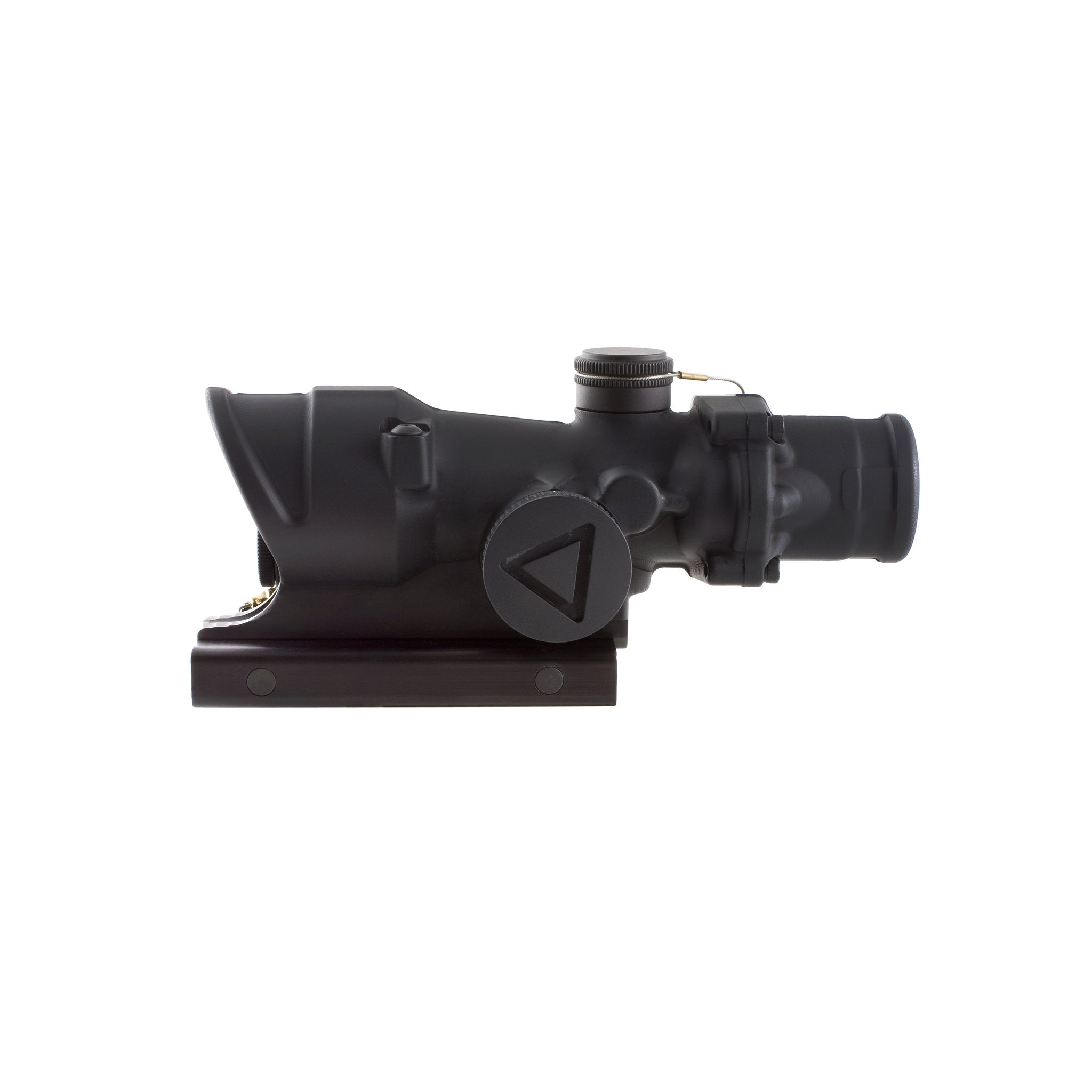

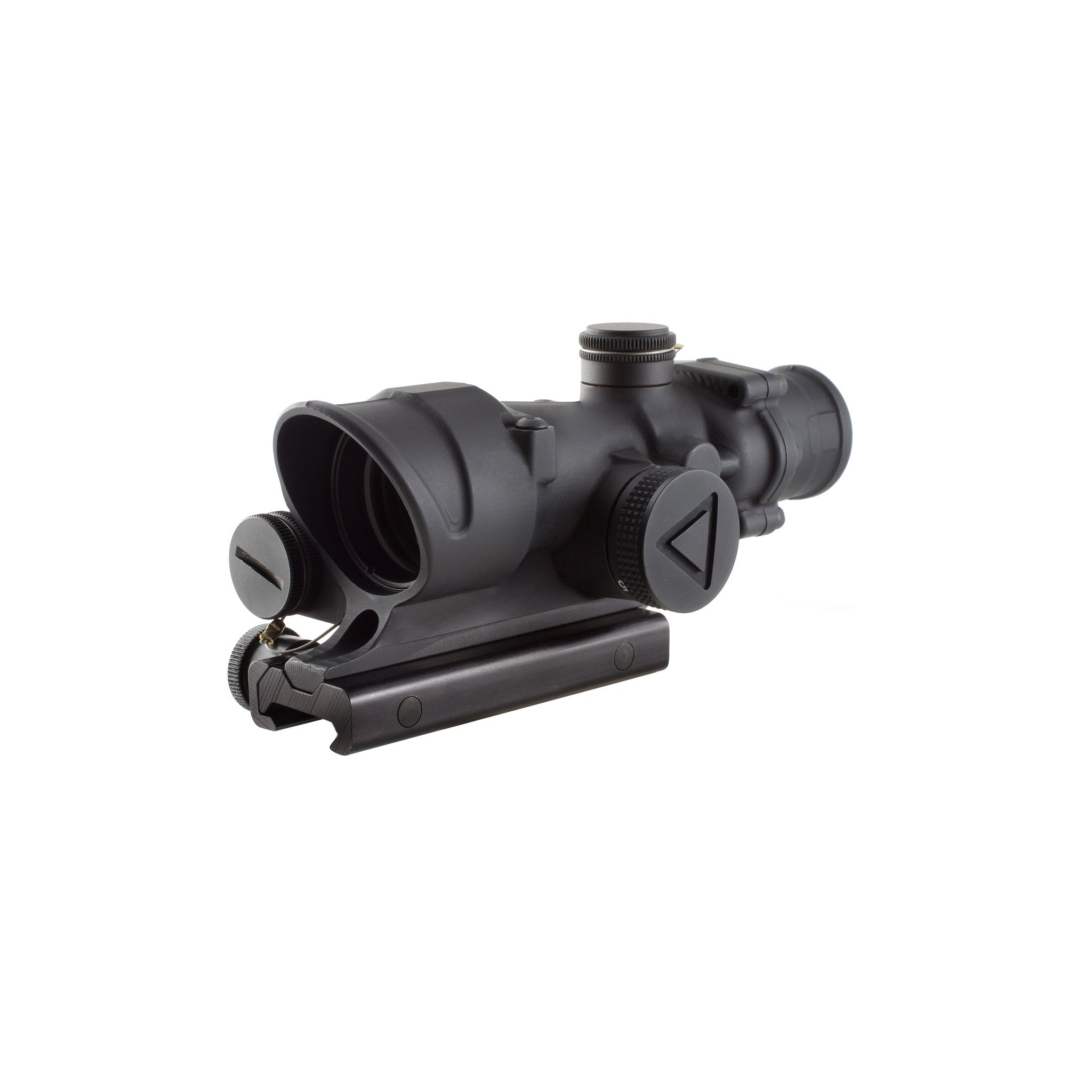

Fixed 4x32 ACOG riflescope with an LED-illuminated green crosshair BDC reticle for .300 BLK, for users running both supersonic and subsonic ammunition.
This ACOG combines 4x magnification and a 32mm objective with a green crosshair reticle whose bullet drop compensator is calibrated for 300 BLK.
The reticle is LED-illuminated and powered by a single AA battery, with six adjustable brightness levels and an off position between each setting.
It is supplied on a Flattop Thumbscrew Mount (TA51), and the forged aluminium housing has a matte black finish.
Key features
- Merged BDC reticle — The supersonic BDC (out to 600 yds.) is merged with the subsonic BDC (out to 200 yds.), giving one set of aiming points for both types of ammunition without re-zeroing.
- 2 MOA diamonds — Most commonly available ammunition falls within the 2 MOA diamond aiming points, so the reticle is not limited to one or two specific bullets.
- Selectable brightness — Six adjustable brightness levels let the operator set how much the reticle is illuminated, even in transitional lighting.
- Long battery life — A single AA battery runs the LED for over 12,000 continuous hours on setting #4.
- Both eyes open — The Bindon Aiming Concept (BAC) supports shooting with both eyes open for improved situational awareness.
- Night vision compatible — The optic is fully night vision device compatible and works with most other 4x32 ACOG accessories.
- Rugged fixed-power housing — The fixed-power body is forged from 7075-T6 aircraft aluminium with minimal moving parts, and the RMR mount position has been moved forward.
- Waterproof, nitrogen-filled — The dry nitrogen-filled housing mitigates fogging and is rated to a submersion depth of -66 ft. (-20m).
Typical applications
- Magnified sighting on .300 BLK rifles that alternate between supersonic and subsonic loads.
- Duty and professional use where the reticle must be usable in changing and low light.
- Night operations alongside night vision devices.
- Handload development using the published drops for each aiming point.
Technical specifications
| Length × width × height | 5.98 in x 2 in x 2.3 in (151.89mm x 50.8mm x 58.42mm) |
| Weight | 17.5 oz. (496.12g) |
| Magnification | 4x |
| Objective size | 32mm |
| Reticle pattern | Crosshair |
| Day reticle colour | Green |
| Night reticle colour | Green |
| Bullet drop compensation (BDC) | Yes |
| Calibre | 300 BLK |
| Bindon Aiming Concept (BAC) | Yes |
| Illumination source | LED |
| Power source | AA Lithium or Alkaline Battery |
| Battery life | Over 12,000 hours on setting #4 using supplied alkaline battery at 21 deg C (70 deg F) |
| Adjustment | 2 clicks per inch @100 yards |
| Eye relief | 1.5 in. (38.1mm) |
| Exit pupil | 0.32 in. (8.13mm) |
| Field of view (degrees) | 7° |
| Field of view (distance) | 36.8 ft. @ 100 yds. (12.27m @ 100m) |
| Mount | Flattop Thumbscrew Mount (TA51) |
| Housing material | Forged Aluminum |
| Finish | Matte Black |
| Submersion depth | 66 ft. (20m) |
In the box
- 1 × ACOG® 4x32 LED Riflescope - .300 BLK BDC — Green .300 BLK Crosshair Reticle, Thumbscrew Mount,LED Illuminated, Matte Black
- Thumbscrew Flattop Adapter (TA51)
- AA Battery
- LENSPEN (TA56)
- Lanyard Assembly for Adjuster Caps (TA71E)
- Lanyard Assembly for Battery Cap
- Trijicon Logo Sticker (PR15)
- ACOG Manual
- Warranty Card
Model information
| Brand | Trijicon |
| Model | ACOG® 4x32 LED Riflescope - .300 BLK BDC — Green .300 BLK Crosshair Reticle, Thumbscrew Mount,LED Illuminated, Matte Black |
| MPN | TA02-C-100432 |
