Description

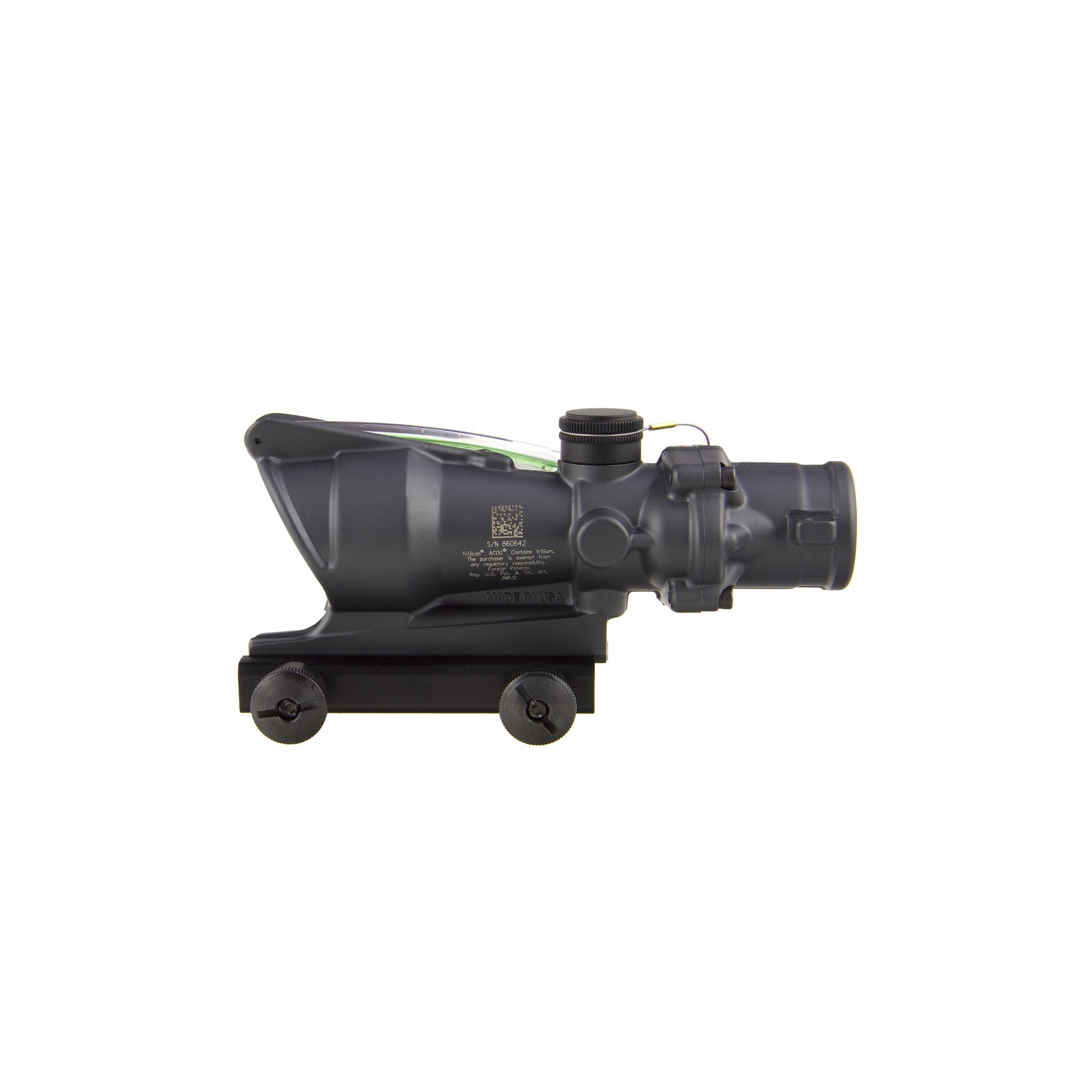

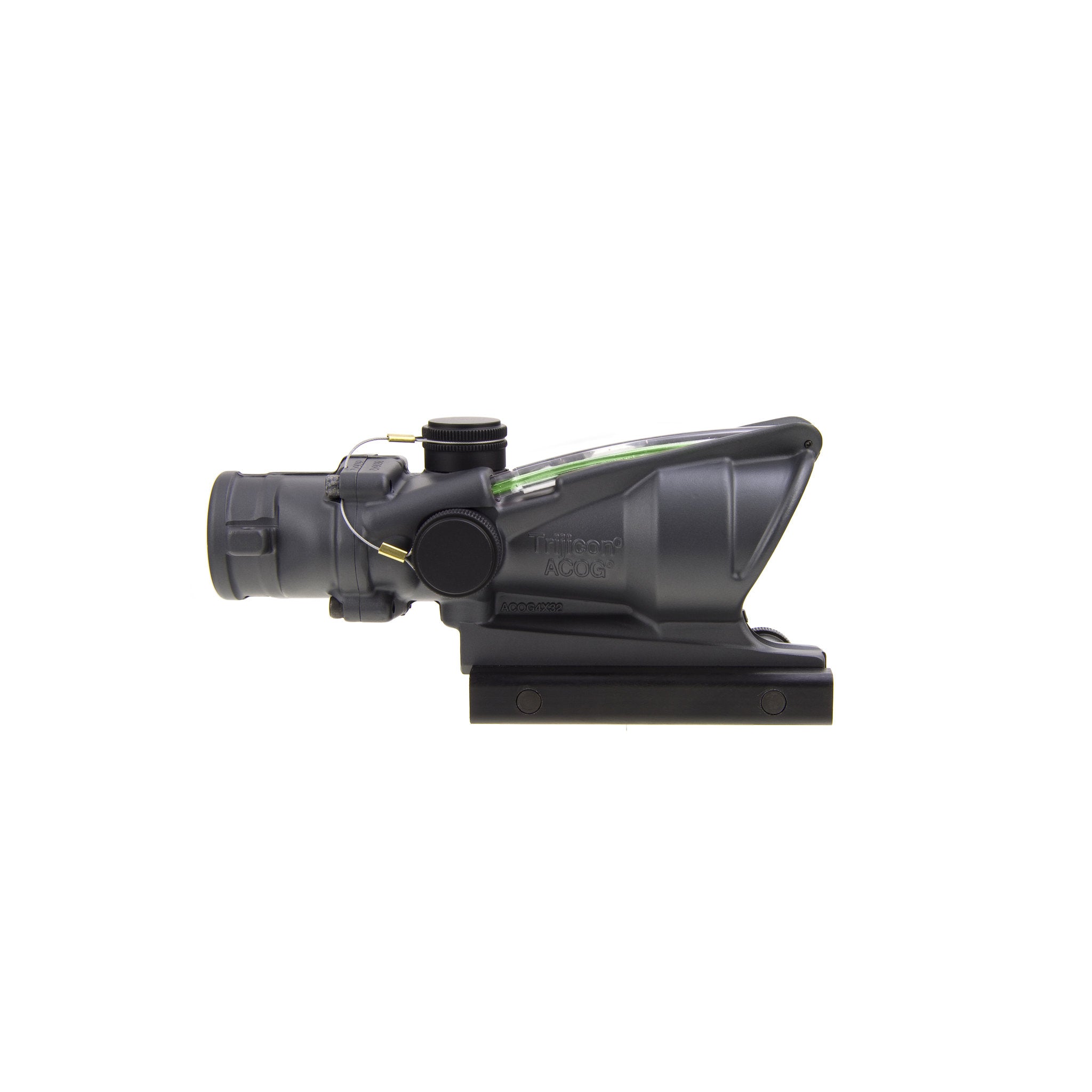

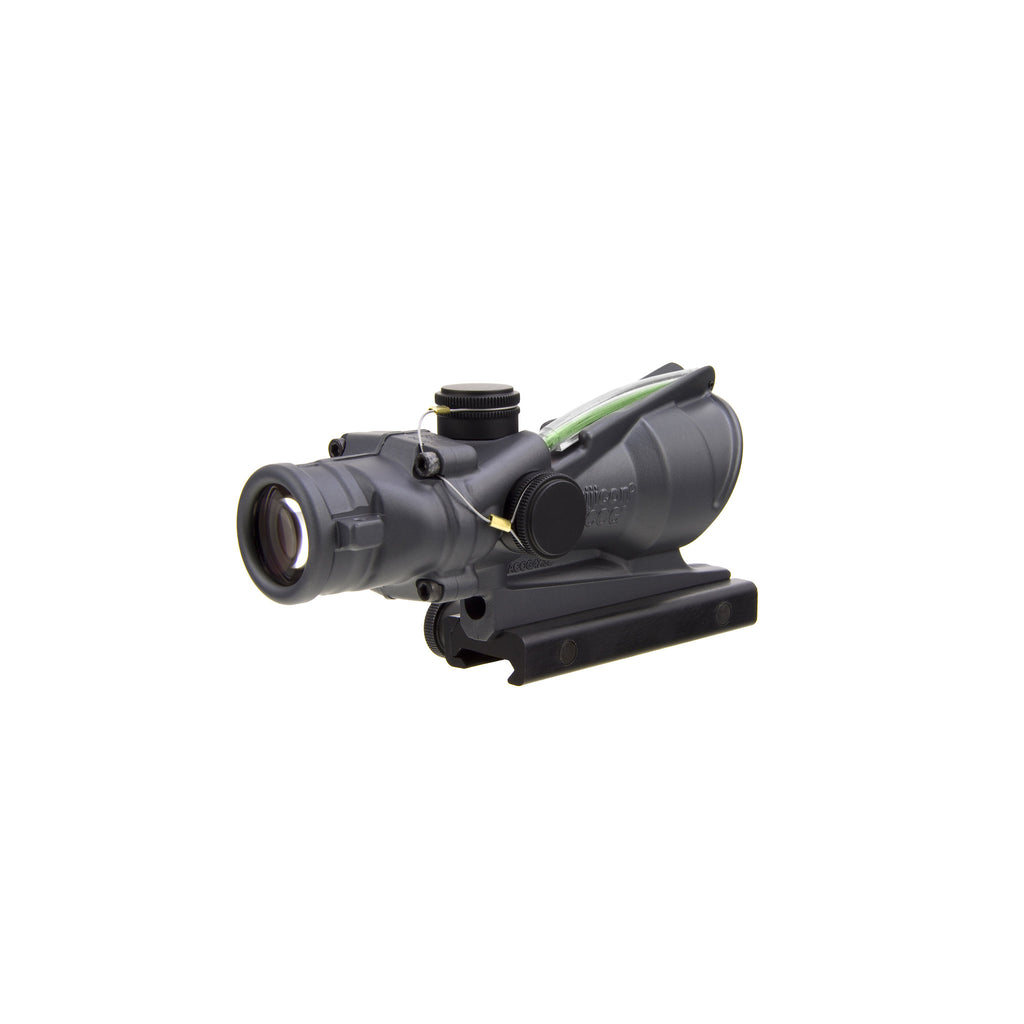

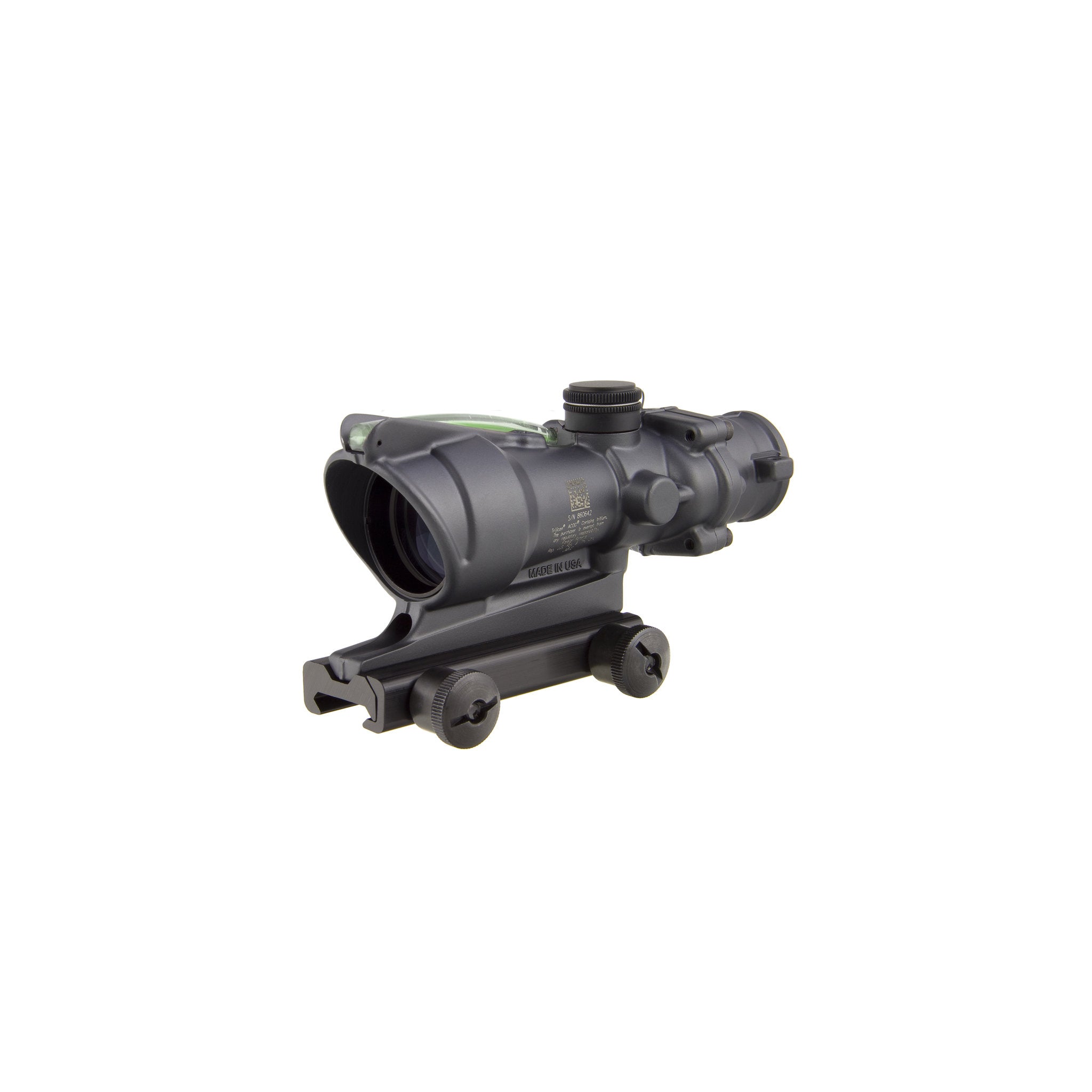

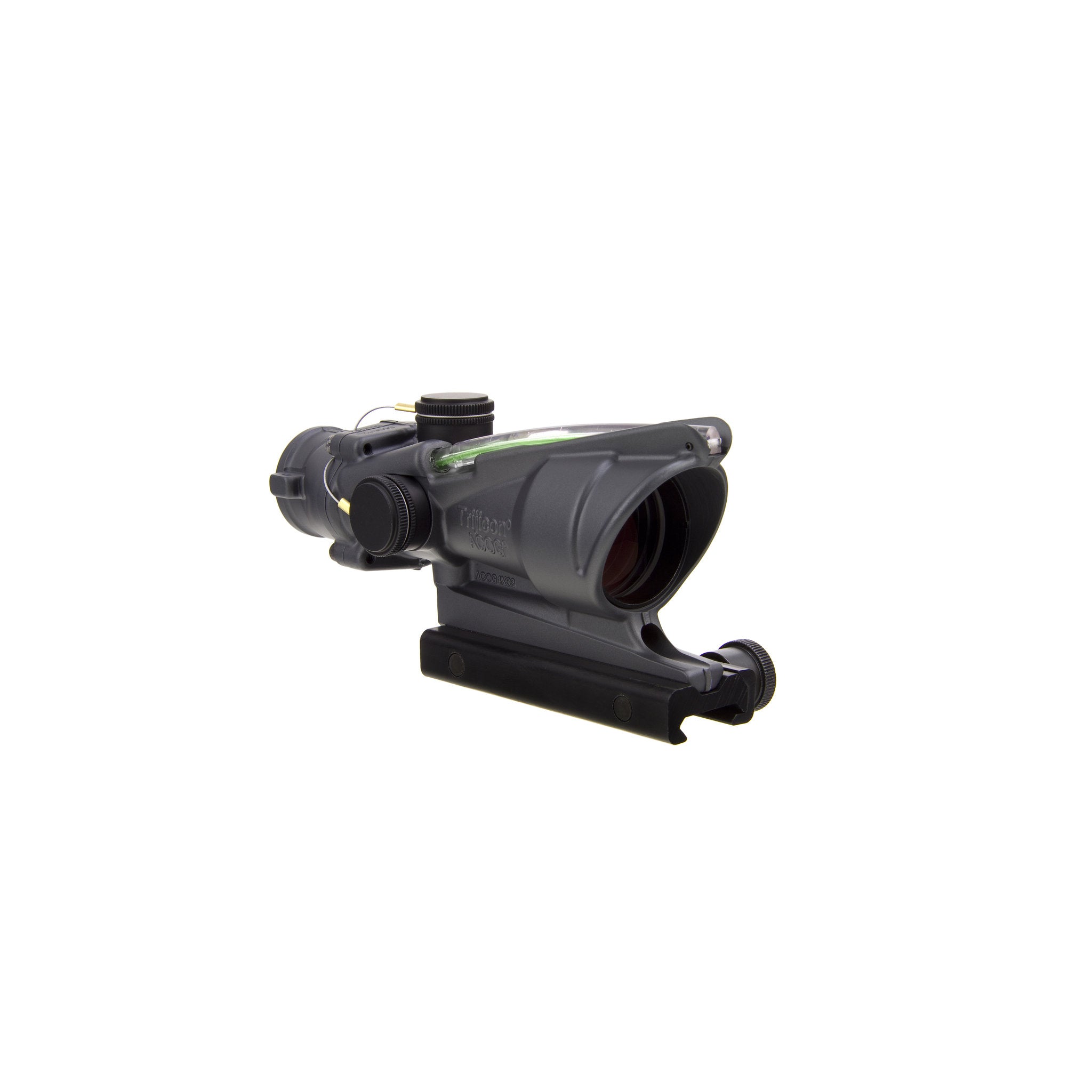

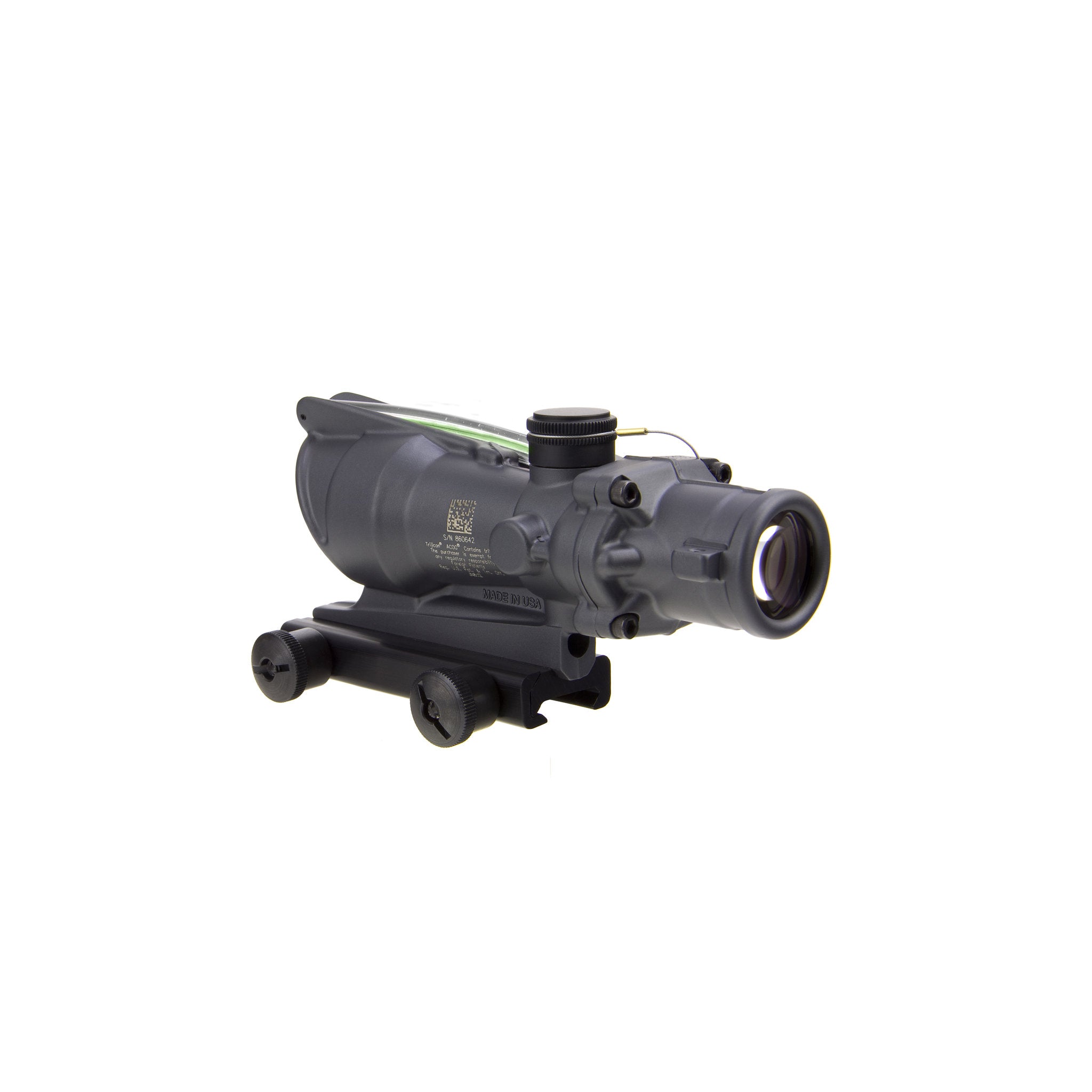

A fixed 4x32 ACOG riflescope with a dual-illuminated green chevron BDC reticle for .223 / 5.56 flattop rifles, for professional users who need rugged magnified optics.
This ACOG is a fixed-power 4x riflescope with a 32mm objective and a green chevron reticle with bullet drop compensation calibrated for .223 / 5.56.
The reticle uses dual illumination: fibre optics provide daylight illumination and tritium illuminates the reticle at night.
It comes with a flattop thumbscrew mount and has a forged aluminium housing in a Sniper Gray finish.
Key features

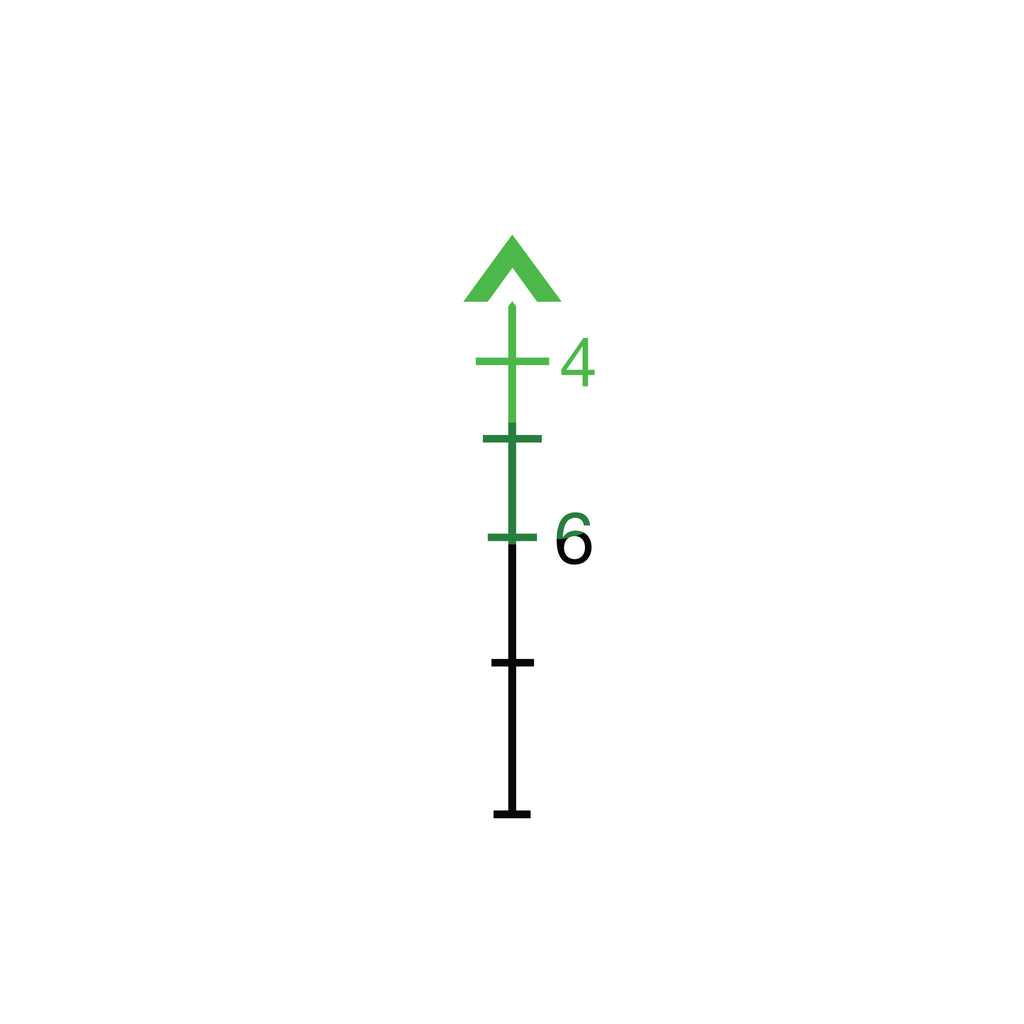

- Chevron zero and ranging — The chevron is zeroed using its tip at 100 metres, and its 5.53 MOA base width, which is 19 in. at 300 metres, allows range estimation for silhouette targets.
- BDC to 800 metres — The ranging reticle is calibrated for 5.56 (.223 cal) flattop rifles out to 800 metres.
- Battery-free illumination — The tritium and fibre optic illuminated reticle automatically adjusts its brightness to the available light.
- Both eyes open — The Bindon Aiming Concept (BAC) supports shooting with both eyes open for improved situational awareness.
- Fixed-power design — The fixed-power design keeps moving parts to a minimum in a forged aluminium housing.
- Shock resistant — It is proven to withstand recoil from a .22LR to a .50BMG and passes U.S. Military drop test requirements.
- Waterproof, fog-free — The dry nitrogen-filled housing mitigates fogging and is rated to a submersion depth of -20m.
- Multi-coated optics — Multi-coated lenses maximise light-gathering and give a clear field of view.
Typical applications
- Magnified sighting on .223 / 5.56 flattop rifles for law enforcement and military users.
- Range estimation and holdover on silhouette targets at extended distances.
- Day and night use without dependence on batteries.
Technical specifications
| Length × width × height | 5.98 in x 2 in x 2.3 in (151.89mm x 50.8mm x 58.42mm) |
| Weight | 14.9 oz. (422.41g) |
| Magnification | 4x |
| Objective size | 32mm |
| Reticle pattern | Chevron |
| Day reticle colour | Green |
| Night reticle colour | Green |
| Bullet drop compensation (BDC) | Yes |
| Calibre | .223 / 5.56 |
| Illumination source | Fiber Optics & Tritium |
| Power source | Fiber Optics & Tritium |
| Eye relief | 1.5 in. (38.1mm) |
| Exit pupil | 0.32 in. (8.13mm) |
| Field of view (degrees) | 7° |
| Field of view (distance) | 36.8 ft. @ 100 yds. (12.27m @ 100m) |
| Mount | Flattop Thumbscrew Mount (TA51) |
| Housing material | Forged Aluminum |
| Finish | Sniper Gray |
| Submersion depth | 66 ft. (20m) |
In the box
- 1 × ACOG® 4x32 BAC Riflescope - .223 / 5.56 - BDC — Green Chevron Reticle, Thumbscrew Mount, Sniper Gray , Tritium / Fiber Optics Illuminated
- Thumbscrew Flattop Adapter (TA51)
- 4x32 Scopecoat (TA64)
- LENSPEN (TA56)
- Lanyard Assembly for Adjuster Caps (TA71E)
- Trijicon Logo Sticker (PR15)
- ACOG Manual
- Warranty Card
Model information
| Brand | Trijicon |
| Model | ACOG® 4x32 BAC Riflescope - .223 / 5.56 - BDC — Green Chevron Reticle, Thumbscrew Mount, Sniper Gray , Tritium / Fiber Optics Illuminated |
| MPN | TA31-D-100311 |
