Description

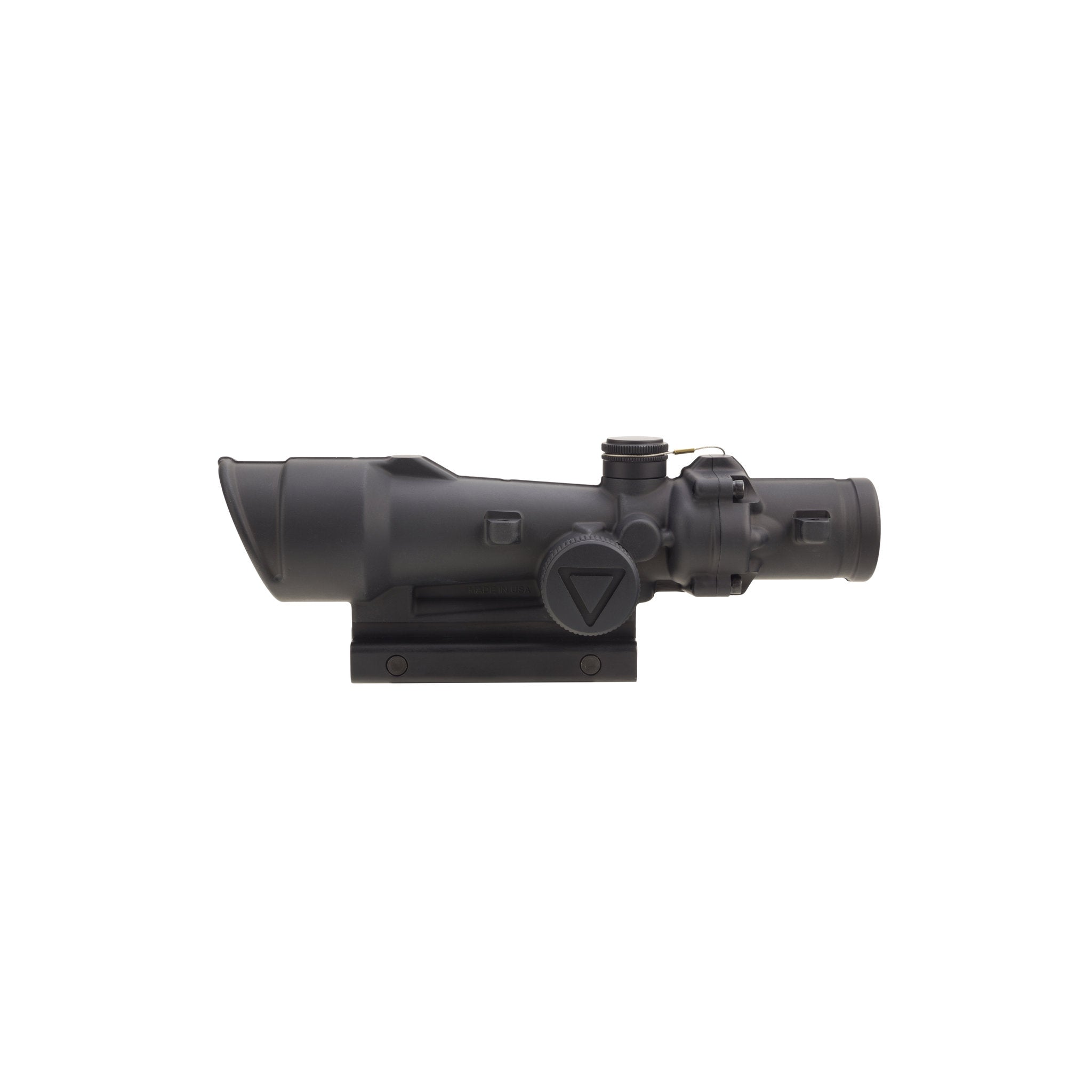

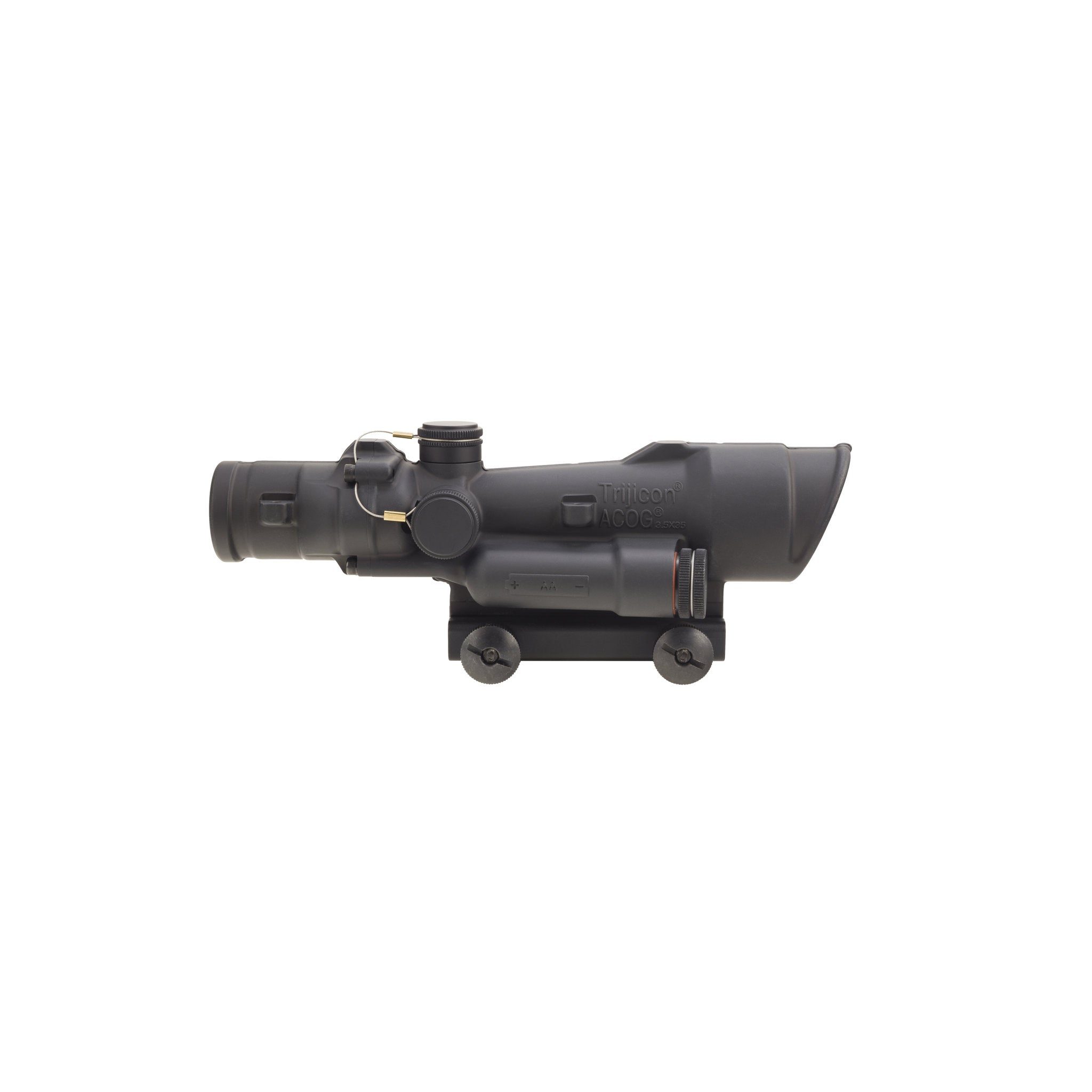

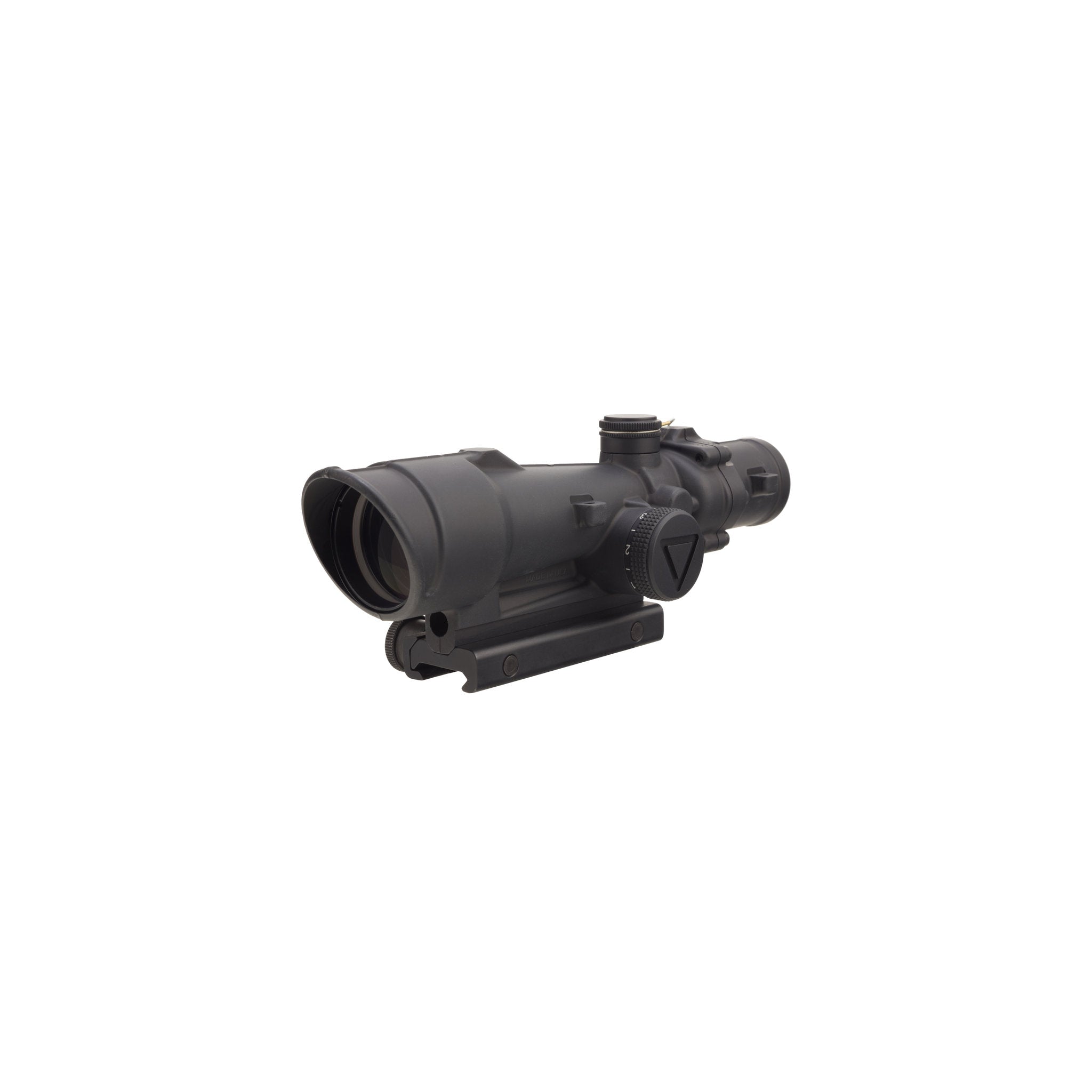

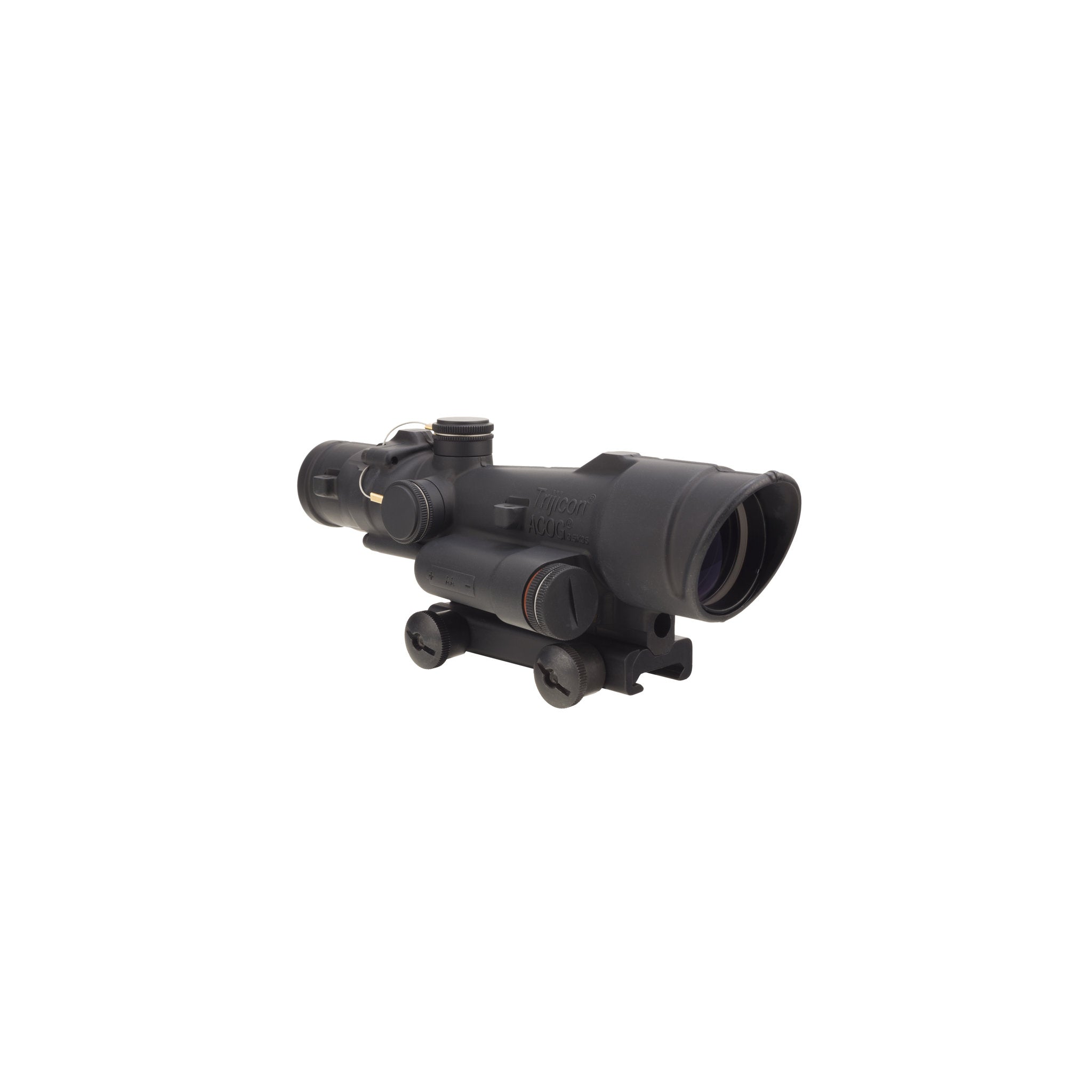

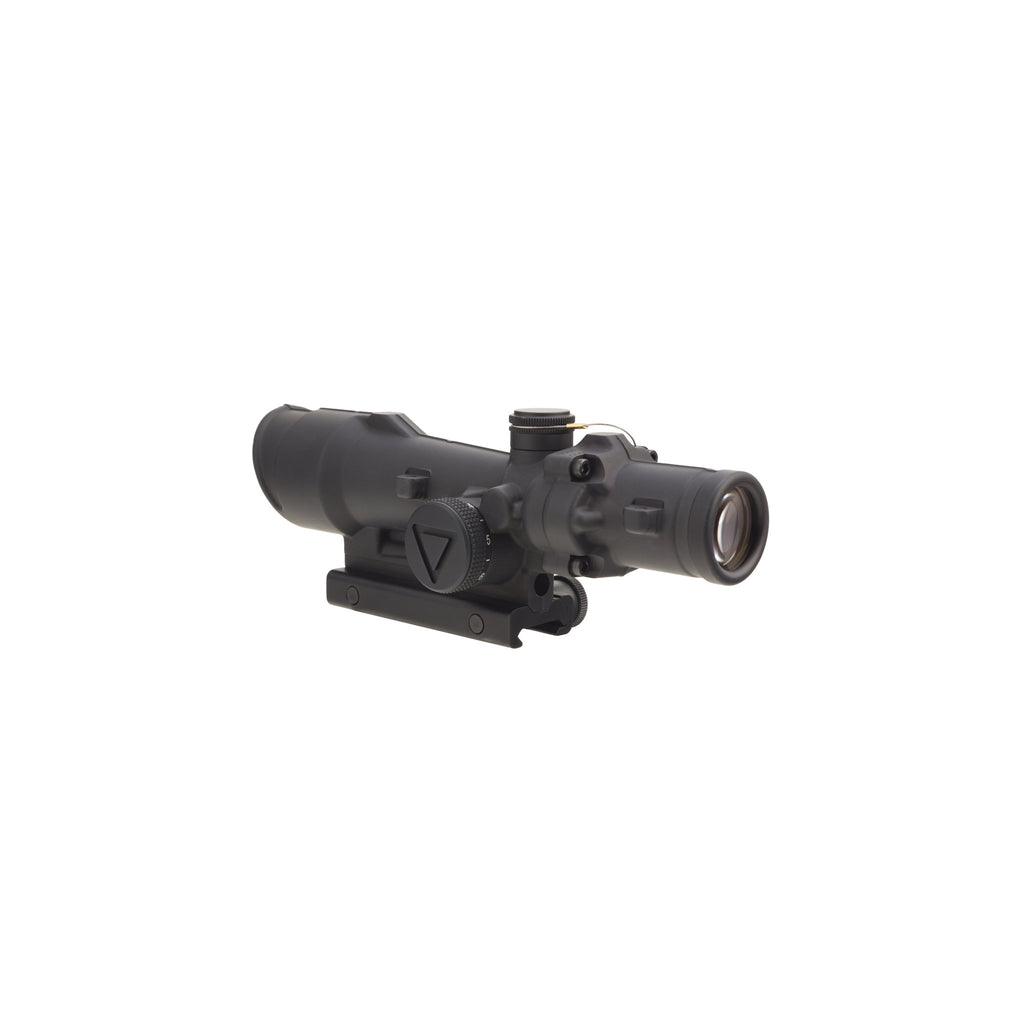

A fixed 3.5x35 ACOG riflescope with an LED-illuminated red crosshair BDC reticle for .308 / 7.62, aimed at professional users of .308-calibre rifles.

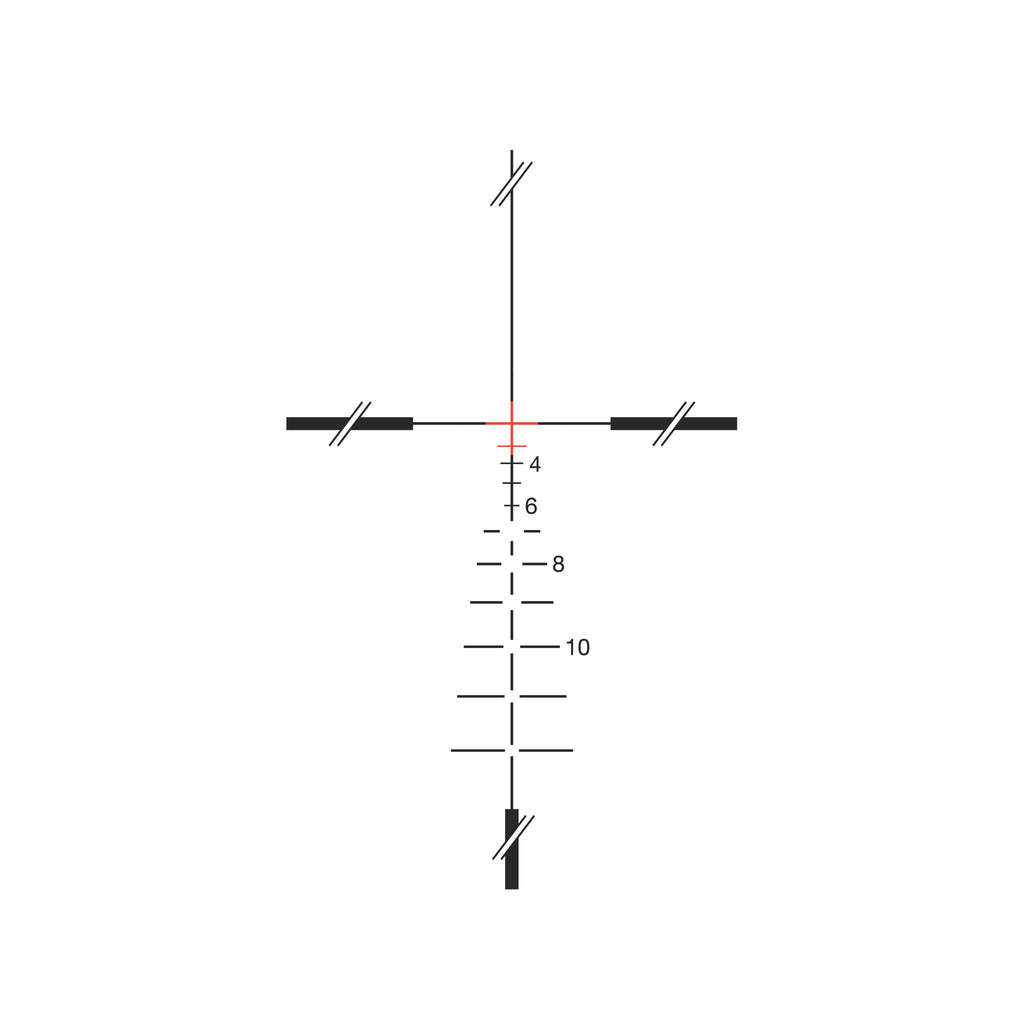

This ACOG combines 3.5x magnification with a 35mm objective and a red crosshair reticle with bullet drop compensation calibrated for .308 / 7.62.
The reticle is LED-illuminated with six user-selectable brightness settings and an off position between each, powered by a single AA battery.
It is supplied on a flattop thumbscrew mount (TA51), and the housing is forged from 7075-T6 aircraft-aluminium with a matte black finish.
Key features
- Selectable brightness — Six adjustable brightness levels with an off setting between each let the operator set reticle illumination to suit the light, including transitional lighting.
- Long battery life — A single AA battery runs the illumination for over 12,000 continuous hours on setting #4.
- Both eyes open — The Bindon Aiming Concept (BAC) supports both-eyes-open shooting for improved situational awareness.
- Fixed-power housing — The fixed-power design keeps moving parts to a minimum for a rugged, reliable sighting system.
- Night vision compatible — The scope is fully night vision device compatible and works with most other 3.5x35 ACOG accessories.
- Shock and weather resistant — It is built to withstand recoil from .22LR to .50BMG, and the waterproof, dry nitrogen-filled housing mitigates fogging in extreme cold and heat.
- Multi-coated optics — Multi-coated lenses maximise light gathering and give a clear field of view.
Typical applications
- Magnified sighting for .308 / 7.62 service and duty rifles
- Engagements in changing or transitional light where reticle brightness must be adjusted
- Use alongside night vision devices in low-light operations
Technical specifications
| Length × width × height | 8 in x 3 in x 2.6 in (203.2mm x 76.2mm x 66.04mm) |
| Weight | 20.8 oz. (589.67g) |
| Magnification | 3.5x |
| Objective size | 35mm |
| Reticle pattern | Crosshair |
| Day reticle colour | Red |
| Night reticle colour | Red |
| Bullet drop compensation (BDC) | Yes |
| Calibre | .308 / 7.62 |
| Bindon Aiming Concept (BAC) | Yes |
| Illumination source | LED |
| Illumination settings | 6 |
| Power source | AA Lithium or Alkaline Battery |
| Battery life | Over 12,000 hours on setting #4 using supplied alkaline battery at 21 deg C (70 deg F) |
| Adjustment | 3 clicks per inch (@ 100yds) |
| Adjustment range | 40 MOA Total Travel |
| Eye relief | 2.4 in. (60.96mm) |
| Exit pupil | 0.39 in. (9.91mm) |
| Field of view (degrees) | 5.5° |
| Field of view (distance) | 28.9 ft. @ 100 yds. (9.63m @ 100m) |
| Mount | Flattop Thumbscrew Mount (TA51) |
| Housing material | Forged Aluminum |
| Finish | Matte Black |
In the box
- 1 × ACOG® 3.5x35 LED Riflescope -.308 / 7.62 BDC — Red Crosshair Reticle, Thumbscrew Mount, LED Illuminated, Matte Black
- Thumbscrew Flattop Adapter (TA51)
- AA Battery
- LENSPEN (TA56)
- Lanyard Assembly for Adjuster Caps (TA71E)
- Lanyard Assembly for Battery Cap
- Trijicon Logo Sticker (PR15)
- LED ACOG Manual
- Warranty Card
Model information
| Brand | Trijicon |
| Model | ACOG® 3.5x35 LED Riflescope -.308 / 7.62 BDC — Red Crosshair Reticle, Thumbscrew Mount, LED Illuminated, Matte Black |
| MPN | TA110-D-100501 |
