Description

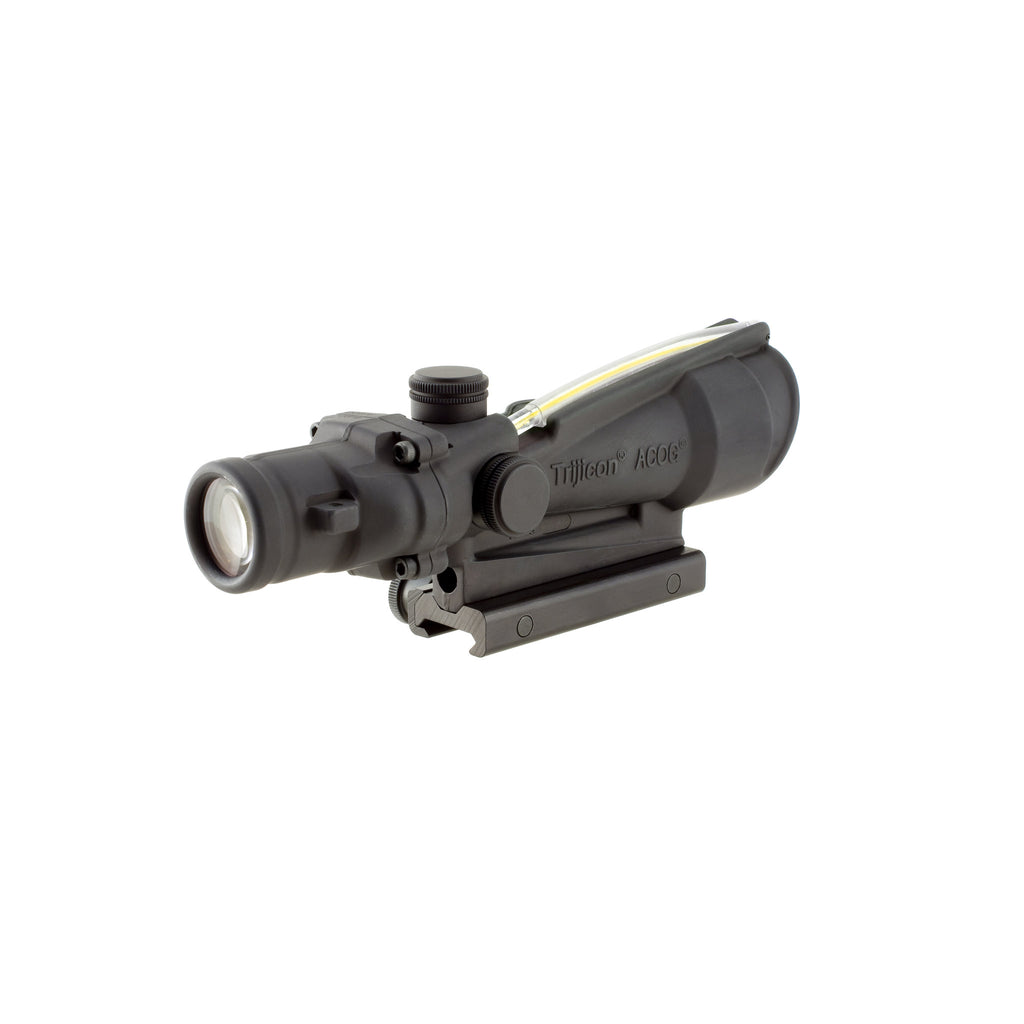

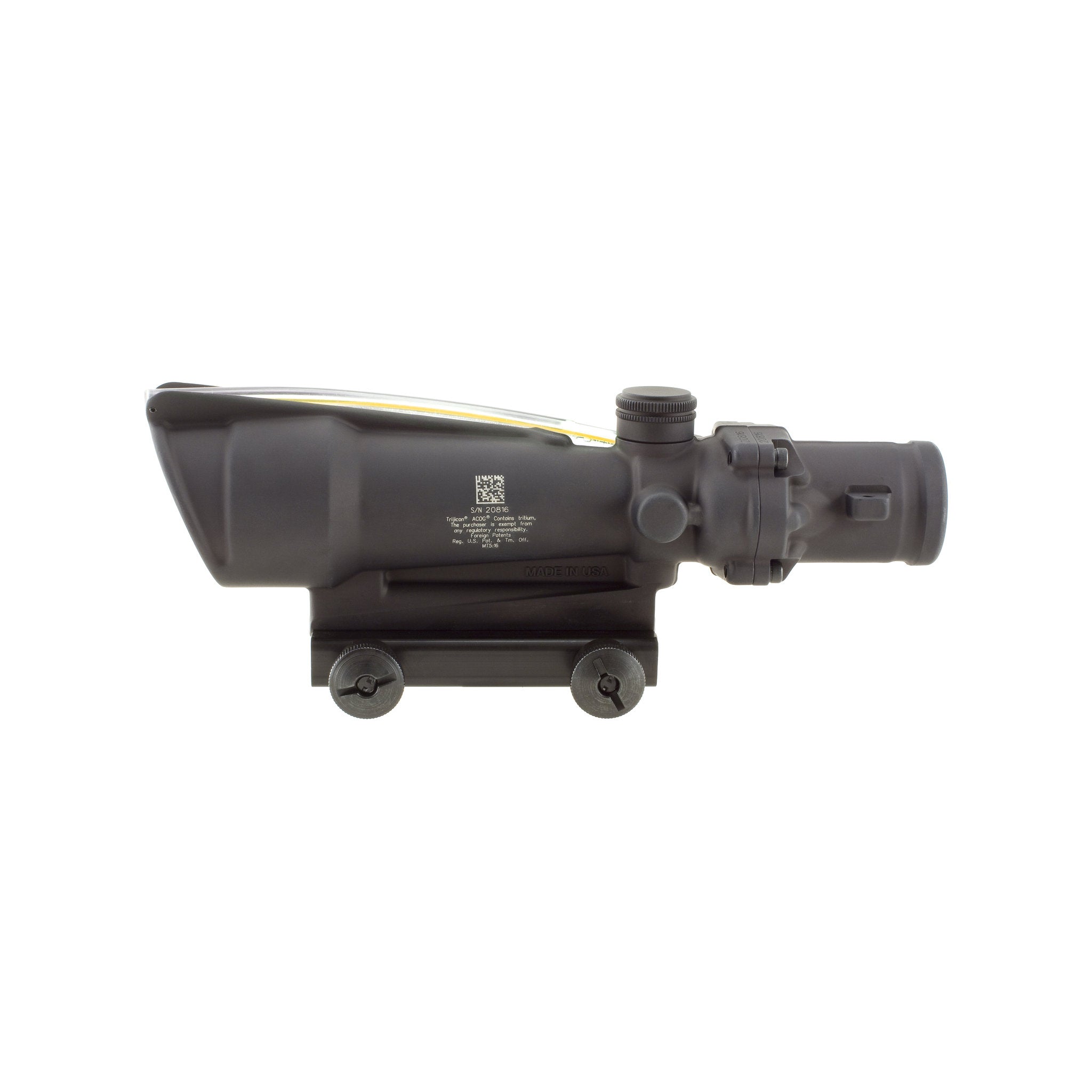

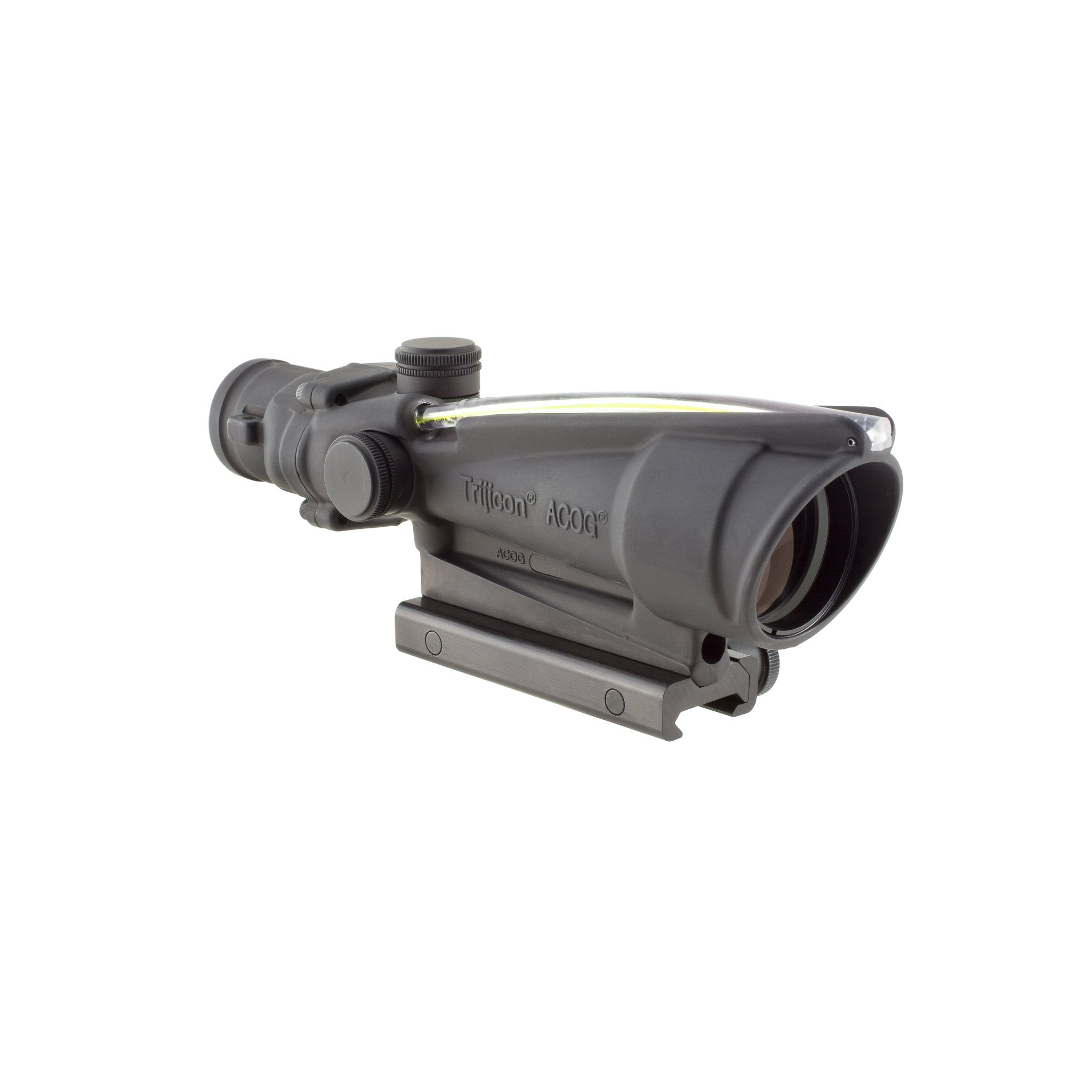

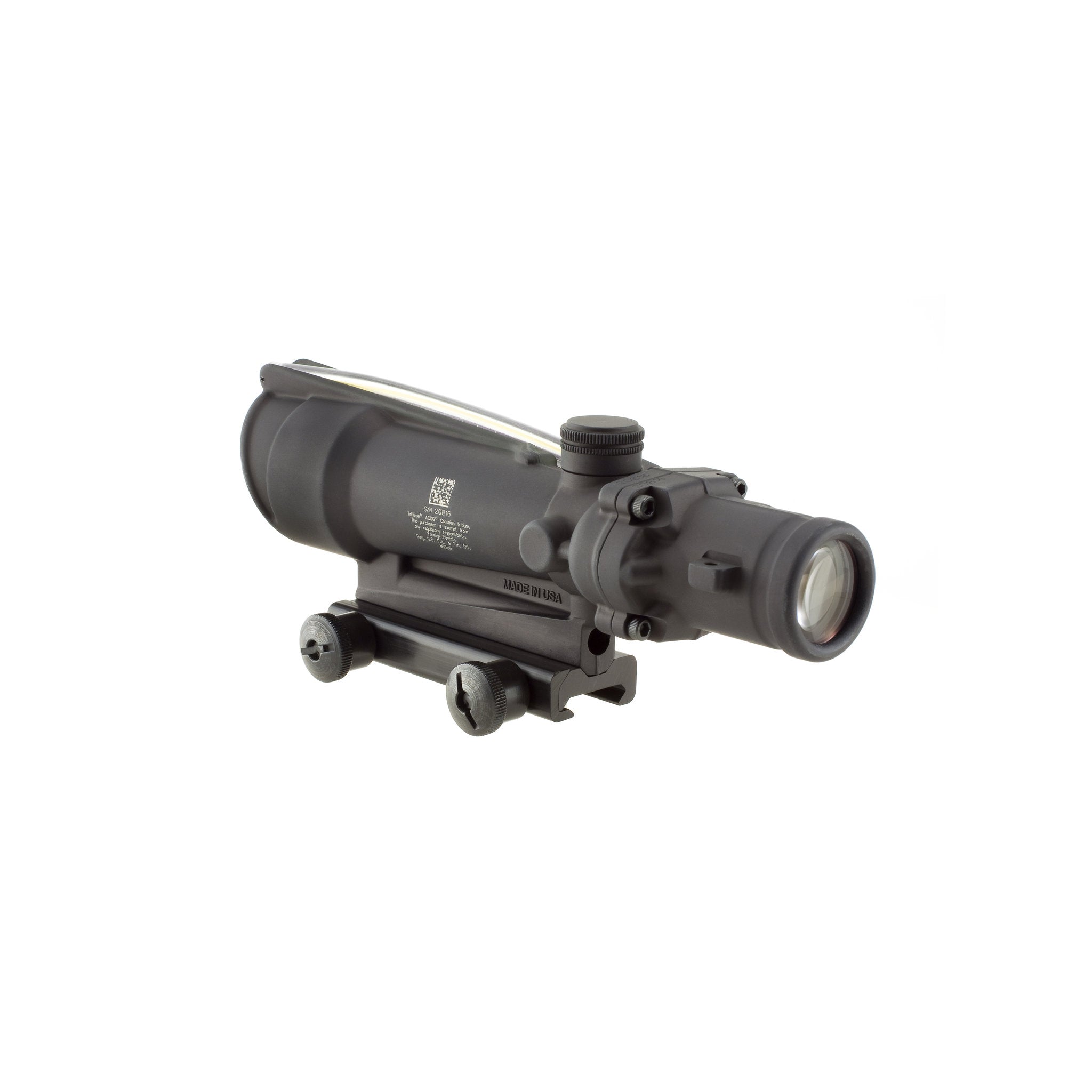

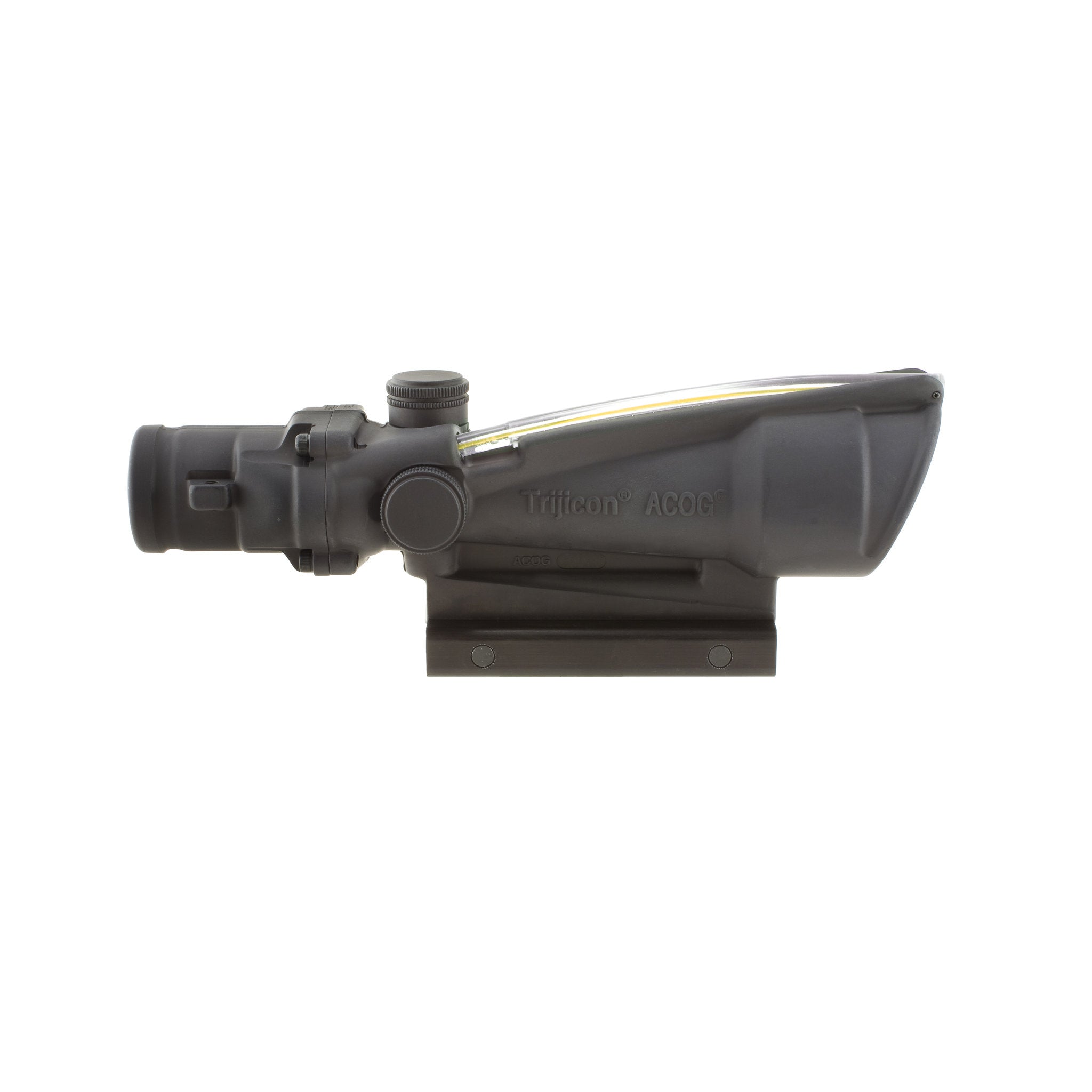

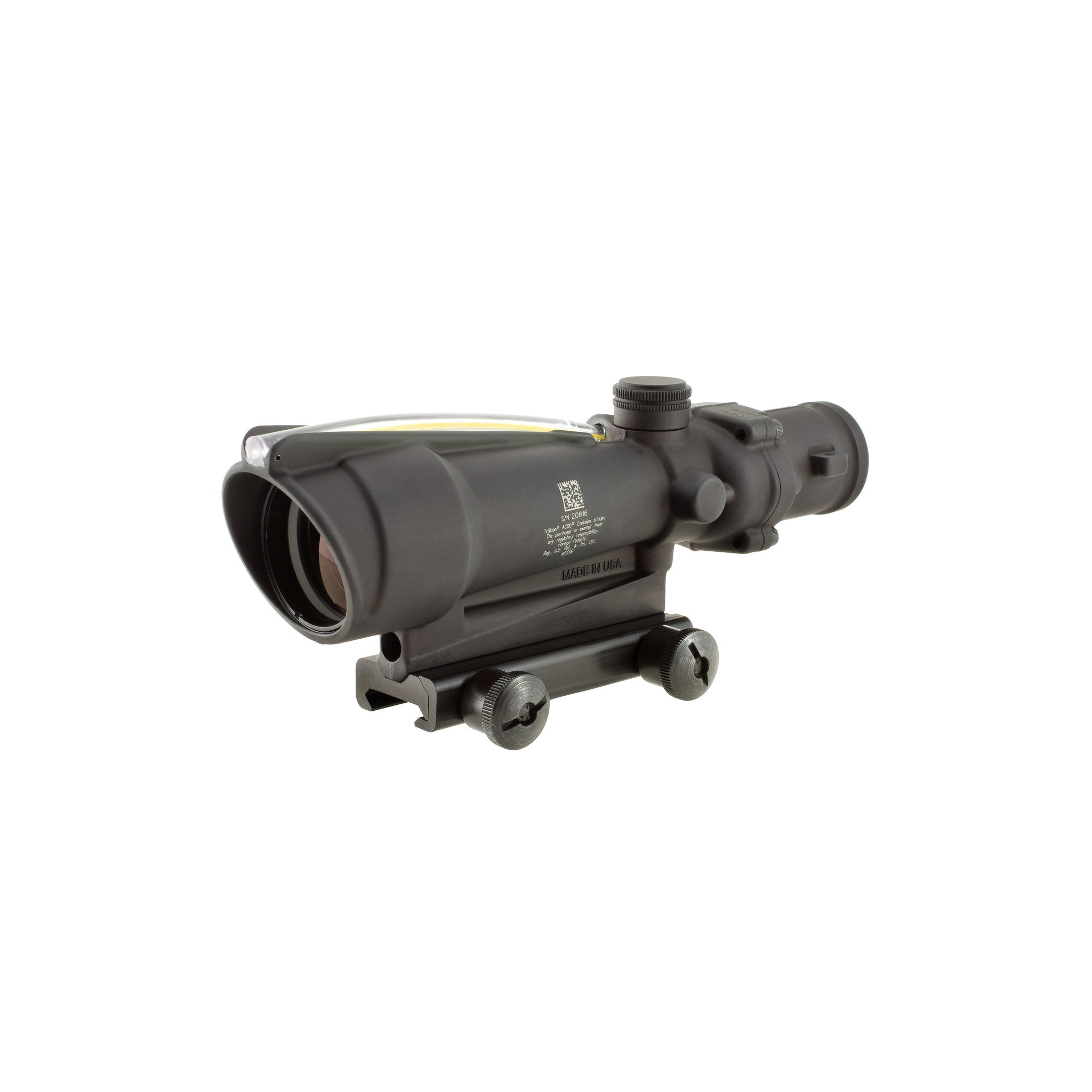

A 3.5x35 ACOG riflescope with a fibre optic and tritium illuminated amber crosshair BDC reticle, for professional users of .308 / 7.62 flat-top rifles.

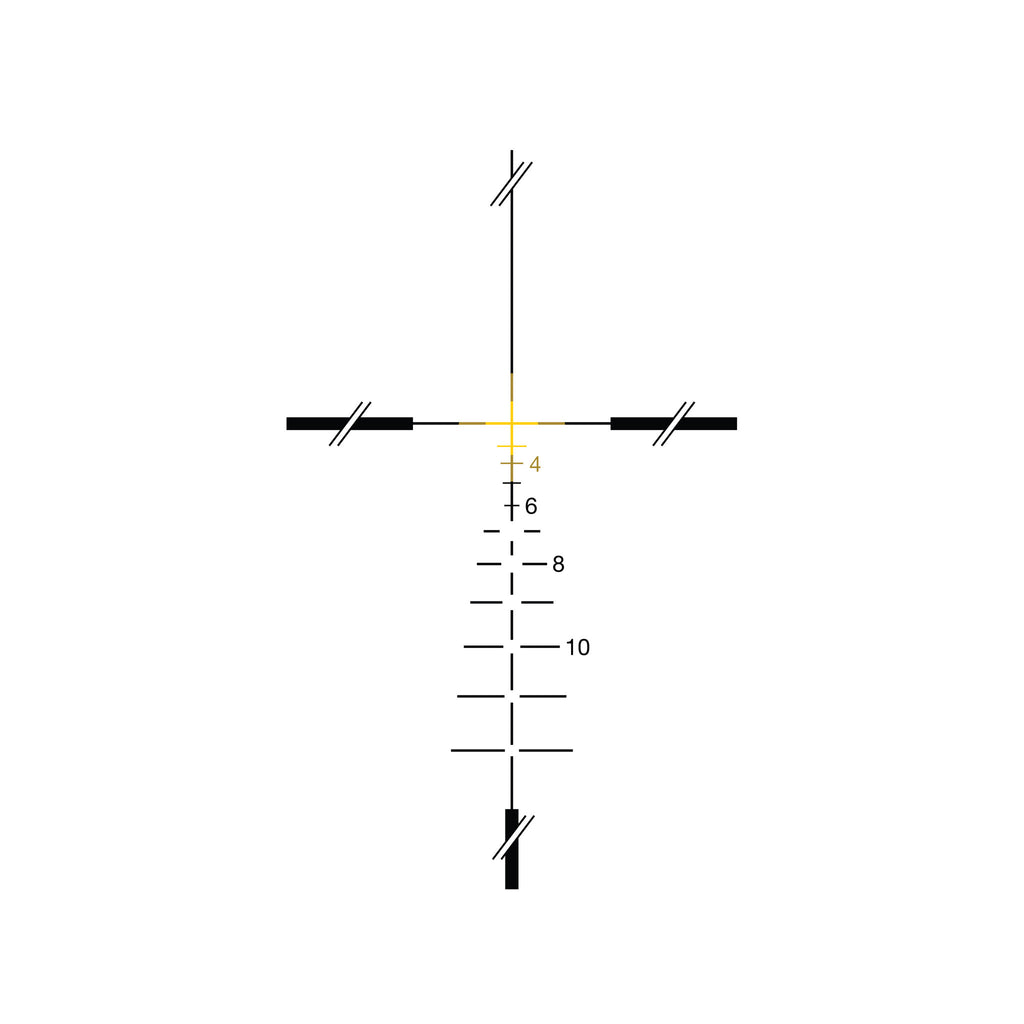

This ACOG offers 3.5x magnification with a 35mm objective and an amber crosshair reticle. The ranging reticle is calibrated for 7.62mm (.308 cal) flat-top rifles to 1200 metres.
Fibre optics light the reticle by day and tritium illuminates it at night, with brightness adjusting automatically to the available light.
The scope comes with a flattop thumbscrew mount, and the forged aluminium housing has a matte black finish.
Key features
- Bullet drop compensation — The bullet drop compensating, target-ranging reticle gives holds for .308 / 7.62 out to 1200 metres.
- Dual illumination — Fibre optics and tritium illuminate the reticle, adjusting brightness automatically to the available light.
- Fixed-power design — The fixed-power design keeps moving parts to a minimum for a rugged, reliable sighting system.
- Shock resistance — The scope is proven to withstand recoil from a .22LR to a .50BMG and passes U.S. Military drop test requirements.
- Waterproof, nitrogen-filled — The dry nitrogen-filled housing is waterproof and mitigates fogging in extreme cold and heat.
- Multi-coated optics — Multi-coated lenses maximise light gathering and give a clear field of view.
- Thumbscrew mounting — The included thumbscrew flattop adapter mounts the scope on flat-top rifles without additional parts.
Typical applications
- Magnified day and night aiming on 7.62mm flat-top service and duty rifles.
- Designated marksman and patrol roles that call for quick range estimation and holdover.
- Use in harsh climates and demanding field conditions.
Technical specifications
| Length × width × height | 8 in x 2.1 in x 2.9 in (203.2mm x 53.34mm x 73.66mm) |
| Weight | 17.6 oz. (498.95g) |
| Magnification | 3.5x |
| Objective size | 35mm |
| Reticle pattern | Crosshair |
| Day reticle colour | Amber |
| Night reticle colour | Amber |
| Bullet drop compensation (BDC) | Yes |
| Calibre | .308 / 7.62 |
| Bindon Aiming Concept (BAC) | No |
| Illumination source | Fiber Optics & Tritium |
| Power source | Fiber Optics & Tritium |
| Adjustment | 3 clicks per inch (@100 yds) |
| Eye relief | 2.4 in. (60.96mm) |
| Exit pupil | 0.39 in. (9.91mm) |
| Field of view (degrees) | 5.5° |
| Field of view (distance) | 28.9 ft. @ 100 yds. (9.63m @ 100m) |
| Mount | Flattop Thumbscrew Mount (TA51) |
| Housing material | Forged Aluminum |
| Finish | Matte Black |
In the box
- 1 × ACOG® 3.5x35 BAC Riflescope -.308 / 7.62 BDC — Amber Crosshair Reticle, Thumbscrew Mount, Tritium / Fiber Optics Illuminated, Matte Black
- Thumbscrew Flattop Adapter (TA51)
- 3.5x35 Scopecoat (TA63)
- LENSPEN (TA56)
- Lanyard Assembly for Adjuster Caps (TA71E)
- Trijicon Logo Sticker (PR15)
- ACOG BAC Manual
- Warranty Card
Model information
| Brand | Trijicon |
| Model | ACOG® 3.5x35 BAC Riflescope -.308 / 7.62 BDC — Amber Crosshair Reticle, Thumbscrew Mount, Tritium / Fiber Optics Illuminated, Matte Black |
| MPN | TA11J308-A |
