Description

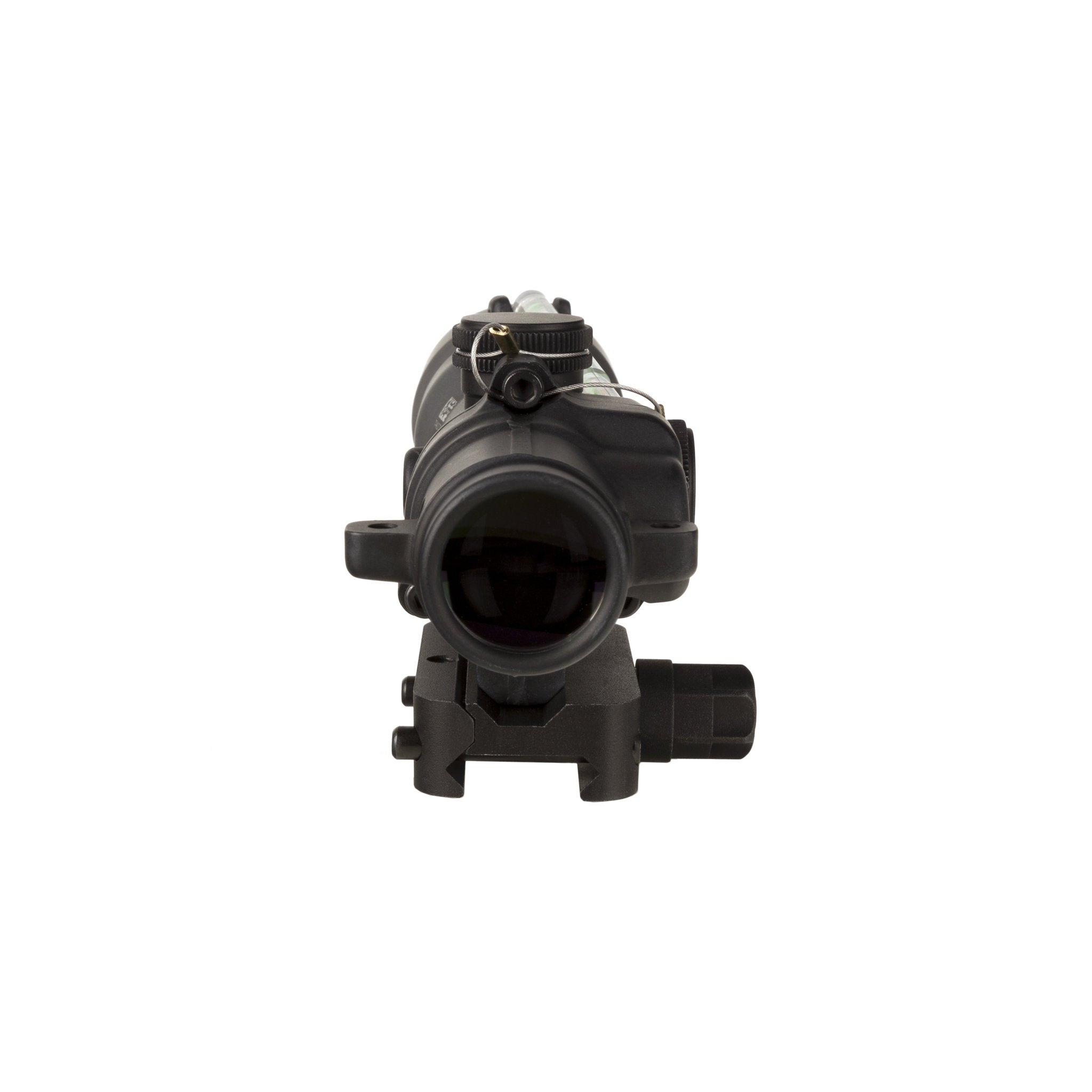

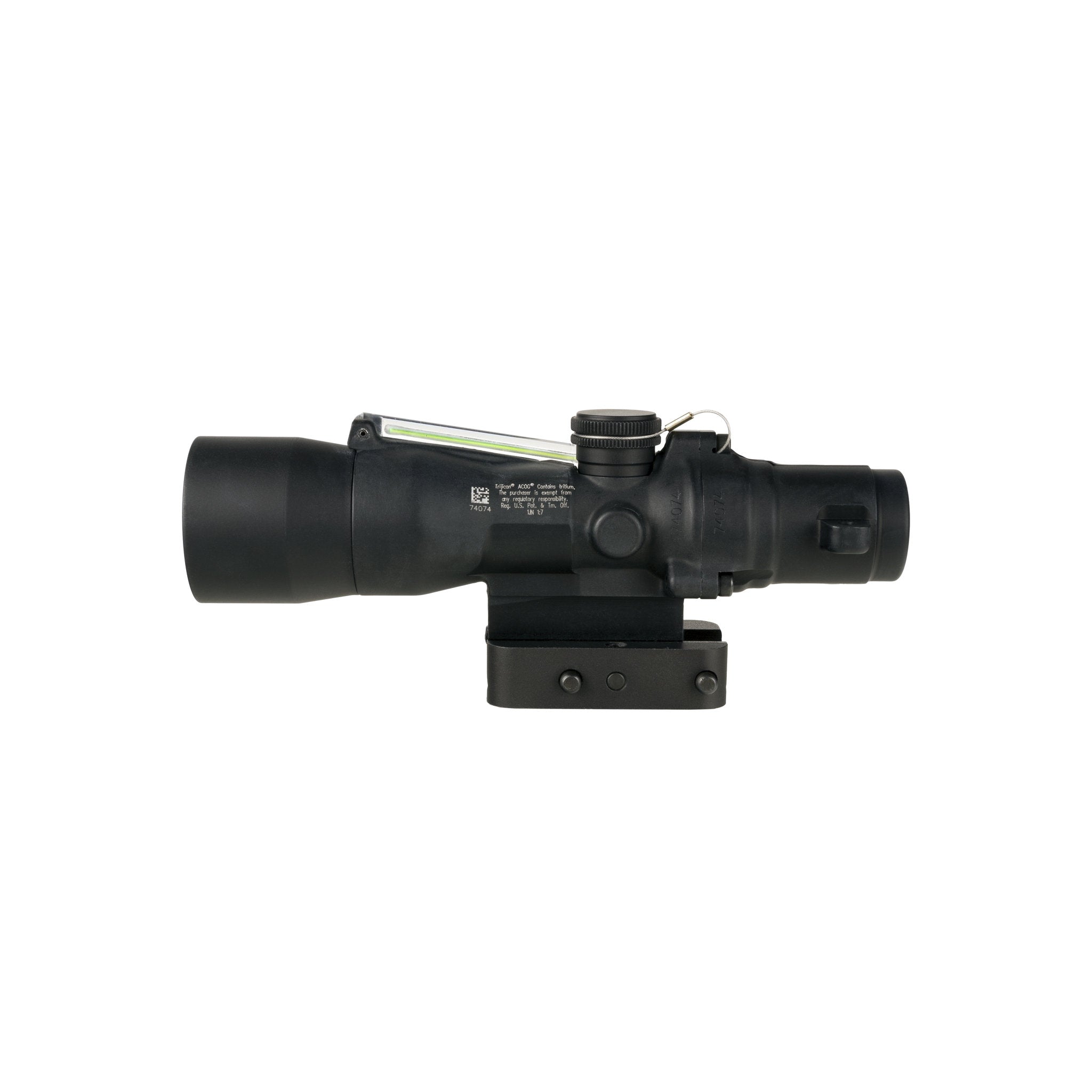

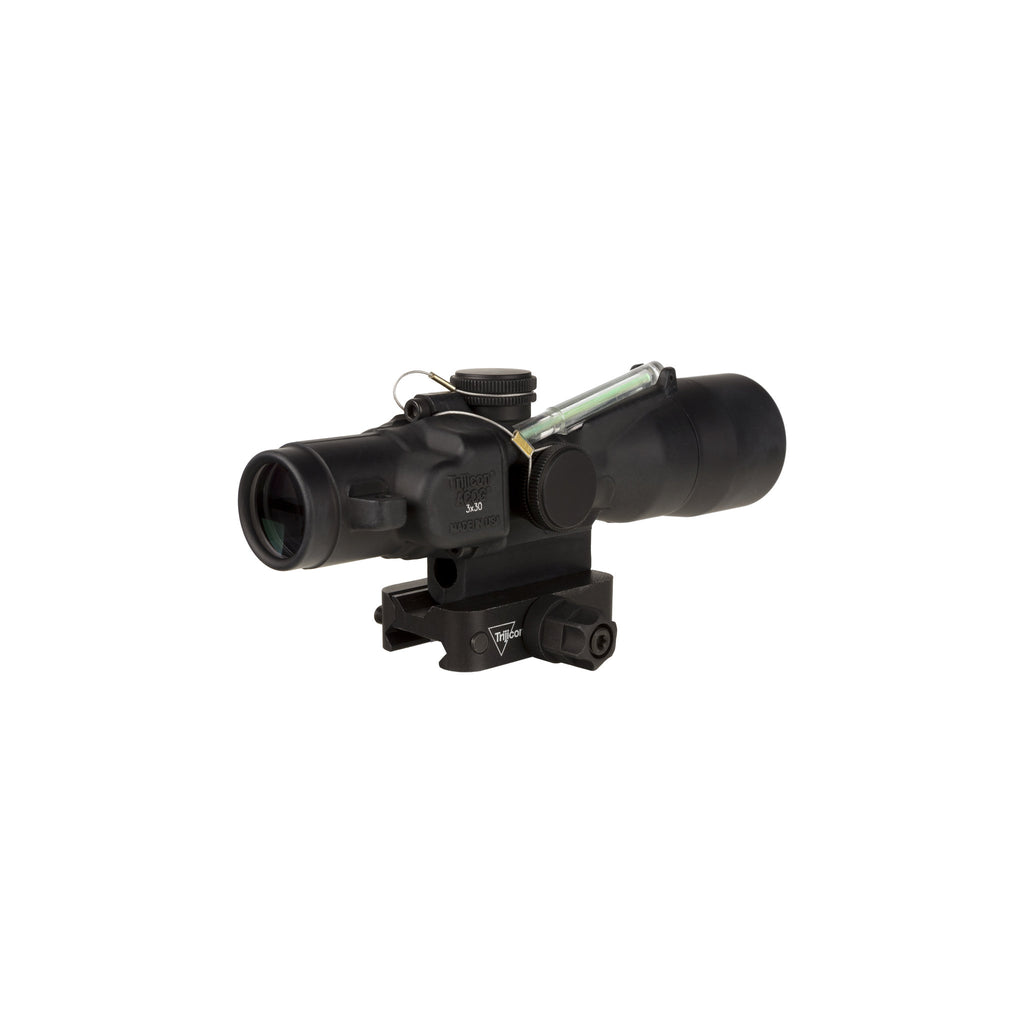

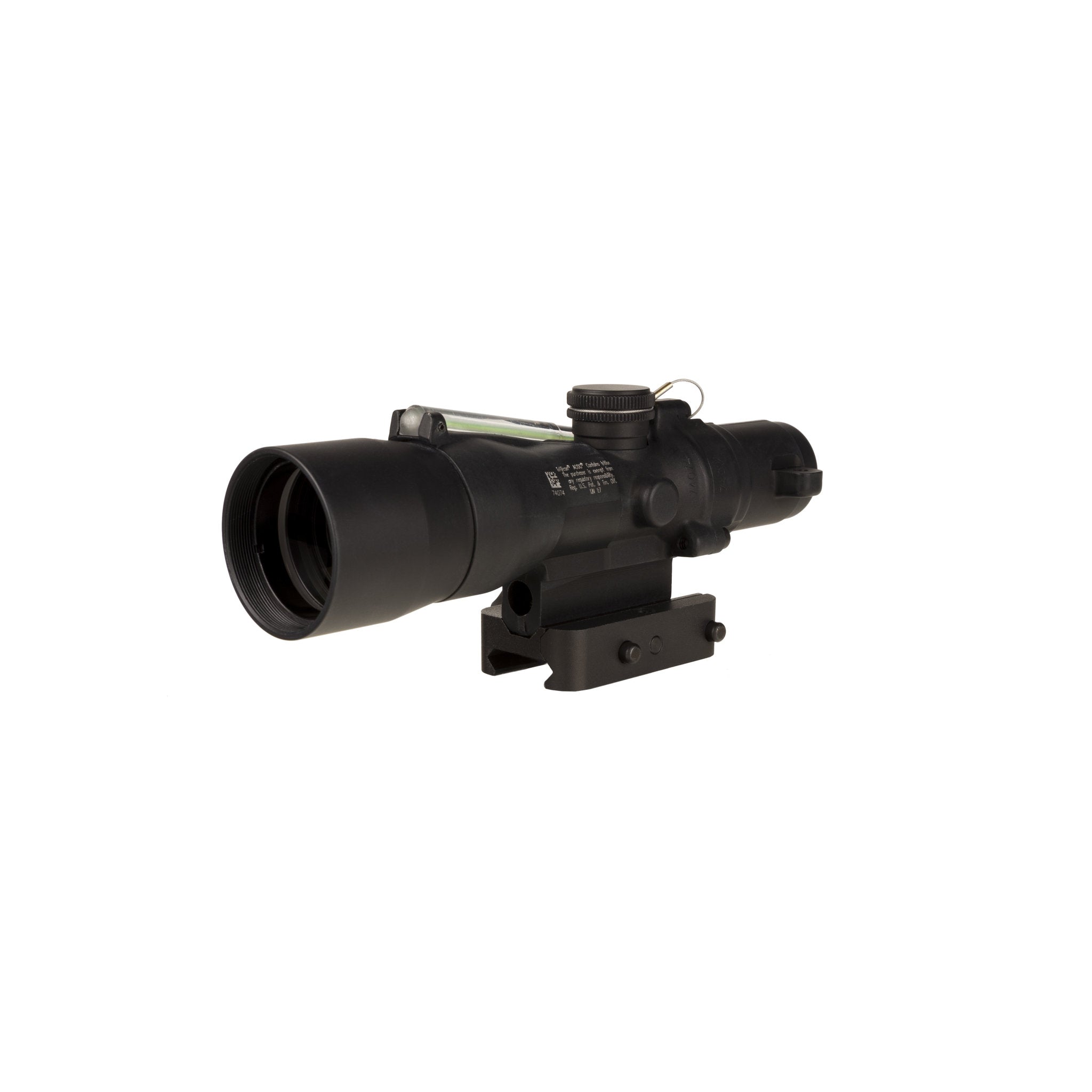

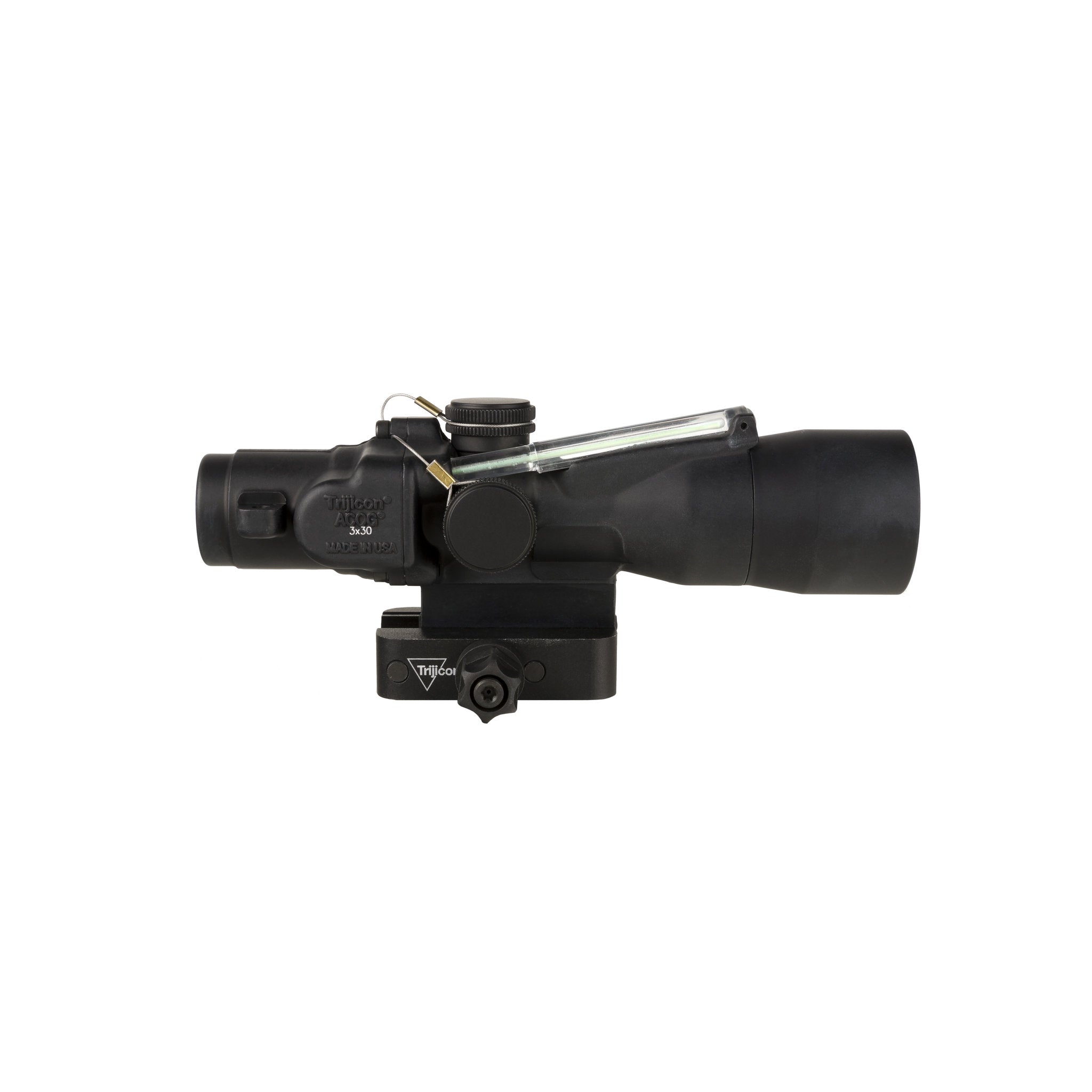

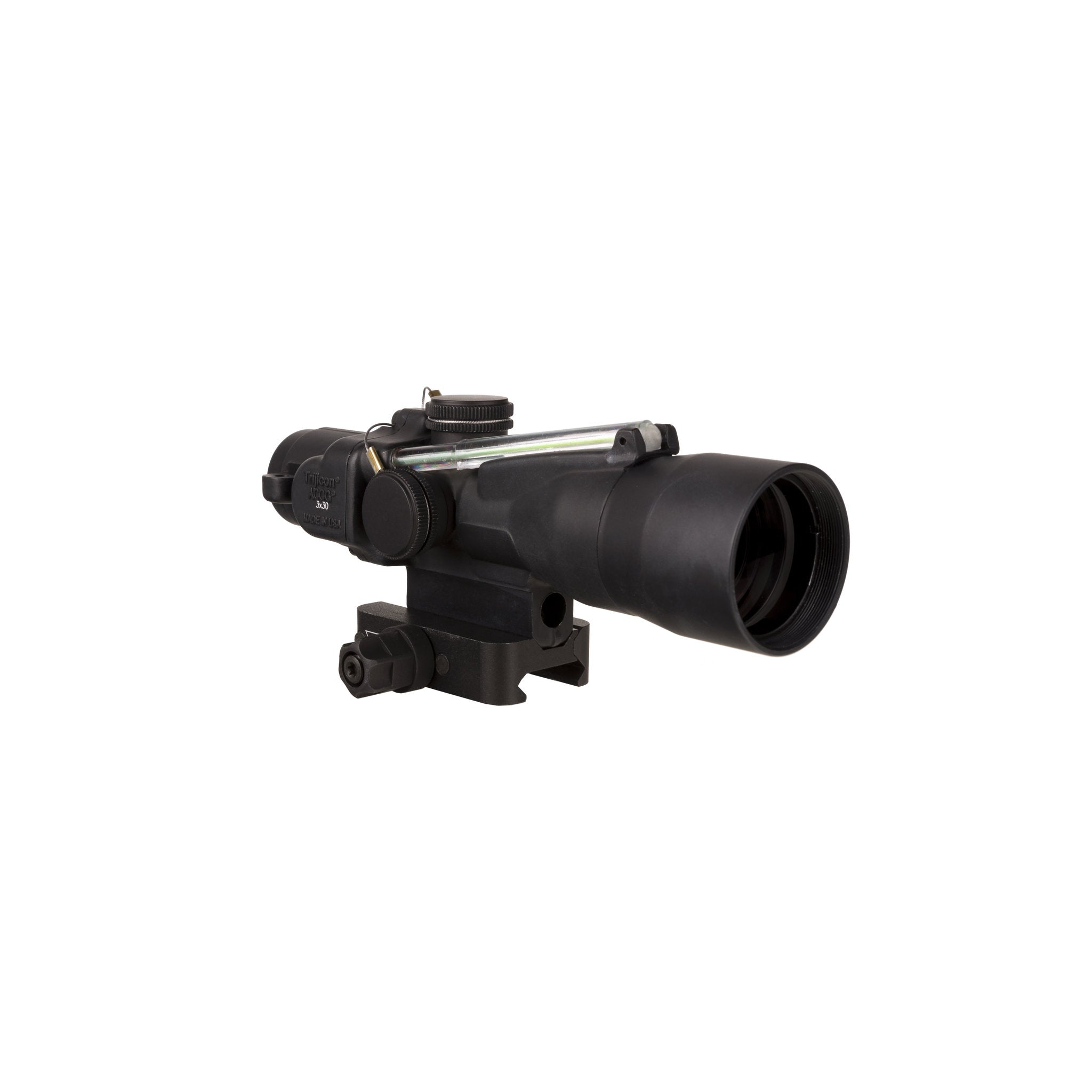

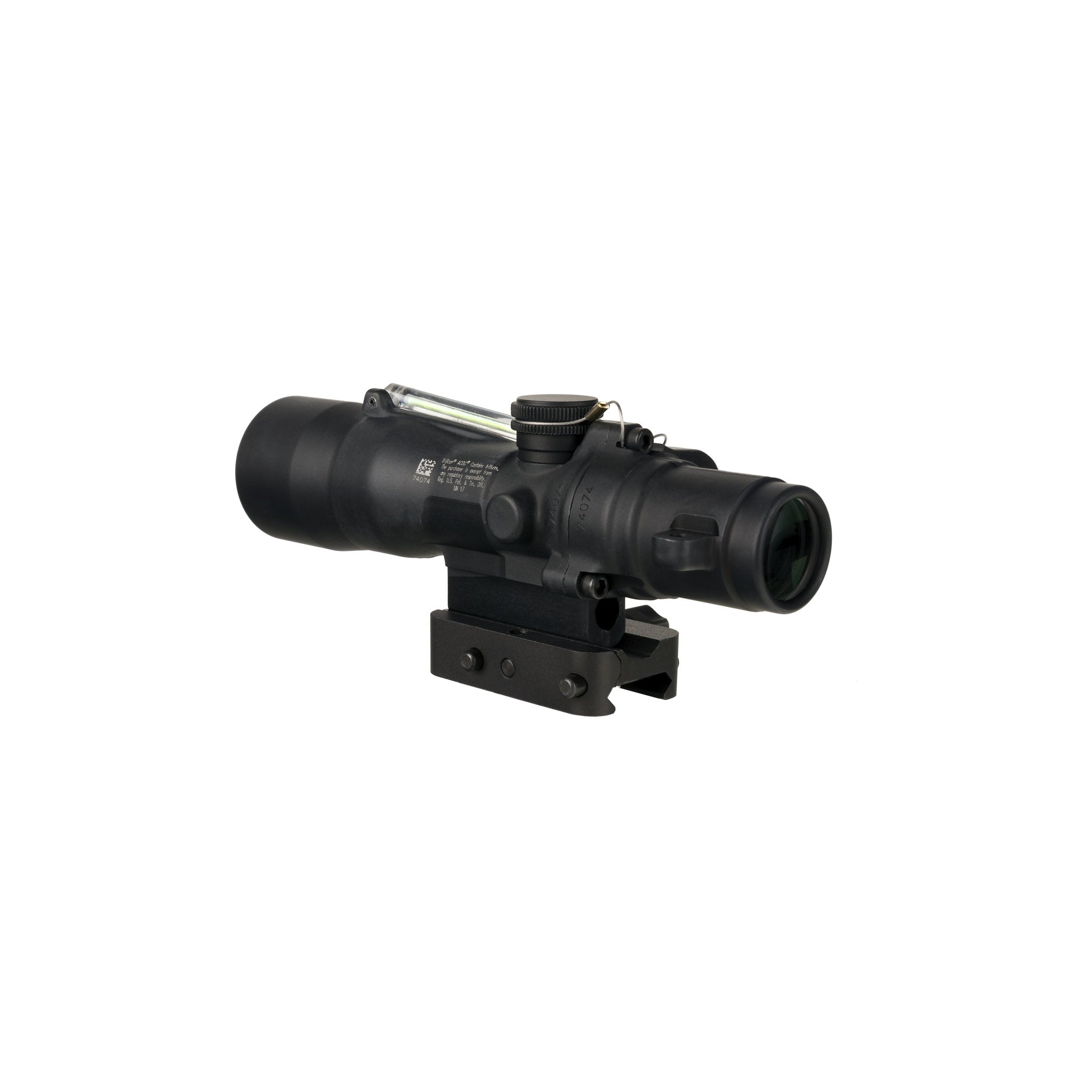

A compact 3x30 ACOG riflescope with a green chevron BDC reticle for .223 / 62gr. and a Q-LOC mount, designed for law enforcement and military users.
This compact ACOG combines 3x magnification with a 30mm objective, low light capability and long eye relief for fast target identification and situational awareness.

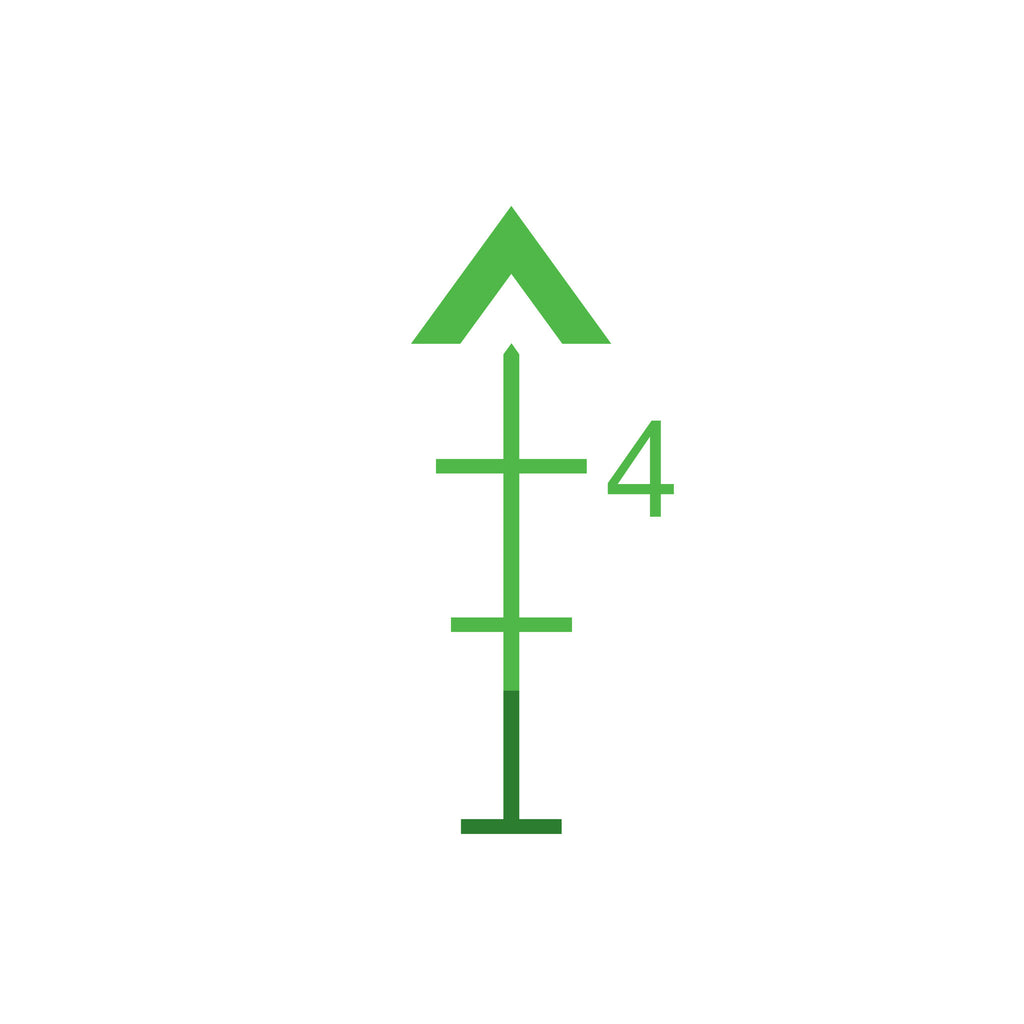

The dual-illuminated green chevron reticle is bullet drop compensating and calibrated for .223 / 62gr. It is lit by fibre optics and tritium and adjusts its brightness automatically to the available light.
The scope comes fitted with the Trijicon Q-LOC Technology Mount, which attaches to any Mil-Spec or NATO Picatinny rail.
Key features
- Both eyes open — The Bindon Aiming Concept lets the user keep both eyes open while engaging targets, for improved situational awareness.
- Self-adjusting illumination — The tritium and fibre optic reticle is always on and adjusts its brightness automatically to the available light.
- Tool-less Q-LOC mount — The 6061-T6 aluminium Q-LOC mount installs one-handed without tools, and its spring-loaded design keeps retention and zero even if the knobs are not tightened.
- Defined torque range — The mount holds on spring tension alone at 12-16 in. / lbs. and can be tightened to 30-38 in. / lbs.
- Fixed-power housing — The fixed-power design has minimal moving parts, in a forged aluminium housing with a matte black finish.
- Shock and weather resistant — The optic withstands recoil from .22LR to .50BMG and is waterproof and dry nitrogen-filled to prevent fogging in extreme cold and heat.
- Multi-coated lenses — Multi-coated lenses maximise light gathering and give a clear field of view.
Typical applications
- Patrol and duty rifles in law enforcement service
- Military service rifles that need fast target identification
- Units that need to fit or remove the optic quickly in the field
Technical specifications
| Length × width × height | 6.2 in x 2.2 in x 2.6 in (157.48mm x 55.88mm x 66.04mm) |
| Weight | 9.8 oz. (277.83g) |
| Magnification | 3x |
| Objective size | 30mm |
| Reticle pattern | Chevron |
| Day reticle colour | Green |
| Night reticle colour | Green |
| Bullet drop compensation (BDC) | Yes |
| Calibre | .223 / 62gr. |
| Bindon Aiming Concept (BAC) | Yes |
| Illumination source | Fiber Optics & Tritium |
| Power source | Fiber Optics & Tritium |
| Adjustment | 0.25 MOA per click |
| Eye relief | 1.9 in. (48.26mm) |
| Exit pupil | 0.33 in. (8.38mm) |
| Field of view (degrees) | 3.7° |
| Field of view (distance) | 19.3 ft. @ 100 yds. (6.43m @ 100m) |
| Mount | Trijicon Q-LOC™ Technology Mount |
| Housing material | Forged Aluminum |
| Finish | Matte Black |
In the box
- 1 × 3x30 Compact ACOG® Scope - .223 / 62gr — Dual Illuminated Green Chevron .223/62gr. Ballistic Reticle w/ Mount with Trijicon Q-LOC™ Technology, Matte Black
- Trijicon Q-LOC™ Technology Mount
- Compact ACOG Scopecoat (TA62)
- LENSPEN (TA56)
- Trijicon Logo Sticker (PR15)
- ACOG Manual
- Warranty Card
Model information
| Brand | Trijicon |
| Model | 3x30 Compact ACOG® Scope - .223 / 62gr — Dual Illuminated Green Chevron .223/62gr. Ballistic Reticle w/ Mount with Trijicon Q-LOC™ Technology, Matte Black |
| MPN | TA33-C-400371 |
