Description
Multi-fuel, high-lumen, rail-mounted light with a front-loading battery compartment and interchangeable paddle switches.

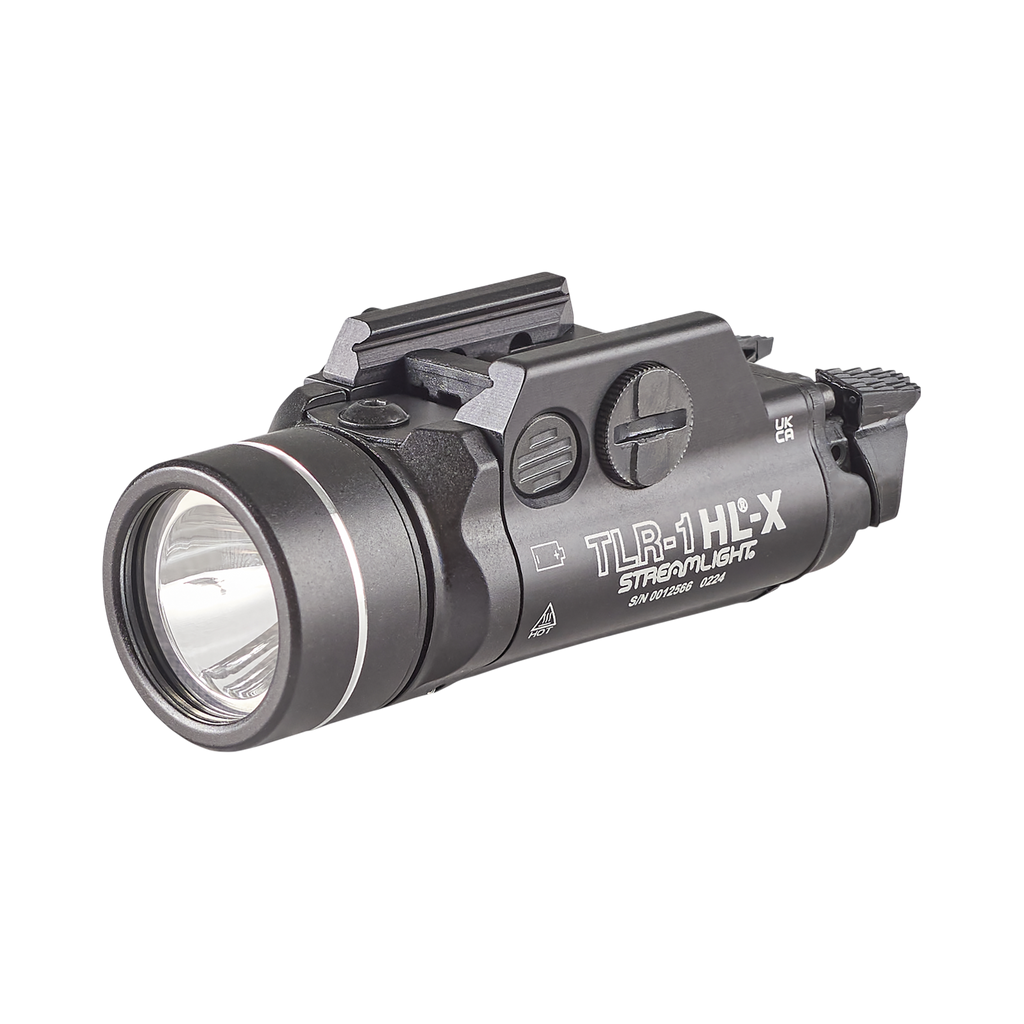

The TLR-1 HL-X is a multi-fuel, rail-mounted pistol/long-gun light producing up to 1,500 lumens and 20,000 candela for a 283 m beam distance on two SL-B9 rechargeable battery packs, or 1,000 lumens/15,000 candela/245 m on two CR123A lithium batteries.
A hinged face cap with robust release controls allows front-loaded battery changes without removing the light from the firearm. Standard and extended paddle switches are user-interchangeable, and the light includes a programmable strobe mode.
Key features
- Multi-fuel power — runs on two SL-B9 rechargeable battery packs (1,500 lumens/20,000 candela) or two CR123A lithium batteries (1,000 lumens/15,000 candela).

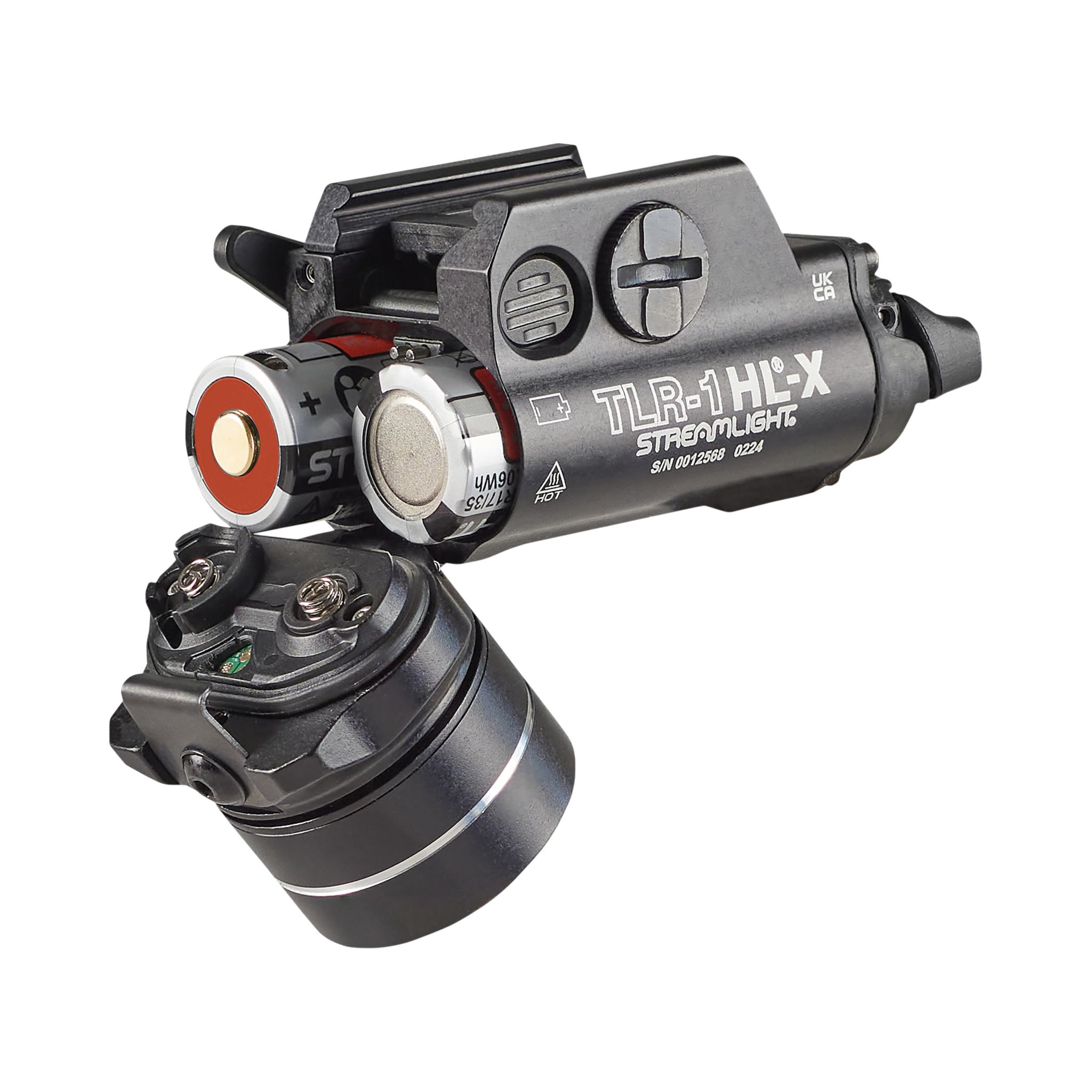

- Front-loaded battery changes — hinged face cap with robust release controls allows rapid battery replacement without removing the light from the firearm.

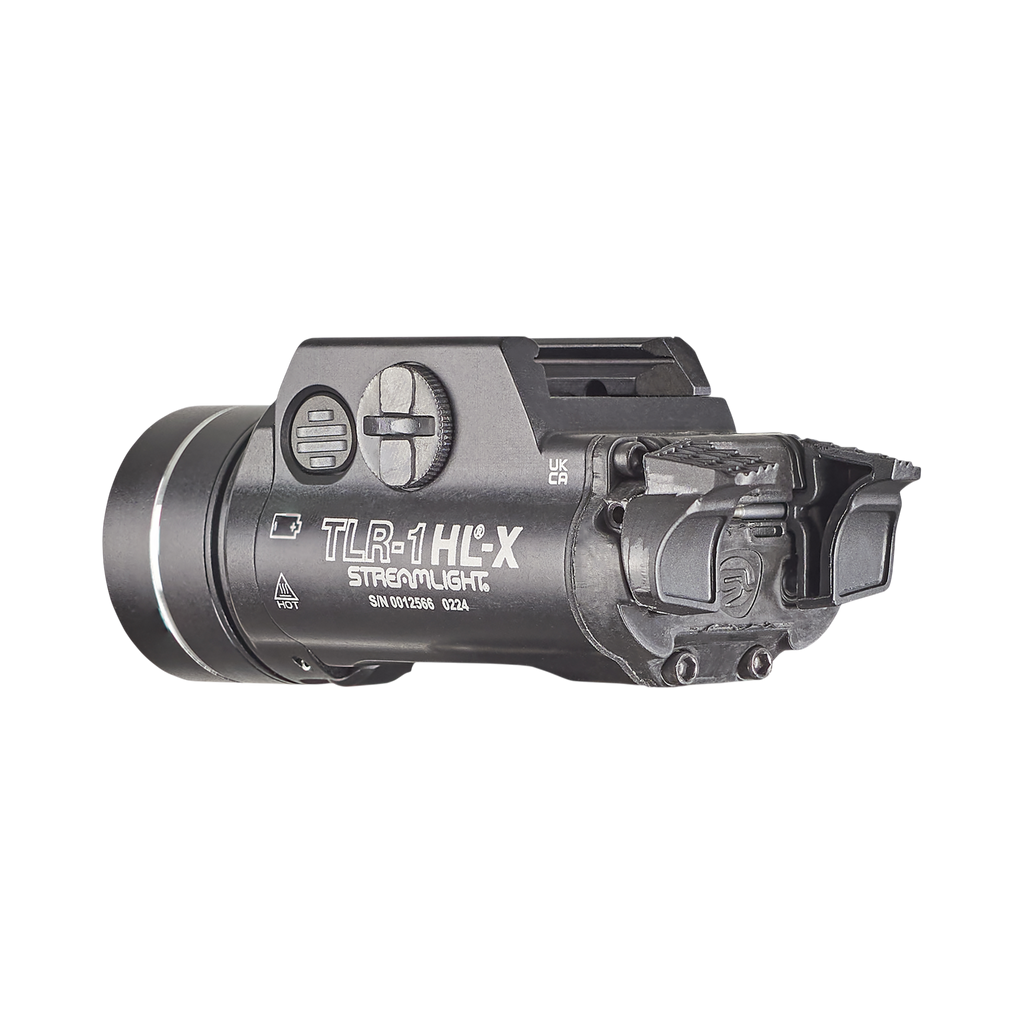

- Interchangeable switches — standard and extended paddle switches suit different shooting styles.
- Programmable strobe mode — user-selectable for signaling or disorientation.
- IPX7 waterproof — rated to 1 m for 30 minutes.
- Fast USB-C recharge — SL-B9 packs charge in 2.5 hours via USB-C cord or optional bank charger.
Typical applications

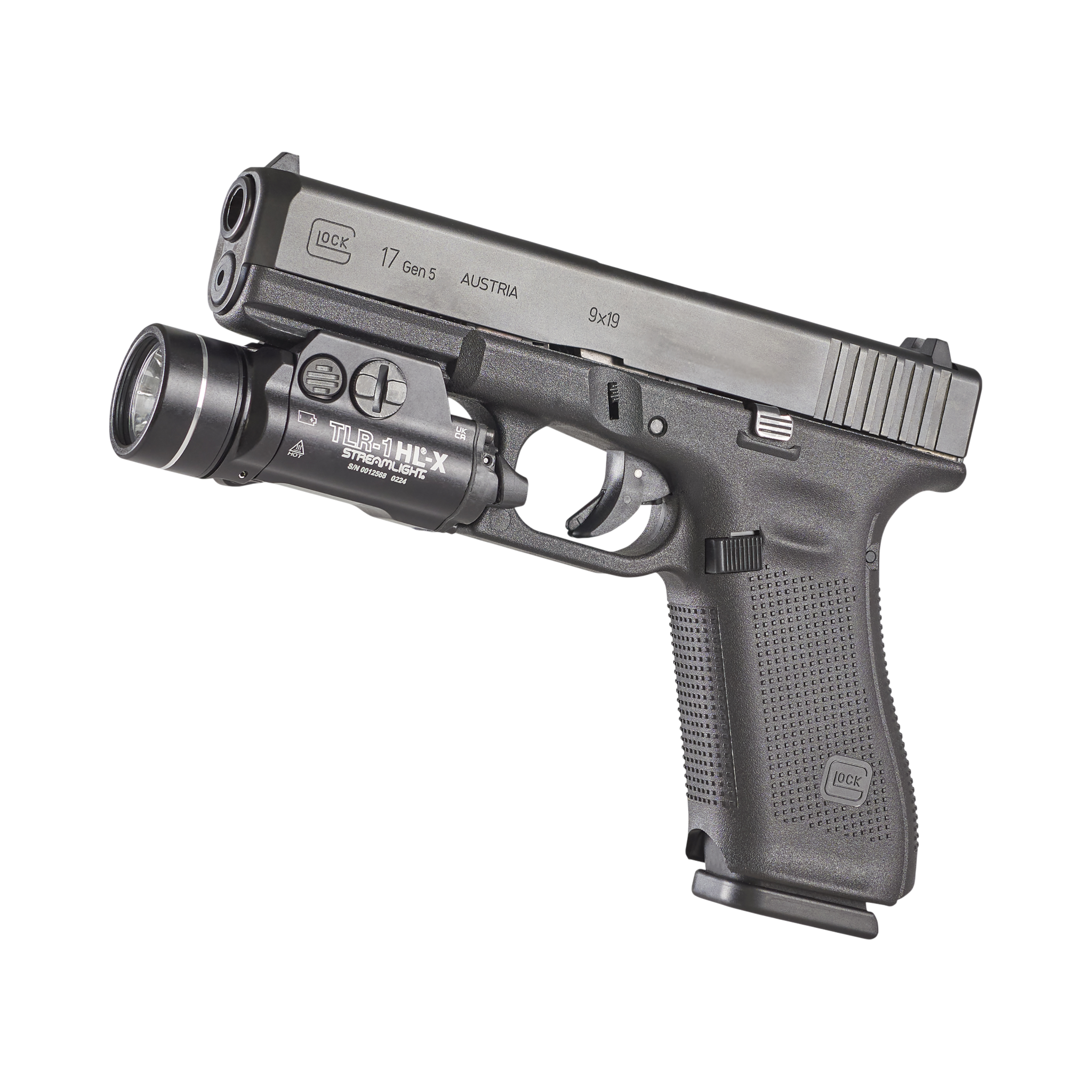

- Duty and competition handguns needing a high-lumen weapon light
- Users who want rapid front-loaded battery changes
- Users who want a rechargeable/disposable multi-fuel option
Technical specifications
| Light output (SL-B9) | 1,500 lumens / 20,000 candela / 283 m beam distance, runs 1 hr |
| Light output (CR123A) | 1,000 lumens / 15,000 candela / 245 m beam distance, runs 1.5 hrs |
| Battery | Front-loaded; Multi-fuel: two SL-B9 rechargeable battery packs or two CR123A lithium batteries; SL-B9 charges in 2.5 hrs via USB-C or bank charger |
| Switches | User-interchangeable standard and extended paddle switches; programmable strobe mode |
| Body | 6000 series machined aircraft aluminum with black anodized finish |
| Switch housing | Impact- and chemical-resistant engineered polymer |
| Lens | High temperature, shock-mounted, impact-resistant glass lens |
| Ingress protection | IPX7 waterproof to 1m for 30 minutes |
| Length | 8.76 cm (3.45 in) |
| Weight | SL-B9 147g (5.19 oz) // CR123A 140g (4.94 oz) |
| Colour | Black |
In the box
- 1 × TLR-1 HL-X, black
- Rail locating keys
- 2 × CR123A lithium batteries
Model information
| Brand | Streamlight |
| Model | TLR-1 HL-X, Black |
| MPN | 69500 |
