Description

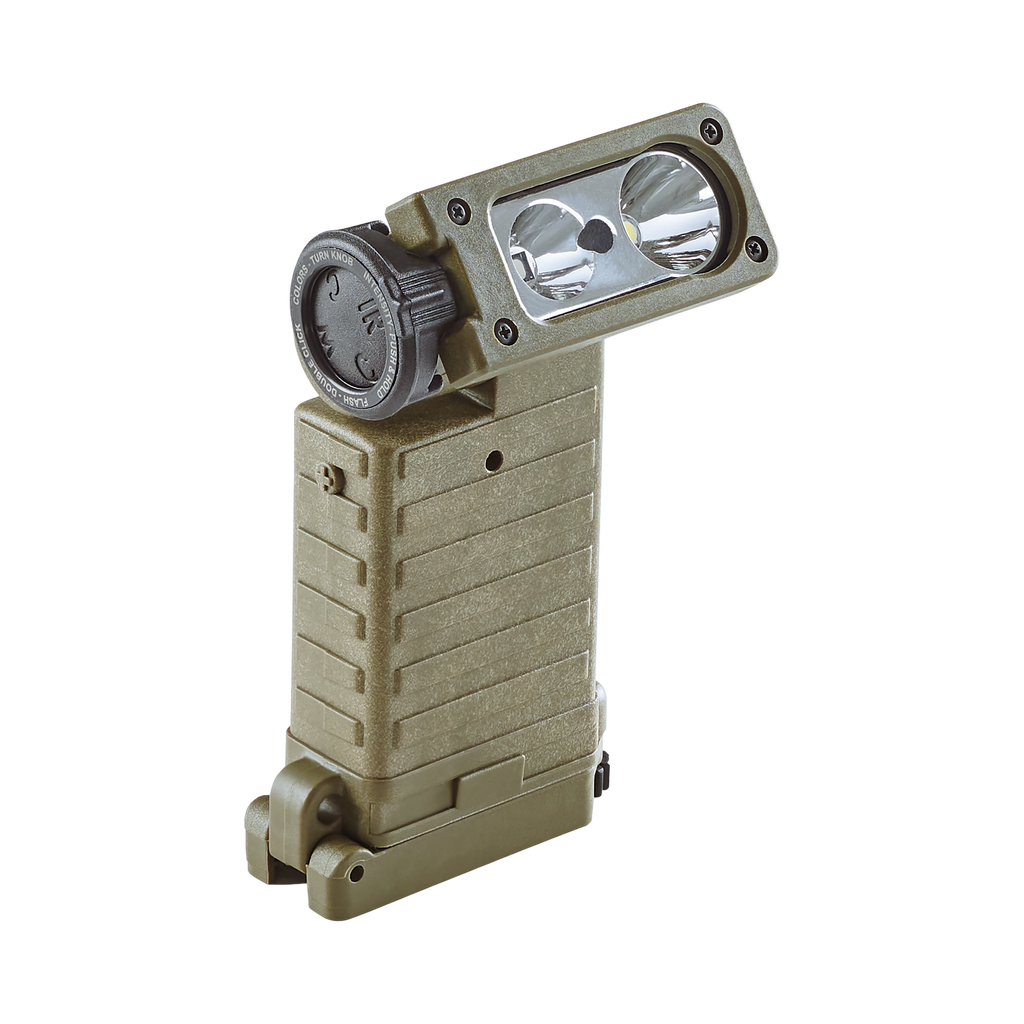

The Sidewinder X UC Model in Coyote is a multi-fuel tilting-head light for professionals who need white, coloured and IR illumination in one unit.
The Sidewinder X UC (User Configurable) Model combines a white LED with IR and a choice of two of the three colour options: red, blue or green. It runs on two AA alkaline batteries, which are included, and also accepts one CR123A lithium battery.
The white LED delivers 275 lumens and 3,200 candela on high, with a beam distance of 113 m. A 185° tilting head and belt/gear clip allow the beam to be aimed hands-free.
The high-impact, super-tough nylon case is paired with a gasket-sealed, scratch-resistant unbreakable polycarbonate lens, an IPX7 rating to 1 meter for 30 minutes and 3 m impact resistance testing.
Key features
- Four white outputs — White LED outputs of 275, 80, 35 and 5 lumens, with a run time of 4.75 hrs on high and 150+ hrs on low using alkaline batteries.
- User-configurable colours — Select two of the three colour options, red at 6.5 lumens, blue at 2.0 lumens or green at 8.0 lumens, alongside an IR LED rated at 50mW.
- Multi-fuel power — Uses two AA alkaline batteries or one CR123A lithium battery, with tactile battery polarity indication for battery changes in the dark.
- Survival mode — A survival mode provides low-level lighting for 100+ hours.
- Secure controls — A pull-to-turn locking rotary knob prevents accidental mode changes, and a push-button switch operates the light.
- Tilting head and clip — The 185° tilting head works with a durable belt/gear clip whose attachment screw withstands 30-inch pounds of average torque.
- Sealed and tested — IPX7 waterproof to 1 meter for 30 minutes and tested for 3 m impact resistance.
- Accessory compatible — Fits existing Sidewinder accessories, and cord attachment holes on the body support 50 lbs of load.
Typical applications
- Hands-free task lighting clipped to belts or gear
- Low-signature work using coloured or infrared light
- Extended operations where battery supply may vary
Technical specifications
| Light output, White High | 275 lumens / 3,200 candela / 113 m beam distance |
| Light output, White Med 1 | 80 lumens / 900 candela / 60 m beam distance |
| Light output, White Med 2 | 35 lumens / 400 candela / 40 m beam distance |
| Light output, White Low | 5 lumens / 50 candela / 14 m beam distance |
| Light output, White Strobe | 10.5 hrs (AA) / 5.75 hrs (CR123A) |
| Light output, Red High | 6.5 lumens / 40 candela / 13 m beam distance |
| Light output, Blue High | 2.0 lumens / 12 candela / 7 m beam distance |
| Light output, Green High | 8.0 lumens / 83 candela / 18 m beam distance |
| IR output | 50mW; 40 hrs (alkaline) |
| Battery | Two AA alkaline batteries (included); also accepts one CR123A lithium battery |
| Mounting | 185° tilting head and belt/gear clip |
| Compatibility | Existing Sidewinder accessories |
| Body | High-impact, super-tough nylon case |
| Lens | Gasket-sealed, scratch-resistant unbreakable polycarbonate lens |
| Ingress protection | IPX7, waterproof to 1 meter for 30 minutes |
| Impact resistance | 3 m |
| Height | 11.7 cm (4.6 in) |
| Width | 3.0 cm (1.2 in) |
| Weight | 124.7 g (4.4 oz) with AA alkaline; 93.6 g (3.3 oz) with CR123A |
| Colour | Coyote |
In the box
- 1 × Sidewinder X - UC (User Configurable) Model, Coyote
- 2 × AA alkaline batteries
Model information
| Brand | Streamlight |
| Model | Sidewinder X - UC (User Configurable) Model, Coyote |
| MPN | 14803 |
