Description
An active electronic communication headset for demanding tactical use, with Rear ARC Rails for helmet mounting, for operators who need hearing protection together with radio communication.

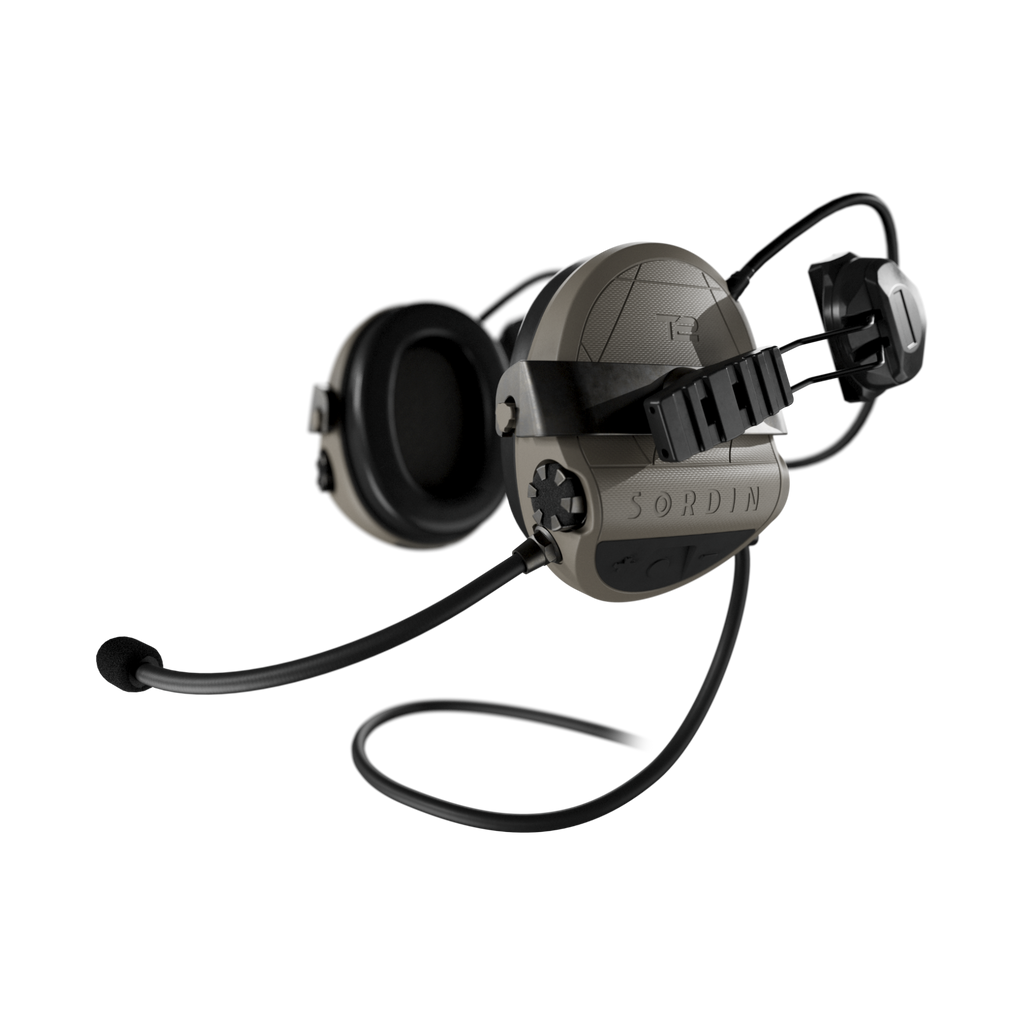

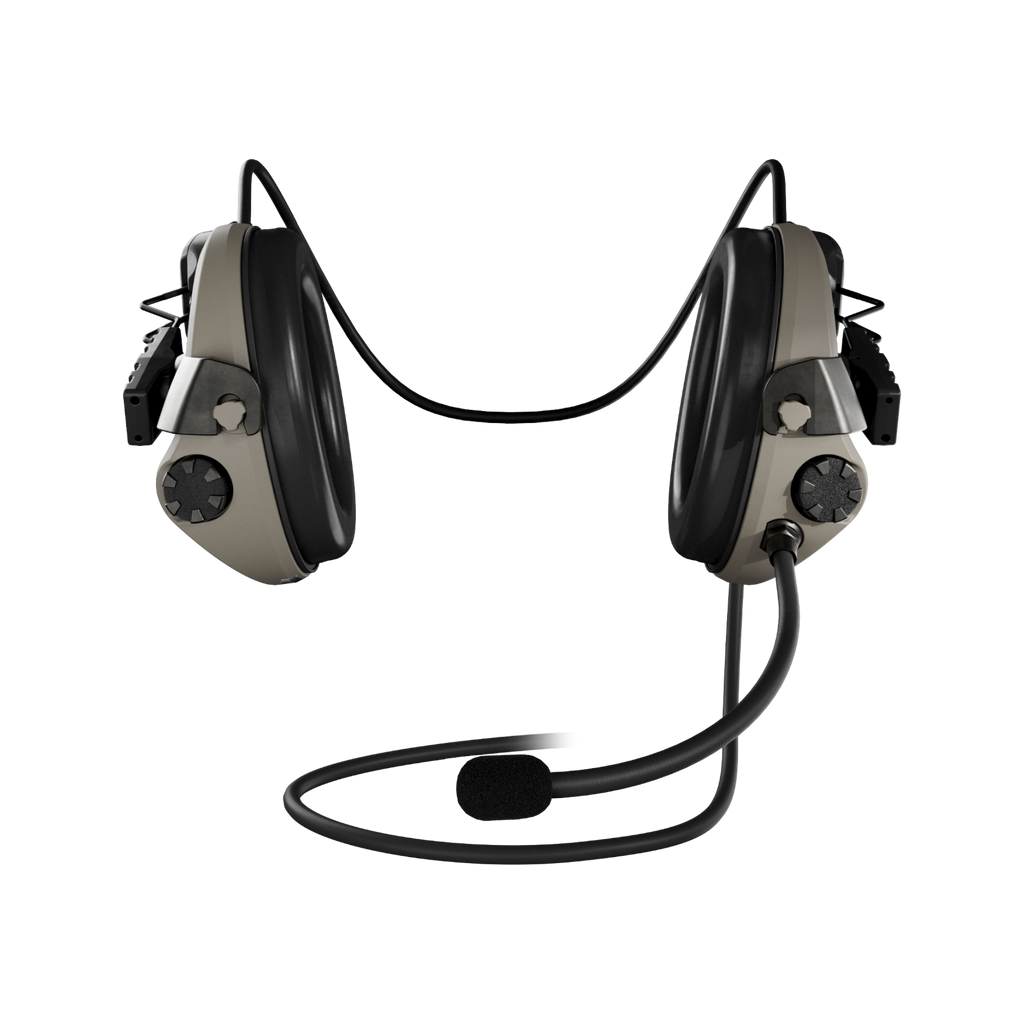

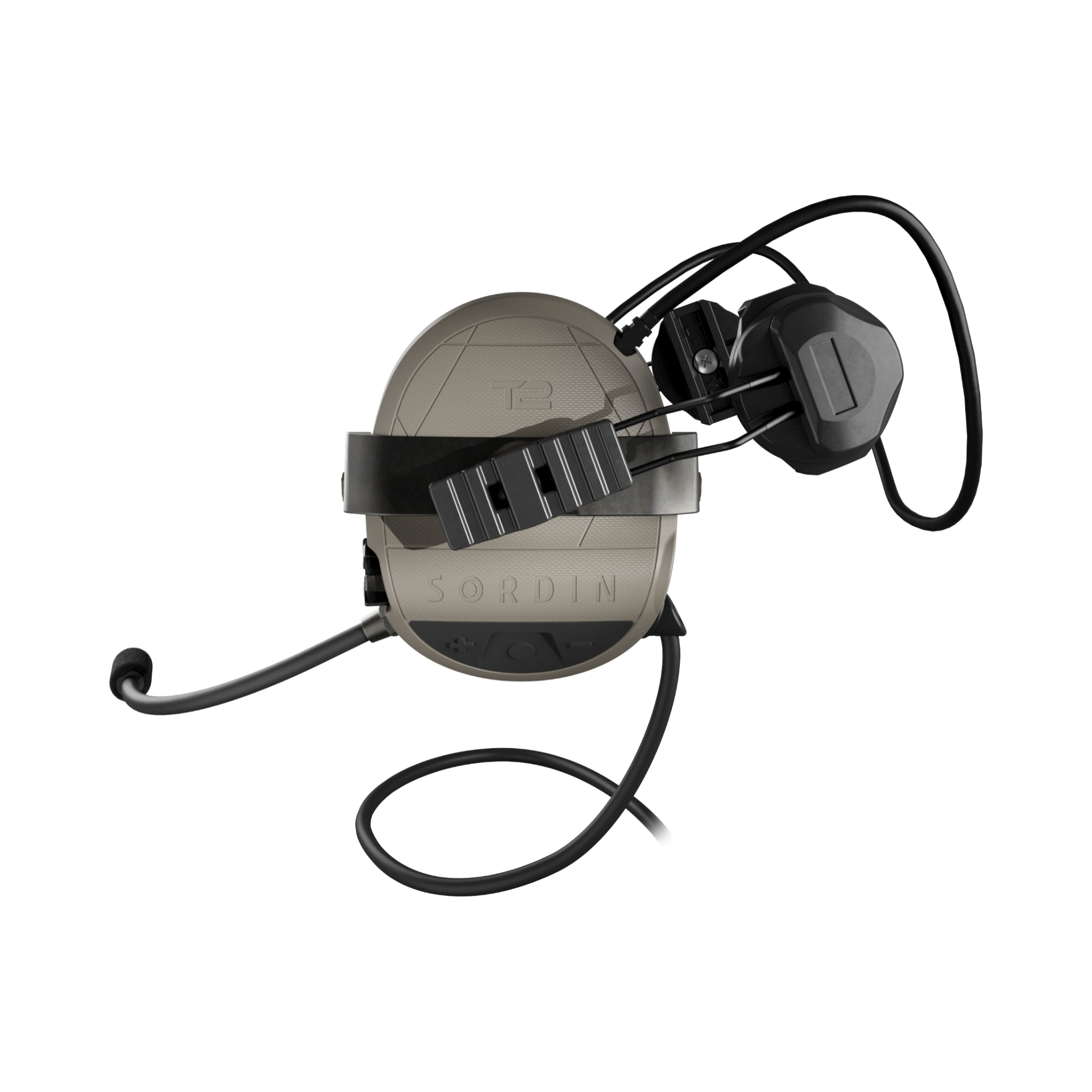

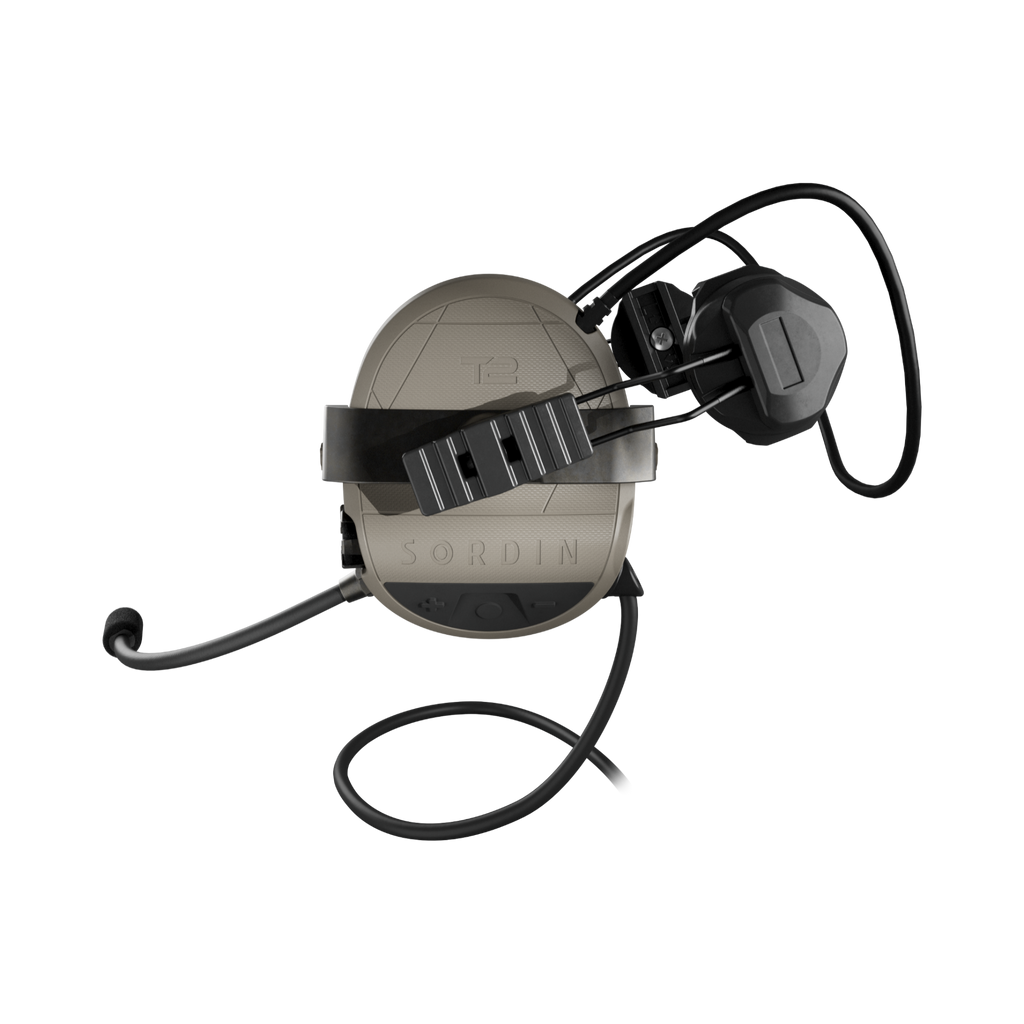

The Sordin Supreme T2 CC is an advanced communications headset for demanding tactical applications. This version is configured in Tan with Rear Arc Rails, memory foam cushions and the microphone on the left.
It is rated SNR 30 dB under EN 352, with H 33 dB / M 28 dB / L 22 dB, and NRR 23 dB under ANSI S3.19. The attenuation was measured on an OPS-CORE FAST CARBON HIGH CUT HELMET, M/L, and the approved helmet combination is R-ARC with memory foam/gel cushions on the OPS-CORE fast carbon high cut helmet, M/L.
The SordinHEAR2 audio system offers four audio profiles: Tactical, Comfort, Dual and Ambient off. Sound level is limited to a maximum of 82 dB(A), and the headset runs on one AA battery for 120 hours (Varta Ultra lithium), with a Sordin Power 14500 rechargeable battery also supported.
The headset is waterproof, immersion tested at 2 metres for 35 min and salt water tested, and it has been tested against relevant parts of MIL-STD-810H and MIL-STD-461G. A factory-mounted downlead connects it to a PTT, radio or other communication device, and the fixed boom microphone is mounted on the left.
Key features
- SordinHEAR2 audio profiles — SordinHEAR2 offers four audio profiles, Tactical, Comfort, Dual and Ambient off, and each selection is confirmed by voice feedback.
- Failsafe loudspeakers — Failsafe loudspeakers ensure continued radio communication even when the batteries are out.
- Slim cup design — Slim cups fit both left-handed and right-handed shooters and wearers of eyeglasses.
- Waterproof construction — Electronics are coated in multiple layers for full waterproofness, and the ambient microphones are waterproof.
- Dual protection — The headset offers dual protection for use together with other hearing protection.
- Sound level limitation — Sound level limitation keeps the level inside the hearing protector to a maximum of 82 dB(A).
- SordinFLEX modularity — The SordinFLEX modular design platform allows the suspension to be reconfigured without tools, with headband, neckband and helmet-mounted models available.
- Single-battery power — A single-battery solution with voice feedback for low battery warning and automatic shutdown after 4 h.
- Short decay time — Short decay time restores normal sound instantly after a shot.
- MIL-tested electronics — Applicable tests have been made in accordance with MIL-STD-810H and EMC-MIL-STD-461G, and the electronics have RFI protection.
Typical applications
- Helmet-mounted hearing protection with radio communication for tactical operators.
- Police and security teams working in high-noise environments.
- Communication with a radio, hunting radio or mobile phone through the fixed downlead.
Please note
Approved helmet combination: R-ARC with memory foam/gel cushions – OPS-CORE fast carbon high cut helmet, M/L
Technical specifications
| Suspension | Rear Arc Rails |
| Microphone | Left |
| Cup colour | Tan |
| Cushions | Memory foam |
| Attenuation, SNR | 30 dB |
| Attenuation, H / M / L | H 33 dB / M 28 dB / L 22 dB |
| Weight | 387 g |
| Attenuation measured on | OPS-CORE FAST CARBON HIGH CUT HELMET, M/L |
| Attenuation, NRR | 23 dB |
| CSA class | B |
| Peak impulse insertion loss (ANSI S12.42) | Memory foam cushions: 29.4 / 36.5 / 34.4 dB at 130 / 150 / 168 dB peak |
| Batteries | 1 x AA 1.5V (Sordin Power 14500 rechargeable 3.7 V also supported) |
| Loudspeaker input impedance | 2 x 32 Ω as standard |
| Operating time | 120 hours (Varta Ultra lithium) |
| Operating temperature | –32°C to +55°C / –25.6°F to +131°F |
| Max. signal from connected radio | 137.3 mVrms |
| Peak impulse reduction tested | Yes, see attenuation data for more information |
| Salt-water tested | Yes |
| Immersion tested | Submerged at 2 metres for 35 min |
| Cup and liner materials | ABS and PU foam |
| Suspension material | Stainless steel and plastic |
| Headband cover material | Leather or coloured textile |
| Cushion materials | ABS, PVC foil, memory foam or silicone gel cushions |
| Downlead plug options | Single comm: 4 pin US Nato wiring, TP120 type (as standard) Single comm: 4 pin UK Nato wiring TP120 type Dual Comm: Sordin 6 pin |
| Downlead cable length | 410 mm |
| Standards | EN 352-1:2020 hearing protectors - ear-muffs EN 352-2:2020 hearing protectors- earplug EN 352-3:2020 earmuffs attached to head protection EN 352-4:2020 hearing protectors - level-dependent ear-muffs EN 352-6:2020 hearing protectors - ear-muffs with safety related audio input |
| Military testing | The Sordin Supreme T2 CC models have been tested against relevant parts of the standards MIL-STD-810H and MIL-STD-461G. |
| Type | Active Electronic protection |
In the box
- 1 × Sordin Supreme T2 CC
- 1 × AA battery
- 1 × Quick guide
- 1 × Manual
Model information
| Brand | Sordin |
| Model | Supreme T2 CC Tan RARC Helmet Memory Foam |
| MPN | 304005-31P |
