Description

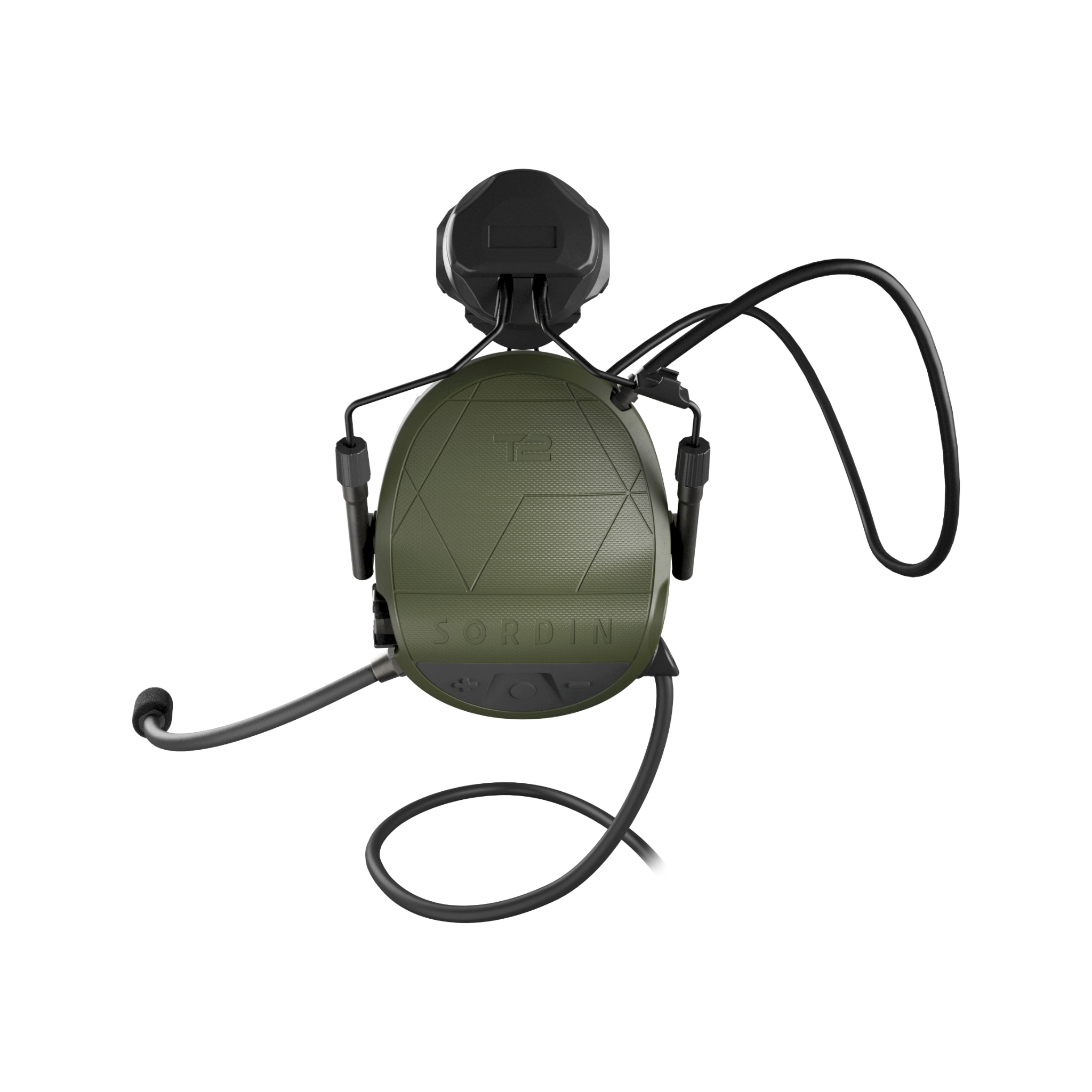

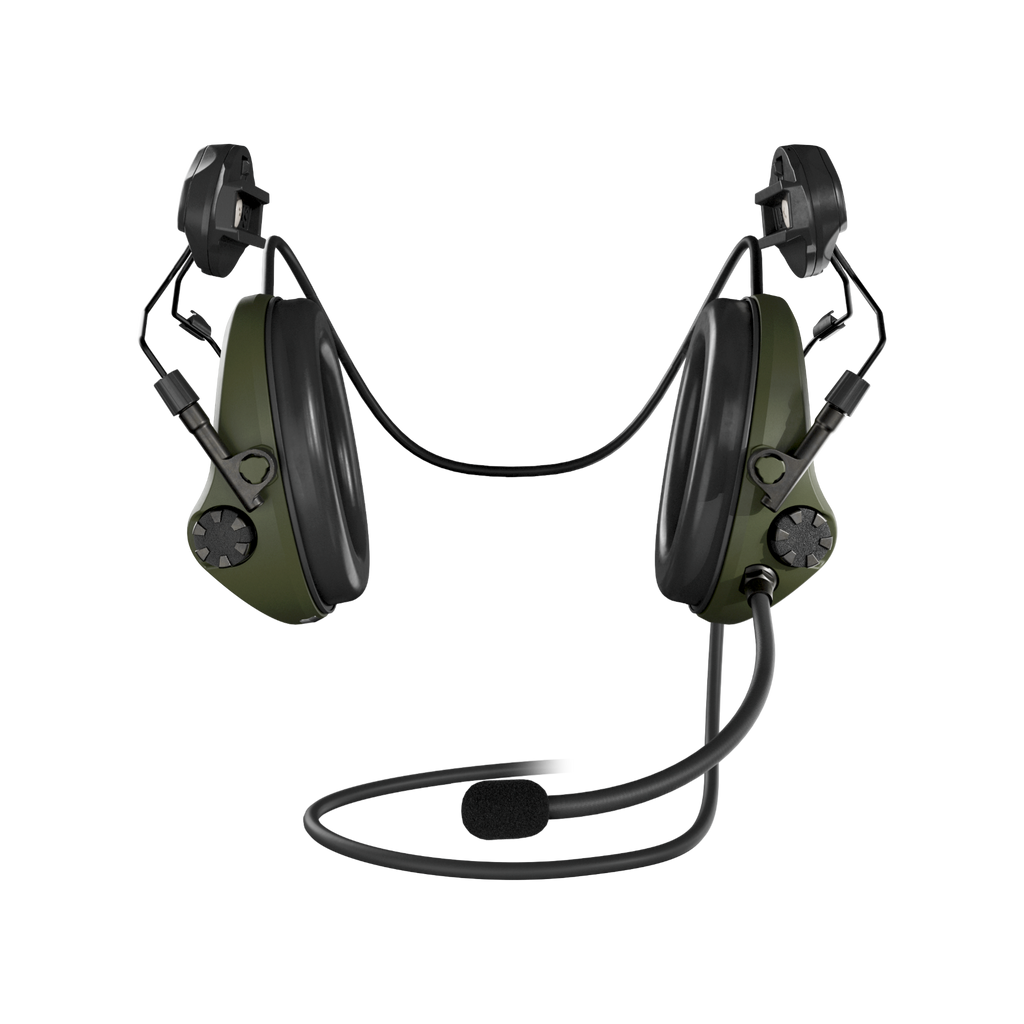

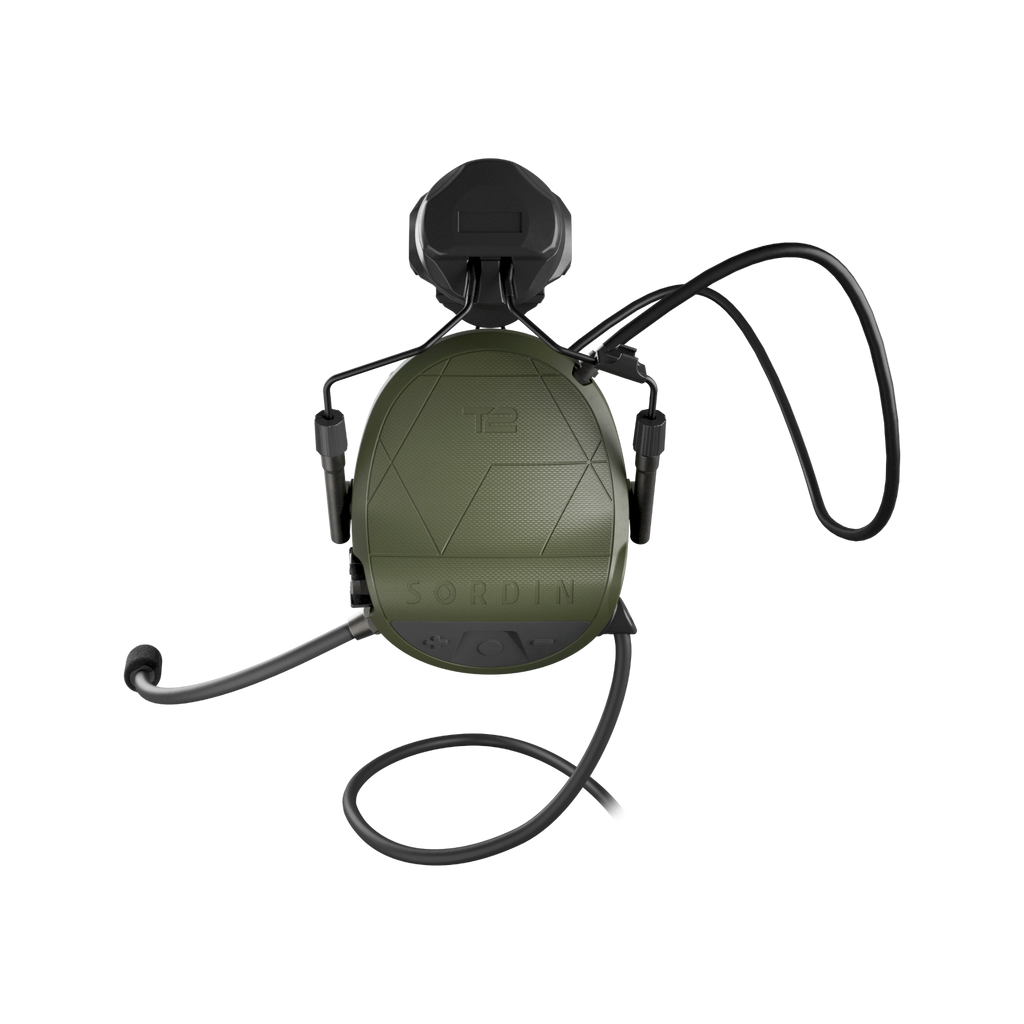

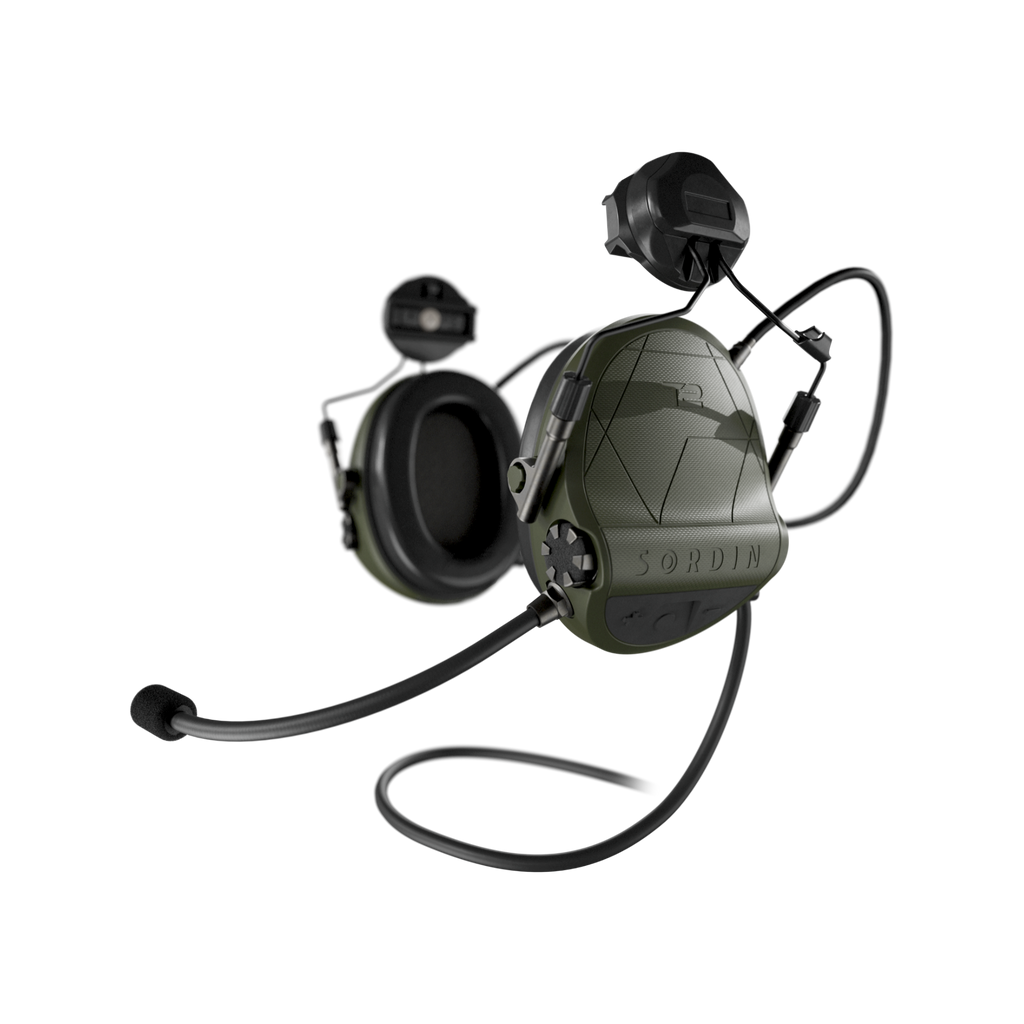

Active communications headset on ARC Rails for helmet mounting, with SordinHEAR2 audio profiles, for operators in demanding tactical applications.
Sordin Supreme T2 is an advanced communications headset for demanding tactical applications, built on the SordinFLEX modular design platform. This version is configured with ARC Rails suspension, memory foam cushions, green cups and the boom microphone mounted on the left.
In this configuration it is rated SNR 28 dB under EN 352, with H 29 dB / M 25 dB / L 21 dB, and NRR 21 dB under ANSI S3.19. The attenuation was measured on a TeamWendy Exfil LTP-Helmet Rail3.0, Size1 M/L, and the ARC with memory foam/gel cushions combination is listed as approved with the Team Wendy EXFIL LTP helmet rail 3.0, size 1 M/L.
SordinHEAR2 provides four audio profiles: Tactical, Comfort, Dual and Ambient off, and each selection is confirmed by voice feedback. Sound level limitation is set to a maximum of 82 dB(A). A single AA battery gives 120 hours of operating time with Varta Ultra lithium cells, and a Sordin Power 14500 rechargeable battery is also supported.
The headset is waterproof, immersion tested by submersion at 2 metres for 35 min, and salt water tested. It has been tested against relevant parts of MIL-STD-810H and MIL-STD-461G. The factory-mounted downlead is a single-comm TP120 type by default and connects to a PTT, radio or other communication device.
Key features
- SordinHEAR2 audio profiles — Four pre-set listening modes, Tactical, Comfort, Dual and Ambient off, adapt gain and frequency to the tactical situation.
- Failsafe loudspeakers — Failsafe loudspeakers ensure continued radio communication even when the batteries are out.
- Sound level limitation — Sound level limitation caps output at a maximum of 82 dB(A).
- Waterproof construction — The headset is waterproof and immersion tested to 2 metres, with electronics coated in multiple layers and waterproof ambient microphones.
- MIL-tested electronics — Applicable tests have been made in accordance with MIL-STD-810H and MIL-STD-461G.
- Single-battery operation — A single-battery solution with auto shutdown after 4 h and a voice warning when 10% of battery remains.
- Slim cup design — Slim cups suit both left-handed and right-handed shooters and wearers of eyeglasses.
- Noise-compensating boom microphone — A fixed boom microphone with high audio sensitivity, mounted left, is noise compensating for clear voice perception in noisy environments.
- Dual protection — Dual protection is listed for use together with earplugs, with SNR:40 / NRR:35.
- SordinFLEX modularity — The SordinFLEX platform lets the suspension be reconfigured without tools, with headband, neckband and helmet-mounted ARC Rails or Rear ARC Rails models available.
Typical applications
- Communication for tactical teams working in high-noise environments.
- Operators who need to hear ambient sound and commands while being protected against harmful noise.
- Left-handed and right-handed shooters who need slim cups.
Please note
Approved helmet combination: ARC with memory foam/gel cushions – Team Wendy EXFIL LTP helmet rail 3.0, size 1 M/L
Technical specifications
| Suspension | Arc Rails |
| Microphone | Left |
| Cup colour | Green |
| Cushions | Memory foam |
| Attenuation, SNR | 28 dB |
| Attenuation, H / M / L | H 29 dB / M 25 dB / L 21 dB |
| Weight | 333 g |
| Attenuation measured on | TeamWendy Exfil LTP-Helmet Rail3.0, Size1 M/L |
| Attenuation, NRR | 21 dB |
| CSA class | B |
| Peak impulse insertion loss (ANSI S12.42) | Memory foam cushions: 29.4 / 36.5 / 34.4 dB at 130 / 150 / 168 dB peak |
| Batteries | 1 x AA 1.5V (Sordin Power 14500 rechargeable 3.7 V also supported) |
| Loudspeaker input impedance | 2 x 32 Ω as standard |
| Operating time | 120 hours (Varta Ultra lithium) |
| Operating temperature | –32°C to +55°C / –25.6°F to +131°F |
| Max. signal from connected radio | 137.3 mVrms |
| Peak impulse reduction tested | Yes, see attenuation data for more information |
| Salt-water tested | Yes |
| Immersion tested | Submerged at 2 metres for 35 min |
| Cup and liner materials | ABS and PU foam |
| Suspension material | Stainless steel and plastic |
| Headband cover material | Leather or coloured textile |
| Cushion materials | ABS, PVC foil, memory foam or silicone gel cushions |
| Downlead plug options | Single comm: 4 pin US Nato wiring, TP120 type (as standard) Single comm: 4 pin UK Nato wiring TP120 type Dual Comm: Sordin 6 pin |
| Downlead cable length | 410 mm |
| Standards | EN 352-1:2020 hearing protectors - ear-muffs EN 352-2:2020 hearing protectors- earplug EN 352-3:2020 earmuffs attached to head protection EN 352-4:2020 hearing protectors - level-dependent ear-muffs EN 352-6:2020 hearing protectors - ear-muffs with safety related audio input |
| Military testing | The Sordin Supreme T2 CC models have been tested against relevant parts of the standards MIL-STD-810H and MIL-STD-461G. |
| Type | Active Electronic protection |
In the box
- 1 × Sordin Supreme T2 CC
- 1 × AA battery
- 1 × Quick guide
- 1 × Manual
Model information
| Brand | Sordin |
| Model | Supreme T2 CC Green ARC Helmet Memory Foam |
| MPN | 304006-30P |
