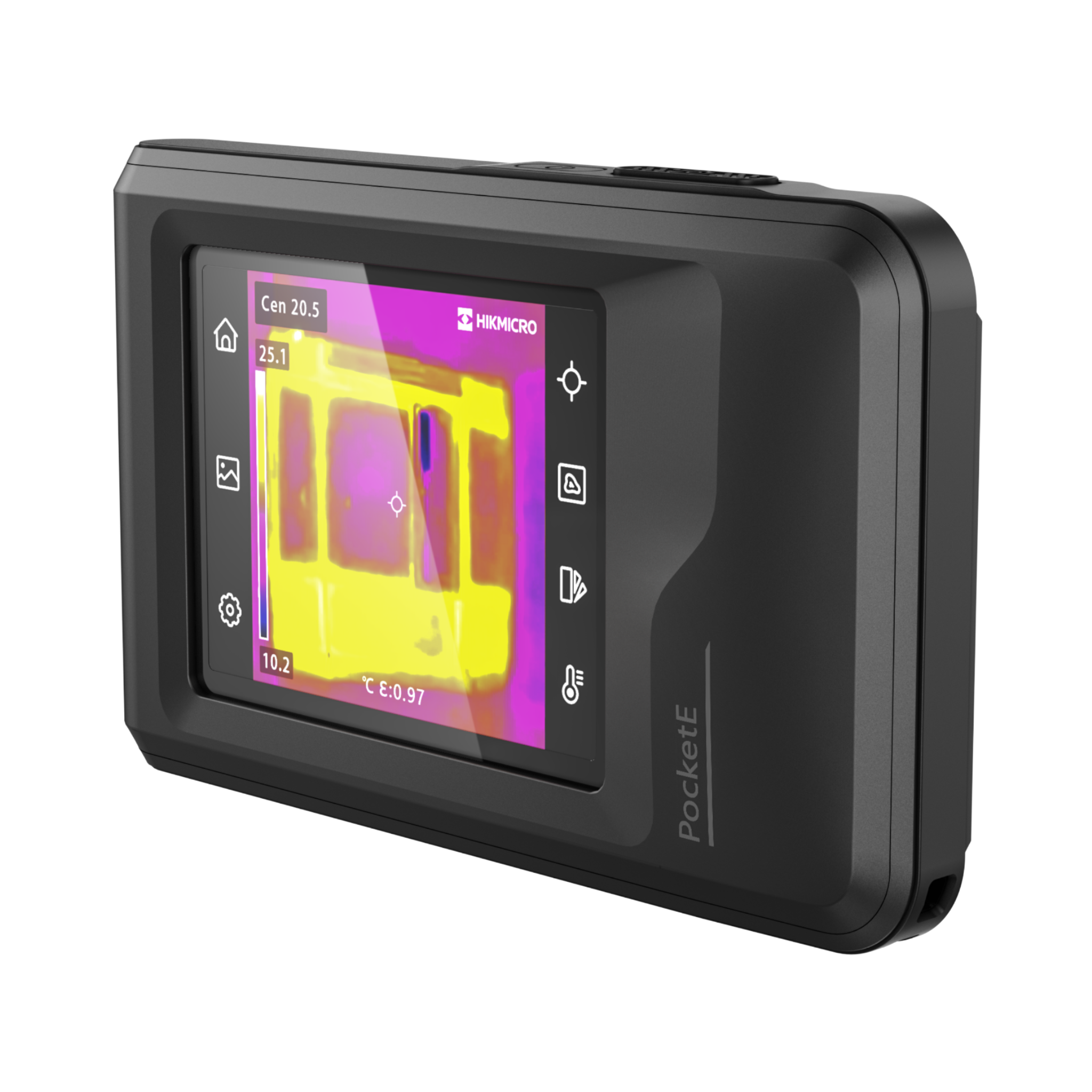

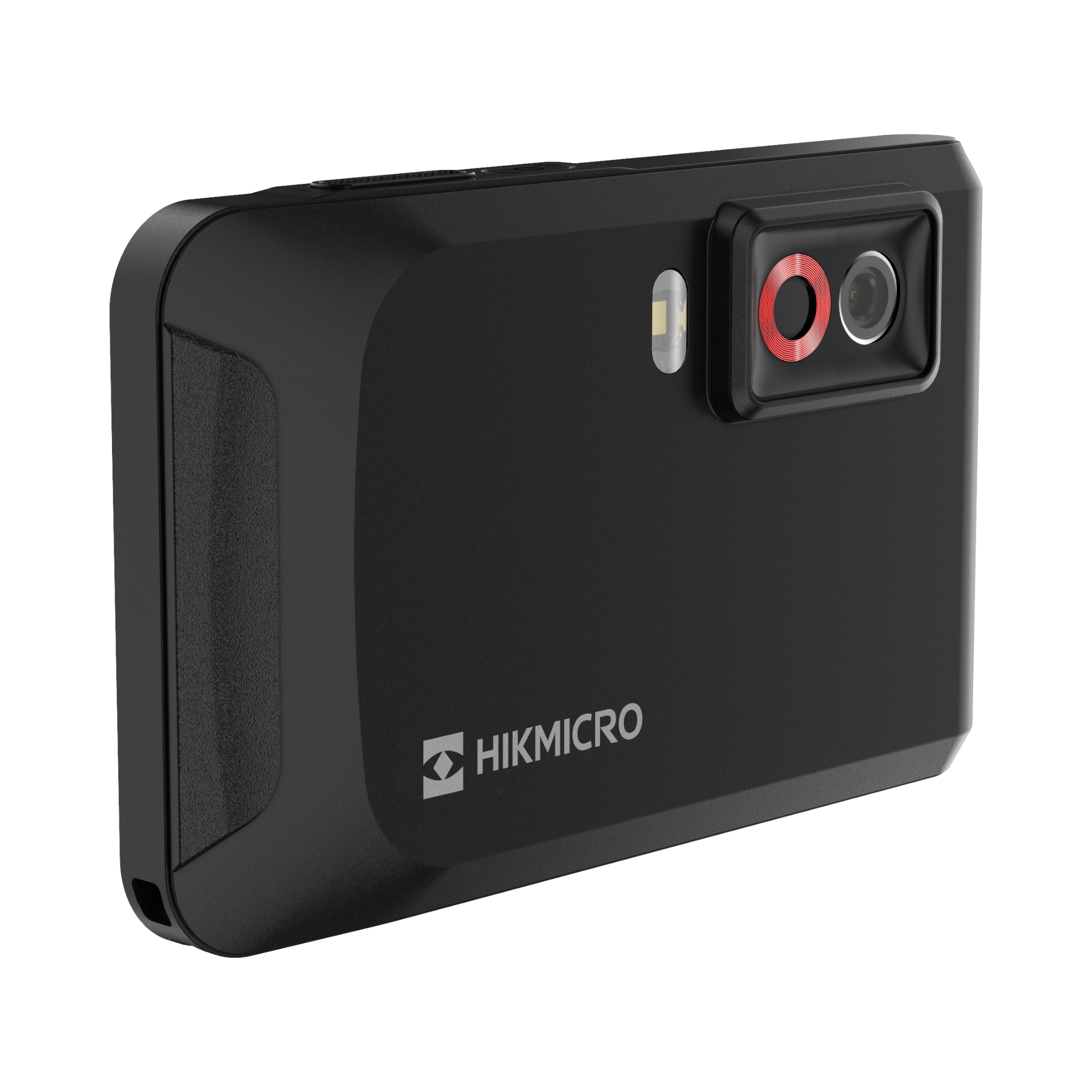

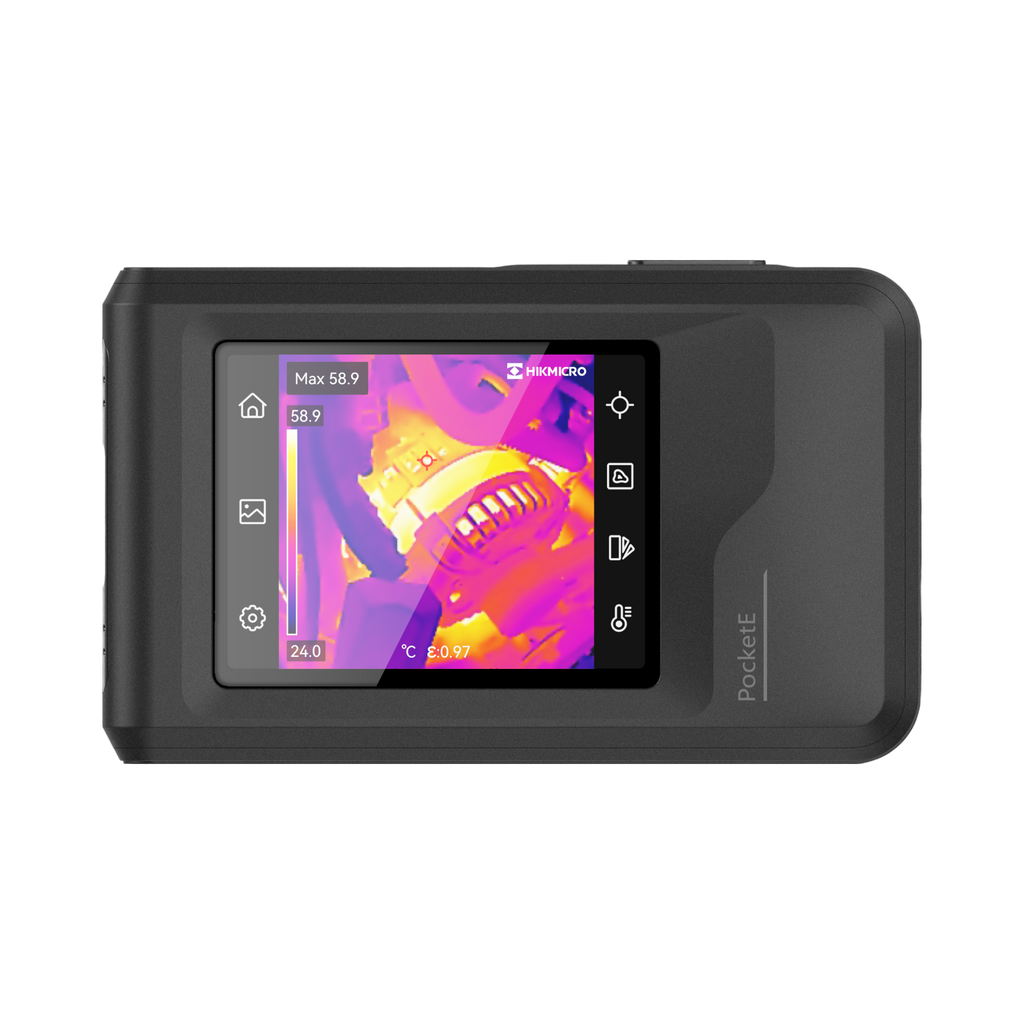

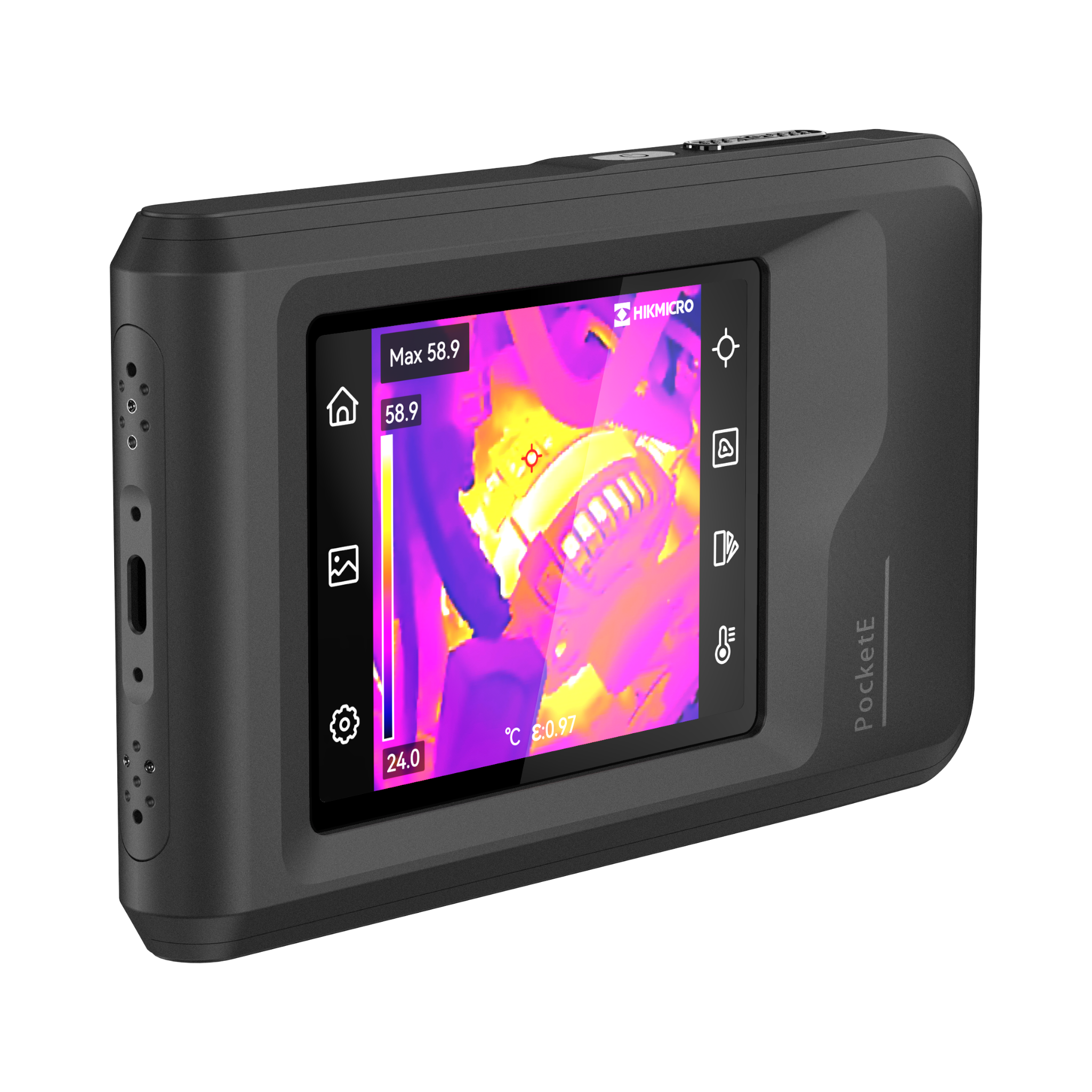

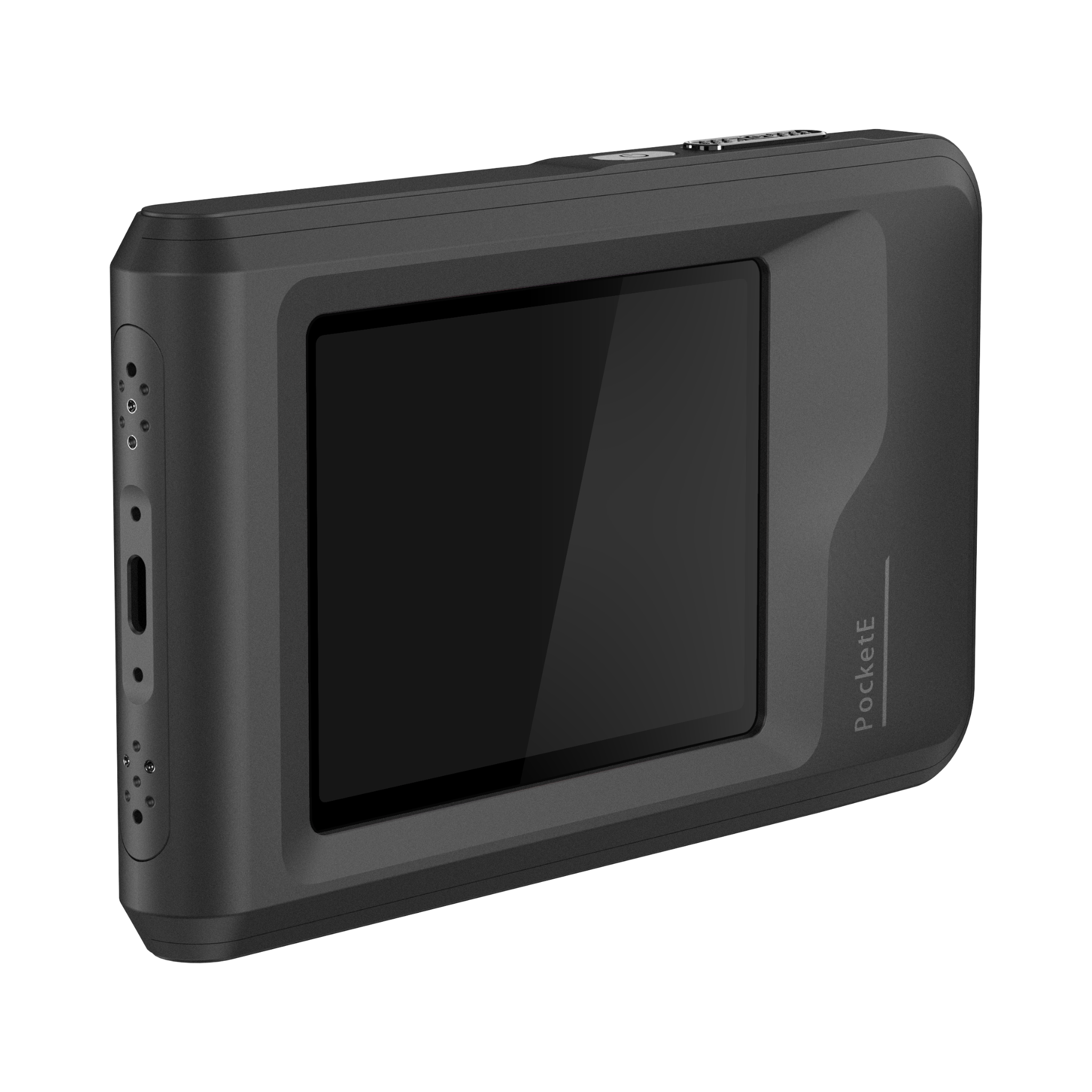

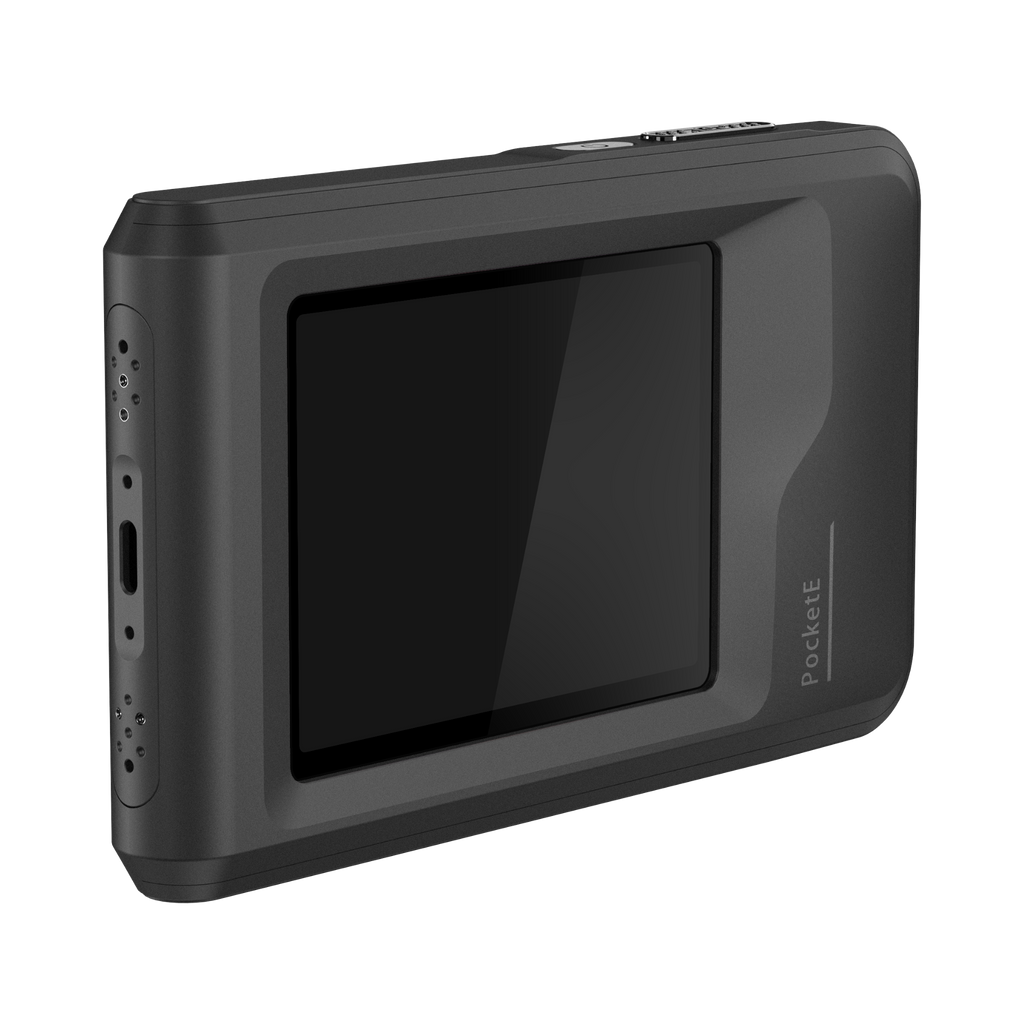

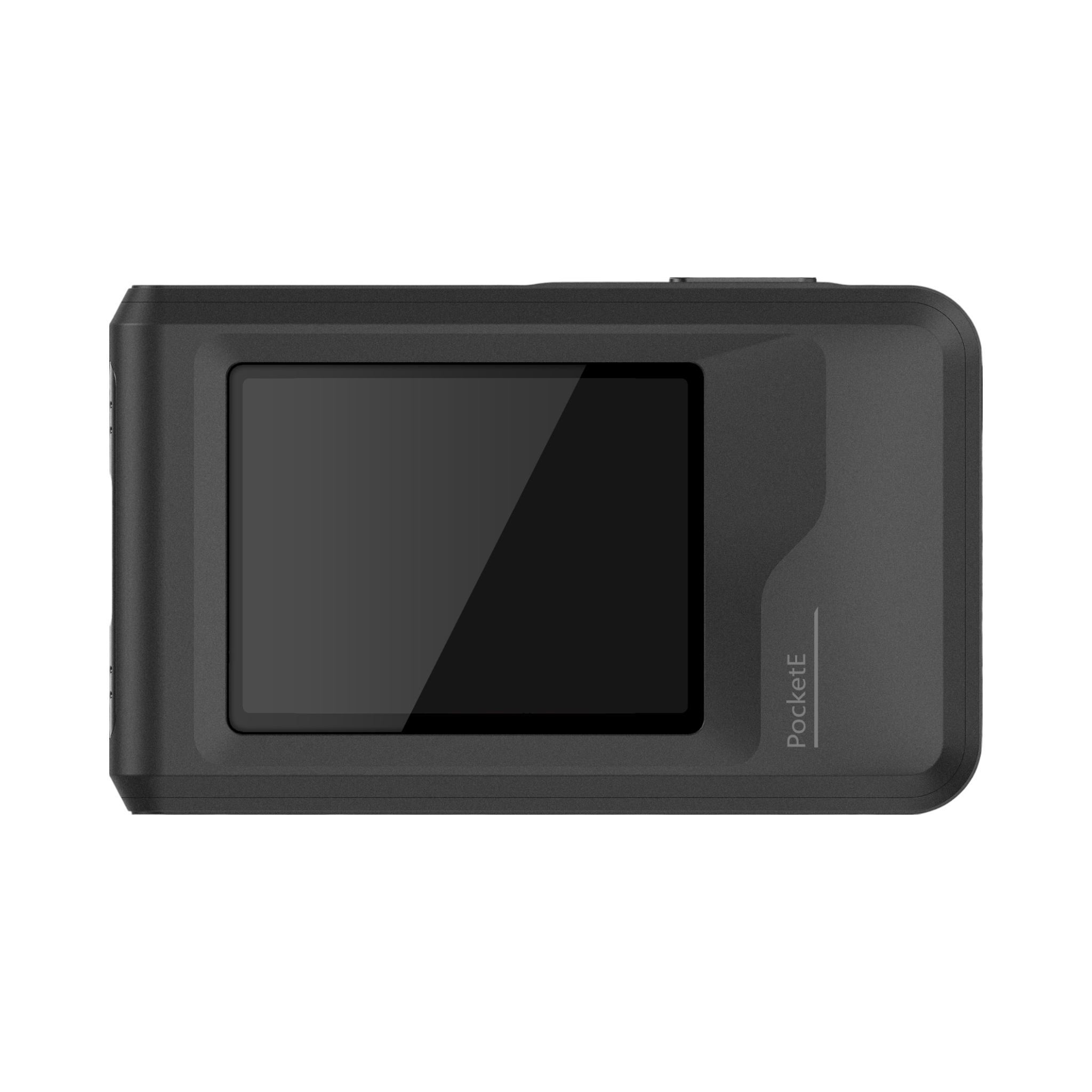

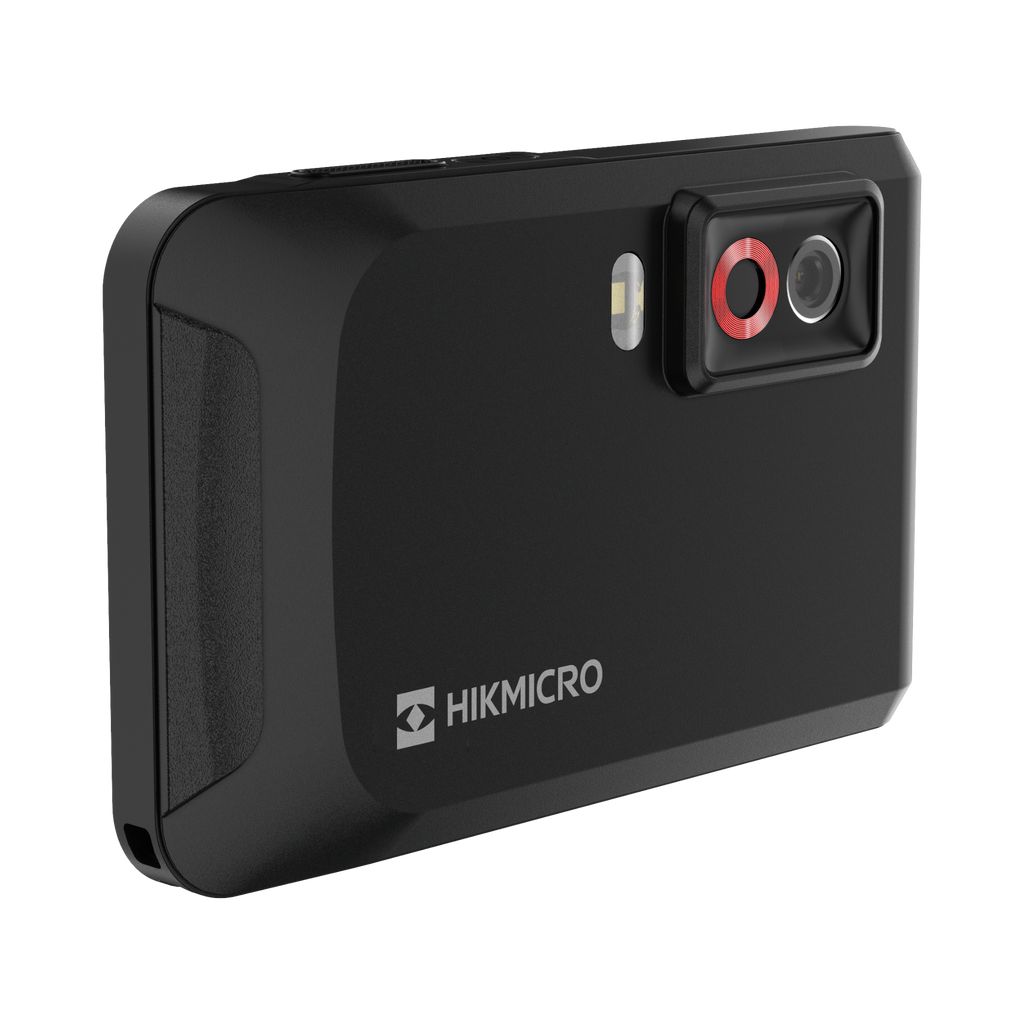

Pocket-sized touchscreen thermal camera with Wi-Fi and video recording

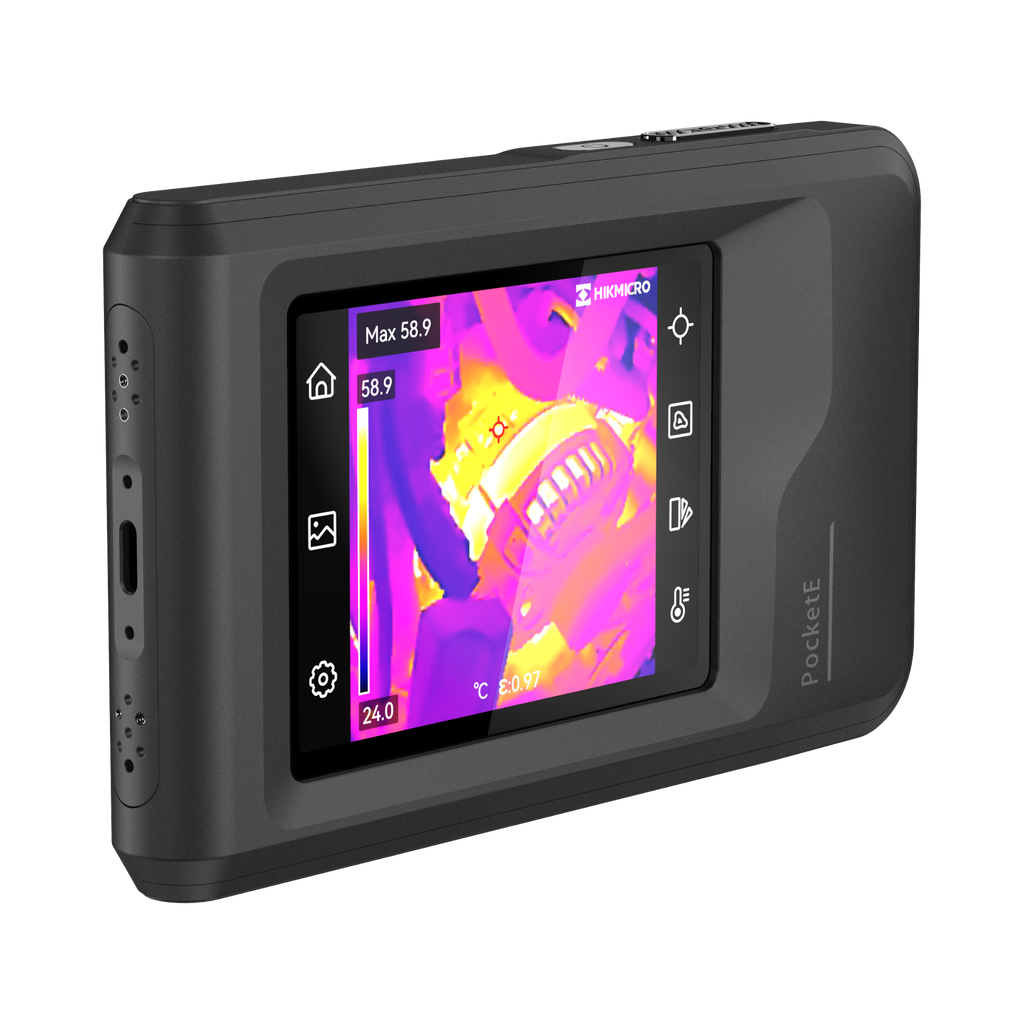

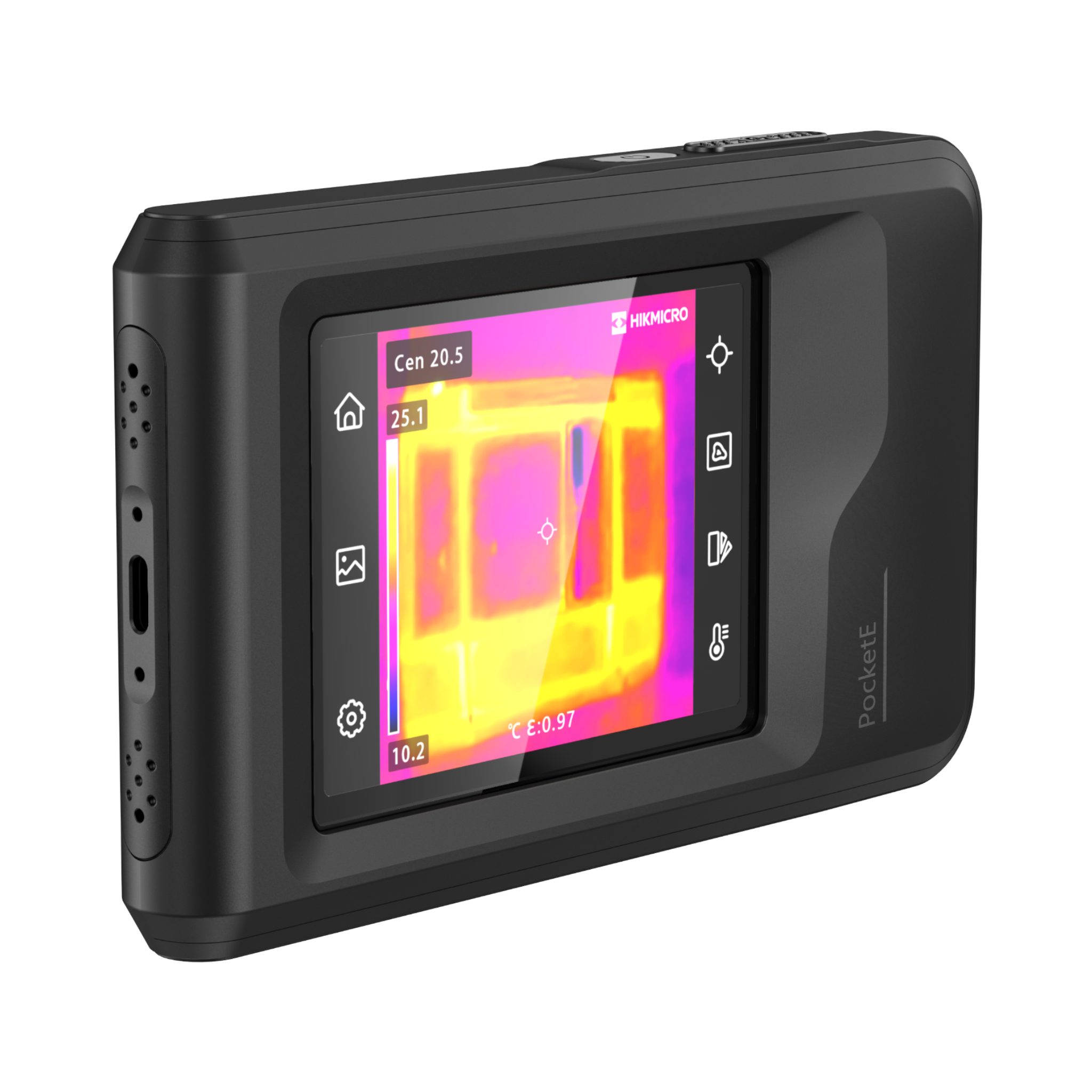

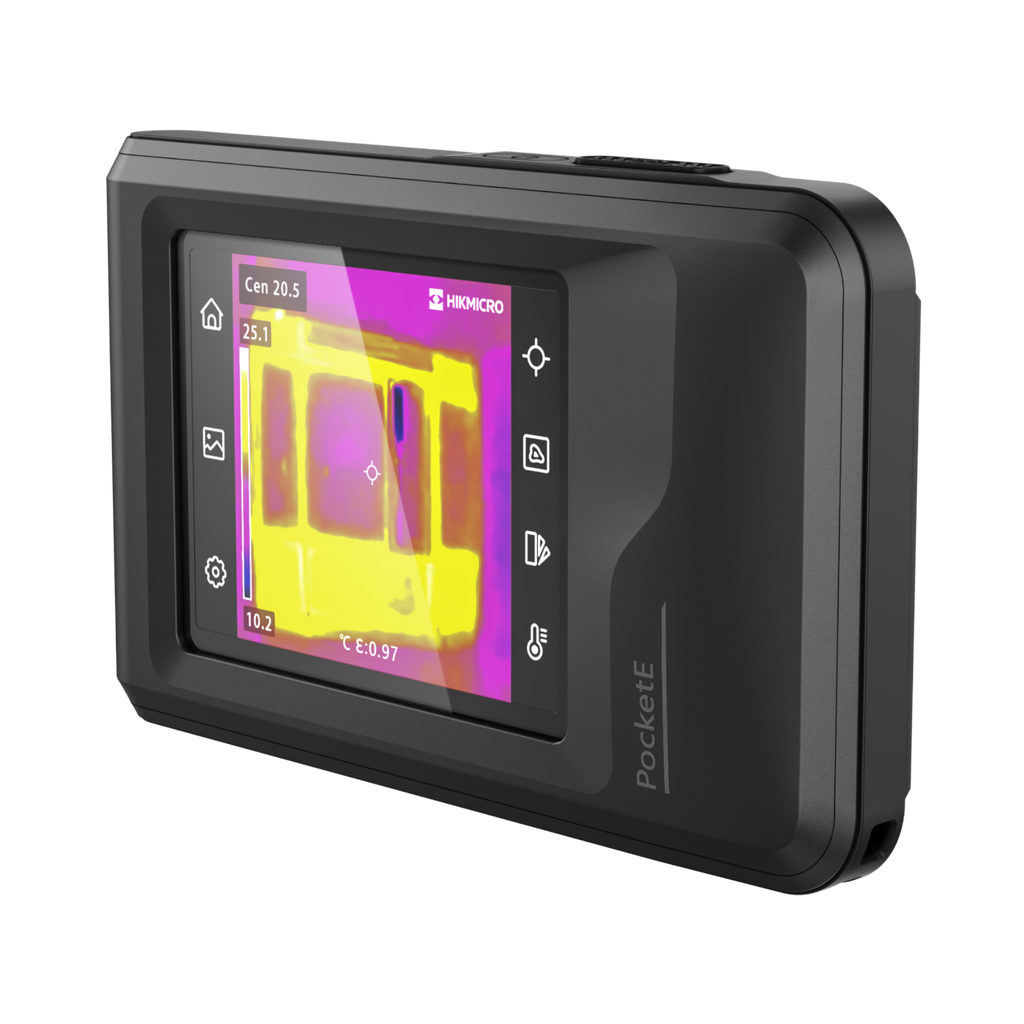

The PocketE puts a 3.5-inch touchscreen and Wi-Fi into a 218 g body. It records video as well as stills, streams the screen to a phone through HIKMICRO Viewer, and adds 1-Tap level and span so a single tap on the area of interest sharpens contrast where it matters. The 96 × 96 detector is upscaled by SuperIR — this is the affordable end of the standalone range, chosen for portability and speed rather than pixel count.
Key features
-

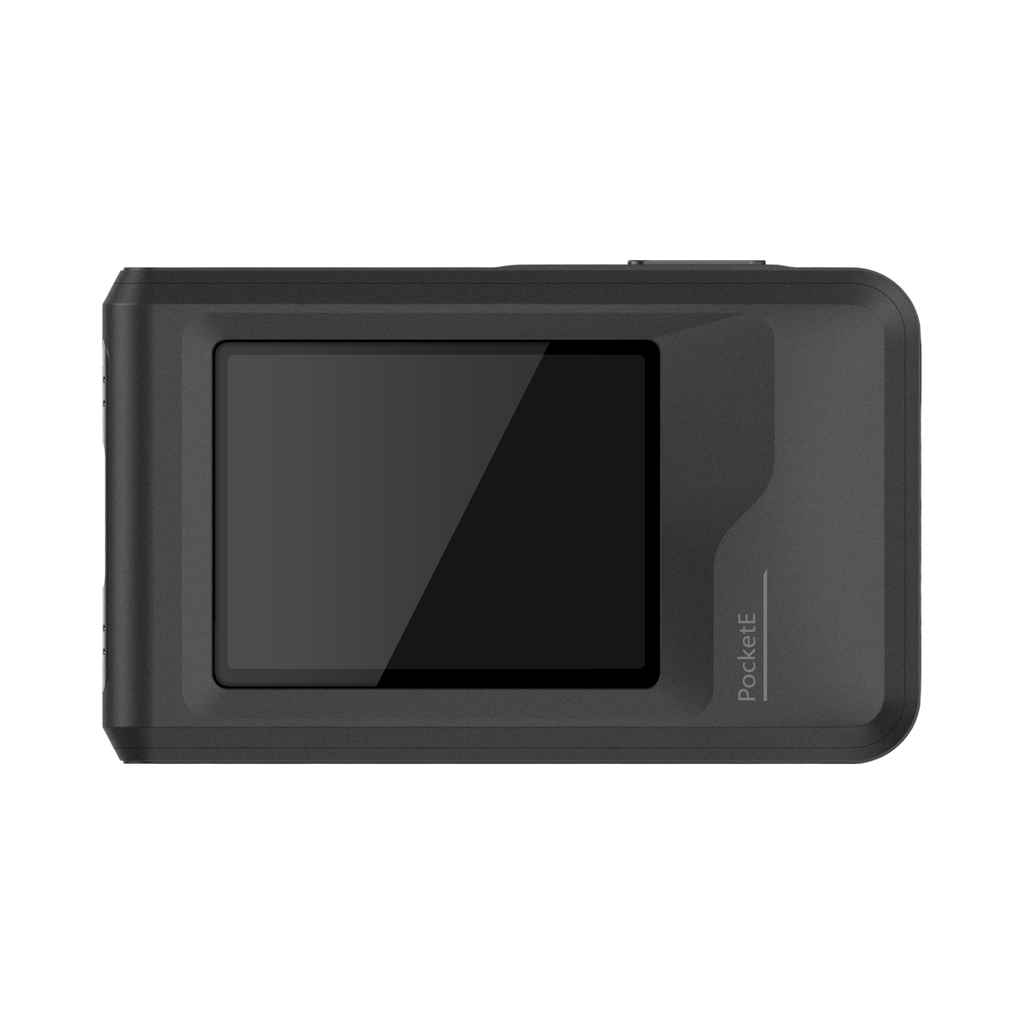

3.5" touchscreen — with 1-Tap level and span — tap the area of interest and the contrast follows
-

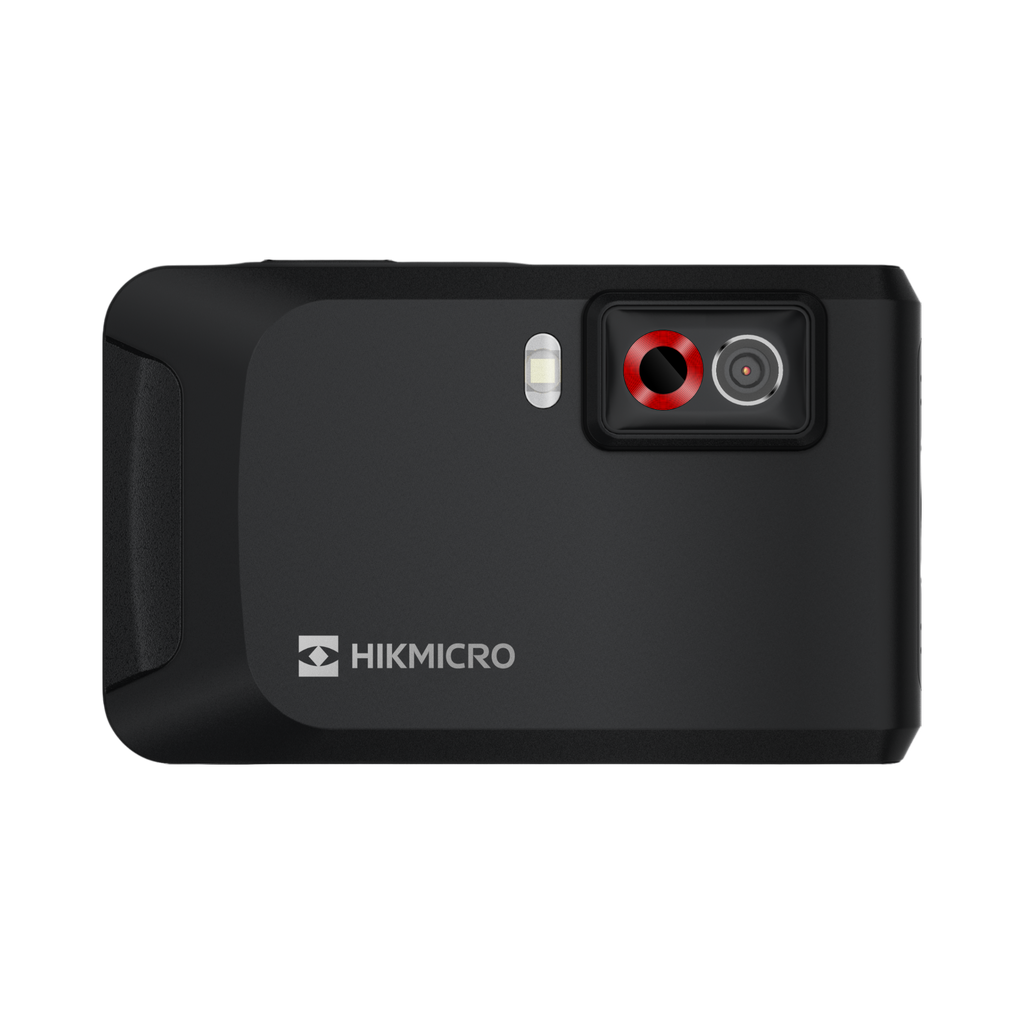

Thermal, visual, fusion, PIP and blending modes — with a 640 × 480 visual camera for scene reference in reports
-
Wi-Fi — screen streaming and image download to HIKMICRO Viewer on a phone or tablet
-
On-camera video recording — built-in 4 GB storage holds approx. 30,000 images or 20 hours of MP4 video
-
96 × 96 detector with SuperIR — upscaled to 240 × 240 on live view and captured images
-
−20 °C to 350 °C measurement range — accuracy ±2 °C / ±2 %
-
LED flashlight — usable in dark plant rooms and voids
-
218 g, IP54, 2 m drop rating — genuinely pocketable and specified for site work
Typical applications
- Electrical panels, breakers, busbars and cable terminations
- Preventive maintenance on motors, bearings, pumps and drives
- HVAC commissioning and fault finding
- Building envelope surveys — insulation gaps, thermal bridges, air leakage
- Underfloor heating loops and concealed pipework
- Damp, leak and water ingress tracing
- Solar PV panel and inverter inspection
Technical specifications
| Detector type |
Uncooled VOx focal plane array |
| IR resolution |
96 × 96 (9,216 pixels) |
| SuperIR |
240 × 240 (57,600 pixels), live view and captured images |
| Thermal sensitivity (NETD) |
< 50 mK (@ 25 °C, F#=1.0) |
| Image frequency |
25 Hz |
| Field of view |
50° × 50° |
| Focus mode |
Focus free |
| Visual camera |
640 × 480 |
| Image modes |
Thermal / visual / fusion / PIP / blending |
| Display |
3.5" LCD touchscreen, 320 × 240 |
| Temperature range |
−20 °C to 350 °C |
| Accuracy |
±2 °C / ±2 % |
| Level and span |
Auto / manual / 1-Tap |
| Storage media |
Built-in 4 GB flash |
| Storage capacity |
Approx. 30,000 images or 20 hours of video |
| File formats |
Radiometric JPEG, MP4 |
| Connectivity |
Wi-Fi 802.11 b/g/n (2.4 GHz) |
| Battery operating time |
Approx. 4 hours |
| Protection level |
IP54 |
| Drop test height |
2 m |
| Weight |
Approx. 218 g |
In the box
- HIKMICRO PocketE thermal camera with wrist strap
- USB 2.0 A to USB-C cable
- Soft carrying pouch
- Calibration certificate
- Quick start guide
Model information
| Brand |
HIKMICRO |
| Model |
PocketE |
| Manufacturer part number (MPN) |
HM-TP40-1AQF/W-POCKETE |
