Firefighting thermal camera with visual camera, laser pointer and in-truck charger
The FP31 is built for appliance-mounted readiness: it ships with an in-truck charger so it lives on the vehicle, charged and ready, rather than in a store cupboard. A 384 × 288 detector with NETD below 30 mK gives a clean image through smoke, and the visual camera, LED light and laser pointer make it useful for scene documentation and for pointing out a hot spot to someone standing next to you.
Key features
-
384 × 288 VOx detector — NETD < 30 mK — the most sensitive detector in the HIKMICRO firefighting range
-

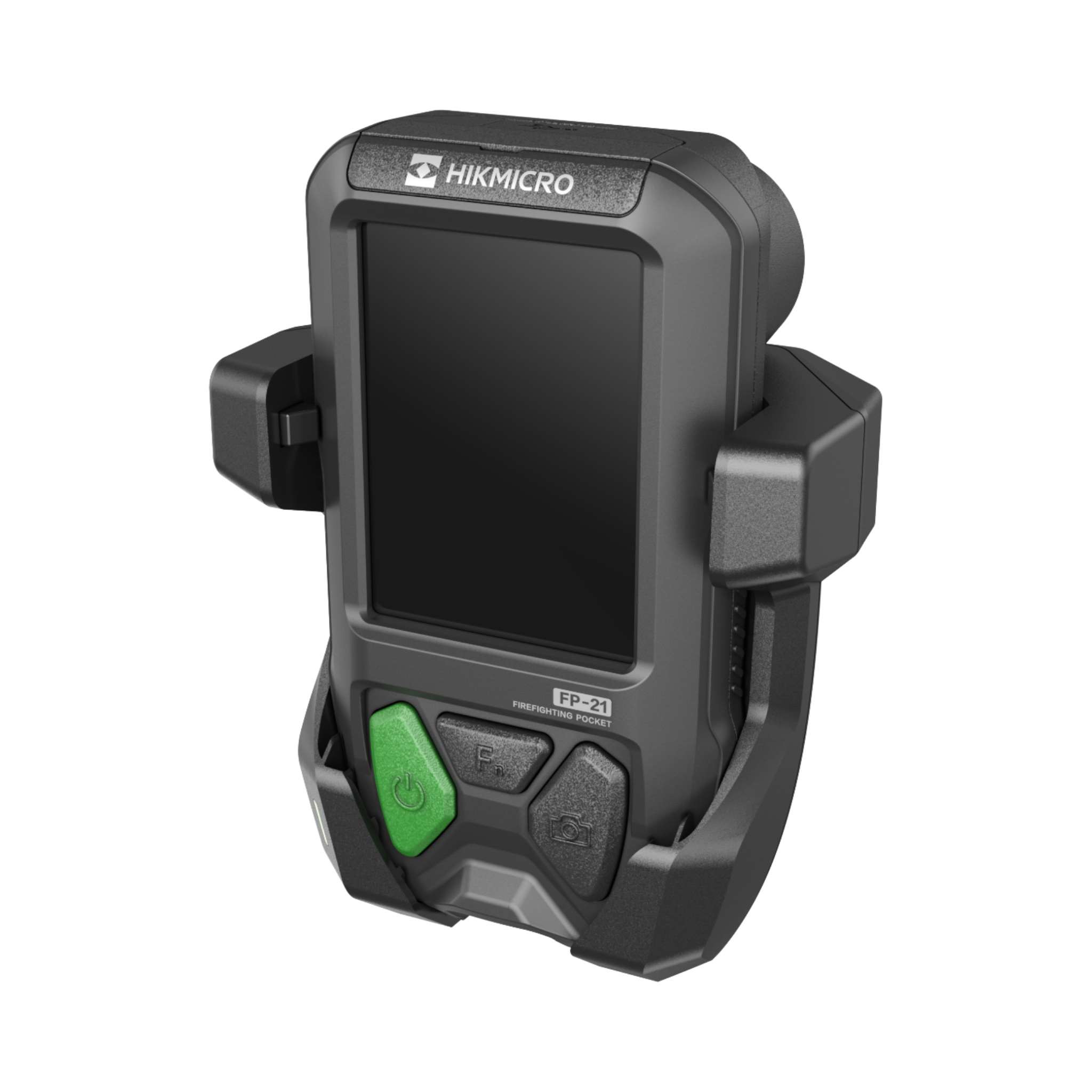

In-truck charger included — the camera stays on the appliance, charged and ready to go
-

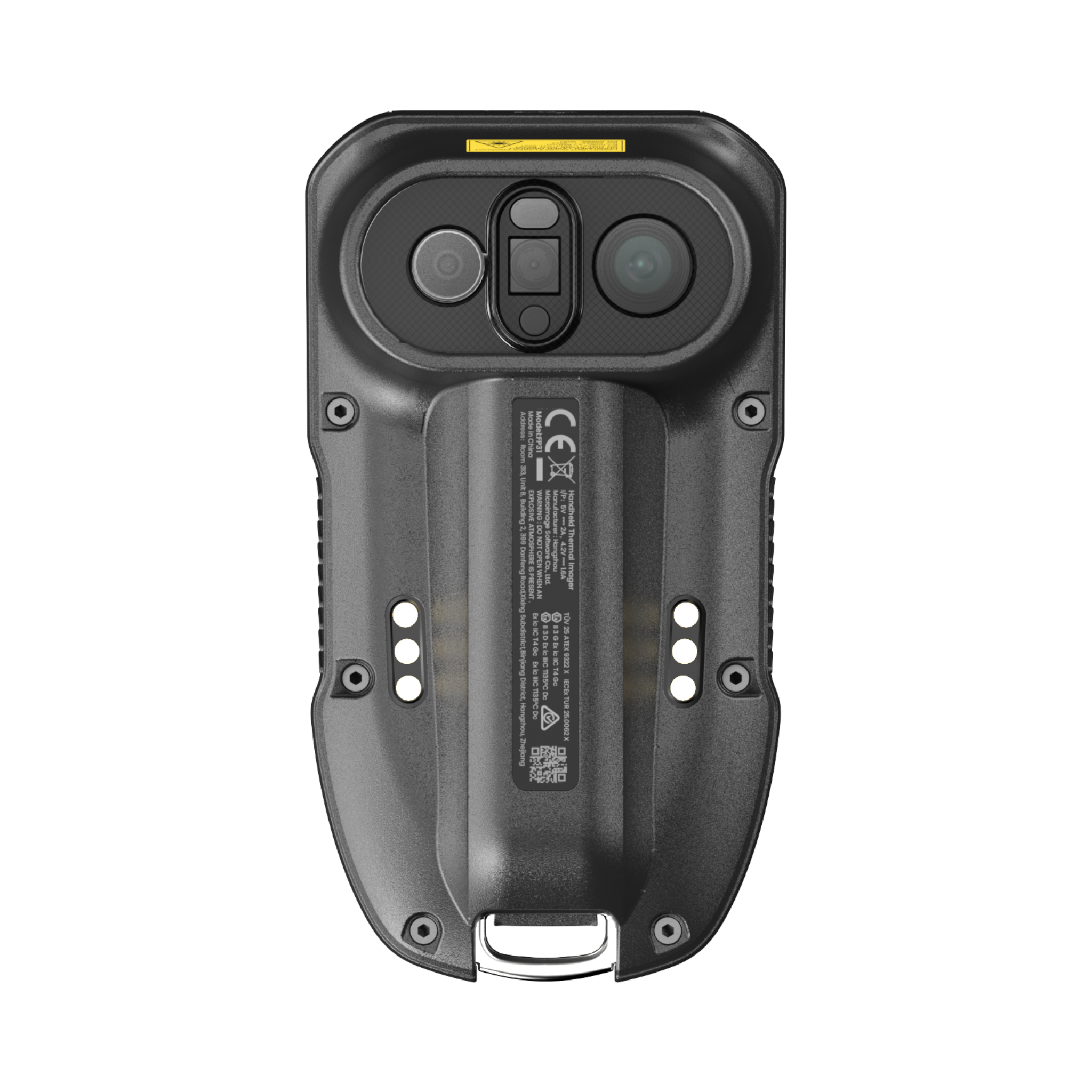

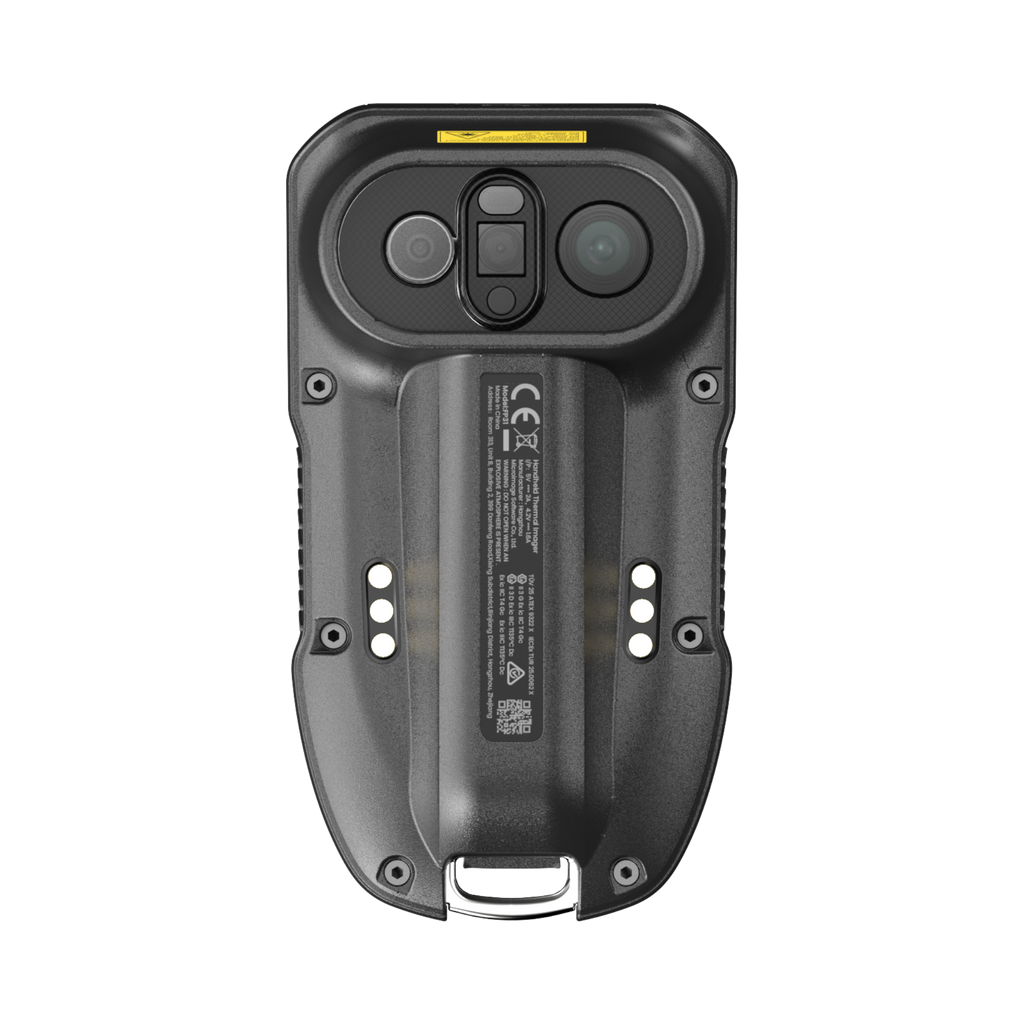

Visual camera — for scene records and post-incident reporting
-
Laser pointer — indicate a hot spot to another crew member without describing it over the radio
-
LED light — for confined spaces and close work
-
IP67 rating — fully sealed against dust and immersion
-
25 Hz image frequency — wide 37.2° × 50° field of view for room sweeps
-
3.2" 640 × 480 display — readable through a facepiece
Typical applications
- Structural firefighting and fire attack
- Search and rescue in smoke and total darkness
- Hidden fire point and hot spot location
- Overhaul and post-fire scene checks
- Road traffic accident and wooded-area searches
- Building and construction fault checks
Technical specifications
| Detector type |
Uncooled VOx focal plane array |
| IR resolution |
384 × 288 (110,592 pixels) |
| Thermal sensitivity (NETD) |
< 30 mK |
| Image frequency |
25 Hz |
| Field of view |
37.2° × 50° |
| Visual camera |
Yes |
| Display |
3.2" LCD, 640 × 480 |
| LED light |
Yes |
| Laser pointer |
Yes |
| Protection level |
IP67 |
| Charging |
In-truck charger included |
In the box
- HIKMICRO FP31 thermal camera
- In-truck charger
- Power supply
- USB cable
- Calibration certificate
- Quick start guide
Model information
| Brand |
HIKMICRO |
| Model |
FP31 |
| Manufacturer part number (MPN) |
HRYXBSZ-384-FP31 |
