Description

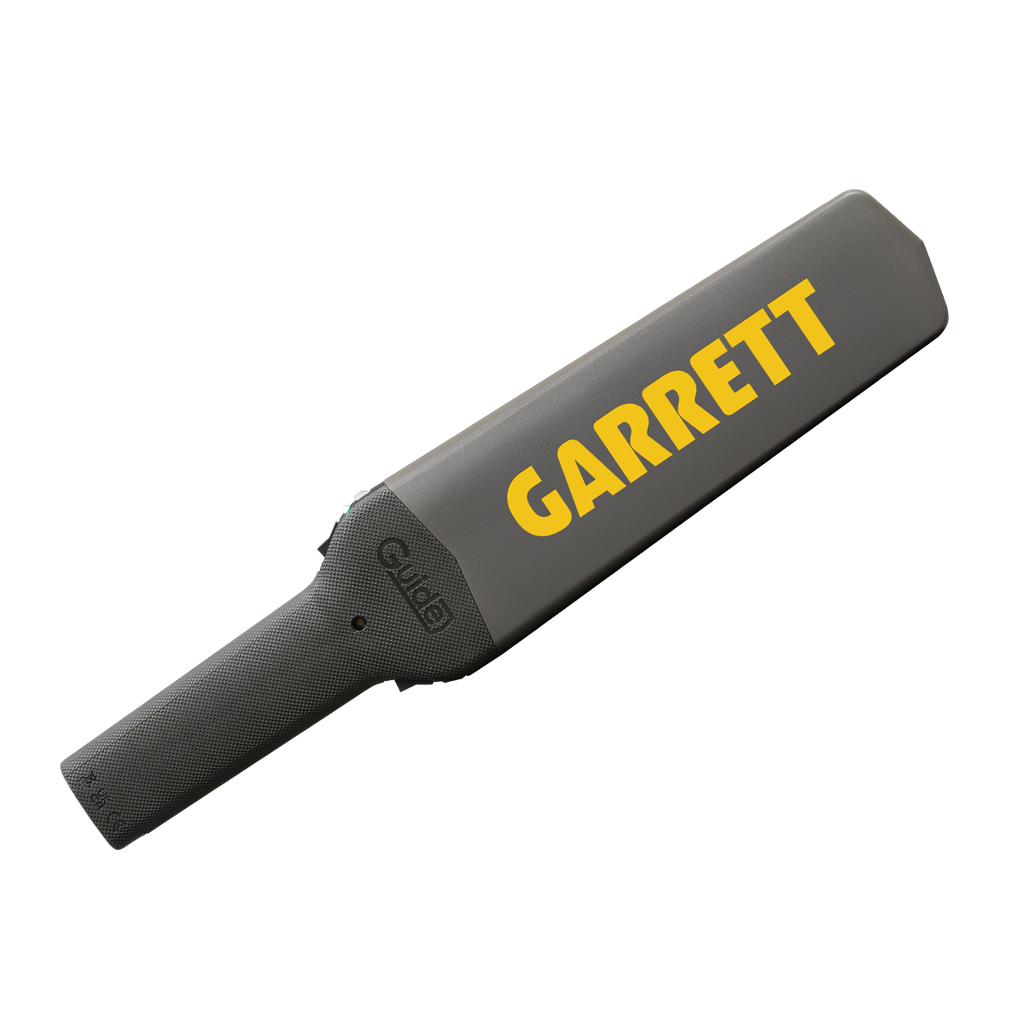

Hand-held metal detector supplied with its upright charging base, high-current power adapter and wrist strap.
The Garrett Guide is the successor to the Super Scanner V, the hand-held detector that has been the reference for security screening for close to forty years. It keeps the same one-hand simplicity but adds seven discrete sensitivity levels, an 8-inch scanning surface and a self-calibrating circuit that needs no manual tuning, so results stay consistent whoever is holding it.
This kit is the version for permanently staffed positions. The Guide sits upright in a securable charging base with LED charge level illumination, ready to grab and visible at a glance, and the supplied high-current adapter powers the base directly. The base is modular, so further units can be chained in sequence as a checkpoint grows.
Key features
- Seven selectable sensitivity levels — from large-threat screening at the low end to prison and clean-room level detection at the top, selected on the unit and shown by the status LED.
- Self-calibrating, no adjustment required — automatic tuning removes the manual sensitivity trimming that older handhelds needed, so performance does not drift between operators or shifts.
- Four offset settings — eliminate interference between adjacent handhelds or a nearby walk-through detector at the press of the offset button.
- Reduced sensitivity switch — suppresses the response from rebar in floors and walls without giving up detection of the target itself.
- Audio or vibrate alarm — switch-selectable, with a bright red LED alarm indication for silent screening.
- Three-colour LED indication — green for power, white for status and sensitivity level, red for alarm.
- 8-inch scanning surface — wider coverage per pass means fewer passes, simpler scanning patterns and less operator fatigue over a long shift.
- IP 65 and military spec drop test — sealed against dust and water jets, with a microtextured dimpled rubber grip that stays secure in wet or gloved hands.
- 125+ hours per charge — integral lithium-ion battery, full recharge in about 5 hours over USB-C, with no disposable cells to buy or replace.
- Upright securable charging base — holds the detector ready for use, illuminates the charge level, and can be secured in place; additional bases charge in sequence from one high-current adapter.
- Designed to meet international screening standards — NIJ-0602.02 compliant and NIJ-0602.03 draft compliant, and designed to meet ECAC, STAC and TSA requirements.
Typical applications
- Airport and aviation security checkpoints
- Courthouses, government buildings and correctional facilities
- Schools, universities and hospitals
- Stadiums, arenas, concert halls and event entrances
- Casinos, nightclubs and hospitality venues
- Critical infrastructure, manufacturing sites and clean-room loss prevention
Technical specifications
| Type | Hand-held metal detector |
| Detection | Ferrous, non-ferrous and stainless steel weapons, contraband and other metallic objects |
| Sensitivity levels | 7, selectable |
| Tuning | Automatic, self-calibrating |
| Interference management | 4 offset settings; reduced sensitivity switch for rebar |
| Alarm | Switch-selectable audio or vibrate, with red LED indication |
| LED indication | Green = on, white = status / sensitivity, red = alarm |
| Audio frequency | Approx. 2 kHz |
| Scanning surface | 8" (20 cm) scan length |
| Length | 16" (41 cm) |
| Width | 3.375" (9 cm) |
| Thickness | 1.125" (3 cm) |
| Weight | 1 lb (0.5 kg) |
| Ingress protection | IP 65 (IEC 529) |
| Drop test | Meets military specification requirements |
| Operating temperature | −20 °C to +60 °C |
| Humidity | 100 % |
| Battery | Lithium-ion 3.8 V 2.5 Ah, integral |
| Operating time | 125+ h per charge |
| Charging | USB-C, approx. 5 h to full charge |
| Standards | NIJ-0602.02 compliant; NIJ-0602.03 draft compliant; designed to meet ECAC, STAC and TSA requirements |
| Country of manufacture | USA |
In the box
- 1 × Garrett Guide hand-held metal detector
- 1 × Garrett Guide charging base
- 1 × High-current power adapter with international plugs
- 1 × USB-A to USB-C charging cable, 3 ft (0.9 m)
- 1 × Wrist strap
Model information
| Brand | Garrett |
| Model | Guide with Charging Base Kit |
| MPN | 1173010 |
