Description

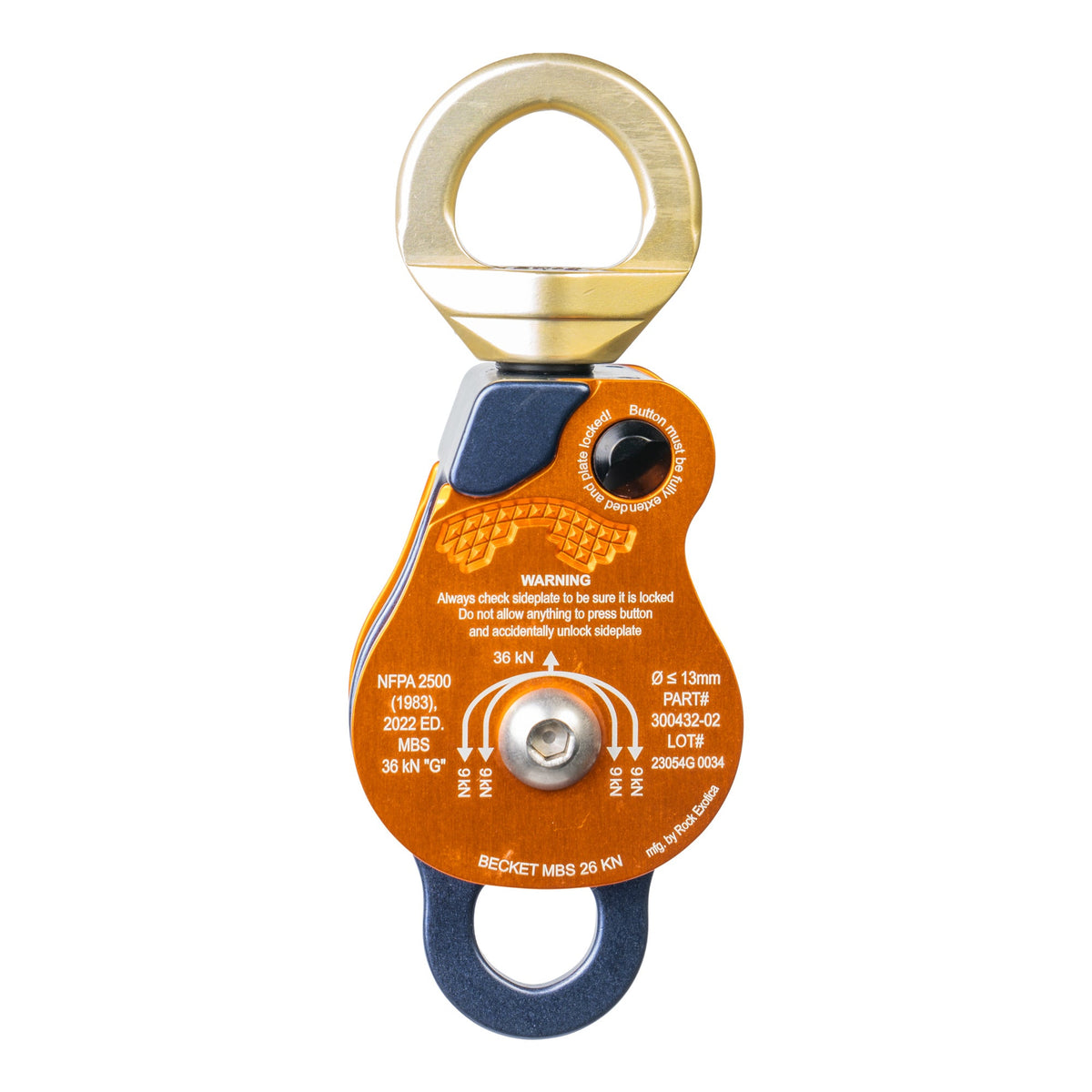

A double-sheave swivel pulley with a pivoting sideplate, built for hauling and mechanical advantage systems in rescue, work at height and tree care.
This double swivel pulley combines a swivel and a pulley in a single device, with a moving sideplate that lets the rope be loaded or unloaded while the unit stays attached to the anchor.
It suits mechanical advantage systems for hauling and ascending, and works well alongside high anchors, tripods and redirects. The double sheave carries an integrated becket.
Key features
- Swivel and pulley combined — Combining the swivel and the pulley shortens the system length and allows more travel.
- Pivoting sideplate — The sideplate pivots so the rope can be loaded without disconnecting from the anchor.

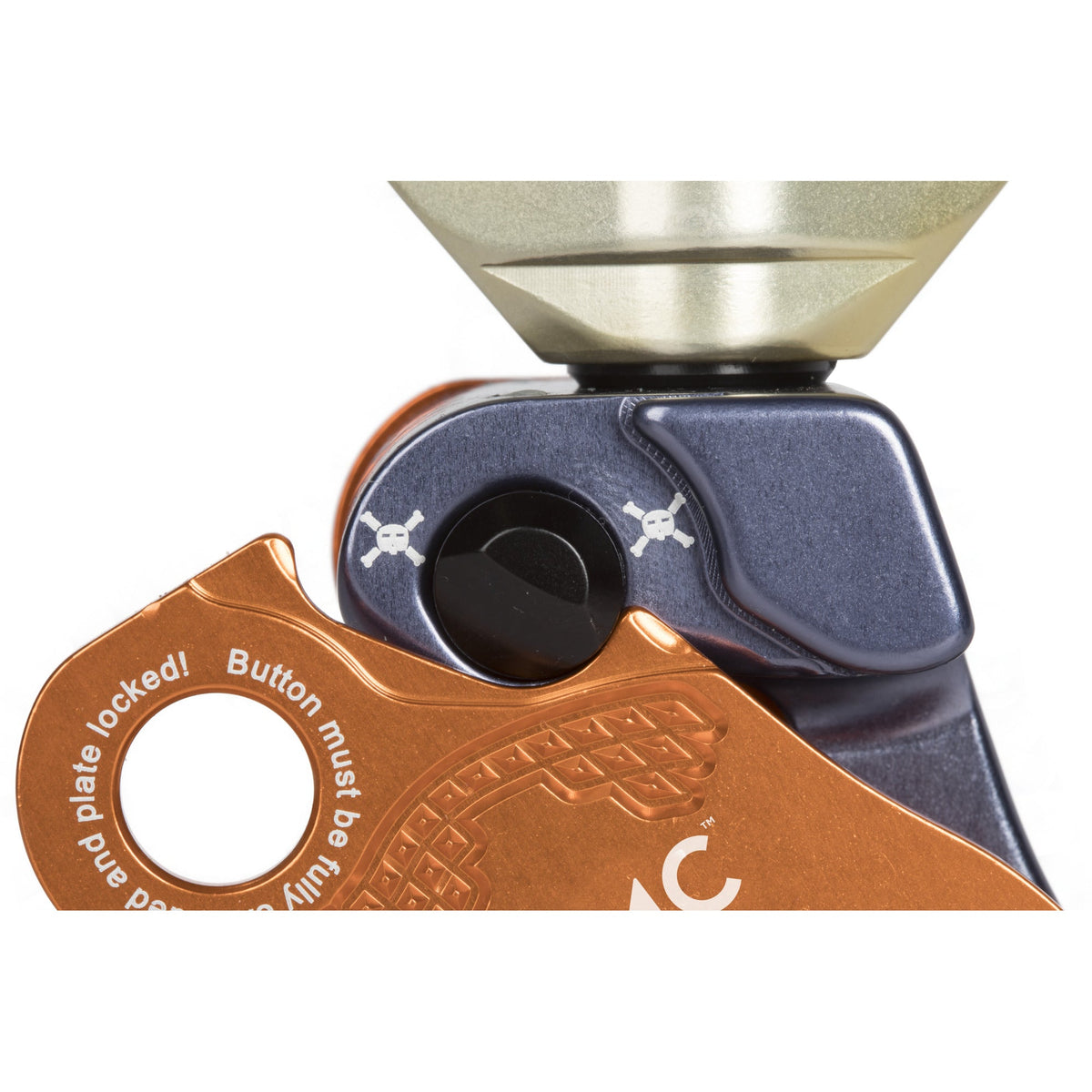

- Double-action detent — A double-action detent button prevents the sideplate from opening accidentally.
- Sealed ball bearings — The sheave is mounted on sealed ball bearings for efficient running.
- Rotating swivel — The rotating swivel aligns the rope with the direction of pull, and can be secured with rope, web or carabiners.

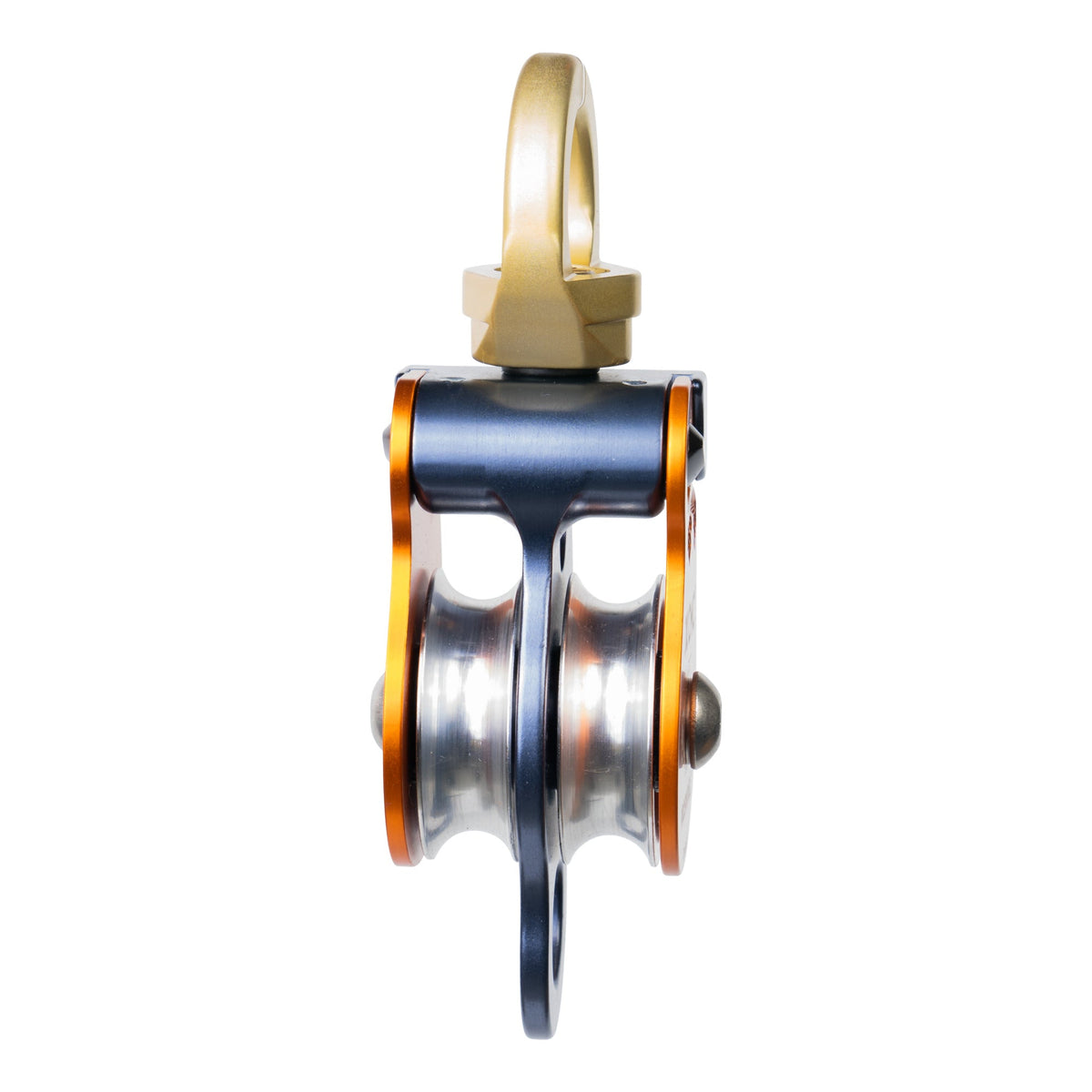

- Integrated becket — The double sheave is equipped with an integrated becket for building mechanical advantage.
- One-handed handling — The ergonomic design allows anchoring and loading with one hand.
- Rope compatibility — Compatible with rope up to 13 mm (1/2 in).
- Rated and classified — Carries an NFPA General Use rating and is UL Classified to NFPA General Use, with CE standard EN 12278 and an MBS of 36 kN (8,093 lbf).
Typical applications
- Hauling and ascending mechanical advantage systems
- Rescue work
- Work at height
- Tree care
Technical specifications
| Weight | 415 g (14.6 oz) |
| Pulley type | Double sheave |
| Sheave material | Aluminium |
| Height × width | 160 × 63 mm (6.3 × 2.5 in) |
| Colour | Bronze / Slate |
| NFPA rating | General use |
| CE standards | EN 12278 |
| Minimum breaking strength | 36 kN (8,093 lbf) |
In the box
- 1 × Pulley, ProSwivel 1.5 in, Double, Bronze / Slate
Model information
| Brand | CMC |
| Model | Pulley, ProSwivel 1.5 in, Double, Bronze / Slate |
| MPN | 300432 |
