Description

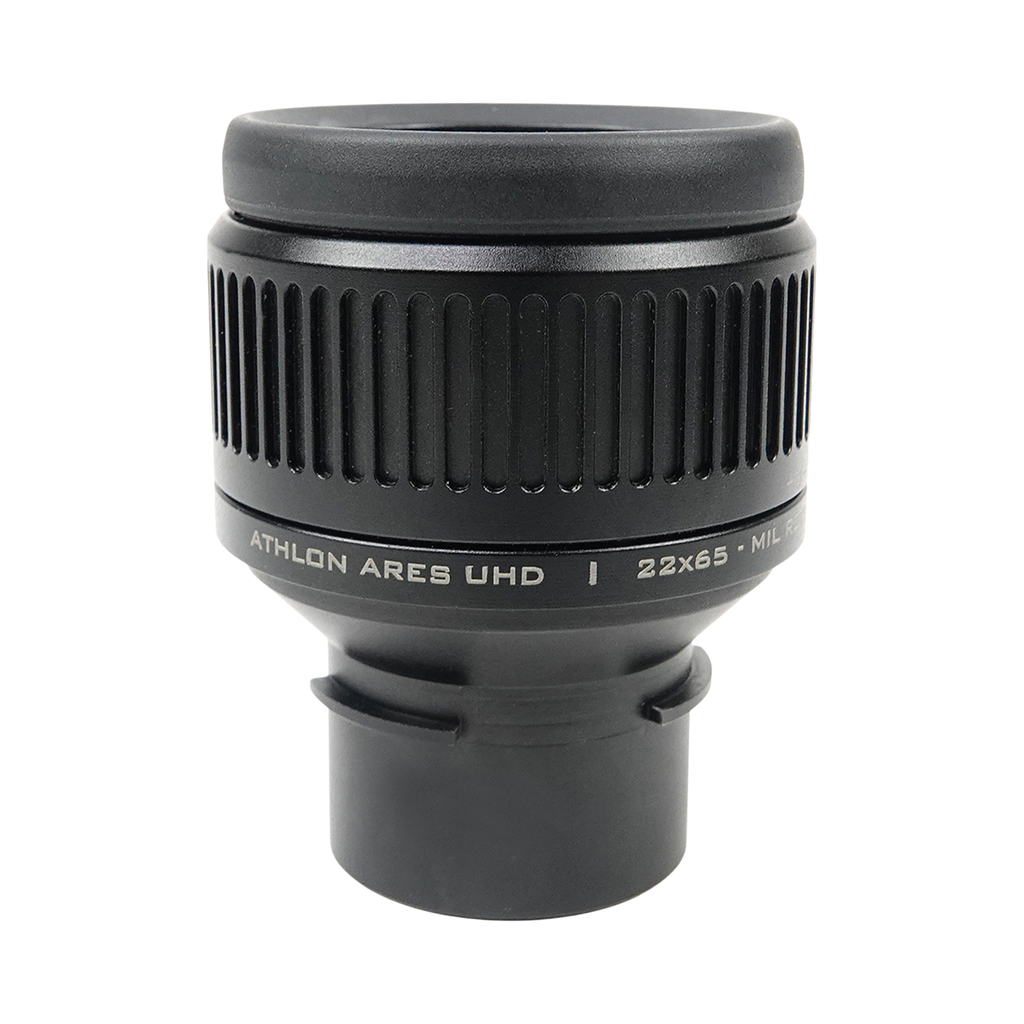

Fixed 22x reticled eyepiece for Ares G2 UHD spotting scopes, with a TSSR2 MIL reticle for range estimation.
The Ares G2 UHD 22x eyepiece is an interchangeable accessory eyepiece that replaces the standard zoom eyepiece on any Ares G2 UHD spotting scope, giving it a fixed 22x view with the second-focal-plane TSSR2 MIL reticle superimposed for range estimation.
The reticle's quick-ranging guides let a spotter read distance to a target of known size in a single glance, without doing MIL-based math in the field, while retaining a full MIL scale and 0.1 MIL fine hash marks for precise readings when needed.
Key features
- TSSR2 SFP MIL reticle — 0.2 MIL hash marks with quick-ranging guides for targets from 300 to 1000 yards.
- Fixed 22x magnification — a dedicated ranging power, independent of the host scope's zoom setting.
- Direct fit — interchanges with the standard eyepiece on any Ares G2 UHD spotting scope.
- Fine 0.1 MIL graduation — between the 5th and 6th MIL for the finest available readings.
Typical applications
- Range estimation for precision rifle shooting
- Long-range target observation
Technical specifications
| Model | Ares G2 UHD 22x Eyepiece |
| Type | Interchangeable spotting scope eyepiece |
| Magnification | 22x (fixed) |
| Reticle | TSSR2, second focal plane, MIL |
| Reticle fine graduation | 0.1 MIL, between the 5th and 6th MIL |
| Reticle offset | 1 MIL below the optical center line |
| Compatibility | Ares G2 UHD spotting scopes (65 mm objective) |
In the box
- 1 × Ares G2 UHD 22x fixed-power eyepiece
Model information
| Brand | Athlon Optics |
| Model | Ares G2 UHD 22x Eye Piece with MIL Reticle |
| MPN | 312006 |
